Entity relation extraction in the medical domain: based on data augmentation

Introduction

Entity relation extraction is an important task in natural language processing (NLP). Its main purpose is to determine the semantic relationship between entity pairs in unstructured text and provide data for the establishment of professional knowledge graphs. Academic books are references that are carefully written by professionals, with high knowledge integrity, and can be regarded as an unstructured professional knowledge base. When relation extraction is performed on unstructured knowledge bases, such as academic books, a knowledge atlas with relatively integrated knowledge can be obtained, which enables knowledge collection to be skipped. However, it also gives rise to a problem, as the number of entity relations in the knowledge base is unbalanced. When a knowledge base is regarded as a data set, this imbalance becomes a characteristic of the data set, making it an unbalanced data set.

Data set imbalance is a common problem in machine learning, for which there are 3 solutions (i.e., merging or removing rare entity relations, downsampling, and upsampling). If the scarce entity relation is merged or removed, the content of the final knowledge base will be incomplete; if the downsampling method is adopted, while the internal class of the data set can be balanced, it may fail to obtain rich features of a large number of entity relations that originally had rich features. Thus, upsampling becomes the only option, and data augmentation is an effective upsampling method.

In this study, we examined how to simultaneously use a variety of simple data augmentation methods to process text and how to use reinforcement learning to determine the specific data augmentation method to be used in the current language environment based on the preferences of different data augmentation methods in different language environments. Finally, a data augmentation method based on reinforcement learning was proposed to manage the data set in an unbalanced state, and entity relation extraction was performed after the internal classes were balanced.

Relevant work

There are 2 main entity relation extraction techniques; that is, template rule-based methods and eigenvector-based methods. Under the template rule-based method, the language features of entity relations are first organized by linguists, after which the corresponding entity relation rules are compiled, and finally, the entity relations are extracted through rule-based matching (1-5). The eigenvector-based methods can be divided into the following two types: traditional machine learning and deep learning. After constructing the eigenvectors, the former uses traditional machine-learning models, such as the maximum entropy classifier (6,7) or support vector machine (SVM) (8), to complete the construction of the entity relation extraction model, whose performance depends mainly on the selection or construction of eigenvectors. Machine learning is relatively simple in eigenvector selection and often only needs to embed characters (words) into a specific vector space to generate the corresponding eigenvector—word vector (9). The main factor affecting the performance of the model is the specific neural network used.

A convolutional neural network (CNN) can fully obtain language features in word vectors (10-12). However, due to the characteristics of convolution, long-distance dependency may occur, such that distant words are difficult to relate. To address this issue, a recurrent neural network (RNN) (13) has been proposed, in which each neuron is connected end-to-end; that is, the input unit of 1 neuron is the output unit of the previous neuron, and its output unit is the input unit of the next neuron. This structural design enables the establishment of a corresponding relationship between two words even if they are far away. However, as the operation process inside the neural unit is mainly performed by multiplication, gradient explosion or disappearance is unavoidable. Accordingly, the transformer neural network (TNN) (14) has been adopted. Through mechanisms, such as self-attention and multi-head self-attention, TNN not only relates two words a long distance apart but also avoids the exploding or vanishing gradients.

As a specific application scenario, more specific problems arise in health care when performing entity relation extraction. For example, when SVM are used for relation extraction, misclassification is more common for some relation classes that are not subdivided, as the process of SVM training is to find the hyperplane that results in the maximum distance between two classes. The subdivision of the relation classes followed by the use of multiple SVMs may address this issue (15).

In circumstances in which the entity pairs in the clinical conversations are not in the same text, Du et al. (16) used cache to store the entities, and then used the joint extraction method to reduce the complexity from O(n⁴) to O(n). Akkasi et al. (17) completed a comprehensive survey of causal relation extraction from a biomedical text using multiple mainstream deep neural models, and used a simple random oversampling technique for data augmentation to reduce class imbalance. Wu et al. (18) proposed a multi-head attention enhanced graph convolutional network, and used this neural network model to extract task data sets from 2 publicly available medical-biological relation extraction task data sets [i.e., Chemical-Disease Relation (CDR) and Chemical-Protein Interaction (CPI)] and to extract biomedical information from a pan-cancer pathology report corpora in multiple hospitals.

Medical entity relation extraction from unbalanced data sets

Problems

Unlike entity relation extraction in the general domain, medical entity relation extraction has to cover medical terminology in a variety of specialties. As medical terms often do not appear in commonly used texts, word vectors trained using general domain texts may not contain these specialist words, which are called out-of-vocabulary (OOV) words. OOV words do not have fixed word vectors that are independently represented. The following two processing methods are usually used: (I) the word vectors of OOV words are uniformly defined as vector 0; or (II) a new word vector is randomly generated every time an OOV word is encountered. In medical entity relation extraction, if the entity is an OOV word, the 1st method cannot effectively distinguish the entity from other types of OOV words, while the 2nd method cannot effectively use the context information of the entity vector. Thus, the word vectors used in this article were word vectors trained using the experimental data sets.

Since the objective of medical entity extraction is typically to build a credible knowledge base, the goal of entity relation extraction is a highly authoritative formal publication. These publications often feature a clear theme, and accordingly the content elucidated may focus on specific topics. Once used as the target of entity relation extraction, the class imbalance will also be highlighted. For example, in our data set (which will be further introduced in the following section), there were 961 entity relations for the class “Medications that can be used to treat a specific disease” but only 78 entity relations for the class “Medicines that can be used to treat a specific symptom.” When data augmentation is not performed, deep-learning models obtain more language features of the former than the latter under the same training conditions. This is because the former enables more training sessions in the models, allowing the models to learn more language features. Thus, to enable the latter to also acquire more language features with a smaller number, we propose data augmentation based on reinforcement learning to expand the volume of entity relations in the latter.

Unbalanced data sets

The experimental data set used in our current study was the “Indications”, “Contraindications”, “Adverse Reactions”, and “Precautions” sections in each chapter of the “The Pharmacopoeia of the People’s Republic of China—Instructions for Clinical Use of Drugs—Chemical Drugs and Biological Products Volume” (abbreviated as “Pharmacopoeia” in this article). As the amount of data in each chapter was still very large, 3,800 sentences were randomly selected for entity relation labeling.

The entity relations were divided into 8 classes (see Table 1).

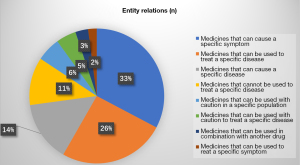

As Table 1 and Figure 1 show, there are large gaps in the numbers of the different classes; the largest class had 1,230 items, accounting for 32.14% of the total, while the smallest class had only 78 items, accounting for only 2.08% of the total. The sum of the top 2 classes accounted for 58.29% of the total. From the perspective of data set design, this data set was a failure as the amount of data was seriously unbalanced; the average number of the classes was 470, but only 3 classes were above the average, and the number of items in the 2nd ranked class was 175.69% of that in the 3rd ranked class. A model trained on such an imbalanced data set will underperform in the classes with the small sample sizes, as the model learns more large-sample features and ignores the small-sample features. For large samples, it is often necessary to downsample to balance the number of samples to qualify the data set. However, given that the data set will serve relation extraction with data augmentation, the use of data augmentation will compensate for the imbalance of the samples rather than upsampling the small-sample class data. From a demand point of view, this data set just fits the demand.

Figure 1 Pareto chart of the number of entity relations.

Chauhan et al. (19) found that compared to coarser-grained annotations, finer-grained annotations are more conducive to training more effective models. Thus, when part-of-speech tagging was performed on the data set, not only was the conventional part-of-speech used to tag the words, but the words that needed to be extracted from entity relations in this article were also classified in more detail. As the entities in the entity relation extraction were nouns, the specialist nouns under part-of-speech were subdivided into “noun-symptom”, “noun-disease”, “noun-medicines”, and “noun-population”, which assisted the model to obtain the relation classification information.

Methods

Traditional data augmentation methods and their shortcomings

Data augmentation is often used for images and audio to maximize the use of each piece of data through specific processing. For example, for image data that are highly visualizable, the available augmentation techniques include cropping, flipping, rotation, scaling, and distortion, which make the image texture features more diverse. Conversely, when text is used as the research object of NLP, its features become more abstract after being extracted by the model, and it becomes difficult to verify whether the features really become more diverse after data augmentation. Thus, data augmentation for text is generally carried out from the perspective of linguistics. For example, translation can be applied to translate the text into another language and then translate it back (20). Thus, the new text has new expressions with its original semantics unchanged.

Some words have synonyms that express the same meanings, and changing the expressions of the text by replacing words with the synonyms is also a useful data augmentation method (21). Notably, the importance varies among different parts of speech in a text. The presence or absence of some words will not cause great changes in the semantics of the text, and these unimportant words can be deleted. Thus, the random deletion of words in the text is another effective data augmentation method (22). However, few people use multiple methods for data augmentation at the same time. Wei (23) systematically sorted out 4 data augmentation methods and tested them one after another, and the results confirmed the feasibility of these data augmentation methods.

Theoretically, all the above methods can efficiently generate new texts. However, in the real world, the quality of new data generated by data augmentation using non-artificial means varies. Thus, the model may be trained by mixing the augmented texts with the non-augmented texts, and reinforcement learning can then be applied to select the appropriate texts to update the model parameters (21).

Most of the traditional data augmentation methods are relatively simple. For methods that require multiple operations in the text, most of them are operated randomly, and the specific method of data augmentation is not determined according to the text content. Further, there is a lack of feedback on the use of the data-augmented texts. Reinforcement learning is used to select the augmented text to improve the efficiency of model training; the feedback is not passed to the data augmentation part, and as a result, it neither increases the efficiency of the data augmentation nor decreases the invalid or unnecessary data augmentation operations. Thus, we proposed a reinforcement learning-based data augmentation method.

Reinforcement learning-based data augmentation

Instead of using a single data augmentation method, we chose to modify the method initially proposed by Wei (23). The new data augmentation method is as follows:

• Synonym/class word replacement: replace the word in the corresponding position with its synonym/class word;
• Position replacement: randomly replace words in 2 positions;
• Synonymous/class word replacement + position replacement: replace a word with its synonym/class word and also replace its position with another word;
• Word deletion: randomly delete the word at the current position.

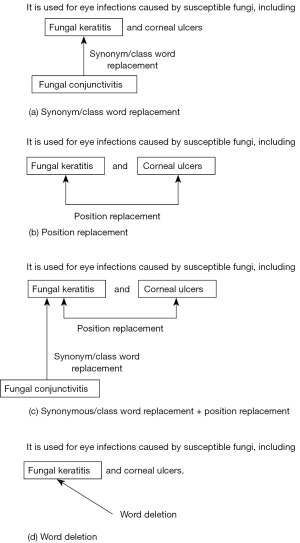

Figure 2 illustrates the application of 4 data augmentation methods for the same word/phrase in the same text. Notably, the word/phrase is not only replaced by its synonym but also by its class word, as there may be a lack of synonyms or aliases for a specific noun, and the use of class words can increase the diversity during data augmentation.

Figure 2 Data augmentation.

However, the simultaneous use of multiple data augmentation methods in the same text will introduce more noise than the use of only 1 single data augmentation method. Additionally, the importance of different parts of speech in the text also differs, and it is important to define the weights of different data augmentation methods according to different parts of speech. Thus, we introduced the idea of reinforcement learning into data augmentation and proposed a reinforcement learning-based data augmentation method.

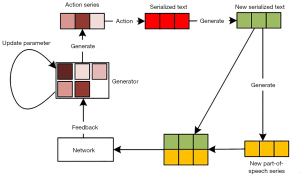

Figure 3 provides a simple flow chart of reinforcement learning-based data augmentation. This new method addresses the lack of connection between the neural network model and the data augmentation module in traditional data augmentation. Additionally, due to the increased connection between them and the timely feedback of the neural network, the generator module responsible for the data augmentation can optimize and determine the parameters of the data augmentation method in a timely manner according to the feedback, thus achieving biased data augmentation in relation to different parts of speech.

Figure 3 Reinforcement learning-based data augmentation.

The timing of data augmentation in texts is also important. We adopted the same ratio (15%) as MASK in Bi-directional Encoder Representation from Transformers (BERT) (24) for the data augmentation. In the initial state, the probabilities of the 4 data augmentation operations are equal. During model training, the probabilities of these 4 operations are rewarded based on the results of the neural network as per Eq. [1], which states:

w'=w+action[1]

where w' represents the updated weight, w represents the original weight, and action is the reward value.

After each operation is rewarded, the balance of the original equal-probability operations is broken, such that the generator module that performs the data augmentation will have different preferences in different situations. With the deepening of model training, the data augmentation of the text will become more reasonable.

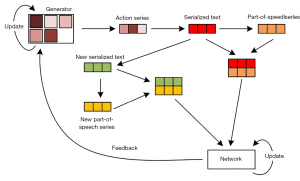

Figure 4 shows the process that the text actually undergoes in entity relation extraction during reinforcement learning-based data augmentation. First, the generator generates a data-augmentation action sequence, which allows the operation by the action sequence on the text. Second, 2 part-of-speech sequences are obtained from the text, which are spliced with the text sequence and then put into the neural network for training. Since a loss value representing the fitness between the text and the model will be generated during training, it is possible to know whether the text before augmentation or the text after augmentation fits the model better by comparing the loss value. The model is updated with the training parameters of the more fitting text. If the post-augmentation text fits the model better, the generator module will be rewarded according to the action sequence, and its parameters will be updated.

Figure 4 Entity relation extraction in reinforcement learning-based data augmentation.

Compared to simple text-based data augmentation, the reinforcement learning-based data augmentation uses more data augmentation methods and also considers the connection between the generator module responsible for data augmentation and the trained model. As a result, the data augmentation is no longer conducted by random selection but is done in a more selective and biased manner. In particular, the introduction of part-of-speech vectors increases the directionality of the bias and the availability of post-augmentation text.

Statistical analysis

All Statistical analysis of medical literature data was performed using SPSS software (version 22.0, IBM Corp., Armonk, NY, USA). The quantitative data are expressed as the mean ± standard deviation (SD) for normally distributed data, or the median (interquartile range) for non-parametric data. Categorical variables of 8 valid entity relations were analyzed using the chi-square tests and Student’s t-test. P value <0.05 was considered to be statistically significant.

Results

Assessment criteria

We analyzed the performance of the model from the following two perspectives: (I) the ability of the model to classify each entity relation; and (II) the overall classification performance of the multi-class model. The former is measured using precision, recall, and F score, and the latter was assessed using MACRO precision, MACRO recall, and MACRO F score.

The above assessment values were calculated from the predicted results. “True” and “False” represent whether the sample is correctly predicted, and “Positive” and “Negative” represent the prediction results of the samples. Pairwise matching yielded four combinations: true positive (TP), false positive (FP), true negative (TN), and false negative (FN).

Precision, also known as the precision rate, is calculated as the number of correct positive predictions divided by the total number of positive predictions and is calculated as follows:

Precision=TPTP+FP[2]

Conversely, accuracy refers to how much of the entire sample was successfully predicted and is calculated as follows:

Accuracy=TP+TNTP+FN+FP+TN[3]

Recall, or the true positive rate, is the measure for how many true positives get predicted out of all the positives in the data set. It is sometimes also called the sensitivity, and is calculated is follows:

Recall=TPTP+FN[4]

Precision and recall are not sufficient to assess how good a model is. They are often negatively correlated and need to be balanced. As it is not intuitive to compare precision and recall among multiple models, a new metric, F_β-score, was introduced to combine these two ratios to intuitively evaluate the pros and cons of a specific model.

Fb=(1+b2)PrecisiongRecallβ2Precision+Recall[5]

Where β represents the different weights of precision and recall after merging, and F_β represents the importance of recall and precision. Under normal circumstances, the β value is 1 (i.e., F₁), which indicates that precision and recall are equally important.

For the multi-class models, the F₁ value of each class does not indicate the performance of the model, as each classification has different results depending on the model, making it difficult to evaluate model performance. Thus, the performance of multi-class models is assessed using MACRO precision, MACRO recall, and the MACRO F value. The formulas are as follows:

precisionma=∑i=0IprecisioniI[6]

recallma=∑i=0IrecalliI[7]

macroF1score=2precisionma×recallmaprecisionma+recallma[8]

Experimental setup

In our study, the following 3 basic models for entity relation extraction were used to verify the availability of reinforcement learning-based data augmentation: TEXT CNN (textCNN) (25), long short-term memory (LSTM) (26), and gated recurrent unit (GRU) (27). Among these 3 models, the LSTM model adopted was the bi-directional long short-term memory (Bi-LSTM) model. In relation to the hyperparameters, the TEXTCNN model used 16 convolution kernels with widths of 4 and 6, while both the GRU and Bi-LSTM models used a hidden layer with a dimension of 50, the learning rate was fixed at 0.01, and the number of training rounds was 25.

As the data set was unbalanced, more data augmentation was required for the sample classes with lower data volumes; however, data augmentation should be minimized for classes with large data volume. The following formulas were used:

P(0)=niN[9]

P(1)=1−P(0)[10]

where 0 and 1 represent no data augmentation and data augmentation, respectively, n_i is the number of current relation classes, and N is the total number of corpora in the corpus.

Notably, data augmentation actions should not be performed on all words. Data augmentation will not distort a sentence by excessive veter shift in the sentence, but too much data augmentation will change the meaning of the sentence, and the sentence will become a meaningless sequence of words. Inspired by the BERT (19) pre-training model, we only changed about 15% of the words in the sentences, and the remaining 85% remained unchanged. In this way, the semantics represented by the original sentences were preserved as much as possible.

Experimental results

The experiments were performed using 3 common neural networks, including textCNN, GRU, and Bi-LSTM. In the experiments, no data augmentation, traditional data augmentation, or reinforcement learning-based data augmentation were conducted independently. By comparing the evaluation indicators of the classification ability of each entity relation among different models and the MACRO evaluation indicators of each model, we tried to identify the values of the data augmentation techniques for different neural network models. In the following tables, A (Augment) represents data augmentation technology based on traditional methods and AR (Augment with Reinforcement) represents the reinforcement learning-based data augmentation.

Table 2 shows the experimental results for data augmentation on textCNN. Notably, for the entity relation classes with large data volumes, the use of a random method for data augmentation achieved certain improvements, but this was not the case for the entity relation classes with small data volumes. After the data augmentation operations, there were various degrees of classification failure, and the entity relations could not be correctly classified at all. Only the class “Medicines to be used with caution in a specific population” was correctly classified because the entity “population” is a unique entity type. In relation to the reinforcement learning-based data augmentation, in addition to the entity relation class, “Medicines to be used with caution in a specific population”, the classification ability of the textCNN was significantly improved.

Table 3 lists the experimental results of the data augmentation for GRU. The classification performance of the randomized data augmentation decreased for 4 entity relations and increased for 3 entity relations. For the class, “Medicines that can be used with caution to treat a specific disease”, the classification performance was changed from “Medicines that cannot be correctly classified at all” to “Medicines that can be correctly classified but with low probability” after data augmentation. Additionally, the class “Medicines that can be used to treat a specific symptom”, which had a small data volume, remained totally unclassified.

In the reinforcement learning-based data augmentation, the classification performance was slightly decreased for only 2 classes, among which the class, “Medicines that can be used with caution in a specific population” dropped by 0.004 only. Given the presence of measurement error, the classification performance could be considered not to have changed. The classification performance of the other 6 entity relation classes was significantly improved. Notably, the F value of the class, “Medicines that can be used with caution to treat a specific disease” increased greatly from 0 (before data augmentation) to 0.7711 (after data augmentation), indicating that it had a relatively reliable classification performance. Notably, for the class, “Medicines that can be used to treat a specific symptom”, the F1 value was both 0 in the no-augmentation group and randomized augmentation group but increased to 0.5 in the reinforcement learning-based data augmentation group.

Table 4 shows the experimental results of data augmentation in Bi-LSTM. For Bi-LSTM without any processing, nearly half of the entity relation classes in the unbalanced data set were completely unpredictable. After randomized data augmentation, 2 entity relation classes changed from “completely unclassifiable” to “low relation classification performance”; however, there were still classes that changed from “low relation classification performance” to “completely unclassifiable”. In general, the classification performance was improved in 5 classes, decreased in 2 classes, and was completely unclassifiable in 1 class. The last class remained completely unclassifiable even after reinforcement learning-based data augmentation.

The performance of reinforcement learning-based data augmentation was also poor in Bi-LSTM. Indeed, it only increased in 3 classes and decreased in 3 classes, and for the first time, a classification of “completely unclassifiable” was recorded. For the randomized data augmentation, the performance was improved in only 3 classes but decreased in the remaining 4 classes. Among them, the performance of the class, “Medicines that can be used in combination with another drug” declined from “low reliability” to “completely unclassifiable”.

For textCNN and GRU, the improvement in classification performance by randomized data augmentation was very limited. Conversely, reinforcement learning-based data augmentation dramatically increased the classification performance of each entity relation class. As the basically bold F1 values show, the use of reinforcement learning-based data augmentation is quite effective in both network models. For Bi-LSTM, no matter which data augmentation technique was applied, the classification performance of the model was not stably elevated, and there was a possibility of performance degradation. This may be due to the use of data shuffling in the data augmentation, which degrades the classification performance of Bi-LSTM that relies heavily on time series data.

According to the MACRO F1 score of the models (see Table 5), there were few improvements in the performance of the models when Bi-LSTM was used for the data augmentation. The performance of other models was significantly improved with MACRO F1 scores of around 0.60. The neural network model with the highest MACRO F1 score changed from GRU to textCNN, and the performance worsened after combination with Bi-LSTM. This may be because the time series-sensitive RNN learned a large number of noises due to the change in the order of words during the data augmentation.

Conclusions

In this article we examined the use of reinforcement learning-based data augmentation for entity relation extraction in the medical domain. Typically, a single data augmentation method is applied in NLP. Further, when multiple data augmentation methods are used, they are not simultaneously applied to the same text. For the data augmentation methods that require multiple operations, the random approach is applied to the text without considering the specific content of the text. Additionally, there is no effective feedback between the data augmentation module and the model, and the training results do not improve the subsequent data augmentation and thus the usability of the text.

Thus, we proposed a reinforcement learning-based data augmentation method that adopts a variety of data augmentation methods to act on the same text. By establishing a connection between the data augmentation module and the model, this new method feeds the training results back to the data augmentation module in. a timely manner, helping the data augmentation module to continuously improve the results of the data augmentation and finally achieving the purpose of applying different data augmentation methods according to the text content.

When the traditional data augmentation and reinforcement learning-based data augmentation are applied to entity relation extraction of unbalanced data in the medical field, both data augmentation techniques effectively improve the entity relation extraction. As the various model evaluation indicators show, the reinforcement learning-based data augmentation method performed better than the traditional method.

However, reinforcement learning-based data augmentation has some limitations. Text is a kind of time series data; however, the new data augmentation method is based on the text content only and neglects the contextual information. Thus, the efficiency of the data augmentation can still be improved. In addition, as reinforcement learning is typically used in the context of Markov-Decision Process (MDP), we intend to integrate MDP into the reinforcement learning-based data augmentation method.

Acknowledgments

Funding: This study was funded by the Research and Development Project of the Ministry of Education—China Mobile Communication Corporation Joint Laboratory for Mobile Medicine.

Footnote

Data Sharing Statement: Available at https://atm.amegroups.com/article/view/10.21037/atm-22-3991/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://atm.amegroups.com/article/view/10.21037/atm-22-3991/coif). LL, XW, JZ and JL are from Hunan Creator Information Technology Co., Ltd. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
