Longitudinal variation of endolymphatic hydrops in patients with Ménière’s disease

Introduction

Ménière’s disease (MD) is an inner ear condition that is not fully understood. MD has an estimated prevalence of 0.19–0.27% (1,2) and is characterized by symptoms of fluctuating low-frequency sensorineural hearing loss, vertigo, tinnitus, and aural fullness (3). The clinical symptoms of MD can overlap with other clinical entities and commonly fluctuate, while the clinical phenotype and severity of symptoms of MD vary among patients. Accordingly, MD can be a controversial and difficult disease with respect to diagnosis, pathogenesis, and optimal treatment (4,5). Initially, endolymphatic hydrops (EH) was assumed to be causative in MD as a result of research by Hallpike and Cairns cementing the association of MD with EH in 1938 (6). However, doubts have subsequently been raised regarding this hypothesis. Nadol (7) suggested that EH represents the end-stage of many damaging processes rather than a single disorder, while Merchant et al. (8) depicted EH as an epiphenomenon. However, in a meta-analysis of 541 hydropic temporal bones, Foster et al. (9) theorized that a combination of vascular disease with EH, a preexisting anatomic lesion, may cause MD. In addition, a scoping review found that MD is a multifactorial disease caused by structural dysfunction, immunologic damage, and genetic susceptibility, with EH a crucial pathophysiology for MD (10). Regardless, the association between EH and MD remains ambiguous.

Currently, while the cause of MD remains undetermined and controversial, a pathophysiological substrate is known for EH. Distension in the endolymphatic space of the membranous labyrinth, partially or fully occupying the usual perilymphatic space, has been reported based on temporal bone studies (6). Moreover, some studies have proposed perilymphatic enhancement (PE) as an additional discriminating parameter for MD (11-14). Recently, gadolinium contrast-enhanced magnetic resonance imaging (MRI) has been used to acquire in vivo imaging of EH and PE, allowing an assessment of the degree of EH and PE presented in the vestibule and cochlea (12,15-17). Moreover, the 2020 revised diagnostic criteria (18) for MD reported by Japan demonstrated that the MRI examination is necessary to diagnosis the MD. With these, there is potential for improving our understanding of the relationships of EH and PE with MD and the natural history of the disease and assess changes in response to treatment (12,15-17). It is known that MD is a chronic condition. Early detection of EH and PE by MRI and dynamic monitoring of longitudinal variation in EH and PE are very important for understanding the relationship of EH and PE with MD. However, longitudinal studies regarding the evolution of EH and PE in MD are scarce (19-23). Studies with small groups of patients have assessed changes in EH during or after treatment by using delayed intravenous contrast-enhanced MRI (19-23). Moreover, these studies compared EH before and after a particular therapy. Therefore, there may be some bias in these results. Additionally, to our knowledge, no prior studies have been performed to assess the serial changes in PE. The assessment of longitudinal changes in EH and PE is important for developing an understanding of the relationships of EH and PE with MD.

Therefore, in the present study, we aimed to explore how EH and PE behaved longitudinally in a larger group of patients with MD over 2 hospitalizations and determine the relationships of EH and PE with MD. We present the following article in accordance with the MDAR reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-22-6313/rc).

Methods

Patients

To obtain detailed and complete clinical data, 77 patients with definite unilateral MD according to the 2015 revised diagnostic criteria of the Bárány Society (24), twice admitted to the Department of Otolaryngology at Shandong Provincial ENT Hospital between August 2018 and May 2022, were enrolled in this study. The selection criteria were as follows: (I) diagnosis of definite unilateral MD in 2 hospitalizations; and (II) 2 MRI and pure-tone average (PTA) examinations, respectively, performed at the 2 hospitalizations. The exclusion criteria were as follows: (I) physical trauma or neoplasm; (II) prior ear surgery or treatment with chemotherapeutic agents or other immunosuppressive drugs; (III) magnetic resonance (MR)-related contraindications; and (IV) second hospitalization for other vertigo disorders. This retrospective study was approved by the ethics committee of Shandong Provincial ENT Hospital (No. 20220112) and conducted in accordance with the Declaration of Helsinki (as revised in 2013). Because of the retrospective nature of the research, the requirement for informed consent was waived. A flowchart of patient enrollment is provided in Figure 1. At the time of diagnosis, all patients underwent MRI and PTA (GSI-61). All patients then received continuous medication or surgery. A second MRI and PTA examination were performed at the second hospitalization.

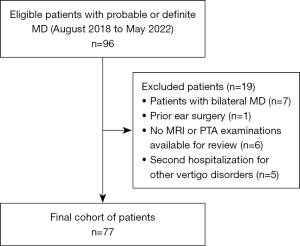

Figure 1 Flow chart showing patient inclusion in the study. MD, Ménière’s disease; MRI, magnetic resonance imaging; PTA, pure-tone average.

MR experiments and intravenous gadobutrol injection

All scans were performed on a 3-tesla MR system (Discovery 750w, GE Healthcare, Waukesha, WI, USA) equipped with a 19-channel phased-array head and neck coil or a 3-tesla MR system (MAGNTOM Prisma, Siemens Healthineers, Erlangen, Germany) with parallel transmit technology (TimTX TrueShape, Siemens Healthineers) and a 64-channel array head and neck coil. The 3D-FLAIR or 3D-SPACE real IR (3D-real IR) imaging sequence was applied 6 hours after intravenous injection of a double-dose (0.4 mL/kg body weight) of gadoteridol (ProHance, Singen, Germany), as per a previous study (25). Meanwhile, 3D T2-weighted image (T2WI) or 3D-SPACE T2WI was performed to obtain reference anatomic images of the labyrinthine fluid space. The parameters of 3D-SPACE T2WI sequences were: field of view (FOV) =162 mm × 82 mm, repetition time (TR) =1,200 ms, echo time (TE) =125 ms, slice thickness =0.5 mm, and acquisition time (TA) =3 min 47 s. Parameters of 3D-real IR protocol were: FOV =162 mm × 80 mm, TR =8,000 ms, TE =491 ms, inversion time (TI) =2,250 ms, slice thickness =0.6 mm, and TA =15 min 12 s. The parameters of 3D-FLAIR sequence were: TR =9,000 ms, TE =130 ms, TI =2,500 ms, echo train length (ETL) =140, bandwidth =36 kHz, slice thickness =1.6 mm, overlap =50%, FOV =210 mm × 160 mm, and TA =5 min 46 s. The parameters of 3D-T2WI sequence were: TR =2,500 ms, TE =102 ms, ETL =120, bandwidth =42 kHz, slice thickness =1.0 mm, overlap =50%, FOV =210 mm × 160 mm, and TA =2 min 41 s.

Data collection and analysis

Clinical data collection

Clinical data including age, sex, duration of disease (defined as the time since the onset of the first disease-related symptom, e.g., vertigo or hearing loss), duration of vertigo attacks (the longest duration of vertigo attacks before the hospitalization), frequency of vertigo attacks (the mean number of vertigo episodes in 1 month before the hospitalization), the time interval between the 2 hospitalizations, and PTA were collected and recorded. The PTA (500 Hz, 1, 2, and 4 kHz), low-frequency (125, 250, and 500 Hz), middle-frequency (1 k and 2 k Hz), and high-frequency (4 and 8 kHz) hearing thresholds were evaluated. Staging was based on the three-tone average of the pure-tone thresholds at 0.5, 1 and 2 kHz of the worst audiogram during the interval 6 months before MRI scanning (26).

Imaging analysis

All MR images were evaluated with the ADW 4.7 workstation (GE Medical Systems) in different sessions by 2 independent radiologists with 10 and 15 years of working experience, respectively, and blinded to the clinical data. The time interval between reading sessions for the 2 radiologists was more than 3 days. The 2 MR images were randomly evaluated. Finally, any discrepancies between the 2 radiologists were resolved by another radiologist with 20 years of experience.

The degree of EH in the cochlea was classified into 3 groups: none, grade I, and grade II, according to criteria described previously (12,17). In the vestibule, degree was classified into 4 groups: none, grade I, grade II, and grade III. PE in the 77 affected cochlea was visually assessed with a 2-point score system: 1, equal or lower signal intensity (SI) compared with the asymptomatic ear; and 2, higher SI compared with the asymptomatic ear (Figure 2) or similar to the SI of patients with acute blood-labyrinth barrier (BLB) breakdown (12,14). For patients with MRI examinations at 2 hospitalizations with the same MR system, we quantified the PE using a modified version of the method by van Steekelenburg (14). The signal intensity ratio (SIR), a quantitative index of PE, was calculated with an oval region of interest (ROI) along the edge of cochlear basal turn (SI_peri) divided by a reference measurement of 10 mm² circular ROI in the left middle cerebellar peduncle (SI_lmcp, Figure 2C). Radiologists measured each ROI twice for each patient and averaged these SIs for analysis.

Figure 2 Axial 3D-FLAIR images after intravenous gadolinium of a patient with definite unilateral right-sided Ménière’s disease (A-C). (A,B) At the level of the cochlear basal turn are the same images. (B) Shows a visually increased perilymphatic enhancement in the right cochlea compared with the left cochlea (score 2). (C) Was at the level in the left middle cerebellar peduncle. Measurements of signal intensity were performed by drawing an oval region of interest along the edge of the cochlear basal turn (A, oval #1) and a circular region of interest at the left middle cerebellar peduncle (C, circle #1) to calculate the signal intensity ratio.

Statistical analysis

Statistical analyses were performed using SPSS version 25.0 (IBM, Chicago, IL, USA). Interobserver agreement was tested using kappa (κ) statistics. The Wilcoxon signed-ranks test or paired Student’s t-test was performed to evaluate differences between the 2 hospitalizations. Kendall’s tau-b correlation analysis was conducted to explore the correlation between the MD stage and the degree of EH in the cochlea and vestibule. Spearman’s correlation coefficient was used to investigate the relationship between SIR and MD stage. Statistical significance was set at P<0.05.

Results

Population

The baseline clinical characteristics of the study cohort are summarized in Table 1. There were 45 male and 32 female patients with a mean age of 50.73±12.95 years (range, 28–79 years). Disease duration ranged from 0.33–240 months (median, 18 months), and the time interval between 2 hospitalizations was 1–44 months (median, 10 months).

Vertigo and PTA

The median for duration of vertigo attacks at the first hospitalization was 3 hours, and that of the second hospitalization was 2 hours. Consequently, there was no difference in duration of vertigo attacks [d=0.00, 95% confidence interval (CI): −1.50 to 1.29, Z=−0.21, P=0.834]. In addition, there was no significant difference in the number of vertigo episodes per month (d=0.25, 95% CI: −0.50 to 1.50, Z=−0.75, P=0.451).

The medians for PTA, low-frequency, middle-frequency, and high-frequency hearing thresholds at the first hospitalization in the affected ear were 48.75, 46.67, 45.00, and 57.50, respectively, and that of the second hospitalization were 55.00, 50.00, 55.00, and 65.00, respectively. Consequently, there was a significant difference between the 2 hospitalizations (Z=−3.02, −1.96, −2.73, and −3.05, respectively, P=0.003, 0.049, 0.006, and 0.002, respectively), while there was no significant difference in the asymptomatic ear (all P>0.05) (Table 2, Figure 3).

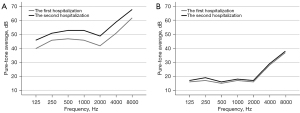

Figure 3 Pure-tone average at the first and second hospitalization in the affected (A) and asymptomatic (B) inner ear.

EH

All patients had a notably high signal in the perilymph space of the cochlea, vestibule, and semicircular canal, whereas the endolymphatic space showed a low signal with a clear outline of the cochlea, saccule, and utricle. Kappa values evaluating interobserver agreement for cochlear and vestibular hydrops and score of visually cochlear PE are listed in Table 3.

The percentage of EH in affected and asymptomatic ears at the second hospitalization was higher than that of the first hospitalization (19.48% vs. 11.69%, P=0.014), whereas that in the affected ear was comparable (96.2% vs. 92.2%, P=0.083). The percentages of no cochlear EH, cochlear EH (I), and cochlear EH (II) in the asymptomatic inner ear were 90.9% and 84.4%, 5.2% and 5.2%, and 3.9% and 10.4% at the first and second hospitalizations, respectively. The percentages of no vestibular EH, vestibular EH (I), vestibular EH (II), and vestibular EH (III) were 90.9% and 84.4%, 6.5% and 5.2%, 2.6% and 9.1%, and 0.0% and 1.3%, respectively (Table 4). The cochlear and vestibular EH in the asymptomatic ear at the second hospitalization was significantly worse than that in the first hospitalization (Z=−2.33 and −2.49, P=0.020 and 0.013, respectively, Figure 4). However, there was no difference between the 2 hospitalizations in cochlear and vestibular EH in the affected ear (Z=−1.59 and −1.71, P=0.112 and 0.087, respectively) (Table 4, Figure 4).

Figure 4 A 3D-FLAIR (A) and 3D-real IR (B) MRI of a 71-year-old man with definite unilateral left-sided Ménière’s disease at the first and second hospitalization, respectively. There is no apparent change in the degree of cochlear hydrops (arrows) in the bilateral inner ear or vestibular hydrops (arrowhead) in the left inner ear, whereas the degree of vestibular hydrops (arrowhead) in the right inner ear progressed. MRI, magnetic resonance imaging.

The relationships between MD stage and degree of cochlear and vestibular EH at the first and second hospitalizations are illustrated in Figure 5. Interestingly, the degree of cochlear and vestibular EH was correlated with MD stage (first hospitalization: cochlear EH, Kendall’s tau-b =0.440, P<0.001; vestibular EH, Kendall’s tau-b =0.341, P=0.001; second hospitalization: cochlear EH, Kendall’s tau-b =0.282, P=0.006; vestibular EH, Kendall’s tau-b =0.270, P=0.007).

Figure 5 Correlation between the Ménière’s disease stage and degree of EH in the affected cochlea and vestibule at first (A) and second (B) hospitalization. Stage 1 refers to the first hospitalization, and stage 2 refers to the second hospitalization. EH, endolymphatic hydrops.

PE

The scores for visually PE in the 77 affected cochleae of patients with MD are listed in Table 5. There was no difference between the 2 hospitalizations in scores for the cochlea in the affected ear (Z=−1.60, P=0.109). There were 38 patients with MRI examinations at the 2 hospitalizations with the same MR system. For these patients, the mean SIR values of the affected cochleae were 4.18±3.84 and 4.09±3.27 at the first and second hospitalizations, respectively. Consequently, there was no significant difference between the 2 hospitalizations in the SIR values (d=0.09, 95% CI: −0.43 to 0.62, t=0.36, P=0.721). Meanwhile, the visual or quantitative PE in the affected cochlea was not related to the MD stage (all P>0.05).

Discussion

In this study, we explored how EH and PE behave longitudinally in a larger group of patients with MD over 2 hospitalizations to understand the relationships of EH and PE with MD. We concluded that EH and PE assessed by MRI remained unchanged in the affected ear, and EH developed in the asymptomatic ear in MD patients over 2 hospitalizations. Additionally, the degree of EH varied with stage of MD.

EH and vertigo

The results of our analysis demonstrated that the duration of vertigo attacks, frequency of vertigo attacks, and EH in the affected inner ears showed no differences between 2 hospitalizations, whereas EH developed in the asymptomatic ears. The EH assessed by MRI was unchanged in the affected inner ear between 2 examinations, which is in concordance with previously published studies (19,23). Currently, the functional role and evolution of EH during the natural course of MD remains controversial (8,9). EH is usually expected to change in association with vertigo episode changes if EH alone generates and correlates with the clinical symptoms of MD (22). However, the duration of vertigo attacks, frequency of vertigo attacks, and EH in the affected inner ears remained unchanged over 2 hospitalizations in the present study. Moreover, vertigo attacks recurred in all 77 patients. This result was likely due to 4 possible causes: (I) The change of clinical symptoms in these patients may have been a coincidence related to normal symptom fluctuation (21,27). (II) An acute increase in the endolymphatic space which was too small to be shown by MRI caused the vestibular disorder (28,29). (III) EH developed independently of MD vestibular symptoms. Previous studies have reported that vertigo control during or after treatment was not always a result of the reduced EH (19,22,23,30). (IV) One or more additional (unknown) cofactors, such as vascular risk factors, other than EH related to the MD symptoms (9). This was proven by the finding that EH and MD were found in association in 100% of 163 cases when the definition of MD was strictly applied. In addition, Gürkov et al. (31) speculated that EH was necessary but insufficient for the display of the full symptom triad of MD.

EH and PTA

We demonstrated that PTA remained unchanged in the asymptomatic ear and worsened in the affected ear of MD patients over 2 hospitalizations, while the degree of EH was unchanged in the affected ear and worsened in the asymptomatic ear. Several reports have shown that the degree of EH is correlated with loss of audiovestibular functions (32,33). However, the association between hearing loss and EH is not uniform in each patient (31). It may be that changes in EH precede that in hearing loss. One study reported that the displacement of basilar membrane, an essential part of the mechanoelectrical transfer function of the hearing system, caused by EH led to hearing loss (34). Moreover, the previous study indicated that hearing in patients with intractable MD worsened gradually over 2–13 years (35). Alternatively, EH is necessary but not sufficient to cause hearing loss. A prior study has noted that EH is very often present in the asymptomatic ear (36). Although the percentage of EH in asymptomatic inner ears in this study was lower than that found in previous research (36), EH in the asymptomatic ear at the second hospitalization was significantly worse than that of the first hospitalization, whereas PTA was not. This suggested that there were some additional cofactors that convert asymptomatic EH into symptomatic MD (9). Furthermore, the incidence of symptomatic and functional involvement of the asymptomatic ear in typical unilateral MD increases almost linearly with the length of observation (31). In addition, it has been well acknowledged that unilateral MD is highly likely to progress to bilateral MD over time (37), and this results in a bilaterality rate of almost 50% at 30 years after onset of unilateral MD (38).

The degree of EH varied with MD stage. Interestingly, the degree of vestibular EH increased with MD stage at the first hospitalization. However, degree of cochlear EH decreased with MD stage when it changed from stage 3 to 4, as did degree of cochlear and vestibular EH at the second hospitalization. However, our results were not entirely consistent with a previous study (39). This may have been because Sun et al. (39) analyzed the relationship between total EH index and MD stage and did not separately analyze the relationship of cochlear EH index or vestibular EH index with MD stage. Alternatively, Sun et al. only analyzed once examination showing the relationship between EH and MD stage, which was consistent with our vestibular EH at the first hospitalization. Although the prevalence and severity of EH have been demonstrated to progress with the duration of MD (40) and correlate with the worsening of audio vestibular function (32,33), the degree of EH decreased with MD stage when it changed from stage 3 to 4 at the second hospitalization in this study. The reasons for this result are unclear but may be because of the rupture and repair of Reissner’s membrane (41,42) due to overdistension of the endolymphatic compartment with the duration of MD. This leads to an intermixing of a certain amount of endolymph and perilymph, causing a modest decrease in degree of EH and hearing loss to deteriorate (43). Alternatively, the decrease in endolymph is due to abnormally osmotic gradients (44) at the terminal MD stage, or the endolymphatic sinus is enlarged due to excess of endolymph volume, leading to an amount of endolymph being displaced from the sinus into the endolymphatic sac (45).

Consequently, EH is necessary for MD. As the diagnostic guidelines for MD published in Japan in 2020 (18), identification of EH in the affected ear by contrast-enhanced MRI is a necessary condition for the diagnosis of certain MD. Therefore, contrast-enhanced MRI examination is recommended to the diagnosis of MD. It can not only detect EH, but also exclude the tumor or tumorlike lesions in cerebellopontine angle-internal auditory canal and labyrinth.

PE

Increased PE in the affected inner ear of patients with MD has been demonstrated in previous MRI studies (11,12,17,46), which support the theory that increased BLB permeability may be a biomarker of disease status in MD. Moreover, Pakdaman et al. (46) deemed PE complementary to clinical evaluation when assessing the effectiveness of various treatments. In the present study, however, the visual or quantitative PE in the affected inner ear remained unchanged between the 2 hospitalizations. Tagaya et al. (11) and Zhang et al. (47) concluded that there was a positive correlation between the cochlear SIR and grade of cochlear hydrops in the affected ear. Accordingly, as the EH assessed by MRI was unchanged in the affected ear between 2 examinations in this study, the cochlear PE remained unchanged. Alternatively, the BLB permeability had a change too small to appear on MRI in patients with terminal MD stage (stage 3 and 4). In fact, most patients (57.14% and 70.13% at the first and second hospitalizations, respectively) included in this study had a terminal MD stage. Another reason may be that PE in the affected cochlea was unrelated to the MD stage, which was shown in this study. In addition, previous studies have noted that increased PE was seen in patients with sudden hearing loss (48,49), and therefore increased PE could be an incidental imaging biomarker and unique for MD.

Our study had some limitations. The primary limitation of this study was that for some patients, the 2 MRI examinations were not performed using the same MR system. Although the 2 MR imaging techniques have comparable resolution, use of the same MR system over 2 hospitalizations is needed to confidently compare changes in EH and PE. Second, the time interval between the 2 hospitalizations (median, 10 months) was short and varied. In addition, EH and PE were evaluated only twice via MRI during this period. A longer and more standardized observation period and more frequent evaluations of EH and PE by MRI are necessary to better understand the chronic course of MD. Third, this study included only MD patients with 2 hospitalizations rather than all MD patients admitted to our hospital, which biased the results somewhat. With the feasibility of assessing EH by nonenhanced MRI (50), in future studies, all MD patients will be followed for changes in EH to validate our conclusions.

Conclusions

Vertigo episodes and hearing loss in MD patients did not ameliorate, but rather vertigo attacks recurred and hearing loss in the affected ear worsened in this study. Although EH and PE in the affected inner ear were unchanged over 2 hospitalizations, the degree of EH in the asymptomatic ear for MD patients developed, and the degree of EH in the affected ear varied with the natural course of MD whereas PE did not. Therefore, EH instead of PE is necessary but insufficient to cause the clinical symptoms of MD.

Acknowledgments

Funding: This study was supported by the National Natural Science Foundation of China (No. 8190040190).

Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at https://atm.amegroups.com/article/view/10.21037/atm-22-6313/rc

Data Sharing Statement: Available at https://atm.amegroups.com/article/view/10.21037/atm-22-6313/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://atm.amegroups.com/article/view/10.21037/atm-22-6313/coif). WD is an employee of GE Healthcare. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This retrospective study was approved by the ethics committee of Shandong Provincial ENT Hospital (No. 20220112), and conducted in accordance with the Declaration of Helsinki (as revised in 2013). Because of the retrospective nature of the research, the requirement for informed consent was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. Harris JP, Alexander TH. Current-day prevalence of Ménière's syndrome. Audiol Neurootol 2010;15:318-22. [Crossref] [PubMed]
2. Tyrrell JS, Whinney DJ, Ukoumunne OC, et al. Prevalence, associated factors, and comorbid conditions for Meniere's disease. Ear Hear 2014;35:e162-9. [Crossref] [PubMed]
3. Committee on Hearing and Equilibrium guidelines for the diagnosis and evaluation of therapy in Menière's disease. American Academy of Otolaryngology-Head and Neck Foundation, Inc. Otolaryngol Head Neck Surg 1995;113:181-5. [Crossref] [PubMed]
4. Andrews JC, Böhmer A, Hoffman LF. The measurement and manipulation of intralabyrinthine pressure in experimental endolymphatic hydrops. Laryngoscope 1991;101:661-8. [Crossref] [PubMed]
5. Warmerdam TJ, Schröder FH, Wit HP, et al. Perilymphatic and endolymphatic pressures during endolymphatic hydrops. Eur Arch Otorhinolaryngol 2003;260:9-11. [Crossref] [PubMed]
6. Hallpike CS, Cairns H. Observations on the Pathology of Ménière's Syndrome: (Section of Otology). Proc R Soc Med 1938;31:1317-36. [Crossref] [PubMed]
7. Nadol JB Jr. Pathogenesis of Meniere’s syndrome. In: Harris J, ed. Meniere’s Disease The Hague: Kugler Publications;1999:73-9.
8. Merchant SN, Adams JC, Nadol JB Jr. Pathophysiology of Meniere's syndrome: are symptoms caused by endolymphatic hydrops? Otol Neurotol 2005;26:74-81. [Crossref] [PubMed]
9. Foster CA, Breeze RE. Endolymphatic hydrops in Ménière's disease: cause, consequence, or epiphenomenon? Otol Neurotol 2013;34:1210-4. [Crossref] [PubMed]
10. Rizk HG, Mehta NK, Qureshi U, et al. Pathogenesis and Etiology of Ménière Disease: A Scoping Review of a Century of Evidence. JAMA Otolaryngol Head Neck Surg 2022;148:360-8. [Crossref] [PubMed]
11. Tagaya M, Yamazaki M, Teranishi M, et al. Endolymphatic hydrops and blood-labyrinth barrier in Ménière's disease. Acta Otolaryngol 2011;131:474-9. [Crossref] [PubMed]
12. Bernaerts A, Vanspauwen R, Blaivie C, et al. The value of four stage vestibular hydrops grading and asymmetric perilymphatic enhancement in the diagnosis of Menière's disease on MRI. Neuroradiology 2019;61:421-9. [Crossref] [PubMed]
13. Shi S, Guo P, Wang W. Magnetic Resonance Imaging of Ménière's Disease After Intravenous Administration of Gadolinium. Ann Otol Rhinol Laryngol 2018;127:777-82. [Crossref] [PubMed]
14. van Steekelenburg JM, van Weijnen A, de Pont LMH, et al. Value of Endolymphatic Hydrops and Perilymph Signal Intensity in Suspected Ménière Disease. AJNR Am J Neuroradiol 2020;41:529-34. [Crossref] [PubMed]
15. Attyé A, Eliezer M, Boudiaf N, et al. MRI of endolymphatic hydrops in patients with Meniere's disease: a case-controlled study with a simplified classification based on saccular morphology. Eur Radiol 2017;27:3138-46. [Crossref] [PubMed]
16. Naganawa S, Ishihara S, Iwano S, et al. Three-dimensional (3D) visualization of endolymphatic hydrops after intratympanic injection of Gd-DTPA: optimization of a 3D-real inversion-recovery turbo spin-echo (TSE) sequence and application of a 32-channel head coil at 3T. J Magn Reson Imaging 2010;31:210-4. [Crossref] [PubMed]
17. Baráth K, Schuknecht B, Naldi AM, et al. Detection and grading of endolymphatic hydrops in Menière disease using MR imaging. AJNR Am J Neuroradiol 2014;35:1387-92. [Crossref] [PubMed]
18. Iwasaki S, Shojaku H, Murofushi T, et al. Diagnostic and therapeutic strategies for Meniere's disease of the Japan Society for Equilibrium Research. Auris Nasus Larynx 2021;48:15-22. [Crossref] [PubMed]
19. Gürkov R, Flatz W, Keeser D, et al. Effect of standard-dose Betahistine on endolymphatic hydrops: an MRI pilot study. Eur Arch Otorhinolaryngol 2013;270:1231-5. [Crossref] [PubMed]
20. Liu F, Huang W, Chen Q, et al. Noninvasive evaluation of the effect of endolymphatic sac decompression in Ménière's disease using magnetic resonance imaging. Acta Otolaryngol 2014;134:666-71. [Crossref] [PubMed]
21. Sepahdari AR, Vorasubin N, Ishiyama G, et al. Endolymphatic Hydrops Reversal following Acetazolamide Therapy: Demonstration with Delayed Intravenous Contrast-Enhanced 3D-FLAIR MRI. AJNR Am J Neuroradiol 2016;37:151-4. [Crossref] [PubMed]
22. Fukushima M, Kitahara T, Oya R, et al. Longitudinal up-regulation of endolymphatic hydrops in patients with Meniere's disease during medical treatment. Laryngoscope Investig Otolaryngol 2017;2:344-50. [Crossref] [PubMed]
23. Li Y, Lv Y, Hu N, et al. Imaging Analysis of Patients With Meniere's Disease Treated With Endolymphatic Sac-Mastoid Shunt Surgery. Front Surg 2021;8:673323. [Crossref] [PubMed]
24. Lopez-Escamez JA, Carey J, Chung WH, et al. Diagnostic criteria for Menière's disease. J Vestib Res 2015;25:1-7. [Crossref] [PubMed]
25. Li J, Sun L, Wang L, et al. Contrast-Enhanced Three-Dimensional Fluid-Attenuated Inversion Recovery Imaging with an Optimal Scan Interval and Angulation to Visualize Endolymphatic Hydrops. Iranian Journal of Radiology 2022;19:1-9. [Crossref]
26. Editorial Board of Chinese Journal of Otorhinolaryngology Head and Neck Surgery. Guideline of diagnosis and treatment of Meniere disease (2017). Zhonghua Er Bi Yan Hou Tou Jing Wai Ke Za Zhi 2017;52:167-72. [PubMed]
27. Hamill TA. Evaluating treatments for Ménière's disease: controversies surrounding placebo control. J Am Acad Audiol 2006;17:27-37. [Crossref] [PubMed]
28. Takeda T, Takeda S, Kakigi A. A possible mechanism of the formation of endolymphatic hydrops and its associated inner ear disorders. Auris Nasus Larynx 2020;47:25-41. [Crossref] [PubMed]
29. Shi S, Guo P, Li W, et al. Clinical Features and Endolymphatic Hydrops in Patients With MRI Evidence of Hydrops. Ann Otol Rhinol Laryngol 2019;128:286-92. [Crossref] [PubMed]
30. Uno A, Imai T, Watanabe Y, et al. Changes in endolymphatic hydrops after sac surgery examined by Gd-enhanced MRI. Acta Otolaryngol 2013;133:924-9. [Crossref] [PubMed]
31. Gürkov R, Pyykö I, Zou J, et al. What is Menière's disease? A contemporary re-evaluation of endolymphatic hydrops. J Neurol 2016;263:S71-81. [Crossref] [PubMed]
32. Suzuki H, Teranishi M, Naganawa S, et al. Contrast-enhanced MRI of the inner ear after intratympanic injection of meglumine gadopentetate or gadodiamide hydrate. Acta Otolaryngol 2011;131:130-5. [Crossref] [PubMed]
33. Gürkov R, Flatz W, Louza J, et al. In vivo visualization of endolyphatic hydrops in patients with Meniere's disease: correlation with audiovestibular function. Eur Arch Otorhinolaryngol 2011;268:1743-8. [Crossref] [PubMed]
34. Nageris B, Adams JC, Merchant SN. A human temporal bone study of changes in the basilar membrane of the apical turn in endolymphatic hydrops. Am J Otol 1996;17:245-52. [PubMed]
35. Kitahara T, Fukushima M, Uno A, et al. Long-term results of endolymphatic sac drainage with local steroids for intractable Meniere's disease. Auris Nasus Larynx 2013;40:425-30. [Crossref] [PubMed]
36. Pyykkö I, Nakashima T, Yoshida T, et al. Meniere's disease: a reappraisal supported by a variable latency of symptoms and the MRI visualisation of endolymphatic hydrops. BMJ Open 2013;3:e001555. [Crossref] [PubMed]
37. Moffat DA, Baguley DM, Harries ML, et al. Bilateral electrocochleographic findings in unilateral Menière's disease. Otolaryngol Head Neck Surg 1992;107:370-3. [Crossref] [PubMed]
38. Friberg U, Stahle J, Svedberg A. The natural course of Meniere's disease. Acta Otolaryngol Suppl 1984;406:72-7. [PubMed]
39. Sun Q, Jiang G, Xiong G, et al. Quantification of endolymphatic hydrops and its correlation with Meniere's disease clinical features. Clin Otolaryngol 2021;46:1354-61. [Crossref] [PubMed]
40. Jerin C, Krause E, Ertl-Wagner B, et al. Longitudinal assessment of endolymphatic hydrops with contrast-enhanced magnetic resonance imaging of the labyrinth. Otol Neurotol 2014;35:880-3. [Crossref] [PubMed]
41. Lawrence M, Yantis PA. Individual differences in functional recovery and structural repair following overstimulation of the guinea pig ear. Ann Otol Rhinol Laryngol 1957;66:595-621. [Crossref] [PubMed]
42. Schuknecht HF. Meniere's disease: a correlation of symptomatology and pathology. Laryngoscope 1963;73:651-65. [PubMed]
43. Schuknecht HF, Benitez JT, Beekhuis J. Further observations on the pathology of Meniere's disease. Ann Otol Rhinol Laryngol 1962;71:1039-53. [Crossref] [PubMed]
44. Salt AN, Plontke SK. Endolymphatic hydrops: pathophysiology and experimental models. Otolaryngol Clin North Am 2010;43:971-83. [Crossref] [PubMed]
45. Salt AN, Rask-Andersen H. Responses of the endolymphatic sac to perilymphatic injections and withdrawals: evidence for the presence of a one-way valve. Hear Res 2004;191:90-100. [Crossref] [PubMed]
46. Pakdaman MN, Ishiyama G, Ishiyama A, et al. Blood-Labyrinth Barrier Permeability in Menière Disease and Idiopathic Sudden Sensorineural Hearing Loss: Findings on Delayed Postcontrast 3D-FLAIR MRI. AJNR Am J Neuroradiol 2016;37:1903-8. [Crossref] [PubMed]
47. Zhang W, Xie J, Hui L, et al. The Correlation Between Endolymphatic Hydrops and blood-labyrinth barrier Permeability of Meniere Disease. Ann Otol Rhinol Laryngol 2021;130:578-84. [Crossref] [PubMed]
48. Zou J, Poe D, Bjelke B, et al. Visualization of inner ear disorders with MRI in vivo: from animal models to human application. Acta Otolaryngol Suppl 2009;22-31. [Crossref] [PubMed]
49. Tagaya M, Teranishi M, Naganawa S, et al. 3 Tesla magnetic resonance imaging obtained 4 hours after intravenous gadolinium injection in patients with sudden deafness. Acta Otolaryngol 2010;130:665-9. [Crossref] [PubMed]
50. Fukutomi H, Hamitouche L, Yamamoto T, et al. Visualization of the saccule and utricle with non-contrast-enhanced FLAIR sequences. Eur Radiol 2022;32:3532-40. [Crossref] [PubMed]

(English Language Editor: A. Muijlwijk)
