Original Article

Differential expression of microRNAs in bile duct obstruction-induced liver fibrosis and the identification of a novel liver fibrosis marker miR-1295b-3p

Xiangyang Bu1,2, Weijie Ding2, Shanyuan Guo3, Yongxin Wang2, Jian Feng1, Pengfei Wang1, Yongliang Chen1, Zhong Ge2

1Department of Hepatobiliary-Pancreatic Surgery, Chinese PLA General Hospital, Beijing, China; 2Department of Hepatobiliary-Pancreatic Surgery, Qingdao Municipal Hospital, Qingdao, China; 3Department of Infectious Disease, Qingdao Central Hospital, Affiliated to Qingdao University, Qingdao, China

Contributions: (I) Conception and design: X Bu, Y Chen, Z Ge; (II) Administrative support: Y Chen, Z Ge; (III) Provision of study materials or patients: X Bu, W Ding; (IV) Collection and assembly of data: W Ding, S Guo, Y Wang; (V) Data analysis and interpretation: J Feng, P Wang; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Yongliang Chen, MD, PhD. Director, Department of Hepatobiliary-Pancreatic Surgery, Chinese PLA General Hospital, No. 28 Fuxing Road, Beijing 100853, China. Email: chenyongl301@163.com; Zhong Ge, MD, PhD. Director, Department of Hepatobiliary-Pancreatic Surgery, Qingdao Municipal Hospital, No. 1 Jiaozhou Road, Qingdao, China. Email: knife617@163.com.

Background: Bile duct obstruction-induced liver fibrosis is mainly caused by cholestatic liver injury which stimulates liver cell inflammation and damages the liver structure, causing liver fibrosis. The differentially expressed microRNAs and the potential target genes and signal pathways that are involved in bile duct obstruction-induced liver fibrosis remain unclear. We examined the differential expression of microRNAs and the target genes in the liver tissues of patients with liver fibrosis.

Methods: High-throughput sequencing was used to detect the total microRNAs and identify the differentially expressed microRNAs. The topGO software was used to perform the Gene Ontology (GO) function enrichment analysis. The KOBAS software was used to analyze the associated biochemical metabolic pathways and signal transduction pathways. Quantitative real-time polymerase chain reaction (qRT-PCR) and Western blot analyses were conducted to detect the expression of miR-1295b-3p, alpha smooth muscle actin (α-SMA), Bcl-2, caspase-3, Bax, and β-arrestin1 (ARRB1). Cell viability and apoptosis were detected by the Cell Counting Kit 8 (CCK-8) assay and flow cytometry. The targeting relationship between ARRB1 and miR-1295b-3p was verified using luciferase reporter assays.

Results: A total of 44 microRNAs were found to be differentially expressed, including 18 upregulated and 26 downregulated microRNAs. Five downregulated microRNAs, including miR-483-3p, miR-5589-3p, miR-1271-5p, miR-1295b-3p, and miR-7977. GO functional enrichment analysis of the target genes revealed the molecular functions, cellular location, and biological processes involved. Kyoto Encyclopedia of Genes and Genomes (KEGG) signal pathway analysis showed that the target genes are mainly involved in metabolic pathways. In addition, the results of qRT-PCR revealed that miR-1295b-3p was downregulated in human fibrotic liver tissues and TGF-β1-activated LX-2 cells (human hepatic stellate cell line). Overexpression of miR-1295b-3p alleviated liver fibrosis, decreased the α-SMA levels, and inhibited proliferation and enhanced apoptosis in LX-2 cells. Dual-luciferase assays revealed that miR-1295b-3p suppressed ARRB1 expression by binding directly to its 3' untranslated region (UTR).

Conclusions: This study identified the differentially expressed microRNAs in bile duct obstruction-induced liver fibrosis and revealed the potential target genes and signal pathways involved. Overexpression of miR-1295b-3p alleviated liver fibrosis, however, the specific targeting mechanisms warrant further clarification. Therefore, overexpressing miR-1295b-3p may be a potential treatment method for liver fibrosis.

Keywords: Bile duct obstruction-induced liver fibrosis; microRNA; miR-1295b-3p; β-arrestin1 (ARRB1)


Submitted Nov 30, 2022. Accepted for publication Jan 05, 2023. Published online Jan 15 2023.

doi: 10.21037/atm-22-6416


Highlight box

Key findings

• Differentially expressed microRNAs were found in bile duct obstruction-induced liver fibrosis, and overexpression of miR-1295b-3p may be a potential treatment for liver fibrosis.

What is known and what is new?

• The obstruction of intrahepatic or extra hepatic bile ducts causes cholestasis liver fibrosis. MicroRNA can participate in the regulation of liver fibrosis.

• This study identified potential target genes and signal pathways that are related to the differentially expressed microRNAs in bile duct obstruction-induced liver fibrosis, and overexpressing miR-1295b-3p may be a potential treatment for liver fibrosis.

What is the implication, and what should change now?

• The differentially expressed microRNAs may be novel biological markers for the diagnosis, treatment, and prognosis of bile duct obstruction-induced liver fibrosis. The specific regulatory mechanisms of microRNAs in bile duct obstructive liver fibrosis warrant further research.


Introduction

Bile duct obstruction-induced liver fibrosis is a type of liver fibrosis mainly caused by cholestatic liver injury. It is prevalent in common bile duct stones, ampullary tumors, and cholangiocarcinomas. These diseases cause bile to accumulate in the liver, further stimulating liver cell inflammation and damaging the liver structure, causing liver fibrosis (1). Regardless of the cause, the recognized liver fibrosis mechanism is that chronic liver damage produces various pro-fibrotic mediators, such as excessive reactive oxygen species (ROS), transforming growth factor β (TGF-β), and cytokines, thus activating hepatic stellate cells (HSCs) and accelerating cell proliferation. As a result, the levels of alpha smooth muscle actin (α-SMA) and collagen increase significantly (2), accelerating liver fibrosis. Prolonged and increased damage of the liver and the deposition of extracellular matrix (ECM) exacerbates liver fibrosis, thereby reducing the blood flow to the liver cell plate and increasing liver hypoxia and liver cell death (3). The primary treatment for this type of cholestatic disease is surgery. Bile duct puncture and drainage are the most direct methods to relieve obstruction and drain the bile. However, it is difficult for patients to recover from chronic liver damage caused by primary diseases, which may further develop into cirrhosis or liver failure.

MicroRNAs are endogenous, non-coding small RNA molecules, with a length of approximately 20–24 nucleotides, which are highly conserved in evolution. MicroRNAs play an important regulatory role in various physiological processes, such as cell proliferation, apoptosis, and fat metabolism. Recent studies have shown that microRNAs affect liver fibrosis via various metabolic pathways. For instance, miRNA-29a inhibits BRD4 and reduces hepatic fibrosis in murine tissues by suppressing the activation of HSC, and miR-199a-3p exacerbates hepatic fibrosis by inhibiting the expression of caveolin-2 and triggering the TGF-β pathway (4,5). However, the important microRNA related to liver fibrosis has not been revealed to a great extent.

This study used gene sequencing and edgeR software to analyze human bile duct obstruction-induced liver fibrosis tissues and identify the differentially expressed microRNAs. Bioinformatics analysis was performed to predict the target genes involved in regulating signaling pathways to explore their roles in bile duct obstruction-induced liver fibrosis. Furthermore, we found that miR-1295b-3p is downregulated in LX-2 cells, and overexpression of miR-1295b-3p could inhibit liver fibrosis, leading to inhibition of proliferation and the induction of apoptosis in LX-2 cell. This study revealed the therapeutic potential of miR-1295b-3p in liver fibrosis, however, the specific targeting mechanisms warrant further investigation. We present the following article in accordance with the MDAR reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-22-6416/rc).


Methods

Patient samples

A total of 8 pairs of liver fibrosis and matched normal liver tissues were screened. The liver fibrosis tissues samples were obtained from the patients with bile duct obstruction-induced liver fibrosis and the normal liver tissues were obtained from peri-hepatic-hemangioma liver tissues, who underwent liver resection from Department of Hepatobiliary-Pancreatic Surgery, Qingdao Municipal Hospital, between December 2017 to July 2021. The tissues were rapidly preserved at −80 ℃ or in 10% neutral-buffered formalin. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Medical Ethics Committee of Qingdao Municipal Hospital (2020 No. 098) and informed consent was taken from all the patients.

Hematoxylin and eosin (HE) staining and Masson staining

Histological examination confirmed the liver fibrosis diagnosis. The liver tissue was fixed in 4% paraformaldehyde for 24 h, dehydrated, transparentized, embedded in paraffin, and sliced into 4 µm sections. The tissue structure was observed by HE staining and the collagen deposition was detected by Masson staining.

Screening of differentially expressed microRNAs

Normal liver tissues and bile duct obstruction-induced liver fibrosis tissues, three sets each, were analyzed using high-throughput sequencing (Beijing Berry Genomics Co., Ltd.) to detect the total microRNAs. EdgeR software was used to screen the differentially expressed microRNAs.

Target gene prediction and related analysis

Potential target genes of the identified microRNAs were predicted using the TargetScan7.1 and miRBase websites, and the miRanda and RNAhybrid software. The topGO software was used to perform the target Gene Ontology (GO) function enrichment analysis based on GO database. The KOBAS software was used to analyze the biochemical metabolic pathways and signal transduction pathways based on the Kyoto Encyclopedia of Genes and Genomes (KEGG) database (DAVID; version 6.7, https://david.ncifcrf.gov).

Quantitative real-time polymerase chain reaction (qRT-PCR)

Normal liver tissues and bile duct obstruction-induced liver fibrosis tissues (n=5) were analyzed using qRT-PCR. Total RNA was purified from liver tissues using TRIzol reagent (Tiangen, Beijing, China). For microRNA, reverse transcription was performed using a miRcute microRNA cDNA first strand synthesis kit (Funeng, Guangzhou, China). The comparative 2−ΔΔCt method was used to calculate the relative values of each gene. The primers designed for qRT-PCR are shown in Table 1.

Table 1

Primer sequences for qRT-PCR

Gene Primer sequences
Forward primer Reverse primer
miR-1295b-3p 5'-GATCTGCGGCCTAATCAC-3' 5'-CCAGATCCGTGGCCTATT-3'
Caspase-3 5'-ATGGAGAACAACAAAACCTCAGT-3' 5'-TTGCTCCCATGTATGGTCTTTAC-3'
α-SMA 5'-TCATGGTCGGTATGGGTCAG-3' 5'-CCGTGCTCGATAGGGTACTT-3'
Bcl-2 5'-GGTGGGGTCATGTGTGTGG-3' 5'-CGGTTCAGGTACTCAGTCATCC-3'
Bax F:5'-CCCGAGAGGTCTTTTTCCGAG-3' R:5'-CCAGCCCATGATGGTTCTGAT-3'
U6 F:5'-GCTTCGGCAGCACATATACTAAAAT-3' R:5'-CGCTTCACGAATTTGCGTGTCAT-3'
β-actin 5'-TACCTGAAGCCCCAACTACAAA-3' 5'-GTGCCCTGCCACATGATAAA-3'

α-SMA, α-smooth muscle actin; qRT-PCR, quantitative real-time polymerase chain reaction.

Cell culture and transient transfection

The human liver LX-2 cell line was purchased from BeNa Culture Collection (Beijing, China) and cultivated in Dulbecco’s Minimum Essential Media (DMEM; Invitrogen) containing 10% fetal bovine serum (FBS; Invitrogen) at 37 ℃, saturated humidity, and 5% CO2. Cells were treated with TGF-β1 (10 ng/mL) (Thermo Fisher Scientific) for 48 h. The miR-1295b-3p agomir and negative control (miR-NC) were obtained from Gema (Shanghai, China) and transfected into LX-2 cells using Lipofectamine 2000 reagent (Invitrogen). Let them stand at room temperature for 5 minutes, and add them to the corresponding wells of 6-well plate. After 6 h of transfection, the original culture medium was replaced for further culture. Afterward, cells were incubated for 48 h and harvested for further analysis.

Cell viability assay

The Cell Counting Kit 8 (CCK-8) assay (Dojindo) was used to evaluate the viability of LX-2 cells in accordance with the manufacturer’s instructions. Absorbance was analyzed at 450 nm using the microplate reader.

Western blot assay

The total proteome was collected from samples using RIPA lysis buffer (Aspen Biotechnology) containing protease inhibitors. The BCA assay kit (Aspen Biotechnology) was used to quantify proteins. The following primary antibodies were used to incubate the membranes: β-arrestin1 (ARRB1) (1:1,000, Abcam, UK), caspase-3 (1:500, Abcam, UK), and glyceraldehyde 3-phosphate dehydrogenase (GAPDH; 1:1,000; Cell Signaling Technology, USA). The reactions were detected with a secondary horse-radish peroxidase (HRP)-conjugated goat anti-rabbit immunoglobulin G (IgG; 1:1,000; Abcam, UK).

Flow cytometry (FCM)

FCM using the Annexin V-fluorescein isothiocyanate (FITC) Apoptosis Detection kit (Tianjin Sungene Biotech Co., Ltd.) was conducted to identify the apoptotic rate of LX-2 cells, in accordance with the manufacturer’s instructions.

Dual-luciferase experiment

Wild-type (WT) and mutant (mut) ARRB1-3' untranslated region (3'UTR) were cloned into the pGL3 vector to obtain the WT-pGL3-ARRB1-3'UTR and mut-pGL3-ARRB1-3'UTR vectors. The plasmids were transfected into human hepatic stellate LX-2 cells with miR-1295b-3p agomir or miR-NC (Gema, Shanghai, China) using Liposome 2000 (Invitrogen, Shanghai, China). After 48 h, the luciferase activity of the transfected cells was detected and analyzed.

Statistical analysis

Statistical analysis was performed with SPSS 22.0 software. Analysis of variance was used to compare the difference between groups. All experiments were repeated three times. A P value <0.05 was considered statistically significant.


Results

HE staining and Masson staining

HE staining

The anatomical structure of the normal liver was complete (Figure 1A). In contrast, the structure of the liver lobules and portal areas in liver fibrosis tissues were incomplete. In addition, the spindle cells were visible in immature collagen fibers (Figure 1B).

Figure 1 Representative images showing HE staining and Masson staining of liver fibrosis in human samples. (A) The HE staining of the normal liver tissues (×200) shows the structure of normal liver lobules and portal area with stained nucleus (blue) and cytoplasm (red). (B) The HE staining of liver fibrosis tissues (×200). (C) The Masson staining of the normal liver tissues (×200) with stained collagen fibers (blue), and muscle fibers, cellulose, and red blood cells (all red). (D) The Masson staining of the liver fibrosis tissues (×200). (E) The percentage of collagen fibers (Masson-positive staining) in the fibrotic tissues was significantly higher than that in the normal liver tissues (P<0.05). *, P<0.05. HE, hematoxylin and eosin.

Masson staining

The collagen fibers in normal liver tissues were mainly distributed around the large blood vessels and portal system (Figure 1C). In contrast, the collagen fibers in the liver fibrosis tissue surrounded the blood vessels and portal veins and were increased in parts of the Disse space and between the liver lobules. In addition, the normal liver lobule structure was destroyed (Figure 1D) and the area of collagen in liver fibrosis tissue was significantly larger than that in normal liver tissues (P<0.05; Figure 1E).

Screening of differentially expressed microRNA

A total of 1,575 microRNAs were detected, of which 1,550 were known microRNAs, and 25 were newly discovered microRNAs. A total of 44 microRNAs were found to be differentially expressed, including 18 upregulated and 26 downregulated microRNAs, according to the conditions of P<0.05 and |log fold change (FC)| >1. Thus, cluster analysis (Figure 2) was performed to screen 5 downregulated microRNAs, including miR-483-3p, miR-5589-3p, miR-1271-5p, miR-1295b-3p, and miR-7977 (Table 2).

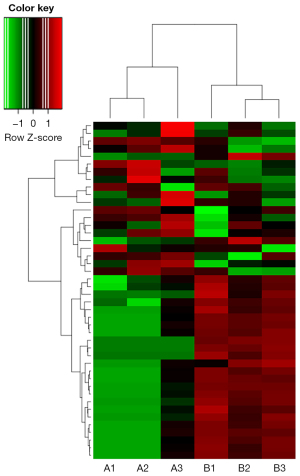

Figure 2 Hierarchical clustering heat map of the differentially expressed microRNAs. The upregulated expression of microRNA is depicted in red, downregulated expression is shown in green, and unchanged expression is shown in black. A1, A2, and A3 indicate the normal liver tissues, and B1, B2, and B3 indicate liver fibrosis tissues.

Table 2

Differentially expressed microRNAs

Gene LogFC LogCPM P value FDR
hsa-miR-483-3p −6.511775741 5.032266762 0.0000056380 0.002982483
hsa-miR-5589-3p −7.685677736 2.073910688 1.0000056380 0.003135967
hsa-miR-1271-5p −5.492995496 2.398223531 2.0000056380 0.016749062
hsa-miR-1295b-3p −6.619455473 1.228638815 0.00024288 0.027765404
hsa-miR-7977 −6.92821172 1.464214675 0.000262433 0.027765404

CPM, counts-per-million; FC, fold change; FDR, false discovery rate.

Target gene prediction

The target genes of the differentially expressed microRNAs were predicted. The microRNAs miR-483-3p, miR-5589-3p, miR-1271-5p, miR-1295b-3p, and miR-7977 were all found to be downregulated in bile duct obstruction-induced liver fibrosis tissues, and had a negative regulatory effect on target genes. There were 127 target genes identified for miR-483-3p, 18 for miR-1271-5p, 15 for miR-5589-3p, 44 for miR-7977, and 14 for miR-1295b-3p (Table 3).

Table 3

The target genes of the differentially expressed microRNAs

MicroRNA Gene symbol
miR-483-3p NOS1, NFASC, CPLX2, SSBP3, U2AF2, TAF5L, ARHGAP5, MLPH, ACSM4, RAP1GAP2, RNF24, DOLPP1, PARVG, GPT2, FKBP5, SMIM6, ISY1, ASB6, SLC24A1, NAPB, TET3, CREBL2, MTA2, TRIM62, PIK3C2B, HDAC3, CBX2, CCDC174, TMEM242, ADCY1, AUNIP, UCN2, LRRC46, COL11A2, NXNL1, ZNF699, TMEM179B, ACVR1C, EZR, MYRF, EXPH5, MAP7D3, RXFP1, TMEM128, RGL1, WSCD2, BNC2, ATAD1, ITGB8, GPATCH2L, PPP1R14C, SELENOI, CSF1, CDC42SE2, MYO5B, CBX5, SYK, PTPRQ, GFRA1, GPR17, DCTN5, WISP1, HSPA14, TRIB3, ZZZ3, DOK1, HCN4, ATG2B, TRIM56, NSMCE3, SPPL2C, OR5AR1, FAM168B, ABCF1, BCLAF1, CCDC17, C17orf53, CEACAM18, NTSR1, ARRB1, TCHH, KDM4D, KCTD15, SLX4, ITGB3, JAG1, ZIK1, ZYX, NSL1, TMEM120B, KNCN, BTBD9, TMEM192, TP73, SYNPO2, SPATC1, CISD3, SDK2, SLC44A2, TFDP2, APTX, PLRG1, NBL1, MINOS1-NBL1, MBD3, NDST1, MED20, TRAPPC2L, RNF220, SCAMP4, CBX7, SMARCC1, TAF15, HMGN2, HDAC4, IFI44L, LDOC1, SNX8, ZDHHC8, PALD1, APLN, TNFAIP1, GCC1, KDM7A, YIPF4, LGI3, GPAT4
miR-1271-5p CSF1, CDC42SE2, MYO5B, CBX5, SYK, PTPRQ, GFRA1, GPR17, DCTN5, WISP1, HSPA14, TRIB3, ZZZ3, DOK1, HCN4, ATG2B, TRIM56, NSMCE3
miR-5589-3p ACVR1C, EZR, MYRF, EXPH5, MAP7D3, RXFP1, TMEM128, RGL1, WSCD2, BNC2, ATAD1, ITGB8, GPATCH2L, PPP1R14C, SELENOI
miR-7977 ITGB3, JAG1, ZIK1, ZYX, NSL1, TMEM120B, KNCN, BTBD9, TMEM192, EZR, TP73, SYNPO2, SPATC1, CISD3, SDK2, SLC44A2, TFDP2, APTX, PLRG1, NBL1, MINOS1-NBL1, MBD3, NDST1, MED20, TRAPPC2L, RNF220, SCAMP4, CBX7, SMARCC1, TAF15, HMGN2, HDAC4, IFI44L, LDOC1, SNX8, ZDHHC8, PALD1, APLN, TNFAIP1, GCC1, KDM7A, YIPF4, LGI3, GPAT4
miR-1295b-3p OR5AR1, FAM168B, ABCF1, BCLAF1, CCDC17, C17orf53, CEACAM18, NTSR1, ARRB1, TCHH, KDM4D, KCTD15, SLX4, SPPL2C

GO analysis

GO analysis of the target genes can be categorized into three aspects, its molecular function, location in the cell, and the biological processes in which it is involved (Figure 3). The target genes of the differentially expressed microRNAs were found to be mainly expressed on the plasma membrane. The proteins encoded by the target genes were associated with enzyme binding, ion (metal ion and cation) binding, transcription (specifically DNA binding and nucleic acid binding), cell localization, signal transduction, and biological regulation.

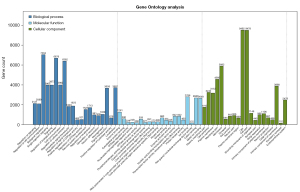

Figure 3 Gene Ontology analysis of the target genes.

KEGG analysis

KEGG analysis was performed to determine the most important biochemical metabolic pathways and signal transduction pathways involving the candidate target genes. The top 20 most significant signal pathways were graphed (Figure 4). The target genes of the differentially expressed microRNAs primarily affected bile duct obstruction-induced liver fibrosis through metabolic pathways. These genes might also have a certain degree of influence on tumorigenesis.

Figure 4 The signal pathways related to target genes. cAMP, cyclic adenosine monophosphate; cGMP, cyclic guanosine monophosphate; KEGG, Kyoto Encyclopedia of Genes and Genomes; PI3K, phosphoinositide 3-kinase; MAPK, mitogen-activated protein kinase; HTLV-1, human T-cell leukemia virus type 1; PKG, protein kinase G.

miR-1295b-3p expression was downregulated in the bile duct obstruction-induced liver fibrosis

qRT-PCR was performed in the re-screened bile duct obstruction-induced liver fibrosis samples (n=5) and the normal liver samples (n=5). We found that miR-1295b-3p expression was downregulated in the fibrotic livers compared to the normal livers (Figure 5A).

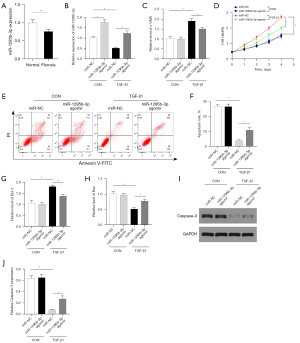

Figure 5 Overexpression of miR-1295b-3p can inhibit HSC activation and cell proliferation. (A) The expression of miR-1295b-3p in human liver fibrosis tissues was determined by qRT-PCR (n=5 per group). (B) The expression level of miR-1295b-3p was examined in LX-2 cells. (C) The mRNA level of α-SMA was examined in LX-2 cells. (D) Proliferation of LX-2 cells in each group was detected by cell viability assays. (E) The apoptosis of LX-2 cells was detected by flow cytometry. (F) The quantification of the apoptosis rate of the LX-2 cells. (G) The mRNA levels of Bcl-2 were examined in LX-2 cells. (H) The mRNA levels of Bax were examined in LX-2 cells. (I,J) The protein levels of caspase-3 were examined by Western blotting. *, P<0.05. α-SMA, α-smooth muscle actin; CON, control; FITC, fluorescein isothiocyanate; GAPDH, glyceraldehyde 3-phosphate dehydrogenase; HSC, hepatic stellate cell; NC, negative control; TGF-β1, transforming growth factor β1; PI, propidium iodide; qRT-PCR, quantitative real-time polymerase chain reaction.

Overexpression of miR-1295b-3p can inhibit HSC activation and cell proliferation

Since miR-1295b-3p was downregulated in bile duct obstruction-induced liver fibrosis, this prompted us to further study the relationship between liver fibrosis and miR-1295b-3p. We used TGF-β1 to activate LX-2 cells, and transfected LX-2 cells with miR-NC or miR-1295b-3p agomir. qRT-PCR showed that the level of miR-1295b-3p in the TGF-β1-treated cells was lower than that in the control cells, while the level of miR-1295b-3p was upregulated after transfected with miR-1295b-3p agomir (Figure 5B). The expression of α-SMA was increased in the TGF-β1 group compared to the control group, while its expression was reduced after transfected with miR-1295b-3p agomir in the TGF-β1 group (Figure 5C). Moreover, CCK-8 assays demonstrated that the TGF-β1 treated group had an increased proliferative ability, but LX-2 cell viability was significantly reduced by miR-1295b-3p agomir (Figure 5D), suggesting that miR-1295b-3p inhibited LX-2 cell proliferation. Next, we studied whether miR-1295b-3p affected apoptosis of HSCs. FCM showed that compared with the miR-NC TGF-β1 group, miR-1295b-3p agomir increased the apoptosis of LX-2 cells (Figure 5E,5F). In addition, the mRNA levels of the pro-apoptotic protein Bax was increased, while the expression of the anti-apoptotic protein Bcl-2 was decreased after transfected with miR-1295b-3p agomir in TGF-β1 group (Figure 5G,5H). Moreover, Western blots showed that caspase-3 proteomic levels within the TGF-β1 group were obviously decreased, while miR-1295b-3p agomir upregulated caspase-3 protein expression (Figure 5I,5J). These results indicated that overexpression of miR-1295b-3p can inhibit HSCs activation and cell proliferation.

ARRB1 is a potential target of miR-1295b-3p

Bioinformatics analysis (TargetScan7.1) predicted the potential binding site of ARRB1 and miR-1295b-3p (Figure 6A). We analyzed the relationship between ARRB1 and miR-1295b-3p by detecting the expression of ARRB1 in human liver tissue. qRT-PCR analysis showed that ARRB1 expression was upregulated in liver fibrosis (Figure 6B). Moreover, Pearson’s correlation analysis showed that ARRB1 expression was inversely proportional to that of miR-1295b-3p (Figure 6C). As shown in Figure 6D, the expression of ARRB1 was increased in activated LX-2 cells, while overexpression of miR-1295b-3p decreased the level of ARRB1 in LX-2 cells. Moreover, Western blotting revealed that the protein level of ARRB1 was also upregulated in activated LX-2 cells, and overexpression of miR-1295b-3p downregulated the level of ARRB1 in LX-2 cells (Figure 6E,6F). The dual-luciferase assay was used to assess the relationship between ARRB1 and miR-1295b-3p. We transfected wild-type ARRB1 (ARRB1-wt) or mutant ARRB1 (ARRB1-mut) and miR-1295b-3p agomir or miR-NC into the LX-2 cells. The miR-1295b-3p agomir inhibited the luciferase activity of wild-type ARRB1 but had no significant effect on mutant ARRB1(Figure 6G). Therefore, miR-1295b-3p may regulate the expression of ARRB1 in bile duct obstruction-induced liver fibrosis.

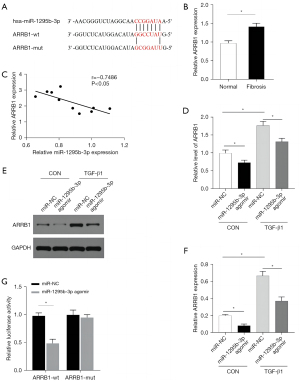

Figure 6 ARRB1 is a potential target of miR-1295b-3p. (A) The predicted respective binding sites in ARRB1 and miR-1295b-3p according to a database. (B) The mRNA levels of ARRB1 were examined in human liver tissues by qRT-PCR. (C) The expression of miR-1295b-3p was inversely correlated with the mRNA expression of ARRB1. (D) The ARRB1 expression in LX-2 cells was examined by qRT-PCR. (E,F) The protein levels of ARRB1 in LX-2 cells were examined by Western blotting. (G) The dual-luciferase experiments showed that miR-1295b-3p reduced the expression of ARRB1-wt but did not affect the expression of ARRB1-mut. *, P<0.05. CON, control; GAPDH, glyceraldehyde 3-phosphate dehydrogenase; mut, mutant; NC, negative control; TGF-β1, transforming growth factor β1; wt, wild type; qRT-PCR, quantitative real-time polymerase chain reaction.

Discussion

Bile duct obstruction-induced liver fibrosis is a liver disease caused by cholestasis, that results from an imbalance in tissue repair response (1). Bile duct obstruction causes cholestasis and increases bilirubin and bile acid levels in the serum. It leads to the inflammation of intrahepatic cells, promotes the activation of HSCs, and accelerates the activation of fibroblasts and the accumulation of inflammatory cells, ECM, and fibers in liver tissues. As a result, abnormal proliferation of connective tissues occurs. When the damage persists or worsens, the liver’s normal structure is destroyed under the action of related factors, eventually leading to changes in liver function and even failure (1,2). In recent years, the development of bioinformatics and epigenetics, as well as the discovery of microRNAs and long non-coding RNAs (lncRNAs) have gradually uncovered the role of TGF-β in bile duct obstruction-induced liver fibrosis (6-9). Kennedy et al. found that the level of miR-21 increased in rats with bile duct ligation; and inhibiting miR-21 expression could reduce HSC activation, collagen deposition, and the expression of TGF-β and α-SMA, thereby hindering the development of hepatic fibrosis (10).

In this current research, 5 differentially expressed microRNAs, miR-483-3p, miR-5589-3p, miR-1271-5p, miR-1295b-3p, and miR-7977, were found to be downregulated in bile duct obstruction-induced liver fibrosis. GO analysis and KEGG analysis further demonstrated that the target genes associated with the differentially expressed microRNAs were involved in metabolic and tumor pathways, such as the phosphoinositide 3-kinase (PI3K)-Akt, mitogen-activated protein kinase (MAPK), and Ras signaling pathways.

The down-regulation of miR-483-3p in bile duct obstruction-induced liver fibrosis leads to the up-regulation of BRCA1, causing cell cycle arrest and potentially affecting the formation of liver Mallory bodies and inhibiting liver cell regeneration (11,12). On the other hand, the overexpression of miR-483 acts on platelet-derived growth factor-B (PDGF-B) and tissue inhibitor of metalloproteinase 2 (TIMP2) during HSC activation, impeding carbon tetrachloride-induced liver fibrosis (13,14). The microRNA miR-1271-5p targets genes, such as zinc finger E-box-binding homeobox 1 (ZEB1), snail family transcriptional repressor 2 (SNAI2), phosphatases of regenerating liver 1 (PTP4A1), Forkhead box Q1 (FOXQ1), Forkhead box K2 (FOXK2), anaplastic lymphoma kinase (ALK) to inhibit epithelial-mesenchymal transition (EMT), thereby preventing the migration and invasion of hepatocellular carcinoma (HCC) cells (15). Yu et al. found that miR-1271-5p was upregulated in fibrotic human liver tissues and hindered autophagy of HSCs by reducing the expression of ATG7, thereby delaying the activation of HSCs (16). However, the role of miR-7977 and miR-5589-3p in liver diseases remain unclear (17-19). For the first time, this study demonstrated the differential expression of miR-7977 and miR-5589 in liver fibrosis induced by bile duct obstruction. We showed that miR-1295b-3p was downregulated in liver fibrosis. In vitro, miR-1295b-3p was downregulated in LX-2 cells induced by TGF-β1, and overexpression of miR-1295b-3p decreased the α-SMA levels and led to inhibition of proliferation and induction of apoptosis in LX-2 cells. The above research results suggested that overexpression of miR-1295b-3p alleviated liver fibrosis and inhibited HSCs activation.

ARRB1 is a gene in the β-arrestin family. β-arrestin is a scaffold protein that regulates G protein-coupled receptor (GPCR) signal transduction. It has a certain effect on cell proliferation via signal pathways such as Wnt, TGF-β, Notch, and autophagy, which in turn affects the deposition of the ECM, activates the inflammatory response, and the induces the development of fibrotic diseases (20,21). Xuan et al. found that overexpression of the genes encoding miR-29a or miR-652 decreased ARRB1 expression in mice with liver fibrosis and inhibited the development of liver fibrosis (22). ARRB1 overexpression promotes renal fibroblast activation and EMT through the typical Wnt1/β-catenin signaling pathway, accelerates renal fibrosis, affects the proliferation of hepatocytes through Akt signaling, and promotes the occurrence of liver cancer (23). Overexpression of β-arrestin in normal adult cardiac fibroblasts increases collagen synthesis through the ERK and Smad signaling pathways. In the early stages of myocardial infarction, ARRB1 expression is upregulated, activating myofibroblasts, increasing collagen synthesis and deposition, and exacerbating cardiac fibrosis (21). Li et al. verified in animal experiments that melatonin (MT) enhances protection of non-alcoholic fatty liver disease by activating ARRB1 (24). In this study, ARRB1 was predicted to be the target gene of miR-1295b-3p, which may regulate the occurrence and development of bile duct obstruction-induced liver fibrosis. The ARRB1 expression levels in human fibrotic liver specimens and activated LX-2 cells were all upregulated. Furthermore, overexpression of miR-1295b-3p in vitro inhibited ARRB1 expression. Luciferase experiments showed that miR-1295b-3p regulates the expression of ARRB1 by directly binding to the 3'UTR of its mRNA. However, the specific mechanisms and functions remain unclear, and warrants further investigation.


Conclusions

In summary, the changes in the expression level of microRNA in bile duct obstruction-induced liver fibrosis and its relationship with and the mechanisms of bile duct obstruction-induced liver fibrosis are still unclear. However, many studies have shown that microRNAs can promote or inhibit inflammation, as well as the activation, proliferation, and apoptosis of HSCs, and the accumulation of the ECM. This study, based on gene sequencing, compared normal and bile duct obstruction-induced liver fibrosis tissues to obtain the differentially expressed microRNAs and the target genes. Bioinformatics was used to study its corresponding functions and pathways in the process of bile duct obstruction-induced liver fibrosis. Moreover, further studies showed the inhibitory effect of miR-1295b-3p on liver fibrosis, and we discovered that ARRB1 may be a potential target of miR-1295b-3p. However, the regulatory mechanisms require further investigation. The differentially expressed microRNAs may be novel biological markers for the diagnosis, treatment, and prognosis of bile duct obstruction-induced liver fibrosis.


Acknowledgments

The authors wish to thank all colleagues, the reviewers, and the editors for improving our paper.

Funding: This work was supported by the China Postdoctoral Science Foundation (project No. 2018M633732).


Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at https://atm.amegroups.com/article/view/10.21037/atm-22-6416/rc

Data Sharing Statement: Available at https://atm.amegroups.com/article/view/10.21037/atm-22-6416/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://atm.amegroups.com/article/view/10.21037/atm-22-6416/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Medical Ethics Committee of Qingdao Municipal Hospital (2020 No. 098) and informed consent was taken from all the patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
