Screening and identification of susceptibility genes for osteosarcoma based on bioinformatics analysis

Introduction

Osteosarcoma (OS) is a serious public health issue (1). It derives from primitive transformed cells of mesenchymal origin, showing osteoblastic differentiation and producing malignant osteoid (2). OS is characterized by high malignancy and invasiveness, rapid growth, and early metastasis, leading to poor prognosis and high mortality. The main symptoms of OS are local pain and swelling, mainly in the long bones of the limbs, especially the knees. Nearly 20% of OS patients have distant metastases at initial diagnosis, 90% of which are lung metastases. Although the etiology and pathogenesis of OS are unclear, some studies have shown that it is closely related to genetic factors (3-5). In the field of OS research, the challenge is to elucidate its pathogenesis at the molecular level (6-10).

At present, the clinical treatment of OS is mostly chemotherapy, radiotherapy, and tumor resection, but about 50% of patients still have tumor recurrence and distal metastasis after surgery. The 5-year survival rate for patients with OS remains low. Some target molecules have been reported to play an important role in the progression of OS (11-13). There is an urgent need to find diagnostic or prognostic markers with high specificity and sensitivity for disease diagnosis and treatment, to provide a basis for the optimization of clinical treatment and improve patient survival rate. Greater attention is being given to epigenetics, DNA methylation, histone modification, and chromatin remodeling involved in the formation of tumors, so in-depth understanding of the genetic and molecular basis of OS will the provide a theoretical basis for molecular targeted therapy research (14).

In recent years, the use of high-throughput hybrid arrays and sequencing-based technologies has increased because they can measure the molecular abundance of messenger RNA (mRNA) and genomic DNA (15,16). Researchers increasingly expect high-throughput data sets to be published in the scientific literature, and there is an international effort to ensure microarray experimental results are properly interpreted and comparable to each other. The Gene Expression Omnibus (GEO), located in the National Institutes of Health (Bethesda, MD, USA) is a resource for storing and retrieving public high-throughput gene-expression and genomic hybridization data (17). It now stores inventory files from original research deposited by the scientific community, and data on more than 1 million samples are currently available in the public domain. GEO currently accepts data from a variety of assays, including serial analysis of gene expression (SAGE) and real-time polymerase chain reaction (RT-PCR) data in addition to some gene-expression matrix data, and data from various omics in the current field of disease research (18).

Susceptibility gene refers to the gene that can code genetic disease or obtain disease susceptibility under appropriate environmental stimulation, that is, the gene carried by genetically determined organisms prone to certain diseases or diseases. At present, studies have explored the role of differentially expressed genes (DEGs) in patients with OS, but there is a lack of research to explore the interaction between different genes. Therefore, we aimed to analyze gene expression profile chip data for OS, and the DEGs between OS and normal tissues were obtained by screening. In addition, DEGs Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analyses were performed to build a protein-protein interaction (PPI) network, for exploration of possible molecular mechanisms and potential therapeutic targets of OS. We present the following article in accordance with the TRIPOD reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-22-6369/rc).

Methods

Data download

The gene expression profile of microarray data GSE16088 was obtained from the GEO database (https://www.ncbi.nlm.nih.gov/geo/). The microarray expression extracted profiles from 17 samples, including 14 OS samples and 3 normal control tissue samples. In this study, Affymetrix Human Genome U133A was used to genomeu133a on the GPL96 platform (HG-U133A) array [transcript (gene) version], expression data type for expression profiling by array, Homosapiens between species. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Data processing and DEGs analysis

The original data were analyzed by the affy software package in R language (R Foundation for Statistical Computing, Vienna, Austria). The original CEL file was processed by robust multiarray analysis (RMA) algorithm for background correction, bootstrap correction of the original data, and then transformed into a probe table reach matrix. Then, according to the corresponding file GPL96 platform R language hugene10sttranscriptcluster.db package to name a probe into gene; DEGs also met |log₂fold change (log₂FC)| >2 and P<0.01. Heat maps of the top 100 significantly DEGs (defined as |log₂FC|) were drawn using the gplots: heatmap.2 toolkit to visualize the expression of each DEG in each sample.

GO and KEGG analyses

KEGG is a knowledge library that systematically analyzes gene functions and enzyme pathways and connects the information of genes with higher-order functional information. GO is a powerful tool for integrating genes and product characteristics from all species. It is mainly used to integrate proteome data of different species, classify different proteins, predict the function of specific protein domains, and identify genes involved in specific diseases. In this study, GO and KEGG pathway enrichment analyses were performed on DEGs using the enrich-plot package of R language, and P<0.01 and false discovery rate (FDR) <0.05 were set as the critical values of significant gene enrichment.

Weighted analysis and construction of central gene network map

Search Tool for the Retrieval of Interacting Genes/Proteins (STRING) is an online database that retrieves interactions between proteins. Network system cluster tree construction was conducted by dynamic shear method, and gene modules with height below 0.25 were merged.

Gene set enrichment analysis

The DEG list file was imported to the left functional area of the Database for Annotation, Visualization, and Integrated Discovery (DAVID) website (https://david.ncifcrf.gov/) for GO analysis of the genes, including molecular function (MF), biological process (BP), and cellular component (CC), and the specific functional categories and CCs involved in the DEGs were analyzed. Using the R language clusterProfiler package of variance analysis of enrichment of gene analysis and visualization, through the analysis of gene expression profile data, the results of the analysis of DEGs reveal which ones may be involved in signaling pathways, and reveal how well they are expressed in specific functional gene sets, and whether that expression is statistically significant.

Further analysis of the core genes

The 10 core genes obtained were further analyzed in depth, and the direct differential expression of these core genes in metastatic and non-metastatic OS patients within 5 years was extracted and compared in GSE21257.

Prognostic analysis

Of the 36 OS samples in the GSE39055 data set, 1 case was excluded, 35 cases were retained for survival analysis, and the expression of 10 core genes was extracted, as well as the clinical data of the 35 OS patients. Sangerbox online software (http://www.sangerbox.com/tool.html) was used to analyze the relationship between the 10 core genes and overall survival of OS patients. The 35 OS samples were divided into a high expression group and a low expression group according to the best isolation value of each core gene. Kaplan-Meier (K-M) survival curves were drawn, and P<0.05 was considered statistically significant.

Statistical analysis

Statistical data were analyzed by SPSS 23.0 software (IBM Corp., Armonk, NY, USA), quantitative data were represented as mean ± standard deviation, the independent sample t-test was applied for comparisons between groups, one-way analysis of variance (ANOVA) was used for multiple groups, and the least significant difference (LSD) t-test was used for pairwise comparisons between groups. Prism 7 statistical analysis was used for target genes (the 10 core genes), and one-way ANOVA test was used for comparison between groups. P<0.05 indicated that the differences were significantly different (two-tailed).

Results

Screening for DEGs

A volcano map was drawn (Figure 1), which showed that the data quality of all samples was evenly distributed. Moreover, the data of each group were closely distributed, and there was no overflow value. The gene expression of each sample was mapped onto a heat map (Figure 2), and the gene expression differences between groups were statistically significant (P<0.05).

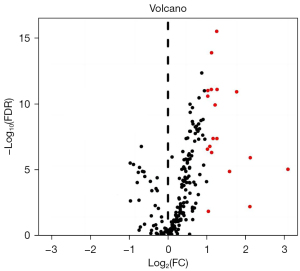

Figure 1 Volcano map analysis. Red dot, up-regulated genes; black dot, insignificant differences. FDR, false discovery rate; FC, fold change.

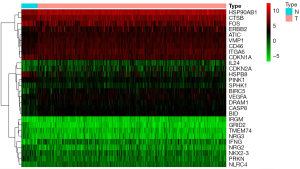

Figure 2 Heat map analysis of gene expression of each sample. N, normal; T, tumor.

Weighted analysis and construction of central gene network map

A total of 4 gene co-expression modules were obtained after excluding representatives that failed to be assigned to any one known module. Among them, the blue module had the highest correlation with renal fibrosis, and the top 10 genes with the highest connectivity were selected from the blue module and blue module, respectively, and the interaction network was drawn, and these genes may play an important role in the disease process of fibrosis (Figure 3).

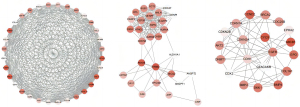

Figure 3 PPI analysis. PPI, protein-protein interaction.

Analysis of subcomponent type

Consensus clustering cumulative distribution function (CDF) and relative change in the area under the CDF curve (CDF delta area) were used for analysis when cluster number varied from k−1 to k. The abscissa represents category number k, and the ordinate represents the relative change in the area. In the consistency analysis of the clustering results heatmap, rows and columns represented samples, and the different colors represent different types. In the expression heatmap of genes in different subgroups, red represented high expression, and blue represented low expression (Figure 4).

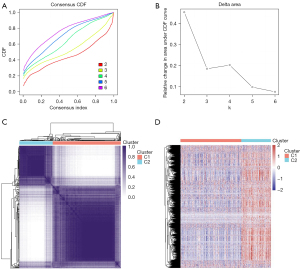

Figure 4 Analysis of subcomponent type. (A-D) Model test of OS with different subcomponent types. For (A), different colors representing stability of CDF curves of different K values; 2–6 represented different K values. CDF, cumulative distribution function; OS, osteosarcoma.

DEG analysis associated with OS prognosis

From the OS data, the heatmap of the DEG expression showed different colors representing the trend in gene expression in different tissues. The top 50 upregulated genes and top 50 downregulated genes are shown in Figure 5. DEGs were mainly involved in the regulation of leukocyte chemotaxis and migration, vascular development, and other BPs; mediation of receptor ligand activity, growth factor binding, growth factor activity, integrin binding, and other MFs; and were enriched in the extracellular matrix (ECM). The enriched KEGG signaling pathways were selected to demonstrate the primary biological actions of major potential mRNA. The abscissa indicates the gene ratio and the enriched pathways are presented in the ordinate. In the GO analysis of potential targets of mRNAs, the BP, CC, and MF of potential targets were clustered based on cluster Profiler package in R software version 3.18.0 (Figure 5).

Figure 5 Functional enrichment analysis of KEGG and GO. (A) Volcano plot, (B) heatmap, and (C) functional enrichment of OS. FDR, false discovery rate; KEGG, Kyoto Encyclopedia of Genes and Genomes; ECM, extracellular matrix; GO, Gene Ontology; OS, osteosarcoma.

Further analysis of core genes

The 10 core genes identified were GAS6, IL-6, IGFBP4, IGFBP3, CYR61, LAMC1, FSTL1, FSTL3, APOE, and CSPP1 (Figure 6). Further analysis of the 10 core genes in the GSE21257 data set showed that the expressions of GAS6, IL-6, APOE, and IGFBP4 in the OS metastasis group were significantly lower than in the non-metastasis group (P values 0.0189, 0.0455, 0.0045, and 0.0068, respectively). The expression of IGFBP3 in the OS metastasis group was significantly higher than that in the non-metastasis group (P=0.0424). There was no significant difference in the expressions of CYR61, LAMC1, FSTL1, and FSTL3 between the two groups. Finally, we found that the expression of GAS6, IL-6, and IGFBP4 were always low in the development of OS.

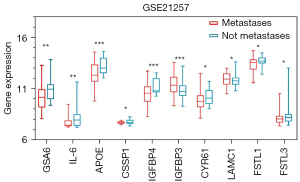

Figure 6 Core gene expressions in the GSE21257 dataset. *, P<0.05; **, P<0.01; ***, P<0.001.

Discussion

OS is a highly aggressive primary bone tumor with a high incidence in young adults (19). Despite the continuous improvement in neoadjuvant chemotherapy regimens, the survival rate of OS patients has not improved, and the 5-year survival rate is still below 20%. Metastasis is considered one of the main causes of mortality (20). In order to find potential drug therapeutic targets and new tumor markers, the pathogenesis of OS needs to be elucidated. With the rapid development of gene chip technology, it is being widely used in disease diagnosis, treatment, and prognosis assessment through bioinformatics (21). In this study, bioinformatics was used to screen DEGs in the GSE16088 gene chip dataset of OS and normal bone tissue along with GO analysis, KEGG rich set analysis, and PPI analysis of selected DEGs. The GO analysis showed that DEGs were mainly involved in mitotic mitosis, sister staining monosomy separation, mitotic microtubule cytoskeleton organization, organelle fission, and other BPs, and mediated histone kinase activity, chemokine receptor binding, microtubule movement, tubulin binding, and other MFs. DEGs gene products were mainly enriched in chromosome regions, spindle microtubules, kinetochores, and centromere regions (22). KEGG pathway enrichment analysis showed that DEGs were enriched in the PI3K-AKT, chemokine, p53, NF-κB, and other signaling pathways (23).

At present, it is a research hotspot to study the biological characteristics of various malignant tumors (24-27). Invasion and metastasis are important biological characteristics of OS, and one of the main reasons for the poor survival rate of OS patients. Therefore, it is urgent to thoroughly explore the molecular mechanism of tumor invasion and metastasis. KEGG pathway enrichment analysis has shown that the ECM-receptor interaction pathway, leukocyte transendothelial migration signaling pathway, PI3K-AKT signaling pathway, and actin cytoskeleton regulation pathways play certain roles in OS (28). Dysregulation of the PI3K-AKT signaling pathway is found in many diseases such as cancer, diabetes, cardiovascular diseases, and neurological diseases (29). Leukocyte transendothelial migration signaling pathway can activate the transcription factor 3 signal transduction pathway in OS cells, thereby promoting their proliferation and metastasis. In cancer, two mutations have been identified that enhance the intrinsic kinase activity of PI3K. Numerous studies have also shown that this signaling pathway also plays an important role in OS, and that the ECM-receptor interaction pathway also plays a certain role in OS (30,31). Therefore, the PI3K-AKT signaling pathway and ECM-receptor interaction pathway are expected to become potential drug therapeutic targets.

Limitations

We did not validate the expression of representative DEGs by experiments.

Conclusions

In this study, bioinformatic methods were used to analyze the relationship between OS-related genes, explore the genetic factors affecting the mechanism of OS, and provide a genetic basis for the prevention, diagnosis, and treatment of OS. Although the research basis of cancer gene therapy is broad, there are still problems and challenges.
