Analysis of the prognostic factors of simultaneous integrated boost-intensity modulated radiation therapy (SIB-IMRT) in 220 cases of locally advanced squamous esophageal cancer: a retrospective cohort study
Original Article

Analysis of the prognostic factors of simultaneous integrated boost-intensity modulated radiation therapy (SIB-IMRT) in 220 cases of locally advanced squamous esophageal cancer: a retrospective cohort study

Shixiang Zhou1#^, Yan Yang1#^, Qun Zhang1,2^, Chaomang Zhu1^, Peng Cai1^, Duojie Li1,2^

1Department of Radiotherapy, The First Affiliated Hospital of Bengbu Medical College, Bengbu, China; 2Anhui Province Key Laboratory of Translational Cancer Research, Bengbu Medical College, Bengbu, China

Contributions: (I) Conception and design: S Zhou; (II) Administrative support: D Li; (III) Provision of study materials or patients: Y Yang; (IV) Collection and assembly of data: Y Yang; (V) Data analysis and interpretation: Q Zhang; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

^ORCID: Shixiang Zhou, 0000-0001-8784-3104; Yan Yang, 0000-0001-6021-8819; Qun Zhang, 0000-0003-1108-2606; Chaomang Zhu, 0000-0003-1146-4612; Peng Cai, 0000-0002-5899-3952; Duojie Li, 0000-0003-2287-5222.

Correspondence to: Duojie Li. Department of Radiotherapy, The First Affiliated Hospital of Bengbu Medical College, Bengbu 233004, China; Anhui Province Key Laboratory of Translational Cancer Research, Bengbu Medical College, Bengbu 233030, Anhui, China. Email: liduojie@163.com.

Background: Esophageal cancer is one of the most common malignant tumors in China. Patients with advanced esophageal cancer often cannot be treated by surgery; in these cases, radiation therapy is usually applied. However, there are currently few studies on the clinical efficacy of this treatment method. The present study aimed to investigate and observe the clinical efficacy and related prognostic factors of simultaneous integrated boost-intensity modulated radiation therapy (SIB-IMRT) in esophageal squamous carcinoma, and to provide a reference for clinicians in radiotherapy (RT) departments.

Methods: The clinical and follow-up data of 220 patients with esophageal squamous carcinoma admitted to the First Affiliated Hospital of Bengbu Medical College from January 2017 to December 2018 were retrospectively analyzed to assess the relevant prognostic factors and analyze their effects on 3-year overall survival (OS) and progression-free survival (PFS). The prognostic influencing factors were analyzed using the log-rank test and Cox multi-factor regression analysis.

Results: The median follow-up time was 56.0 months (3.0 to 66.0 months). The 1-, 2-, and 3-year survival rates were 68.6%, 49.1%, and 36.3%, respectively, for the entire cohort, and the 1-, 2-, and 3-year PFS rates were 52.3%, 37.7%, and 25.5%, respectively. The median OS time was 24 months [95% confidence interval (CI): 19.16–28.84 months] and the median PFS time was 15 months (95% CI: 11.04–18.96 months). The multifactorial analysis results showed that gender, RT dose, treatment modality, absolute lymphocyte count (ALC), and gross tumor volume (GTV) were independent prognostic factors affecting 3-year OS (P<0.05); while gender, N-stage, RT dose, and GTV were independent prognostic factors affecting 3-year PFS (P<0.05).

Conclusions: In the SIB-IMRT era, the survival of esophageal squamous cell carcinoma (ESCC) patients treated with radical (chemo)radiotherapy is relatively satisfactory. As a single-institution study on radiation therapy for esophageal cancer, this study yielded accurate results that help to provide references for subsequent related studies and clinicians’ selection of treatment options.

Keywords: Esophageal squamous carcinoma; simultaneous integrated boost-intensity modulated radiation therapy (SIB-IMRT); prognosis; radical radiotherapy (radical RT)


Submitted Dec 07, 2022. Accepted for publication Jan 11, 2023. Published online Jan 31 2023.

doi: 10.21037/atm-22-6462


Highlight box

Key findings

• In the SIB-IMRT era, the survival of ESCC patients treated with radical (chemo)radiotherapy is relatively satisfactory. Gender, N stage, treatment modality, radiotherapy dose, ALC, and GTV were independent factors affecting the prognosis of patients with esophageal cancer.

What is known and what is new?

• Radiotherapy is an effective treatment for locally advanced esophageal cancer.

• All patients in this study received SIB-IMRT, and the patient baseline characteristics, radiotherapy target area size, and hematologic indicators were combined in the data analysis to produce a more comprehensive study result.

What are the implications, and what should change now?

• SIB-IMRT is a better mode of radiotherapy, and a higher dose of radiotherapy and smaller GTV are recommended for patients who can tolerate it. If a more thorough understanding of the relationship between radiotherapy-induced lymphopenia and patient survival is desired, a prospective study could be the next step.


Introduction

Esophageal cancer is a common malignant tumor in China, ranking third in incidence and fourth in mortality among malignant tumors according to a national epidemiological study conducted in 2015 (1). Due to its insidious onset and the lack of specific clinical symptoms in the early stage of the disease, 50–60% of esophageal cancer patients have already progressed to the middle and late stages when they are first diagnosed, and some of them have lost the opportunity for surgical treatment (2). Since more than 90% of the pathological types of esophageal cancer are squamous carcinoma (3), which is sensitive to radiation, radiation therapy is a commonly used treatment for patients with intermediate to advanced esophageal cancer that cannot be treated surgically. Conventional radiation therapy techniques make it difficult to increase the local dose of esophageal lesions due to the dose limitation tolerated by the surrounding normal tissues and organs (4). With the widespread introduction of intensity-modulated radiation therapy, the five-year survival rate for esophageal cancer has improved significantly compared to conventional two-dimensional radiation therapy, and several studies have demonstrated that radical radiotherapy (RT) can yield the same survival rate as surgery (5-7). Simultaneous integrated boost-intensity modulated radiation therapy (SIB-IMRT) is one of the commonly used intensity-modulated RT methods in clinical practice, which can increase the dose to the tumor bed area without increasing the dose to the surrounding normal tissues (8). This can reduce the risk of adverse effects while improving the efficacy of the treatment. However, in non-surgical patients, traditional prognostic factors such as staging tumor, node, metastasis (TNM) staging cannot be accurately determined (9,10). Therefore, there is a need to identify more feasible and effective clinical factors to improve the prognosis prediction of esophageal squamous cell carcinoma (ESCC) patients undergoing radical radiation therapy. The present study summarized the survival of esophageal cancer patients who received SIB-IMRT ± chemotherapy at the First Affiliated Hospital of Bengbu Medical College in recent years and analyzed the prognostic factors to provide an important basis and reference for clinical treatment selection. We present the following article in accordance with the STROBE reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-22-6462/rc).


Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was reviewed and approved by the Ethics Committee of the First Affiliated Hospital of Bengbu Medical College (approval No. 2021KY032). All the patients included in this study gave their informed consent for the treatment.

Study population

This is a retrospective cohort study. Patients with esophageal squamous carcinoma who were unable or unwilling to undergo surgery and received SIB-IMRT at the Department of Radiotherapy, The First Affiliated Hospital of Bengbu Medical College between January 2017 and December 2018 were collected. Variables including demographic, clinicopathological, and treatment characteristics were obtained from the electronic medical record system. Study variables collected at baseline included age, gender, tumor location, N stage, RT dose, treatment modality, clinical stage, grading, size of gross tumor volume (GTV) at the tumor site, and absolute lymphocyte count (ALC) minimum during RT. Patients with missing follow-up information, imperfect clinical data, Karnofsky Performance Status (KPS) score <70, abnormal lymphocytes in routine blood examination before the start of RT, distant organ metastases at the initial diagnosis, other malignant tumors diagnosed within 5 years before treatment, and less than 3 months of follow-up were excluded, and a total of 220 patients were enrolled in this study.

Among them, 147 (66.8%) were male and 73 (33.2%) were female; age ranged from 40 to 90 years, with a mean of 72.37 [95% confidence interval (CI): 71.25–73.50] years, including 145 (65.9%) patients ≥70 years old and 75 (34.1%) patients <70 years old. There were 15 patients (6.8%) in the cervical segment, 55 patients (25.0%) in the upper thoracic segment, 97 patients (44.1%) in the middle thoracic segment, and 53 patients (24.1%) in the lower thoracic segment. Regarding the N stage, there were 34 cases (15.5%) in the N0 stage, 162 cases (73.6%) in the N1 stage, and 24 cases (10.9%) in the N2 stage.

The RT doses for the entire cohort ranged from 46 to 66 Gy, with a median of 60 Gy; for the purpose of dose uniformity, the RT doses for the whole cohort were converted according to the equivalent dose of 2 Gy/fraction (EQD2). 153 patients (69.5%) had a RT dose of ≥60.0 Gy in the tumor area, 42 patients (19.1%) had a dose of 50.0–59.9 Gy, and 25 patients (11.4%) had a dose of <50.0 Gy. There were 46 patients (20.9%) in the RT alone group, 154 patients (70.0%) in the chemoradiotherapy (CCRT) group, and 20 patients (9.1%) in the sequential chemoradiotherapy (sCRT) group (patients who did not receive concurrent chemotherapy but received induction chemotherapy and (or) adjuvant chemotherapy were defined as patients receiving sCRT) (Table 1).

Table 1

Patients, tumors, and treatments characteristics

Variables No. of patient (N=220) %
Sex
   Male 147 66.8
   Female 73 33.2
Age
   <70 years 75 34.1
   ≥70 years 145 65.9
Tumor location
   Cervical 15 6.8
   Upper 55 25.0
   Middle 97 44.1
   Lower 53 24.1
N stage
   N0 34 15.5
   N1 162 73.6
   N2 24 10.9
EQD2
   40.0–49.9 Gy 25 11.4
   50.0–59.9 Gy 42 19.1
   ≥60.0 Gy 153 69.5
Treatment modality
   RT alone 46 20.9
   CCRT 154 70.0
   sCRT 20 9.1
ALC
   <0.2×109/L 44 20.9
   ≥0.2×109/L 176 79.1
GTV
   <78.5 cm³ 142 64.5
   ≥78.5 cm³ 78 35.5

EQD2, equivalent dose in 2 Gy; RT, radiotherapy; CCRT, chemoradiotherapy; sCRT, sequential chemoradiotherapy; ALC, absolute lymphocyte count; GTV, gross tumor volume.

Treatment

RT

All patients were treated with RT using the SIB-IMRT technique. The GTV was defined as the primary focus of the esophagus identified by various imaging modalities such as upper gastrointestinal tract imaging and computed tomography (CT).

Chemotherapy

For patients who received concurrent RT, the most common regimens were oral single-agent tegeo (S-1) (n=100, 64.94%) and a two-drug combination of paclitaxel and platinum (n=38, 24.68%), with a few patients also receiving a two-drug combination of tegeo and platinum and single-agent platinum. In contrast, for patients who received sCRT, the most commonly used regimens were single-agent tegeo and paclitaxel + platinum.

Follow-up and evaluation criteria

Patients were followed up by telephone once every 3 months for the first 2 years and every 6 months thereafter, and the number of patients who died was recorded in detail. The study endpoints were overall survival (OS) and progression-free survival (PFS) rates, with OS defined as the time interval between the start of patient treatment and patient death due to any cause, and PFS defined as the time interval between the end of patient treatment and patient tumor recurrence, progression, or death from any cause. Grade 4 lymphopenia was defined as an ALC nadir <0.2×109/L according to the Common Terminology Criteria for Adverse Events version 5.0.

Statistical analysis

SPSS 25.0 software (IBM, USA) was used to perform statistical analysis. The Kaplan-Meier (KM) method was employed to calculate the survival rate, the log-rank test was used for single-factor survival analysis, and the Cox regression model was used for multi-factor survival analysis. The optimal cut-off point (i.e., the point where the sum of sensitivity and specificity is the maximum point of the Jorden index) for esophageal cancer tumor volume was determined by applying the subject receiver operating characteristic (ROC) curve, and the area under the curve (AUC). P<0.05 was considered statistically significant.


Results

Survival

The median follow-up time for the entire cohort was 56.0 months (3.0–66.0 months), with 1-, 2-, and 3-year survival rates of 68.6%, 49.1%, and 36.3%, respectively; and 1-, 2-, and 3-year PFS rates of 52.3%, 37.7%, and 25.5%, respectively. The median OS time was 24 months (95% CI: 19.16–28.84 months) and the median PFS time was 15 months (95% CI: 11.04–18.96 months) (Figure 1).

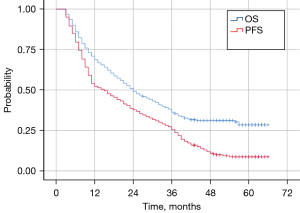

Figure 1 Kaplan-Meier curves for OS and PFS in 220 patients with SIB-IMRT esophageal cancer. OS, overall survival; PFS, progression-free survival; SIB-IMRT, simultaneous integrated boost-intensity modulated radiation therapy.

Univariate and multivariate analysis of prognosis

The univariate analysis results showed that gender, N stage, treatment modality, RT dose, ALC, and GTV were associated with the 3-year OS and 3-year PFS of patients with esophageal cancer (P<0.05, Table 2). Multifactorial analysis showed that gender, RT dose, treatment modality, ALC, and GTV were independent prognostic factors affecting 3-year OS (P<0.05); while gender, N-stage, RT dose, and GTV were independent prognostic factors affecting 3-year PFS (P<0.05, Table 3).

Table 2

Univariate analysis of the prognosis of 220 patients with esophageal cancer

Variables OS PFS
3-year (%) P 3-year (%) P
Sex 0.002 0.002
   Male 30.5 19.0
   Female 47.9 38.4
Age 0.237 0.351
   <70 years 41.3 32.0
   ≥70 years 33.6 22.1
Tumor location 0.185 0.304
   Cervical 33.3 26.7
   Upper 46.9 34.5
   Middle 35.1 25.8
   Lower 28.3 15.1
N stage 0.002 0
   N0 58.8 55.9
   N1 35.0 21.0
   N2 12.5 12.5
EQD2 0 0
   40.0–49.9 Gy 16.0 12.0
   50.0–59.9 Gy 25.3 11.9
   ≥60.0 Gy 42.5 31.4
Treatment modality 0.007 0.037
   RT alone 21.7 15.2
   CCRT 41.4 29.9
   sCRT 30.0 15.0
ALC 0 0
   <0.2×109/L 6.8 4.5
   ≥0.2×109/L 43.7 30.7
GTV 0.001 0.003
   <78.5 cm³ 44.2 31.0
   ≥78.5 cm³ 21.8 15.4

OS, overall survival; PFS, progression-free survival; EQD2, equivalent dose in 2 Gy; RT, radiotherapy; CCRT, chemoradiotherapy; sCRT, sequential chemoradiotherapy; ALC, absolute lymphocyte count; GTV, gross tumor volume.

Table 3

Multifactorial analysis of factors affecting the prognosis of 220 patients with esophageal cancer

Variables OS PFS
HR (95% CI) P HR (95% CI) P
Sex
   Male 1 1
   Female 0.678 (0.468–0.982) 0.04 0.646 (0.472–0.886) 0.007
N stage
   N0 1 1
   N1 1.630 (0.941–2.821) 0.081 1.871 (1.198–2.922) 0.006
   N2 1.962 (0.969–3.973) 0.061 2.072 (1.123–3.824) 0.02
EQD2
   ≥60.0 Gy 1 1
   50.0–59.9 Gy 1.591 (1.054–2.400) 0.027 1.963 (1.356–2.843) 0
   40.0–49.9 Gy 1.953 (1.198–3.185) 0.007 1.519 (0.948–2.433) 0.082
Treatment modality
   RT alone 1 1
   CCRT 0.577 (0.392–0.851) 0.006 0.741 (0.516–1.065) 0.105
   sCRT 1.014 (0.559–1.839) 0.963 1.350 (0.773–2.355) 0.291
ALC
   <0.2×109/L 1 1
   ≥0.2×109/L 0.581 (0.392–0.863) 0.007 0.777 (0.535–1.128) 0.184
GTV
   <78.5 cm³ 1 1
   ≥78.5 cm³ 1.603 (1.132–2.271) 0.008 1.551 (1.139–2.110) 0.005

OS, overall survival; PFS, progression-free survival; EQD2, equivalent dose in 2 Gy; RT, radiotherapy; CCRT, chemoradiotherapy; sCRT, sequential chemoradiotherapy; ALC, absolute lymphocyte count; GTV, gross tumor volume.

Effect of different RT doses on survival

The median OS of patients in the EQD2 (equivalent dose in 2 Gy/fraction) ≥60.0 Gy, 50.0–59.9 Gy, and 40.0–49.9 Gy groups were 30.0, 19.0, and 13.0 months, respectively (Figure 2). The median OS of patients in the ≥60.0 Gy group was better than those in the 50.0–59.9 Gy (P=0.016) and 40.0–49.9 Gy (P=0.000) groups. There was no statistically significant difference in median OS between patients in the 50.0–59.9 and 40.0–49.9 Gy groups (P=0.128).

Figure 2 Overall survival curves of 220 patients with esophageal cancer receiving different radiation therapy doses.

Impact of different treatment modalities on survival

The median OS was 30.0, 17.0, and 16.0 months for patients in the CCRT, RT alone, and sCRT groups, respectively (Figure 3). The prognosis of patients who received CCRT was significantly better than that of patients who received RT alone (P=0.005); the survival curve was also superior to that of patients who received sCRT but it was not statistically significant (P=0.085). In contrast, the survival of patients in the sCRT group tended to be higher than that in the RT-alone group but the difference was not statistically significant (P=0.802).

Figure 3 Overall survival curves of 220 esophageal cancer patients receiving different treatment modalities. RT, radiotherapy; CCRT, chemoradiotherapy; sCRT, sequential chemoradiotherapy.

Discussion

In China, most patients with esophageal cancer have advanced disease at the time of initial diagnosis, with only 20–30% of these patients being operable at the time of initial diagnosis according to statistics. Therefore, non-surgical treatment, mainly radiation therapy, is particularly important in Chinese patients with esophageal cancer. SIB-IMRT is a method of irradiation with different split doses for different dose requirements in the same field, which can achieve additional local dose irradiation for large tumors in the same plan without increasing the dose to normal tissues, and its dosimetric advantages have been confirmed by previous study (11). The OS rates at 1 and 3 years in this study were 68.6% and 36.3%, which are consistent with the results of Lan et al., who utilized SIB-IMRT for esophageal cancer and reported OS rates of 65.2% and 36.2% at 1 and 3 years, respectively (12). In addition, the survival outcome of patients in the RT-alone group in this study was satisfactory, with a 3-year OS of 21.7%, which is higher than previously reported in the 2D/3D RT era, which may be related to recent advances in radiation therapy and imaging techniques. These results suggest that in the era of SIB-IMRT, single radiation therapy can still lead to promising survival outcomes for patients who cannot tolerate CCRT.

Previous study has shown that the combination of chemotherapy and RT can increase the sensitivity of malignant tumors to RT, while RT can increase the cytotoxicity of chemotherapy drugs (13). The combined application can enhance the effect of inactivating tumor cells, thus avoiding the accelerated re-proliferation of tumor cells after RT to affect the effect of RT . In a phase 3 randomized clinical trial of older patients with esophageal cancer by Ji et al., the CCRT (combined with S-1) group had a higher 2-year OS rate (53.2% versus 35.8%; hazard ratio (HR): 0.63; 95% CI: 0.47–0.85; P=0.002), with a significant benefit compared with RT alone (14). The 3-year survival rate in the CCRT group in this study was 41.4%, including 113 patients (73.38%) who received the S-1 chemotherapy regimen, and although the OS rate was lower than that reported by Ji et al. (14), the results were still consistent. The survival outcome of the CCRT group was better than that of the RT-alone group (median OS 30 vs. 17 months, P=0.005), indicating that CCRT remains the best treatment option in the SIB-IMRT era for patients with esophageal cancer who can tolerate concurrent chemotherapy.

The value of sequential chemotherapy for esophageal cancer is controversial; to date, there are no large prospective clinical trials to confirm the efficacy of sequential chemotherapy in patients with esophageal cancer after RT, and published retrospective studies have come to different conclusions (15,16). In our analysis, patients receiving sequential chemotherapy did not show a better survival outcome than patients receiving radiation alone (median OS: 16.0 vs. 17.0 months, P=0.802). However, due to the small number of patients in the sCRT group (20 cases, 9.1%), no further exploration was performed.

In terms of radiation dose, the majority (69.5%) of patients used a radical radiation dose of ≥60 Gy, which is the current radical dose commonly used in most Asian countries. This dose is different from the current dose (50.4 Gy) recommended by most guidelines. After Radiation Therapy Oncology Group (RTOG) 85-01 (17) and RTOG 94-05 (18) in the RTOG, 50.4 Gy became the standard dose for definitive RT; however, these two prospective clinical trials were conducted in the era of 2 dimensional RT. A study in recent years has confirmed that local area control using such doses is very ineffective (19). In a phase III multicenter randomized clinical trial of 60 versus 50 Gy CCRT for inoperable esophageal squamous carcinoma, the survival endpoints of the 60 Gy group were similar to those of the 50 Gy group, except that the incidence of severe pneumonia was higher in the 50 Gy group (20). In this study, we observed that patients receiving EQD2 ≥60 Gy had better OS than those receiving 50.0–59.9 Gy or 40.0–49.9 Gy (median OS: 42.5 vs. 25.3 vs. 16.0 months, P=0.000). This difference may be because all patients in Xu et al.’s study (20) completed CCRT, whereas patients in the 60 Gy group in this study had a higher rate of concurrent chemotherapy (72.55%) and a larger patient base. On the other hand, there are still many large retrospective studies that suggest that higher radiation doses may provide better local control and survival benefits for patients with advanced esophageal cancer, especially in patients with ESCC (21-23). These results support the idea that patients with esophageal squamous carcinoma may indeed require a higher radical radiation dose.

However, higher radiation doses necessarily entail higher therapeutic toxicity. For some patients, complete pathological regression (PCR) was achieved even after irradiation doses as low as 40–50 Gy (24). Therefore, we believe that it would be useful in the future to be able to correctly predict the sensitivity of patients to radiation therapy and to stratify the radiation dose according to the sensitivity of patients.

The different prognoses of patients with the same stage of esophageal cancer given the same treatment plan may be related to the differences in immune function and nutritional status among individuals. RT can reduce the number of lymphocytes, which is associated with a state of radiation-induced immunosuppression, and a study of RT for esophageal cancer reported grade 4 lymphopenia in about 31% of patients during CCRT (25). Davuluri et al. found that the probability of decreased grade 1, 2, 3, and 4 lymphocytes during CRT in esophageal cancer was 2%, 12%, 59%, and 27%, respectively, but only decreased grade 4 ALC was associated with poorer OS time (26). One study reported significantly shorter OS in patients who developed grade 4 lymphopenia during CRT than in patients who did not (median OS 34.7 vs. 63.1 months) (27).

In this study, KM survival analysis showed that the OS time was significantly lower in the group with grade 4 ALC reduction (ALC <0.2×109/L) than in the group without grade 4 ALC reduction (median OS 14 vs. 29 months, P=0.000). Yet, grade 4 ALC reduction was not an independent prognostic factor for PFS in the multifactorial analysis, suggesting an independent association between grade 4 ALC reduction and decreased OS in esophageal cancer. However, the relationship with short-term outcomes needs to be further investigated. Also, the presence or absence of concurrent chemotherapy during RT was not significantly associated with lymphocyte changes in patients with esophageal cancer, which is consistent with the findings of van Rossum et al. (27). In further analysis, patients who developed grade 4 lymphocytopenia had greater GTVs and higher irradiation doses compared with those who did not; the mean dose to both lungs and the mean dose to the body of patients in the ALC <0.2×109/L group were significantly higher than those with esophageal cancer in the ALC ≥0.2×109/L group (P<0.05). However, there was no significant difference between the two groups in the comparison between myelosuppression, radiation pneumonia, and radiation esophagitis (P>0.05). Intensity-modulated radiation therapy decreases the total number of lymphocytes in patients with esophageal cancer, and although the lymphocytes improve to some extent upon completion of radiation therapy, they remain lower than the pre-RT level in the short term. The presence of lymphopenia during RT is one of the predictors of OS time in patients with esophageal cancer. Therefore, optimizing the RT schedule to reduce the dose of irradiation to normal organs and enhancing nutritional support for esophageal cancer patients during RT (as a way of mitigating the impact on the body’s immune function) can reduce the effect of RT on lymphocytes and potentially improve the prognosis of patients with esophageal cancer.

At present, the clinical staging standards for non-surgical treatment of esophageal cancer are not uniform but most are based on the thickness of the esophageal wall without considering the length of the tumor. The main judgment indexes of the current clinical staging of esophageal cancer include the maximum diameter of the lesion shown in a chest CT scan, the relationship between the lesion and surrounding tissues and organs in CT, and the length of the lesion in a barium meal esophagogram. GTV is a comprehensive display of the lesion length and cross-sectional diameter, which is clinically advantageous for reflecting the overall condition of a local tumor. Larger tumor volumes reflect a greater tumor cell load, more frequent intratumor blood flow disorders, and a greater lack of oxygen cells; these factors can affect the treatment outcome, leading to an uncontrolled local area or recurrence after treatment, which in turn affects long-term survival. Tumor volume factors are closely related to tumor treatment outcomes such as the local tumor control rate and long-term patient survival. In the study by Chen et al., GTV accurately predicted the prognosis of patients with esophageal squamous carcinoma without distant metastases (28).

In this study, ROC curve analysis was performed to determine the cut-off value of the GTV (78.5 cm³) taking mortality status as an endpoint, which was used to divide the patients into two groups (Table 4, Figure 4). KM survival analysis showed that patients in the GTV ≥78.5 cm³ group had a significantly shorter survival time than those in the GTV <78.5 cm³ group (median OS 31 vs. 13 months, P=0.001). This result suggests that GTV may become a clinical staging criterion for the non-surgical treatment of esophageal cancer in the future, thus predicting the prognosis of patients.

Table 4

ROC curve predicting the survival of patients with esophageal cancer

Variable Area 95% CI Sensitivity Specificity Asymptotic Sig.
GTV 0.616 0.539–0.693 0.429 0.818 0.006

ROC, receiver operating characteristic; GTV, gross tumor volume; CI, confidence interval; Sig., significance.

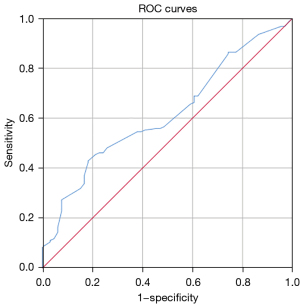

Figure 4 ROC curve predicting the survival of patients with esophageal cancer. ROC, receiver operating characteristic.

Conclusions

In summary, there is a significant improvement in survival for patients with esophageal cancer receiving SIB-IMRT compared with previous RT techniques. CCRT remains the best option for the non-surgical treatment of patients who are clinically evaluated to tolerate concurrent RT, with a recommended radiation dose of ≥60.0 Gy to the tumor area, a smaller GTV associated with better survival outcomes, and lymphopenia due to RT associated with patient survival. Prospective studies are still needed to obtain approaches that can alleviate severe lymphopenia, which may eventually translate into survival benefits.

Limitations

This study has some limitations that should be noted. Firstly, this was a single-institution retrospective study with a relatively small sample size. Also, we could only include a limited number of items for analysis and lacked information on several detailed variables (i.e., performance status, nutritional status, comorbidities, treatment-related side effects, quality of life, etc.), which affected our ability to further investigate these factors in this study, so our findings may not be generalizable to other clinical settings. Therefore, prospective studies with larger sample sizes are needed to explore the survival and prognosis of patients with esophageal squamous carcinoma treated with SIB-IMRT.


Acknowledgments

The authors appreciate the academic support from the AME Esophageal Cancer Collaborative Group.

Funding: This study was supported by the Anhui Province Key Laboratory of Translational Cancer Research (Bengbu Medical College, No. KFDX202204) and the Natural Science Foundation of Anhui Province (No. KJ2021A0699).


Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://atm.amegroups.com/article/view/10.21037/atm-22-6462/rc

Data Sharing Statement: Available at https://atm.amegroups.com/article/view/10.21037/atm-22-6462/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://atm.amegroups.com/article/view/10.21037/atm-22-6462/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was reviewed and approved by the Ethics Committee of the First Affiliated Hospital of Bengbu Medical College (Approval No. 2021KY032). All the patients included in this study gave their informed consent for the treatment.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
