A novel patient-specific 3D printed guide for accurate femoral derotation osteotomies: a case report

Introduction

The prevalence of evident rotational malalignment after intramedullary (IM) nailing for femoral fractures (pertrochanteric, subtrochanteric, diaphyseal) is broadly estimated on 2.3–35% (1,2). Due to the intraoperative closed reduction maneuver, it appears difficult to maintain control over the native rotation of the femur, both radiographically and clinically (1,3).

The most common malalignment after femoral IM nailing is internal rotation of the distal part resulting in increased femoral anteversion or femoral anteversion angle (FAVA) (normal value 15°±10°) (4,5). Relevant mechanical leg axis deviation might be expected in case of >20° side to side difference (6). However, increased femoral anteversion results in an elevated patellofemoral contract pressure, toeing-in during gait and anterior groin pain (1,3,7,8). This might severely impact the quality of life and the activity level of the ambulating patient (regardless of age) (1). Revision surgery can therefore be necessary after thorough imaged-based investigation by measuring the exact difference in FAVA angle on bilateral computed tomography (CT) scan (9). If noticed in the early postoperative phase (<4 weeks), a derotation over the non-consolidated fracture site can be performed with repositioning of the nail and locking screws. However, most axial malrotations become symptomatic in the later phase of rehabilitation because of altered gait (toeing-in/-out or abductor muscle malfunction) when fracture consolidation is almost reached (2,10). This urges the need for revision surgery in the form of a subtrochanteric or diaphyseal derotation osteotomy (1,3,4,9).

Femoral derotation osteotomies are technically challenging procedures for which careful preoperative CT-based planning of FAVA correction is key to successful outcome (1,9). Intraoperative translation of the planned correction seems difficult to obtain with the current surgical and measuring tools available, which leaves the effective correction subjected to the ‘eyeballing’ judgement of the surgeon (3).

With the increasing accessibility of preoperative 3D planning and printing in orthopaedics nowadays, patient specific instrumentation (PSI) can contribute to the improvement in performing femoral derotation osteotomies. The goal of this technology is to minimize perioperative tissue damage, to increase surgical accuracy and thereby improving function and quality of life, while minimizing the need for revision surgery. The authors present an alternative case-based derotation osteotomy technique using a patient-specific 3D printed guide in order to facilitate procedure technics and increase surgical accuracy (11). We present the following article in accordance with the CARE reporting checklist (available at https://atm.amegroups.com/article/view/10.21037/atm-22-1645/rc).

Case presentation

A 32-year-old woman was referred to our clinic with ongoing left groin pain. Three months earlier, she sustained a high energy fall resulting in a subtrochanteric femur fracture. This was treated with a long IM femoral nail (PFNA™, Synthes, Solothurn, Switzerland) elsewhere. Postoperatively, she developed a limping gait pattern and persistent pain during walking. Clinical examination revealed ‘toeing-in’ of the left limb during gait. In supine position, a notable axial malalignment towards increased femoral version was visible compared to the contralateral side with 46° FAVA on CT-scan (Figure 1).

Figure 1 The preoperative FAVA of 46°, clinically expressed as evident endorotation of the right lower limb. FAVA, femoral anteversion angle.

3D planning and guide design

In order to measure the rotational error, a high-resolution bilateral CT-scan was obtained according to a specific protocol (slice thickness 0.5 mm, slice increment 0.2 mm, pixel size 0.29 mm, 120 kVp). The DICOM images were loaded into medical processing software Mimics Medical (Materialise NV, technologielaan 15, 3001 Leuven, Belgium) and the individual bones were segmented and converted into 3D STL (stereolithography) files. A mirrored version of the normal contralateral bone was superimposed over the malunited bone, which enabled evaluation of the deformity both intuitively and quantitatively (Figure 2A). Furthermore, the FAVA was measured as described by Waidelich et al. in the axial plane (12). Native femoral anteversion was 10° in the left femur and 46° in the operated right femur (Figure 2B). A corrective derotation osteotomy of 36° reduction in anteversion at the subtrochanteric level was simulated in 3-Matic (Materialise NV, Technologielaan 15, 3001 Leuven, Belgium), as bone fragments were reduced to their anatomical position (Figure 2C). Next, a patient-specific guide was designed, which matched the lateral femoral bone surface (Figure 3A). Correct guide placement was facilitated by specific post-traumatic marks in the subtrochanteric zone (Figure 3B). This guide determined the exact placement of two Kirschner wires (K-wires, 2 mm diameter); one above and one below the osteotomy. The direction of both K-wires was determined by the patient-specific implant in order that they were placed eccentrically in the thick anterior and posterior cortices without nail interference. After osteotomy, the derotation was accurate when both K-wires were finally in parallel position. The 3D guide was a disposable Aluminum (AlSi10Mg) device printed externally and sterilized onsite in an autoclave with saturated steam at 134 ℃ for 3.5 hours (Figure 3C). In order to facilitate correct guide placement, a phantom of the subtrochanteric femoral area and the guide was 3D printed in non-medical resin for perioperative use (Figure 3D).

Figure 2 Preoperative 3D planning of the osteotomy. (A) The mirrored left limb (white) over the pre-derotation right limb (blue). (B) 3D reconstruction of the preoperative alignment with the primary IM nail in red. (C) Simulation of the external rotation osteotomy with the desired distal femur in blue. IM, intramedullary.

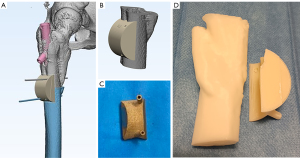

Figure 3 Guide design and printing. (A) 3D guide design based on callus formation of the lateral proximal femur. (B) Note the callus groove that facilitatingtes correct guide placement. (C) 3D print of the surgical guide equipped with one gliding hole on each side of the osteotomy for K-wire positioning. (D) The phantom model of non-medical resin to facilitate proper guide placement.

Surgical technique

The patient was positioned in dorsal decubitus on a traction table without traction. The same incisions were used with distal enlargement of the lag screw incision. Corresponding to a direct lateral approach to the proximal femur, the femoral subtrochanteric region was exposed by elevating the proximal vastus lateralis muscle. The lateral cortical bone was cleared from soft tissue for guide placement. The surgical 3D guide was fixed to the bone with two new 2.5 mm drill bits, perforating the thick cortex, without IM involvement (Figure 4). Position was checked with fluoroscopy. While keeping the guide in place, the distal locking screws, the lag screw and the PFNA nail were consequently removed at the level of the greater trochanter. Then, an IM rod (3×1,000 mm) was introduced into the femoral canal, while the guide was removed and the drill bits were replaced by 2.0 mm K-wires (Figure 4). The osteotomy was performed with a 1 mm sawblade oscillating saw and completed with a small chisel under fluoroscopic guidance. The IM rod prevented major antero-posterior or mediolateral displacement of the osteotomy. Next, the distal part was externally rotated for 36°, until the 2 K-wires were in parallel position (Figure 5A). This was confirmed by placement of a Hintermann retractor over the K-wires, also to maintain the planned correction during nail introduction (Figure 5B).

Figure 4 Intraoperative guide placement. (A) Fluoroscopic control of guide positioning with 2.5 mm drill bits. (B) Lateral view on surgical approach and guide placement with drill bits. (C) Drill bits are replaced by 2.0 mm K-wires forming a 36° angle before performing the osteotomy.

Figure 5 The intraoperative derotation. (A) After the osteotomy, the distal part is rotated externally until both K-wires are in parallel position. (B) A Hintermann retractor is used to confirm parallel position of the K-wires and to maintain the correction during nail introduction and fixation.

Next, a new long PFNA nail (Synthes, Solothurn, Switzerland) was introduced, using the same lag screw trajectory but new distal drillholes. In this way, the correction could be maintained with K-wires in situ while locking the nail.

From day one postoperatively, weight-bearing ‘as tolerated by the patient’ was permitted with two crunches. Six weeks after surgery the patient presented without pain and normal gait. Clinical examination showed bilateral similar rotations in supine position (Figure 6). A postoperative CT-scan at 3 months revealed a final anteversion (FAVA) of 10.1°, comparable to the contralateral side. Radiological consolidation was reached at 4 months with central location of the nail distally (Figure 7). At 6 months after the corrective osteotomy, the patient complained about irritation of the lag screw and proximal tip of the nail, so the revision nail was subsequently removed at this time.

Figure 6 The postoperative FAVA of 10.1°, clinically expressed as normalized version of the right lower limb. The exact planned correction of 36° reduction of femoral anteversion was obtained. FAVA, femoral anteversion angle.

Figure 7 Radiographic assessment. (A) Pre-derotation and (B) post-derotation face radiograph of the distal femur. Note the difference in distal nail position in the femoral canal.

All procedures performed in the study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of the manuscript and additional images. A copy of the written consent is available for review by the editorial office of this journal.

Discussion

The here presented case-based surgical technique described a femoral derotation osteotomy to correct axial malrotation after primary IM nailing for a subtrochanteric fracture. The use of 3D planning and printing of a surgical guide for placement of 2 eccentrical K-wires provided the desired correction relative to the planning while facilitating surgical flow.

Continuous cortical fixation of the K-wires without interfering with nail exchange was considered to be a major advantage. Either central or eccentrical placement of the pins seems to be irrelevant to the amount of rotation needed before pins become parallel. Further, due to the compact design of the 3D guide, there was minimal need for periosteal stripping and soft tissue detachment as compared to other studies presenting 3D derotation guides (3,13). Besides fracture revision surgery, the concept of this 3D technique might be applicable for patients with excessive native ante-or retroversion of the femur too (14). Finally, who are low volume surgeons not familiar with rotational osteotomies might benefit most from this technique.

Downsides of this approach are the indisputable cost [3D medical software and guide manufacturing (150 euro)], and additional time for preoperative 3D planning and guide design. Further, an exact match of the guide with the lateral cortical bone is mandatory to avoid mal-positioning of the drill bits and K-wires. Providentially, the lateral subtrochanteric bone can easily be exposed by flipping over the vastus lateralis muscle anteriorly which makes this region anatomically appropriate for correct bony guide positioning. However, in general, smaller 3D guides have the advantage of minimizing soft tissue damage while increasing the risk of malpositioning due to reduced bony contact surface. Further, a cutting slot or additional guidance pin in the 3D guide might have facilitated an exact perpendicular bone cut to the mechanical axis of the femur. Finally, when malrotation is discovered in the early phase (<4 weeks) after fracture nailing, there is no need for an osteotomy but a derotation can be performed over the fracture site.

In case revision surgery for malrotation errors is indicated after fracture union, a derotation osteotomy should be performed after thorough CT-based preoperative planning (9). The application of a 3D guide with uni-cortical K-wire placement as presented in this case provides accurate correction control during this technically demanding procedure.
