Original Article

Variations in mRNA and protein levels of Ikaros family members in pediatric T cell acute lymphoblastic leukemia

Julie L. Mitchell1,2, Thomas M. Yankee1

1Department of Microbiology, Molecular Genetics, and Immunology, University of Kansas Medical Center, Kansas City, KS 66160, USA;2US Military HIV Research Program, Silver Spring, MD 20910, USA

Contributions: (I) Conception and design: TM Yankee; (II) Administrative support: None; (III) Provision of study materials or patients: None; (IV) Collection and assembly of data: JL Mitchell; (V) Data analysis and interpretation: All authors; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Thomas M. Yankee, PharmD, PhD. Department of Microbiology, Molecular Genetics, and Immunology, University of Kansas Medical Center, 3901 Rainbow Blvd, 3025 WHW-MS 3029, Kansas City, KS 66160, USA. Email:

Background: Pediatric T cell acute lymphoblastic leukemia (T-ALL) is a highly heterogeneous disease in which the cells share phenotypic characteristics with normal human thymocytes. The Ikaros family of transcription factors includes five members that are required for normal T cell development and are implicated in leukemogenesis. The goal of this work was to correlate the pattern of expression of Ikaros family members with the phenotype of the T-ALL cells.

Methods: We obtained twenty-four samples from pediatric T-ALL patients and used multi-parameter flow cytometry to characterize each sample, comparing the phenotype of the leukemic cells with normal human thymocytes. Then, we defined the expression levels of each Ikaros family member to determine whether the mRNA levels or splicing or protein levels were similar to the normal patterns seen during human T cell development.

Results: Multi-parameter analysis of the phenotype of T-ALL cells revealed that each patient’s cells were unique and could not be readily correlated with stages of T cell development. Similarly, the pattern of Ikaros expression varied among patients. In most patients, Ikaros mRNA was the dominant family member expressed, but some patients’ cells contained mostly Helios, Aiolos, or Eos mRNA. Despite that most patients had elevated mRNA levels of Ikaros family members and unique patterns of mRNA splicing, most patients had significantly reduced protein levels of Ikaros and Aiolos.

Conclusions: Our analysis of the cell phenotype and Ikaros expression levels in T-ALL cells revealed the extent of heterogeneity among patients. While it is rarely possible to trace leukemic cells to their developmental origin, we found distinct patterns of Ikaros family mRNA levels in groups of patients. Further, mRNA and protein levels of Ikaros and Aiolos did not correlate, indicating that mRNA and protein levels are regulated via distinct mechanisms.

Keywords: Ikaros; Helios; Aiolos; pediatric T cell acute lymphoblastic leukemia (pediatric T-ALL)

Submitted Aug 01, 2016. Accepted for publication Aug 05, 2016.

doi: 10.21037/atm.2016.09.29


Pediatric T cell acute lymphoblastic leukemia (T-ALL) is a heterogeneous disease in which the leukemic cells often resemble normal thymocyte populations. The phenotypic similarities between leukemic cells and normal thymocytes have led to the conclusion that patients might be classified according to the developmental stage that is most similar to the leukemic cells (1,2). For example, cells from some T-ALL cases lack TCRβ expression and are thought to be derived from early T cell precursors. During normal human T cell development, early T cell precursors are CD4CD8 double negative (DN) thymocytes that express CD34. DN thymocytes can be divided into DN1, DN2, or DN3 cells, depending on their expression of CD38 and CD1a (3,4). During the DN stages, the cells commit to either the αβ or γδ T cell lineage (5,6). Cells from some T-ALL patients resemble uncommitted early T cell progenitors and likely emerge from the early DN stages. Cells from other patients express TCRγδ and resemble stages of γδ T cell development.

In other T-ALL cases, the leukemic cells express cytoplasmic TCRβ, but not surface CD3. During normal T cell development, cytoplasmic TCRβ+ cells are either immature single positive (ISP) CD4+ thymocytes or a subpopulation of CD4+CD8+ double positive (DP) thymocytes (7,8). ISP CD4+ thymocytes are a transition between the DN and DP stages (9). During the DP stage, thymocytes express TCRα, undergo positive or negative selection, and differentiate into mature single positive cells that can egress from the thymus and function as mature naive T cells.

There are conflicting data regarding the prognostic value of classifying pediatric T-ALL patients according to the phenotype of the leukemic cells. For example, some studies reported a poor prognosis for patients whose cells express either CD34 or surface TCR (10,11), while other studies found no differences in survival between groups (12,13). In this study, we used multi-parameter flow cytometry to demonstrate the degree of heterogeneity among T-ALL patients, perhaps explaining the challenges faced when attempting to correlate the phenotype of the leukemic cells with clinical outcomes.

Another parameter that might be used to categorize patients with T-ALL is the expression of Ikaros family members. The Ikaros family has been linked to T-ALL in mice (14-18) and humans (19-27) and consists of five highly homologous transcription factors: Ikaros, Helios, Aiolos, Eos, and Pegasus. Each family member has two zinc finger domains. The four N-terminal zinc fingers mediate DNA binding, and the two C-terminal zinc fingers are required for dimerization. Transcriptional activity requires dimerization and each family member is capable of dimerizing with each other family member (28-32).

Adding complexity to the study of Ikaros is that some family members undergo alternative splicing that results in the deletion of one or more DNA binding zinc fingers. Loss of one or two zinc fingers can result in more promiscuous DNA binding, but deletion of three or more zinc fingers can create dominant negative isoforms that block the ability of other family members to bind DNA (28,30-34). Some reports indicate that alternative splicing is common in T-ALL while other reports find it to be rare (19-27,35).

We compared mRNA and protein levels of each Ikaros family member in normal human thymocytes and cells from pediatric T-ALL patients. We identified patterns of Ikaros family mRNA levels that transcend surface phenotypes, suggesting that the key elements in investigating mechanisms of leukemogenesis lie in the function of Ikaros family proteins or the signaling pathways that regulate Ikaros family transcription.


Human tissue samples

Human thymus samples were obtained from children (0–18 years) that underwent corrective surgery at Children’s Mercy Hospital (Kansas City, MO, USA) for congenital cardiac defects after obtaining parent or guardian consent. Tissue samples were obtained in compliance with the Institutional Review Boards at Children’s Mercy Hospital and the University of Kansas Medical Center.

Twenty-four blood or bone marrow samples were obtained from newly diagnosed pediatric T-ALL patients prior to the initiation of anti-cancer therapy. Samples from patients diagnosed at Children’s Mercy Hospital were collected after obtaining parent or guardian consent. Leukemic cells were enriched by labeling the cells with anti-CD7-PE antibody and positively selecting with magnetic beads conjugated to anti-PE antibody (BD Biosciences, San Jose, CA, USA). Other samples were obtained as frozen samples through the Children’s Oncology Group (NCI Protocol AALL12B11). Each sample was divided into aliquots for flow cytometric, mRNA, and protein analysis.

Phenotypic analysis of T-ALL samples

The anti-human antibodies anti-CD1a-PerCP-Cy5.5, anti-CD1a-PECy5, anti-CD3-APCCy7, anti-CD3-APC-Alexa750, anti-CD4-Pacific Blue, anti-CD5-AF647, anti-CD7-PE, anti-CD8-BV785, anti-CD8-FITC, anti-CD27-HV500, anti-CD34-BV605, anti-CD34-PE, anti-CD34-PECy7, and anti-CD38-AF700, anti-CD44-PECy7, anti-CD45RO-PECy5, anti-CD69-BV650, anti-TCRγδ-FITC were purchased from Biolegend (San Diego, CA, USA). Samples were labeled with anti-CD1a, anti-CD3, anti-CD4, anti-CD5, anti-CD7, anti-CD8, anti-CD34, anti-CD38, and anti-TCRγδ antibodies. Most samples were also labeled with anti-CD27, anti-CD44, anti-CD45RO, and anti-CD69. Data were acquired using a BD LSR II (BD Biosciences) and analyzed using BD FACSDiva software (BD Biosciences).

FACS-purification of human thymocytes

DN2, DN3, and ISP thymocytes were obtained by depleting total thymocytes with magnetic beads conjugated to anti-CD8 and anti-CD3 (BD Biosciences). Remaining cells were divided into the DN2 (CD3CD4CD8CD34+CD38+CD1a), DN3 (CD3CD4CD8CD34+CD38+CD1a+), and ISP (CD3CD4+CD8) populations using a FACSAria IIIu (BD Biosciences). For total DN or DP thymocytes, cells were labeled with anti-CD4 and anti-CD8 and CD4CD8 or CD4+CD8+ thymocytes were FACS-purified.

Quantitative RT-PCR (qRT-PCR)

Total mRNA was isolated using the RNeasy Mini Kit or RNeasy Micro Kit (Qiagen, Valenica, CA, USA), converted to cDNA using the TaqMan® High Capacity RNA-to-cDNA™ kit (Applied Biosystems, Foster City, CA, USA), and amplified using TaqMan® Gene Expression Assays: Ikaros, Hs00958473_m1; Helios, Hs00212361_m1; Aiolos, Hs00232635_m1; Eos, Hs00223842_m1; Pegasus, Hs00223846_m1; and GAPDH, Hs03929097_g1 (Applied Biosystems). qRT-PCR was performed using a 7500 Fast Real-Time PCR System (Applied Biosystems). Each sample was run in triplicate. For normal thymocytes, at least five biological replicates were performed for each subset and each replicate was performed in triplicate. mRNA levels of each Ikaros family member were calculated relative to GAPDH and statistical significance was determined using the Log2(fold change).

Western blot analysis

Cell lysates prepared from 4×105–5×105 cells were separated by SDS-PAGE, transferred to nitrocellulose, and probed with antibodies against Ikaros, Aiolos, or p38 MAPK (all purchased from Santa Cruz Biotechnology, Inc., Dallas, TX, USA). Bands were visualized using horseradish peroxidase-conjugated secondary antibodies (Santa Cruz Biotechnology, Inc.) and Pierce™ ECL Western Blotting Substrate (Life Technologies, Grand Island, NY, USA), and detected using an ImageQuant LAS-4000 gel imager (GE Healthcare systems, Pittsburgh, PA, USA).

Nested PCR

Total mRNA was reverse transcribed with AMV RT (Promega, Madison, WI, USA) before amplification with Taq DNA Polymerase (Fisher Scientific, Pittsburgh, PA, USA). Primary PCR reactions were performed using primers specific to the 5' UTR and 3' UTR (Table S1). The PCR products were re-amplified using primers that spanned all possible exon pairs. PCR products were separated on an agarose gel, visualized with ethidium bromide and analyzed using an ImageQuant LAS-4000 gel imager.

Table S1

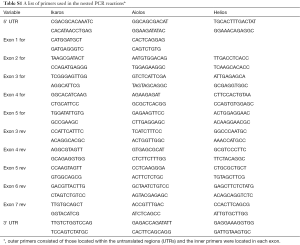

Table S1 A list of primers used in the nested PCR reactions*
Full table


For qRT-PCR data, statistics were performed using the one-way ANOVA with a Tukey posthoc test, and significance was defined as P<0.05. For linear regression, whether the slope of the line was different than zero was determined and significance was defined as P<0.05. Statistical analysis was performed using GraphPad Prism (GraphPad Software, Inc., La Jolla, CA, USA).


Cells from T-ALL patients with a CD3 DN phenotype

Multi-parameter flow cytometry was used to define the phenotypic characteristics of the cells from pediatric T-ALL patients (Figures 1,2,S1,S2). Cells from one patient (PATLGK) were mostly CD7 and were CD3CD4CD8CD34+CD1a (Figure 1A), suggesting that they arose from an early developmental stage, possibly early thymic progenitors (36). However, these cells also expressed CD38, which is not typically observed until the DN2 developmental stage (3,4).

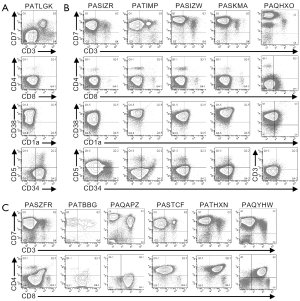

Figure 1 Phenotypes of CD3− T-ALL cells. The indicated T-ALL samples were labeled for flow cytometry as described in “Methods”. (A) CD7 and CD3 expression were analyzed (top panel) and CD7CD3 cells were analyzed as shown in the remaining panels; (B,C) cells were analyzed as in (A) except CD7+CD3 cells were analyzed as shown. T-ALL, T cell acute lymphoblastic leukemia.

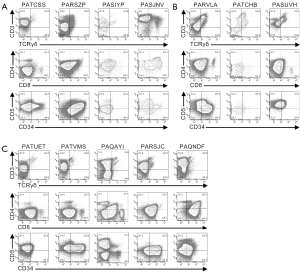

Figure 2 Phenotypes of CD3 T-ALL cells. The indicated T-ALL samples were labeled and analyzed as described in the legend to Figure 1, except all panels were gated on total CD7+ cells. T-ALL, T cell acute lymphoblastic leukemia.

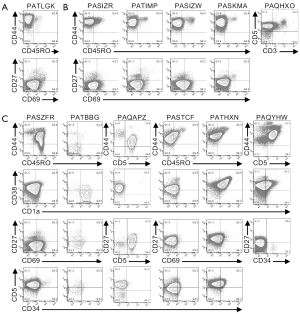

Figure S1 Phenotypes of CD3 T-ALL cell. (A) CD7CD3 cells from Figure 1 were analyzed as shown in the remaining panels; (B,C) CD7+CD3 cells from Figure 1 were analyzed as shown in the remaining panels. T-ALL, T cell acute lymphoblastic leukemia.

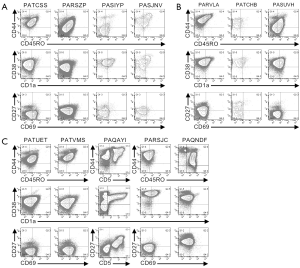

Figure S2 Phenotypes of CD3 T-ALL cell. T-ALL cells from Figure 2 were analyzed using the marker shown, as described in the legend to Figure 1. T-ALL, T cell acute lymphoblastic leukemia.

Cells from five T-ALL patients were CD7+ and CD3CD4CD8 (Figure 1B). In each of these five patients, the majority of the cells were CD38+CD1a, but the expression of CD38 and CD1a varied slightly among the patients. For example, cells from patient PASIZR were CD38lo and resembled a DN1/DN2 transition state. By contrast, cells from patients PASIZW and PASKMA were CD1alo, consistent with a DN2/DN3 transition. Most CD3CD4CD8 T-ALL cells were CD44hiCD27CD45RO, but had varying levels of CD5 and CD69 (Figure S1A,B). In normal human thymocytes, CD5 is expressed on almost all cells and CD69 is not expressed until after cells express surface CD3 (37-39).

Pediatric T-ALL cells that lacked CD3, but expressed either CD4 or CD8

Six CD7+CD3 leukemia samples expressed varying levels of CD4 or CD8 (Figure 1C). We classified patient PAQAPZ as CD3 because the CD3 cells were CD8lo and were likely the leukemic cells while the CD3+ cells resembled normal peripheral T cells. Cells from three patients (PASTCF, PATHXN, and PAQYHW) were predominantly CD4+ and the CD8 levels ranged from negative to high, phenotypes consistent with the ISP CD4+ and DP developmental stages. Three patients (PASZFR, PATBBG, and PAQAPZ) were CD3CD4 and expressed low levels of CD8, a phenotype that is rare among normal thymocytes (40).

Among the CD7+CD3 leukemia samples, cells from patient PATBBG were unique in that they lacked CD44, CD45RO, and CD38 expression on their surface (Figure S1C). Cells from the three patients that expressed ISP CD4+ and DP markers had varying levels of CD45RO with the DP-like T-ALL cells expressing the highest levels of CD45RO (Figure S1C); during normal T cell development, increased CD45RO expression correlates with progression to the DP developmental stage (41-43). Cells from patient PASZFR, which were CD3CD4CD8lo, were also CD45RO+ and had low levels of CD69. CD38 and CD1a expression was highly variable across the six samples and did not correlate with CD4 and CD8 expression. Cells from five of the six patients expressed CD27, even though CD27 is not normally expressed until the late stages of T cell development (39).

CD3+ pediatric T-ALL cells

Cells from the remaining twelve patients expressed CD3 on their surface (Figures 2,S2). Cells from four patients (PATCSS, PARSZP, PASIYP, and PASJNV) were CD4CD8, CD4+CD8−/lo, or CD4+CD8+ (Figure 2A). Cells from each of these four samples expressed CD45RO and CD38, but variable levels of CD44 and CD1a (Figure S2A). Three of these samples expressed low levels of CD27. Cells from patients PARSZP and PASJNV also expressed CD34.

Cells from three patients (PARVLA, PATCHB, and PASUVH) expressed TCRγδ (Figure 2B). Cells from patient PATCHB lacked CD4 and CD8 expression, but the other two samples expressed CD4 and cells from patient PARVLA also expressed low levels of CD8. Cells from each of these three patients were primarily CD38+CD1aloCD69 (Figure S2B). Expression of CD44 and CD27 varied among these patients.

Cells from five patients were CD3+TCRγδ and primarily CD8loCD4 (Figure S2C). Cells from two of these patients (PATVMS and PARSJC) could be subdivided into CD34lo and CD34hi subsets while cells from patient PAQNDF were uniformly CD34lo. Cells from patients PATUET and PAQAYI were predominantly CD34. Most cells from these six patients expressed CD44, CD45RO, CD38, and CD1a (Figure S2C). Cells from two patients expressed CD27 and three patients had low levels of CD69 expression.

In summary, the phenotyping data indicate that correlating the surface phenotype of the leukemic cells to normal thymocyte populations is rarely possible. In many cases, cells expressed combinations of markers that were inconsistent with any normal thymocyte populations. Further, none of the samples shared identical phenotypes.

mRNA levels of Ikaros family members vary among T-ALL cells

For each T-ALL sample, we determined the relative mRNA levels of each of the five Ikaros family members (Figure 3A). Samples were grouped according to their expression of CD4, CD8 and TCRδ and, where possible, the mRNA levels were compared to normal thymocytes within each phenotype. Of the seven T-ALL samples with a DN phenotype, Ikaros mRNA levels were elevated in five samples, Helios mRNA levels in four samples, Aiolos mRNA levels in five samples, and Pegasus mRNA levels in six samples, as compared to normal DN thymocytes. Two patients had low Ikaros mRNA levels, one had low Helios mRNA levels, one had low Aiolos mRNA levels, and six had low Eos mRNA levels.

Figure 3 Helios, Aiolos, and Eos mRNA levels correlate with each other but not surface phenotype in T-ALL. (A) mRNA was isolated from each T-ALL sample and normal thymocytes and subjected to qRT-PCR. Relative mRNA levels for each Ikaros family member were calculated by normalizing each family member to the mRNA levels of GAPDH. Then, the relative mRNA levels were normalized to that of simultaneously run normal thymocytes. For T-ALL samples resembling normal DN, ISP, or DP thymocytes, the average of five normal thymocyte samples is shown by the solid line and the dashed line indicates the 95% confidence interval; (B) for each patient, the relative mRNA levels of each Ikaros family member was compared pairwise using linear regression. The correlation coefficient (R) is shown for each pair. Statistical significance signifies whether the slope of the line is different than zero (*P<0.05, **P<0.01, ***P<0.001); (C) the fold change for the three pairs of Ikaros family members with the strongest correlations are shown. The line of best fit and 95% confidence intervals are shown for Helios, Aiolos, and Eos correlation. ND, not detected; T-ALL, T cell acute lymphoblastic leukemia; qRT-PCR, quantitative RT-PCR; DN, double negative; ISP, immature single positive; DP, double positive.

Among the three T-ALL samples with an ISP phenotype, one patient had elevated Ikaros, Helios, Aiolos, and Pegasus mRNA levels. One patient had elevated Ikaros and Helios mRNA levels. The third patient had low Ikaros mRNA levels. All three patients whose T-ALL cells were CD4+CD8+ had low Ikaros mRNA levels, as compared to normal DP thymocytes. Two of these patients had low Helios mRNA levels; one of these also had low Aiolos and Pegasus mRNA levels and the other had low Eos mRNA levels.

For patients whose cells were CD8lo or TCRγδ+, we compared the expression of each Ikaros family member across the samples. Helios and Aiolos mRNA levels varied most dramatically in these patients; the samples that expressed the highest Helios and Aiolos mRNA levels had 47-fold and 38-fold more than samples with the lowest mRNA levels, respectively. By contrast, cells expressing the highest levels of Ikaros, Eos, and Pegasus had 3.5-fold, 12-fold, and 10-fold more mRNA, respectively, than cells expressing the lowest levels of these family members.

Next, we used linear regression to determine whether the mRNA levels of any Ikaros family member correlated with that of any other family member (Figure 3B,C). There were strong correlations between the mRNA levels of Helios and Aiolos, Helios and Eos, and Aiolos and Eos. There were weak but statistically significant correlations between Helios and Pegasus and between Aiolos and Pegasus. Further, there was a very weak, but statistically significant correlation between Ikaros and Aiolos.

In conclusion, the mRNA levels of the Ikaros family members do not correlate with the surface phenotype of the T-ALL cells. However, the mRNA levels of Helios, Aiolos, and Eos correlated strongly with each other, suggesting that these genes are regulated similarly or these genes regulate each other.

The contribution of each Ikaros family member to the total Ikaros pool varies

Next, we calculated the percentage of total Ikaros family mRNA represented by each family member (Figure 4 and Table 1). The majority (14/24) of T-ALL samples had a lower percentage of Ikaros family members represented by Ikaros than normal thymocytes. By contrast, Helios was overrepresented in 16/24 T-ALL samples, as compared to normal cells. Aiolos mRNA represented 1% or less of the total Ikaros mRNA in four T-ALL samples, but more than 20% of total Ikaros mRNA in three samples. Eos mRNA was underrepresented, as compared to normal thymocytes, in ten T-ALL samples. Pegasus represented less than 0.03% of total Ikaros mRNA in normal thymocytes, but more than 0.5% in four T-ALL samples and 2.1% in one case.

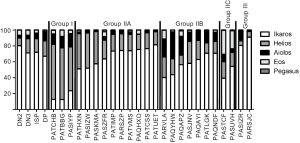

Figure 4 A graphical representation of the proportion of Ikaros family mRNA represented by each family member. The percentage of total Ikaros family mRNA was calculated as described in Table 1. Each bar indicates 100% of the Ikaros family mRNA in each normal and T-ALL sample. Each segment within each bar indicates the portion of the total represented by each family member. T-ALL, T cell acute lymphoblastic leukemia.
Table 1

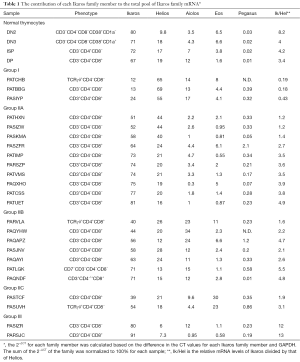

Table 1 The contribution of each Ikaros family member to the total pool of Ikaros family mRNA*
Full table

Next, we determined whether the T-ALL patients could be categorized based on the distribution of Ikaros mRNA levels. Because Ikaros and Helios accounted for most of the Ikaros family mRNA in nearly all T-ALL samples, we first calculated the ratio of Ikaros mRNA to Helios mRNA. Three groups of patients emerged, as shown in Table 1. Group I included samples in which the ratio of Ikaros to Helios mRNA levels was less than 0.5. Group II samples included those with an Ikaros to Helios ratio between 0.5 and 10. Group III included samples in which the Ikaros to Helios ratio exceeded 10. Group II could be subdivided into three subgroups based on the expression of Aiolos and Eos. Group IIA samples had minimal contribution from either Aiolos or Eos. Aiolos accounted for more than 10% of the total Ikaros mRNA in samples from group IIB and Eos accounted for more than 20% of total Ikaros in samples in group IIC.

The categorization of patients based on Ikaros family expression was independent of the surface phenotype of the cells. For example, most T-ALL groups included patients whose cells were CD3 and other patients whose cells were CD3+.

Protein levels and alternative splicing of Ikaros, Aiolos, and Helios in T-ALL

We used western blot analysis to examine Ikaros and Aiolos protein levels and splicing in cells from each T-ALL patient and in normal DN thymocytes (Figure 5). Ikaros protein levels in one patient were similar to that of normal DN thymocytes, but the Ikaros levels were less than half of normal in the remaining samples. The patient with the highest Ikaros protein levels, PAQNDF, had lower Ikaros mRNA levels than 18 of the other 23 samples. Similarly, most T-ALL samples expressed less full-length Aiolos protein than normal DN thymocytes.

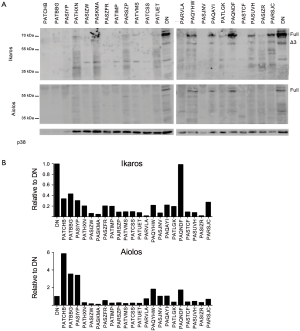

Figure 5 Most T-ALL samples express low levels of Ikaros and Aiolos protein. Cell lysates were separated by SDS-PAGE, transferred to nitrocellulose, and probed with with anti-Ikaros, anti-Aiolos, or p38 MAPK. (A) Bands corresponding to full-length Ikaros and Aiolos along with major splice variants are shown; (B) densitometry was performed using the images shown in ‘A’ and the relative protein levels of full-length Ikaros and Aiolos protein was normalized to that of the p38 MAPK loading control and then to normal DN thymocytes. T-ALL, T cell acute lymphoblastic leukemia.

Low molecular weight bands were detected when membranes were probed with anti-Ikaros and anti-Aiolos, suggestive of the presence of alternative splice variants. We performed nested PCR using the primer pairs illustrated in Figure 6A to determine whether Ikaros, Helios, and Aiolos might undergo alternative splicing in normal thymocytes and T-ALL cells. A complex pattern of Ikaros splice variants was detected in normal and leukemic cells, consistent with our previous observations (40) and that different isoforms can lack exons, lack portions of exons, or include intronic sequences (19,20,44). In contrast to Ikaros, few T-ALL samples expressed multiple splice variants of Aiolos and Helios.

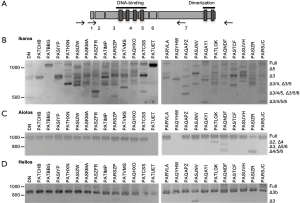

Figure 6 Ikaros mRNA undergoes extensive alternative splicing in normal thymocytes and in T-ALL. (A) A schematic of the exon structure of Ikaros, Aiolos, and Helios with the position of the nested PCR primers shown. Nested PCR was performed using mRNA isolated from the indicated normal thymocyte populations and each T-ALL sample for Ikaros (B), Aiolos (C), and Helios (D). T-ALL, T cell acute lymphoblastic leukemia.

To verify the identity of the splice variants, nested RT-PCR was performed using primers that span each combination of exons (a sample of which is shown in Figure S3). For Ikaros, the most abundant proteins detected by western blot are most likely full-length Ikaros and Ikaros lacking exon 3 (Ik-∆3). In addition, numerous other splice variants were detected at the mRNA level; the most prevalent of which are shown in Figure 6B.

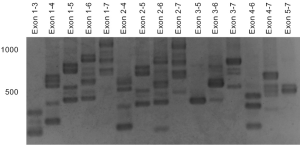

Figure S3 An example of a complete nested PCR analysis. mRNA obtained from cells from one sample shown in Figure 5B was amplified with the outer primers. The amplicon was re-amplified using each possible pair of primers.

For Aiolos, full-length mRNA was detected in most samples (Figure 6C). Other splice variants detected lacked exon 2 (Ai-∆2), exon 3 (Ai-∆3), or exon 4 (Ai-∆4) or a combination of two or more exon deletions, such as Ai-∆5/6 and Ai-∆4/5/6. Helios lacking a portion of exon 3 (Hel-∆3b) was the most evident splice variant observed (Figure 6D), but some samples expressed full-length Helios and Helios lacking the entire third exon (Hel-∆3).

Based on these data, we conclude that the mRNA and protein levels of Ikaros and Aiolos do not directly correlate, which is consistent with our previous observations in normal human thymocytes (40). Further, many splice variants are not translated at detectable levels. For most splice variants detected, the isoforms also exist in normal thymocytes.


The multi-parameter phenotypic analysis of cells from pediatric T-ALL patients revealed great heterogeneity among patients. Even when analyzing a limited number of markers, leukemic cells resembled normal human thymocyte populations in only nine of the 24 samples studied. For the majority of the samples, the phenotype deviated significantly from that of known normal human thymocyte populations. For example, cells from some T-ALL patients were CD8lo with little or no CD4 expression. The CD3CD4CD8lo T-ALL cells are similar to the ISP population observed during murine T cell development and a population of human thymocytes found in a fraction of patients (Mitchell et al., unpublished data). The CD3+CD8lo leukemia cells expressed lower levels of CD8 than mature SP CD8+ thymocytes and they did not express CD69 or CD27, making it unlikely that these are mature thymocytes. Among the T-ALL samples were those in which the cells expressed markers representing conflicting stages of development. For example, some cells co-expressed CD3 and CD34; in normal thymocytes, CD34 expression is terminated prior to CD3 expression.

Collectively, our data indicate that correlating T-ALL cells to normal developmental stages is rarely possible. In addition, each T-ALL sample had a unique phenotype. These two features make classifying T-ALL patients a challenging endeavor, as seen by the difficulty in using phenotype as a prognostic indicator (11,12,45).

As an alternate method to classify T-ALL patients, we focused on the Ikaros family of transcription factors, which was previously implicated in leukemogenesis. ChIP-seq data showed that the Ikaros family can bind 4,500–5,600 sites in the genome and regulate several hundred genes (46,47), making these transcription factors key regulators of cell fate decisions in developing lymphocytes. The importance of the Ikaros family in leukemogenesis has been most clearly demonstrated in mice, where expression of dominant negative isoforms of Ikaros or Helios resulted in T cell malignancies (14-16,18). Disease onset in these mice was dependent on the reduced functionality of the entire Ikaros family, as deletion of individual family members did not cause disease (17,48,49). This observation highlights the importance of studying the entire family. In humans, correlative studies have suggested the presence of dominant negative isoforms of Ikaros in T-ALL patients, but the percentage of patients harboring these splice variants is controversial (19-22,27,44,50,51). Our data indicate that alternative mRNA splicing of Ikaros is common in normal thymocytes and T-ALL cells, but not all splice variants are translated into protein products (Figures 5,6).

The mRNA levels of each Ikaros family member varied widely across T-ALL samples, but the greatest disparity was in Aiolos and Helios expression (Figure 3A). The samples with the highest Aiolos and Helios mRNA levels were 780-fold and 120-fold greater, respectively, than the samples with the lowest mRNA levels. This level of variability is in contrast to the 18-fold and 10-fold changes in Aiolos and Helios mRNA levels, respectively, that normally occur as thymocytes progress from the DN to the DP stages. By contrast, samples with the highest mRNA levels of Ikaros, Eos, and Pegasus only contained 8.6- to 11-fold more than the samples with the lowest levels.

Based on these data, we propose the classification of T-ALL patients using the strategy shown in Figure 4 and Table 1. For most patients, Ikaros and Helios mRNA was the primary Ikaros family member transcripts detected, so the ratio of Ikaros mRNA levels to Helios mRNA levels was used to divide the samples into three groups. The largest group of patients had Ikaros to Helios ratios similar to those of normal thymocytes. Within this group, the mRNA levels of Aiolos and Eos varied in a manner that provided a means to subdivide these patients.

The importance of Ikaros family mRNA levels in leukemogenesis may arise from the function of the Ikaros family proteins. Because of the limited number of cells we could obtain from the patients, we were only able to analyze Ikaros and Aiolos protein levels. For both proteins, the protein levels did not correlate with mRNA levels and the protein levels were lower than in normal thymocytes for most patients (Figures 3,5). The reduction of Ikaros family proteins may be linked to leukemogenesis, as it is in mice (14-18,48,49).

In addition to a general reduction of Ikaros family expression, the ratio of Ikaros to Aiolos protein varied across the T-ALL samples, suggesting the dimer composition may vary among patients. For example, patient PATCHB had high Aiolos levels and low Ikaros levels whereas patient PAQNDF had the opposite pattern. Even small changes in the ratio among Ikaros family members can have profound biological effects, as seen by the development of lymphoma when Helios was expressed at low levels in murine B cells (17).

While Ikaros family protein levels have direct implications in leukemogenesis, the mechanisms that control Ikaros family transcription might control other genes that regulate the development of T-ALL. For example, c-myc, IRF4, Runx1, and TAL-1 can regulate Ikaros expression and are activated in some T-ALL patients (52-61). In addition, there are Ikaros binding sites within the promoters of Ikaros, Aiolos, Eos, and Pegasus (54,62) and the correlations in the expression of some Ikaros family members we observed (Figure 3) supports a model in which Ikaros family members may regulate the transcription of themselves and other family members. Further, the Ikaros binding site is shared by all family members and by the Notch-dependent transcription factor RBP-Jκ (63-66). Because half of pediatric T-ALL patients have an activating mutation in Notch (67), it would be expected that Ikaros family mRNA levels would be altered in these patients.

In summary, we used multi-parameter flow cytometry to demonstrate the tremendous variability among pediatric T-ALL samples. Further, we performed the first comprehensive analysis of the expression of the entire Ikaros family of transcription factors reported in pediatric T-ALL. More research is needed to extend these observations and determine whether the patterns of Ikaros mRNA or protein levels correlate to clinical outcomes.


The authors would like to thank Dr. Keith August for his assistance in obtaining T-ALL samples. The authors would also like to thank Dr. Robert H. Ardinger Jr, Dr. James E. O’Brien Jr, Jennifer Marshall, and Diana Connelly for their assistance in obtaining the human thymus samples. In addition, the authors would like to thank Drs. Steve Benedict, Marci Chan, Mary Markiewicz, and members of their laboratories for helpful discussions.

Funding: This work was supported, in part, by the American Cancer Society Research Scholar Grant 08-182-LIB and the University of Kansas Cancer Center Pilot Grant. We acknowledge the Flow Cytometry Core Laboratory, which is sponsored, in part, by the NIH/NIGMS COBRE grant P30 GM103326. JL Mitchell was supported by a Madison and Lila Self Graduate Fellowship. We also acknowledge Chair’s Grant U10 CA98543 and Human Specimen Banking Grant U24 CA 114766 of the Children’s Oncology Group from the National Cancer Institute, National Institutes of Health, Bethesda, Maryland, USA.


Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The study was approved by the Institutional Review Boards at Children’s Mercy Hospital and the University of Kansas Medical Center and written informed consent was obtained from all parent or guardian.
