ProtekDuo percutaneous ventricular support system—physiology and clinical applications

Introduction

The ProtekDuo (LivaNova, London, UK) cannula is a dual-lumen device typically inserted into the right internal jugular (IJ) vein using a percutaneous approach, with fluoroscopy or ultrasound guidance. When connected to a pump, such as the TandemHeart (LivaNova, London, UK) or CentriMag (Abbott, Pleasanton, CA, USA), it can function as a right ventricular (RV) mechanical circulatory support (MCS) device. When an oxygenator is also added [veno-pulmonary (V-P)], it can provide extracorporeal membrane oxygenation (ECMO) support (1,2). While the configuration described above is the most typical for the ProtekDuo, several variations of this setup have been documented in the literature. The first-in-man use of the ProtekDuo cannula was described in 2016, and clinical outcomes were reported 2 years later (3,4). This review aims to provide a comprehensive overview of the device’s physiology and clinical applications.

ProtekDuo—design and impact on RV physiology

The ProtekDuo cannula, in its typical configuration, receives venous drainage from the upper and lower body through its inflow ports in the right atrium (RA) (Figure 1). There are two versions of the device, with diameters of 29- or 31-F for the proximal lumen (inflow) and 16- or 18.5-F for the distal lumen (outflow). The intended position for the outflow cannula is the main pulmonary artery (PA), bypassing the RV (Figure 1). Anterograde migration of the cannula into either of the PAs must be prevented to mitigate the risk of PA injury and shunting. It is also vital to prevent cannula retraction, as this could result in acute RV overload. If properly positioned, the ProtekDuo can efficiently decrease RV preload, resulting in decreased RA and RV wall tension and microvascular resistance, reducing RV mechanical work and oxygen demand.

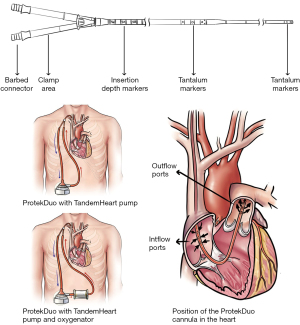

Figure 1 ProtekDuo design and proper positioning.

In the setting of RV failure (RVF), the ProtekDuo cannula, with its outflow in the main PA, can bypass the failing RV, improving pulmonary flow, left atrial (LA) filling pressures, and left ventricular (LV) preload. This also reduces ventricular interdependence and leftward shift of the interventricular septum that may occur in RVF. The ProtekDuo cannula, when connected to a pump, can deliver approximately 4.5–5 L of flow per minute, depending on the cannula’s size (5). The ProtekDuo cannula and TandemHeart pump are approved for use for up to 6 days by the US Food and Drug Administration (FDA) and up to 30 days by the European Medicines Evaluation Agency (EMEA) (6).

RVF

Acute RVF can stem from various factors such as RV myocardial infarction (MI), myocarditis, pulmonary embolism (PE), arrhythmia, post-surgical myocardial ischemia, RV primary graft dysfunction (PGD) after heart transplant, or LV failure (7). It is noteworthy that acute RVF occurs in over 20% of cases following isolated LV assist device (LVAD) implantation, significantly contributing to mortality within this cohort (8). Among patients with chronic heart failure, irrespective of ejection fraction, the incidence of RVF ranges between 48% and 65%, and correlates with diminished exercise capacity and heightened mortality (9-11).

An abrupt increase in RV afterload or a decrease in RV contractility can cause precipitate RVF. The RV adapts better to changes in volume rather than pressure, as it is coupled to the high-compliance, low-resistance pulmonary circulation (12). In response to increased afterload, the RV undergoes a remodeling process similar to the LV. However, the RV is more vulnerable to acute increases in afterload and oxidative stress, which can lead to myocyte hypertrophy, changes in capillary density, total capillary length, and endothelial cell proliferation (7,13). These changes, known as the angiogenic response, increase the surface area and volume of the capillaries, allowing for increased tissue diffusion. Despite these adaptive changes, the RV has a limited capacity for the angiogenic response compared to the LV, leading to greater activation of cell death pathways in the setting of pressure or volume overload. Reduced RV stroke volume leads to RV dilation, promoting tricuspid regurgitation further exacerbating RV dilation. This reduces LV filling by shifting the interventricular septum leftward, reducing LV transmural filling pressure and promotes ventricular interdependence (14).

Managing RVF requires a multifaceted approach that includes optimizing preload, reducing afterload, providing inotropic support, revascularization, synchronizing atrioventricular function, and potentially using MCS (15). Pulmonary circulation and LV filling abnormalities should be identified as targets for reducing RV afterload and enhancing RV function (16). In cases where acute RVF is refractory to medical therapy or when there is evidence of end-organ dysfunction, MCS may be used as a bridge to recovery or more definitive therapy such as heart transplantation. The primary goal of MCS in acute RVF is to provide adequate cardiac output and oxygen delivery to the vital organs while reducing RV workload and can be achieved through ECMO, surgical RV assist devices (RVADs), or percutaneous RV MCS.

The ProtekDuo has been used as an RV MCS to treat acute RVF in a variety of clinical situations, such as post-MI, cardiomyopathy, or heart transplant. One of the major benefits of this device is its minimally invasive, groin-free approach, which allows for early patient mobility, as well as implantation or explanation while the patient is awake or mildly sedated. This eliminates the need for sternotomy, surgical vascular access, or cardiopulmonary bypass (CPB) during the implantation or explanation process. A theoretical concern while using ProtekDuo as isolated RV MCS is pulmonary edema and pulmonary hemorrhage if flows are greater than what the LV is able to tolerate (17). However, this is yet to be reported for the ProtekDuo. Originally indicated for hemodynamic RV support, the ProtekDuo has recently been used for a variety of other scenarios including LV support, making it an attractive option for an expanding range of clinical indications.

ProtekDuo for RVMI RVF

Kremer et al. published data on ten patients who required percutaneous RV MCS support for RVF after acute MI from July 2016 to November 2019 (18). The mean implantation time for the RV MCS was 32.8±8.3 minutes, and the mean duration of RV MCS support was 10.0±7.4 days. The study found a significant reduction in central venous pressure (19.3±2.7 vs. 8.2±2.6 mmHg, P<0.001) and a significant increase in central venous saturation (52.8%±15.6% vs. 80.0%±6.0%, P<0.001) after RV MCS support with the ProtekDuo. Despite the favorable hemodynamic responses, the 30 days mortality remained high at 40%. The time to implementation of ProtekDuo was overall short but the degree of hemodynamic-metabolic shock was not reported in this paper rendering the interpretation of survival benefit challenging. There were no RV MCS-associated complications reported in this study.

ProtekDuo for durable LVAD implantation-associated RVF

RVF is a common and feared complication after durable LVAD implantation. Early biventricular support has been shown to improve outcomes compared to delayed conversion to bi-ventricular assist devices (BiVADs) (19). To support the RV after durable LVAD implantation, there are several options available. One of these options is surgical RVAD (RA to PA) which requires surgical insertion and potentially re-thoracotomy for decannulation. Another option is percutaneous femoral-approach RV MCS such as Impella RP, or veno-arterial (V-A) ECMO, both of which restricts the patient’s mobility. An alternative less invasive approach is using a percutaneously placed ProtekDuo cannula with a pump (VxP) in conjunction with the LVAD. This strategy allows for rapid postoperative mobilization and is recommended in patients with pre-existing RV dysfunction (6).

Kazui et al. successfully used this approach in a 70-year-old patient who developed RVF on the second postoperative day after Heartmate II implantation (1). The patient was supported by a ProtekDuo-CentriMag RV MCS and decannulated on the eleventh postoperative day. In a retrospective, single-center observational study of 11 patients with end-stage HF who underwent concomitant permanent LVAD implantation and temporary RV MCS using the ProtekDuo cannula, 90.9% of patients were weaned from temporary RV MCS support (20). The mean length of stay in the ICU was 23.8±16.5 days, and the 30-day survival rate was 72.7%. No severe complications related to using the RV MCS were observed, but the study’s generalizability is limited due to the lack of a comparison arm. Historical data shows that 1-year survival rates for patients with LVAD who later require biventricular support are typically less than 50% (21,22).

In a retrospective database review of 17 patients from two centers, 12 of whom had durable LVADs and received percutaneous RV support using the ProtekDuo, only 23% of patients were successfully weaned off RV support without the need for home inotropes or urgent transplantation (23). The percentage of patients who could not be weaned and had to be transitioned to a surgical RVAD or a durable RVAD was 35%. Complications such as epistaxis, hematemesis, and injury to the left IJ vein which prevented catheter advancement, intracranial bleeding, and bleeding at the catheter insertion site occurred in 35% of patients, and the overall mortality rate was 41%.

ProtekDuo for massive PE

Massive PE leading to shock can result in acute RVF, which has a mortality rate of almost 25% (24). Systemic tissue plasminogen activator (tPA) is the recommended therapy for massive PE, although evidence supporting its use is limited (class IIa, level of evidence B) (25). Because tPA has a high bleeding risk, it is contraindicated in some patients. In addition, some patients with massive PE may progress to circulatory shock despite tPA administration. In patients with massive PE, RV MCS has been used as a bridge to recovery or embolectomy. Traditionally, V-A ECMO has been used as rescue support or an initial support strategy to recovery or embolectomy (26,27). Other RV MCS options for massive PE include Impella RP and ProtekDuo (28).

Jayanna et al. published a case report about a 72-year-old woman who presented to the emergency department in cardiogenic shock due to a massive PE and RVF (29). After undergoing catheter-directed mechanical thrombectomy, the patient’s RV function did not improve, and a ProtekDuo RV MCS was inserted. The RV MCS was successfully weaned over the following 48 hours as the patient’s RV function improved. A notable advantage of ProtekDuo compared to V-A ECMO and Impella RP is that ProtekDuo is inserted via the IJ vein, allowing it to be placed in patients with inferior vena cava (IVC) filters.

ProtekDuo for RVF post-heart transplantation

PGD is a common complication after a heart transplant, affecting 2% to 28% of transplanted patients (30). It represents the leading cause of early death after a heart transplant. V-A ECMO is traditionally used to manage severe forms of PGD that are refractory to maximal medical therapy. However, in up to 45% of patients, the dysfunction is confined to the RV alone. This is due to several reasons, including higher susceptibility to temperature changes and ischemia-reperfusion injury, dependence on preload conditions, or underlying pulmonary hypertension or elevated pulmonary vascular resistance (31,32). In such cases, V-A ECMO may be unfavorable due to its detrimental effects, such as non-physiological circulation with reduced pulmonary flow which increases the risk of intravascular pulmonary thrombosis, increased left ventricle afterload, and the presence of an oxygenator. Therefore, in isolated RV PGD, a short-term RV MCS is a preferable option.

Carrozzini et al. reported their institutional experience utilizing ProtekDuo in three patients who developed primary RV PGD. In all three cases, the ProtekDuo was implanted within 8 hours post-transplant, and all patients were successfully weaned off ProtekDuo support within 4, 9, and 12 days, respectively, and subsequently discharged home. The favorable reported results are likely a reflection of the timely implementation of MCS. Adverse events included IJ thrombosis, acute kidney injury, and respiratory failure, which were likely related to the critical condition of the patients before the transplant as well as the low flow state before the implementation of percutaneous RV MCS (33).

ProtekDuo for RVF related to miscellaneous etiologies

Oliveros et al. published a case series describing the use of ProtekDuo as a temporary RV MCS in 11 patients admitted for acute RVF between August 2015 and February 2018 (2). Causes of RVF included lung resection (4/11), acute respiratory distress syndrome (2/11), postpartum cardiomyopathy (1/11), PE (1/11), post-LVAD implantation (1/11), post-valve surgery (1/11), and acute MI (1/11). Duration of support ranged from 11 to 154 days, and complications included stroke (18.2%), sepsis (63.6%), massive gastrointestinal bleeding (45.5%), and heparin-induced thrombocytopenia (54.5%). There were no complications related to device insertion itself. The overall 30-day survival rate was 82%, and the 180-day survival rate was 72%.

ProtekDuo and V-P ECMO

Heart failure is a common complication seen in 4–21% of hospitalized coronavirus disease 2019 (COVID-19) patients, 30% of whom have RVF (34-36). The percentage of patients with RVF may be even higher in those with severe ARDS requiring ECMO support, making them prime candidates for RV MCS support (37). Patel et al. described a 53-year-old COVID-19 patient on V-V ECMO who developed severe RVF (38). The circuit was changed to a ProtekDuo RV MCS cannula (V-P ECMO) for additional RV support, resulting in a good outcome. In this way, the ProtekDuo can be incorporated into the ECMO circuit, which may be beneficial in situations where an IVC filter precludes IVC cannulation (39). Another advantage of ProtekDuo is the absence of recirculation which is seen in the setting of high ECMO flow while managing patients with severe ARDS and RVF.

In a retrospective analysis, Cain and colleagues compared the outcomes of 39 patients who received V-P ECMO support with a ProtekDuo to those who received invasive mechanical ventilation (IMV) alone (40). The ProtekDuo group had significantly lower in-hospital and 30-day mortality rates compared to the IMV alone group, with rates of 11.1% and 5.6% vs. 52.4% and 42.9%, respectively (P=0.008 and P=0.011). Additionally, the ProtekDuo group had a significantly lower rate of acute kidney injury (0% vs. 71.4%, P<0.001), and no device-related complications were reported in that group. At the end of the study period, 11 out of 18 patients in the ProtekDuo group were successfully decannulated, with an average duration of 13 days on device support.

The V-P ProtekDuo configuration allows patients on mechanical ventilation to be extubated while still on MCS support. Mustafa and colleagues published a retrospective series of 40 COVID-19 patients who required ECMO after reaching maximum ventilatory support (41). After the placement of a ProtekDuo cannula, ventilation was discontinued while patients continued to receive ECMO support (V-P). At the time of publication, all patients were successfully extubated after ECMO initiation, and 80% were no longer on ECMO. Ultimately, 73% of patients were discharged off oxygen. The reintubation rate was 25%, but all patients were eventually extubated. The team reported minimal complications and a low mortality rate of 15%.

Maybauer and colleagues reported several other ECMO circuit configurations utilizing the ProtekDuo cannula (42,43). In one configuration, they added a 25-F femoral multistage venous drainage cannula to the circuit to enhance venous drainage. The venous return from the femoral drainage was spliced with the venous tubing of the ProtekDuo and directed into the pump, resulting in a veno-venopulmonary (V-VP) ECMO configuration. In another configuration, the 25-F multistage drainage cannula was the sole venous drainage, and both lumens of the ProtekDuo were utilized for arterial flow into the RA and PA, resulting in a veno-double-lumen venopulmonary [V-(dl)VP] ECMO configuration. This configuration resulted in increased blood flow and oxygenation [oxygen saturation (SpO₂) increased from 78% to 100%] (42). The reported flow through the proximal port of the ProtekDuo was 4 L/min, and the flow through the distal port was 3 L/min.

Newer and atypical uses of ProtekDuo

ProtekDuo as part of temporary biventricular MCS as bridge to recovery (ECpella 2.0 or PROpella)

Although V-A ECMO is a very effective MCS strategy in specific scenarios, it can be associated with several complications such as prolonged immobilization, limb ischemia due to cannulation, infection, air embolism, bleeding, and stroke. One specific issue with V-A ECMO is ensuring adequate LV venting in the setting of increased LV afterload from retrograde arterial flow, which can be addressed using intra-aortic balloon pump (IABP), atrial septostomy, and trans-septal LA drainage. Of late, percutaneous, temporary, axial flow MCS devices such as Impella have been used as effective LV vents in patients on V-A ECMO, a concept referred to as ECpella. Ruhparwar et al. improved upon this concept with ECpella 2.0/PROpella, a groin-free MCS consisting of a surgically implanted full-flow axial flow pump (Impella 5.0/5.5) as an LVAD in combination with the TandemHeart/ProtekDuo system as an RV MCS (44,45). This allows for complete biventricular support with the option to splice in an oxygenator if needed. The authors described using ECpella 2.0 in two patients with circulatory shock who were successfully weaned off support at postoperative days 5 and 22, respectively.

Chivasso et al. utilized the ECpella 2.0 approach to facilitate the weaning of a cardiogenic shock patient from V-A ECMO (46). The patient, a 38-year-old male, presented with a non-ST elevation MI and developed cardiogenic shock necessitating V-A ECMO with Impella CP for LV venting. As the patient improved, the Impella CP was retained while V-A ECMO was discontinued. However, echocardiography showed residual impaired RV function, with TAPSE of 11 mm, CVP greater than 18 mmHg, and PAPi less than 2.0 despite inotropic support and inhaled nitric oxide prompting the use of ProtekDuo RV MCS to support the RV. Although the authors did not mention whether the patient was optimized from volume standpoint before ProtekDuo RV MCS placement, this approach allowed for gradual RV recovery, and the patient was eventually discharged on day 24.

ProtekDuo for biventricular support as bridge to recovery or decision

In a case series of three patients, Khalpey et al. described simultaneously using two ProtekDuo devices as minimally invasive BiVADs (47). The ProtekDuo cannula was used with a CentriMag pump to provide RV MCS support in the standard configuration. For LV support, the ProtekDuo cannula was inserted into the LV via an apical puncture, with the distal tip crossing past the aortic valve. The first patient was transitioned to a total artificial heart (TAH) (SynCardia Systems, Inc., Tucson, AZ, USA) on day 34. The second patient had his RV MCS, and LVAD support discontinued on postoperative days 4 and 6, respectively, and was subsequently discharged to a rehabilitation center. The third patient was weaned off the RV MCS on postoperative day 13 but did not recover, and the family ultimately withdrew support on postoperative day 19.

The use of ProtekDuo devices as minimally invasive BiVADs offers several advantages. One of the main benefits is that it can be placed in less than 3 hours with relatively minimal blood loss. Additionally, this approach avoids the need for a median sternotomy, which preserves the sternum for future use in a durable LVAD or heart transplant. Femoral artery cannulation, which may lead to leg ischemia even with ipsilateral distal perfusion cannulation is avoided, reducing the risk of complications. Moreover, the ProtekDuo functions as both an LV vent and an MCS device, eliminating the need for separate LV venting, while promoting ventricular recovery.

ProtekDuo for isolated LV failure

The use of ProtekDuo for temporary LV MCS is via a trans-apical approach. Goodwin et al. reported a case of a 51-year-old patient with refractory cardiogenic shock who received ProtekDuo support through the intercostal space (48). The device was connected to a CentriMag pump, and the patient initially showed improvement. However, on day 26, he suffered a hemorrhagic stroke and died. The authors chose the ProtekDuo over an Impella because they believed it better offloads the LV in the presence of aortic regurgitation and has a lower risk of hemolysis, especially at high flow rates needed for severe AR. Similarly, Belani et al. reported a case of a 47-year-old Jehovah’s Witness patient with decompensated systolic heart failure who received ProtekDuo LV support over an Impella (34). The authors felt that the Impella has a higher risk of hemolysis, which may have necessitated transfusion. V-A ECMO and a durable LVAD were not chosen due to higher risk of bleeding.

ProtekDuo for lung transplantation (LT) care

Approximately 25% of patients presenting for orthotopic LT have end-stage pulmonary hypertension and resulting RV dysfunction (49). To support these patients during surgery, ECMO is often used in addition to traditional CPB. In a case report by Budd et al., a patient undergoing sequential bilateral LT was intraoperatively supported initially with a ProtekDuo V-P configuration (50). After arrival of donor lungs, the configuration was converted to central (dl)V-A ECMO by cannulating the ascending aorta and converting ProtekDuo to double lumen drainage. Once transplantation was done the circuit was converted back to V-P configuration to decompress the RV. The ProtekDuo, used as part of the V-A ECMO circuit, provided good intraoperative stability and RV support. Sinha et al. also reported two cases in which a ProtekDuo was used as a bridge to heart-lung and LT (51). Harano et al. reported outcomes of four patients with idiopathic pulmonary fibrosis who were placed on ProtekDuo in V-P configuration as a bridge to transplantation, all of whom underwent double LT (52). There was one in-hospital mortality due to superimposed pseudomonas pneumonia with influenza virus infection on postoperative day 97, while the other three were alive at 2-year follow up. A brief summary of clinical indications, advantages, and disadvantages of the use of ProtekDuo are highlighted in Table 1.

Conclusions

ProtekDuo is an important tool in the armory of RVF management. ProtekDuo offers clear advantages including groin-free approach allowing for mobility, easy percutaneous deployment, compatibility with various pumps and oxygenators and its versatility to be integrated in numerous configurations. As with any other MCS, ProtekDuo has its own sets of risks including vascular injury, hemolysis, iatrogenic tricuspid regurgitation, pulmonary valve dysfunction, superior vena cava syndrome, cardiac wall perforation, pericardial effusion with tamponade, infection, embolism and thrombosis as well as cannula migration leading to ineffective unloading of RV (53). Moreover, in some instances such as during heart transplant for PGD where there is no access to the IJ vein, ProtekDuo may be difficult to deploy.

It is important to acknowledge that experience in utilization of ProtekDuo in atypical configurations, for instance as a temporary LVAD, remains limited and falls within the realm of experimental usage. Despite this, the ProtekDuo system is expected to gain more popularity in the future. With the expansion of the available MCS options, further research and experience is needed to better understand the best tool for each subset of patients. The THEME registry may offer more insights into the effectiveness of the ProtekDuo in real-world settings (54).
