Templating in uncemented total hip arthroplasty—on intra- and interobserver reliability and professional experience

Introduction

Templating has been described as an integral part of preoperative planning in total hip arthroplasty (THA), and has been unanimously advocated from Charnley until the present (1-5). It involves the use of a visual representation of the prosthesis in question, which is combined with X-rays of the patient’s hip. The objective is to predict optimal sizes of the components to obtain correct offset, hip stability and equal limb length.

Digital radiography has led to development of templating software. However, reliable measurements presume accurate magnification of the hip on the radiograph and identical magnification of the template, and controversy exists whether digital templating is more precise than conventional templating. Some studies have reported a higher accuracy for acetate templating (6,7), whereas other studies reported better accuracy for digital templating (8,9). There is a tendency towards digitalization of radiology, and acetate X-rays are no longer produced in our department.

Several studies have been published, that aim to evaluate the accuracy, precision and reliability of preoperative templating in THA (10-14). The results are predominantly reported as favourable, and the recommendation to utilize the method is strong (15). However, most studies report on at least partially cemented prostheses, which is less dictated by anatomical constraints than uncemented prostheses. Inaccuracies during templating can therefore be amended, or hidden, by cement. Also, size gaps in cemented stems series are usually larger than in uncemented stem series. Templating cemented stems is therefore more forgiving. The literature suggests that a ±1 size estimation of the component sizes is adequate for a templating method (6,10,11,14,16-19). We would argue, however, that the clinical value of evaluating and reporting ±1 size is limited, especially for uncemented components, as a change in 1 size from template to surgery is likely to affect both leg length and offset. Hence, we asked (I) what are the intra-, and interobserver reliability of preoperative digital templating in uncemented THA? And, (II) are these values dependent on the experience of the surgeon?

Methods

The study was performed in accordance with the ethical standards of the 1975 Declaration of Helsinki as revised in 2008. Data were anonymized and treated according to the ethical standards of our institution. As the study was not interventional, the patients followed ordinary routines and could not be identified. Therefore specific ethics approval and patient consent were not required.

We reviewed the X-rays of 42 consecutive patients who underwent primary THA at our institution. The variables collected included templated implant size for acetabular, femoral and neck components. Three independent observers conducted measurements twice, separated by a time interval of at least 6 weeks to minimize recall bias. These had different levels of professional experience: (I)sixth-year resident; (II) senior chief attending surgeon and (III) chief attending surgeon. Only the 1st measurement was used to assess interobserver, i.e., between surgeons, reliability. Randomization of the X-rays, data collection and analysis were performed by independent evaluators who were not the observers.

Eight patients were excluded due to inadequate X-rays, either lacking sufficient representation of the calibration marker, or inadequate exposure of, or malrotation of the joint. This lefts 34 patients for further examination: 22 women (65%) and 12 men (35%). The age ranged from 13 to 82 years, with a mean of 51 years. The indication for THA was primary osteoarthritis in 15 (44%), avascular necrosis of the femoral head in 6 (18%), developmental dysplasia in 6 (18%), Legg-Calvé-Perthes disease in 4 (12%), and miscellaneous in 3 (9%).

All patients were planned to receive a THA using Zimmer Trilogy uncemented shell, and DePuy Corail uncemented femoral stems. The available acetabular implants ranged from 40 to 68 mm in 2 mm increments, and the femoral implants ranged from 8 to 18 in 11 size units. The neck lengths ranged from short via medium to long.

All the radiological examinations were performed digitally at the same radiological centre, using a standardized protocol. We used a calibration marker of 36 mm positioned between the patient’s legs, as close to the focal point of the X-ray beam as practically possible.

Templating was performed with a digital radiograph planning software (EndoMap, Siemens, Nuremberg, Germany), which is routinely used in our clinic, and all surgeons are trained in using this software to position the templates within the anatomical borders.

Statistical analysis

We considered 0.75 as the minimal acceptable value for intra-class correlation coefficient (ICC), and expected an ICC value of 0.90, hence a sample size of n>26 for a test-retest design (k=2) was estimated (significance level =0.05 and power =0.80) (20).

The differences between measurements on same patient, the ICC and the repeatability coefficient (RC) were used to assess reliability for acetabular and femoral implant sizes. Differences between measurements were described by their mean, standard deviation (SD) and range that statistically include 95% of the observed differences (mean ±1.96 × SD). The ICC describes how strongly units in the same group resemble each other; with 1.0 as perfect and 0 as agreement just by chance.

The RC provides a more direct clinical measure on reliability. If the difference between two measurements made on a subject (i.e., a patient) is approximately normally distributed, the absolute difference between the two measurements is in the long run expected to differ by no more than the RC on 95% of occasions. On a relative basis, a lower RC indicates a better reliability.

For neck lengths, reliability was assessed using the kappa statistics (κ) (21). With complete agreement, then κ=1, and with no agreement among raters other than as expected by chance, then κ=0. The percentage of cases with agreement within 1 and 2 sizes differences by the same surgeon (intraobserver) or between the three surgeons (interobserver) was estimated.

Reliability was graphically assessed using pairplots. Pairplots is a user-developed package in Stata that plots paired data using lines to show the difference between values.

All statistical analyses were done in Stata 13 (StataCorp LP, College Station, TX, USA).

Results

We found good intraobserver reliability with an ICC from 0.81 to 0.87 for the acetabular component and from 0.74 to 0.91 for the femoral component. The combined RCs were 2.9 and 2.1 for acetabular and femoral component sizes, respectively (Table 1).

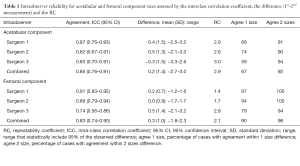

Table 1 Intraobserver reliability for acetabular and femoral component sizes assessed by the interclass correlation coefficient, the difference (1^st–2^nd measurement) and the RC
Full table

The interpretation is that a surgeon differs between two measurements on the same patient very rarely by more than 3 size units for acetabular and by more than 2 size units for femoral components. In 67% and 90% of the cases there were intraobserver agreements within 1 size difference for acetabular and femoral components, respectively. The intraobserver reliability is graphically illustrated in Figures 1,2 and shows that in about half of the patients there was negligible difference between first and second measurement. Due to space constraints, we present plots solely for surgeon 2.

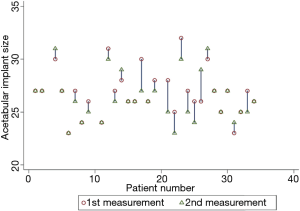

Figure 1 Intraobserver reliability on acetabular implant size assessed by a pair plot for surgeon 2. Paired data is plotted using lines to visualize the difference between values. Superimposed plots signify coinciding measurements.

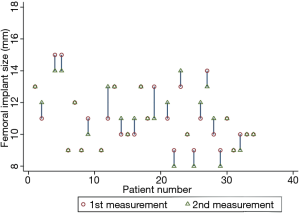

Figure 2 Intraobserver reliability on femoral implant size assessed by a pair plot for surgeon 2. Paired data is plotted using lines to visualize the difference between values. Superimposed plots signify coinciding measurements.

Neck length was classified in short, medium or long, and seemed to have somewhat lower intraobserver reliability with κ from 0.41 to 0.50 (Table 2). Agreement between 1st and 2nd measurement was about 70% for all surgeons, but approximately 40% to 50% agreement could statistically be expected just by chance. Surgeon 1, 2 and 3 had agreement within 1 size difference in 91%, 100% and 97% of the cases, respectively. The lowest κ was observed for surgeon 3 with complete agreement for 25 (74%) patients.

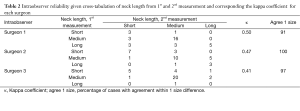

Table 2 Intraobserver reliability given cross-tabulation of neck length from 1^st and 2^nd measurement and corresponding the kappa coefficient for each surgeon
Full table

The interobserver reliability for acetabular and femoral component had ICC of 0.87 and 0.79 and RC of 2.7 and 2.5, respectively (Table 3), and thereby similar to the intraobserver reliability.

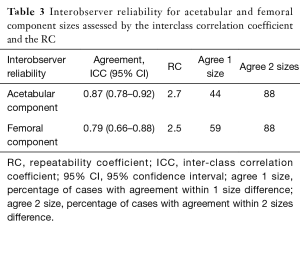

Table 3 Interobserver reliability for acetabular and femoral component sizes assessed by the interclass correlation coefficient and the RC
Full table

An interpretation of the RC estimates is that two surgeons differ between measurements on the same patients very rarely by more than 3 size units for acetabular and femoral component. About half of the patients (44% for acetabular and 59% for femoral) had an agreement within 1 size difference among the three surgeons. A somewhat lower interobserver reliability was found for neck length with a combined κ of 0.27. For 14 (41%) of the patients all three surgeons agreed completely and for 32 (94%) of patients the surgeons agreed within 1 size difference in neck length size.

We found that the least experienced surgeon, surgeon 1, had the highest ICC, i.e., was most consistent, for templating the acetabular and femoral components, and had the highest Kappa coefficient for neck length. The most experienced surgeon, surgeon 2, had intermediate ICC for templating the femoral component, and lowest ICC for the acetabular component, as well as intermediate Kappa coefficient for neck length. Hence, we did not find an association between professional experience and intraobserver reliability.

Discussion

An increasing number of studies aim to evaluate the accuracy, precision and reliability of preoperative templating in THA, and the results are predominantly reported in favour of templating (10-15). Most publications follow the example of Knight and Atwater, who used a ±1 size approximation of the component sizes in their evaluation. Intraobserver agreement of the acetabular and femoral components is reported at 60% to 85% (6,10,11,14,16-19). Within 1 size, we found that in between 67% and 90% of the cases there were intraobserver agreements for acetabular and femoral components, respectively. We would argue, however, that the clinical value of reporting ±1 size is limited, particularly for uncemented components, as a change in 1 size from template to surgery is likely to affect both leg length and offset. We therefore prefer to present our primary findings as ICC and Kappa values, but with a thorough statistical analysis. We did not investigate component placement, as this adds several magnitudes of bias.

We found good intraobserver reliability with an ICC from 0.81 to 0.87 for the acetabular component and from 0.74 to 0.91 for the femoral component. Our findings compare favourably with other reports of templating uncemented THA (4,13,14,16-19). If an agreement within 2 to 3 component sizes is clinically relevant for acetabular and femoral components, reliability can be satisfactory. Reliability for neck length on the other hand seemed low, with Kappa values from 0.41 to 0.50. This can be explained by fluctuating or individual preferences for medicalization of the acetabulum and axial stem placement. Hence, the choice of neck length is dependent on two other factors, each adding uncertainty. Varying the neck length is used perioperatively to provide optimal conditions for leg length and biomechanics around the hip joint. A possible interpretation of these findings is that there is good agreement on templating component sizes among surgeons, but poorer agreement on component placement. It follows that preoperative templating cannot supersede the intraoperative assessment and final decision.

The influence of professional experience on the precision of templating was evaluated in this study. In the current literature this is controversial, and contradictory results have been reported (10,13). While two studies found a significant influence of the professional experience on templating the components for THA, two recently published studies did not find a significant influence (22,23). However, it should be noted that in these studies, the different types of observers are not directly comparable. What constitutes an “experienced” and “less experienced” surgeon is not universally defined, and this is likely to cause some of these discrepancies. Some of the studies also included cemented as well as uncemented components, and had small numbers in some of the subgroups. In our study we templated only uncemented components that intended to be inserted with press fit. Anatomical borders are therefore more clearly defined. We found that the least experienced surgeon, surgeon 1, had the highest ICC, i.e., was most consistent, for templating the acetabular and femoral components, and highest Kappa value for neck length. The most experienced surgeon, surgeon 2, had intermediate ICC for templating the femoral component, and lowest ICC for the acetabular component, as well as intermediate Kappa coefficient for neck length. Hence, at these experience intervals, or at least, above our threshold of experience, we could not find a correlation between experience and consistency. We did not compare the templates with the components chosen during surgery, however, so it is not possible to tell how the precision correlates with the prediction of actual implant (accuracy).

There are a few limitations of our study. First, our study was carried out in only one clinic, and there are concerns whether the findings can be generalized. Second, we did not investigate in a longitudinal fashion. However, all observers were experienced in using the software, so we do not expect any significant change in measurements over time. Third, the number of patients could be higher. But our power analysis suggests that the number is sufficient to yield significant results (20). Also, our sample population had an adequate distribution of all values to make the analyses meaningful. Fourth, there is no golden standard that we could compare our results with. But this is a general and main objection to preoperative templating of joint prostheses. Fifth, we concede that radiographic interpretation relies on the clinician’s experience with reading hip radiographs. Main sources of errors when measuring radiographs are errors in locating corresponding landmarks, and errors in calibration on digital radiographs. However, our findings suggest that above a certain threshold of experience, this is mainly a methodological problem, and is not likely to infer further bias to our results.

In conclusion, if an agreement within 2 to 3 component sizes is clinically relevant for uncemented acetabular and femoral components, reliability can be satisfactory. However, preoperative templating cannot supersede the intraoperative assessment and final decision. Also, professional experience is not correlated to intraobserver reliability. Hence, lack of precision is not due to lack of experience, but inherent to the method.
