Mobile phone radiofrequency exposure has no effect on DNA double strand breaks (DSB) in human lymphocytes

Introduction

According the recent statistics of the World Health Organization (WHO), cancer figures among the leading causes of morbidity and death around the globe, with approximately 14 million new cases and 8.2 million cancer related deaths, respectively (http://www.who.int/mediacentre/factsheets/fs297/en/). Even more importantly, the number of new cases is expected to increase further by approximately 70% over the next 20 years, up to 22 million new cases (http://www.who.int/mediacentre/factsheets/fs297/en/). Indeed, the risk of cancer has been greatly enhanced by modern lifestyles, through a mismatch between evolutionary genetics and environmental adaptations, as well as by an aging population (1).

Nevertheless, there is now consolidated evidence that most cancers are preventable, so that prudent avoidance of many well recognized risk factors would probably be effective to lower the worldwide prevalence (1).

The overall number of mobile phone users is estimated at 4.43 billion worldwide, and is expected to further increase over five billion in the next four years (http://www.statista.com/statistics/274774/forecast-of-mobile-phone-users-worldwide). This widespread use of mobile communication technology has generated deep interest in the scientific community and has stimulated wide and often controversial debates about the potential cancerogenic effects triggered by excessive exposure to radiofrequency electromagnetic fields (RFs). Accordingly, the International Agency for Research on Cancer of the WHO classifies RFs as possibly carcinogenic to humans (http://www.iarc.fr/en/media-centre/pr/2011/pdfs/pr208_E.pdf). RFs are part of the spectrum of Ultra High Frequencies (UHFs), which designates a range of electromagnetic waves with frequencies ranging from 300 MHz to 3 GHz. In particular, those used by the global system for mobile communication (GSM) run within the 900 MHz band. Based on their photon energy, which is less than 1.2 meV, RFs are classified as non-ionizing radiation since they are virtually unable to generate atom ionization. A particularly important issue, however, is that non-ionizing radiations may be adsorbed by biological systems, thus inducing changes in both vibrational and rotational energies of the tissues, leading to possible dissociation of molecules and dissipation of energy in the form of heat (2).

The thermal and non-thermal effects of RF have been recently explored in many biological systems (3-5), often yielding inconsistent or controversial results. Among the great deal of investigations raised in recent years, at least one evidence seemingly emerged, consisting in the fact that the use of mobile phones for 10 years or longer may increase the risk of certain types of cancer [odds ratio (OR), 1.18; 95% confidence interval (95% CI), 1.04–1.34], whereas this association was mostly insignificant for normal mobile phone users compared to non-users (OR =0.98; 95% CI, 0.89–1.07) (6). Interestingly, two other recent meta-analyses concluded that long-term ipsilateral users of mobile phone have an increased risk of glioma (OR =1.46; 95% CI, 1.12–1.92) (7), whereas no significant association was found with meningioma [relative risk (RR), 0.98; 95% CI, 0.75–1.28] or acoustic neurinoma (RR =1.14; 95% CI, 0.65–1.99) in long-term mobile phone users (i.e., ≥10 years) (8). Indeed, experimental evidence was brought about potential genetic damage of RFs emitted by mobile phones in human cells (9). Consistent with different groups of researches, RFs were proven to induce DNA single- and double-strand breaks (DSB), the latter being thought to be the most severe form of DNA damage since they may lead to severe losses of large fragments of DNA. However, the negative effects could only be observed in studies with small sample numbers, thus failing to provide solid genotoxicity-based mechanistic evidence (10).

The analysis of γH2AX foci is currently considered as the most sensitive method to detect DNA DSB, and persistent γH2AX foci not immediately repaired appear to be a promising biomarker for DNA damage and aging (11). After DSB occurrence, the core histone protein H2AX becomes rapidly phosphorylated at serin-139 and form a so-called γH2AX repair focus. The immunofluorescence staining of accumulated γH2AX molecules by using anti-γH2AX antibody allow the detection of individual DSB as single nuclear focuses.

This fluorescence microscopic analysis has recently been implemented to establish fast and standardized γH2AX analysis and allowing rapid assessment of DNA damages in clinical practice. The platform, named AKLIDES (Medipan, Dahlewitz, Germany), permits a fully automated assessment of antinuclear immunofluorescence antibody screening (12), but also allows computational analysis of γ-H2AX foci, which has now been successfully validated by several independent research groups (13-17). The suitability of the γH2AX assay to evaluate the dose-dependent formation of DSB has also been recently demonstrated for X-ray radiation and 7 Tesla magnetic resonance image exposure (17-20). Therefore, the aim of the present study was to investigate the potential genotoxic effect of mobile phone RF exposure on human peripheral blood mononuclear cells (PBMCs) in vitro.

Methods

Research design and study population

The study population consisted in 14 healthy volunteers (mean age 43.2±10.4 years, 11 females, 3 males), recruited from the laboratory staff. None of the study subjects had taken any medications during the week prior to the experiment. Two sequential blood samples were collected from an antecubital vein of the arm into K2-EDTA evacuated plastic blood tubes (Vacutest Kima s.r.l., Padova, Italy) and immediately mixed by six-time inversion. The first blood sample of each volunteer was placed in a plastic rack, 1 cm from the chassis of a commercial mobile phone powered by a 1,570 mAh non-removable lithium battery. The characteristics of the mobile phone are as follows: height, 12.4 cm; width, 5.9 cm; thickness 0.8 cm; carrier frequency, 900 MHz. Immediately after samples placement in the plastic rack, a call was placed on the mobile phone and the communication was manually activated for 30 min, with 3G and Wi-Fi connections disabled. During this period, the rack with the samples and the mobile phone was gently inverted one-time upside-down every 5 min for preventing sedimentation of corpuscular blood elements. After 30 min RF waves exposure, the mobile phone was removed from the plastic rack and the blood samples were left in upright position for additional 60 min without further mixing. The second blood sample of each volunteer was placed in another plastic rack, for 90 min. The rack was also gently inverted one-time upside-down every 5 min during the first 30 min period (as for the samples exposed to mobile phone RF waves). The samples were then left in upright position for the remain 60 min, without further mixing. Near contact (e.g., <1 m) of the untreated blood samples with mobile phones or other RF waves sources was accurately prevented throughout the study period. Each volunteer provided an informed consent. The study was carried out in accord with the Declaration of Helsinki, under the terms of relevant local legislation and was approved by the Institutional Review Board.

γ-H2AX foci analysis

The analysis of γ-H2AX foci in lymphocytes was performed using a γ-H2AX immunofluorescence staining kit (AKLIDES Nuk Human Lymphocyte Complete, Medipan). The γ-H2AX assay was carried out according to the manufacturer’s instructions as described in details elsewhere (10). Briefly, lymphocyte-containing interfaces were collected by density gradient centrifugation at 400 g for 30 min. After isolation, lymphocytes were resuspended to a final density of 1.0 × 10⁶ cells/mL. Lymphocytes were counted by using the haematological analyser Advia 2120 (Siemens Healthcare Diagnostics, Tarrytown NY, USA) and then fixed onto microscopic slides. Slides were washed three times with PBS and then blocked with 100 µL freshly prepared PBS containing 1% BSA. Slides were incubated for 2 hours at room temperature with a primary mouse anti-H2AX antibody, then washed two times with PBS and incubated with a secondary goat anti-mouse antibody conjugated with a fluorescent dye (Alexa Fluor 488). Nuclear counterstaining was performed with Vectashield medium containing 4′,6-diamidino-2-phenylindole (DAPI).

The AKLIDES platform was used for automated image acquisition, analysis, evaluation and characterization of γ-H2AX foci as previously described (10,12,17).

For each sample a minimum of 100 cells were analysed and the follow parameters were assessed: (I) number of analysed cells; (II) number of γ-H2AX foci; (III) γ-H2AX foci fluorescence intensity (expressed in arbitrary units, AU); (IV) number of cells with γ-H2AX foci; (V) percentage of affected cells; (VI) mean number of γ-H2AX foci per cell with γ-H2AX foci; (VII) mean diameter of γ-H2AX foci. The number of apoptotic cells was also reported. Given that apoptosis induces a pan-nuclear γ-H2AX phosphorylation, selected cells were scored as apoptotic, when more than 70% of the nucleus area detected in DAPI mode exceeded the threshold in the foci channel.

Statistical analysis

All data were reported as median and interquartile range (IQR). The Wilcoxon test for paired samples was used to assess the significance of difference between untreated samples and those exposed to mobile phone RF waves. Analyses were performed by GraphPad Prism 5 (Version 5.01, GraphPad Software, Inc., USA) setting the level of statistical significance at P<0.05.

Results

A median number of 211 (IQR, 205–218) and 210 (IQR, 201–217) cells were analysed in the untreated samples and in those exposed to mobile phone RF, respectively. As shown in Table 1, no measure of γ-H2AX foci was significantly influenced by mobile phone RF exposure. Interestingly, a marginally but not significant increase of apoptotic cells was observed. The overall number of samples which displayed increased γ-H2AX parameters and the relative OR (with 95% CI) is shown in Table 2. In no circumstance, mobile phone exposure was associated with a significant risk of genetic damage as measured with AKLIDES Nuk Human Lymphocyte Complete (ORs comprised between 0.27 and 1.00).

Table 1 Influence of 30 min mobile phone radiofrequency (RF) exposure on γ-H2AX parameters and apoptosis in human lymphocytes
Full table

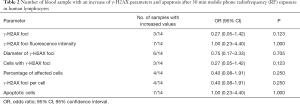

Table 2 Number of blood sample with an increase of γ-H2AX parameters and apoptosis after 30 min mobile phone radiofrequency (RF) exposure in human lymphocytes
Full table

A number of studies investigated the impact on genetic material of electromagnetic radiation emitted from mobile phones in the last years, using heterogeneous approaches, different types of RFs and so providing controversial outcomes (21). A negative biological effect has been described on DNA integrity in the male germline, by affecting male reproductive system (22-24). Moreover, carcinogenic effects, mirrored by cell proliferation and activation of oncogene transcription, have been reported (25,26).

The extent of genotoxicity has also been evaluated in different studies using different end points, including incidence of chromosomal aberrations, micronuclei or sister chromatid exchanges and single- or DSB in the DNA (9). As regards single or DSB in the DNA, studies performed in rats nearly twenty years ago described that acute exposure to high RF electromagnetic radiation (i.e., 2,450 MHz RF for 2 h) were capable to trigger DNA breaks in brain cells (27,28). In the following years, Ji et al. studied the health impact of 4-hour acute exposure to commercially available mobile phones on certain parameters such as an indicator of DNA damage in 14 healthy adult volunteers, and concluded that this type of electromagnetic radiation was capable to trigger DNA damage in lymphocytes in vivo (29). More recently, Çam et al. analysed the short-term effects of radiofrequency radiation exposure on single-strand DNA breaks in 8 healthy human subjects before and immediately after exposure to a 900-MHz GSM mobile phone for 15 and 30 min (30). Interestingly, talking on a mobile phone for up to 30 min significantly increased single-strand DNA breaks in cells of hair roots close to the phone, a damage that was found to be the highest after 30 min of phone use.

Contrarily, and in accord with our experimental data, some studies showed the electromagnetic radiations emitted by mobile phones may have little (if any) negative effect on DNA integrity (31-35). More specifically, Verschaeve and colleagues demonstrated that exposure for a period of 2 years, 2 h per day and 5 days per week [average whole-body specific absorption rates (SAR) of 0.3 or 0.9 W/kg], did not significantly modify DNA strand breaks in blood, liver and brain cells (32). Stronati et al. continuously exposed for 24 h blood specimens collected from 14 donors to a GSM basic 935 MHz signal, and showed that this exposure did not induce DNA strand breaks in human lymphocytes (33). No significant changes in DNA strand breaks have also been observed by Sakuma et al. in human glioblastoma A172 cells and normal human IMR-90 fibroblasts from fetal lungs exposed to cell phone radiation for 2 and 24 h (31). More recently, Hou et al. (34) studied the potential adverse effects of mobile phone radiation in mouse embryonic fibroblasts after intermittent exposure (5 min on/10 min off, for various durations from 0.5 to 8 h). Despite a significant increase in the levels of intracellular radical oxygen species (ROS) was observed after exposure, no significant effect was found on the number of γH2AX. Finally, Schwarz et al. reported genotoxic effects in vitro in human fibroblasts, but not in lymphocytes, exposed to 1,950 MHz UMTS below the SAR safety limit of 2 W/kg (35).

Discussion

Taken together, the results of our experimental study about the exposure of human lymphocytes to conventional 900 MHz RF emitted by a commercial mobile phone for 30 min show little effect on DNA integrity in lymphocytes. It seems hence reasonable to suggest that such a limited time of mobile phone exposure does not carry meaningful carcinogenetic risk. Indeed, we cannot rule out that different effects may be observed after longer or excessive exposure, which is however currently discouraged by the US Food and Drug Administration (FDA) (http://www.fda.gov/Radiation-EmittingProducts/RadiationEmittingProductsandProcedures/HomeBusinessandEntertainment/CellPhones/ucm116293.htm). It is in fact suggested that the use of mobile phones should be reserved for shorter conversations and that hands-free device should be preferred due to the longer distance between the mobile phone and the user.

Indeed, this study has some limitations. Firstly, we could only investigate the in vitro effect of short-term (30 min) cell-phone exposure, whereas the cumulative effect of longer or continuative exposures may generate different effects on DNA integrity. Second, we could only evaluate the y-H2AX DNA repair foci in human lymphocytes, as an indicator of DNA damage. However, since it has been reported that DSB in the DNA is probably a consequence of radiation-induced changes in interaction between DNA and proteins (e.g., histones) (36), the evaluation of proteins involved in DNA repair and damage signaling, such as phosphorylated H2AX, is actually considered the most sensitive method to study DSB (37,38).

Acknowledgements

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The study was carried out in accord with the Declaration of Helsinki, under the terms of relevant local legislation and was approved by the Institutional Review Board. Each volunteer provided an informed consent.
