Rainforest plots for the presentation of patient-subgroup analysis in clinical trials

Introduction

Case mix is common in clinical trials, despite strict inclusion/exclusion criteria. Such case mix might lead to heterogeneous intervention effects in patient subgroups. Thus, clinical studies often benefit by subgroup analysis, aiming to further explore the effectiveness of the intervention across different subgroups of interest. For instance, the overall effect might be neutral, but beneficial or harmful effects may be present in subgroups (1). Although post-hoc analyses are not able to provide strong confirmatory evidence, they might generate hypotheses which can be tested in future experimental trials. Thus, subgroup analysis can provide useful information and is widespread in clinical research. A forest plot is usually employed for the presentation of the results of subgroup analysis. Key components of the forest plot include point estimates and confidence intervals for each subgroup. The conventional forest plot comprises a box, representing the point estimate for each subgroup, and a line, representing the 95% confidence interval. The precision of the point estimate of each subgroup is represented by the size of the box.

However, such a graphical display of the estimate and its uncertainty has been criticized for several reasons: first, because subgroups with small samples—and therefore imprecise estimates—have long confidence intervals, they might attract more visual attention than large subgroups with short confidence intervals; second, the individual effect of a large subgroup may not be readily discernable because of its large box; and third, the confidence interval depicted by a line might incorrectly convey the impression that all points within the interval are equally likely. As a matter of fact, the likelihood of values within the interval decreases, as they approach the outer boundaries (2).

To address these shortcomings of the conventional forest plot, the rainforest plot has been proposed in the context of meta-analyses (2). In rainforest plots, each subgroup is represented by a likelihood raindrop (Figure 1). The shape of the raindrops depends on the assumed distribution of the estimates via the respective likelihood function (3). In the following we assume (asymptotically) normally distributed estimates throughout, which is the most common case.

Figure 1 Comparison of the conventional forest plot and the rainforest plot. In the forest plot on the right side, the pancreatitis subgroup may draw unwarranted visual attention because of its wide confidence interval. However, in the rainforest plot on the left side, the trauma subgroup may visually dominate because of its thicker raindrop, darker color, and saturation.

In rainforest plots, the confidence interval is marked by a horizontal white line, and its width corresponds to the width of the raindrop. In addition, the uncertainty is represented by both the height of the raindrop and the shading (3). The individual effect is clearly marked by a white tick mark and can be discerned regardless of the sample size of the subgroup. The height of the raindrop corresponds to the likelihood of each value within the confidence interval and allows to assess the plausibility of different values (4). In Figure 1, we compare the conventional forest plot with the rainforest plot. In the right forest plot, the pancreatitis subgroup may draw more visual attention because of its wide confidence interval. This might be unwarranted, because the respective point estimate is the least precise. However, in the left rainforest plot, the trauma subgroup—with the highest sample size and therefore most precise estimate—may draw the viewer’s attention for its thicker raindrop and darker color as well as higher saturation. In this tutorial, we will introduce how to generate such a rainforest plot for the depiction of subgroup analysis in clinical trials.

Working example

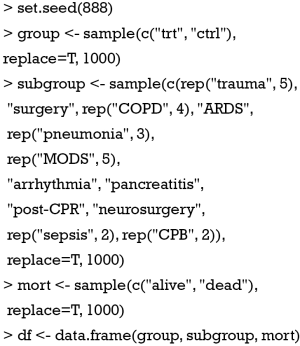

For the sake of illustration, we generate a dataset containing 1,000 patients and three variables. The R code is as follows.

The set.seed() function is used to make sure that the randomly generated data are exactly reproducible. The group variable is a string vector including all subgroups. We use the sample() function to sample a subgroup randomly for each of the 1,000 patients. The value of each element is randomly selected with replacement from the vector c(“trt”,“ctrl”), with “trt” indicating the treatment group and “ctrl” indicating the control group. The subgroup variable is generated in the same way as that for the group variable. In order to generate different sample sizes across subgroups, some string values are repeated several times. The more times these are repeated, the larger the samples will be. For example, the “trauma” string value is repeated for five times, and this value is expected to occur five times more likely than that of the “arrhythmia” or “pancreatitis” string values. The mort variable contains the dichotomous outcome (alive versus dead). Note that in this example only random, instead of systematic, between subgroup differences are simulated. Systematic differences are typically of interest for subgroup analysis. Finally, the three variables are merged into a data frame.

Subgroup analysis

Subgroup analysis can be performed efficiently with the dlply() function in the plyr package. This function allows to subset a data frame, to apply user-defined functions to the subset, and then to combine the results into a list.

The first line applies dlply() to slice a data frame into subsets by subgroups. Then, a glm() function is applied to each subset. The result is a list of glm objects containing coefficients, residuals, and so forth. With these glm objects, we can use the coef() function to extract coefficients from each of the glm objects. In this situation, the ldply() function is employed. Note that the two plyr functions are different: dlply() versus ldply(). The former receives a data frame as input and returns a list as output, whereas the latter receives a list and returns a data frame. The method to extract the standard error of each coefficient is equivalent. In the end, all returned vectors are merged into a matrix. The result is shown below.

The first column is the row number (without clinical relevance). The second column contains the subgroup names. The third column contains the regression coefficient, whose exponentiation corresponds to the odds ratio of the treatment effect for each subgroup. The last column contains the standard error of the regression coefficient.

Visualization of subgroup analysis with rainforest plots

Rainforest plots can be generated using the rainforest() function from the R package metaviz (5). Should users wish to make additional modifications beyond the options of the rainforest() function, the ggplot2 package will be helpful.

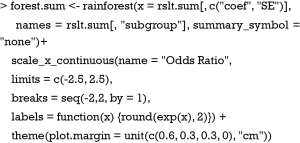

The first two lines load the metaviz and ggplot2 packages. The first argument x of the rainforest() function receives a data frame or matrix with the coefficient estimates and standard errors. The names argument is a vector of subgroup names. The summary_symbol = “none” argument is to prevent the computation and plotting of the meta-analytic summary effect, although it is often a good approximation to the overall effect. Because in this context we do not want to conduct a meta-analysis, but to visualize subgroup differences we avoid to computing and showing a meta-analytic summary effect. However, it depends on the choice of the investigators. In the following example, we will illustrate how to add the overall effect using all data (e.g., not the summary effect estimated by meta-analytic approach) to the rainforest plot.

A complete rainforest plot can be drawn at this step. Since the plot is composed using the ggplot system, elements of the rainforest plot can be optionally modified or added with great flexibility layer by layer. The following codes after the symbol “+” change the scale of the horizontal axis. The name of the axis is “Odds Ratio”. The axis limits here are set to (−2.5, 2.2), which should be adjusted in other cases. The label values of the horizontal axis are changed to show the exponentiation of the original x values, such that they are readily interpretable as odds ratios. The resulting rainforest plot is shown in Figure 2.

Figure 2 Rainforest plot to display subgroup analysis.

Adding a side table beside the rainforest plot

Sometimes, investigators and readers are interested in the exact values of the effect estimates and their corresponding standard errors. Here we introduce a method to add a data table beside the rainforest plot. Furthermore, one might be interested to estimate the overall treatment effect and to add it to the rainforest plot.

The summary effect can be estimated using the glm() function, as described above. After model fitting, the estimated coefficient and its standard error are extracted from the glm object and added to the rslt object.

Next, we proceed to generate a data frame containing all text annotations that will be displayed alongside the rainforest plot. The coefficients of each subgroup and the summary effect are exponentiated to obtain odds ratios. The round() function is used to round the odds ratios to two decimal places. Approximate standard errors of the exponentiated coefficients are obtained by using the delta method.

In the data frame, three variables (V0, V05, and V1) are created. V0 contains the vertical position of each annotation, and V05 contains the horizontal position. In this example, there are three columns and one row. In our example, the approximate standard error of the OR is estimated using the delta method (6). Alternatively, the confidence intervals of the coefficients can be estimated on the log scale and then the exponentiated lower and upper bounds given. Another method is to give the original coefficients and SE (not exponentiated) in the table and in addition the exponentiated coefficients (but without SE). The V1 variable contains the actual text annotations. The following code creates a ggplot object with these annotations.

Within the ggplot() function, lab is the data set to use for plotting. The V05 is mapped to the horizontal axis and V0 to the vertical axis. The string vector V1 is filled into each cell of the table.

Because we now also want to show the overall summary effect, we plot a new rainforest plot.

Then, we align the rainforest plot with the exact text annotations.

The last step is to use the grid.arrange() function, to finally align the two ggplot objects: The rainforest plot and the data table containing the exact coefficients and standard error values. The layout_matrix argument is to set the layout of the graphical table. The resulting figure is shown in Figure 3.

Figure 3 Rainforest plot with table aligned to the right side to numerically display odds ratios and corresponding standard errors.

Summary

While the conventional forest plot is useful to present subgroup analysis in clinical studies, it has been criticized for several reasons. First, small subgroups might be misleadingly overemphasized through long confidence interval lines. Second, the point estimate of large subgroups is difficult to discern because of the large box representing the high precision of large subgroups. Third, displaying confidence intervals by a line does not contain information on the plausibility of different values within the confidence interval. All these three shortcomings can be overcome by the rainforest plot, an improvement of the conventional forest plot. The metaviz package (5) enables to generate rainforest plots for meta-analysis, and we used it for the generation of rainforest plots to visualize subgroup analysis in clinical trials. The treatment effect was estimated for each subgroup by using a logistic regression model. The plyr package was used to subset the full data frame, which then returned a list or data frame comprising the regression coefficients and standard errors of the models. This data frame can be passed directly to the rainforest() function. Finally, we created a data table, containing the values of odds ratios and standard errors for all subgroups, and added this to the right side of the rainforest plot, using the grid.arrange() function.
