Prepsoas oblique lateral lumbar interbody fusion in deformity surgery

Introduction

The prepsoas oblique lateral lumbar interbody fusion was first described by Mayer in 1997 (1). It is an anterolateral retroperitoneal approach, which uses the corridor between the psoas and the iliac artery or aorta. In contrast to the transpoas approach, it avoids traversing the psoas muscle as well as the lumbar plexus situated within it.

Deformity correction traditionally involves extensive posterior approaches. Several techniques have been described including posterior osteotomies (2,3). These surgeries may have potentially significant surgical morbidity. Over time, minimally invasive surgeries (MIS) have been developed and are now being used in deformity cases. MIS deformity surgery has been reported to have less blood loss and lower complication rates compared to traditional open techniques. However, these techniques have been found to achieve suboptimal sagittal correction or pseudarthrosis in severe deformities (4). The minimally invasive prepsoas approach for lateral interbody fusion combined with minimally invasive pedicle screw fixation can provide good pain relief without resorting to extensive osteotomies in certain well selected cases.

Indications for prepsoas lumbar interbody fusion in deformity surgery include (5-9):

• Adult degenerative scoliosis with coronal and sagittal deformity;
• Proximal junction kyphosis;
• Post laminectomy kyphosis;
• Adjacent level disease above or below a prior fusion;
• Low grade (Meyerding grade 1 or 2) spondylolisthesis;
• Lateral listhesis;
• Pseudarthrosis.

Contraindications for this procedure include:

• High grade (Meyerding Grade 3 or 4) spondylolisthesis (May be difficult to reduce from lateral approach);
• Severe central canal stenosis;
• Severe osteoporosis;
• Prior same side retroperitoneal surgery (due to scar tissue);
• Active infection in the psoas.

Patient selection

As with any surgical procedure, patient selection is key to obtain appropriate outcomes and avoid complications. Traditional work-up includes magnetic resonance imaging (MRI) and computer tomography (CT) to identify stenosis, spondylolisthesis, and other spinal pathology. Spinal deformity patients are additionally evaluated with 36 inch long cassette X-rays to assess alignment and a variety of radiographic parameters.

Mummaneni et al. developed an algorithm to provide a framework when deciding whether a patient would be an appropriate candidate for MIS vs. open deformity correction (10). Radiographic indications for MIS/Mini-open surgery as suggested by the MISDEF algorithm include (10):

• Sagittal vertebral axis (SVA) greater than 5 cm but less than 7 cm;
• Lumbar lordosis-pelvic incidence (LL-PI) mismatch 10–30 degree;
• Lateral listhesis;
• Coronal scoliosis;
• Patients with flexible deformities that reduce to an SVA less than 6 cm on supine X-rays;
• Lack of bridging anterior osteophytes.

The following categories of patients are currently poor candidates for MIS/Mini-open techniques and are best treated with three column osteotomy or multilevel osteotomies to achieve appropriate correction. Relative radiographic contraindications for MIS/Mini-open deformity surgery are:

• SVA greater than 7 cm with a rigid curve (especially with prior instrumented fusion);
• LL-PI mismatch greater than 30 degree;
• Thoracic hyperkyphosis greater than 60 degree.

Some combined approaches can be utilized to achieve appropriate deformity correction. Lateral approaches like the prepsoas or the transpsoas can be combined with anterior longitudinal ligament release in selected cases to achieve greater lordosis.

Preoperative workup

To ensure appropriate patient selection and to assist with surgical planning, we recommend the following preoperative workup for deformity patients.

• 36 inch standing radiographs provide information about spinal alignment as well as the position of the iliac crest. A high iliac crest can make the prepsoas approach at L4–5 difficult or impossible, hence it is important to know the iliac crest position preoperatively if surgery at the L4–5 level is being contemplated. These radiographs also help in planning sagittal and coronal correction;
• Flexion extension X-rays are helpful to assess mobile spondylolisthesis;
• MRI is an essential investigation to look for spinal canal and foraminal stenosis as well as disc degeneration;
• CT scan may be ordered if detailed evaluation of specific bony anatomy is required before surgery;
• A CT angiogram is optional though usually not necessary; it will provide information about the location of aorta, inferior vena cava, iliac arteries and vein. However, most of this information can be seen on axial MRI images.

Surgical technique

Stereotactic navigation guided prepsoas oblique lateral lumbar interbody fusion

Patient positioning

The patient is positioned in the right lateral decubitus position with the left side up. Right sided prepsoas approach cannot be used because of the presence of the vena cava on the right side; this approach can only be used from the left side. A right sided approach will also place the iliac vein at risk for vascular injury. If a right sided lateral approach is mandatory for deformity correction, the transpsoas approach should probably be used instead of the prepsoas approach. It is important to ensure that the patient’s arms will not obstruct the intraoperative CT scanning.

Neuromonitoring

Motor evoked potentials as well as free running electromyography is used. Triggered EMG monitoring is used at our centre. Paralytic anaesthetic agents cannot be used if triggered EMG monitoring is employed as they can lead to false negative recordings.

Procedure

The reference array for navigation is securely placed 2 inches superolateral to the PSIS (posterior superior iliac spine). The intraoperative CT scan is brought in and the images thus obtained are registered with the navigation software. With the help of navigation, midpoint of the pathological disc space is localized on the skin from a true lateral projection (Figure 1).

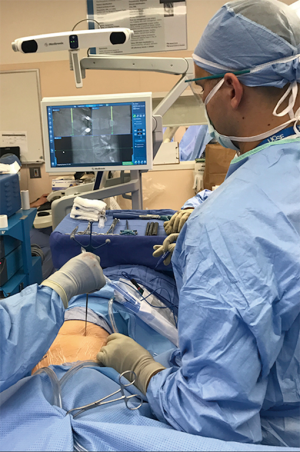

Figure 1 The midpoint of the pathological disc space is localized on the skin from a true lateral projection using navigation.

An oblique incision parallel to the abdominal wall nerve root trajectories, is made 5 cm anterior to this point. The incision is deepened to the abdominal fascia, taking care not to violate the peritoneum. The trajectory should be towards the lumbar spine and is confirmed with navigation. After careful dissection through the obliques and the transverse abdominis muscle, retroperitoneal fat is identified. The anterior border of the psoas muscle and the target disc space is confirmed with navigation and the disc space is cleared of soft tissue (Figure 2).

Figure 2 The disc space is exposed after identifying the anterior border of the psoas muscle.

Sequential dilators are navigated into place with the help of triggered EMG monitoring. An incision is made at the disc annulus and a thorough discectomy is performed (Figure 3). While performing discectomy, it is important to rotate the instruments to a true lateral position before directing them towards the contralateral side. If not done, an oblique trajectory could injure the contralateral nerve root or spinal canal.

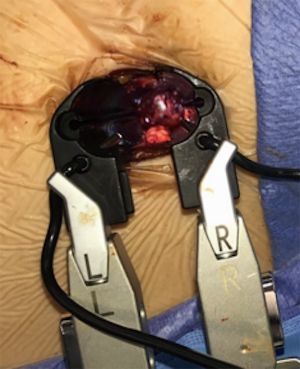

Figure 3 View with retractors in place. A discectomy has been completed after verifying appropriate level and trajectory with navigation.

After completing the discectomy, a correct cage size is selected using interbody template trials. The implant is loaded with graft material and placed. Navigation is used to guide the trajectory and placement (Figure 4). The implant should ideally span the entire apophyseal ring in the lateral direction.

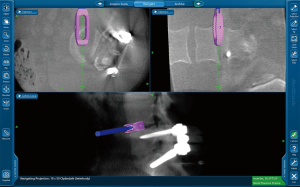

Figure 4 Navigation screen shot displaying how navigation is used to ensure ideal trajectory and placement of interbody implant.

The position of the implant is routinely confirmed with fluoroscopy to ensure that the navigation was accurate during the procedure. The wound is then closed in layers.

Stereotactic navigation guided percutaneous pedicle screw insertion

Transpedicular screws are generally placed posteriorly unless anterior fixation has already been done. The posterior surgery may be staged to a different day to allow for clinical assessment between the two procedures. If radicular symptoms have resolved owing to indirect foraminal decompression, only percutaneous screws may be needed during stage 2 surgery. In case radicular symptoms persist, foraminal decompression is performed along with posterior fixation.

Positioning

The patient is positioned prone on the operating table. All bony prominences and pressure points are padded.

Neuromonitoring

Neuromonitoring with somatosensory and motor evoked potential is employed. Stimulus evoked electromyographic (EMG) monitoring may be used for detecting pedicle wall violation. Owing to the higher resistivity of the cortical bone compared to the soft tissue, EMG responses are not elicited with low stimulation electric currents if the pedicle wall is not violated. Violation of the pedicle wall allows depolarization of the adjacent nerve root as electric current flows through the low resistivity soft tissue.

Procedure

The intraoperative CT scan is brought in and the images are registered to the navigation software. The reference arc can be placed either on the spinous process or the iliac crest. The cutaneous entry point is 1–2 cm lateral to the lateral border of pedicle. The exact entry point is determined with the help of navigation; both the desired entry point in the pedicle (junction of superior and lateral margin of the pedicle) and the medial angulation is taken into account when marking the skin entry point.

After the cutaneous entry point is marked at the level of interest, a 1-cm longitudinal incision is made at this point and a navigated sharp tipped cannulated pedicle awl is advanced and placed at the junction of the lateral border of the superior facet and a bisecting line of the transverse process. The awl is advanced into the pedicle with a gentle twisting motion or with the aid of a mallet. Alternatively, a navigated cannulated drill guide and drill is used to create a tract along the pedicle (Figure 5).

Figure 5 Use of navigated cannulated drill guide to localized correct trajectory for a pedicle screw.

A guidewire is mounted through the cannulated instruments into the pedicle. The instrument is removed once the guidewire is in place (Figure 6). It is imperative to ensure that this guidewire is not accidentally removed or displaced till the screws are in place. A small fascial incision is made to allow for screw placement over the guidewire.

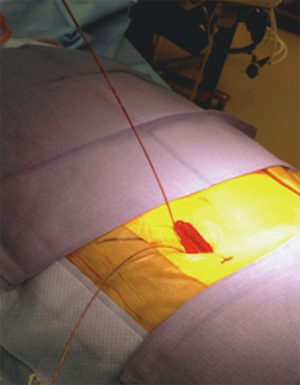

Figure 6 Guide wires positioned within each of the pedicles. Cannulated taps and screws are then passed along the guide wires into the pedicles.

The screw diameter and length is decided with the help of screw projection on navigation (Figure 7). A pedicle tap which is at least 0.5 mm smaller in diameter than the anticipated screw size is then selected. The navigated pedicle tap is then advanced over the guidewire to prepare the pedicles for screw placement. EMG stimulation can be done at this point to determine if there is a medial wall breach. The tap is then removed and cannulated screws of appropriate size are inserted with the aid of navigation. The guidewire is removed once the screw is in place. With navigation, the guidewire may or may not be used if the screw driver is navigated. The procedure is then conducted at other desired vertebral levels in a similar fashion. Once all screws are in place, the rod is advanced subfascially through the screw extensions to connect the vertebral levels.

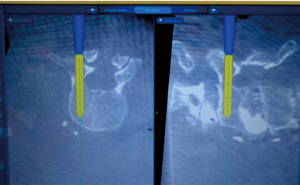

Figure 7 Navigation screen shot of axial and sagittal screw projections which assist in determining screw size and trajectory.

The intraoperative CT scan is again brought in and images are obtained to confirm correct and accurate screw placement.

Postoperative management

The patient is mobilized on the 1st postoperative day. Paralytic ileus may occur, and the patient is restricted to a clear liquid diet until stools are passed. In case surgery is staged, the patient is encouraged to mobilize, to determine persistence of radicular pain after stage 1 and to decide on the need for foraminal decompression while performing posterior fixation during stage 2. Patients are discharged after they are adequately mobilizing and pain has been controlled.

Complications

The chief advantage of the prepsoas approach over the transpsoas approach is the potentially reduced incidence of lumbar plexus injury and the avoidance of surgical trauma to the psoas muscle (11,12). However, the procedure comes with its own share of potential complications.

There is a higher theoretical risk of bowel and vessel injuries due to the more anterior corridor (13). Because of the anterior corridor, there is higher theoretical risk of injury to the ureter, and it is critical to ensure that the ureter is not in the path of the dilators (14)^. Incisional pain and leg symptoms due to sympathetic chain injuries are common complications (15). Male sexual dysfunction has also been reported. Other reported complications include ileus, peritoneal laceration, cerebrovascular accident, lower extremity ischemia, psoas paresis, groin numbness and pseudarthrosis (13,15,16)^.

Clinical outcomes

Since the prepsoas oblique lateral interbody fusion was introduced, it has been increasingly used for multiple indications including adult deformity correction. Many early studies focused on the feasibility and safety of the procedure in comparison to well established procedures such as the transpoas interbody fusion or anterior interbody fusion (5,11,13,15,16). Several recent studies have investigated the both the clinical and radiographic outcomes with longer term follow-up (9,17-22). Table 1 includes recently published studies of oblique lateral interbody fusions with their reported outcomes. These studies show improvements in both patient reported outcomes such as Visual Analogue Score (VAS) back and leg pain scores, Oswestry Disability Index (ODI), and SRS-22 score, as well as improved radiographic parameters.

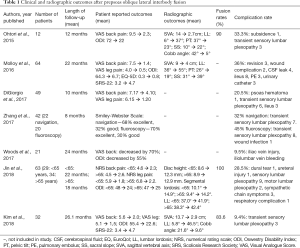

Table 1 Clinical and radiographic outcomes after prepsoas oblique lateral interbody fusion
Full table

Conclusions

Prepsoas oblique lateral lumbar interbody fusion is an excellent alternative to posterior osteotomies in well selected cases as suggested by the MISDEF algorithm. Navigation can help the surgeon in performing the prepsoas lateral lumbar interbody fusion as well percutaneous pedicle screw insertion. Navigation improves the ease and accuracy of the procedure as and also decreases the radiation exposure to the surgical team (23).
