Total knee replacement modifies the preoperative tibial torsion angle—similar results between computer-assisted and standard technique

Introduction

Despite the good clinical outcomes of total knee replacement (TKR), a significant percentage of patients are not satisfied with the procedure, and a 6% and 12% failure rate after 5 and 10 years, respectively, can be expected (1). Although the cause of failure often cannot be identified, the literature emphasises the need for correct positioning of the tibial and femoral components (2,3)—this appearing to be crucial in order to obtain good long-term outcomes.

Intra- or extramedullary guides can be used to achieve good alignment in the tibial axis. Both techniques use visible or palpable anatomical references in the proximal portion of the tibia, in the ankle or in the foot, and this introduces subjectiveness. Different references have been considered in the proximal tibia (4-9), and varus cuts have been shown to be the most frequent error when implanting this component (10-13). Neither technique is completely satisfactory and defective alignment has been reported in 2–40% of the cases (14-16).

In the cross-sectional plane, correct orientation of the tibial plate is only possible if performed according to the mechanical axis, and this requires knowing the axis of the entire tibia. It is not enough to adequately position the tray according to the upper zone of the tibia: positioning must be made according to the full axis of the bone. The introduction of computer-assisted surgery (CAS) has improved TKR positioning in the frontal axis, avoiding outliers, and has demonstrated its usefulness particularly in major varus-valgus deformities (17,18). However, it has not been demonstrated that CAS improves tibial tray placement in the transverse axis (19).

The proximal tibial epiphysis is internally rotated with respect to the distal one. Few studies have analysed the position of the tibial tray in relation to the rotational axis of the tibia and physiological tibial torsion. The effects of tibial torsion upon TKR alignment and the changes in torsion that may occur after arthroplasty implantation have not been investigated. Placement of the tibial tray may possibly modify such torsion permanently, with the consequences this may have for the clinical outcome of the procedure. On the other hand, it should be determined whether the technique used for TKR (mechanical instrumentation or navigation surgery) modifies the position of the tibial tray and precisely reproduces the rotation desired by the surgeon.

The objectives of the present study are to:

• Determine preoperative tibial torsion found from the angle between the axis of the tibial plateau and the axis of the ankle;
• Determine whether tibial torsion is modified in cases of frontal varus-valgus deformity;
• Determine postoperative tibial torsion following TKR surgery;
• Compare tibial torsion before and after implantation of the tibial tray;
• Compare postoperative tibial torsion following TKR with the standard technique and with CAS.

Although the present study exclusively focuses on radiological alignment, it is assumed that alterations in the rotational axis of the tibia will have an impact upon the clinical outcome and the survival of TKR.

Methods

Seventy-four patients (48 women and 26 men) were enrolled in a randomised prospective study to analyse via CT the position of the prosthetic tibial tray and tibial torsion before and after TKR implant. In one group, TKRs were implanted with standard equipment; in another group CAS was used. Patients were randomly assigned to each group by means of a random number table. The study methodology of our cases has already been published in a previous paper (19). The angulation obtained was taken to be the mean of the values recorded by the two observers. In all cases, the original diagnosis was tricompartmental arthrosis and the procedures were carried out by surgeons with ample experience in TKRs, both computer assisted and standard surgery. Institutional review board approval was obtained and informed consent was obtained from all individual participants included prior to participating in this study.

The mean age of patients was 61.3 years (SD =7.03); mean body mass index (BMI) was 28.94 (SD =5.24; range, 20.68–42.60) kg/m². The implant model used in all cases was the Triathlon arthroplasty (Stryker, Kalamazoo, MI, USA). A wireless image-free navigation system was used (Stryker Image Free Computer Navigation System, Stryker-Leibinger, Freiburg, Germany) in CAS group. In the tibia, the points and areas referenced in the navigation system were the centre of the superior tibial plateau, the tibial plateau surface, tibial plateau axis, internal malleolus, external malleolus and axis of the ankle. In the standard group an extramedullary guide was employed for tibial implant, taking the patellar tendon insertion (middle 1/3 of the tubercle), the midpoint of the ankle and the axis of the second toe as references.

All patients received a radiography of the lower extremity during the preoperative assessment, which was repeated a month after TKR implantation. The mechanical axis of the limb and the angulation of the femoral and tibial components were measured on the radiographies with the Impax 6.3.1.2813 system (Agfa Healthcare NV, Mortsel, Belgium) and the Agfa-Orthopaedic Tools software version 2.06. Varus deformities were considered as negative angulation and valgus as positive.

A CT was performed in all patients of the proximal tibia and ankle, both preoperatively and after surgery. The tomograph used was a Siemens AG Somatron-Volume Access, version A40A (Siemens A.G. Munich, Germany). On average, four cuts were performed, and the point closest to the articular surface was chosen. A line was traced which connected the geometric centers of the plateaus, and parallel to the patellar tendon shadow. The angle between this line and the tangent to the posterior tibial outline was found (Figure 1). In the ankle, cuts were performed with the same thickness and separation at the tibial-fibular-talar articular interline. A line parallel to the talus axis was traced which passed through the three aforementioned bones (Figure 2). The angle formed by the line connecting the geometric centers of the plateaus and the axis of the ankle was labeled tibial torsion angle.

Figure 1 Tibial proximal angle (line which connected the geometric centers of the plateaus and line tangent to the posterior tibial outline) and identification of the axis of the ankle.

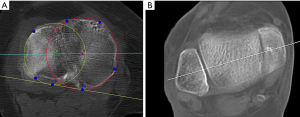

Figure 2 Tibial torsion angle. Superimposition of the line joining the geometric centres of the tibial plateau and axis of the ankle. Preoperative and postoperative situation.

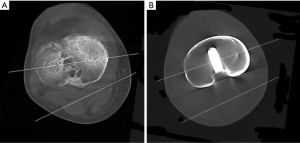

After surgery, the tibial torsion angle was determined relative to the line between the geometric centers of the two circumferences which composed the outer rim of the prosthetic tray and the axis of the ankle, previously described (Figure 3). External rotation was considered as positive angle and internal as negative.

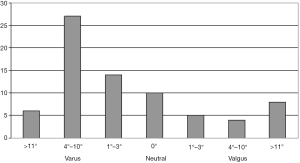

Figure 3 Preoperative varus, valgus and neutral alignment.

Statistical analysis

A descriptive study was performed to obtain means and standard deviations for all quantitative variables. The relations between angle measurements were analyzed via Pearson’s correlation and the intraclass correlation coefficient. Chi-square and ANOVA were carried out to compare preoperative differences between groups of qualitative and quantitative variables, respectively. Paired student’s t-test was performed to assess changes in the quantitative variables between the preoperative and postoperative scenarios (paired samples). A repeated measures ANOVA (General Linear Model) was used to compare the evolution of angular variables preoperatively and postoperatively between the standard and navigated groups taking the time of measurement as an intra-subject factor and the study group as inter-subject factor. Statistical signification was considered when P<0.05.

Results

Thirty-six TKRs were performed with CAS, and 38 with standard technique. Both groups were similar in terms of age, BMI, gender and preoperative deformity. The rotation of the tibial component changed by 5.28° (mean) from its preoperative to postoperative range, but no significant differences were found between the navigated and the standard groups. The presence of preoperative deformities in the frontal plane (greater or lesser than 4º) did not modify the changes in the rotation of the tibial component. In the general series, the mean preoperative tibial torsion angle was 23.04º (SD =6.78) on considering the tangent posterior to the tibial plateau and the axis of the ankle (Angle A), and 17.76º (SD =10.15) on considering the line joining the centres of the tibial plateaus and the axis of the ankle (Angle B). Both angles were closely correlated (P<0.01; Pearson’s r: 0.97) (Figure 4).

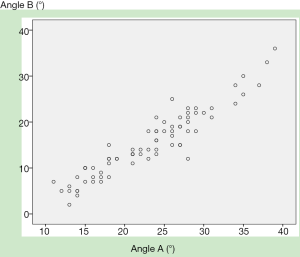

Figure 4 Correlation between the two preoperative measurements of the tibia (A, posterior tangent; B, plateau centre) and the axis of the ankle.

On taking preoperative frontal varus-valgus deformity as variable, tibial torsion was seen to decrease 2.37º in varus knees ≥4° (33 cases), 1.94º in neutral frontal axis knees (29 cases), and 1º in valgus knees ≥4° (12 cases). These differences were not significant (P=0.884) (Table 1).

Table 1 Modification of tibial torsion (angle B) according to the preoperative frontal axis. Mean (º)
Full table

In the postoperative period, the angle between the axis of the ankle and the line joining the centre of the platforms of the prosthetic tibial tray was 15.66º (SD =7.40). The difference between preoperative tibial torsion, taking as reference the line joining the centre of the tibial plateaus (Angle B: 17.76º on average), and postoperative torsion was statistically significant (P=0.021). There were no differences in postoperative tibial torsion between the knees operated upon with the standard instruments and those subjected to CAS (P=0.157) (Table 2).

Table 2 Torsion and rotation data (mean) pre and postoperative using ST or CAS
Full table

Discussion

The present study shows that while CAS improves the frontal axis in TKR, this technique does not modify the rotational position of the tibial tray when compared with that obtained on using the standard procedure. In turn, we have found that measurement of the rotational axis of the tibia can be made indistinctly through the tangent posterior to the plateau (which we have called A) or with the line joining the centre of the tibial plateaus (called B), since there is close correlation between both measurements. On the other hand, we have seen that tibial torsion changes after TKR, with no significant differences according to the prior deformity of the frontal axis or the use of CAS.

Studies demonstrate a range of tibial component malpositioning exceeding 30° (20), and it is considered that positioning of the tibial tray in internal rotation is a frequent error seen in almost 5% of all TKR procedures. Such malpositioning in the transverse axis is a known cause of implant failure. Nicoll and Rowley (21) have found the mean rotation of the tibial component to be 4.3° of internal rotation in the painful group and 2.2° of external rotation in the pain-free group. Positioning the tibial tray in slight external rotation appears to be associated to better outcomes on the clinical scales (2,22,23). There is no consensus in the literature regarding the ideal rotation of this component in TKR implantation, and agreement is likewise lacking regarding the best way to orientate its placement during surgery (17).

Many techniques have been proposed to achieve improved positioning of the tibial component in the rotational plane (24-26). Reported references have been the medial border of the tibial tuberosity, the medial third of the tibial tuberosity, the anterior tibial crest, the posterior tibial condylar line, the second ray and the first web space of the foot. The disadvantage of all anatomical landmark techniques is that they do not account for femoro-tibial kinematics; consequently, the range of motion (ROM) technique with the implanted test components is the most widely recommended approach (22). However, as an isolated method, such self-alignment tends to position the component more internally when the described anatomical references are considered (17). In any case, no system offers uniform results, and this is important, since an error of 1 mm in palpating the tibial tubercle is known to imply a rotational deviation of 5º.

The use of CAS has not represented an advantage in tibial tray placement in the transverse axis. On taking references in the malleoli and in the axis of the ankle, it was believed that that the position of this component could be improved. CAS can improve tibial component alignment and minimise the outliers in frontal lower limb alignment after TKR surgery (27,28), but there is no agreement in the literature regarding the usefulness of this technique in terms of the rotational position of the components (29).

Physiological tibial torsion results in external rotation of the distal portion in relation to the proximal segment. Tibial torsion is difficult to measure through clinical exploration and standard X-rays (30). Measuring tibial rotation with CT is more complex than femur and does not comply with uniform rules. Alignment with respect to the tibial plateaus seems more exact than the anterior or posterior borders of the tibia or the position of the anterior tuberosity, which may be altered due to arthritic changes. The axis of the ankle was found choosing the CT cut in which both malleoli and the talus were visible. In our series, a great correlation was found between the proximal rotational angle measured with the posterior tangent to the tibial plateau and the angle measured with the posterior rim. This finding implies it would not be necessary to gather information about the posterior rim of the plateau, a process which can actually lead to errors due to how difficult it is to accurately visualize that line. The rotation of the prosthetic components was estimated following the same anatomical landmarks as in the preoperative assessment, but added the position of the implant.

According to the classical studies, it can be considered that mean tibial torsion in the adult is close to 20º external rotation (31). However, tibial torsion showed a wide range of variation in the series analyzed. In the literature the range of external rotation varies between 50º and 15º (8,13,16,32,33) depending on patient race, personal characteristics, the anatomical reference used in the proximal zone and ankle, or the radiological technique used. These results may further explain the higher rate of outliers found on studying the rotation of the components in TKR (16). In our study the mean preoperative tibial torsion angle was 23.04º (SD =6.78) on considering the tangent posterior to the tibial plateau and the axis of the ankle, and 17.76º (SD =10.15) on considering the line joining the centres of the tibial plateaus and the axis of the ankle. These figures are consistent with the ranges reported in the published series (34). We have found the two angles analysed to be closely correlated; it therefore can be considered that the more common measurement between the axis of the tibial plateau and the axis of the ankle suffices to establish tibial torsion. In our series we have found no significant differences in tibial torsion according to the preoperative frontal deformity of the extremity—considering 4º as the limiting angulation between normal knees and knees with varus-valgus deformities.

In the postoperative period, the angle between the axis of the ankle and the line joining the centre of the platforms of the prosthetic tibial tray was 15.66º, which represents a significant difference with respect to preoperative torsion. A decrease in torsion of over 2º on average was obtained. This figure did not change on using CAS, and indirectly confirms that navigation surgery does not improve the rotational position of the prosthetic tibial component. This observation moreover shows that neither standard instrumentation nor CAS precisely reproduce the rotational axis of the leg. We do not know what the clinical repercussions of this change in tibial torsion may be.

Our study has limitations. Firstly, the sample size is limited. The analysed cases are few in number, and subdividing them according to prior frontal deformity reduced the numbers even further—thereby making it difficult to draw statistically valid conclusions. Secondly, we have analysed knees with radiological deformities secondary to advanced osteoarthritis, and this may have modified the preoperative tibial torsion measurements. In this regard, the presence of osteophytes and collapse can give rise to error in measuring the axis of the tibial plateau. We have not investigated whether these differences in tibial torsion persist on using intramedullary guides in standard surgery. Our study is purely radiological, and the findings have not been related to the clinical results. The alterations of the tibial axis may be expected to influence the clinical course and survival of the implant, though this cannot be confirmed at the present time.

After TKR implantation surgery, tibial torsion decreases significantly. The consequences this may have for the clinical outcome of arthroplasty, and whether pain, functional limitation or failure of the procedure may result, is not known.

Acknowledgements

To Jose Manuel Fernandez-Carreira (SESPA, Spain) for statistical calculations.

Funding: This work was supported by a grant from the FIS (Instituto de Salud Carlos III of Spain) with FEDER funding.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: Institutional review board approval was obtained (Regional Ethical Committee of Asturias, Spain, reference PS09/02153C).
