Should we titrate peep based on end-expiratory transpulmonary pressure?—yes

Introduction

Application of basic physiologic principles has revolutionized the treatment of patients with acute respiratory distress syndrome (ARDS). Current standard of care limits tidal volumes (V_T) to 6 cc/kg, keeps end-inspiratory plateau pressures below 30 cmH₂O and provides adequate positive end expiratory pressures (PEEP) to keep the lung open (1-6). At this time there remains no consensus as to the best method to determine optimal PEEP for a patient despite the importance of this intervention (7,8). The use of esophageal manometry has helped form the foundation of our current understanding of pulmonary pathophysiology (9-12), and over the last two decades has moved from basic physiology research to clinical care in the intensive care unit, allowing optimization of PEEP levels (13,14). Esophageal pressures (P_ES) serve as an estimate of pleural pressures (P_PL), thus differentiating the mechanics of the lung itself (transpulmonary pressure—P_L) from the chest wall (including the rib cage, diaphragm and abdomen—P_CW) (10-12). As ventilator induced lung injury is caused by the distending pressures applied to the lung itself, with highly variable chest wall characteristics among patients, controlling airway pressure alone is inadequate and potentially harmful. Esophageal manometry allows for a more personalized approach to ventilator management and has become routinely used in patients with ARDS where precise and careful differentiation of chest wall and lung pressures and optimization of the ventilator may lead to improved mechanics, oxygenation and outcomes (13,14). In particular esophageal manometry used to estimate transpulmonary pressures has become used to set the positive end-expiratory pressures (PEEP).

Optimal PEEP is thought to balance several important principles; avoiding overly high pressures which could overdistend the lung causing barotrauma, inflammation and hemodynamic compromise (15-17), while improving oxygenation and mechanics by preventing lung derecruitment (collapse), increasing functional lung volumes, decreasing cyclic opening and closing and the airways (shear stresses from atelectrauma) (15-17). Although the “open lung” strategy (characterized by a recruitment maneuver and decremental PEEP titration strategy) has recently been challenged after a study revealed an increase in mortality, this study did not use PEEP titration to esophageal pressures, and used a non-standard recruitment maneuver strategy (18). As such, this study likely has minimal implications on the real world application of “open lung” strategies aiming to prevent derecruitment, especially in regards to the use of esophageal manometry to set PEEP.

As negative transpulmonary pressure may lead to lung or airway collapse, adjusting PEEP to achieve positive end-expiratory transpulmonary pressures prevents collapse and optimizes lung mechanics (13,14,19-21). Esophageal pressure measurements thereby serve several purposes in ARDS. First, these measurements can be used to adjust PEEP to counter the baseline elevated pleural pressures found in patients with obesity, elevated abdominal pressures and critical illness that would otherwise result in negative transpulmonary pressures and lung collapse. Second, transpulmonary measurements may be used monitor for lung overdistension and to account for the stiffened chest wall during tidal breathing which may impact forces across the lungs. Additionally, other uses of P_ES in the ICU include monitoring of dyssynchrony, estimation and adjustment for auto-PEEP and assisting with weaning, but have been covered in depth in other reviews (22-25).

Although the tidal fluctuations in P_ES (∆P_ES) are widely agreed to represent the changes in pleural pressure for estimation of the lung and chest wall compliance, the interpretation of the actual pressure values (also known as the “absolute” pressures) measured by esophageal manometry have caused some disagreement and controversy (26-34). This debate has led further to differences in clinical application as both new definitions and incorrect assumptions have clouded the discussion (32). As such, this article will review the evidence for using the actual value of esophageal pressure to estimate pleural pressures as well as the background, rationale and evidence for use of esophageal manometry to set PEEP for clinical care in patients with ARDS, while addressing some of the controversies associated with this subject.

Pressure definitions and rationale for use

The definitions of the relevant pressures were first described by classic respiratory physiologists in the 1950’s (9,10,35), and it is important to define and understand these pressures when reviewing the literature as there have been several misconceptions introduced which obfuscate the correct application and interpretation. As we have previously reviewed (22), the pressure across the respiratory system (P_RS) is defined as the difference between the pressure at the airway (P_AO) and body surface (P_BS) (P_RS = P_AO − P_BS). The pressure difference across the lung is called the transpulmonary pressure (P_L) and is the difference between P_AO and pleural pressure (P_PL) (P_L = P_AO − P_PL). Finally the pressure across the chest wall (P_CW) is defined as the P_PL minus P_BS (P_CW = P_PL − P_BS) (11). Esophageal balloon pressures (P_ES) represent central thorax pressures but despite some regional and positional variability have been determined to be a good surrogate for average “effective” pleural pressures as we will review (36-40).

Critically ill patients frequently have elevated pleural pressures due to abdominal distension, abdominal hypertension, pulmonary and chest wall edema and pleural effusion (Figure 1) (13,40,41). Particularly in the heterogeneously injured lung, these elevated pleural pressures may be higher than the local alveolar and airway pressures causing regions of lung collapse. Collapse, caused from negative transpulmonary pressures, can lead to decreased aeration, worsened oxygenation and worsened pulmonary mechanics with decreased functional lung size secondary to closed airways and flooded lung units. The elevated pleural pressures causing this collapse can be detected and measured as an elevated P_ES and negative P_L (Figure 1). Our group and others have noted that transpulmonary pressures were frequently negative at end-expiration in patients with ARDS (13,40). As this suggests that airway collapse or flooding has prevented alveolar pressures from equilibrating with airway pressures, it was inferred that PEEP could be adjusted above these closing pressures (measured by P_ES) to keep airways open at end-expiration.

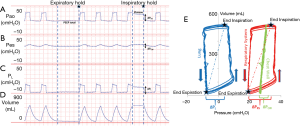

Figure 1 Pressure and volume tracings from a patient with elevated pleural pressures. (A) Airway pressure (P_AO) measuring total respiratory system pressure. End-inspiratory hold pressure (plateau) and end-expiratory pressure hold (PEEPtotal) are shown. Respiratory system driving pressure (∆P_RS) was calculated as the plateau pressure minus the PEEPtotal; (B) esophageal pressure (P_ES) estimates the trans-chest wall pressure. Chest wall driving pressure (∆P_CW) was calculated as the end-inspiratory hold P_ES minus end-expiratory hold P_ES; (C) transpulmonary pressure (P_L) was calculated as P_AO minus P_ES. Transpulmonary driving pressure (∆P_L) also known as the cyclical stress was calculated as the end-inspiratory hold P_L minus the end-expiratory hold PL; (D) lung volumes during tidal breathing and during expiratory and inspiratory holds; (E) pressure-volume (P-V) curves during tidal breathing with P-V measurements following respiratory system pressures (P_AO), transpulmonary pressures (P_L), and chest wall pressures (P_ES). Dotted lines represent the static compliance of the respiratory system and lung as measured by the slope between end-inspiratory holds and end-expiratory holds (stars on the graphs). Arrows indicate the direction of the inspiration and expiration.

Evidence supporting use of the actual value of P_ES

The use of P_ES to estimate P_PL has been well established in human and animal studies over the past seventy years (9,10,35). Animal studies in the 1970s using direct pleural pressure assessment suggested that P_ES closely mirrored the lateral mid-thoracic pressures during direct measurement (42). More recent animal studies have confirmed these findings in a canine ARDS model to examine the relationship between measured esophageal pressures and directly measured pleural pressures (38). Using wafer pressure sensors in non-dependent, mid-thoracic and dependent lung regions, and testing at multiple levels of PEEP and tidal volumes Pelosi et al. found that mid thoracic P_PL closely matched measured P_ES at low lung volumes (38). Additionally as expected they confirmed overestimation of pleural pressures in the non-dependent regions (by roughly 7 cmH₂O) and underestimation of pleural pressures I the non-dependent regions (by roughly 4 cmH₂O) (38).

The dependent and non-dependent variation that Pelosi and others have confirmed has led to some confusion in application as there is no single value of pleural pressure. Furthermore, as lung collapse or spatial distortion of the chest wall may cause local changes in P_PL, there was some concern about using P_ES as a global average for P_PL. These concerns were investigated in a model of chest wall and lung distortion in rats and confirmed that P_ES could be used to estimate average P_PL in both normal and deformed lungs (39). Similarly in patients with acute lung injury, P_ES was used to infer an average (or effective) transpulmonary pressure in a physiology experiment measuring gastric, bladder, esophageal pressures and transpulmonary pressures (20,40). More recently, Yoshida et al. showed in both pigs and human cadavers, that expiratory and inspiratory transpulmonary pressures using P_ES closely reflected the values obtained via direct measurement of the pleural pressures in dependent and mid lung zones (36). P_ES was measured over a wide range of PEEP levels with P_PL simultaneously measured in non-dependent and dependent regions of the pleura. These data lend further support to using the actual value of P_ES as a surrogate for P_PL as the best correlation seems to be in regions of lung most sensitive to collapse at end expiration (36).

Although the actual value of P_ES does seem to reflect measured P_PL, the relationship between P_ES and P_PL was initially described in upright, spontaneously breathing patients in the study of classic respiratory physiology (11). When patients are moved into the supine position (as are our critically ill ARDS patients), the balloon sits directly under the weight of the mediastinum, and abdominal contents push upwards against the diaphragm raising the measured value of P_ES (37). Roughly 3–7 cmH₂O of additional pressure is thought to be due to positioning when correcting the P_ES to estimate the effective P_PL with the supine position causing increased pressure from a decrease in lung volume and the shift in mediastinal weight (37). As such we usually consider this to cause on average a 5 cmH₂O artifact in our measurements. This estimated artifact is in agreement with a recent study comparing ex vivo measurements pre-lung transplant with in vivo measurements of the same lungs post-transplant (43). This elegant study found P_PL was roughly 5 cmH₂O less than the measured P_ES which if used clinically would provide roughly 5 cmH₂O additional transpulmonary pressure if PEEP was titrated to equal the measured P_ES (44).

Lastly there has been some concern about the validity of P_ES, due to the frequently positive values measured (7,28-30,33). Some have worried that this would not be compatible with an open lung, and their concern led to an alternative calculation of P_L. This alternative is the “elastance based” method of calculating P_L [P_L = P_AO × lung elastance (E_L)/respiratory system elastance (E_RS)] (26). ∆P_ES during tidal breathing is used to estimate ∆P_L and then calculate E_L as ∆P_L/V_T. The “elastance based” technique assumes pleural pressure at end expiration to be zero (atmospheric) when airway pressure is zero (26). This alternative definition measures the cyclical stress (∆P_L) during tidal breathing, but does not account for the baseline P_L, which may be widely variable and is usually not equal to atmospheric pressures. As pleural pressures are often very elevated (due to obesity, abdominal pathologies causing elevated pressures or edema/effusions), assuming a pleural pressure of zero in this alternative approach is clearly incorrect (32) and will result in significantly different estimations of transpulmonary pressures (31).

In patients with obesity or elevated abdominal pressure, a larger pressure is needed to displace the diaphragm and abdomen during inflation. This is because the pressure volume curve of the chest wall is shifted to higher pressures, but not necessarily because the chest wall has become less compliant (32). Therefore in the supine position the absolute lung volumes and PL can be significantly lower than in normal patients. Importantly, positive pleural pressures (and hence negative P_L) do not need to be compatible with an open lung as elevated P_PL may cause airway collapse preventing communication of alveoli with the upper airway (gas trapping) at end expiration (32). P_PL and alveolar pressure (P_ALV) may be substantially increased above atmospheric pressure at end expiration secondary to small airway collapse in obese patients or alveolar flooding in acute respiratory distress syndrome (ARDS). Indeed Behazin et al. showed that airway pressures must often be raised until greater than the measured P_ES in order for inspiratory flow and volume gain to begin in obese patients (40). They also showed a positive correlation between the P_ES at relaxed volume and the airway pressure needed to initiate flow further illustrating this relationship (40). Additionally our own unpublished data using slow-flow pressure-volume (PV) loops and trials of zero PEEP in patients with obesity and abdominal pathologies emphasizes this point (Figure 2). The figure illustrates that there is zero flow or volume gain from the initiation of the PV loop when airway pressure is zero until the pressures overcome the elevated P_PL (as measured by P_ES). In these same patients, while on zero PEEP, we often measure substantial intrinsic positive end-expiratory pressure (PEEPi) during expiratory breath holds. This PEEPi is close in value to both the measured P_ES during holds and the airway pressure required to overcome pleural pressure on the PV loop and appear to be caused by elevated P_PL causing airway collapse (Figure 2). In further agreement with these findings, Fumagalli et al. used electric impedance tomography to show that lung collapse begins when P_ES approaches and then overcomes the airway pressures leading to low-negative P_L (41).

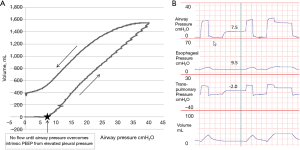

Figure 2 Slow flow pressure-volume loops and time tracings from a study patient with acute respiratory distress syndrome. (A) Pressure-volume loop of study patient. There was no flow or volume increase until roughly 7.5 cmH₂O airway pressure. In order to generate flow, the airway opening pressure must be greater than the pressure within the lungs which appears to be roughly 7–7.5 cmH₂O. This pressure within the lungs appears to be secondary to elevated pleural pressures; (B) in the same patient wave forms were recorded with zero PEEP which shows that during end-expiratory occlusion, the PEEPi is roughly 7.5 cmH₂O, secondary to elevated esophageal pressure of roughly 9.5 cmH₂O causing airway collapse. Patient had normal lungs at baseline without COPD or asthma with normal resistance.

In conclusion, despite the minor limitations illustrated with positional gravitational artifact, P_ES seems to be a good estimate for the “effective” P_PL in multiple human and animal studies in normal patients, the obese, and patients with ARDS. The inaccuracies in estimating P_PL from P_ES in an individual patient appear minor compared with the differences in P_ES between different patients. Additionally positive P_ES values in some patients appear to not be “artifact” as some have claimed, but to actually be another valuable piece of clinical information that should not be ignored or discounted (20). Proper inflation (45), and balloon placement (46) are needed for correct interpretation, but these can be easily learned for proper implementation (47).

Evidence supporting the use of P_ES to set PEEP

If we can accept that the actual value of the P_ES reflects an “effective” P_PL, than the benefit for using these values clinically becomes obvious. As we have previously illustrated the goal of PEEP is to prevent derecruitment, maintain alveolar aeration and improve the functional size of the “baby lung”. If pleural pressures are higher than the applied PEEP producing a negative end-expiratory transpulmonary pressure (Figure 3), this will encourage collapse in midzone and dependent lung regions. Elevated pleural pressures are found for numerous reasons including edema, pleural effusions, elevated abdominal pressures from obesity and abdominal pathologies with pressures transmitted across the diaphragm, and increasing PEEP to match these pressures (Figure 3) will improve this lung collapse. In fact, Malbrain et al. found that the majority of patients in the ICU had elevated abdominal pressures (57% had pressures greater than 16 cmH₂O, and 21% were over 21 cmH₂O) (48). Unfortunately there does not appear to be a consistent way to estimate which patients have elevated P_PL to determine who would empirically benefit from higher levels of PEEP. Indeed our group found a significant number of patients with elevated end-expiratory pleural pressures (17.5 cmH₂O on average) without significant correlation to either body mass index or chest wall elastance (13). While there was correlation between PEEP and end-expiratory P_L, only 24% of the variance was explained by airway pressures while 52% of the P_L variance was due to P_ES (13).

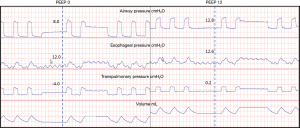

Figure 3 A study patient with obesity and volume overload. Waveforms were collected at zero PEEP initially where significant intrinsic PEEP is noted to 8 cmH₂O. Esophageal pressures are elevated to 12 cmH₂O resulting in a negative transpulmonary pressure that encourages collapse. PEEP was adjusted to 12 cmH₂O until the total PEEP matched the measured esophageal pressures resulting in transpulmonary pressures greater than zero. PEEP, positive end expiratory pressure.

After discovering the frequency of elevated pleural pressures in the critical ill and without a clear method to differentiate empirically, a randomized controlled trial to further investigate the routine use of esophageal manometry in patients with ARDS was initiated. Talmor and colleagues in 2008 published a single center randomized controlled trial comparing standard of care lung protective ventilation with a strategy of titrating PEEP to achieve a positive P_L (14). This strategy resulted in significantly higher levels of PEEP, improved oxygenation and compliance, and a strong trend towards improved survival and shorter duration of mechanical ventilation when compared with standard ARDSnet ventilation strategies (Figure 4) (14). Titrating PEEP to a positive P_L may have prevented significant end-expiratory collapsing pressures, increased the size of functional lung, reduced cyclical opening and closing of the lung (atelectrauma), improved oxygenation, and prevented ventilator induced lung injury. This study remains the largest and best quality study to date, but is currently being repeated as a large multicenter study (19). The rationale for following the actual P_ES values to set PEEP was tested again in an animal study using surfactant depleted rats (21). The investigators found that a strategy targeting positive end-expiratory P_L maintained lung volumes, improved compliance, reduced hypoxemia and pulmonary edema and decreased pro-inflammatory mediator release as well as histological evidence of ventilation induced lung injury (VILI) (21). Interestingly another study found that optimal PEEP was the same when titrated to either zero-transpulmonary pressure or to optimal intratidal gas distribution on electric impedance tomography (EIT) which might suggest that maintaining a positive end-expiratory P_L prevents lung collapse and improves ventilation (49).

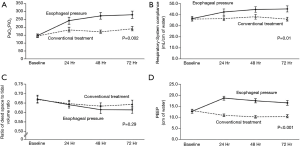

Figure 4 Figure borrowed from paper by Talmor et al. (14) comparing standard ARDSnet ventilation based upon low PEEP tables, with a strategy adjusting PEEP to target a positive end-expiratory transpulmonary pressure. The approach using esophageal pressures resulted in (A) improved P/F ratio, (B) improved respiratory system compliance, and (D) higher levels of PEEP. Additionally the strategy titrating PEEP via esophageal pressures showed a strong trend towards improved mortality.

Several other recent studies further support these concepts focusing on the effects of transpulmonary pressure monitoring in obesity (41,50). Using both obese human patients as well as a swine model for obesity, it was discovered that low to negative transpulmonary pressures measured using the actual values of P_ES predicted lung collapse and intratidal opening and closing (41). Additionally this same group showed that PEEP titrated to transpulmonary pressures resulted in similar PEEP that was titrated to best PEEP determined by decremental PEEP trial (50). Additionally titrated PEEP (preceded by a recruitment maneuver) resulted in improved lung volumes, oxygenation and respiratory system elastance (50). To lend further support to application in the obese, this group presented an interesting case report using these strategies to help extubate a difficult to wean morbidly obese patient, further illustrating the clinical application (51). Applying higher levels of PEEP to match and counterbalance high levels of intrinsic PEEP often seen associated with obesity may result in reducing work of breathing and preventing both atelectasis and tidal recruitment-derecruitment. As we know that it is the pleural pressure that increases in these patients and not the actual stiffness of the chest wall, when individualizing PEEP to a patient it is clearly inappropriate to rely only on measurements of elastance as is done with the “elastance-based” method (32).

Of note, the alternative “elastance-based” method for P_L estimation has also been used to set PEEP and guide treatment, but there is only very limited clinical data supporting its use. In a report by Grasso and colleagues in patients with severe ARDS due to influenza during the 2009 H1N1 epidemic, clinicians used the elastance-based method to avoid ECMO in seven patients with severe hypoxemia (52). In this report, they raised PEEP beyond levels that had previously been considered safe using elastance-based P_L (52). Although there have been several physiology based review articles endorsing the “elastance-base” technique there is in fact very little clinical evidence to support this alternative definition. Directly comparing the traditional approach to this alternative found vastly different estimations of transpulmonary pressures (31) which would lead to substantial differences in clinical care, and the issues with this alternative approach have been addressed at length in other articles (32). As such we cannot at this time support clinical application of the “elastance-based” technique.

Using P_ES to limit overdistension

An additional benefit to titration of PEEP based on P_ES, is the improved ability to monitor and limit both cyclic and total overdistension of the lung. It has been suggested that respiratory system driving pressures may the best predictor for mortality in patients with ARDS (53), and our group proposed that the most component of these findings may be in specifically limiting the distending pressures or cyclical stress across the lungs (the transpulmonary driving pressure (∆P_L) (54). We tested this hypothesis retrospectively and found that survivors had decreased transpulmonary driving pressure (55). A ∆P_L of 20 cmH₂O has been shown to raise healthy lungs to its total lung capacity (TLC) and continuous ventilation at TLC in animal models can lead to lethal ventilator induced lung injury (56). It has been suggested ∆PL be kept less than 10–12 cmH₂O to prevent lung injury (23), as inhomogeneous lung can significantly increase local stress raiser (more than doubling or tripling local pressure) (12,57). Additionally, total lung stress (the ∆P_L, additive to the static stress at end-expiratory P_L) should likely be limited to less than 20–25 cmH₂O. Limiting this static stress may decrease overdistension and prevent ventilator induced lung injury by keeping the total strain <2 (58). Using P_ES to set PEEP allows for the additional benefit of monitoring both the cyclical stress and total stress and assuring that the PEEP is not resulting in overly high pressures. With widely variable chest wall pressures and elastance, we cannot predict if we are reaching these thresholds without the use of an esophageal balloon.

Conclusions

As illustrated, P_ES clearly can be used to estimate “effective” pleural pressures, and there appears to be good clinical evidence for using this to set PEEP in patients with ARDS. Despite this clear clinical utility, there have been several barriers to widespread clinical adoption in setting PEEP levels. The introduction of the alternative “elastance-based” method to define P_L and P_ES in the clinical and research literature has led to confusion and disagreement in application. The incorrect application of these principles may lead to variable or even harmful outcomes for patients. The application of P_ES to set PEEP levels relies upon complex physiologic principles which may discourage routine use without proper education. Although in our experience, esophageal balloon use is easily learned, proper technique in placement and interpretation is required for successful use. Of note however Norisue et al. showed in a recent paper that clinician education easily improves the ability to utilize P_ES measurements and suggests that more widespread application would be easy to implement.

Despite these hurdles, esophageal manometry following P_ES as a surrogate for P_PL is easy to use and has extensive application in patient with ARDS to help improve PEEP titration. Monitoring transpulmonary and chest wall pressures uncovers the unique physiology of a given patient, personalizing care and potentially improving the patients’ outcomes. Using transpulmonary pressures to set PEEP levels may prevent derecruitment, prevent lung collapse, decrease atelectrauma caused by tidal recruitment and derecruitment, improve oxygenation, and improve lung mechanics and ventilator induced lung injury. Use of P_ES to target PEEP may allow for clinicians to deliver higher pressures than would not routinely be given while assuring that the lungs are not being overdistended with resulting barotrauma. Only a few interventions in ARDS have demonstrated benefit for patients, and these benefits have primarily been due to improved understanding of basic respiratory physiology. Use of the esophageal balloon for clinical care furthers our understanding of a patient’s unique pathophysiology providing a more personalized approach to our critically ill patients.

Acknowledgements

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.
