Insulin autoimmune syndrome: from diagnosis to clinical management

Introduction

Autoimmune forms of hypoglycemia are the third leading cause of hypoglycemia in Japanese people, but this condition is rare among other ethnicities. As a consequence, it is often misdiagnosed or identified late, after numerous expensive and unnecessary biochemical and radiological examinations have proved fruitless. This review covers all aspects of the autoimmune forms of hypoglycemia, from diagnosis to treatment. New knowledge gained on the issue and published in the literature will be discussed. The review is divided into two parts: the first describes the hypoglycemic syndrome due to insulin autoantibodies (IAS), or Hirata’s disease; the second concerns the form of hypoglycemia caused by antibodies directed against the insulin receptor (type B insulin resistance), or Flier’s disease.

Insulin autoimmune syndrome

Definition

Insulin autoimmune syndrome (IAS) is characterized by: (I) hyperinsulinemic hypoglycemia; (II) elevated insulin autoantibody (IAA) titers; (III) no prior exposure to exogenous insulin; (IV) no pathological abnormalities of the pancreatic islets. This condition is also known as Hirata’s disease (HD), after Yukimasa Hirata, the author who first described the syndrome in 1970 (1).

Epidemiology

In Japan, IAS is the third leading cause of hypoglycemia, after insulinoma and extrapancreatic neoplasias. From when it was first described up until 2009, at least 380 cases of IAS were identified in Japan (2), in a population of around 128 million (3). IAS is more common in Asian people than in Western countries, where the condition is rare, though its incidence is increasing. A retrospective survey of cases of endogenous hyperinsulinemic hypoglycemia (EHH) seen at a Korean tertiary-level hospital calculated the prevalence of IAS at 6%, much higher than in the West (4). This study was also interesting because it mentioned the decline in the incidence of nesidioblastosis since IAA assays were introduced as a routine test in cases of EHH. The authors also presented a case of IAS misdiagnosed as nesidioblastosis after surgical biopsy (4). So, IAS still risks being misdiagnosed if IAA titers are not measured promptly in cases of EHH. This might also explain the increased incidence of IAS, due to a greater awareness of the problem. From 1985 to 2014, only 84 cases of IAS were reported in China (5), a nation with a population of 1.4 billion (6). Only two case have been described in India so far (7,8). The first case of IAS in a Caucasian patient was reported in Norway in 1970 (9). By 2009, at least 58 new cases had been described in non-Asian populations (10), and more cases have been reported since. In most cases identified outside Asian countries, patients with IAS are white (10). IAS affects both sexes equally (10), and occurs more frequently in patients over 40 years of age. The condition is rare among children: to the best of our knowledge, as at 2017 only 25 pediatric patients had been reported worldwide (11-13). An individual’s predisposition to IAS is significantly influenced by their ethnic and genetic background.

Trigger factors and diseases associated with IAS

IAA may be triggered by exposure to drugs or viruses, or they may manifest spontaneously (14). Table 1 shows a list of the drugs and viral infections capable of inducing IAS. Nearly one in two Japanese patients with IAS had prior exposure to drugs (15). Among Caucasian patients too, half of the cases were related to drug exposure (10). Unlike the Japanese patient population, however, in which spontaneous cases are common (10), nearly one in two Caucasian patients have other autoimmune diseases or hematological disorders [monoclonal gammopathy of undetermined significance (MGUS)], or multiple myeloma (10). Viral infections, acting as super-antigens, may also trigger the production of IAA, and thereby cause IAS (16). The syndrome has been associated with mumps, rubella, Coxsackie B influenza, hepatitis C, chickenpox and measles (14). It is noteworthy that only a minority of non-Asian patients developed IAS spontaneously, without any related drug exposure, infections or autoimmune/hematological diseases.

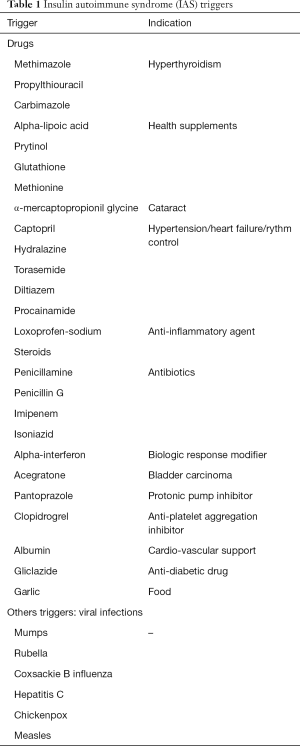

Table 1 Insulin autoimmune syndrome (IAS) triggers
Full table

Generally speaking, medications or drugs containing sulfhydryl groups are associated with IAS. It has been argued that sulfhydryl groups may be able to bind and reduce the sulfhydryl bonds connecting insulin chains A and B, making endogenous insulin more immunogenic (17).

The prevalence of IAS induced by anti-thyroid drugs (ATD) is high in Japan and in Asian countries, while any role of Graves’ disease (GD) per se as a risk factor has been ruled out (18). The drug most frequently described as a trigger of IAS in GD is methimazole, but there have also been reports of cases caused by propylthiouracil and carbimazole. It is worth noting that IAS is a very rare phenomenon in non-Japanese GD patients on ATD, with only a handful of cases reported in the literature (19-23). This strikingly different prevalence might be explained by the different HLA setting in Japanese and Caucasian people with GD (see the section on Genetics). As mentioned earlier, the prevalence of IAS is increasing, and this is partly due to the widespread use of dietary supplements containing α-lipoic (also called thioctic) acid (ALA) (24). ALA is extensively used to treat diabetic neuropathy, or as an anti-aging health supplement (25,26). In the presence of reduced nicotinamide adenine dinucleotide (NADH) or reduced nicotinamide adenine dinucleotide phosphate (NADPH), ALA is reduced to dihydrolipoic acid, a complex that includes a sulfhydryl group with a strong reducing activity (26). To date, 27 cases of IAS induced by ALA have been described in the literature, 18 from Japan, and 9 from other countries. It is also worth mentioning the description of 3 cases of IAS induced by clopidogrel, a widely-used anti-platelet drug (27,28), in both Japanese and Caucasian individuals. Clopidogrel does not have a sulfhydryl group of its own, but the drug’s active metabolite has a triggering chemical structure. Physicians should be warned about the drug’s metabolite being a possible cause of IAS, and consider withdrawing it to achieve a clinical improvement. Another widely-used compound is albumin. It has recently been demonstrated that albumin has a cysteine residue (Cys34) with a strong reducing capacity, like ALA. Kamei et al. described a case of IAS occurring in a patient who was taking no drugs containing a sulfhydryl group, but who was taking albumin (29). Loxoprofen-sodium is capable of inducing IAS even when administered through adhesive skin patches (30). It is fundamentally important to obtain a patient’s detailed clinical history in this context.

Genetic background

In 1992, a strong association was observed in the Japanese population between IAS and the presence of the human leukocyte antigen (HLA)-DR4 (48 out of 50 patients vs. controls; odds ratio 39.6) (31,32). The predisposition to IAS among Japanese people was subsequently found strongly associated with DRB1*0406 (42 out of 48 DR4-positive patients; odds ratio 56.6). The odds ratio was lower for DRB1*0403 1.6 (5 out of 48 DR4-positive patients), and for DRB1*0407 1.1 (1 out of 48 DR4-positive patients). Such an association indicates that glutamine at position 74 in the DRB1 molecule (shared by all three alleles) is essential to the development of IAS, and serine at position 37 (unique to DRB1*0406) greatly increases an individual’s predisposition to the disease (33). The different distributions of HLA-DR4 alleles around the world was investigated in an effort to explain the high prevalence of IAS in Japan, and its low prevalence elsewhere (34). It emerged that HLA-DRB1*0406 is quite prevalent among Eastern Asian patients, whereas Caucasian IAS patients mainly express HLA-DRB1*0403, and have a low prevalence of DRB1*0406. Populations with a high prevalence of DRB1*0406 are therefore at higher risk of developing IAS than populations with a low prevalence of this genetic marker. This is a clear example of the association between a genetic susceptibility to class II HLA genes and the risk of developing certain autoimmune diseases. The most common condition associated with IAS in Japan is GD treated with ATD, since all the patients with GD who developed IAS in Japan expressed DRB1*0406, while the GD patients without the syndrome did not (34,35). Outside Japan, IAS is very rare among GD patients taking ATD (19-21,36) and this is probably due to the low frequency of DRB1*0406 among patients with GD in these populations. In Korean people, the HLAs conferring susceptibility to GD are more frequently linked to DRB1*0803 and DRB1*1602, while DRB1*0406 is only present in 9% of Korea’s GD patients (37). Confirmation of the strict correlation between HLA status and drug-induced susceptibility comes from the fact that one of the two patients with ATD-treated GD who developed IAS in Korea carried the DRB1*0406 (36). In China, only three patients with GD reportedly developed IAS while on ATD: two of them revealed DRB1*0406; the third, a 26-year-old pregnant woman (38), was not HLA-typed. To our knowledge, there have been no cases of IAS developing in GD patients taking ATD in Italy, probably because GD in Italy is usually associated with DRB1*03 (39), while cases with DRB1*0406 are very rare. Another clear association between drugs and genetic backgrounds is between ALA and HLA-DRB1*0406. In fact, all the 20 Asian patients who developed IAS after taking ALA carried HLA-DRB1*0406, while only nearly half of the Caucasian patients carried HLA-DRB1*0406, and the others had HLA-DRB1*0403 (25,26,40).

Clinical presentation, mechanisms, and related pathophysiology

Clinical presentation

Hypoglycemia in IAS may occur postprandially or on fasting, and its severity can vary. Although symptoms are usually mild and transient, very severe cases have also been described, with prolonged hypoglycemia and life-threatening consequences (41,42). The first step in the diagnosis of IAS is to identify hypoglycemia, the signs and symptoms of which are non-specific, and there is no single glucose level cut-off for defining it categorically. So, to avoid conducting unnecessary, expensive and potentially harmful tests, the Endocrine Society Clinical Practice Guideline recommends that a patient should be assessed for hypoglycemia if Whipple’s triad (signs and/or symptoms of hypoglycemia, and their resolution after glucose/food intake) is documented (17). The symptoms of hypoglycemia may be: neuroglycopenic (due to brain glucose deficiency), with behavioral changes, confusion, fatigue, seizures, and loss of consciousness; or neurogenic (due to a physiological reaction to hypoglycemia), such as palpitations, tremor, anxiety (an adrenergic response); or cholinergic (sweating, hunger, paresthesia). In healthy individuals, symptoms of hypoglycemia generally appear when glucose levels drop below 3 mmol/L (55 mg/dL), but in individuals with recurrent hypoglycemia, and in children and women, symptoms may only appear when glucose levels are lower. That is why it is impossible to establish a particular glucose level for defining hypoglycemia (17). Many hypoglycemic patients may also have a paradoxical hyperglycemia occurring shortly after meals or oral glucose challenge.

Features of IAA in IAS

Physicians should be aware of many possible pitfalls when they consider ruling out any presence of IAA. For a start, IAA are heterogeneous because they can belong to different immunoglobulin (Ig) classes, although the most common is IgG. Commercially-available kits for detecting IAA can generally only identify the IgG class of IAA. To avoid false results, it is therefore important to start with a test capable of ruling out any presence of all IAA, irrespective of their Ig class. Polyethylene glycol (PEG) is an inexpensive method within the capabilities of any laboratory, and can precipitate any form of IAA Ig. PEG should always be used in suspect cases, following up with a more specific test to identify the class of IAA involved, where necessary (14,39).

To provide a thorough presentation of the syndrome, it is worth spending a few words on the IAA related to other conditions. Although the immunogenicity of insulin analogs is low (compared with human insulin), administering exogenous insulin may induce insulin-binding antibodies. These IAA are usually weak, and tend to disappear when insulin administration is stopped or switched to another formulation (43). In rare cases, however, insulin-induced IAA can behave as in IAS, combining with free insulin, delaying insulin clearance, and causing late post-prandial hypoglycemia episodes (44,45) or, in some cases, inducing insulin resistance. Indeed, many cases of unexplained unstable glycemic control in the literature have been attributed to insulin-induced IAA—including cases of severe hypoglycemia due to IAA interference requiring immunosuppressant treatment and plasmapheresis (46). The possibility of IAA formation and interference in DM-1 patients with unexplained labile glycemic control and hypoglycemia must therefore be taken seriously. Although the classical definition IAS requires that patients have not been exposed to exogenous insulin, IAA-related IAS has rarely been described in diabetic patients given exogenous insulin whose hypoglycemia resolved even without discontinuing their insulin treatment or switching to another insulin formulation (47). It is also important to remember that, in 1983, IAA were frequently demonstrated in young patients newly-diagnosed with DM-1 before they received any insulin therapy, and they were interpreted as an autoimmune marker of B cell damage (48). IAA are associated with other markers of pancreatic autoimmunity, and inversely correlate with patients’ age: they are found in 48% of patients of pediatric age with DM-1 as opposed to 3.8% of those developing the disease as adults (49).

IAA can also be seen as a risk marker of pancreatic autoimmunity in school-age children, or in the first-degree relatives of patients with DM-1. Seroconversion to IAA occurred earlier (P<0.01) than for other autoantibodies against glutamic acid decarboxylase (GAD), insulinoma-associated protein 2 (IA-2), or zinc transporter 8 (ZnT8). The incidence of early peak seroconversion was highest in children with the high-risk HLA DR3/4-DQ8 or DR4/4-DQ8 genotypes. The time of life between 9 months to 2 years old is associated with a high incidence of activation of the autoimmunity associated with type 1 diabetes in children genetically at risk, and this period should be targeted for effective primary prevention strategies (50). IAA have also been described in up to 2% of blood samples taken from healthy blood donors (51), but at low titers they have no pathological effects.

Mechanisms

IAS is an autoimmune disease that fits the bill for the novel type VII hypersensitivity, defined as an immunological disease caused by an autoantibody against circulating target proteins or hormones (52). IAS is caused by the presence of large amounts of IAA, an autoantibody against insulin in the circulation. IAA can be found in some individuals with an established autoimmunity (53), and in patients with DM-1, especially those who develop the disease at a younger age (54).

In patients carrying IAA with a critical quantity and affinity during fasting, insulin concentrations are low and IAA are not occupied. After food intake and a rise in blood glucose levels, pancreatic β-cells produce insulin, which is bound by IAA, thus making the insulin ineffective and causing post-prandial hyperglycemia. This situation then prompts the production of larger amounts of insulin and C-peptide to cope with the IAA-induced hyperglycemic effects. When the binding capacity of the IAA is exceeded, pancreatic insulin secretion stops, the IAA-insulin complexes create a reserve of insulin, and its release from the IAA gives rise to hypoglycemia (39,55). Sustained levels of insulin also inhibit counter-regulatory mechanisms of glucose homeostasis, thus contributing to making the hypoglycemia last longer. The severity and duration of the hypoglycemia, and the swing from a hyper- to a hypoglycemic state depend on the intrinsic dissociation rate constant (K_-1), titer and intrinsic affinity/avidity to insulin (K_a) of the IAA (14). Although the presence of insulin-binding antibodies is the feature common to all cases of IAS, it may be that the binding of proinsulin antibodies is predominant and, if they cross-react with assay kits, they can contribute to raising insulin levels too. Since proinsulin has only a tenth of the bioactivity of insulin, symptoms in such cases are usually milder (14). In Japanese people, most patients with IAS have polyclonal IgG autoantibodies (25), whereas IAA are monoclonal in more than one in two non-Asian patients. Although the IgG class of IAA is the most common, cases of IAS caused by IAA in the IgA and IgM classes have also been described (56,57).

In the case of hematological diseases, the pathophysiology reported in many studies differs from the classical mechanism proposed for hypoglycemia in IAS. The first case of myeloma associated with IAS was described in 1972 (58). Since then, another 10 cases of MGUS/myeloma-related IAS have been reported (59,60). In such rare conditions—in the setting of the monoclonal diseases characterizing myeloma and MGUS—it may be that the monoclonal antibody produced by the clone of B lymphocyte interacts with a self-antigen. If the monoclonal antibody has sufficient affinity for the self-antigen, this can result in a clinical syndrome. This seems to be what happens in the setting of IAS due to MGUS/myeloma (59). These conditions are usually characterized by the presence of high-capacity/low affinity antibodies: in this setting IAA generally have a lower affinity for insulin than the insulin receptor. Immunocomplexes of IAA-insulin delay the clearance of insulin, which can dissociate from the IAA due to its weak binding constant, and bind instead to its receptor, thus causing hypoglycemia (56).

Pathology

There are some reports in the literature of patients with IAS being misdiagnosed as cases of insulinoma and consequently undergoing pancreas surgery, not only in the past, but even more recently (4,61). On histological examination, hyperplasia of the pancreatic islets was found in one case (61), while a case of nesidioblastosis was documented on the pancreas biopsy from the other IAS patient (4).

Diagnosis

When plasma glucose levels are below 3 mmol/L, then there will be physiologically suppressed levels of insulin (below 18 mol/L or 3 U/mL), C-peptide (below 0.2 nmol/L or 0.6 ng/mL), and proinsulin (below 5 pmol/L). When hyperinsulinemic hypoglycemia is detected, C-peptide and proinsulin levels are useful for orienting the differential diagnosis: if C-peptide and proinsulin levels are high or inappropriately normal, then the intake of exogenous hypoglycemic agents like sulfonylureas and insulinoma should be ruled out; conversely, exogenous insulin administration should be suspected in the event of low C-peptide and proinsulin levels.

In IAS, as a result of IAA bound to insulin, the insulin t_1\2 increases from 5 minutes to hours (55), while the half-life of C-peptide usually remains unaffected (30–35 minutes). Patients with IAS thus typically have high serum insulin concentrations, while their C-peptide and proinsulin levels may or may not be raised, depending partly on the characteristics of the IAA produced (which may or may not be capable of binding endogenous proinsulin and C-peptide as well, and thus delaying their half-lives too), and partly on the type of laboratory assay used (and the variable ability of the IAA to interfere with the immunoassay used for the proinsulin and C-peptide measurements). The presence of IAA can thus mimic a number of pathological conditions, prompting expensive and potentially harmful diagnostic assessments, and even pancreatectomy to search for an insulinoma. The importance of testing for IAA in non-diabetic adults with hyperinsulinemic hypoglycemia has also been emphasized by the Endocrine Society, which has included IAA among the first-line tests to perform in such patients (17). Many authors advocate measuring the insulin to C-peptide ratio to diagnose IAS. In fact, insulin and C-peptide are co-secreted by the pancreatic β-cells in physiological conditions, then insulin is rapidly metabolized by the liver, while C-peptide is slowly eliminated by the kidneys. The half-life is 5–10 minutes for the former, and 30–35 minutes for the latter, so the normal insulin to C-peptide ratio is <1 (62,63). In IAS, as explained earlier, the half-life of insulin is delayed as a consequence of IAA binding, but the elimination time of C-peptide remains unchanged, so the ratio is reversed to >1. That said, IAA are very heterogeneous and can sometimes bind C-peptide too, so they may or may not interfere with C-peptide measurements (also depending on the type of assay used), making this diagnostic parameter unreliable.

Finally, to arrive at a correct diagnosis, it is fundamentally important to obtain a patient’s detailed history, including age, sex, race, personal and family history of autoimmune and/or hematological disorders, use of drugs and any health supplements, concomitant viral or bacterial infections, time and mode of hypoglycemia onset (fasting or post-prandial), and its response to sugar. The diagnosis of IAS is often very difficult. Feng and colleagues (64) described a case of IAS occurring in a DM-2 patient treated with gliclazide who had no history of exogenous insulin administration. Being a sulfonylurea, gliclazide can induce hypoglycemia accompanied by high levels of insulin and C-peptide, so identifying the hypoglycemia as being caused by IAS and treating the patient accordingly was a challenge.

Treatment

In Japanese patients, IAS is generally self-limiting, and tends to regress within 3–6 months after withdrawal of the trigger drug (65). In non-Asian patients too, symptoms improve, resolving completely over time if patients stop taking the drug that caused the symptoms and follow a few recommendations. Patients are generally advised to eat frequent, small meals low in carbohydrates to prevent fasting, and to avoid the release of insulin associated with glucose overload of the pancreas. Cornstarch is a glucose polymer that is slowly absorbed by the gastrointestinal tract, and consequently able to avoid a sharp rise in glucose after meals and prevent fasting hypoglycemia episodes. In fact, uncooked cornstarch and hydrothermally modified cornstarch (its more effective and better tolerated evolution) are generally used in patients with glycogen storage disease, and in endurance athletes’ diets. There are reports of their successful use in IAS to keep glucose levels stable (66,67). If oral nutrition is impossible, or during longer fasting periods (i.e., at night), then continuous enteral feeding may be required (65). Patients with more severe IAS may also benefit from continuous glucose monitoring to help predict and promptly respond to falling blood glucose levels (68,69).

A specific treatment is required for the few patients whose hypoglycemia is more severe (65). Acarbose is an α-glucosidase inhibitor used to treat reactive idiopathic postprandial hyperinsulinemic hypoglycemia episodes as it is able to delay carbohydrate absorption (70). Acarbose can be used in IAS to dampen the postprandial rise in serum glucose and insulin, but it is poorly tolerated due to adverse gastrointestinal effects such as diarrhea and flatus. Since severe refractory autoimmune hypoglycemia is an autoimmune-based condition, it has also been treated with high-dose corticosteroids, such as prednisone, with good results in terms of both glycemic control and IAA titers (26,65). Plasmapheresis has also been widely used, alone or in combination with corticosteroids in more severe cases, to control hypoglycemic symptoms and lower IAA titers more rapidly (26,71). Plasmapheresis alone is especially useful when glucocorticoids are contraindicated (72).

Rituximab has recently been introduced for the treatment of many patients with life-threatening hypoglycemia and refractory to high-dose corticosteroids (69,73-75). The rationale is that this anti-CD20 monoclonal antibody was found capable (in the TrialNet) of suppressing IAA in 40% of DM-1 patients (76). It also improved the outcome of a patient with DM-1 who developed IAA to exogenous insulin (75). Used in the setting of IAS, rituximab was successful in reducing, but not suppressing patients’ IAA titers, thus improving their hypoglycemia control, and enabling the use of lower steroid doses as a consequence (69).

The treatment of IAS in the context of a myeloma and MGUS is particularly challenging. There can be no spontaneous remission in such cases if the myeloma/MGUS is still active. Patients need to take numerous small meals and keep to a diet low in simple sugars, probably for life, and they must learn how to recognize and treat their hypoglycemia episodes. In some cases, hypoglycemic crises are severe enough to necessitate plasmapheresis, glucocorticoids, and even chemotherapy, in an effort to reduce the levels of anti-insulin-binding monoclonal immunoglobulins (59). The levels of IAA and the severity of the symptoms sometimes parallel the remission-relapse phases of myeloma.

Type B insulin resistance syndrome

Definition

Insulin resistance syndromes include a broad array of disorders characterized by insulin resistance and a consequently increased β-cell insulin secretion. Among the different types of insulin resistance syndrome, the genetically-determined forms comprise numerous syndromes related to an insulin receptor or insulin receptor signal impairment [type A insulin resistance syndrome (OMIM147670), Rabson-Mendehall syndrome (OMIM262190), leprechaunism (OMIM246200), lipodystrophy (OMIM 608594)] (77,78). These syndromes generally manifest at birth or in infancy and early childhood (with extreme insulin resistance, growth retardation, acanthosis nigricans, hirsutism, and polycystic ovarian disease in patients who are not usually obese). Hyperandrogenism (HA), insulin resistance (IR), and acanthosis nigricans (AN) characterize HAIR-AN syndrome, which becomes manifest in obese, anovulatory women, and is considered a form of polycystic ovary syndrome (PCOS) (78). Insulin type-B resistance syndrome (TBIRS) was first reported by Kahn et al. in 1976 (77), and the same authors subsequently demonstrated that it is due to circulating antibodies that block the membrane receptors for insulin (79,80). TBIRS is a rare autoimmune disorder resulting in a variety of abnormalities in glucose homeostasis, from hypoglycemia to extremely insulin-resistant hyperglycemia, caused by the presence of insulin receptor autoantibodies (IRAbs) (81-83).

Epidemiology

The exact prevalence of TBIRS is not known, but it is quite rare (82). As at 2014, only 67 cases had been reported worldwide (82,84). Arioglu and colleagues studied 24 patients with this syndrome and found a higher prevalence in females (20/24 patients, 84%), and people of Afro-American ethnicity (21/24, 88%), consistently with previous and subsequent case reports (85). Other cases have since been described in Asian people too (84), and 20% of all published cases involved Asian patients, while white people seem to be less prone to the syndrome (84). The median clinical age at onset is 39 years (range, 15–64 years) in females, and 56 years in males (range, 37–68 years), but TBIRS has also been reported in adolescents, in a 1-year-old baby, and in the elderly (10,82,86).

TBIRS has a strong association with other autoimmune conditions (82,85), and IRAbs may be a paraneoplastic manifestation of hematological disorders like multiple myeloma and Hodgkin’s disease (85).

Clinical presentation, mechanisms, triggers and related pathophysiology

Clinical presentation

The most common presenting sign of TBIRS is severe diabetes mellitus, which responds poorly to treatment with exogenous insulin. Hypoglycemia may follow, or more rarely, it may be the first, or even the only (13%) sign of the syndrome (82). TBIRS can also manifest with other typical symptoms of insulin resistance, one of the more evident being acanthosis nigricans which consists in areas of skin thickening and hyperpigmentation. This symptom is found in up to 88% of patients (82). Peculiar to this form of insulin resistance is acanthosis nigricans of the periocular, perioral, and labial regions, which results in typical facies (82). Trunks and buttocks, and mucocutaneous tissues such as the lips or vulva may be involved (82). Most female patients present with enlarged and inhomogeneous multi-cystic ovaries, and one in two female patients of reproductive age have biochemical hyperandrogenism, with high testosterone levels.

TBIRS is often associated with other autoimmune diseases, but the strongest association reported in the literature is with systemic lupus erythematosus (SLE) (82). In a 28-year follow-up review (82), 11/24 (46%) patients with TBIRS also had SLE, while 6 other patients met 3 of the 4 criteria for a diagnosis of SLE, and 1 patient had primary biliary cirrhosis, 1 had myeloma, and no other associated diseases were found in just 5 cases. TBIRS has also been found associated with autoimmune hepatitis (87), hypothyroidism, and vitiligo (88). As in IAS due to insulin autoantibodies, hypoglycemia induced by IRAbs can develop in the context of hematological diseases, like myeloma (82) or Hodgkin’s disease (HD) (89-92). TBIRS has been described as a paraneoplastic symptom in patients with HD and multiple myeloma. In fact, monoclonal paraneoplastic form of IRAbs is a possibility, as in the mechanism described for IAS. The metabolic manifestations may also anticipate the diagnosis of the hematological disorder, which may be suspected when a monoclonal peak is found on electrophoresis (82). In fact, IRAbs are typically polyclonal.

The ten-year mortality rate for TBIRS is reportedly as high as 54%, due largely to the severity of the underlying systemic disease (82), while the proven disease-related deaths are associated with hypoglycemia (10,82).

Mechanisms

TBIRS is caused by circulating polyclonal autoantibodies to insulin receptor, generally immunoglobulins in the IgG class (77,79). IRAbs have a biphasic action, and this can explain the clinical course of the disease, which involves severe hyperglycemia but also hypoglycemia. In 3T3-L1 adipocyte cultures, there was a rapid-onset, short-term insulin-mimetic effect (93,94), then this response fades and adipocytes become insulin-resistant. A parallel biphasic response was observed in vivo too, in rats injected with IRAbs (95): in a first phase the antibodies caused hypoglycemia (occurring within 2–4 hours and lasting 8–24 hours), but chronic administration induced insulin resistance and hyperglycemia. When the antibodies were given in high titers, the antagonistic effect (insulin resistance) prevailed, whereas with low titers the agonistic effect (insulin-mimetic action) gained the upper hand (95).

The first rapid phase seems to relate to activation of the tyrosine kinase receptor (96,97), which is then followed by a gradual down-regulation of the receptor, a greater degradation and a diminished exposition on the cell surface, with consequent insulin resistance (98).

Another proposed mechanism for the fluctuating course of the disease involves the simultaneous presence of agonistic and antagonistic anti-insulin receptor autoantibodies, in variable titers and ratios (10,14,99).

Autoantibodies are also capable of increasing hepatic glucose release, and impairing muscle glucose uptake, and these mechanisms can contribute to hyperglycemia (100).

It is impossible to predict whether the presence of IRAbs will result in hypo- or hyperglycemia, but there are a few issues to consider. In the National Institutes of Health (NIH) series, hypoglycemia was more prevalent in patients with low autoantibody titers, and the switch from hyperglycemia to hypoglycemia was preceded by a drop in antibody titers (82). So, the insulin-mimetic effect may be dominant in patients with low anti-insulin antibody titers. The course of the disease is unfortunately not always predictable on the basis of antibody titers, however. When Flier et al. charted the course of the syndrome during a 3-year follow-up, 2 of their patients experienced a first hyperglycemic phase, characterized by high autoantibody titers, followed by refractory hypoglycemia despite no change in their antibody titers. This behavior was caused by the patients’ autonomous proliferation of membrane insulin receptors (99). The possibility of two populations of antibodies coexisting, with agonistic and antagonistic effects, further complicates the picture and makes the clinical course of TBIRS unpredictable.

Triggers

Pegylated interferon and ribavirin are the cornerstone of treatment for HCV infections, but many reports have associated interferon with the onset of various autoimmune disorders (101), including TBIRS (102). Three such cases have been reported in the literature (102-104). Mohammedi et al. described a case of severe insulin resistance in a diabetic African woman with HIV after she initiated a course of highly-active antiretroviral therapy (HAART). The setting for the TBIRS was part of an immune reconstitution inflammatory syndrome (IRIS), which involves a number of manifestations of a restored autoimmune response after the patient started HIV treatment and her CD4+ count rose. TBIRS presenting with severe hypoglycemia was also described in a child who had undergone bone marrow transplantation for severe combined immunodeficiency a few months earlier. Nagayama et al. described a case of TBIRS presenting with hypoglycemia in a patient with SLE due to the disease becoming more active after hemodialysis treatment (105).

In conclusion, there are no established triggers for the development of IRAbs, but drugs and situations capable of inducing autoimmunity reactivation may be contributors.

Diagnosis

The clinical hallmarks of severe insulin resistance can suggest the diagnosis. Hypoglycemia or hyperglycemia resistant to high-dose insulin therapy are typical of TBIRS. Circulating insulin levels are high, even in the hypoglycemic phase (10,82), possibly leading to insulinoma being suspected (85). The high insulin levels have been attributed to an increased insulin secretion from the pancreas in an attempt to overcome peripheral insulin resistance and contain insulin clearance (14). High serum insulin levels can be accompanied by low proinsulin and C-peptide levels, thus mimicking the pattern of injectable insulin administration, and this can be misleading for diagnostic purposes until the presence of IRAbs is ruled out (14).

Unlike the case of many other insulin resistance syndromes, in TBIRS patients have low triglyceride levels, averaging 54 mg/dL in the NIH series (82), and 49 mg/dL in a later single-center study (10). Another biochemical peculiarity of TBIRS is a paradoxical hyperadiponectinemia, reaching very high levels despite the extreme insulin resistance (106). There are no clinical features that can help to establish this diagnosis. TBIRS may be suspected in patients with extreme insulin resistance associated with high basal insulin levels, or requiring very high doses of insulin for metabolic control, with acanthosis nigricans, low triglyceride levels, or high adiponectin levels, and with other autoimmune or hematological diseases. Female gender, African-American ethnicity and hyperandrogenism can reinforce the clinical suspicion. The method used to detect IRAbs by measuring immunoprecipitation of recombinant human insulin receptors (82) is not commercially available, and can be performed at few laboratories worldwide (96), so serological confirmation based on IRAbs assay is not very feasible.

Treatment

Patients with TBIRS require two types of treatment: one for glycemic control, and one for immunomodulation. As regards their metabolic control, in the hyperglycemic phase these patients may require very large doses of exogenous insulin to try to control their catabolic state. Daily doses may be 5,100 U (82), or even as high as 30,000 U in some reports (88). It may be easier to administer such doses of insulin intravenously in hospital, or by opting for concentrated U-500 regular human insulin formulations over standard insulin formulations (85,107). Once fasting euglycemia has been achieved, the insulin doses can be reduced, since fasting euglycemia may be evidence of a decline in antibody titer, or of the switch to an agonist action on the insulin receptor (85).

Since IRAbs also impair liver and muscle insulin sensitivity, drugs acting as insulin sensitizers can have a role in the treatment of TBIRS. Metformin and thiazolidinedione can help to reduce the doses of exogenous insulin needed for glycemic control (82,85,108). Liraglutide, a glucagon-like peptide-1 (GLP-1) receptor agonist, has been used effectively in many reports, even in a patient with TBIRS and insulin allergy (85,109,110).

Insulin growth factor 1 (IGF-1) can exert a hypoglycemic effect similar to that of insulin, but far less powerful, with a potency approximately 8% of that of insulin (111,112). IGF-1 is able to stimulate glucose transport and glycogen synthesis in the muscles, via insulin and IGF-1 receptor (113). IGF-1 has been used in the treatment of many syndromes characterized by extreme insulin resistance, and numerous reports testify to its efficacy in the treatment of TBIRS too, when patients are refractory to other therapies (114,115). Whatever the treatment, it is important to control patients’ diet: it has been demonstrated that hyperalimentation impairs glucose control and raises the insulin doses needed to achieve euglycemia (116). Hyperglycemia can be difficult to manage, but controlling hypoglycemia can be even harder, and it carries a higher mortality risk (82,85). Frequent meals, even during the night, or continuous glucose infusions are the basis of treatment.

In the largest single-center series in the literature, among the patients with complete data on their long-term follow-up, 33% of patients with TBIRS had a spontaneous remission. In other words, their IRAbs disappeared spontaneously over a period of 11–48 months (82). The majority of patients require an immunosuppressant therapy, which can also help euglycemia to be achieved more quickly.

Glucocorticoids are generally part of empirical treatments, with oral pulse doses preferred over continuous administration, as the latter can have a worse effect on hyperglycemia (85). High-dose corticosteroids can reverse hypoglycemia acutely (within 24 hours), though the mechanism behind this therapeutic effect has yet to be clarified (82).

Plasmapheresis has been used in approximately 10 cases, especially when acute control was required (84). The main drawback of this therapy is the lack of any long-term efficacy, so it has to be combined with immunosuppressant agents (82,84). Intravenous immunoglobulins have been less extensively used, but they proved effective in reducing insulin resistance in the few cases in which they were administered (84,117). Cyclophosphamide (118-121), mycophenolate mofetil (119,121), cyclosporine A (122), and azathioprine have been used, achieving an improvement in patients’ symptoms (85). Rituximab, an anti-CD20 monoclonal antibody, proved particularly efficient in reducing anti-insulin receptor autoantibodies. Since its use was first described by Coll et al. (123), several cases of TBIRS have reportedly been successfully treated with rituximab (124). Very often, these agents were used in combination, however, making it very difficult to establish which therapeutic agent induced the remission. Clinical response to these agents is unpredictable, so there are no specific guidelines available on the choice of treatment, and the type of immunosuppressant therapy should be customized, depending on the underlying autoimmune disorder or specific clinical setting. The NIH group recently proposed a standardized therapeutic regimen, however, that they had used in 7 of their patients, all of whom achieved remission, with no serious adverse effects (121). Their treatment protocol aimed to control the pathogenic autoantibody production, and consisted in a combination of rituximab, cyclophosphamide and pulse corticosteroids. Remission was defined as an amelioration of the hyperglycemia and discontinuation of insulin therapy. The average time to remission in the patients following this scheme was 5 months (range, 2.5–9 months), but most patients had a reduction in their insulin doses already after the first cycle of treatment (121). This timeline is far shorter than previously reported in the literature, using an empirical treatment scheme (82). More importantly, none of the patients treated with the proposed protocol experienced hypoglycemic phases (121), unlike the previous empirically-treated case series described by the NIH group (82). Randomized, placebo-controlled trials are unlikely, owing to the rarity of the disorder, so—given the striking results obtained with this approach—rituximab with pulsed glucocorticoids and cyclophosphamide, followed by azathioprine, can currently be considered the best choice for TBIRS patient management.

Acknowledgements

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.
