Laboratory diagnostic approaches in metabolic disorders

Introduction

The term “inborn errors of metabolism” (IEM) was first described by Sir Archibald Garrod in 1908 (1) to describe those diseases caused by a block in a metabolic pathway due to the deficient activity of a specific enzyme. In recent years, advancement in technologies such as tandem mass spectrometry (MS/MS) and next-generation sequencing (NGS) employing a massive parallel sequencing strategy, have profoundly expanded our knowledge of IEM and metabolic disorders in general. These new technologies have also allowed for the expansion and improvement of newborn screening (NBS) on a global scale. In the United States (US), the Secretary’s Advisory Committee on Heritable Disorders in Newborns and Children (ACHDNC) (part of the US Department of Health and Human Services) recommends that all newborns be screened for 34 core disorders as well as 26 secondary disorders. Approximately 80% of the disorders tested in NBS are IEM (2). The expansion of newborn metabolic screening helps identify pre-/asymptomatic newborns, leading to early treatment. However, there is still the need to identify individuals whose defect was missed by NBS, or who were born before widespread screening was available.

Background

IEM can be classified into two broad categories: those which affect energy production, and those which affect the synthesis or degradation of specific molecules or compounds. Although carbohydrates, fats, and proteins are all used as energy sources, the degree to which a specific fuel is utilized depends on the organ or tissue type. A disruption to a metabolic process that affects one type of fuel leads to the increased utilization of an alternate fuel type; this compensatory shift in energy production can lead to a pattern of abnormal metabolites observed in patients with these disorders, which is key to making the diagnosis. Due to the complex regulation of metabolic processes throughout the body, the accumulation of a substrate from a blocked metabolic step will engage alternate metabolic pathways that are otherwise minimally utilized under normal circumstances, leading to an increase in the production and accumulation of potentially harmful intermediate metabolites in patients with IEMs. These intermediates may also interfere with normal metabolism through activation or inhibition of enzymatic processes, or through competitive action, leading to additional clinical symptoms and pathognomonic patterns of elevated analytes. Most organic acidurias, amino acidopathies, peroxisomal disorders, lysosomal storage disorders (LSD), glycogen storage disorders (GSD), and mitochondrial fatty acid oxidation disorders are examples of defects in degradative pathways, in which specific enzymes break down substrates (glycogen, organic acids, amino acids, or fatty acids) to produce energy or to generate basic building blocks utilized in subsequent synthetic processes (i.e., creatine synthesis). In contrast, the porphyrias, cerebral creatine deficiencies, and congenital disorders of glycosylation are examples of defects in synthetic pathways, which impact the production of heme, creatine, and glycoproteins respectively. Transporters and channel proteins which mobilize substrate fall into both categories (3-6).

General approach to diagnosing IEM

Patients with inherited metabolic disorders can create a familiar diagnostic dilemma in clinical practice. Even when there is a strong suspicion of an underlying metabolic defect, the sheer number of disorders and the variability in clinical features can render diagnostic test selection difficult. Clinical phenotypes of IEM are broad and often non-specific, mimicking more common conditions, and the onset of symptoms can occur at any age from fetus to adult. Although the classical presentation of most IEM involves an acutely ill newborn or young infant, this scenario is encountered less frequently now that advances in tandem mass-spectrometry-based NBS have decreased the number of acute episodes and consequent sequelae for many of the conditions identified by the screening test. However, because patients with milder mutations and subtle biochemical phenotypes may be missed by the cut-off values used to determine positive screening results, a normal newborn screen should not exclude these disorders from the differential diagnosis in a patient whose clinical presentation is suggestive of an inherited metabolic defect. Both clinical and biochemical phenotypes of IEM in children have been studied for decades; conversely, late onset or adult onset variants were largely unrecognized. In recent years, adult onset forms of many inherited metabolic disorders have been increasingly identified as true mild phenotypes, where symptoms in childhood were not severe enough to merit investigation. In these late onset variants of metabolic disorders, some not presenting until well into adulthood, the clinical features may be significantly different from the classical features associated with the underlying disorder, which, along with the patient’s age, could lead to a significant delay in diagnosis.

Appropriate and prudent test selection must be driven by a combination of the patient’s clinical presentation and the results of routine first tier laboratory tests, which can help guide more specific testing. Depending on the affected metabolic pathway, the clinical presentation may include hallmark manifestations characteristic of and/or common to a group of disorders; however, such features are not typically unique to a single disorder. When evaluating a patient for a possible IEM, routine laboratory tests can identify underlying patterns suspicious for a metabolic defect. Common findings include hypoketotic hypoglycemia, lactic acidosis, metabolic acidosis, ketosis, hyperammonemia, or metabolic acidosis in combination with hyperammonemia. Evaluating these blood and urine test results in conjunction with the clinical presentation can narrow the focus toward a particular subset of metabolic disorders. Among the clues that should lead clinicians to suspect an IEM are scenarios such as a critically ill neonate with a history of deterioration following an uncomplicated pregnancy, episodes of illness or fluctuating symptoms of lethargy or other neurological symptoms precipitated by intercurrent illness or stress, multisystem involvement, failure to thrive, developmental delay, progressive neurological signs or bizarre neurological symptoms with or without psychological problems in patients in whom the usual etiologies have been excluded, particularly in adults (7). Although biochemical genetic and molecular genetic tests are required to confirm a diagnosis, basic laboratory tests are still important and often provide the first clues to a possible underlying IEM. Medical and family history, clinical symptoms, and basic labs are usually adequate to categorize an IEM and provide initial treatment before the results of more specific testing are available, especially in an emergency situation.

The first step in helping to select the appropriate laboratory investigation to rule out an IEM is to determine whether the condition is likely due to defects in small molecule metabolism (such as disorders of amino acids, organic acids, purines and pyrimidines, the urea cycle, mitochondrial energy metabolism) or defects of organelle metabolism (such as lysosomes or peroxisomes) (8-10). Patients with small molecule disorders usually present with acute illness requiring emergency intervention. Patients with disorders of organelle metabolism commonly present with neurological and neuromuscular manifestations, organomegaly, hepatic dysfunction, with or without dysmorphism. However, it is important to keep in mind that in some instances, disorders affecting organelle function may also present with metabolic crises including hypoglycemia and/or metabolic acidosis requiring emergency intervention. Additionally, it is important to recognize that some IEM may present without a life threatening metabolic crisis, but rather with unusual symptoms like skin blistering after sunlight exposure and/or neurological manifestations (i.e., cryptogenic abdominal pain, paresthesia, or psychotic episodes) as is the case for most porphyrias; exceptions are congenital erythropoietic porphyria (CEP) which can produce severe liver disease and acute intermittent porphyria (AIP) which can produce severe lactic acidosis (4).

Small molecule metabolism defects

Patients with defects of small molecule metabolism may first present with acute illness. Basic laboratory tests should be performed in every child with an acute illness in whom an underlying metabolic disorder is a possibility. The following tests are examples of basic but nevertheless critical investigations to be considered when evaluating a patient for a potential IEM, as results can be directly affected by these disorders. Results of basic testing can provide direction into the underlying etiology and help in the selection of further more specific tests (Table 1).

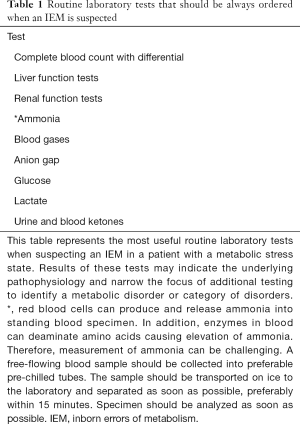

Table 1 Routine laboratory tests that should be always ordered when an IEM is suspected
Full table

Acid-base status to determine the anion gap

Metabolic acidosis is a disturbance in the body’s acid-base balance through the loss of bicarbonate, reduced renal excretion, or increased production of acids. Determining the acid-base status is important in the assessment of a patient with a potential inherited metabolic defect, because high anion gap metabolic acidosis is usually caused by the accumulation of organic acids including lactic acid, ketone bodies, or unusual acids and their derivatives. In contrast, diarrhea and renal tubular acidosis are the main causes of metabolic acidosis with a normal anion gap (11). If acidosis is present, it should be evaluated in conjunction with other metabolic states such as hypo- and hyper-glycemia, ketosis, hyperlactatemia, and hyperammonemia. The majority of IEM that present with overwhelming metabolic acidosis and ketosis are organic acidemias (i.e., methylmalonic acidemia, propionic acidemia, isovaleric acidemia). On the other hand, metabolic acidosis with hypoglycemia and no ketosis can be the only finding in an underlying mitochondrial fatty acid oxidation defect, where rescue of hypoglycemia is impaired by the inability to produce energy from fatty acid metabolism and an increase in the production of non-physiological dicarboxylic acid intermediates (12). Metabolic acidosis and hyperlactatemia in the absence of elevated organic acids other than lactic acid and pyruvic acid can be found in disorders of pyruvic acid metabolism, as well as in respiratory chain defects (Figure 1).

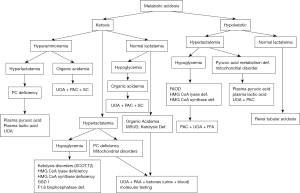

Figure 1 Metabolic Acidosis Workup Algorithm. PC, pyruvate carboxylase; UOA, urine organic acids; SC, serum carnitine; MSUD, maple syrup urinary disease; FOAD, fatty acid oxidation disorder; PAC, plasma acylcarnitines; FAA, free fatty acids; PAA, plasma amino acids; GDS 1, glycogen storage disorder type 1.

Blood glucose

Severe hypoglycemia is a life-threatening condition found in many metabolic disorders, including disorders of protein metabolism such as organic acidurias and certain amino acidopathies. However, critical hypoglycemia is a feature found in disorders directly affecting carbohydrate metabolism such as GSD, gluconeogenesis defects (glucose-6-phosphatase deficiency, fructose-1,6-biphosphate deficiency), and mitochondrial fatty acid oxidation defects, which produce a severe depletion of circulating and reserve carbohydrates secondary to defective alternative energy production (Figure 2) (13,14).

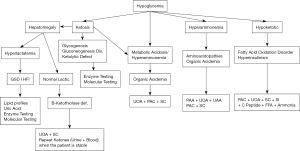

Figure 2 Hypoglycemia Workup Algorithm. GDS 1, glycogen storage disorder type 1; HFI, hereditary fructose intolerance; UOA, urine organic acids; SC, serum carnitine; PAC, plasma acylcarnitines; PAA, plasma amino acids; UAA, urine amino acids; SI, serum insulin; FAA, free fatty acids.

When evaluating hypoglycemia, a logical approach is to first consider whether the patient is ketotic or nonketotic. Disorders of mitochondrial fatty acid oxidation, carbohydrate metabolism, ketone body metabolism, and organic acidemias can all cause hypoglycemia. Disorders of mitochondrial fatty acid oxidation and ketogenesis including HMG-CoA lyase deficiency and HMG-CoA synthase deficiency as well as hyperinsulinemia are associated with hypoketotic hypoglycemia with or without severe metabolic acidosis, whereas other disorders such as organic acidemias, defect of ketone body metabolism and less commonly maple syrup urine disease (MSUD), typically cause ketotic hypoglycemia (15,16).

During normal physiological conditions when hypoglycemia ensues, there is the simultaneous onset of hepatic glycogen-to-glucose conversion and an increase in the catabolism of free fatty acids. Mitochondrial fatty acid oxidation defects produce profound hypoglycemia due to the depletion of circulating glucose and hepatic glycogen stores arising from the inability to metabolize fatty acids to meet energy requirements. In these defects, there is also the inability to rescue hypoglycemia and reduced production of acetyl-CoA due to decreased flux through the beta-oxidation spiral, which affects ketone body production.

In GSD, there is impaired conversion of hepatic glycogen into circulating glucose during fasting, thus depleting available carbohydrates; the hypoglycemia is associated with hepatomegaly, mild to severe hepatic dysfunction, and hyperlactatemia. However, hypoglycemia might be absent in GSD type II (Pompe disease, or lysosomal acid maltase deficiency) as cytoplasmic glycogen metabolism is spared and glycogen accumulates only in lysosomes and in the early stages of GSD type IV. Hypoglycemia can also be found in disorders of carbohydrate metabolism like the galactosemias or hereditary fructose intolerance. In classic galactosemia, accumulated galactose-1-phosphate inhibits phosphoglucomutase to impair glycolysis, whereas in hereditary fructose intolerance, accumulated fructose-1-phosphate inhibits both gluconeogenesis and glycogenolysis (17-20).

A history of the time-based relationship of hypoglycemia to feeding can be helpful in making the diagnosis. Hypoglycemia in the postprandial state or after a short duration fast (<4 hours) is usually associated with a glucose overutilization problem, such as hyperinsulinism, whereas hypoglycemia following a prolonged fast (>8 hours) is suggestive of a fatty acid oxidation defect. Hypoglycemia after a fast of intermediate duration (4–8 hours) may be due to a glycogenosis or a disorder affecting gluconeogenesis. Other basic laboratory findings may also be helpful; for example, hypoglycemia in the presence of hepatic fibrosis and cirrhosis might be the only finding in hereditary tyrosinemia type I.

Ammonia

Like hypoglycemia, hyperammonemia is also a life-threatening condition; therefore, the plasma ammonia level should be tested in all patients with alteration of consciousness and encephalopathy, particularly young children. Hyperammonemia can be caused by many non-metabolic conditions, including liver disease, portocaval shunt, glutamate dehydrogenase hyperactivity, or valproic acid toxicity. However, a marked elevation of ammonia, typically 10–100 times the upper limit of normal, can be associated with urea cycle disorders. Although some organic acidemias and disorders of mitochondrial fatty acid oxidation may also cause hyperammonemia, it is usually less significant.

Ammonia, the neurotoxic byproduct of amino acid deamination, is converted to excretable urea by the urea cycle in a series of enzymatic steps occurring either in the cytosol or in the mitochondrion. Although very efficient under normal conditions, the urea cycle is a comparatively fragile metabolic process that can be affected by inherited metabolic disorders through a variety of different mechanisms (Figure 3).

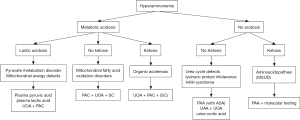

Figure 3 Hyperammonemia Workup Algorithm. UOA, urine organic acids; PAC, plasma acylcarnitines; SC, serum carnitine; PAA, plasma amino acids; ASA, argininosuccinic acid; UAA, urine amino acids.

Urea cycle disorders are inherited deficiencies in any of the enzymes of the urea cycle, or in the production of the allosteric cofactor N-acetylglutamine, resulting in severe primary hyperammonemia. Hyperammonemia is also a relatively common secondary finding in organic acidurias, wherein accumulated substrates or organic acid intermediates inhibit the proximal urea cycle enzyme N-acetylglutamate synthase (NAGS), producing an overall reduction of the urea cycle detoxifying efficacy. Among the organic acidurias, propionic acidemia and methylmalonic acidemia in particular can present with intermittent secondary hyperammonemia due to the inhibitory capability of accumulated propionyl-CoA. Metabolic derangements in which circulating levels of ornithine, citrulline, or arginine are decreased due to renal losses or reduced endogenous production can also produce hyperammonemia, since all three are urea cycle intermediates. When circulating or intracellular levels of these amino acids fall, the efficiency of the urea cycle can decrease, resulting in hyperammonemia; the most profound losses of amino acids important to the urea cycle are found in cystinuria and lysinuric protein intolerance where the renal reabsorption of ornithine and arginine can be severely reduced due to competition for a shared dibasic amino acid transporter. In contrast, mitochondrial fatty acid oxidation disorders can present with hyperammonemia due to the combined effects of substrate depletion and urea cycle inhibition by toxic acylcarnitine species. The level of acetyl-CoA, the end product of fatty acid beta oxidation, is decreased when overall flux through the pathway is reduced. Acetyl-CoA is required for the production of N-acetylglutamate, which allosterically activates the enzyme carbamoyl phosphate synthetase 1 (CPS1); CPS1 converts ammonia to carbamoyl phosphate in the rate-limiting first step of the urea cycle. In certain long-chain fatty acid oxidation defects, fatty acylation of an active site residue of CPS1 directly affects the urea cycle detoxification capacity. Finally, some disorders can produce hyperammonemia secondary to organ damage. For example, in lysosomal disorders including the mucopolysaccharidoses as well as in some peroxisomal disorders, the accumulation and storage of complex large molecules within the liver leads to hepatocellular damage, which in turn causes a decrease in urea cycle efficiency (21-26).

Lactic acid

The physiological balance of circulating lactic acid sustained by lactic acid production through cytoplasmic glycolysis and multi-tissue mitochondrial consumption can be disturbed by both non-metabolic and metabolic conditions. Lactic acidosis can occur due to an increase in lactate production, or a decrease in its metabolism. Most metabolic disorders presenting with hyperlactatemia have concurrent ketosis, with the exception of pyruvic dehydrogenase (PDH) deficiency, glycogenosis type-I or certain fatty acid oxidation disorders (27).

Lactic acidosis is most often caused by tissue hypoxia due to poor circulation or inadequate oxygen supply from multiple causes, including cardiogenic or hypovolemic shock. Non-metabolic sources of hyperlactatemia are not usually accompanied by ketosis. However, several IEMs including organic acidurias, disorders of mitochondrial energy metabolism, or defects of gluconeogenesis can also present with lactic acidosis. Once a non-metabolic etiology of hyperlactatemia has been ruled out, the most common origins of hyperlactatemia secondary to mitochondrial energy disruption by toxic metabolites are fatty acid oxidation disorders, organic acidurias, and in very rare cases, urea cycle defects. Other inherited causes of persistent hyperlactatemia include disorders of glycogen metabolism, disorders affecting gluconeogenesis, and disorders directly affecting the Krebs cycle or pyruvic acid metabolism. In gluconeogenesis defects such as fructose-1, 6 phosphatase deficiency and GSD type IA [glucose-6-phosphatase (G-6PD) deficiency], hyperlactatemia peaks when fasting or in hypoglycemic situations. In disorders affecting glycogen degradation, hyperlactatemia peaks postprandial. Hyperlactatemia can differ in disorders directly affecting pyruvic acid metabolism (28,29). In pyruvate dehydrogenase (PDH) deficiency, alpha-ketoglutarate dehydrogenase deficiency, and respiratory chain disorders, hyperlactatemia usually occurs in the fed state, whereas in pyruvate carboxylase deficiency, hyperlactatemia occurs in both fasting and fed states. When evaluating a patient for hyperlactatemia, an often-overlooked relationship is the balance between the lactic acid/pyruvic acid and 3-OH butyric acid/acetoacetic acid ratios. The plasma lactic acid/pyruvic acid molar ratio correlates with the NAD+/NADH ratio and can indirectly reflect the cytosolic redox state (30-32), while the 3-hydroxybutyric acid/acetoacetic acid ratio reflects the intramitochondrial redox state.

Ketones

The ketone bodies 3-hydroxybutyric acid, acetoacetic acid, and acetone are the natural end products of mitochondrial fatty acid beta-oxidation. Ketonuria, an increase in the urinary excretion of ketones, is found physiologically in late infancy, childhood and adolescence, but is not considered normal in the neonate. Physiological ketosis is not accompanied by metabolic acidosis, hyperlactatemia, or hypoglycemia, markers of metabolic stress; it is a common finding following fasting, vomiting, consumption of a ketogenic diet, or states of increased catabolism. However, because ketones are organic acids, severe ketonuria that produces metabolic acidosis should not be considered physiological, and indicate an IEM. The timing of ketonuria in relation to feeding or fasting is an important differentiator that can point to the potential type of underlying metabolic disorder. For instance, severe ketonuria with fasting hypoglycemia, or postprandial hyperglycemia with hyperlactatemia are common findings in certain disorders of glycogenosis. In contrast, pure marked ketonuria in fed and fasting states can occur in ketone body handling disorders such as succinyl-CoA transferase (SCOT) deficiency or beta-ketothiolase (BKT) deficiency. MSUD and organic acidemias like propionic acidemia and isovaleric acidemia can present with high anion gap metabolic acidosis and ketonuria. Unlike other markers of metabolic stress, ketosis is clinically relevant both when increased and when absent. While a severe reduction in the excretion of ketones along with low circulating glucose levels (hypoketotic hypoglycemia) is a common finding in vomiting, anorexia, or generalized catabolic states, this pattern is also a significant indicator of a potential disorder of mitochondrial fatty acid oxidation, with or without glucose overutilization. It is important to note, however, that several mitochondrial fatty acid oxidation disorders can present with intermittent episodes of mild to severe ketonuria when the affected enzyme is distal enough in the beta-oxidation degradative pathway that long-chain fatty acid metabolism is still capable of generating some ketones, as in the case of 3-hydroxyacyl-CoA dehydrogenase (HAD) deficiency or medium-chain-acyl-CoA dehydrogenase (MCAD) deficiency, or in very-long-chain-acyl-CoA dehydrogenase (VLCAD) deficiency, where the oxidation of unsaturated fatty acids is primarily affected, while the oxidation of saturated fatty acids remains mostly intact (15,33-36).

Additional considerations

Aside from those investigations listed above, other important initial tests include CBC, liver function tests, coagulation studies, creatine kinase levels, renal function tests, BUN, uric acid, lipid profiles and CSF cell study and CSF glucose. Non-laboratory tests can also be critical to the diagnosis of an IEM. Neuroimaging studies including MRI and MR spectroscopy may show specific brain findings characteristic of certain inherited defects, such as symmetrical basal ganglia and thalamic involvement seen in mitochondrial disorders, subdural effusions and reduced opercularization seen in glutaric acidemia type I (GA1), an absent creatine peak demonstrated by MR spectroscopy in congenital disorders of creatine metabolism, and white matter changes in disorders such as X-linked adrenoleukodystrophy and metachromatic leukodystrophy (37).

Based on the patient’s clinical presentation and the outcome of routine laboratory analyses, once the suspicion of a metabolic disorder has been established, the most informative subsequent testing will depend on the potential disorder or group of disorders included in the differential diagnosis. Laboratory tests that cast a wide net and can be used to diagnose multiple IEMs include urine organic acid, plasma and urine amino acid, plasma acylcarnitine, and serum very long chain fatty acid analyses. Because secondary carnitine deficiency resulting from carnitine loss as acylcarnitine esters in the urine is a common finding in many metabolic disorders including fatty acid oxidation disorders and organic acidurias, serum carnitine quantification should also be included when evaluating a patient for a potential metabolic disorder. When such diagnostic tests are ordered, the most informative specimen type depends not only on the expected abnormal metabolites, but also whether the potential disorder is due to an enzyme deficiency or a transporter defect (Table 2) (38,39).

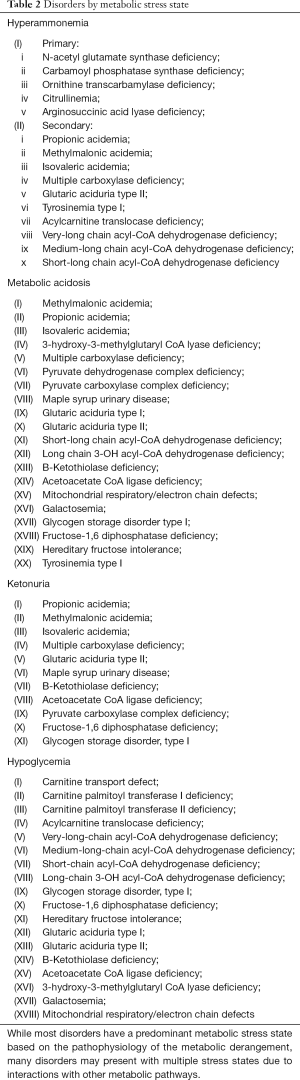

Table 2 Disorders by metabolic stress state
Full table

Some disorders produce increases in circulating intermediate metabolites that, through their characteristic pattern, form the basis for diagnosis and dietary monitoring (i.e., increased plasma phenylalanine and decreased tyrosine in phenylketonuria, elevated free fatty acids in fatty acid oxidation disorders, or elevated branched-chain amino acids in MSUD); other disorders result in increased excretion of key metabolites which can be used for the same purposes (i.e., elevated urine cystine in cystinuria), while some disorders produce both. Elevations of abnormal metabolites in plasma can also be detected in urine if the blood concentration reaches the renal threshold for that analyte. In general, disorders of amino acid metabolism that affect proximal metabolic steps (i.e., phenylketonuria or MSUD) will lead to abnormal plasma amino acid profiles. Disorders of amino acid metabolism which impact distal enzymatic steps (i.e., isovaleric acidemia or glutaric aciduria type I) may or may not show abnormalities on plasma amino acids analysis, but typically yield abnormal urine organic acid profiles. Disorders that affect amino acid transporters in the kidney (i.e., cystinuria or lysinuric protein intolerance) are usually best diagnosed by a urine amino acid profile. Conditions affecting different steps in a shared metabolic pathway may produce abnormal patterns of common intermediate metabolites; in such cases, further testing may be required to narrow down the diagnosis, as when an elevated level of 3-hydroxyisovaleryl-/2-methyl-3-hydroxybutyrylcarnitine (C5OH) is detected in a plasma acylcarnitine profile. This analyte is found in several disorders affecting branched-chain amino acid metabolism. In such cases, urine organic acid analysis or further complementary biochemical or molecular tests may be required to confirm the initial findings, or to make a definitive diagnosis (Figures 1-3).

In some other conditions, enzyme activity analysis and/or molecular analysis may be necessary for a specific diagnosis; it should be noted that some enzyme tests require invasive procedures such as a liver biopsy for hepatic glycogen storage disease or skin biopsy for fibroblast culture for fatty acid oxidation studies (28,40-42). In cases where a patient finally, in spite of the reduction in morbidity and mortality following the implementation of widespread NBS, improvements in therapy, and the identification of later-onset clinical presentation of most IEM, it is inevitable that some patients will pass away before a diagnosis is made. In these instances, it is important to collect post mortem blood and urine specimens whenever possible, to aid in identifying any underlying metabolic disorder (43).

Defects of organelle metabolism

Patients with metabolic defects that affect an entire organelle usually present with slowly progressive encephalopathies and systemic symptoms. Basic laboratory investigations such as a CBC, liver and renal function tests, ferritin, and bone X-rays, among others, can provide information about the baseline health status, convey evidence of possible coexisting diseases, and narrow the differential diagnosis. For example, pancytopenia and hyperferritinemia suggest Gaucher disease. Severe liver disease is seen in Niemann-Pick C (NPC). Neurological deficits can result in undernutrition, iron deficiency, anemia, and low albumin. Low levels of high-density lipoprotein (HDL) are occasionally observed in untreated Gaucher disease and NPC. Skeletal surveys are used to detect dysostosis multiplex or cartilage stippling, seen in many lysosomal storage diseases (LSD) and peroxisomal biogenesis disorders (44-46). Pathology studies including histology, histopathology, immunochemistry and electron microscopy (EM) can provide some diagnostic clues as well: for example, cytoplasmic vacuoles detected in lymphocytes or macrophages are suggestive of LSD (44).

Biomarkers

For some metabolic disorders, substances in different body fluids can be used as indicators of both the presence and the progression of the disease, as well as for monitoring the effect of therapy. For example, creatine kinase (CK or CPK) is a non-specific indicator of metabolic myopathy as is found in mitochondrial fatty acid oxidation defects, glycogen storage diseases, and Pompe disease. Circulating cytokines FGF-21 and GDF-15 have been recently identified as potential biomarkers of mitochondrial myopathy (47). Using micro-RNAs (miRNA) nucleotides as biomarkers for mitochondrial disorders has also been proposed. Micro-RNAs regulate gene expression with high specificity on the post-transcriptional level, and distinctive patterns of micro-RNAs are associated with various disorders. There is evidence demonstrating that micro-RNA 9/9* pattern is associated with mitochondrial encephalopathy, lactic acidosis and stroke-like episodes (MELAS) or the myoclonic epilepsy with ragged-red fibers (MERRF) phenotype (47). Plasma chitotriosidase (CHITO) analysis is commonly used as the first tier screen in the diagnosis of Gaucher disease, sphingomyelinase deficiency (Niemann-Pick disease type A/B) and NPC. A marked elevation of CHITO is seen in untreated Gaucher disease and a moderate elevation is found in NPA, B and C (48). Lack of specificity is one of the problems encountered when routine laboratory tests are abnormal. Physicians should keep in mind that other common conditions such as inflammation or infection can also cause elevations of certain biomarkers. Therefore, it is imperative that all laboratory results be interpreted in conjunction with the patient’s clinical findings (Table 3).

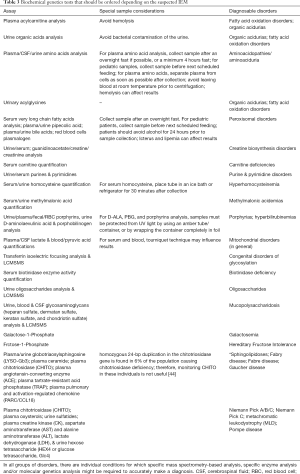

Table 3 Biochemical genetics tests that should be ordered depending on the suspected IEM
Full table

Future directions

Since the first inborn error of metabolism was described in 1908, information on pathophysiology, etiology, prevalence, classification, diagnosis and treatment has expanded tremendously. New metabolic disorders are being described on a regular basis, and as our understanding of disease mechanisms continues to grow, additional disorders are likely to be discovered, including those due to defects in metabolic regulatory processes. NBS will continue to expand due to advancements in high throughput technology and the development of new therapies for additional metabolic conditions. With the availability of specific treatment for some LSD conditions, these disorders are already included in the NBS panels for several states, and inclusion of LSD in NBS will likely increase as therapy for additional disorders is developed. Direct enzyme activity assay from a dried-blood spot (DBS) was first developed more than a decade ago by Chamoles and team. Since then, interest in LSD NBS has grown considerably. Currently, the activity of multiple lysosomal enzymes in DBS can be measured simultaneously by digital microfluidics or multiplex-MS/MS (49). At present, 7 LSDs can be ascertained by NBS in DBS: Pompe, Krabbe, Gaucher, Niemann Pick A/B, Mucopolysaccharidosis I, and Fabry disease. Some of these disorders have already been included in expanded NBS panels in several US states and in some other countries (2).

Metabolomics is a new approach to the diagnosis of IEM, especially when the clinical presentations are non-specific. Metabolomic analysis is focused on the complete set of all small molecule metabolites present in biological specimens. MS and nuclear magnetic resonance (NMR) are the main analytical techniques, although ion mobility spectrometry (IMS) combined with high resolution MS provides better coverage (50). This approach is sometimes called untargeted analysis due to the larger scope of detection versus traditional targeted assays for measuring amino acids, acylcarnitines, organic acids, purines, pyrimidines, and carnitine biosynthesis intermediates. It has been estimated that more than 700 different metabolites linked to IEM and more than 400 endogenous metabolites identified by untargeted MS-based metabolomics platforms cannot be detected by a combination of all targeted assays (50,51). Aside from aiding diagnosis, metabolomics also can lead to the discovery of new IEM, novel biomarkers, and a better overall understanding of IEM and the regulation of metabolic processes (51). The inherent challenges associated with the large amount of data generated by high-throughput technologies include how to track, store, and share the data. It is crucial to develop advanced bioinformatics solutions, comprehensive open-access databases, and computer methodologies and software to convert the huge amount of data generated by this approach into effective clinically actionable tools that can aid decision-making.

Conclusions

The field of IEM continues to grow as evolving technologies like NGS and comprehensive metabolomic profiling strategies provide deeper insight into mechanisms of disease and phenotypic differences between individuals with the same disorder. It has become increasingly apparent that the classical forms of IEM, with presentation in infancy or childhood, are just the tip of the iceberg. Milder variants that may not cause clinical symptoms until adulthood or in states of increased metabolic stress (pregnancy, infections, surgery, ketogenic diet), resulting in a pool of patients likely to be missed by NBS (52,53). Inherited metabolic diseases may often be overlooked in the differential diagnosis for older patients or children who had a normal newborn screen, but case reports suggest that atypical presentations may be relatively common in this patient population (54). Although the sheer number of IEM is daunting, a systematic and logical approach to test selection in a patient with a clinical presentation of a metabolic defect, regardless of age, can lead to a high degree of diagnostic success.

Acknowledgements

Dr. Bonilla Guerrero and Dr. Salazar would like to thank Dr. Charles M. Strom for his mentorship, guidance, and leadership over the years.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.
