High performance of intravoxel incoherent motion diffusion MRI in detecting viral hepatitis-b induced liver fibrosis

Introduction

Chronic liver disease is a major public health problem worldwide, accounted for approximately 1.3 million deaths worldwide in 2015 (1). Chronic liver disease causes include chronic viral hepatitis, alcohol, non-alcoholic fatty liver disease (NAFLD), hemochromatosis, alpha-1-antitrypsin deficiency, and cholestatic and autoimmune diseases. Viral hepatitis is the most common blood-borne infection worldwide. Regardless of the etiology, the end result of untreated chronic liver disease is inflammation, loss of liver parenchyma, and healing by fibrosis and regeneration. Clinically liver fibrosis usually has an insidious onset and progresses slowly over decades. The deposition of fibrosis in the liver is a slow and gradual process balanced with degradation of fibrosis by metalloproteinases and regeneration in the early stages. In untreated chronic liver disease, this process continues for years until when the degradation process fails and fibrosis progresses rapidly thereafter.

Originally considered to be irreversible, hepatic fibrosis is now regarded as a dynamic process with the potential for regression. Studies have demonstrated regression of liver fibrosis after treatment of the underlying pathology (2,3). Earlier stage liver fibrosis is more amenable to therapeutic intervention. The regression of liver fibrosis can be complete in early stages, whereas partial and prolonged recovery occurs in late or advanced stages (4). Treatment with combined therapies on underline etiology and fibrosis simultaneously might expedite the regression of liver fibrosis and promote liver regeneration. Even when the underline etiology of liver fibrosis could not be eradicated, therapies on liver fibrosis might help delay the progression of the disease to cirrhosis. Therefore, early detection and staging of liver fibrosis are important for early institution of treatment and assess potential for regression and prognosis. To date, the reference standard for detection and staging of liver fibrosis remains being biopsy, but it is invasive, and frequently causes pain and discomfort, with risk of bleeding and hospitalization and therefore not suitable for longitudinal monitoring.

Intravoxel incoherent motion (IVIM) reflects the random microscopic motion that occurs in voxels on MR images of water molecules (either intra-cellular or extracellular) and the microcirculation of blood. Le Bihan et al. (5-8) proposed the principle of IVIM which enables the quantitative parameters that separately reflect tissue diffusivity and tissue microcapillary perfusion to be estimated. Molecular water diffusion in fibrotic liver would be restricted by the presence of collagen fibers in the distorted lobular structure. Given the relatively high blood volume fraction of <25–30 mL of blood per 100g in liver (9), perfusion can contribute to the diffusion measurements significantly because of the incoherent motion of blood in pseudorandom capillary network at the macroscopic level. It is well accepted that liver fibrosis is associated with reduced liver perfusion (10-13), and progressive loss of endothelial fenestration and deposition of collagen in the space of Disse. These processes reduce the rate of blood flow and prolong its transit time. Recently there has been great interest of using IVIM technique to study diffused liver diseases such as liver fibrosis (14). In one our recent report (15,16), we demonstrated that a combination of PF, Dfast and Dslow, can be used to separate fibrotic livers from healthy livers. Since our recent report was based in a small cohort of patients (16 healthy volunteers and 33 hepatitis-b liver fibrosis patients) (15), hereby we performed a study with the aim to confirm our previous observation.

Methods

This is a prospective study with MRI data acquired at The Third People’s Hospital of Shenzhen, China. It was approved by the institutional ethical committee of The Third People’s Hospital of Shenzhen and the informed consent was obtained for all the subjects. Twenty-six healthy volunteers (14 males, 12 females, mean age: 24 yrs old; range: 20–41 yrs old) and 19 consecutive patients suspected of liver fibrosis with liver biopsy results were recruited. The data acquisition periods for healthy volunteer were July 27, 2017 to Aug 11, 2017 (n=10), and Oct 14, 2018 to Nov 2, 2018 (n=16). The data acquisition period for patients was Sep 17, 2017 to Oct 21, 2018. Liver biopsy and MRI were performed with less than one-month’s interval. Three patients had chronic viral hepatitis-b infection, but did not show liver fibrosis, and one patient’s biopsy result showed only mild simple steatosis (Figure S1). These four patients were all males, aged 19–57 yrs. The liver fibrosis patient cohort (mean age: 46 yrs, range: 22–62 yrs) had four stage 1 subjects, three stage 2 subjects, four stage 3 subjects, and one stage 4 subject, all with chronic viral hepatitis-b. One patient additionally had hepatocellular carcinoma. The histology diagnosis for liver fibrosis was based on the consensus of the 2000 Xi’an consensus of the Chinese Society of Infectious Disease and Parasitology and the Chinese Society of Hepatology (17), and being very similar to METAVIR score (18). Stage 1 liver fibrosis (F1) is mild fibrosis only seen at the portal area; stage 2 liver fibrosis (F2) indicates fibrosis extending out from the portal areas with rare bridges between portal areas, but without the destruction of the lobular structure; stage 3 liver fibrosis (F3) is severe fibrosis, there is fibrotic bridging between portal areas and between portal areas and center veins; and in stage 4 (F4, cirrhosis) there are pseudo-lobules formed.

Figure S1 Biopsy histology results of four patients without liver fibrosis. Patient-10 had hepatitis without fibrosis, patient-11 had mild steatosis, and patients-13 and -18 had hepatitis and minimal fibrosis. HE staining, original magnification: 100×.

MR imaging was performed with a 1.5-T magnet (Achieva, Philips Healthcare, Best, Netherlands). The IVIM diffusion imaging was based on a single-shot spin-echo type echo-planar sequence, with 15 b-values of 2, 0, 1, 15, 20, 30, 45, 50, 60, 80, 100, 200, 300, 600, 800 s/mm². This b-values series was designed aiming to overcome the perceived shortcoming of our initial report where b =0 s/mm² was not acquired (15), and the first b=2 s/mm² was used as a pre-scan to stabilize magnetization. SPIR technique (Spectral Pre-saturation with Inversion-Recovery) was used for fat suppression. Respiratory-gating was applied in all scan participants and resulted in an average TR of 1,600 ms, and the TE was 63 ms. Other parameters included slice thickness =7 mm and inter-slice gap 1 mm, matrix =124×97, FOV =375 mm × 302 mm, NEX =2, number of slices =6.

As described in our report (19), we performed a data quality assessment prior to IVIM analysis. Eighteen and 8 volunteers’ data were classified to be good quality and fair quality respectively. Eight, 8, and 3 patients were classified to be good quality, fair quality and insufficient data quality respectively, with the later 3 patients’ data excluded for IVIM analysis (Figure S2).

Figure S2 Diffusion MRI images of three patients excluded for analysis. (A) Patient-04. (*) denote the space between the liver dome and posterior chest wall. Note the change of the size of this space among images of different b-values, for example comparing (a) and (g). The dotted circle shows the low-signal hepatic veins, note the change of the hepatic vein demonstrations among images of different b-values; (B) patient-06. Note the sudden displacement of (c) and (d), and the gallbladder is no longer visible on (d, e, f). The gallbladder is visible again on (g, h, j), however, the size of the visible gallbladder differs among (h, j). The gallbladder is minimally visible on (k), and displaced out of this scan plane in (l, m); (C) patient-09. Note the gallbladder (*) and the liver fissure (arrow). Diffusion images of b-values=50, 80, 200, and 300 show apparent changes of liver position among these images.

For individual study subjects, poor image slices were additionally excluded, resulting a mean of 5.6 slices for volunteer and 4.9 slices for patients included for analysis. At least three fair quality slices were required to qualify for a subject’s inclusion in the analysis. No exclusion was made based on fitting curve appearances.

Regions-of-interests (ROIs) were placed to cover a large portion of right liver parenchyma while avoiding large vessels on b =15 s/mm² image of the selected b-value image series, with large vessels locations checked on b =0 s/mm² image. With the consideration of respiration induced position shift of the same slice data acquisition during different b-values, sufficient margins were allowed between the ROIs and the liver borders, large vessels and artifacts (Figure 1). ROIs were then copied and pasted on each corresponding image of each b-values. For ROI analysis, the IVIM parameters were calculated based on the mean signal intensity of the whole ROI, which offers better estimation than pixel-wise fitting when the signal-to-noise ratio (SNR) of images is low (20,21). The mean signal intensity of each ROIs was weighted by the number of pixels included in each ROI, then the average of the weighted mean signal intensity of individual slice’s ROIs was calculated to obtain the average signal value of the liver. All the study subjects’ results were measured twice by the same trained radiographer reader, and the resulting two measurements were used to assess intra-reader measurement reproducibility. The mean of the two measurements was then used as the result of the study subjects for further analysis.

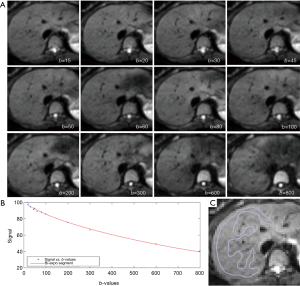

Figure 1 Relationship between diffusion weighted image and b-value. (A) Demonstration of a diffusion weighted images with twelve b-values from a participant; (B) signal and b-value relationship of the liver slice in C; (C) demonstration of a careful ROI drawing to avoid liver vasculature.

Curve-fitting algorithms were implemented in a custom program developed on MATLAB (Mathworks, Natick, MA, USA). In our pilot IVIM data analysis, we used the 14 b-value series of 0, 1, 15, 20, 30, 45, 50, 60, 80, 100, 200, 300, 600, 800 s/mm² for bi-exponential segmented fitting. It was found the fitting was unstable due to a lack of b-value points between b=1 s/mm² and b=15 s/mm². Later we shifted the b=2 s/mm² image to the third place of diffusion imaging series (therefore 15 b-values for curve fitting, i.e., 15 b-values series = 0, 1, 2, 15…). It was found that, despite the addition of b-value =2 s/mm² image, the fittings were still unstable, with large variations among healthy volunteers. Finally, it was decided to abandon the three images of b=0, 1, 2 s/mm², and b=15 s/mm² was used as the starting point for bi-exponential segmented fitting similar to our previous report (15,22). The signal value at each b-value was normalized by attributing a value of 100 at b=15 s/mm² [S_norm = (SI/SI₁₅) ×100, where S_norm is the normalized signal, SI=signal at a given b-value, and SI₁₅ =signal at b=15 s/mm²]. The thresholds of b=60 and 200 s/mm² were both tested for segmented fitting. For bi-compartmental model, the signal attenuation was modeled according to Eq. [1] (8):

where SI(b) and SI₁₅ denote the signal intensity acquired with the b-factor value of b and b =15 s/mm², respectively (8).

The estimation of Dslow was obtained by a least-squares linear fitting of the logarithmized image intensity at the threshold b-values greater than 60 or 200 s/mm² to a linear equation. The fitted line was then extrapolated to obtain an intercept at b=15 s/mm², and the ratio between this intercept and SI₁₅ gave an estimate of PF [figure 7 of reference (23)]. Finally, the obtained Dslow and PF were substituted into Eq. [1] and non-linear least-square fitted against all b-values to estimate Dfast using the Trust-Region algorithm.

For visual display, a three-dimensional tool was programed using IBM SPSS 23 for Windows (SPSS Inc., Chicago, IL, USA), and the measurements of Dslow, PF, and Dfast were placed along the x-axis, y-axis, and z-axis.

The correlations of PF vs. Dfast, Dslow vs. PF, and Dslow vs. Dfast were inspected graphically and Pearson correlation analysis was performed. For this purpose, the values of the three IVIM parameters were re-scaled, with the mean measures of PF, Dslow, and Dfast for all patients (n=16) re-scaled to be 1.

Results

The intraclass correlation coefficient (ICC) of intra-reader agreement was 0.925 for PF, 0.949 for Dfast, and 0.909 for Dslow respectively (individual’s measurement results shown in Tables S1,S2). The Coefficient of variances, (CoVs, standard deviation/mean) for PF, Dfast and Dslow in healthy volunteers for the first measurements when threshold b=60 s/mm², and for the means of the two measurements for threshold b=60 or 200 s/mm² are shown in Table 1. The mean of the two measurements for threshold b-value of 60 s/mm² showed smallest CoV and the measurements of threshold b-value of 200 s/mm² showed largest CoV, such favoring threshold b-value of 60 s/mm² and measuring twice.

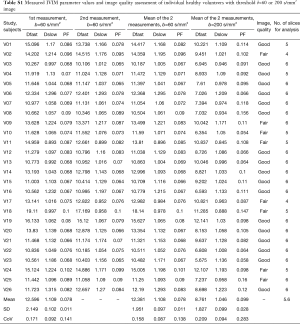

Table S1 Measured IVIM parameter values and image quality assessment of individual healthy volunteers with threshold b=60 or 200 s/mm² image
Full table

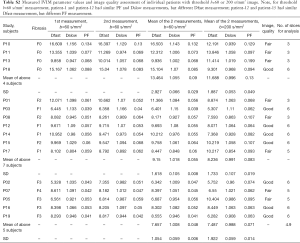

Table S2 Measured IVIM parameter values and image quality assessment of individual patients with threshold b=60 or 200 s/mm² image. Note, for threshold b=60 s/mm² measurement, patient-1 and patient-12 had similar PF and Dslow measurements, but different Dfast measurement; patient-12 and patient-15 had similar Dfast measurement, but different PF measurement.
Full table

Table 1 Coefficient of variance (CoV, SD/mean) for PF, Dfast and Dslow in healthy volunteers of three measurement approaches
Full table

The results by using b-value threshold of 60 or 200 s/mm² for the healthy volunteers, patients without fibrosis, and patients with liver fibrosis are shown in Table 2, and scattered plots for results of using b-value threshold of 60 or 200 s/mm² are shown in Figures 2 and 3. A comparison of Figure 2 and Figure 3 indicated the superiority of using threshold of 60 s/mm² compared with b-value threshold of 200 s/mm² for separating healthy volunteers and patients. Figure 2 shows PF offered best differentiation of the three groups, followed by Dfast. Table 2 shows smaller pts/vols ratio (mean measurement for patients divided by the mean measurement for healthy volunteers) for all the three parameters when b-value threshold of 60 s/mm² was used as compared with when b-value threshold of 200 s/mm² was used, therefore favoring b-value threshold of 60 s/mm². Classification and regression tree (CART) model showed when threshold b-value =60 s/mm² was applied, PF (PF <6.49%) could differentiate healthy livers and all fibrotic livers with 100% sensitivity and specificity.

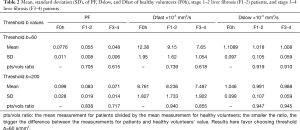

Table 2 Mean, standard deviation (SD), of PF, Dslow, and Dfast of healthy volunteers (F0h), stage 1–2 liver fibrosis (F1-2) patients, and stage 3–4 liver fibrosis (F3-4) patients
Full table

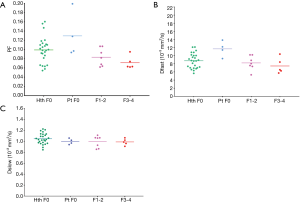

Figure 2 Scattered plots and mean of PF, Dslow, and Dfast of healthy volunteers (Hth), patients without liver fibrosis (PtF0), stage 1–2 liver fibrosis (F1-2) patients, and stage 3–4 liver fibrosis (F3-4) patients when threshold b=60 s/mm² is applied and the mean of two measurements is used.

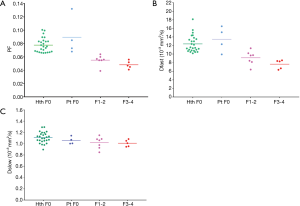

Figure 3 Scattered plots and mean of PF, Dslow, and Dfast of healthy volunteers (Hth), patients without liver fibrosis (PtF0), stage 1–2 liver fibrosis (F1-2) patients, and stage 3–4 liver fibrosis (F3-4) patients when threshold b =200 s/mm² is applied and the mean of two measurements is used.

By adjusting the viewing angle, the 3-dimensional visual tool demonstrated healthy volunteers and all patients with liver fibrosis could be separated (Figures 4,5). Notably the IVIM measures of the four patients without fibrosis resembled those of the healthy volunteers. Quantitative analysis with support vector machine (SVM) showed healthy volunteers and all patients with liver fibrosis (F1-4) were differentiated with a plane defined by (448.43*PF) +(0*Dslow) +(1*Dfast) −38.91=0.

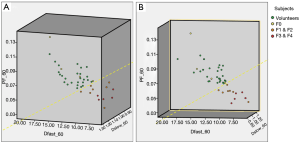

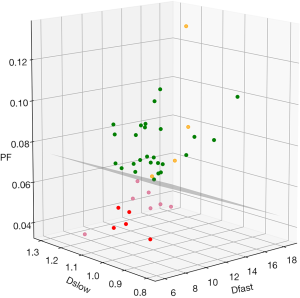

Figure 4 Three-dimensional display of healthy volunteer group (green dots), patients without liver fibrosis (yellow dots), liver fibrosis stage 1–2 patient group (orange dots), and liver fibrosis stage 3–4 patient group (red dots). Each dot represents one participant. The differentiation of volunteer group and liver fibrosis patient group can be visualized by rotating in 3-dimensional space (dotted yellow line). Note the distribution of patients without liver fibrosis resembles healthy volunteers.

Figure 5 Three-dimensional display of healthy volunteer group (green dots), patients without liver fibrosis (yellow dots), liver fibrosis stage 1–2 patient group (pink dots), and liver fibrosis stage 3–4 patient group (red dots). Each dot represents one participant. The volunteer group and liver fibrosis patient group can be separated by a defined plane. Note the distribution of patients without liver fibrosis resembles healthy volunteers.

The correlations of PF, Dfast and Dslow are graphically demonstrated in Figure 6. Figure 6A shows most of the PF measurements smaller than 1 were associated with Dfast smaller than 1, and vice versa. The lowest PF measurement was associated with the lowest Dfast measurement, and highest three PF measurements were associated with the highest three Dfast measurements. On the other hand, Figure 6B and C show the associations between Dslow vs. PF or between Dslow vs. Dfast were scattered. A number of Dslow measurements larger than 1 were associated with PF or Dfast measurements smaller than 1. Pearson correlation coefficient r was 0.865 (P<0.001) for PF vs. Dfast, 0.288 (P=0.28) for Dslow vs. PF, and 0.36 (P=0.17) for Dslow and Dfast (Figure 6D,E,F).

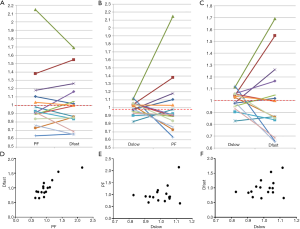

Figure 6 Graphical demonstration of the correlation among PF, Dfast, and Dslow. The mean measures of PF, Dslow, and Dfast for the 16 patients were re-scaled to be 1.

Discussion

Currently there is no established non-invasive diagnostic method to detect and grade early stage liver fibrosis (24). The most clinically used imaging technique for evaluation of liver fibrosis is ultrasound elastography, while the investigational technique of MR elastography has undergone many promising clinical trials (25-30). As IVIM imaging sequence is widely available in clinical MR scanners and there is no need for external device, it represents a convenient alternative to existing techniques for liver fibrosis evaluation. In our earlier study with 16 healthy volunteers and 33 hepatitis-b liver fibrosis patients (among them 15 cases were stage-1 liver fibrosis patients), we demonstrated that a combination of PF, Dslow and Dfast can be used to separate fibrotic livers completely from healthy livers with (15,16). Our this study, using a new set of healthy volunteers (n=26) and patients’ data (n=16), provides a confirmation of our previous report (15).

The value of IVIM parameters depend on the number and distribution of b-value series, as well as the threshold b-value when segmented fitting is applied (31-33). Moreover, it has been noted that the dependence of PF, Dslow, and Dfast on threshold b-value differs between healthy livers and fibrotic livers, with the healthy livers showing a higher degree of dependence (23). Since we used b=15 s/mm², instead of b=0 s/mm², as the first point for curve fitting, the PF and Dfast measurements were substantially lower than many other reports which included b=0 s/mm² image (14). Owing to the first b-value for curve fitting was 15 s/mm² instead of 10 s/mm² as in our last study, the healthy volunteers’ PF, Dfast and Dslow values were even smaller for this study than our last study [when threshold b-value =60 s/mm²: PF =0.109±0.017, Dfast =19.15±3.67 [×10^-3 mm²/s, and Dslow =1.28±0.22(×10^-3 mm²/s)] (23). To improve the data acquisition protocol of our previous study (15), in this study we used 12 instead of 10 b-values, mainly we added two intermediate b-values of 30 and 50 s/mm². This might have increased the fitting stability as demonstrated by the smaller CoV for healthy volunteers’ IVIM measurements if we take the assumption that IVIM measurement variations among the healthy volunteers are more likely being due to measurement imprecision rather genuine physiological difference among the volunteers. For the first ROI-based measurement, the CoVs for healthy subjects in our current study were 0.14, 0.17, 0.09, for PF, Dfast, and Dslow respectively (threshold b=60 s/mm²), slightly better as compared with the CoVs for healthy subjects of 0.16, 0.19, 0.17 for b=60 s/mm² in our previous study [computed from Table 1 of reference (19), only one time ROI-based measurement] (15). We have also recently reported better scan-rescan repeatability and scan-rescan reproducibility for both PF and Dslow when b=50 or 80 s/mm² was used as the threshold compared with when b=200 s/mm² was used as the threshold (19). The same as our last study (15), among the three IVIM parameters, PF also showed best diagnostic performance in this study. According to previous estimation, Dfast should be the most sensitive parameter for liver fibrosis evaluation (14,15,23); however, precise measurement of Dfast is difficult and this current study did not include sufficient very low b-values for precise Dfast quantification (33,34). More b-values and applying an optimized b-value distribution shall be able to reduce errors in IVIM parameter estimation.

One of the intriguing findings is that both our current study and our previous study (15), which both demonstrated IVIM diffusion imaging’s high performance for detecting early liver fibrosis, did not use image of b=0 s/mm². As demonstrated in Figure S3, the signal difference between b=0 s/mm² image and b=1 or 2 s/mm² images can be dramatic, particularly the vessels show high signal without diffusion gradient while show dark signal when the diffusion gradient is on even at b=1 s/mm². This is likely to cause fitting instability. When we included b=0 s/mm² image for curve fitting, it led to large measurement variations among healthy subjects (large CoV), and patients’ measurements partially overlapped with the healthy subjects’ results, thus the data of these two groups could not be completely separated. By using b=15 s/mm² image as the starting point for curve fitting, we reduced the measurement variations among healthy subjects (smaller CoV), and thereby allowed healthy volunteers patients results and fibrosis results to be separated. The combination of our these two studies may suggest the appropriateness to analyze IVIM data without b=0 s/mm² image. Whether to densely sample very low b-values (such as many b-values below 10 s/mm²) will allow more precise fitting of very fast motion compartments require further studies (33).

Figure S3 IVIM diffusion images with b-value =0, 1, 2, 15 s/mm². The signal difference between b=0 s/mm² image and b=1 or 2 s/mm² images are dramatic, particularly the vessels show high signal without diffusion gradient while showing dark signal when the diffusion gradient is on even at b=1 s/mm².

Another interesting observation of our study is that the IVIM measures of the three patients of chronic viral hepatitis-b without fibrosis and one patient with simple steatosis resembled those of the healthy volunteers. Though the number of these patients was very small, our results tentatively suggest that while pathological process of fibrosis can drive down the liver blood perfusion (as shown with decreased Dfast and PF), mere chronic viral hepatitis-b without fibrosis could have normal liver blood perfusion as well as diffusion.

The segmented fitting analysis remains the most commonly used method for liver IVIM diffusion analysis, and a b-value of 200 s/mm² has been commonly selected as the threshold value as perfusion component’s influence on signal decay can be neglected for b-values ≥200 s/mm² (14). The optimal threshold b-value for liver IVIM analysis remain undecided. In our recent report it was empirically demonstrated that compared with the commonly used threshold b-value of 200 s/mm², a b-value of 60 s/mm² increases the mean distance between healthy liver datapoints cluster and fibrotic liver datapoints cluster (23). This study, using a new set of healthy volunteers and patients’ data, confirmed the superiority of using threshold b-value =60 s/mm² instead of threshold b-value =200 s/mm² for detecting liver fibrosis.

Conceptionally, PF and Dfast are closely correlated. Despite the potential measurement imperfection, our results indeed confirmed this point with a high Pearson correlation coefficient r of 0.865 (P<0.001). On the other hand, the preliminary results in this study showed, for early and intermediate stage liver fibrosis, the correlation between slow diffusion compartment (Dslow) and fast diffusion compartment (PF and Dfast) were not statistically significant. Though for the 12 patients of the current study, PF alone provides sufficient separation between healthy subjects and patients, it is expected analysis incorporating all three IVIM parameters would be useful for marginal cases (15) (Table S2).

This study demonstrated good ROI measure-remeasure reproducibility with the same reader, with ICC of 0.925 for PF, 0.949 for Dfast, and 0.909 for Dslow respectively. However, Tables 1,2 show notable difference for a few individual’s measure-remeasure results. ICC can be deceivingly high when the range of the measurements is wide as it was the case for the IVIM parameters in this study. Diffusion imaging has several limitations, mostly attributable to the EPI (echo planar imaging) based nature of the sequence. EPI diffusion images are commonly associated with low signal-to-noise ratio and is susceptible to a number of artifacts, including blurring, ghosting and distortions. Uniform fat suppression is also a challenge. Despite respiration gating, the liver has physiological motion during the whole respirational cycle; therefore motion (liver position displacement) is inevitable between images of different b-values (14). Thus it is generally perceived that ROI drawing is a subjective process, and intra-reader/inter-reader difference would be expected. Performing multiple measurements and taking the mean value may be one approach to partially overcome the subjectivity associated with the ROI placement. Approaches to develop reliable and reproducible automatic ROI drawing will be of high value.

This study has some limitations. The patient number remains small. We started this study by initially scanning 10 healthy volunteers, then before the closure of this study we tried to compensate the small patient number by recruiting 16 more healthy volunteers. To our satisfaction, during the course of this study, the newly recruited healthy volunteers’ IVIM measurement all fell within the data cluster of the other existing healthy volunteers. While the combination of this study’s results and our previous results (15) can increase our confidence for detecting liver fibrosis by IVIM diffusion imaging, the results for the three patients of chronic viral hepatitis-b without fibrosis require further validations. Another limitation is that all our patients had liver fibrosis due to viral hepatitis-b. Whether results of our study can be generalized to liver fibrosis of other causes, such as NASH, remains to be validated. Prevalence of NAFLD is expected to rise given the high prevalence of obesity and type-2 diabetes worldwide (35). It has been noted that liver fibrosis is the single most important factor that determines long-term outcome in NAFLD patients (36). The detection of liver fibrosis in NAFLD is of high clinical importance. One more limitation of the study is that our volunteers were on average younger than the patients. Certainly, the b-value distribution in this study is not ideal, at this stage we would think that adding very low b-values such as 3, 5, 8 10 s/mm² etc would be valuable for better quantification of both Dfast and PF (33,34). With IVIM imaging protocol of more very low b-values and better image post-procession, diagnosis of early stage fibrotic liver is likely to have increased reliability. Other approaches for improved data post-processing may include motion correction, de-noising as well as better segmentation to statistically remove ill-fitted pixels prior to ROI analysis, and employ better fitting strategies (33). It is also likely that a multi-parametric approach will have even better accuracy for evaluating the spectrum of chronic liver disease (37-39). The use of Bayesian prediction, incorporating relevant findings from the available methods, is also a promising approach (40). The Bayesian prediction provides probabilities and allow weighting of the different methods, such as IVIM (14,15), liver T1/T2 relaxivity (38,41,42), T1rho (43-47) and elastography (28-30) readouts, therefore realizing multi-parameter diagnosis.

In conclusion, this study confirmed our previous report that IVIM diffusion MR imaging can detect early stage liver fibrosis; and when the low b-value data sampled is insufficient, discarding the image of b=0 s/mm² for bi-exponential segmented fitting may improve fitting stability. For the b-value distribution used in this study, a threshold b-value of 60 s/mm² is strongly preferred over a threshold b of 200 s/mm². We acknowledge that the findings in this study require further validation.

Acknowledgements

Funding: This work was partially supported by the Sanming Project of Medicine in Shenzhen (SZSM201612053).

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The study protocol was approved by the Ethics Committee of the Third People’s Hospital of Shenzhen (No. 2016-006), with written informed consent obtained for all participants.
