Cerebral protection devices for transcatheter aortic valve replacement

Introduction

Aortic stenosis is the most prevalent primary valve disease in developed countries. Its prevalence is increasing due to population aging (1,2). Transcatheter aortic valve replacement (TAVR) is a sterling therapy for symptomatic patients with severe aortic stenosis and high or intermediate surgery risk (1). The number of procedures has increased exponentially and TAVR is expanding to younger and lower risk patients (3,4).

Despite the development of new-generation TAVR devices and enhanced operator skills, cerebrovascular events (CVE) are one of the most severe complications, increasing morbi-mortality (5,6). CVE might be under reported because there are few available studies that use rigorous neurological clinical assessment (7). Several imaging studies showed that most of CVE after TAVR has a probable embolic etiology (8). Usually, risk of CVE ranges from 2.7% to 5.5% at 30 days (9). However, some studies have reported up to 10% stroke rate after a precise neurological assessment (10).

As TAVR expands to younger and lower risk patients, the prevention of stroke plays an increasingly important role (11). Cerebral protection devices (CPD) were designed to reduce the risk of CVE during TAVR. Our objective was to describe the etiology, incidence, risk factors and impact of CVE after TAVR and summarizes current evidence of CPD in this setting.

CVEs during TAVR

CVE have been under-diagnosed after TAVR, mainly due to the absence of a standardized definition and classification (9). Definitions according the recommendations of the Valve Academic Research Consortium (12) represent one step forward in standardization:

• Transient ischemic attack (TIA): neurological deficit which solves fast (<24 h), without evidence of tissue injury in imaging study;
• Stroke: new neurological deficit with a longer duration of 24 h, or <24 h associated with cerebral injury in imaging study.

Moreover, CVEs can also be classified in accordance to temporality: acute (≤24 h), subacute (1–30 days), and late (>30 days) events (8).

The incidence of CVE after TAVR shows a significant variability, ranging from 1 to 11% (13). Studies based on the severity of CVE showed that disabling stroke presented higher incidence (58%) compared to non-disabling (26%) and TIA (16%) (8). A recent meta-analysis showed a median 30-day stroke rate of 3.1–3.3% following TAVR, with a 3.5-fold increase in mortality at 1-year (14,15).

Peri-procedural CVE are likely to be derived from embolisms associated with manipulation maneuvers and calcium of the stenotic aortic valve. Van Mieghem et al. (16) showed that embolic debris obtained with a CPD during TAVR are usually small with a median size of 1mm. Studies based on diffusion-weighted magnetic resonance imaging (DW-MRI) reported that 60–90% of patients showed new silent brain lesions after TAVR, regardless of vascular access (17-19). These lesions were multiple and diffuse suggesting an embolic origin. Studies with transcranial doppler reported high intensity signals (HITS) in the middle cerebral artery (MCA) especially during valve positioning and deployment (20).

Known predictors of CVE after TAVR are the severe calcification of the valve, manipulation maneuvers and mechanical procedural factors (5). Porcelain aorta is associated with enhanced cardiovascular risk but surprisingly, unlike surgical aortic valve replacement, it does not increase the incidence of CVE.

Finally, CVE after TAVR is an independent predictor of morbi-mortality during the follow-up and it has an important impact on life quality, impairing cognitive function and daily abilities (8,9). A classical meta-analysis showed a 3.5-fold higher 30-day mortality after stroke (21); while a recent meta-analysis, including more than 29,000 patients, reported a 6-fold higher mortality (22).

Neurological protection devices

Considering that the majority of CVE after TAVR has an embolic etiology, the strategy to reduce CVE is focused on the temporary implantation of mechanical barriers such as cerebral embolic protection devices (CPD) (8). These devices are designed to cover the ostium of the supra-aortic branches in the aortic arch. They are characterized by a low-profile allowing the implantation by the radial artery, filter capabilities and stability during the procedure (9). Despite all this, atherosclerotic plaques close to the ostia of the supra-aortic vessels hinders the correct positioning and stabilization of the device so its use can be challenging (8). Rigorous and careful study of the CT is the key factor in strategic planning.

The CPD can be classified in filters or deflectors. The main characteristics of the CPD are summarized in Table 1. Filter devices can retain embolic material; while deflector devices reject the debris towards the descending aorta (23). Actually, there are five types of CPD tested during TAVR (23).

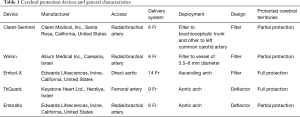

Table 1 Cerebral protection devices and general characteristics
Full table

Deflector-type systems: Embrella (Edwards Lifesciences, Irvine, CA) and TriGuard (Keystone Heart Ltd, Caesarea, Israel). Filter-type systems: Sentinel (Claret Medical Inc., Santa Rosa, CA), Embol-X (Edwards Lifesciences, Irvine, CA) and Wiron (Allium Medical, Inc., Caesarea, Israel).

Claret sentinel device

Sentinel Cerebral Protection System (Claret Medical, Inc.; Santa Rosa, California, United States) is a dual system filter basket within a 6 Fr delivery catheter placed percutaneously usually from the right radial over a 0.014-inch guide-wire (Figure 1). It consists of a proximal filter (diameter of 9–15 mm) delivered in the brachiocephalic artery and a distal filter (diameter of 6.5–10 mm) delivered in the left common carotid artery (Figure 2). Using an articulating sheath, the device can be accommodated into the aortic arch’s anatomy (Figure 3) (24). Sentinel is the most widely used CPD; it is positioned before TAVR and is withdrawn into the catheter and removed after valve implantation (11,23) (Figure 4). Sentinel deployment usually takes less than ten minutes in 91% of patients undergoing TAVR (9) (Table 1).

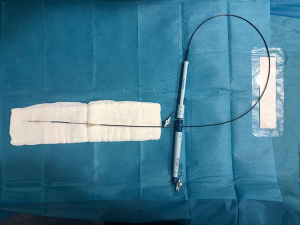

Figure 1 Sentinel cerebral protection system: device.

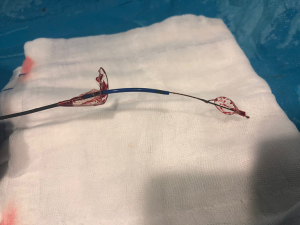

Figure 2 Sentinel cerebral protection system: detail of proximal and distal filters.

Figure 3 Sentinel device implantation (24). Available online: http://www.asvide.com/watch/32994

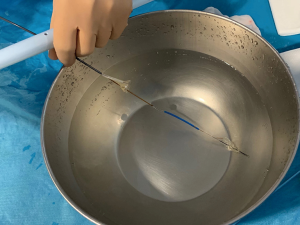

Figure 4 Sentinel cerebral protection system: filter removal.

Using the Sentinel device, the diameter of the supra-aortic vessels must be previously measured by CT because proximal and distal filters are developed to be accommodated within a brachiocephalic artery of 9 to 15 mm and a common carotid of more than 3 mm. Live X-ray and fusion imaging of CTA-derived 3D anatomical models might be helpful to facilitate the deployment and save contrast dye (25). It is important to point out that left vertebral artery, keeps unprotected. This fact could be solved with the use of the Wirion Filter (Allium Medical, Inc.; Caesaria, Israel) deployed into the left vertebral artery (23). Sentinel device has only one available size so complete sealing might not be obtained in all aortic anatomies.

Sentinel is the most studied CPD and has been evaluated in more than one thousand patients. First generation of this device was tested in 2 randomized controlled trials (MISTRAL-C and CLEAN-TAVI) (26,27).

The MISTRAL-C (27) was a multicenter randomized study which included 65 patients. The objective was to compare the number or new cerebral lesions assessed by DW-MRI and the evaluation of neurocognitive function before TAVR and 5 days after TAVR. The filter showed debris in all the patients in the device group. The primary end-point (percentage of patients with new cerebral lesions) was numerically inferior in the device group (73%vs. 87%; P=0.31) with lower volume of the brain lesions (95 vs. 197 mm³; P=0.171). This study showed a significant decrease of patients with more than 10 cerebral lesions (20%vs. 0%; P=0.03) and less cognitive disability (4%vs. 27%; P=0.017, Table 2).

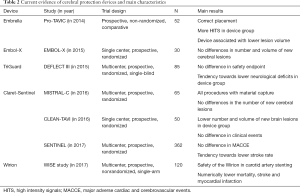

Table 2 Current evidence of cerebral protection devices and main characteristics
Full table

The CLEAN-TAVI (26), which randomized 100 patients, showed that new cerebral lesions assessed by DW-MRI two days after TAVR. The device group was associated with a decrease of the onset of new brain lesions in protected territories (4 vs. 10; P<0.001) and throughout the brain (8 vs. 16; P=0.002). The volume of the brain lesions was also smaller in the device group (466 vs. 800 mm³; P=0.02) (Table 2).

Sentinel device was evaluated in 2017 in the largest randomized study to date on CPD. The SENTINEL trial (10) was a multi-center, prospective, single blinded, randomized controlled trial, including 363 patients who underwent TAVR from 19 centers in Germany and US. Patients were randomized 1:1:1 in 3 groups: safety group with the device; and 2 imaging groups which randomly underwent TAVR with or without the CPD. Neurocognitive evaluations and neurologist assessment were meticulously revised before, at 30-day and 90-day follow-up. The CPD was successfully positioned in all the patients, and showed embolic material in 99% of patients. Primary efficacy end-point (volume of new brain lesions) was comparable between groups (102.8 vs. 178 mm³; P=0.33). The rate of stroke was numerically inferior in the CPD group although it did not reach a statistically significant difference (5.6% vs. 9.1%, P=0.25). The results suggest that Sentinel may be safely used and retained debris in most of patients, but without a significant decrease in the onset of new cerebral volume lesion assess by MRI; furthermore, it did not lead to better neurocognitive function. Table 2 shows the main scientific evidence on Sentinel device and another CPD.

Wirion embolic protection system

The Wirion (Allium Medical Inc.; Caesaria, Israel) is an embolic protection system usually used when carotid artery undergoes stenting which decreases the rate of embolic events (28). Placing the CPD into the left vertebral artery in combination with the Sentinel device, can offer a complete cerebral protection in patients who undergo TAVR (23).

The WISE study (Wirion Study Europe) was a multicenter, non-randomized, trial, which included 120 high surgical risk patients who underwent carotid artery stenting. The primary endpoint (a composite of stroke, myocardial infarction (MI) and death at 30 days) was compared with historical controls results, showing numerically inferior mortality (0% vs. 1.7%, P=0.21), stroke (2.5% vs. 4.6%, P=0.18), and MI (0.8% vs. 1.5%, P=0.50) with procedural and clinical success of 98.3% and 96.6%, respectively. The authors concluded that the use of the Wirion in patients with high surgical risk was effective and safe and could be associated with a decrease in the number of complications (28).

Embol X device

Embol-X (Edwards Lifesciences, CA) is a CPD filter system for cardiac surgery. It requires a direct access to the ascending aorta. A new device version was tested in transaortic TAVR approach with full brain coverage (23) (Table 1).

Wendt et al. (29) conducted a randomized study which included 30 patients (14 patients with CPD and 16 patients without CPD). The device group showed a non-significant decrease in the presence of new cerebral lesions (57% vs. 69%; P=0.70). The device group showed lower lesion volume in the area supplied by the MCA (33±29 vs. 76±67 mm³, P=0.04) (29) (Table 2).

TriGuard device

The TriGuard device (Keystone Heart Ltd., Herzliya, Israel) is a deflector device developed to reject embolic material during TAVR towards the descending aorta. This deflection device is the only one which offers a full brain coverage (11,23). It is placed through the three brain arteries and is held up by stabilizers (23).

The TriGuard device is advanced through a 9 Fr arterial sheath that is placed into the contralateral femoral artery and is deployed to cover the ostia of the 3 supra-aortic trunks (11). Its new generation, the TriGuard 3, incorporates a design by an over-the-wire via a 6 Fr femoral sheath (9) (Table 1). The DEFLECT I (30) and DEFLECT II (31) are studies which showed that the TriGuard devices of first and second generation are safe and effective.

The DEFLECT III (32) is a multicenter, randomized controlled study, including 85 patients, which assessed the efficacy and safety of the TriGuard in TAVR. This study used neurocognitive evaluation and DW-MRI assessment at baseline, before discharge and at 30-day after TAVR. Patients were randomized into 2 groups: CPD group (46 patients) or unprotected group (39 patients). Full coverage was achieved in 89% of patients. Safety endpoint was not different between both groups occurring in 21.7% in the TriGuard and 30.8% in the control group, P=0.34. The use of this device was associated with a non-significant decrease in neurological impairment (3.1% vs. 15.4%; P=0.16), a non-significant decrease of lesions volume and a better efficiency on a retard memory task (P=0.028) (Table 2).

Embrella device

The Embrella (Edwards Lifesciences; Irvine, California, United States) was a filter developed to deflect embolic material during TAVR (11). This device is inserted by right radial or brachial approach with a 6 Fr sheath (11). The distal end was an oval shaped nitinol frame covered with a porous membrane. The CPD was placed through the greater curvature of the aorta, safeguarding the brachiocephalic and left common carotid artery. Nowadays, this CPD is no longer under development (23) (Table 1).

The PROTAVI-C trial assessed the Embrella device in a study that included 52 patients (42 patients with device and 12 without it) (33). Patients underwent procedural transcranial Doppler and DW-MRI (at baseline, 7 and 30 days). The device did not show prevention of cerebral emboli during TAVR and it presented association with a number of HITs which were much higher than in the control group (632 vs. 279; P<0.001). Both groups developed new cerebral lesions assessed by DW-MRI at 1 week after TAVR. However, ischemic lesions were not observed when patients underwent DW-MRI at 30 days. Besides this, it was not associated with cognitive or neurological impairment. The CPD group showed a significant lower volume of lesions (P=0.003, Table 2).

Conclusions

Despite great technological advances and the wide experience of the operators, CVE is a severe complication associated with great impact on morbidity, mortality and quality of life. The majority of CVE occurs immediately after TAVR and are due to cerebral embolization. Clinical impact of these “silent” brain lesions must be well defined, particularly for younger patients undergoing TAVR.

CPD were developed as a new therapy to prevent the embolization of debris to the brain. They showed to be safe and effective in reducing cerebral embolisms although current available trials have not been designed to detect differences on clinical impact.

Cerebral protection becomes really relevant since TAVR is expanding to younger and lower risk patients. Further large randomized controlled trials, properly powered with meticulous clinical assessment, are required in order to determine the real role of CPD during TAVR.
