A new management strategy for renal angiomyolipomas: superselective arterial embolization in combination with radiofrequency ablation

Introduction

Renal angiomyolipoma (RAML) is a benign tumor of the kidney that consists of atypical blood vessels, smooth muscle, and adipose tissue (1,2). The treatment of RAML is related to tumor size and the presence of symptoms (3). Regular clinical follow-up is available without special treatment for asymptomatic RAML <4 cm in diameter, while partial nephrectomy or selective arterial embolization (SAE) is the preferred treatment for patients with RAML ≥4 cm in diameter and for those with symptomatic RAML (4,5). According to the 2012 International Tuberous Sclerosis Complex Consensus Group surveillance and management recommendations (6), SAE is the first-line treatment for RAML causing acute bleeding. However, multiple postoperative complications, renal impairment, recurrence, and retreatment after embolization remain urgent problems. In recent years, the efficacy and safety of percutaneous ablation for RAML have been gradually confirmed (1,7,8). The introduction and clinical application of angio-computed tomography (angio-CT) devices have enabled the integration of SAE and radiofrequency ablation (RFA), improved imaging quality, and made operations simpler and safer (9,10). The present study retrospectively analyzed the results from 6 patients with RAML treated with SAE+RFA, to evaluate the feasibility, safety, and efficacy of this new combination approach.

Methods

General information

From March 2016 to October 2017, we implemented combined SAE and RFA treatment in 6 patients with RAML. The present study was undertaken in accordance with the Helsinki Declaration as revised in 2013, approved in advance by the hospital ethics committee, and informed consent was obtained from all participants prior to treatment. Among the 6 patients, 2 were male, and 4 were female. The ages ranged from 31 to 69 years, with a median age of 49 years. The tumor sizes ranged from 4.7 to 7.2 cm, with an average of 5.9 cm. The maximum diameters of the lesions were 6.3, 7.0, 5.2, 4.7, 7.2, and 5.5 cm. Two patients had low back pain, 1 had hematuria, and the other 3 were asymptomatic. Two patients had the lesion located in the renal hilum, 2 in the upper pole of the kidney, 1 in the middle of the kidney, and 1 in the inferior pole of the kidney. All patients underwent contrast-enhanced CT or contrast-enhanced magnetic resonance imaging (MRI) of the kidney before operation. All patients were diagnosed with renal hamartoma by 2 senior radiologists based on the typical imaging findings. The patients’ routine blood parameters, liver and kidney function, and coagulation function were normal, and none of them had hypertension, myocarditis, or myocardial infarction.

Devices and instruments

Selective renal artery embolization and RFA were performed under the guidance of Angio-CT (SIEMENS MIYABI), which was a combination of a Siemens Artis zee DSA machine and a Somatom Emotion 16-row spiral CT scanner (Siemens Medical Solutions AG, Erlangen, Germany). The RF device used was a US 1500 RITA RF system (Model 1500; RITA Medical System, Mountain View, CA, USA), and the RF needle was a RITA RF ablation electrode needle.

Treatment strategy

The Angio-CT consists of DSA and CT sharing a single treatment bed. SAE was performed under DSA guidance, and CT-guided RFA was carried out immediately after without moving the patient (Figure 1).

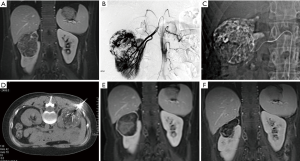

Figure 1 Patient 2, a 53-year-old female, underwent combined superselective arterial embolization (SAE) combined with radiofrequency ablation (RFA). (A) The patient was diagnosed with angiomyolipoma in the superior pole of the right kidney; (B) the digital subtraction angiography-guided angiography showed tumor staining; (C) SAE was performed; (D) computed tomography-guided radiofrequency ablation was carried out immediately after SAE; (E) contrast-enhanced magnetic resonance imaging (MRI), performed 3 months after surgery, showed that the enhanced part of the original lesion was reduced significantly, and mass-like uniform fat signals were seen in the lesion; (F) the contrast-enhanced MRI, performed 33 months after surgery, showed that the original lesion continued to shrink without enhancement, and patchy fat signals were seen in the lesion.

In step 1 (SAE), the patient was placed in the supine position, local anesthesia with 1% lidocaine was applied to facilitate a retrograde femoral artery puncture, and a 4F sheath and a 4F angiography catheter were placed. Angiography of the abdominal aorta and renal arteries was performed (Figure 1B) to identify the arteries supplying blood to the tumor, and a superselective microcatheter was advanced into the target vessel. After the proper positioning was confirmed by contrast injection, bleomycin-iodinated oil was slowly injected into the tumor nest (Figure 1C). Polyvinyl alcohol particles were used to consolidate embolization. For cases with a relatively large arteriovenous fistula or aneurysm, coil embolization was added. The treatment was terminated after angiography confirmed excellent deposition of the iodized oil or disappearance of the tumor staining.

Step 2 (RFA) took place immediately after chemoembolization. The DSA display screen was removed, and the C-arm of the DSA was moved toward the patient’s foot to make room for the CT scan. After the CT scan, according to the tumor size, location, adjacent relationship, effect of intraoperative lipiodol deposition, and outcome of superselective embolization of the feeding artery during the SAE procedure, the imaging workstation was used to design and determine the target, path, angle, and depth of needle puncture for the RFA. Surface marking was then carried out. The puncture site was sterilized routinely, and 1% lidocaine was used for local anesthesia. The RFA electrode needle was then advanced until the needle tip reached the boundary of the RAML. A CT scan was carried out at least once during needle insertion to confirm the position of the needle tip. After the RFA needle reached the target point, another CT scan was taken to confirm successful placement of the RFA needle, and RFA was performed on the lesion (Figure 1D). Real-time monitoring of the temperature and impedance of the lesion tissue was carried out, and the output power was adjusted according to the feedback. The treatment power ranged from 140–200 W. Overlapping ablation was performed to ensure complete ablation of the area surrounding the tumor. Ablation of each site lasted for 10–15 minutes. At the end of the ablation, the needle trajectory was ablated to reduce the risk of bleeding. Another CT scan was taken to observe the presence or absence of active bleeding and surrounding organ damage.

Follow-up and efficacy evaluation

Before surgery, the serum creatinine level and urea nitrogen level were measured, and a routine urine test was performed. A routine urine test was repeated each day after the operation. If findings were abnormal, the routine urine test was carried out continuously until the result became normal or other causes were identified. The serum creatinine level was measured on the 1^st and 3^rd day after surgery, and the results were compared with the preoperative level. Patients were followed up for 21–39 months. CT or MRI scan was performed every 3 months after surgery to detect any changes in the tumor and evaluate the therapeutic effect. According to the standardization of terminology and reporting criteria for image-guided tumor ablation (2009 and 2014) (11,12), efficacy was defined as the disappearance, degradation, and reduction of lesions or the lack of contrast-enhanced signs on contrast-enhanced CT scan or contrast-enhanced MRI scan. During the follow-up period, if the original lesion appeared to have a new blood supply, or a new nodule appeared close to the original lesion with confirmation by contrast-enhanced CT or MRI scan, the result was considered as local recurrence or residual tumor.

Statistical analysis

SPSS 24.0 (IBM Corp., Armonk, NY, USA) was used for data analysis. The mean and median of the measured values were calculated and represented as mean ± standard deviation (x ± sd). The paired sample t-test was used for comparison, and P<0.05 was considered to be statistically significant.

Results

Success rate of surgery

All 6 patients underwent successful treatment as planned. Both SAE and RFA procedures were performed by the same experienced doctor (FY Liu) and assistants, resulting in superselective cannulation into the tumor feeding arteries and successful needle puncture into the target lesion during RFA. The success rate of both SAE and RFA procedures was 100%.

Intraoperative and postoperative complications

Pain was the most common intraoperative side effect during the combined SAE and RFA procedure. In the 6 patients, 1 had mild pain, 4 had moderate pain, and 1 had severe pain. In the cases with severe intraoperative pain, morphine injection was given to relieve pain, and oxycodone hydrochloride tablets or morphine was given after surgery. Embolism/ablation syndrome developed in all 6 patients after surgery. The main symptoms were fever (below 38.5 °C), low back pain, fatigue, and general malaise. These symptoms were managed by appropriate symptomatic treatment. On the first postoperative day, the serum creatinine level increased slightly compared with the preoperative level to as high as about 27%, which was still within the normal range, but practically returned to the preoperative level on the 3^rd day after surgery (Table 1). No serious complications such as ectopic embolism, renal abscess, or renal failure were observed.

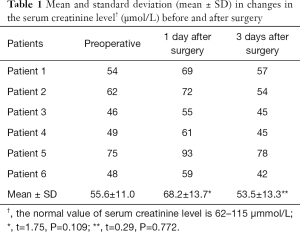

Table 1 Mean and standard deviation (mean ± SD) in changes in the serum creatinine level^† (µmol/L) before and after surgery
Full table

Postoperative imaging changes and outcomes

The average follow-up duration was 29.5±6.12 months. During the follow-up, the clinical symptoms caused by RAML were significantly reduced or disappeared (Table 2). The maximum diameter of the tumor before treatment was 4.7–7.2 cm, with an average of 5.9±1.01 cm, while the maximum diameter of the tumor at the last follow-up visit was 3.1±0.60 cm, which was significantly smaller than that before treatment (t=5.83, p<0.001). CT or MRI performed three months after the operation showed a 22–38% reduction in the maximum diameter of the tumor. The contrast-enhanced scan showed that the enhanced part of the original lesion disappeared, and the renal parenchyma was full of even fat signals. The maximum diameter of the tumor was reduced by 36–61% at the last follow-up. No enhanced lesions were observed, and 5 patients had decreased fat density. New enhanced lesions and fat tissues without enhancement were observed in 1 patient at the site of the original lesions (Figures 1,2).

Table 2 The length of follow-up (in months) and changes in maximum tumor diameter (cm) before and after surgery
Full table

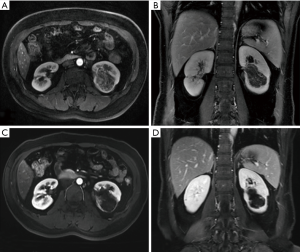

Figure 2 Patient 5, a 36-year-old female, underwent combined superselective arterial embolization (SAE) combined with radiofrequency ablation (RFA). (A,B) The patient was diagnosed with angiomyolipoma by MRI; (C,D) the contrast-enhanced MRI, performed 38 months after SAE + RFA, showed that the original lesion continued to shrink without enhancement.

Discussion

Due to the presence of immature vascular components, with the enlargement of the tumor, RAML may induce intratumoral aneurysms, subsequent intratumoral hemorrhage, or even tumor rupture, resulting in massive bleeding, and can thus endanger the lives of patients (1,2,13). The probability of bleeding in RAML is positively correlated with tumor size, and as the tumor volume increases, the space-occupying effect causes a series of symptoms such as low back pain, hematuria, and inferior vena cava thrombosis (14,15). De Luca et al. (5) recommended being on alert for spontaneous rupture of the tumor when the maximum diameter of the tumor is >4 cm. With the development of medical science and the improvement in people’s living standards, the risk of bleeding and the space-occupying effect of RAML require a more prospective management strategy. Thus, we adopted the method of SAE+RFA (16).

SAE is a widely accepted intervention for the treatment of symptomatic RAML and a prophylactic treatment for asymptomatic RAML >4 cm (17). However, some scholars (18) who investigated the clinical outcome of SAE treatment for symptomatic RAML found that the vascular tissue in the tumor is most sensitive to embolization, and the tumor shrinkage is mainly due to the large reduction in vascular components and smooth muscle atrophy. Because of the different proportions of blood vessels, smooth muscles, and fat in different tumors, the degree of tumor shrinkage after SAE treatment also differs; in particular, tumors with high fat content do not show significantly reduced volume (19,20). We therefore decided to combine SAE therapy with RFA because our experience and published data (1,17-20) suggest that treatment with SAE alone may not result in rapid tumor shrinkage. We did not apply SAE and RFA sequentially, but used both immediately, as sequential therapy may risk the disappearance of lipiodol or the granular embolic agent, the formation of newly-developed collateral vessels, and the recanalization of the embolized blood vessels. In addition, performing CT-guided RFA immediately after SAE is highly preferred among interventional doctors because of the gradual popularization of the application of DSA devices with CT function.

RFA is considered to be a minimally invasive treatment alternative to SAE and is effective for different sizes of RAML (8,21). Matuszewski et al. (22) reported 2 cases of RAML with hematuria and low back pain as the main manifestations. The tumors were completely ablated after ultrasound-guided RFA, and no recurrence was observed at 1.5- and 3-year follow-up. Prevoo et al. (23) reported a patient with a solitary kidney in which the size of sporadic RAML was reduced from 4.5 to 2.9 cm 12 months after RFA treatment, with no complications or RAML recurrence being observed at 12 months. Gregory et al. (24) reported 4 patients with RAML with an average diameter of 15.1 cm, treated by CT-guided RFA. Two were treated with sequential RFA and SAE, with no tumor rupture or RAML-related symptoms occurring within 48 months of follow-up. Furthermore, percutaneous RFA treatment of RAML can maintain stable renal function and has relatively few complications (25). Castle et al. (7) used RFA to treat RAML and observed no intraoperative or postoperative complications. The creatinine level decreased to 0.03 mg/dL within 21 months of follow-up, and there were no transient hematuria or other symptoms. In the present study, we observed no serious complications during treatment. Intraoperative pain was managed by symptomatic treatment, and the patients tolerated the treatment successfully. The main postoperative complication was embolization/ablation syndrome (fever, pain, and other symptoms), with no significant fluctuations of serum creatinine levels. Thus, the feasibility and safety of immediate combined SAE and RFA treatment were affirmed.

Overall, we found the immediate combination of SAE and RFA to be safe and effective in the treatment of RAML. In the present study, the maximum diameter of the tumor before treatment was 4.7–7.2 cm, with an average of 5.9±1.01 cm, and the average duration of follow-up was 29.6±6.37 months. The maximum diameter of the tumor at the last follow-up was 3.1±0.60 cm, which was significantly smaller than the preoperative diameter (t=5.83, P=0.000), representing an average reduction of about 47% (36–61%). Relative to the studies of Sooriakumaran et al. (26) and Castle et al. (7), in which the RFA technique was applied alone, our combination of SAE and RFA could reduce the tumor size more effectively without causing more complications. We speculate that this effect may be related to the synergistic effect of the immediate combination of SAE and RFA. Yuan et al. (27,28) surmised that when the iodized oil is deposited well, immediate RFA can maximize the heat transfer of lipiodol, making the heat of the RFA needle quickly spread to the site in the lesion where the iodized oil is deposited, helping to inactivate the tumor. Especially for irregular tumor tissue, RFA alone cannot easily cover all three dimensions, while the angio-CT-guided instant combination of SAE and RFA can better transfer heat to the peripheral tumor tissue of RAML, reducing its recurrence. In addition, SAE blocks the arterial blood flow, reducing the risk of thermal deposition and bleeding during RFA ablation (29). We believe that SAE can be combined with RFA to maximize the synergistic effect of the two techniques.

We conclude that the immediate combination of SAE and RFA may be a safe and effective treatment strategy for RAML, which may reduce the tumor volume more quickly and reduce the potential bleeding risk compared to previous regimens. However, large-scale, multi-center, prospective studies are still needed to confirm this conclusion.
