Factors influencing the performance of a diagnostic model including contrast-enhanced ultrasound in 1023 breast lesions: comparison with histopathology

Introduction

Breast cancer is the most commonly diagnosed cancer and is also the leading cause of cancer death in the vast majority of countries among women. Worldwide, there were about 2.1 million newly diagnosed female breast cancer cases in 2018, accounting for almost 1 in 4 cancer cases (1). The clinical management of patients with breast lesions is complex. Early diagnosis of breast lesions allows for earlier treatment and better prognosis (2). Mammography and ultrasonography are proven methods for breast cancer screening and diagnosis (3). For Asian women, who characteristically have relatively thin and higher-density breasts, it must be taken into account that the accuracy of mammography images interpretation is reduced in this patient population (3,4).

Recognizing the widespread use of ultrasonography (US) in breast imaging, the American College of Radiology (ACR) published the fourth edition of the Breast Imaging Reporting and Data System (BI-RADS) lexicon for US in 2003 (5). Lesions categorized as BI-RADS category 4 or 5 are usually directed to biopsy using ultrasound-guided fine-needle aspiration (FNA) or core biopsy (6,7), although the positive rate is only 17% in Category 4 (8). In other words, it comes with a substantial risk of false positives (i.e. biopsy with benign results).

The US lexicon mainly includes morphologic findings and associated features that also include vascularity with the subcategories absent vascularity, internal vascularity, and vessels in rim, but lacks microcirculation information of solid breast masses. Although breast cancer is dependent upon angiogenesis (9,10), the number of vessels, blood-flow velocity and intratumoral vessel resistance cannot clearly distinguish malignant from benign breast lesions (11).

Contrast-enhanced ultrasound (CEUS) involves an intravascular contrast agent, which makes it possible to assess lesion hemodynamics in more detail. Over the past two decades, many studies have shown that CEUS can significantly improve the accuracy of breast diagnosis compared with conventional US (12,13). However, it remains controversial due to diagnostic criteria varying across regions and the overlap of enhancement patterns in benign and malignant breast lesions, which is the most important barrier to the application of CEUS.

Based on qualitative analyses of 10 enhancement characteristics, our team generated a CEUS prediction model and evaluated its diagnostic performance. Our initial multicenter study data had shown the prediction model exhibited excellent sensitivity and negative predictive value (89.4% & 88.9%), which was better than the performance of mammography (75% sensitivity) (14,15). At the same time, we also wanted to explore how patient and lesion characteristics (including patient age, BMI, location and size of breast lesions) may affect the enhancement pattern and the accuracy.

The goal of this study was to understand the limitations of CEUS using data from a larger study population of sufficient quality, and to identify factors that influence its diagnostic power, with an aim to more accurately characterize the value of CEUS for assessing and stratifying the risk of malignancy.

Methods

Study subjects

This was a retrospective analysis of a multicenter study conducted in eight US centers around China. Approvals from the ethics committee of Sichuan Provincial People’s Hospital were obtained for this study (No. 2016 14-1). All participants gave written informed consent. They were enrolled between August 2015 and April 2017.

Inclusion criteria were a conventional preoperative US (consisting of grayscale and Doppler US) revealing breast lesions with BI-RADS 4 or 5 on US. In the presence of multiple lesions in a single patient, the largest one was evaluated by CEUS. Exclusion criteria were contraindications to US contrast, such as, allergy, pregnancy or lactation; pulmonary or respiratory diseases; or previous clinical treatments for breast cancer.

The final study cohort included 1023 consecutive female patients with 1023 breast lesions. All of them subsequently underwent surgery or core biopsy (using 16 G needles) (Figure 1).

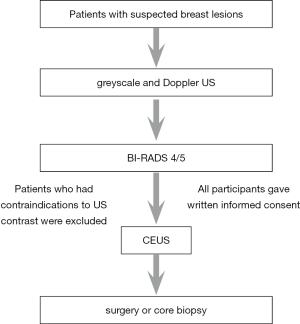

Figure 1 Contrast-enhanced ultrasound flow chart of breast lesions.

Conventional and contrast-enhanced imaging protocol

We used Mylab 90 (Esaote Medical Systems, Genova, Italy), Philips iU22, Philips iU-Elite (Philips, Bothell WA, USA) and GE LOGIQ E9 (GE Health Systems, Wauwatosa WI, USA) devices with LA523 (4–13 MHz), M6-15 (6–15 MHz) and L12–5 (5–12 MHz) linear array transducers for conventional US. CEUS was performed with LA522 (7 MHz), 9L (9 MHz) and L9–3 (3–9 MHz) linear transducers. The contrast agent used was sulfur hexafluoride microbubbles (SonoVue, Bracco, Milan, Italy), which were reconstituted with 5 mL of sterile saline. Machine parameters were adjusted with the mechanical index at ≤0.13 MHz, single focus at the bottom of the image, and the probe stabilized manually with no pressure exerted.

Two US physicians from each center (each with >15 y of experience with breast US and 2 y of experience with CEUS) were responsible for performing all US and CEUS examinations, during which maximum lesion diameter, distance to the nipple, lesion depth, and distance from the deep edge of the lesion to the pectoralis major were measured and recorded.

During US, operators selected the imaging plane that included the largest area of a visible mass with rich blood supply or any irregularly shaped mass (including its surrounding normal tissue) for CEUS. After a manual bolus injection of 4.8 mL of contrast via an antecubital vein, the selected plane was again visualized; real-time imaging was recorded for up to 120 s for further analysis. All static and dynamic images were stored in the US system, and exported in DICOM format.

Image analysis

Two different physicians from each center (each with >15 years of experience with breast US and 2 years of experience with CEUS) evaluated all CEUS images without performing the exam and without knowledge of patients’ clinical data, according to the developing CEUS prediction model, as we previously described (15,16). Disagreements were resolved by a third-party appraisal. In brief, this model consists of three malignant (A/B/C; Figure 2) and three benign (A/B/C; Figure 3) sub-models.

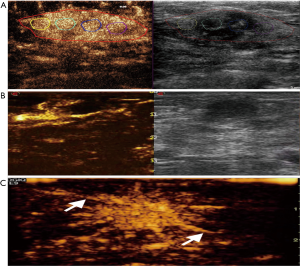

Figure 2 CEUS malignancy submodels for breast lesions. (A) Hyperenhancement with enlarged range, with or without irregular shape; (B) hyper centripetal enhancement with perfusion defect, with or without enlarged range; (C) rapid or synchronous wash-in with hyper- or iso-enhancement, shows penetrating vessels (white arrows) or a crab claw-like pattern, with or without perfusion defect.

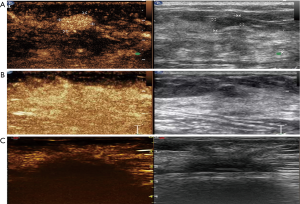

Figure 3 CEUS benign submodels for breast lesions. (A) Rapid wash-in with hyperenhancement, clear margin after enhancement without enlarged size; (B) synchronous or slow wash-in with isoenhancement; margin and shape cannot be distinguished after enhancement; (C) synchronous or slow wash-in with hypoenhancement.

Pathological data

Pathological findings of included lesions were collected from each center. The classification of breast lesions was based on the WHO histological classification of tumors of the breast (17).

Statistical analysis

Statistical analysis was conducted using the SPSS statistical package, version 23.0 for Windows (IBM Corp., Armonk NY, USA). To evaluate the influence of age and body mass index (BMI) on the performance of the CEUS model, patients were subgrouped by WHO standards (for BMI) (18) and previous reports (for age) (19,20). Univariate and multivariate logistic regression analyses were conducted to assess the influence of factors on diagnostic performance of the CEUS model. Receiver operating characteristic (ROC) curves were used to find the optimal cutoff value for distance from the lesion’s deep edge to the pectoralis major. An independent-samples t-test was applied to compare age, maximum lesion diameter, and distance from the lesion’s deep edge to the pectoralis major in malignant and benign lesions. The null hypothesis was rejected at a level of 5% (P<0.05).

Results

CEUS model diagnoses of different pathological breast lesions

Patients’ clinicopathological data are outlined in Table 1. CEUS model diagnoses of pathologically different breast lesions are shown in Table 2. Lesions that met any of the malignant or benign submodel characteristics were defined as malignant or benign respectively; lesions meeting both benign and malignant submodels were defined as malignant.

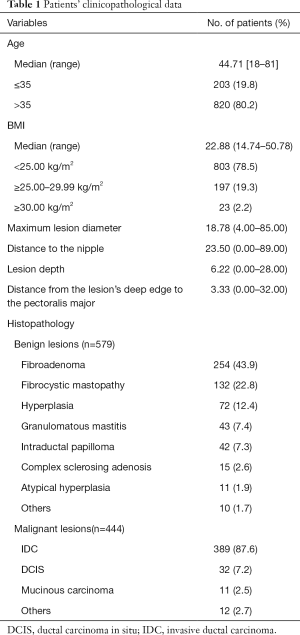

Table 1 Patients’ clinicopathological data
Full table

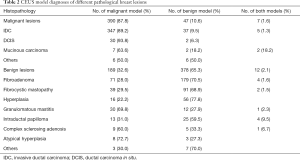

Table 2 CEUS model diagnoses of different pathological breast lesions
Full table

Factors influencing the performance of the CEUS model

Univariate analysis of age, BMI, maximum lesion diameter, distance to the nipple, lesion depth, and distance from the lesion’s deep edge to the pectoralis major showed that only age, maximum lesion diameter, and distance from the lesion’s deep edge to the pectoralis major significantly affected the CEUS model’s performance. Diagnostic accuracy was better for patients >35 y than for younger patients (P=0.005). In multivariate regression analysis, age, maximum lesion diameter, and distance from the lesion’s deep edge to the pectoralis major remained as independent influence factors for the CEUS model (Table 3).

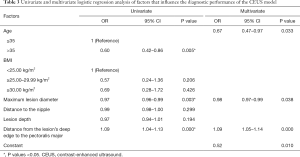

Table 3 Univariate and multivariate logistic regression analysis of factors that influence the diagnostic performance of the CEUS model
Full table

Influence of maximum lesion diameter and distance from the lesion’s deep edge to the pectoralis major on the performance of the CEUS model

We used stratification analysis to evaluate the influence of maximum lesion diameter and distance from the lesion’s deep edge to the pectoralis major on the CEUS model. Patients were subgrouped by maximum lesion diameter according to previous reports (21).

Data revealed that the model was more accurate for lesions with maximum lesion diameter >20 mm than for those with maximum lesion diameter <10 mm (OR: 1.61); and for lesions with distance from the lesion’s deep edge to the pectoralis major ≤3.05 mm that those with distance from the lesion’s deep edge to the pectoralis major >3.05 mm (OR: 0.55; Table 4). There was no significant difference in accuracy between lesions of maximum diameter 10–20 and <10 mm (P=0.393).

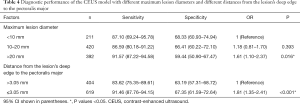

Table 4 Diagnostic performance of the CEUS model with different maximum lesion diameters and different distances from the lesion’s deep edge to the pectoralis major
Full table

Comparison of age, maximum lesion diameter, and distance from the lesion’s deep edge to the pectoralis major in malignant and benign lesions

As age, maximum lesion diameter, and distance from the lesion’s deep edge to the pectoralis major significantly affected the performance of CEUS model, we compared differences in their effects on malignant and benign lesions. We found that the benign lesion group had significantly (P<0.001) lower mean maximum lesion diameters and significantly (P<0.001) higher mean distances from the lesion’s deep edge to the pectoralis major than those of the malignant lesion group. The mean age of patients in the benign lesion group was significantly (P<0.001) younger than that in the malignant lesion group (Table 5).

Table 5 Comparisons of patient age, maximum lesion diameter, and distance from the lesion’s deep edge to the pectoralis major in malignant and benign lesions
Full table

Discussion

Our results show that patients’ age, maximum lesion diameter, and distance from the lesion’s deep edge to the pectoralis major independently influenced the performance of the CEUS model. The model’s diagnostic accuracy was significantly better for patients >35 y, for maximum lesion diameter >20 mm, and for distance from the lesion’s deep edge to the pectoralis major ≤3.05 mm. CEUS is a promising method for the accurate diagnosis of breast cancer and can optimize BI-RADS categorization (22-25). The results of this study have important implications for physicians performing CEUS for breast lesions.

Patients’ age and BMI have been associated with breast cancer risk (26,27). In our study, we addressed the effects of age and BMI on the diagnostic accuracy of CEUS model, and found that age—but not BMI—significantly affected the performance of the current CEUS model. Breast cancer has a significant upward trend in age-standardized incidence rates, but its peak age in Asians is 10–15 y younger than that in Western countries (28). Our study showed our model is more accurate for patients >35 y. Breast lesions are affected by hormone levels and reproductive behavior. Thus, growth patterns of lesions, especially benign lesions, vary greatly among different age groups. In the present study, 42.5% (71/167) of benign lesions in patients <35 y were misdiagnosed, compared with only 28.4% (117/412) in women >35 y. Among patients with fibroadenoma, which accounted for 43.9% of benign lesions, patients <35 y had a misdiagnosis rate of 31.1% (28/90), compared with 20.1% (33/164) in patients >35 y. This phenomenon may be due to the rapid growth of fibroadenoma with active ductal epithelial hyperplasia in young patients, which can be mistaken for sub-model A breast cancer, whereas lesions grow much more slowly and with less neovascularity in patients >35 y (29). Those lesions fit the profile of sub-model D and can be correctly diagnosed.

The higher misdiagnosis rate of benign lesions might also be attributed to the significant differences of age, maximum lesion diameter, and distance from the lesion’s deep edge to the pectoralis major between malignant and benign lesions. As shown by our study (Table 5), benign lesions occur at a younger age, with lower maximum lesion diameter and higher mean distance from the lesion’s deep edge to the pectoralis major, which all poorly affect diagnostic accuracy under the current model. These findings indicate that further study should be conducted to refine and improve the proposed model of CEUS for breast lesions. Adequate consideration of these influencing factors is required to achieve optimal diagnostic power.

Lesion size and depth independently affected the diagnosis accuracy of the CEUS model. Stratification analysis revealed that lesions with maximum lesion diameter >20 mm had higher diagnostic accuracy than did those with maximum lesion diameter <10 mm (OR: 1.61); There was no significant difference between maximum lesion diameter 10–20 and <10 mm (P=0.393). Lesion size is closely associated with vessel density, which is essential for the growth and infiltration of breast lesions (30-32). Zhao et al. found that the diagnostic value of CEUS varied for different sizes of lesions (33). Our study showed the specificity of the CEUS model in identifying suspicious lesions with maximum lesion diameter <10 mm to be 68.33%. Generally, lesions with maximum lesion diameter <10 mm have no typical features, little neovascularization, and their heterogeneity is unclear, whereas larger lesions display more irregular vessel branching with unbalanced spatial distribution and more fine terminal vessels (34). Actually, identifying the intensity or type of enhancement in small lesions was difficult. As Zhang et al. noted (21), subjective judgment played a major role in determining whether there was heterogeneous enhancement in small lesions.

Interestingly, our findings suggest that the efficacy of our CEUS model was more accurate for deep breast lesions than for superficial ones. The influence of distance from the lesion’s deep edge to the pectoralis major observed in our study might be generalized to all CEUS diagnoses for breast lesions. Theoretically, the US signal decreases with depth. However, most Asian women have relatively small and dense breasts, with comparatively thin subcutaneous fat layers, posterior adipose tissue, and mammary glands. Therefore, the signal-to-noise ratio of US echo at this depth might not significantly decrease. In addition, lesion size and depth are inseparable factors; when the lesion is larger or grows longitudinally, distance from the lesion’s deep edge to the pectoralis major is usually shorter. Also, although external force from probe manipulation could also affect the display of microcirculation perfusion, the influence of probe pressure tends to decrease for deeper lesions. This finding suggests that the CEUS model could supplement elastography to assess deep breast lesions and provide greater diagnostic confidence in the context of our specific study population (Chinese women) (35,36).

Although this retrospective study has evaluated factors that most commonly affect conventional US or CEUS findings, other factors, such as breast thickness, were not considered, and may require further study. Additionally, because of the multicenter design, different imaging systems were used among the centers.

In conclusion, although the application of this current CEUS model to breast lesions is clinically promising, it still has its limitations. Age, maximum lesion diameter, and distance from the lesion’s deep edge to the pectoralis major significantly affect diagnostic performance and should be considered for the most accurate diagnostic findings with the CEUS model. Further studies are necessary to refine the prediction model and improve accuracy in order to expand the application of CEUS for breast lesions.

Ultimately, the physician and patient have the responsibility to jointly explore and select the most appropriate ultrasound technologies among the available alternatives.

Acknowledgments

We thank Libby Cone, MD, MA, of Liwen Bianji, Edanz Group China (www.liwenbianji.cn/ac), for editing the English text of drafts of this manuscript.

Funding: The work was sponsored by Sichuan Provincial People’s Hospital (#2017HX001), Fujian Provincial Health Technology Project (#2015-1-11), and Science and Technology Program of Fujian Province, China (#2018Y2003).

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Approvals from the ethics committee of Sichuan Provincial People’s Hospital were obtained for this study (No. 2016 14-1). All participants gave written informed consent.
