Sirolimus-based immunosuppression improves outcomes in liver transplantation recipients with hepatocellular carcinoma beyond the Hangzhou criteria

Introduction

Hepatocellular carcinoma (HCC) with a 5-year survival rate of 14–18%, makes a major contribution to malignancy-related death worldwide (1). In particular, more than 400,000 people die of HCC every year in China, accounting for over half of all global liver cancer-related deaths (2). Liver transplantation (LT) is one of the most effective treatments for HCC, which removes the entire diseased liver and minimizes tumor recurrence rates. However, the 5-year tumor recurrence rate posttransplant is 20–57.8% (3-5), and tumor recurrence posttransplant is associated with a poor prognosis.

In the past two decades, the most effective means to reduce the rate of recurrence posttransplant has been careful screening for transplant recipients. The introduction of the Milan criteria in 1996 facilitated patient selection (6). However, the Milan criteria impose too strict restrictions on tumor size and number, and many HCC patients will lose the chance of LT based on the Milan criteria. Some new selection criteria for liver transplant recipients have been introduced, such as the University of California San Francisco standard (7) and the up-to-seven standard (3). the Hangzhou criteria proposed by our center introduced the biological characteristics and pathological features of tumors for the first time as the selection criteria for liver transplant recipients (4).

Calcineurin inhibitors (CNIs), such as tacrolimus (Tac) and cyclosporine A (CsA), are the most common immunosuppressants for solid organ transplantation, including LT (8). They can significantly prevent acute rejection. However, at the same time, they also have obvious side effects, such as cardiovascular complications, kidney toxicity, and diabetes (9). In addition, the administration of CNIs posttransplant has been implicated as an independent risk factor for the recurrence of HCC after LT (10). The new immunosuppressive agent mTOR inhibitors such as sirolimus (SRL) and everolimus have been shown to have antiproliferative and antiangiogenic pharmacological effects in a variety of solid tumors (11,12). However, it is still not clear whether mTOR inhibitors have a potential benefit for antitumor activity in HCC transplant patients, and the population who benefits remains controversial (13). Therefore, in the present study, we retrospectively analyzed the effects of SRL-based immunosuppressive regimens posttransplant on the recurrence and survival of 204 HCC patients who underwent LT between January 2, 2014 and December 10, 2017, to provide suggestions for HCC liver cancer transplant recipients.

Methods

Study population and data sources

In our study, we collected data on 204 HCC patients who underwent liver transplantation at the First Affiliated Hospital of Zhejiang University between January 2, 2014 and December 10, 2017 (Figure 1). All the patients received deceased donor liver transplantation. The median of the follow-up duration of patients was 24.5 months. The patients’ data were obtained from the China Liver Transplant Registry (CLTR) database and our center’s database. The patients were divided into two groups according to the presence or absence of SRL treatment: the SRL group and the non-SRL group. The following inclusion criteria were applied: pathologically confirmed HCC; and a complete postoperative follow-up record. The following exclusion criteria were applied: patients initially using SRL less than 30 days before tumor recurrence; patients with a survival time of less than 80 days; patients with noncontinuous drug treatment; patients who died of noncancer causes; and patients with multiple primary malignant tumors.

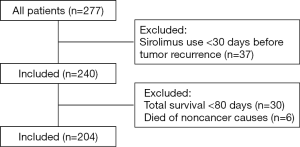

Figure 1 Diagram of patient selection.

The variables examined were age, sex, HCC LT criteria (Milan or Hangzhou criteria), the Edmondson grade, the number of tumor nodules, vascular invasion, size of the major nodule, the level of preoperative AFP expression, treatment before LT [transarterial chemoembolization (TACE) and radiofrequency ablation (RFA)], the preoperative model of end-stage liver disease (MELD) score, the presence of a capsule complete and the HBV infection status.

Immunosuppressive protocol

In all patients, baliximab (20 mg) was administered within 2 hours before operation and in the forth day after operation. Methylprednisolone (500 mg) was intraoperative administered. Then, Tac/CyA + mycophenolate-based immunosuppressive protocol was performed in the early period after operation. In the SRL group, SRL was typically administered 30–45 days after transplantation because it may delay wound healing. The blood concentration of SRL was stable at 4–10 ng/mL. The dose of CNI was reduced to half at the start of SRL and withdrawn when target levels of SRL were reached. In the control group, tacrolimus/cyclosporine A was kept administered and the dosage was adjusted according to liver function and concentration of the blood immunosuppressant. The mycophenolate was used all the time in both groups.

Statistical analysis

Statistical analysis was performed using the Statistical Package for Social Sciences (SPSS 23.0 IBM Corporation, Armonk, NY). All P values were two-tailed, and significance was defined as P<0.05. Follow-up after transplantation was defined as the time from transplantation to death or the time of the last follow-up. A chi-square test was used for the statistical analysis of categorical variables. A t-test was used for the statistical analysis of continuous variables. Overall survival (OS) and disease-free survival (DFS) were the primary outcomes and they were computed using the Kaplan-Meier method, and a log-rank test was used to assess differences between curves. All the factors with P<0.05 in the Cox univariate analysis were also analyzed in the multivariate analysis using the Cox proportional hazards model.

Results

Patient characteristics

A total of 204 liver transplant recipients with HCC were examined in this study. There were 76 patients in the SRL group and 128 patients in the non-SRL group. No significant difference in demographics was found between the two groups (Table 1). Notably, HBV-infected patients accounted for 89% of all the patients in our study: 84.8% in the SRL group and 84.8% in the non-SRL group.

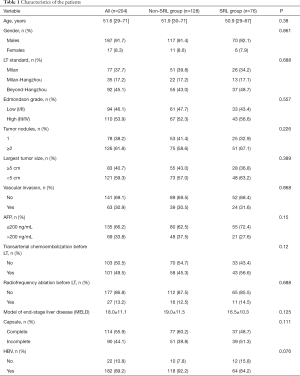

Table 1 Characteristics of the patients
Full table

Survival analysis in all patients

The median DFS and OS times in both groups were determined (Figure 2A,B). The 1- and 3-year DFS rates of the SRL group were 76.3% and 65.7%, respectively, while in the non-SRL group, the 1- and 3-year DFS rates were 68.0% and 66.4%, respectively. No significant difference was found between the two groups (P=0.755). The 1- and 3-year OS rates of the SRL group were 97.4% and 85.5%, respectively, while in the non-SRL group, the 1- and 3-year OS rates were 82.0% and 71.9%, respectively. The SRL group had a better prognosis than the non-SRL group (P<0.001).

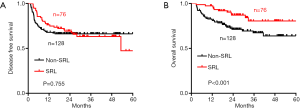

Figure 2 Effect of sirolimus (SRL) on the survival of hepatocellular carcinoma (HCC) patients after liver transplantation (LT). The disease-free survival (DFS) (A) and overall survival (OS) (B) were analyzed between the non-SRL and SRL groups of HCC patients after LT (Kaplan-Meier, log-rank test).

Univariate and multivariate Cox regression analyses of the risk factors for overall survival of all patients showed that the use of SRL was an independent protective factor of prognosis (Table 2), while the number of tumor nodules, the level of preoperative AFP expression and vascular invasion were independent risk factors for prognosis.

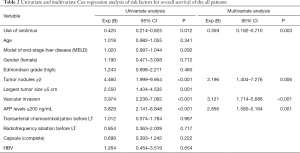

Table 2 Univariate and multivariate Cox regression analysis of risk factors for overall survival of the all patients
Full table

Effect of SRL on the survival of HCC patients after LT based on LT criteria

In the patients fulfilling the Milan criteria, there were 26 patients in the SRL group and 51 patients in the non-SRL group. No significant difference in OS was found between the two groups (P=0.799) (Figure 3A). There were 39 patients and 73 patients who fulfilled the Hangzhou criteria in the SRL group and the non-SRL group, respectively. Similarly, no significant difference in OS was found between the two groups (P=0.978) (Figure 3B).

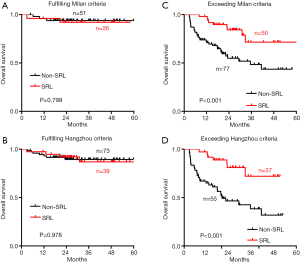

Figure 3 Effect of sirolimus (SRL) on the survival of hepatocellular carcinoma (HCC) patients after liver transplantation (LT). The overall survival (OS) were analyzed between the non-SRL or SRL groups of HCC patients after liver transplantation (LT) based on Milan criteria (A,C) or Hangzhou criteria (B,D) (Kaplan-Meier, log-rank test).

There were 50 patients and 77 patients exceeding the Milan criteria in the SRL group and the non-SRL group, respectively. The median OS of patients exceeding the Milan criteria was 35.5 months in the non-SRL group, while the median OS of patients in the SRL group was not determined. We found that patients exceeding the Milan criteria in the SRL group experienced longer OS than those in the non-SRL group at each time point examined (P<0.001) (Figure 3C). Similarly, among the 92 liver transplant recipients exceeding the Hangzhou criteria, the SRL group experienced longer OS than those in the non-SRL group at each time point examined (P<0.001) (Figure 3D). The median OS of patients exceeding the Hangzhou criteria was 20.3 months in the non-SRL group, while the median OS of patients in the SRL group was not determined.

However, no significant difference in DFS was observed between the SRL and non-SRL groups regardless of whether the patients fulfilled or exceeded both the Milan and Hangzhou criteria after LT (Figure S1). The effect of SRL on the survival of HCC patients who exceeded the Milan criteria but fulfilled the Hangzhou criteria after LT was also explored. DFS (Figure S2A) and OS (Figure S2B) were not significantly different between the non-SRL and SRL groups of HCC patients after LT.

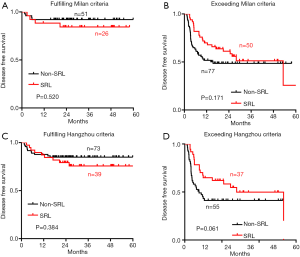

Figure S1 Effect of sirolimus (SRL) on the survival of hepatocellular carcinoma (HCC) patients after liver transplantation (LT) based on LT criteria. The disease free survival (DFS) were analyzed between the non-SRL or SRL groups of HCC patients after LT based on Milan criteria (A,B) or Hangzhou criteria (C,D) (Kaplan-Meier, log-rank test).

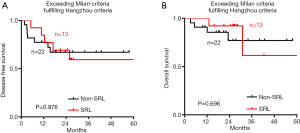

Figure S2 Effect of sirolimus (SRL) on the survival of hepatocellular carcinoma (HCC) patients exceeding Milan criteria but fulfilling Hangzhou criteria after liver transplantation (LT). The disease free survival (DFS) (A) and overall survival (OS) (B) were analyzed between the non-SRL and SRL groups of HCC patients after LT (Kaplan-Meier, log-rank test).

Survival analysis in patients who exceeded the Milan or Hangzhou criteria after LT

Univariate and multivariate Cox regression analyses of risk factors for overall survival of the patients who exceeded the Milan criteria after LT showed that the use of SRL was an independent protective factor of prognosis (P=0.003), while a preoperative AFP level ≥200 ng/mL (P<0.001) and vascular invasion (P=0.011) were identified as independent risk factors for prognosis (Table 3).

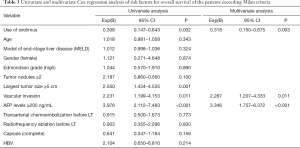

Table 3 Univariate and multivariate Cox regression analysis of risk factors for overall survival of the patients exceeding Milan criteria
Full table

Univariate and multivariate Cox regression analyses of risk factors for the overall survival of patients who exceeded the Hangzhou criteria showed that the use of SRL was an independent protective factor of prognosis (P=0.002), while a preoperative AFP level ≥200 ng/mL (P=0.001) was identified as an independent risk factor for prognosis (Table 4).

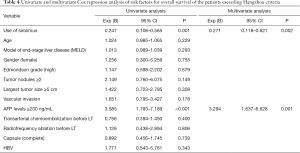

Table 4 Univariate and multivariate Cox regression analysis of risk factors for overall survival of the patients exceeding Hangzhou criteria
Full table

The characteristics of the patients in the subgroups described above are displayed in Table S1 and Table S2. It is worth noting that the proportion of patients with a preoperative AFP level ≥200 ng/mL in the SRL group was significantly higher than that in the non-SRL group.

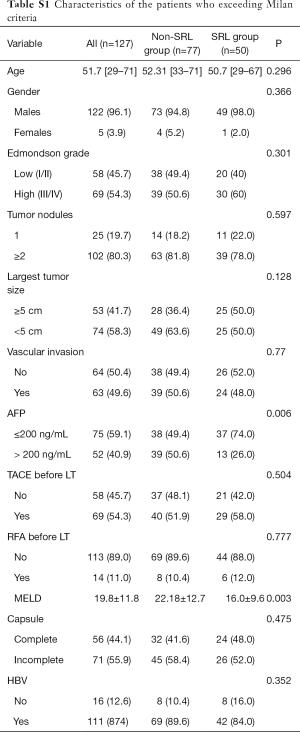

Table S1 Characteristics of the patients who exceeding Milan criteria
Full table

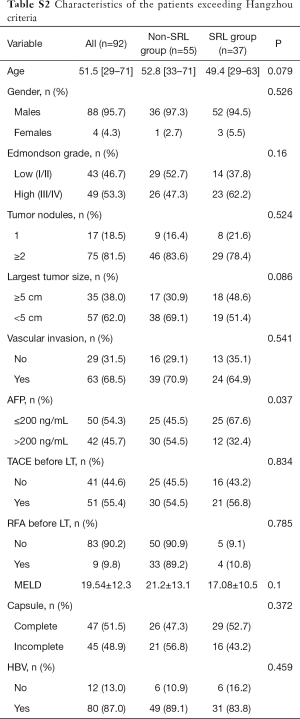

Table S2 Characteristics of the patients exceeding Hangzhou criteria
Full table

Discussion

Postoperative tumor recurrence is the main factor affecting the survival of HCC patients with LT. In our study, we found that SRL improved the survival outcome of liver transplant recipients with HCC. The role of SRL in HCC patients with LT is controversial (13-15). Previous studies have suggested that SRL is not beneficial in reducing mortality (16) because of an insufficient sample size. However, Yanik et al. reported that SRL did not appear to be beneficial in reducing all-cause mortality among 3,936 HCC liver recipients (14). We believe that although the sample size was large, all patients who met the Milan criteria were included, which may have resulted in a negative result. Interestingly, another study found that SRL was associated with significant reduction in the risk of death for liver recipients transplanted for HCC, compared to those that remained on tacrolimus or cyclosporine” (15).

Although accumulating evidence suggests that HCC patients with LT may benefit from SRL (15,17-19), the population who may benefit from SRL is controversial. In our study, the subgroup survival analysis found that HCC patients with LT both beyond the Milan criteria and beyond the Hangzhou criteria benefited from SRL. Similarly, the other two studies from China also suggest that SRL may improve the OS of HCC liver transplant recipients beyond the transplant criteria (UCSF or the Milan criteria) (18,19). A phase 3 randomized controlled trial reported that SRL in liver transplant recipients with HCC did not improve long-term RFS beyond 5 years, in part, due to the increasing rate of SRL discontinuation after 3 years, exceeding 35% by 5 years. However, RFS and OS benefits were evident in the first 3 to 5 years, especially in low-risk (fulfilled the Milan criteria) patients (13). We hypothesize that the ethnic and etiological differences may be responsible for this finding. Approximately 90% of patients in our study had hepatitis B, and 95.1% of the patients in the SiLVER study were Caucasian. Hepatitis C and nonalcoholic hepatitis are the main causes of HCC in Caucasians.

Although Zhou et al. (19) also reported a survival benefit of postoperative SRL in patients with HCC beyond the Milan criteria, the factors of included in the survival analysis analyzed only the influence of the Child-Pugh-Turcotte Score, microvascular invasion and the immunosuppressive protocol was assessed on prognosis and lacked information on important variables, such as the Edmondson grade, the number of tumor nodules, the preoperative AFP level, and the treatment protocol before LT. Furthermore, the Milan criteria may be too strict for screening for liver transplant recipients. The Hangzhou criteria, which are more suitable for HCC patients with hepatitis B in China, break through the limitation of a tumor diameter of 5 cm and add AFP expression and the tumor histological grade as conditional restrictions, expanding the indications for LT for HCC patients (4). Interestingly, although the OS time of the SRL group was prolonged compared to that of the non-SRL group in patients exceeding the Milan or Hangzhou criteria, no significant difference in OS was found between the SRL and non-SRL groups in patients who exceeded the Milan criteria but met the Hangzhou criteria. However, the sample size of patients in this group is small, and further large-sample studies are needed.

Similar to previous studies (14,20), SRL did not improve postoperative recurrence in all liver transplant patients with HCC. However, in patients exceeding the Hangzhou criteria, we observed that the SRL group experienced longer DFS than the non-SRL group, although no significant difference was detected.

There are certain limitations to our study. This study was a retrospective study; therefore, selection bias is inevitable. We need prospective studies and high-level randomized controlled trials to confirm the conclusions of this study in the future.

Acknowledgments

Funding: This work was supported in part by funding from the National Science and Technology Major Project of China (No. 2017ZX10203205) and the Project of Medical and Health Technology Program in Zhejiang Province (No. 2019RC152).

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study protocol was approved by the Research Ethics Committee of the First Affiliated Hospital of Zhejiang University, and informed consent was obtained from all participants. No donor livers were harvested from executed prisoners.
