Recommended changes for the 8th edition of the TNM classification for lung cancer-the findings of a single-institution evaluation

Introduction

Globally, lung cancer is the most common form of malignant tumor and is also the leading cause of cancer-related deaths (1). The accurate categorization of tumor stage, including lymph node status, is therefore crucial for prognostic assessment, as well as for determining a stage-specific therapeutic strategy for lung cancer patients (2). The internationally accepted standard for cancer staging is the tumor, node, and metastasis (TNM) classification system, which has been published by the Union for International Cancer Control (UICC) for more than 50 years (3,4). The lung cancer classification method for the TNM staging system was conducted by the International Association for the Study of Lung Cancer (IASLC) (5-7). Although the staging of lung cancer must maintain consistency in relation to nomenclature, revisions are needed as technology, which extends the ability to define tumor progresses, develops and improves. Therefore, the classification system is periodically updated by the UICC, and the latest (8^th) edition was implemented in January 2018 (8-10).

The N descriptors described in the 7^th edition of TNM for lung cancer separated patients into different groups consistently, and these remain unchanged in the 8^th edition (Table 1) (11). The N descriptors are based only on nodal location, and to give a more accurate prognosis, the IASLC proposed more refined N subgroups which subdivide N descriptors according to a combination of the location of metastatic nodes and the absence versus the presence of skip metastasis. These subgroups are N0, N1a (N1 single station), N1b (N1 multiple station), N2a1 (N2 single with skip metastasis), N2a2 (N2 single without skip metastasis), and N2b (N2 multiple station) (Table 1).

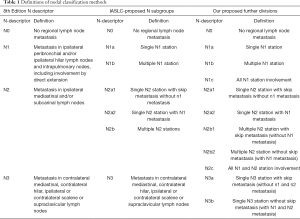

Table 1 Definitions of nodal classification methods
Full table

This classification system was based on a comprehensive statistical analysis of an international database comprising 94,708 lung cancer patients diagnosed between 1999 and 2010. Of these, data were available from 38,910 patients with non–small cell lung carcinoma (NSCLC) for the analysis of the clinical N status (5). Despite lung cancer being the most common cause of mortality in China (1,12), less than one percent (790 of 94,708) of data used in the development the 8th edition of the TNM classification was from patients in China (5). Furthermore, studies aimed at validating the new staging system focusing on the N descriptor in the Chinese population have been poor (13-15), and as such, further investigation into the prognostic ability of this new classification in China is required.

In this study, we performed a single-institution evaluation of the efficacy and the validity of the 8^th edition N classification for the prognostic assessment of NSCLC patients who received surgical therapy. Moreover, to explore if there is a more sophisticated method for describing the tumor burden in lymph nodes, we further refined the IASLC N categories into more detailed subgroups. As shown in Table 1: N1 was divided into N1a, N1b, and N1c (all N1 station); N2 was subclassified into N2a1, N2a2, N2b1 (multiple N2 stations with skip metastasis, without N1 metastasis), N2b2 (multiple N2 stations with N1 metastasis, without skip metastasis), and N2c (all N1 and N2 stations); and N3 was separated into N3a (single N3 station with skip metastasis, without N1 and N2 metastasis) and N3b (single or multiple N3 station with N1 and N2 metastasis, without skip metastasis).

In summary, the aims of this study were to evaluate whether the N descriptors in the 8^th edition were effective in categorizing lung cancer patients in China and to compare whether our subgroup strategy can offer a more refined version of the N classification system than the 8^th edition, while providing a point of reference for revisions of future editions.

Methods

Patients

A total of 3,177 patients who were diagnosed with stages I to IV of non-small cell lung cancer (NSCLC) at the Thoracic Surgery Department II (Beijing Cancer Hospital, Beijing, China) between October 2003 and August 2017 were included in this study. These patients received resections for tumors with mediastinal lymph node dissection or systematic lymph node sampling. This retrospective study was approved by the Institutional Review Board of Peking University Cancer Hospital, and the requirement for patients’ consent was waived.

Collection of clinical data

In our study, all of the subjects had pathologic data of lymph nodes. Pulmonary function testing and cardiac evaluation were required as preoperative assessments. To evaluate the preoperative extent of the disease, brain magnetic resonance imaging (MRI) or computed tomography (CT), bone scintigraphy, and abdominal and supraclavicular ultrasound scanning were routinely performed. Positron emission tomography (PET)/CT scans were not routinely used due to concerns surrounding expense. Postoperatively, patients were examined generally every three months for the first two years and every six months for the next three years, and then every year thereafter. Recurrence and survival rates were examined during each follow up. The median follow-up period was 72 (ranging from 1 to 190) months. The data of surviving patients were censored at the date of the last follow up.

Statistical analysis

All patients were staged using the methods listed in Tables 1 and 2. The Kaplan–Meier method was used to perform five-year survival analysis, and the log-rank test was used to evaluate differences between sub-groups. All standard statistical procedures were performed using SPSS (version 20.0; IBM, Chicago, IL, USA). The difference between groups was considered significant when P value <0.05.

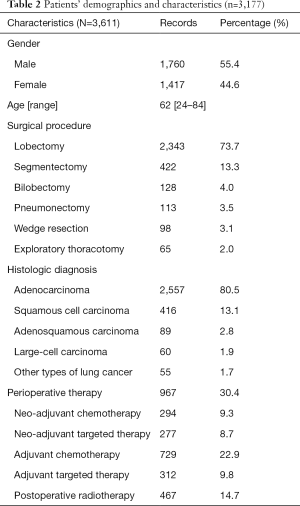

Table 2 Patients’ demographics and characteristics (n=3,177)
Full table

Results

Patient demographics and characteristics

A total of 3,177 patients were included in this study, and Table 2 lists their demographics and characteristics. The median age was 62 (range, 24–84) years. There were 1,760 (55.4%) male and 1,417 (44.6%) female patients. Of the patients, 2,557 (80.5%) had adenocarcinoma, 416 (13.1%) had squamous cell carcinoma, 89 (2.8%) had adenosquamous carcinoma, 60 (1.9%) had large-cell carcinoma, and 55 (1.7%) had other types of lung cancer. Of the patients in our study, 2,343 (73.7%) patients underwent lobectomy, 422 (13.3%) patients underwent segmentectomy, 128 (4.0%) patients underwent bilobectomy, 113 (3.5%) patients underwent pneumonectomy, 98 (3.1%) patients underwent wedge resection, and 65 (2.0%) patients underwent exploratory thoracotomy. A total of 967 (30.4%) patients received perioperative therapy, 294 (9.3%) patients received neo-adjuvant chemotherapy, 277 (8.7%) patients underwent neo-adjuvant targeted therapy, and 729 (22.9%) and 312 (9.8%) patients at stage IB or higher underwent adjuvant chemotherapy or adjuvant target therapy, respectively. Postoperative radiotherapy was administered to 467 (14.7%) patients.

Patient stratifications

Table 3 shows patients classified into the N-descriptor stages in the 8^th edition. A total of 1,821 (57.3%) patients were classified into stage N0 (without nodal involvement); 518 (16.3%) patients were in stage N1 (ipsilateral peribronchial and/or ipsilateral hilar lymph nodes and intrapulmonary nodes); 814 (25.6%) patients were in stage N2 (with metastasis in ipsilateral mediastinal and/or subcarinal lymph nodes); and 24 (0.8%) were in stage N3 (patients were metastasis in contralateral mediastinal, contralateral hilar, ipsilateral or contralateral scalene or supraclavicular lymph nodes). Since our data are all from surgical cases, few patients were classified in stage N3.

Table 3 Survival analysis of patients classified by the 8th edition nodal staging system
Full table

Table 4 lists the data of patients after regrouping according to the IASLC-proposed N subgroups. It shows that: 518 (16.3%) patients in stage N1 were divided to N1a and N1b with 303 (9.5%) and 215 (6.8%) patients, respectively; and 814 (25.6%) patients in stage N2 were separated into N2a1, N2a2 and N2b with 240 (7.6%), 279 (8.8%) and 295 (9.3%) patients, respectively. No regrouping occurred in N0 and N3, and, thus, they stayed same as in Table 3.

Table 4 Survival analysis of patients classified by the 8th edition nodal subgroups
Full table

According to our more extensive stratifications: patients in N1 stage (518) were divided into N1a, N1b and N1c, with 303 (9.5%), 180 (5.7%) and 35 (1.1%) patients in each stage, respectively; patients in N2 stage were separated into N2a1, N2a2, N2b1, N2b2, and N2c, with 240 (7.6%), 279 (8.8%), 40 (1.3%), 213 (6.7%) and 42 (1.3%) patients in each stage, respectively; and 24 patients in stage N3 were subdivided into N3a and N3b, with 8 (0.3%) and 16 (0.5%) patients in each stage, respectively (Table 5).

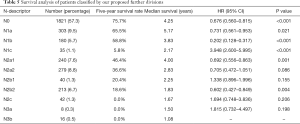

Table 5 Survival analysis of patients classified by our proposed further divisions
Full table

Survival rates based on the 8^th edition of nodal classification system

The overall survival rate (OS) according to the 8^th edition of the N staging system is summarized in Table 3: stage N0 (75.7%), state N1 (60.6%), stage N2 (33.5%), and stage N3 (4.2%). Prognostic significance was found between each adjacent N classification (P<0.001). Survival curves are visualized in Figure 1A.

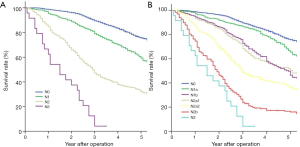

Figure 1 Survival curves of patients according to the N descriptors in the 8th edition (A) and the N subgroups (B) proposed by IASLC with a follow-up duration of five years after surgical resection. Data were censored (+) at the date of the last visit for surviving patients. The survival curves were plotted by Kaplan-Meier method, and a log-rank test was used to for comparisons between curves. IASLC, International Association for the Study of Lung Cancer.

The survival rates of subgroups based on the IASLC-proposed N subgroup system are shown in Figure 1B and summarized in Table 4. Specifically, the survival rates of the N1 and N2 subgroups were: N1a (65.5%), N1b (50.4%), N2a1 (46.4%), N2a2 (36.6%), and N2b (16.0%). Prognostic significance was found between each adjacent N classification (P<0.05), except between N1b and N2a1 (P=0.85).

Survival rates based on our proposed further division method

Survival rates according to our proposed further N subgroup divisions are shown in Figure 2A and summarized in Table 5. Specifically, as shown in Figure 2B, the survival curves decreased as N1 classification progressed: N1a (65.5%), N1b (58.8%), and N1c (5.8%). Prognostic significance was found between each stage (P<0.05). In the N2 group, the survival rate and the survival curves also decreased as the N classification progressed (Figure 2C): N2a1 (46.4%), N2a2 (36.6%), N2b1 (20.4%), N2b2 (18.6%), and N2c (0.0%). Prognostic significance was found between N2a1 and N2a2 (P=0.001), and N2b2 and N2c (P=0.004); however, there was no significant difference found between stages N2a2 and N2b1 (P=0.086), nor between N2b1 and N2b2 (P=0.155). In the N3 group (Figure 2D), the survival rates and survival curves decreased as the N classification progressed, while the overall survival rate of each stage was 0.0% and prognostic significance was not found between the subgroups (P=0.198).

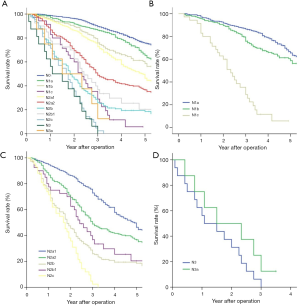

Figure 2 Survival curves of patients according to our proposed further division method with a follow-up duration of five years after surgical resection: (A) all groups, (B) N1 subgroup, (C) N2 subgroup, (D) N3 subgroup. Data were censored (+) at the date of the last visit for surviving patients. The survival curves were plotted by Kaplan-Meier method, and a log-rank test was used to for comparisons between curves.

Discussion

The TNM classification system is the most commonly used staging criteria for cancer and is implemented for patients across different countries and ethnicities. However, deficiencies remain in the latest (8^th) edition of the nodal staging system, notably in relation to the global distribution of the data on which the system is based (5). Countries with high populations, such as India and China, are underrepresented, while others, Japan in particular, are overrepresented. Our study included more than 3,000 NSCLC patients from China, and we found that a subgroup stratification method which takes into account location and the absence versus the presence of skip metastasis is deserving of further studies in future.

The nodal staging system assesses tumor burden in the regional hilar and mediastinal nodes (2,16). In relation to lung cancer, lymph node metastasis is graded in terms of the location of involved lymph nodes regardless of the number of lymph nodes involved (Table 1). The location-based principle of lung cancer has been widely accepted due to its prognostic ability, and the ease with which lymph node locations can be determined via CT. Our study also confirmed that patients could be prognostically classified to N0 to N3 according to the location of involved lymph node stations. In short, the higher the number after N, the worse the prognosis and the lower the survival rate (Figure 1A, Table 3).

However, the tumor burden at regional lymph nodes is not reflected at all in the location-based categorization, and an increasing number of studies have shown that even in the same nodal station, prognosis is different for many patients (17-20). The possibility of lung cancer categorization according to the number of affected lymph nodes as opposed to their location has been studied in the past. Wei (19) and Saji (20) et al. compared the two categorizations, according to the location and number of metastatic lymph nodes and showed that the number-based staging method is a better prognostic determinant than the location-based classification. Our data demonstrated that patients with N2 metastasis at a single lymph node station without hilar involvement (N2a1) had a similar survival rate compared to those with N1 metastasis at multiple stations (N1b). Asamura et al. (5) also found that the patients with N2a1 had better a better survival rate than those with N1b. Thus, location-based classification could not fully reflect tumor burden. However, on the other hand, there are problems with the practical application of number-based categorization (19). For example, it is quite challenging to determine the number of nodes before treatment by low-resolution imaging diagnosis (16,21), and on a positron emission tomographic image, metastatic nodes are not separated for accurate counting. This difficulty in counting the number of metastatic nodes affects the staging of patients.

In our study, we pioneered a method for distinguishing lymph nodes. Clinically, we noticed that the prognosis of patients with all lymph nodes in the same station was different from those with a single node in the same station, and multiple lymph nodes were invaded . The prognosis of patients with all lymph nodes in the same station was significantly worse. Our findings also confirm that our proposed lymph node staging method is rational (Table 5, Figure 2), but the staging of this method is too complicated. The current lymph node staging program is divided into 4 stations: N0, N1, N2, and N3; the IALSC-recommended staging plan is divided into 7 stations N0, N1a, N1b, N2a1, N2a2, N2b, and N3; and our proposed staging system is divided into 11 stations: N0, N1a, N1b, N1c, N2a1, N2a2, N2b1, N2b2, N2c, N3a, and N3b. We recommend that the staging scheme recommended by the IALSC is implemented with the addition of the N1b and N2a1 subgroups (which are divided into 6 stations: N0, N1a, N1b/N2a1, N2a2, N2b, and N3). This would allow the difference in the survival rates of different N stages based on both location and number of lymph nodes to be reflected using staging that is not too complicated implement .

Lastly, future revisions should standardize the method used to evaluate harvested lymph nodes. It has been shown that the incomplete retrieval of lymph nodes from resected specimens significantly affects nodal staging (22). According to the TNM system, at least six lymph nodes should be removed, three from N1 and three from N2 stations. This is the minimum requirement for a diagnosis of N0 station when lymph nodes are negative (23). Future staging systems should provide guidelines or suggestions regarding a standardized method for evaluating dissected/removed lymph nodes, as well as a formula for reporting. In addition, future revisions should be based on an internationally extensive data set, and global collaboration for the collection of well-balanced data from all over the world must be addressed for future revisions.

Conclusions

Our results showed the location-based N descriptors of lung cancer in the 8^th edition of the TNM classification systems to have good outcomes and that patients could be classified in different groups with significantly different survival rates. The IASLC-proposed N subgroup classifiers, which involve the combination of location and absence or presence of skip metastasis could separate the majority patients clearly apart from those in the N1b and N2a1 groups. Patients classified according to our proposed further division method showed different survival rates; however, our system is too complicated and would be difficult to implement. Thus, in conclusion, we recommend the IASLC subgroup classification method with the inclusion of the N1b and N2a1 groups.

Acknowledgments

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This retrospective study was approved by the Institutional Review Board of Peking University Cancer Hospital (No. 2018YJZ51), and the requirement for patients’ consent was waived.
