Choice of transcatheter heart valve: should we select the device according to each patient’s characteristics or should it be “one valve fits all”?

Introduction

Transcatheter aortic valve replacement (TAVR) has become the standard therapy for patients with severe aortic stenosis and high or prohibitive surgical risk (1,2). Furthermore, robust data showing favorable results in comparison to surgical aortic valve repair have led to its adoption in intermediate risk patients (3-5). Recently, two landmark trials have demonstrated non-inferiority and even superiority of transfemoral TAVR in low-risk patients (6,7). Increased utilization of this treatment rests upon major advances in terms of knowledge, careful patient selection, sophisticated imaging, and evolving novel technologies. Issues that dominated the early period of TAVR were frequent procedural complications, paravalvular leakage (PVL), stroke, conduction disturbances requiring permanent pacemaker implantation (PPI), access related complications, renal failure, sequelae of false sizing including device embolization or annular rupture, and coronary occlusion. The first generation of transcatheter heart valves (THV), represented by the balloon-expandable (b-exp) Edwards Sapien and the self-expanding (s-exp) Medtronic CoreValve, was characterized by large-bore delivery systems and limited availability of annulus sizes. During recent years, iterations of existing THVs as well as devices with novel concepts have provided substantial improvements that overcome the limitations of the early-generation devices. This has increased the ease of use, lowered the rate of complications, and ameliorated patient outcomes. Hence, treatment of a broader spectrum of patients has become feasible and sophisticated selection of the appropriate THV tailored to patients’ individual anatomy and comorbidities is now possible. The purpose of the present article is to provide an overview of contemporary THVs and their technical specifications and review clinical data, placing an emphasis on differential use in specific clinical scenarios.

Overview of currently available THVs

All currently commercially available THVs are displayed in Figure 1 and briefly characterized in Table 1. Specification of existing evidence from clinical trials is presented in Table 2.

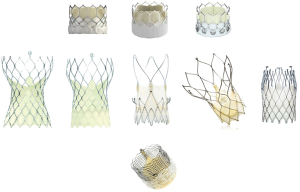

Figure 1 Currently available THVs with approval for the European and US market. Upper row from left to right: balloon-expandable prostheses SAPIEN 3 (Edwards Lifesciences), SAPIEN 3 Ultra (Edwards Lifesciences), and MyVal (Meril Life Sciences). Middle row from left to right: self-expanding prostheses Evolut R (Medtronic), Evolut PRO (Medtronic), ACURATE neo (Boston Scientific), Portico (Abbott Vascular), and ALLEGRA (New Valve Technology). Lower row: mechanically expandable prosthesis LOTUS Edge (Boston Scientific). Image source: each manufacturer.

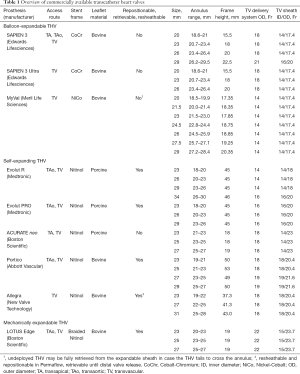

Table 1 Overview of commercially available transcatheter heart valves
Full table

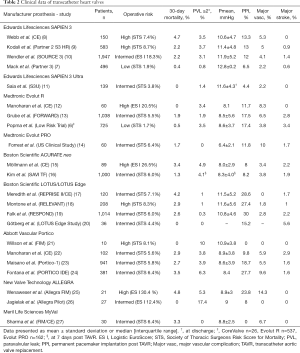

Table 2 Clinical data of transcatheter heart valves
Full table

Balloon-expandable devices

SAPIEN 3 and SAPIEN 3 Ultra

• Access: transvascular, transaortic, transapical;
• Sheath: 14-16 Fr inner diameter;
• Deployment: balloon expansion, mandatory rapid pacing;
• Sizes (annulus range): 20, 23, 26, 29 mm (18.6–29.5 mm).

Originating from the THV used for the first-in-man implantation in 2002 by Cribier (28), the SAPIEN 3 and SAPIEN 3 Ultra (Edwards Lifesciences, Irvine, CA, USA) now constitute the fourth and fifth generation of b-exp devices. Several iterations have contributed to better results by optimizing paravalvular sealing, decreasing diameters of the delivery system, and facilitating a straight-forward procedural flow. The stent frame is made of a cobalt-chromium alloy, and the three leaflets consist of bovine pericardium and are attached slightly above the inflow portion, which in the case of the SAPIEN 3 is covered by an internal polyethylene terephthalate (PET) skirt and an additional outer PET cuff to reduce paravalvular regurgitation. To further enhance the sealing mechanism, the SAPIEN 3 Ultra features a textured outer portion of the PET material that has a greater height than that of the SAPIEN 3. Even though pre-dilatation is recommended prior to THV implantation according to the instructions for use, direct implantation without pre-dilatation has become very common. Rapid ventricular pacing during implantation is mandatory, which may be unfavorable in patients with reduced left ventricular function or myocardial ischemia. The positioning of the SAPIEN 3 requires a co-planar view of the annular plane, and due to the radiopaque marker, its placement is very intuitive and can be accomplished in a precise fashion, even in the presence of a horizontal ascending aorta. A slightly higher position has been shown to decrease the risk of conduction disturbances, but in turn may increase the risk of coronary obstruction or impair coronary re-access (29). The SAPIEN 3 and SAPIEN 3 Ultra are characterized by a very effective sealing mechanism that can compensate for suboptimal positioning. The principle of balloon expansion bears the risk of annular rupture, especially in unfavorable calcification patterns and/or undue oversizing. Hence, less oversizing or use of stepwise inflation might be strategies to reduce the risk of annular damage (30). For the SAPIEN 3 and SAPIEN 3 Ultra devices, it is of utmost importance to verify the correct direction of loading on the delivery system, and for femoral access it is vital to retrieve the pusher prior to deployment; otherwise, there is a risk of malpositioning due to displaced balloon position.

MyVal

• Access: transvascular;
• Sheath: 14 Fr inner diameter;
• Deployment: balloon expansion, mandatory rapid pacing;
• Sizes (annulus range): 20, 21.5, 23, 24.5, 26, 27.5, 29 mm (18.5–28.4 mm).

The MyVal (Meril Life Sciences, Vapi, Gujarat, India) is a b-exp tri-leaflet, bovine pericardium THV with an inner and outer sealing mechanism. One of the few differences in comparison with the SAPIEN 3 and SAPIEN 3 Ultra is the stent frame, which is made of nickel-cobalt and has a complete honeycomb design. Thus, under fluoroscopy, the crimped valve therefore has a banding pattern to facilitate positioning. Pre-dilatation is recommended with this THV. Compared with other THVs, the MyVal is available in intermediate sizes with 1.5 mm increments. This may facilitate a precise size selection with minimized over- or under-sizing. The expandable sheath (14 Fr inner diameter) is compatible with all available THV sizes. However, the experience with this THV is thus far very limited. The Conformité Européenne (CE) mark has only recently been granted based on the first results from the MyVal-1 study (27).

Self-expanding devices

Evolut R and PRO

• Access: transvascular, transaortic;
• Sheath: inline sheath with 14 Fr outer diameter equivalent (Evolut R 34 and PRO: 16 Fr);
• Deployment: no rapid pacing, repositionable, resheathable, recapturable;
• Sizes (annulus range): 23, 26, 29, 34 mm; PRO: only 23, 26, 29 mm (18–30 mm).

The CoreValve (Medtronic, Minneapolis, MN, USA) was the first s-exp device that was approved for European and US markets. It was afflicted with several shortcomings, including a relatively high rate of PVL and the need for PPI as well as difficult positioning of the THV system. The Evolut R and Evolut PRO are iterations of this platform that were developed to address these issues. Both THV models consist of a nitinol-based stent frame and trileaflet porcine pericardium that is mounted in a supra-annular position. The valve design accounts for the low gradients and increased procedural safety and may facilitate optimal positioning (31). The latter may allow for higher positioning, which contributes to lower PPI rates (32). Refinements include improved sealing, especially the addition of a sealing skirt in the PRO model that has led to decreased PVL rates (14). Pre-dilatation is recommended, but given the relatively high radial force, it is not a prerequisite in all cases. The Evolut PRO has a slightly larger delivery system. Together with the SAPIEN 3, the Evolut R is the only THV that has been granted US market approval for application in low-risk patients.

ACURATE neo

• Access: transvascular, transapical;
• Sheath: 14 Fr inner diameter;
• Deployment: 2-step, top-down deployment, rapid pacing recommended per instructions for use, but in clinical practice rarely used;
• Sizes (annulus range): 23, 25, 27 mm (21–27 mm).

The ACURATE neo (Boston Scientific, Marlborough, MA, USA) is a supra-annular, nitinol-based s-exp device with an alloy stent frame that consists of a lower crown in the inflow aspect and an upper crown in the outflow aspect with three stabilization arches. It represents the iteration of the intra-annular ACURATE TA and can be used via transvascular and transapical access. Three porcine pericardium leaflets treated with an anti-calcification process are attached at the waist of the stent, with each commissure aligned with one of three struts at the origin of the stabilization arches. Additionally, the inflow aspect is covered by a porcine pericardium fabric skirt for the purpose of paravalvular sealing. In contrast to all other nitinol-based devices, the ACURATE neo is characterized by a “top-down” deployment which consists of two steps. However, it cannot be resheathed or retrieved. Hemodynamic stability is maintained during the entire deployment.

Further modifications include a delivery system that is compatible with a 14 Fr inner sheath diameter, which required changes in the architecture of the stent. Given the relatively straightforward two-step mechanism of deployment in two steps and intuitive handling, the learning curve is steep and the ease of use contributes to procedural safety. The ACURATE neo device is suitable for most aortic root anatomies, but especially for patients with short coronary distance and horizontal configuration of the ascending aorta. The comparably low radial force makes a sufficient pre-dilatation mandatory, and may be a disadvantage in more calcified annuli with eccentric distribution (33). However, the low radial force also accounts for one of the lowest PPI rates among contemporary devices (34).

Portico

• Access: transvascular, transaortic;
• Sheath: 18/19 Fr inner diameter;
• Deployment: no rapid pacing, repositionable, resheathable, recapturable;
• Sizes (annulus range): 23, 25, 27, 29 mm (19–27 mm).

The Portico (Abbott Vascular, Santa Clara, CA, USA) is a tri-leaflet s-exp THV consisting of a nitinol stent frame with bovine pericardial leaflets and large stent cells for facilitated coronary access. The inflow aspect is covered by a porcine pericardial sealing cuff, and the outflow aspect incorporates three retention tabs that are attached to the retainer receptacle of the 18 or 19 Fr delivery system. The handle features a rotating deployment wheel for unsheathing the device with a release lever at 80% release that has to be turned before full deployment is possible. The delivery system is flexible and allows resheathing and repositioning. Furthermore, it is retrievable if needed. As the full radial force of the Portico is reached upon complete stent expansion, pre-dilatation is recommended and should not be omitted as long as there are no data on the feasibility and safety of direct implantation. Rapid pacing is not necessary for the deployment, but fast ventricular pacing might facilitate positioning, particularly in the case of extrasystoles or uncontrolled motion. During deployment, outflow obstruction may occur but usually with only mild to moderate hemodynamic compromise, as the intra-annular leaflet position allows an early valve function that begins at 50% of deployment.

ALLEGRA

• Access: transfemoral;
• Sheath: inline sheath with 15 Fr inner diameter, 18 Fr valve cartridge;
• Deployment: no rapid pacing, 3 steps, recapturable;
• Sizes (annulus range): 23, 27, 31 mm (19–28 mm).

The ALLEGRA (New Valve Technology, Hechingen, Germany) is a supra-annular self-expanding THV with a bovine pericardial tri-leaflet design attached to a nitinol stent frame. The frame is equipped with 6 gold markers that indicate the new valve plane. All valve sizes are delivered via a flexible transfemoral delivery system with an integrated sheath intended to provide stable implantation with reduced friction. The delivery system incorporates the technology for a three-step release intended for an occlusion-free implantation. Therefore, there is no need for fast or rapid pacing during the implantation process. Data on this THV are limited and includes the first-in-human clinical studies showing results with a hemodynamic performance comparable to that of other THVs (25,26). Due to its hemodynamic properties, a potential use of this THV in valve-in-valve settings has been described (35).

Mechanically expandable THV

LOTUS Edge

• Access: transvascular, transaortic;
• Sheath: 21 Fr inner diameter;
• Deployment: no rapid pacing, repositionable, resheathable, recapturable;
• Sizes (annulus range): 23, 25, 27 mm (20–27 mm).

The LOTUS Edge (Boston Scientific, Marlborough, MA, USA) is a pre-attached mechanically expanding device consisting of bovine pericardial leaflets mounted within a braided nitinol mesh and an outer adaptive seal to minimize PVL. The prosthesis can be deployed stepwise with longitudinal foreshortening that builds up radial force and leads to controlled, mechanical expansion. The intra-annular leaflets are fully functional at an early stage of the expansion. Once the position is satisfactory, the stent frame can be locked with a post-and-buckle locking mechanism. After final functional evaluation, the prosthesis can be fully released or repositioned if necessary, making it unique among resheathable devices. The LOTUS Edge is the second generation of the LOTUS valve system with modifications in device design and handling of the delivery system. The so-called “depth-guard technology” facilitates early device anchoring in order to limit the depth of implantation for less conduction disturbances. The LOTUS Edge feasibility study demonstrated a lower rate of new PPI with 15.2% (20). Prior balloon valvuloplasty was part of the protocol in the LOTUS CE mark study but is rarely used in daily practice (17). The mechanical principle of stent expansion and the outer adaptive seal ensure “surgical-like” results with regard to PVL (0% relevant PVL in the LOTUS Edge study, and similarly low rates in the studies with the LOTUS valve system) (19,20). Hence, this valve system seems to be favorable for patients with a bicuspid aortic valve anatomy or severe aortic valve calcification. To minimize the risk of PPI, a relatively high positioning may be desirable. However, this might impair re-access to the coronary arteries, particularly in the case of low coronary uptake.

Which device is suitable for which patient?

A differential selection process requires a thorough evaluation of the patient’s individual situation, co-morbidities, anatomy of the aortic root, and the potential access route. For procedural planning prior to TAVR, comprehensive imaging with multidetector computed tomography of the aorta and ilio-femoral arteries is mandatory, since it provides details on all aspects required for decision-making. The following criteria should be considered for a customized choice of the THV system (Table 3).

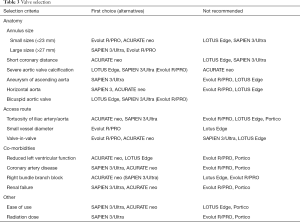

Table 3 Valve selection
Full table

Aortic root anatomy

Annulus size

Contemporary THVs are commonly available in 3 or 4 different sizes covering annulus diameters between 18 and 30 mm (details are provided in Table 1). Most devices are suitable for a maximum annulus size of 27 mm. In the case of larger dimensions, the only options are either the SAPIEN 3 29 mm (up to 29.5 mm) or the Evolut R 34 mm (maximum annulus 30 mm). In this context, Sathananthan et al. examined overexpansion of the b-exp SAPIEN 3 in an ex vivo setting and concluded that it is feasible, but suggested that excessive overexpansion may increase the risk of acute leaflet failure, impaired function, and reduced durability (36). Good results for overexpansion of the SAPIEN 3 up to annulus sizes of 31 mm and more were reported in a case series (37). Small annuli bear the risk of high post-procedural gradients and patient-prosthesis mismatch, which is more frequent for intra-annular devices (38). Thus, the use of THVs with supra-annular leaflet attachment may be advantageous in the case of small aortic root dimensions.

In patients with annulus dimensions that are borderline between two prosthesis sizes, the degree of oversizing should also be considered. Whereas for s-exp prostheses a higher degree of oversizing is preferred, for b-exp devices less oversizing may be the better choice. For instance, a patient with an area-derived annulus diameter of 23.6 mm would be in the lower range of sizing for most s-exp devices (Evolut R 29 mm, ACURATE neo 25 mm, Portico 27 mm) with a more favorable extent of oversizing than for the SAPIEN 3 26 mm, which would have a higher risk of annulus rupture. The risk of aortic annulus rupture is reported to range between 0.5% and 1% among TAVR procedures, implying adverse outcomes (30,39,40). For the prosthesis choice, it should be kept in mind that this complication is traditionally more often associated with b-exp than with s-exp devices (30). However, when post-dilatation is performed with an oversized balloon, the risk of annulus rupture was suggested to increase with s-exp THVs as well (41).

Coronary distance

Coronary obstruction is a rare but fulminant complication with high mortality (42). Careful pre-procedural imaging can help to identify anatomical risk factors, including a short distance between the annulus and the coronary ostia and a shallow sinus of Valsalva. Non-anatomical risk factors are higher age, female sex, no previous coronary artery bypass graft, implantation of b-exp valves, and valve-in-valve TAVR for failed surgical aortic bioprostheses (43). A lower risk of coronary obstruction may be anticipated for s-exp devices with specific principles of anchoring, for instance the upper crown of the ACURATE neo that keeps the native leaflets away from the coronary ostia, or THVs that can be repositioned or retrieved prior to final deployment.

Calcification

In contrast to surgical aortic valve replacement, the amount and distribution pattern of aortic valve calcification have a higher impact on outcome for TAVR patients. This has been demonstrated for s-exp as well as for b-exp devices, indicating a higher risk of procedural complications, need for post-dilatation, and PVL (44). However, if there is evidence of severe asymmetric calcification protruding into the left ventricular outflow tract, the selection of a valve with an advanced external sealing skirt may be preferable. As extensive calcification is an independent factor associated with annulus rupture, TAVR with b-exp devices as well as balloon-dilatation in s-exp devices need to be used with caution in this clinical scenario. To date, there is no randomized comparison of different THVs according to degree and distribution of aortic valve calcification. Until reliable evidence on currently available THVs is available, the decision on the appropriate prosthesis to be used for specific degrees and patterns of calcification depends on the individual experience and preference of the operator.

Bicuspid valve morphology

In comparison with tricuspid aortic valves, bicuspid morphologies are frequently associated with larger annulus dimensions, extensive and complex calcification patterns, an asymmetric valve orifice, and a dilated aortic root and ascending aorta (45,46). Therefore, replacement of bicuspid aortic valves via TAVR is challenging, and bicuspid aortic valves are classified as a relative contraindication for TAVR in current guidelines (1,2). Existing data on TAVR in this specific anatomy are not consistent and do not allow to draw firm conclusions. Nevertheless, available registry-based analyses indicate that TAVR is feasible and safe, particular with the use of new-generation devices (46-49). Further research in terms of differential device selection and long-term durability is required, especially because bicuspid anatomies are encountered more frequently in younger patients who are increasingly being referred for TAVR.

Aortic aneurysm/horizontal aorta

The implantation in a horizontal configuration of the ascending aorta is regarded as challenging due to difficult positioning, especially in s-exp devices with long stent frames. Data on the impact of a horizontal aorta on procedural outcomes, however, are scarce. Nonetheless, it can be assumed that THVs with short stent frames are the most appropriate choice for such anatomies. The b-exp devices feature delivery systems with dual articulation and distal flexing that allows for facilitated crossing of the aortic arch and positioning. The self-alignment after release of the stabilization arches makes the ACURATE neo particularly suitable for horizontal aortic configurations.

Access route

The access route is a key determinant of device selection. Currently, there are only two devices that can be used for both transapical and transvascular access: the SAPIEN 3/Ultra and the ACURATE neo. The most important criterion for the transvascular access is the diameter of the sheath or the delivery system (in sheathless devices) that determine the choice of the prosthesis. The ratio between the size of the sheath and the vessel diameter has been described as a predictor of vascular complications (50). In the event of very small vessel diameters (<5 mm), the Evolut R may be most suitable given its very low profile. Alternatively, the sheathless insertion of the Portico system can be taken into consideration (51). It should be noted that the sheath sizes declared by most manufacturers represent inner diameters, and maximum outer diameters can differ considerably, especially upon insertion of the delivery system (also see Table 1).

Mild to moderate tortuosity of the iliac arteries or the aorta usually straightens upon insertion of a stiff wire or large-bore sheath, whereas severe kinking can indeed be challenging, especially in combination with circular calcification and/or narrowing of the vessel lumen. Very rarely, in tall subjects with tortuous vessels, delivery systems may be too short. Contrary to the widespread misconception, the presence of an abdominal aortic aneurysm does not preclude transfemoral access, as the aneurysm is typically completely protected by the introducer sheath.

Coexisting morbidities and potential complications

Conduction disturbances

Left bundle branch block and conduction disturbances with requirement for PPI belong to the most frequent complications encountered after TAVR. The presence of a right bundle branch block at baseline is known as an independent patient-related predictor of the need for PPI. Several other risk factors have been described, including the presence of a porcelain aorta, the absence of prior valve surgery, septal hypertrophy, calcification of the left- or non-coronary cusp, prosthesis depth in the left ventricular outflow tract, calcification of the device landing zone, and larger or significantly oversized prostheses (52,53). The reported rate of PPI varies considerably as a function of the type of THV (Table 2). The selection of the appropriate THV should be made according to this knowledge and the perceived individual patient-related risk factors for PPI. A recent publication by Jilaihawi et al. focused on an individualized approach where the implantation depth of the Medtronic Evolut R/PRO was adapted to the length of the membranous septum measured in computed tomography (54). As a result, the rates of new PPI and new left bundle branch block were significantly reduced with this approach compared with the rated for standard implantation techniques (54).

Coronary artery disease

The impact of coronary artery disease on procedural and long-term outcome after TAVR is yet unclear. Most institutions pursue a strategy of complete revascularization prior to TAVR. Indeed, incomplete revascularization was demonstrated to be an independent predictor of decreased left ventricular recovery and was associated with higher 1-year mortality (55). In contrast, complete coronary revascularization was not a prerequisite in elderly patients prior to transcatheter aortic valve implantation (TAVI), provided the revascularization strategy was selected by a dedicated heart team (56). Subject to the extent of coronary artery disease and anticipated future need for revascularization after TAVR, it should be considered that access to the coronary ostia can be challenging with certain types of THV in situ. However, the SAPIEN 3 and SAPIEN 3 Ultra typically permit unrestricted future re-access to the coronary arteries (Figure 2).

Figure 2 Even complex coronary interventions are possible after TAVR, as illustrated by the case of this 93-year-old male patient. He had undergone implantation of a SAPIEN 3 valve and then developed cardiogenic shock. Unrestricted access permitted percutaneous coronary intervention with good outcome. TAVR, transcatheter aortic valve replacement.

Prosthesis-patient mismatch

Hemodynamic characteristics of the different THVs vary mainly as a function of leaflet position. Supra-annular prostheses have been shown to have lower transvalvular gradients, and particularly in patients with small aortic root dimensions, the incidence of patient-prosthesis mismatch is lower for supra-annular THVs (57). In the clinical routine, this particular aspect gets less attention than it deserves, since patient-prosthesis mismatch affects long-term outcome (58).

Reduced left ventricular function

Patients with reduced left ventricular function and severe aortic stenosis have a poorer prognosis after aortic valve replacement due to the associated pathological irreversible myocardial fibrosis. In the absence of reliable evidence, it can only be anticipated that rapid pacing, conduction abnormalities, relevant PVL, and high post-procedural gradients are particularly detrimental in cases of severely reduced left ventricular function. In the event that after TAVR a patient becomes pacemaker-dependent with the need for persistent right ventricular pacing, the implantation of a cardiac resynchronization therapy system should be considered.

Renal failure

The amount of contrast material required for a standard TAVR procedure differs between b-exp and s-exp devices. In view of recent results showing significantly reduced contrast usage for implantation of the b-exp prosthesis SAPIEN 3 in direct comparison with s-exp devices, the selection of a b-exp prosthesis is the best choice, based on current knowledge (50). Alternatively, an approach employing little or even no contrast material may be attempted (59).

Miscellaneous factors

Ease of use

The various principles of deployment and features such as resheathability or retrievability illustrate the complexity of procedural handling of modern TAVR devices. Even though “ease of use” as a parameter is difficult to measure, experienced operators will agree that usability of the available THV systems varies and will impact the learning curve. The ease of use is a rather underestimated aspect that affects procedural safety and success. Thus, the risk of human error or technical failure increases with the complexity of the procedural steps.

Radiation dose

Due to the various underlying principles of contemporary THVs, there are also differences regarding the radiation burden experienced by both patients and operators. Higher radiation doses can be anticipated with increasing duration and complexity of the procedure. This pertains to the need for pre- or post-dilatation and to devices with complex positioning or maneuvers like resheathing or retrieval of the device. Whereas long-term effects of radiation exposure may not be relevant in elderly patients, this aspect has to be considered when indications are expanded to younger populations or those with lower risk.

Durability

As comparative data on long-term performance of the currently available THV systems are lacking, valve durability cannot yet be used as a criterion for differential selection.

Conclusions

None of the currently available THVs are capable of addressing the full spectrum of challenging patient anatomies and clinical situations in a comprehensive fashion. Theoretically, such a device should have a small profile for vascular access, allow straightforward and safe application, deliver good immediate and long-term results in terms of PVL and hemodynamics, be suitable for a large variety of aortic root anatomies including severe calcification or bicuspid aortic valves, and have a low PPI rate. However, some devices may be more appropriate for use in specific patients and result in better outcomes than others. The question of which or how many different devices a center should keep in stock mainly depends on the TAVR volume. Centers with low volumes usually have only one or few valve types in stock, including a THV system that covers the entire annulus range. In centers with higher volumes, it is recommended to have different devices that are complementary in terms of radial force and annulus range. Due to the specific advantages and disadvantages of each THV system, it is strongly advisable to make use of the broad spectrum of available treatment options in TAVR technology and to select the most appropriate device according to the individual anatomy and comorbidities of the patient.
