Circulating CX3CR1⁺CD163⁺ M2 monocytes markedly elevated and correlated with cardiac markers in patients with acute myocardial infarction

Introduction

Acute myocardial infarction (AMI) is the direst form of coronary artery diseases, which primarily results from vulnerable atherosclerotic plaques (1). Its prompt and accurate diagnosis are critical for the initiation of effective evidence-based medical management. Cardiac troponin (cTn) is one of the diagnostic biomarkers for the evaluation of AMI. However, serial blood sampling is required for the diagnosis of non-ST-elevation myocardial infarction (2). The delayed rule-in increases mortality. Given the fact that nonspecific inflammation plays a critical pathogenic role in plaque disruption (3,4) and macrophages are the primary source of inflammation effectors, the role of macrophages in atherosclerosis have enticed scientists to explore for decades.

Depending on the remarkable plasticity, macrophages can be polarized to either classical M1 macrophages or alternative M2 macrophages. M1 macrophages are pro-inflammatory macrophages exhibiting increased phagocytic activity while M2 macrophages mitigate over exuberant inflammation and play a vital role in promoting cardiac healing and remodeling process after myocardial infarction (5). Although M1 and M2 coexist in the atherosclerotic lesions, growing body of evidence have highlighted the central role of M1 in exuberant inflammation thus driving the destabilization of internal atheromatous plaques (6,7). However, pathological intraplaque angiogenesis has recently been reported to contribute to the plaque destabilization (8). Neovessels in vulnerable plaques are characterized by discontinuous basement membrane, low number of tight junctions between the endothelial cells and poor pericyte coverage, which are highly susceptible to the leakage of circulating cell thus inducing intraplaque haemorrhage (9-11). Therefore, M2 macrophages might be of clinical importance as it could regulate intraplaque vessel sprouting and function in angiogenesis (12,13). M2 macrophages have not been studied clearly in AMI patients.

CD163 and Chemokine-X3C-receptor-1 (CX3CR1) have already been generally recognized as the typical M2 markers. CX3CR1⁺CD163⁺ monocytes were also precisely defined as M2 monocytes (14,15). CX3CR1⁺ cells have been found markedly upregulated and facilitated inflammatory infiltration in atherosclerosis lesions (16). However, the presence of circulating CX3CR1⁺CD163⁺ M2 monocytes and their association with inflammation remains largely unknown in AMI.

Macrophages phenotype is heterogeneous, and transcription factors are important for its polarization by inducing epigenetic changes. Peroxisome proliferator-activated receptor γ (PPARγ) held potent anti-inflammatory properties that could skew human monocytes towards M2 macrophages (17). Arginase-1 (Arg-1), predominantly expressed by M2 macrophages, could alter the magnitude and duration of the immune response (18). The present study aimed to study the correlation between circulating M2 monocytes and cardiac specific and acute-phase markers in AMI patients. We further looked into the function of circulating M2 monocytes by investigating the expression of PPARγ and Arg-1. These insights may provide glimpses into potential clinical significance of M2 monocytes in AMI.

Methods

Patients and clinical parameters

Thirty-five patients diagnosed with AMI scheduled for percutaneous coronary intervention (PCI) were enrolled in the study between April and July 2018. All patients met the international diagnosis criteria of AMI (1). Clinically unstable patients with cardiac arrest, cardiogenic shock or uncontrolled hypotension, as well as cases with stable angina pectoris, acute malignant disease, and chronic inflammatory diseases were excluded. Patient age, gender and the clinical parameters were recorded. Age matched controls consisted of ten healthy volunteers. The present study was conducted in accordance with the Declaration of Helsinki. The study protocol was approved by our Institutional Review Board, signed informed consent was obtained from all patients.

Isolation of peripheral blood mononuclear cells

EDTA-anticoagulated venous blood samples were immediately drawn from AMI patients before PCI and from healthy controls (HCs). PBMCs were isolated by Ficoll density-gradient centrifugation and resuspended in cell freezing medium (10% DMSO in fetal bovine serum) at 5×10⁵ cells/mL. The cell pellets were frozen at –80 °C and thawed for testing on separate occasions.

Flow cytometry analysis

Two methods were used to identify circulating M2 monocytes: intracellular staining methods (CD68⁺CD163⁺) (19) and cell surface staining methods (CX3CR1⁺CD163⁺) (14,15). CD68 (Y1/82A; BD Biosciences, San Jose, CA, USA) and CD163 (GHI/61; BD Biosciences) were intracellularly stained after fixing with 4% paraformaldehyde and permeabilizing by FACS permeabilizing solution (BD PharMingen, San Diego, CA, USA). The cell-surface staining was performed to assess CX3CR1 (2A9-1; BioLegend, San Diego, CA, USA) and CD163 (GHI/61; BD Biosciences) expression, according to the manufactures’ instructions. The PBMCs were gated by FSC × SSC (Figure S1). Flow analysis was performed on a FACS Aria II flow cytometer (BD Biosciences) and data were analyzed using FlowJo 7.6.1 (Tree Star, San Carlos, CA, USA) software.

Figure S1 The FSC × SSC gate of PBMCs for gating CD68⁺ CD163⁺ (A) and CX3CR1⁺ CD163⁺ (B) M2 monocytes.

Magnetic cell separation of CX3CR1⁺ monocytes

From the PBMCs, pure CX3CR1⁺ monocytes were separated by positive selection, using CX3CR1 MicroBeads and a magnetic cell sorting (MACS) separator (Miltenyi Biotech, Bergisch Gladbach, Germany) according to the manufacturer’s instruction. The purity of the cells after sorting was >98% (Figure S2).

Figure S2 The purity of CX3CR1⁺ monocytes tested by FCM.

Real-time quantitative PCR

Total RNA was extracted from CX3CR1⁺ monocytes using TRIzol Reagent (Invitrogen, Carlsbad, USA) and converted into cDNA using PrimerScript RT Master Mix (Takara, Tokyo, Japan), then was performed using SYBR Premix Ex Taq (Takara, Tokyo, Japan) on an Applied Biosystems 7500 Fast Real-Time PCR System. Expression of GAPDH was used as internal reference. The following primer sequences were used: GAPDH forward: AACAGCCTCAAGATCATCAG, reverse: AGTCCTTCCACGATACCAA; PPARγ forward: ACCAAAGTGCAATCAAAGTGGA, reverse: ATGAGGGAGTTGGAAGGCTCT; Arg-1 forward: GTGGAAACTTGCATGGACAAC, reverse: AATCCTGGCACATCGGGAATC.

Western blot

CX3CR1⁺ monocytes were homogenized in ice-cold lysis and then were clarified by centrifugation (12,000 g, 4 °C, 30 min). Equivalent protein (20 µg) was subjected to a 10% sodium dodecyl sulfate-polyacrylamide gel and then transferred to polyvinylidene fluoride membranes (Millipore, Bedford, USA). Membranes were blocked for 1 h at room temperature with Tris-buffered saline + 0.1% Tween 20 (TBST) containing 5% bovine serum albumin and incubated overnight with primary antibodies against PPARγ, Arg-1 and GAPDH (Cell Signaling Technology, Beverly, USA) at 4 °C. The next day, membranes were incubated with secondary antibody (Cell Signaling Technology, Beverly, USA) for 1 h after three washes by TBST. The antigen-antibody complexes were detected using an enhanced chemiluminescence kit (Thermo Fisher Scientific, San Jose, USA).

Statistical analysis

Results were expressed as mean ± standard deviation or median (interquartile range) as appropriate for continuous variables and as percentages for categorial variables. All data were analyzed using the SPSS 13.0 software (SPSS, Chicago, IL, USA). Two-tailed Student’s non-paired t-test was applied for evaluating statistically significant differences between two independent groups. The correlation analysis was accessed by Pearson’s correlation coefficient. Two-tailed P<0.05 was considered to be statistically significant.

Results

Clinical characteristics of AMI patients

Among 35 AMI patients enrolled in the present study, the median age was 70 years (range, 39–87 years). Clinical characteristics were presented in Table 1. This group showed a higher proportion of patients with STEMI and multiple vessel involvement. The healthy control group consisted of 4 women and 21 men, with a median age of 70 years (range, 38–88 years) (Table S1).

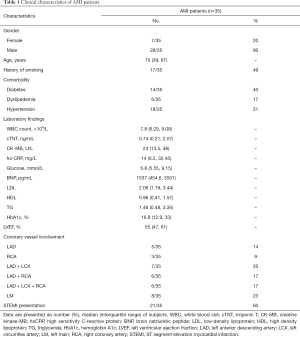

Table 1 Clinical characteristics of AMI patients
Full table

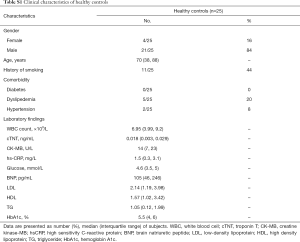

Table S1 Clinical characteristics of healthy controls
Full table

Circulating CD68⁺CD163⁺ and CX3CR1⁺CD163⁺ M2 monocytes expanded and correlated positively in AMI

The presence of CD68⁺CD163⁺ and CX3CR1⁺CD163⁺ M2 monocytes were explored in HC and AMI patients (Figure 1). CD68⁺CD163⁺ M2 monocytes were found significantly elevated in AMI patients as compared with HC (20.68±1.40 vs. 8.08±0.26, P<0.01, Figure 1A,B). Similarly, the expansion of CX3CR1⁺CD163⁺ M2 monocytes were dramatically accentuated in AMI patients (4.67±0.49 vs. 0.58±0.08, P<0.01, Figure 1A,C). A significant positive linear correlation between CD68⁺CD163⁺ and CX3CR1⁺CD163⁺ M2 monocytes was noted in AMI patients (r=0.39, P=0.02, Figure 1E), but not among HCs (r=0.09, P=0.13, Figure 1D). These results furnished evidence that the percentage of CX3CR1⁺CD163⁺ M2 monocytes dramatically elevated and correlated positively with CD68⁺CD163⁺ M2 monocytes in AMI patients.

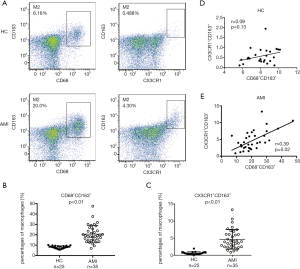

Figure 1 Circulating CD68⁺CD163⁺ and CX3CR1⁺CD163⁺ M2 monocytes expanded and correlated positively in patients with AMI. A Representative dot plots of CD68⁺CD163⁺ and CX3CR1⁺CD163⁺ M2 monocytes in the PBMCs of AMI patients (n=35) and HCs (n=25). Peripheral CD68⁺CD163⁺ (B) and CX3CR1⁺CD163⁺ (C) M2 monocytes were significantly elevated in AMI patients. Correlation between the percentage of CD68⁺CD163⁺ and CX3CR1⁺CD163⁺ M2 monocytes in HC (D) and AMI patients (E). P<0.01, compared to HCs in two-tailed Student’s non-paired t test. Data were determined by Pearson’s correlation test. AMI, acute myocardial infarction; HC, healthy control.

Cardiac specific biomarkers and acute-phase markers correlated positively with M2 monocytes

Significant positive linear correlations were found between CX3CR1⁺CD163⁺ M2 monocytes and CK-MB (r=0.54, P<0.01, Figure 2A) and cTNT (r=0.63, P<0.01, Figure 2A), while only cTNT was observed positively correlated with CD68⁺CD163⁺ M2 monocytes (r=0.37, P=0.03, Figure 2B). In view of the notion that macrophages, hsCRP and glucose participate in acute-phase reaction, glucose (r=0.62, P<0.01, Figure 2A) and hsCRP (r=0.58, P<0.01, Figure 2A) were further tested and revealed that they were both positively correlated with CX3CR1⁺CD163⁺ M2 monocytes.

Figure 2 Cardiac specific biomarkers and acute-phase markers correlated positively with M2 monocytes. Correlation between cardiac specific biomarker (CK-MB and cTNT), acute-phase marker (glucose and hsCRP) and the percentages of circulating CX3CR1⁺CD163⁺ (A) and CD68⁺CD163⁺ (B) M2 monocytes in AMI patients (n=35). Data were determined by Pearson’s correlation test.

CX3CR1⁺ monocytes had upregulated PPARγ and Arg-1

After magnetic cell separation of CX3CR1⁺ monocytes, the percentage of CD68⁺CD163⁺ M2 monocytes was significantly elevated when compared with the whole PBMCs (18.26±2.46 vs. 48.33±2.16, P<0.01, Figure 3A). Thus, the CX3CR1⁺ monocytes could be considered to share the phenotype of M2 macrophages. To further examine the function of CX3CR1⁺ monocytes, we accessed the expression level of PPARγ and Arg-1 in CX3CR1⁺ monocytes. The relative quantitative mRNA level of PPARγ (1.45±0.11 vs. 1.09±0.07, P=0.01) and Arg-1 (1.97±0.26 vs. 1.09±0.08, P<0.01) were significantly higher in AMI patients than those in HC, the same was true for the expression of the corresponding protein (Figure 3B,C). These results further validated these CX3CR1⁺ monocytes to have features of polarized M2 macrophages.

Figure 3 The upregulation of PPARγ and Arg-1 in CX3CR1+ monocytes. Representative dot plots of CD68⁺CD163⁺ M2-like macrophages in the PBMCs and CX3CR1⁺ monocytes of AMI patients (A). Real-time quantitative PCR analysis of the mRNA level (B) and Western blot analysis of the protein expression (C) of PPARγ and Arg-1 in CX3CR1+ monocytes in HC (n=10) and AMI patients (n=10). P<0.01, compared to PBMCs in two-tailed Student’s non-paired t test. AMI, Acute myocardial infarction; HC, healthy control.

Discussion

In the present study, the cell surface staining method (CX3CR1 and CD163) were used to identify the M2-like macrophages among circulating monocytes. The circulating CX3CR1⁺CD163⁺ M2 monocytes dramatically expanded and positively correlated with CK-MB, cTNT, hs-CRP and glucose among AMI patients. Moreover, the expression level of PPARγ and Arg-1 were higher in CX3CR1⁺ monocytes of AMI patients compared with those in HCs. These observations indicated that circulating CX3CR1⁺CD163⁺ M2 monocytes might play a potential role in the early diagnosis of AMI.

Previous studies have highlighted that the increased total WBC count was positively associated with the adverse outcome in patients of ST segment elevation myocardial infarction and was predictive of higher six-month mortality in AMI (20,21), however which leukocyte subtypes carry this risk is uncertain. We here found the extremely elevated circulating CX3CR1⁺CD163⁺ M2 monocytes among AMI patients. Unlike our previous intracellular staining methods (CD68 and CD163) (19), both CX3CR1 and CD163 expressed on the surface of monocytes, indicating that these cells exhibited more monocyte chemotactic ability. These findings sparked our great interest to speculate that the increased circulating CX3CR1⁺CD163⁺ M2 monocytes may be retained as the risk factor in WBC for cardiovascular risk prediction.

Intriguingly, we found the elevated circulating CX3CR1⁺CD163⁺ M2 monocytes positively correlated with the cardiac specific biomarkers, including cTNT and CK-MB, indicating that the circulating CX3CR1⁺CD163⁺ M2 monocytes might play a detrimental role in myocardial injury. The causes of plaque destabilization from an asymptomatic fibroatheroma plaque to high-risk unstable lesions remain largely unknown. Recent studies have revealed that intraplaque haemorrhages could accelerate the plaque destabilization, ultimately leading to acute cardiovascular events (8). Emerging data have indicated that the enhanced expression of CD163 positively correlated with intraplaque haemorrhages (22-24). Considering the significantly increased CX3CR1⁺ CD163⁺ M2 monocytes in AMI, we would venture to speculate that they might contribute to intraplaque haemorrhage.

Many studies have clarified that progressive inflammation predisposes to plague rupture. CX3CR1 has been unveiled to augment the inflammatory via the crosstalk between smooth muscle cells and monocytes (25). The expression of CD163 in monocytes has been identified to be associated with intraplaque angiogenesis during the late inflammation (26). In agreement, the intriguing finding of the present study was the positive correlation between CX3CR1⁺CD163⁺ M2 monocytes and the typical acute-phase marker, hs-CRP and glucose. Since inflammation and intraplaque angiogenesis often coexist at the base of advanced plaques, CX3CR1⁺CD163⁺ M2 monocytes might act as an inflammatory link between intraplaque angiogenesis and myocardial injury.

Notably, the cells we tested here were the populations circulating in the peripheral blood, not the polarized macrophages localized in the plaques. Although the tissue-resident macrophages have been generally recognized as the main source of polarized-macrophages in myocardial tissue, circulating monocytes have been considered to be able to replenish the pool of tissue macrophages (27). Recently, a wealth of studies has existed on the role of monocyte-derived macrophages in plaque destabilization, shedding new light on the role of monocytes in intraplaque neoangiogenesis (28). CD14⁺CD16⁺⁺ cells, the non-classical monocytes, were found to patrol the vessel wall and expressing high level of CX3CR1 (29). The circulating CX3CR1⁺ monocytes have been shown to be positively corelated with angiographic late lumen loss in AMI patients (30). Therefore, we speculated that the elevated circulating CX3CR1⁺CD163⁺ M2 monocytes might beget myocardial injury through patrolling the vessel and infiltrating in the plaque, and then differentiating into M2 macrophages.

Given the fact that circulating CX3CR1⁺CD163⁺ M2 monocytes positively correlated with cardiac specific and acute-phase markers in AMI, the CX3CR1⁺ monocytes were readily available, and the separated CX3CR1⁺ monocytes expressed higher M2 specific marker (CD68 and CD163), we then analyzed the function of the CX3CR1⁺ monocytes to further our understanding this particular cell population. Despite functioned as a transcriptional regulator of genes linked to lipid metabolism, mounting evidence have suggested that PPARγ also plays an essential role in M2 macrophages polarization (31,32). Also, the expression of Arg-1 has generally been recognized to precisely reflect the overall M2 polarization (18). It was intriguing to note that the expression level of both PPARγ and Arg-1 in CX3CR1⁺ monocytes of AMI patients were higher than those in HCs, indicating that CX3CR1⁺ monocytes have the potential for polarized M2 macrophages. Finally, the circulating CX3CR1⁺CD163⁺ M2 monocytes might act as the valuable biomarker for plaque vulnerability in AMI.

Limitations

The finding in our study should be viewed in light of the limitation about the relatively small study population. It’s still hard to claim an exact deduction to elucidate the contribution to angiogenesis of circulating CX3CR1⁺CD163⁺ M2 monocytes as we didn’t examine the angiogenic growth factors and intraplaque haemorrhage in human coronary unstable plaques. Further tissue-based study and the cell function of the circulating CX3CR1⁺CD163⁺ M2 monocytes would be exciting to explore in AMI patients. More speculatively, these cells might be further applied to predict the risk of stable coronary heart disease.

Conclusions

Collectively, the increased circulating CX3CR1⁺CD163⁺ M2 monocytes shared some vital characteristics of polarized M2 macrophages. Those positive correlation with cardiac specific biomarkers and acute-phase markers may open new avenues for their clinical application. Further studies will shed light on the prognostic value and more detailed molecular mechanism of the circulating CX3CR1⁺CD163⁺ M2 monocytes in AMI.

Acknowledgments

Funding: This work was supported by grants from National Natural Science Foundation of China (81870098, 81600090, 81500090, and 81470282), the Science and Technology Commission of Shanghai Municipality (18ZR1407200), and Shanghai Municipal Health Commission (201840351, and 20144Y0194). All authors obtain permission to acknowledge from all those mentioned in the acknowledgements.

Footnote

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-383

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-383). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was in accordance with the ethical standards formulated in the Helsinki Declaration and was approved by the respective local Medical Ethics Committees. Written informed consent was obtained from each patient before being included in the study. All patient’s personal data have been secured

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
