A novel supplemental maneuver to predict fluid responsiveness in critically ill patients: blood pump-out test performed before renal replacement therapy

Introduction

The concept of fluid resuscitation is highlighted in the guidelines of the Surviving Sepsis Campaign (1). In the early stage, the fluid resuscitation is an indispensable and important treatment for patients with septic shock (2,3). Reasonable volume therapy can increase the preload of the heart by overfilling the fluid, thereby increase the cardiac output, improve the hemodynamic state of the patients, optimize the heart function and improve the tissue perfusion. However, the expansion in volume results in an increase of preload, not elevation of cardiac output, even sometimes increasing the burden of cardiopulmonary capacity. After volume therapy, only 50% of patients with unstable hemodynamics had increased cardiac output. Therefore, it is particularly important to predict the patient’s response to fluid responsiveness before volume therapy, that is, to accurately evaluate the patient's fluid responsiveness before volume therapy (4,5).

There are several strategies that can be used to predict fluid responsiveness and the most used two methods are fluid challenge and the passive leg raising (PLR) maneuver (6,7). The first strategy is based on titration and monitoring of the effects of volume expansion. This protocol is recommended by the National Institute for Clinical Excellence (8). This strategy is associated with good outcomes. However, it may also result in repeated ineffective fluid boluses. Indeed, fluid overload and positive fluid balance are associated with poor prognosis (9,10). PLR is an easy-to-perform and reliable method to assess fluid responsiveness. Even when many other dynamic predictors are inconsistent, it maintains excellent performance and avoids unnecessary fluid management. Importantly, its prediction remains valuable in patients with cardiac arrhythmias or spontaneous breathing activity (11,12). PLR has been demonstrated to produce changes in preload, increasing stroke volume (SV) significantly in patients who meet at the responder part of the ventricular function curve of Frank-Starling. Likewise, this is considered a reversible filling volume test as its effect on SV disappears after the patient returns to the supine position (13-15). The PLR test has been included in the last update of the recommendations of the Surviving Sepsis Campaign (1) and in a consensus conference of the European Society of Intensive Care Medicine (16). However, clinically, not all severe cases can be successfully implemented PLR (17,18).

AKI occurs in 5–45% of critically ill patients, and renal replacement therapy (RRT) is the main treatment of critically ill patients with severe AKI (19,20). Fluid management plays a critical role in AKI patients. But is there a suitable, and easy but long-term neglected way to evaluate volumetric reactivity in this particular population? According to our pilot study, there is about 210 mL blood drained from the body at the start of RRT. The procedure of blood drainage, named by blood pump-out test (BPT), is inverse to the autologous bloodletting from the PLR test, which may make patients with insufficient effective circulating blood volume have decreased CO, while patients with blood volume overload or normal changes in CO may have a variety of possibilities. Little studies focus on BPT and we hypothesized that BPT could serve as a supplement maneuver in predicting fluid responsiveness in patients with AKI underwent RRT.

Methods

This single-center, real-world, prospective clinical study (ChiCTR-DDD-17010534) was conducted from June 2016 to August 2018 at Guangdong Provincial People’s Hospital and approved by the hospital’s Ethical Committee (No. GDREC2016313H) and all patients enrolled were informed about the clinical trial and accepted to participate.

Patients

Inclusion criteria were as follows: (I) age ≥18 years old; (II) renal replacement therapy was needed. Exclusion criteria were as follows: (I) age <18 years old; (II) pregnant women or patients with end-stage malignant tumors; (III) patients who do not need blood purification therapy or PiCCO monitoring can not be performed; (IV) no informed consent.

All enrolled patients must have undergone RRT who had a transpulmonary thermodilution device already in place (PiCCO device, Pulsion Medical Systems, Munich, Germany).

Study design

PLR process (Figure 1) and determination of parameters

Figure 1 Graphic description of the study protocol and positions in which measurements were performed: (1) Baseline measurement in the 45° semi-recumbent position. (2) The bed was then raised to elevate the patient’s legs to 45°. During 30–90 s, the second measurement was taken. (3) Re-assess CO in the semi-recumbent position (should return to baseline), it was usually taken five to ten minutes, when parameters were recorded. (4) Finally, blood drainage before RRT was performed in about two minutes, and the final measurements were collected.

• Patients took a 45° semi-recumbent position, and had PLR when the blood purification was about to the blood drainage. After each position change and after PLR test, we recorded hemodynamic parameters accordingly. The pulse contour-derived cardiac output was calibrated by transpulmonary thermodilution at baseline, and then when the CO value is stable, we will take the corresponding value as the baseline CO value measured by pulse contour-derived cardiac output.
• In the timeframe of PLR effects, the maximum value of CO will appear during 30-90 s after the onset of the PLR test, which was measured by real-time pulse contour-derived cardiac output monitoring. Fluid responders was defined with an increase in the pulse contour analysis-derived ∆CO ≥10% during PLR, if ∆CO <10%, then it was non-responders. ∆CO_PLR = (CO_maximum − CO_baseline)/CO_baseline, CO_baseline refers to the baseline value of CO in a stable state before PLR, and CO_maximum will appear during 30–90 s after the onset of the PLR test.

Determination of the parameters during BPT in the blood purification pipelines (Figure 2)

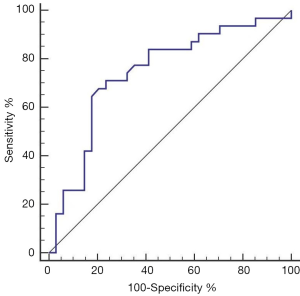

Figure 2 Receiver-operating characteristic curves showing the predicting value of BPT-induced decreases in cardiac output to discriminate between responders and non-responders.

After PLR, patients returned to the 45° semi-recumbent position for 5–10 minutes. Re-assess CO in the semi-recumbent position (should return to baseline), it usually took five to ten minutes, then BPT in the RRT pipelines would begin. The speed of blood drainage was approximately 100 mL/minute, and the whole process of blood drainage would last for about 2 minutes. During the process of arterial end blood drainage, the venous end blood return pipeline is temporarily closed to ensure that no additional fluid enters the body during the process of blood drainage. Within the 0.5–2 minutes during blood drainage, CO minimum was taken by pulse contour-derived CO. During the whole process, intravenous rehydration stopped, except the vasoactive drugs that pumped into the veins at a constant speed. ∆CO_BPT = (CO_baseline − CO_minimum)/CO_baseline, CO_baseline refers to the baseline value of CO in a stable state before BPT, and CO_minimum will appear during 120 s after the onset of the BPT test. The CRRT machine is made in Germany by Fesenius, and the blood filter model is Ultraflux AV1000S.

Statistical analysis

The normality of data was tested by the Kolmogorov-Smirnov normality test. Continuous variables were expressed as median as mean ± standard deviation (SD). The sample size was based on the assumption of finding 92.5% sensitivity in pre-experiment and the intention to obtain a significant of α=0.05, allowing an error of δ=0.08. We calculated that 65 patients needed to be included in the study. Comparisons of variables between cases with vs. cases without fluid responsiveness were assessed by a two-tailed Student’s t test or a Mann-Whitney U test, as appropriate. A receiver-operating characteristic (ROC) curve was constructed to test the ability of the LPLR-induced changes in the CO to predict a fluid responsiveness. Sensitivities, specificities and areas under (AUROCs) the ROC curve are expressed as mean (95% CI). The diagnostic cut off was determined by the best Youden index value. Since some patients underwent several BPTs, each BPT was considered as a “case”, and all cases were included in the primary analysis. SPSS19.0 software was used to analyse the data. A P≤0.05 was considered statically significant.

Results

Patient characteristics

Sixty-five patients met inclusion criteria and enrolled in this study. Their characteristics were reported in Table 1.

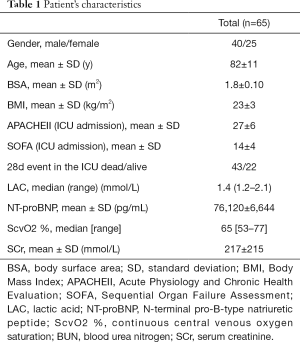

Table 1 Patient’s characteristics
Full table

Responders vs. non-responders identified by ∆CO _PLR ≥10% during PLR

There were 31 responders vs. 34 non-responders during PLR with ∆CO_PLR ≥10%. Compared with non-responders, responders had lower MAP (73±11 vs. 84±14 mmHg, P=0.005), CVP (7±3 vs. 10±5 cmH₂O, P=0.043) as well as SI (29.37±11.94 vs. 41.25±16.44 mL/m², P=0.008) while the former had lower CO (4.64±1.34 vs. 6.40±3.89 mL/m², P=0.072) but with no significant statistical difference (Table 2).

Table 2 Baseline hemodynamic variables in responders and non-responders during PLR test
Full table

Changes of hemodynamic variables during BPT

Based on the increase of ∆CO _BPT during PLR (golden standard), responders and non-responders had the contrary hemodynamic changes during BPT compared with those during PLR test (Table 3). Responders showed higher HR (94.5 vs. 79.9/min) and lower CO (4.0 vs. 5.4) compared with non-responders (Table 4).

Table 3 ∆CO between non-responders and responders in PLR and BPT
Full table

Table 4 Changes of hemodynamic variables during BPT
Full table

Prediction of CO changes to fluid responsiveness during BPT

The aera under the ROC curve was 0.74 (95% CI: 0.62–0.84) (Figure 2). The positive and negative predictive values were 0.709 and 0.765, respectively. Its Youden index was 0.474, and the positive and negative likelihood ratios were 2.19 and 0.42, respectively (Table 5).

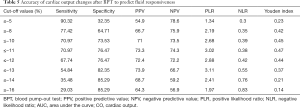

Table 5 Accuracy of cardiac output changes after BPT to predict fluid responsiveness
Full table

Discussion

To our knowledge, this was the first study to access the value of BPT in predicting fluid responsiveness based on a standard PLR test in critically ill patients. Interestingly, we found that BPT is a supplemental maneuver to PLR based on blood drainage in CRRT, which might supply a novel way to guide fluid management in the next steps in AKI patients, like limitation of unnecessary fluid infusion or expansion if CO decreases more than 11% compared with baseline during BPT.

Fluid therapy is the key treatment of critical patients. Insufficient volume affects the perfusion of important organs, exacerbates the ischemia and hypoxia of tissues and organs, and even makes organ damage irreversible. At the same time, the critically ill patients are often accompanied by increasing age, complicated with many basic diseases, and the damage of important organs etc. (21). The excessive volume load will also aggravate the injury of tissues and organs. More importantly, capacity states are not equal to fluid responsiveness (22). According to the Frank-Staring curve, at its ascending branch, the SV will increase obviously before the increase of negative load, but it will be harmful to increase the rehydration during its plateau period. Therefore, it is very important to determine the position of the patient on the curve, that is to say, the accurate judgment of the patient's volumetric reactivity is the key factor of the critical patient's fluid therapy (23).

The fluid challenge and the PLR maneuver are two techniques which are widely used, practical, easy to perform, and physiologically based, which can be used to predict critically ill patients’ fluid responsiveness with a high degree of accuracy (24,25). Both PLR and fluid challenge are based on the cardiac function curve of Frank-Starling. However, fluid administration does not always lead to increase CO (13). Is it possible to know if our patient will respond to fluids without administration, avoiding the negative consequences of excessive volume? (26). PLR induces a translocation of venous blood from the legs and the splanchnic compartment toward the cardiac chambers (6,27,28). Fluid management influences ICU patients’ outcomes. Both overhydration and conservative fluid therapy can lead to complications. Inappropriate fluid management in the treatment of critically ill patients can increase morbidity and mortality (29,30). Invasive static measurements have been used to evaluate volaemia, such as central venous pressure or pulmonary capillary wedge pressure. It has been demonstrated that these parameters are bad indicators of volaemia and are not useful as predictors of an adequate response to fluid therapy, including when, how much fluid to administer, as only half of critically ill patients respond to fluid loading with an increase in CO called “fluid responsiveness”. Traditionally, clinical symptoms, volaemic status has been evaluated using MAP, HR, it is known that MAP and HR cannot be used reliably to measure changes in central blood volume. Based on the above indicators, no appropriate treatment can be given clinically (31,32). Based on the hemodynamic consequences of the heart-lung interactions, the use of dynamic indices of preload that result from respiratory variations is well-accepted point-of-care predicting parameters of fluid responsiveness (33). The use of stroke volume variation (SVV) and pulse pressure variation (PPV) to accurately predict a positive response to fluid administration, however, may be restricted to mechanical ventilation condition and normal rhythm (34).

Our research differs from previous research in many ways. RRT is the main treatment of critically ill patients with severe AKI (19,20). When it comes to the beginning of RRT, based on our previous experimental findings, about 210 mL blood drained off body circulation within a short time (appropriately 2 min). The process of blood drainage before RRT simulates the effects of autologous bloodletting, without changing patients’ positions. Hence, we can infer that its value in evaluating fluid responsiveness is inversed to the effects of PLR test. The main interest of BPT is to limit unnecessary fluid infusion. Since the effects of BPT are inversed to the autologous bloodletting from the PLR test, patients with insufficient effective circulating blood volume may have a decrease in CO, while patients with blood volume overload or normal changes in CO may have a variety of possibilities. We hypothesized that blood drainage before RRT can help in predicting fluid responsiveness. In our study, we have showed that BPT was a good predictor of fluid responsiveness for critically ill patients. A decrease of CO greater than 11.0% after blood drainage maneuver predicts a fluid responsiveness with 70.9% sensitivity and 76.5% specificity, and with highest AUROC (0.74±0.06; 95% CI: 0.62 to 0.84).

The results of our clinical trial provide a method for predicting fluid responsiveness with moderate specificity and sensitivity. However, our clinical trial has several limitations. Firstly, using PLR in the context of weaning is that it requires a technique to measure cardiac output. Which restricted the patients we included, required a high level of medical equipment and doctors’ clinical experience and the results of the study cannot be applied to primary hospitals. Secondly, we also did not specifically investigate some other conditions that could be associated with weaning-induced cardiac dysfunction, such as hypertrophic obstructive cardiomyopathy. Thirdly, the use of saline is unavoidable in PICCO monitoring, and the effect of this fluid on CO cannot be eliminated. Finally, PLR cannot be used to specific situations like intra-abdominal hypertension, amputation of both legs and so on (17,18), as we mentioned in the background part, which limited the correlation study between PLR and BPT to predict fluid responsiveness in the above groups of patients. And in our study, the most patients were with septic shock, acute heart failure and pulmonary infection.

Conclusions

Our study found that BPT could serve as a supplemental maneuver to assess fluid responsiveness in critically ill patients with AKI, which was likely to direct the future fluid management without extra fluid expansion.
