Administration of dry powders during respiratory supports

Introduction

Inhaled drug therapy is commonly employed in patients receiving respiratory supports (used here to describe nasal high flow system, noninvasive ventilation, invasive mechanical ventilation). Drugs can be delivered as aerosols using nebulizers, pressurized metered-dose inhalers (pMDIs) and dry powder inhalers (DPIs). DPIs provide several advantages over other delivery platforms, such as product stability, ease of handling, and flexible dosing (1). Unlike nebulizers and pMDIs, DPIs are breath-actuated devices that rely on the patient’s inspiratory effort and the intrinsic DPI resistance for an effective aerosolization of the drug. The driving airflow through the inhaler is generated only when the inspiratory effort is strong enough to overcome the device resistance to produce a significant pressure drop (2,3). However, the use of DPIs poses a challenge in patients receiving respiratory supports as they cannot breathe independently and provide sufficient inspiratory effort to actuate the inhaler.

This issue can be resolved by integrating the DPI in a circuit of respiratory support with an external power sources (e.g., respiratory supports, ventilation bag, additional pump). As the airflow is externally driven by a power source, the inhaler resistance becomes less critical. Furthermore, the positive pressure airflow from an external source can prevent the peripheral and small airways from collapsing during the inspiration (4). This facilitates deeper pulmonary aerosol penetration than that during negative pressure breathing. However, one should be cautious when actuating DPIs using mechanical ventilators as it may compromise the flow rate and inspiratory volume during volume- and pressure-controlled ventilations, respectively (5,6). Therefore, the inspiratory airflow or volume need to be adjusted during dry powder administration to achieve effective aerosolization. Furthermore, to maximize drug delivery efficiency, synchronization of the aerosol device actuation and the inspiratory flow is recommended. In contrast to other devices, DPIs are actuated only when the airflow passes through the device. The use of an external air source to drive the DPI enables coordination of powder delivery with the inspiratory flow (7,8). Thus, the dry powder and inspiratory airflow would always be delivered in synchrony.

Although DPIs possess several advantages, they have been under the misapprehension that dispersion performance will be adversely affected by humidified air (9). Thus, nebulizers and pMDIs are generally used for respiratory-supported patients. Some studies have dispelled this myth and successfully delivered dry powder through the humidified circuit of respiratory supports (10-12). In this article, we review different approaches for administering dry powders in the circuit of respiratory supports with a focus on issues related to aerosol performance. Factors that influence dry powder delivery during respiratory supports are also discussed.

DPI-related factors influencing aerosol delivery

DPI characteristics

DPIs utilize airflow to disperse powders into respirable aerosols. An effective aerosolization depends on the interactions between the device, inspiratory flow, and formulation (13-15). The design of DPIs considers both the device resistance and deagglomeration mechanism (16). Sufficient inspiratory effort is required to overcome the resistance and generate optimum flow turbulence for effective powder dispersion. In general, increasing the inspiratory flow rate improves dispersion by increasing turbulence (17,18).

Another crucial factor affecting powder dispersion is the formulation. Particles are well-dispersed into inhalable aerosols when the airflow energy is strong enough to overcome inter-particle forces. Drug particles within a respirable-size range are usually cohesive, which hinders dispersibility (19). To reduce cohesion, one approach is to physically blend drugs with additional excipients, such as sugar derivatives and/or amino acids. Excipients with irregular surface structures and low surface energy can prevent drug particles from close interaction and improve dispersibility (20). Another approach is to use particle engineering techniques. Spray drying, for instance, is a technique for converting liquid feed into inhalable particles. The advantage of spray drying is the ability to modify particle characteristics, including particle size, morphology, crystallinity and surface roughness by manipulating multiple spray drying parameters as well as solvent system (21,22).

Environmental factors, including relative humidity (RH) and temperature, have long been recognized to impact powder dispersibility as moisture and heat can influence inter-particle capillary force and powder triboelectrification (23-25). The extent of such impact depends on the physicochemical properties of drugs, such as hygroscopicity and deliquescence point (26,27). The emitted doses of budesonide from Pulmicort^® Turbuhaler™ showed no significant changes when the RH of the dispersion air was increased from 40% to 90%, while the fine particle fractions were only decreased by approximately 6% (24). During momentarily exposures to humidity, the moisture adsorption on the powder was unlikely to have reached the equilibrium, so capillary forces between the particle would be minimal. In addition, the influence level of RH is dependent on the hygroscopicity of the powder (28,29). Thus, using non-hygroscopic powder formulations is preferred for warm and humid environments.

Advantages of DPIs usage during respiratory supports

DPIs offer advantages for inhaled drug therapy, including improved portability, ease of use, and flexible dosing. In addition, dry powder formulations have higher chemical stability than solutions and do not require refrigeration. Therefore, DPI products are generally more common than nebules on the market. Ambulatory patients may use any inhalation product, but respiratory-supported patients have less choices because only nebulizers and pMDIs are currently used in respiratory supports.

DPIs also possess an ability to administer a high dose of drugs to patients through the pulmonary route. Inhaled antibiotics, for instance, often require high doses (hundreds of mg) to achieve the therapeutic effects, delivered by nebulizers and DPIs. Currently, only nebulizers are used to provide inhaled antibiotic during respiratory supports (30,31) but it entails long administration times (32,33). On the contrary, DPIs provide rapid administration duration and high drug delivery efficiency (34). Some high dose antibiotics (e.g., colistin and tobramycin) have been marketed as DPI products. For instance, Colobreathe^® contains a dose of 125 mg of colistimethate sodium dry powder and is administered using a Turbospin^® inhaler. Schuster et al. demonstrated that no noticeable difference in therapeutic effect was found between Colobreathe^® twice daily and nebulized tobramycin (300 mg/5 mL) twice daily (35). Besides commercial products, many other antibiotics have been formulated as dry powders for the treatment of tuberculosis, bronchiectasis and other respiratory diseases, and the developed formulation exhibited acceptable aerosol performance (36-38). These new formulations may be clinically tested and used in the future. DPI may be a suitable alternative for high-dose inhaled drugs in respiratory supports.

Inline connection of a DPI in a respiratory circuit for non-invasive and invasive ventilation therapy

There is no consensus yet on how to place the DPI in the ventilator circuit. The position of the inhaler in the ventilator circuit impacts aerosol delivery efficiency. Inhalers, including pMDI and soft mist inhaler (SMI), have been studied for the influence of the inhaler placement on delivered doses during mechanical ventilation (39,40). Ke et al. compared three positions for both pMDI and SMI in a ventilator circuit with an adult lung model: (P1) proximal to the endotracheal tube (ETT), (P2) the inspiratory limb at 15 cm from the Y-piece, and (P3) 15 cm from the ventilator (Figure 1). The highest inhaled dose for both inhalers was achieved at (P2) 15 cm from the Y-piece and the lowest dose at (P3) 15 cm from the ventilator (41). The aerosol penetration is an inverse function of the length of tubing (42). Thus, drug aerosols tended to deposit more in the inspiratory limb when inhalers were placed farther away from the patient. However, placing the inhalers proximal to the ETT (P1) did not result in the highest inhaled doses. The reason could be that the emitted aerosols immediately encountered high airflow turbulence as they enter the narrow ETT resulting in high impaction loss (39,41). Placing inhalers closer to the Y-piece in the inspiratory limb would provide longer time for the aerosols to adapt to the local fluid velocity, obtaining higher inhaled doses.

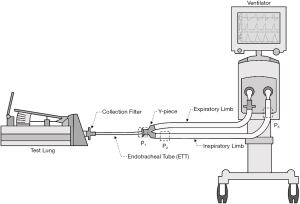

Figure 1 The in vitro adult mechanical ventilation model for the measurement of drug delivery from inhalers placed at various position in the circuit.

The optimal position of DPIs in mechanical ventilation circuit may differ to that from other inhalers. Most previous studies placed the DPIs proximal to the ETT when testing the delivery efficiencies during mechanical ventilation (6,11,43,44). Apart from the high turbulence, DPIs at this position may lead to another issue in the clinical setting. If powders cannot be delivered completely at the first inspiration, residual powders in the DPI will be purged during expiration. These residual drug particles will be collected on the expiratory filter and further increase the patient’s expiratory pressure. Placing the DPI between the ventilator and the heated humidifier could be beneficial to the powder dispersibility (45). Although emitted aerosols need to travel a long distance to reach the patient, the powder actuated at the position does not experience warm and humid airflow. Further studies are needed to evaluate the DPI delivery efficiency for different positions in the ventilator circuit.

In order to use commercial DPIs in both invasive and non-invasive ventilations, a delivery chamber has been employed to fully enclose a DPI (Figures 2,3). These two chambers have the same characteristics, i.e., it has (I) a single inlet to provide dispersion and delivery air; (II) an outlet connected indirectly or directly to a tracheal tube; and (III) an air-tight connection to avoid leakage that will reduce aerosol dispersion and delivery efficiency. In order to have an air-tight connection, a customized chamber needs to be constructed to match the size and shape of the DPI. The commercial DPI can be modified as long as the dispersion efficiency is maintained. For example, the mouthpiece of Pulmicort Turbuhaler^® was removed and the outer covering was shortened to reduce the distance travelled by the powder emitted from the spiral de-aggregation channels and to increase the amount of delivered dose (43). The total dose delivered to the distal end of an ETT when the modified Turbuhaler^® was connected to a ventilator was 20% of the nominal dose. The dead space of the chamber should be minimized to fully utilize the inlet air for aerosol dispersion. When the chamber is too large, the inlet air velocity will decrease due to the large cross-sectional area of the chamber. Additionally, the air will lose energy due to formation of eddies in the recirculation zone after the entrance of the chamber. This translates to lower force available to empty and deagglomerate the powder. Light-weight materials such as Perspex or Teflon are desirable to lessen the burden on the circuit and facilitate operation. Additionally, the use of cost-effective material will further add an advantage so that multiple chambers can be constructed to enable quick administration of multiple DPIs should the high dose delivery be required.

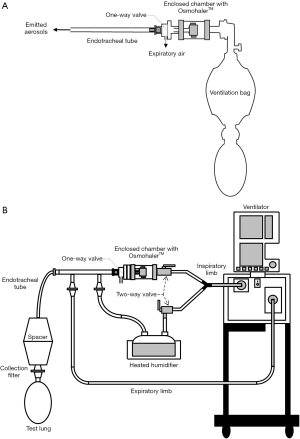

Figure 2 Osmohaler™ enclosed in a chamber connected inline between a tracheal tube and (A) a ventilation bag; (B) mechanical ventilator (6,46).

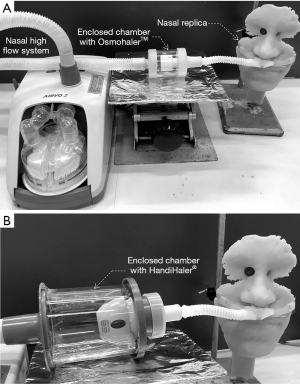

Figure 3 Commercial inhalers used for powder delivery through non-invasive nasal high flow (NHF) system. (A) Osmohaler^TM; (B) Handihaler^® (12,47).

In vitro testing involving Aridol^TM capsules containing mannitol powder and Osmohaler^TM (Pharmaxis Ltd, Sydney, Australia) was used to improve mucociliary clearance in intubated patients (Figure 2A). High doses of mannitol (above 120 mg) in lungs are required for this purpose. Four separate chambers and Osmohalers^TM were used consecutively to introduce 4 capsules of 40 mg or 80 mg mannitol. The dose delivered to the distal end of tracheal tubes ranged from 48–64% and 55–62% of the total loaded dose of 160 and 320 mg, respectively. The same setup was also tested with an approved product Relenza^® Diskhaler^® (GlaxoSmithKline, Brentford, England, UK) containing 5 mg zanamivir and 20 mg lactose to treat influenza A and B (44). Emitted dose of 30% was achieved with Osmohaler^TM compared to 18% with Diskhaler^®. The delivery system exhibited consistent mannitol and zanamivir dose delivery. This system offers a number of potential clinical advantages: (I) ability to rapidly administer high doses; (II) dose flexibility by varying the loaded amount and the number of capsules; (III) other DPIs can be simply inserted in line; (IV) consistent dosing to guarantee patient safety; and (V) the use of the delivery chamber may be less susceptible to contamination by the care provider or patient than standard jet nebulizers. It was noted in this work that powder may potentially build-up in the tracheal tube. This could be problematic for hydrophobic drugs because the accumulated powder can obstruct the tube and compromise patient safety. Adjustment in the bagging practice, such as additional compressions after powder delivery, may be required to clear the deposited powder inside. The disadvantage of this system is that it required disconnection of the tracheal tube from the respiratory circuit, which may impact patient’s safety. Pathogens may potentially enter during disconnection and further cause lower respiratory tract infections (48,49). The safety of patients suffering from hypoxemic respiratory failure is also compromised during disconnection (50). Therefore, it is undesirable to disconnect the patient from respiratory support. To address this issue, Feng et al. improved the setup by developing an in-line dry powder delivery system that does not require disconnection from the ventilator circuit (Figure 2B) (46). A separated line for Osmohaler^TM enabled the continuous operation of the respiratory support while the inhaler was reloaded. The downside of this setup was that it required manual coordination between the opening and closing of 2 two-way valves to direct the inspiratory airflow. The two-way valve that let air through the DPI must be opened just before the next inspiratory cycle to fully utilize the air source to disperse the powder. The other two-way valve needs to be closed immediately after that. It is possible to automate this action with an electronic three-way valve to replace manual coordination.

A potential issue with this delivery system is the blockage of the expiratory filter. When dry powder is introduced in mechanically ventilated patients, a small proportion of the powder may be expired and captured by the expiratory filter. Hence, it is imperative to change the expiratory filter when its resistance increases or every 24 hours after to avoid compromising patient safety (51). This issue has caused fatality. An intubated patient diagnosed with influenza-A pneumonia presented acute respiratory distress syndrome. Since Relenza^® was only available as a dry powder, and the use of DPIs with a mechanical ventilator was limited at that time, the powder was reconstituted in saline and delivered with a nebulizer. Unfortunately, the solubilized lactose obstructed the expiratory filter and the patient died by asphyxiation (52). In vitro investigation confirmed that a significant increase of airway pressure was observed by sixth dose of zanamivir nebulization and acute ventilator occlusion took place by ninth nebulization.

The Perspex chamber enclosing the Osmohaler^TM was further incorporated into a non-invasive nose-to-lung respiratory support (Figure 3A). The Osmohaler^TM was connected to a clinically approved nasal high flow (NHF) system (AIRVO, Fisher Paykel, Healthcare, Auckland, New Zealand). The setup only achieved a lung dose of 8% of the loaded powder because of high powder deposition in the nose-mouth-throat (NMT) replica (12). Wallin et al. increased the lung dose by more than double by changing the inhaler to Handihaler^® and adding L-leucine (co-spray dried with mannitol) to improve the powder dispersibility (Figure 3B) (47). The shortest connection tube (13 cm in length) between the inhaler and nasal cannula was used in both systems to minimize powder loss. In practice, this means that a patient must be positioned very close to the unit which may restrict his/her movement.

Effect of various parameters on aerosolization and delivery efficiency

Moisture

For patients requiring long-term mechanical ventilation, the inspiratory air should be at body temperature and 100% RH to minimize water loss and consequently maintain cellular function, morphology and mucus transport at its optimum level (53). However, when powders come into contact with humidified air, the following will take place: (I) increase in particle size for hygroscopic powders; (II) increase of cohesion and adhesion forces that decrease dispersion (54); (III) crystallization of amorphous powders; and (VI) decrease of electrostatic charge. Therefore, it is imperative to minimize the moisture exposure in order to maintain the optimal aerosol performance. The lung dose of nano-sized budesonide particles showed a 23% reduction at 81% RH compared to 51% RH when dispersed in a mechanical ventilator circuit (11). Spray dried mannitol, on the other hand, was not affected by humidity when dispersed using a nasal high flow system because it is non-hygroscopic (12).

To avoid the contact between powder and moisture, the inspiratory line from a mechanical ventilator was split into two branches. The first branch passed through a heated humidifier to provide warm air at 100% RH for patients during tidal breathing. The second branch bypassed the humidifier and provided drier air to disperse the powder out of the inhaler, and to push through one way valve, tracheal tube and finally reached the patient (Figure 2B) (46). A one-way valve was used to direct the expiratory air and not re-enter the inhaler (Figure 2). Behara et al. used a novel inhaler, actuated by a ventilation bag, to administer powders through one side of the nasal cannula (Figure 4) (55). Humidified air from the NHF system entered the other side of the nasal cannula in order to minimize powder exposure to moisture. There are additional benefits with a separate line for powder administration. Disconnection of the circuit is not required, so the respiratory support can operate continuously during powder reloading. Less powders are retained in dry tubing than wet ones so there is less powder retained in the circuit if the powder is dispersed into the separate, dry tubing.

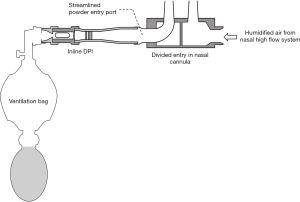

Figure 4 A novel DPI fitted directly into a NHF respiratory circuit connected between a ventilation bag and a nasal cannula (55).

Figure 4 shows a redesigned left nasal cannula by streamlining the powder entry port to reduce deposition. A streamlined customized Y-connector in a mechanical ventilator circuit has also been reported to reduce powder deposition by 37% and increased lung deposition by 44% (56). Sites with sharp direction changes in the respiratory circuit should therefore be eliminated to achieve maximum powder delivery.

Everard et al. (43) and Pornputtapitak et al. (11) did not use a separate line for the DPI in their in vitro works. They positioned the DPI immediately before the tracheal tube to reduce powder deposition in the respiratory circuit (Figure 5). However, in a real clinical setting, the powder and DPI will be continuously exposed to moisture from inhalation and exhalation air if they are left in the line. As a result, the powder may undergo undesired physicochemical changes that reduce its stability and dispersibility. A wet inhaler may also retain more powder, thereby reducing the emitted dose. To minimize the duration of moisture exposure, DPI should be inserted in-line just before the powder administration and removed immediately afterwards. This action requires disconnecting patients from the respiratory support which, as mentioned before, is a health risk.

Figure 5 A novel DPI that can be fitted directly into a respiratory circuit connected between a mechanical ventilator and a tracheal tube (11).

To mimic humid conditions, many reported in vitro tests were conducted with the ‘rain-down’ condition in the tracheal tube where the tube was wetted up to the point where water droplets started to coalesce and flow-out (6,44,46). However, Ryan et al. showed that there was minimal cooling as the expiratory air travelled out from the body until it was exposed to the cooler ambient condition (53). Consequently, moisture condensation on the interior surface of tracheal tube in this region would be minimal. Based on this fact, it allows in vitro testing to be done with a non ‘rain-down’ condition.

Dispersion peak flow and acceleration rate

High turbulence inside a DPI is required for optimum aerosolization. The turbulence is achieved from a combination of inlet air flowrate and deagglomeration mechanism inside the DPI. High resistance inhalers produce the required turbulence level at lower air flowrates than low resistance inhalers. Air flowrate can have two opposing effects on the emitted dose. On the one hand, higher turbulence can increase impaction loss in the respiratory connecting tubes, tracheal tubes, extrathoracic regions (for nose-to-lung respiratory support), and the oropharynx (for non-invasive therapy), resulting in a lower emitted dose. On the other hand, higher flowrates exert more force in pushing the powder out of the tubes, resulting in a higher emitted dose. The acceleration rate to reach peak flow also affects powder emptying and deagglomeration efficiency. A faster acceleration rate will empty the powder quicker. However, depending on the formulation and deagglomeration mechanism, the fast emptying rate may improve or worsen powder dispersion. If the powder is easy to disperse, then a fast emptying rate will be sufficient to deagglomerate it. However, for more cohesive powders a longer emptying rate will lengthen powder exposure to the turbulence and deagglomerate better. A square airflow waveform, available in a mechanical ventilator, enables the fastest acceleration rate compared to ramp and sinusoidal waveforms. Optimum aerosolization will depend on combinations of many different factors such as the degree of turbulence, duration of exposure to turbulence, formulation characteristics and dispersion mechanism. The effects of peak flow and acceleration on different powders and delivery systems are discussed below.

A square airflow waveform was found to significantly improve the emitted dose at the distal end of the tracheal tube (Figure 2B) (46). The emitted dose was reduced by 20% when a ramp waveform was used instead. With the square wave, the mannitol powder showed maximum deagglomeration at a low peak flowrate of 40 L/min and therefore the fine particle fraction (FPF) remained the same at higher flowrates. When the flowrate was increased from 40 to 60 L/min, more powder came out from the inhaler but was trapped inside the endotracheal tube. This caused the emitted dose to be unchanged.

A standard adult manual ventilation bag was used to provide positive air pressure to disperse spray dried mannitol powder out of the Osmohaler^TM (Figure 2A) (6). The peak flowrate and acceleration were varied by compressing the ventilation bag at different speeds and power. Higher peak flowrate and faster acceleration did not change the FPF significantly (Figure 6). This was because the powder was sufficiently dispersed at the lowest peak flow and acceleration. Higher peak flowrate did not reduce the emitted dose, implying that higher turbulence did not cause more deposition in the tube. In fact, the emitted dose obtained at 133 L/min was higher than at 87 L/min (Figure 6A) indicating that more powder could be pushed out of the tube with stronger force. Similar observation was reported when the formulation was changed from mannitol to a physically blended formulation of zanamivir and lactose (44).

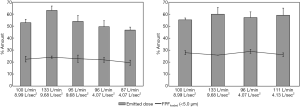

Figure 6 Effect of peak flowrate and acceleration on the emitted dose and fine particle fraction from an 8.5 mm endotracheal tube when a mannitol powder was dispersed from an Osmohaler^TM with loaded dose of (A) 160 mg; and (B) 320 mg (6).

Okuda et al. used the same spray dried mannitol powder for nose-to-lung delivery (Figure 3A) and similarly found that increasing the dispersion flow (30 to 60 L/min) did not change the FPF (12). However, it resulted in 20% more extrathoracic deposition (NMT replica) and 20% decrease in the emitted dose. A much higher FPF (21% to 32%, Figure 7) was successfully achieved when L-leucine was added to the formulation and a Handihaler^® was used (47). Deposition in the nasal cannula and connection tube increased (24% to 42%) when dispersion flowrate (DFR) was increased from 20 to 30 L/min. The increase was due to the high turbulence and 90^o flow direction change when the aerosol entered the nasal prongs. Figure 7 also shows that the deposition inside the NMT replica was independent of DFR but generally increased with the inspiratory flowrate (IFR) which was attributed to enhanced impaction and turbulent deposition. Okuda et al. showed dependency of replica deposition with DFR due to the larger particle size because of the less dispersible pure mannitol powder (12).

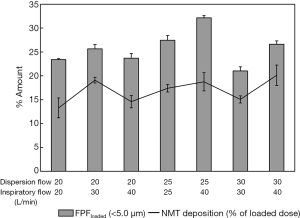

Figure 7 Fine particle fraction (<5 µm) and nose-mouth-throat deposition with respect to loaded dose of 40 mg spray dried mannitol-leucine powder when dispersed from a Handihaler^® connected to nasal cannula (47).

Improving delivery by decreasing dispersion airflow

DPIs are supposed to achieve optimum aerosolization at a flowrate that can be generated by patients comfortably at a 4 kPa drop across the inhaler. Among the marketed DPIs, Handihaler^® has the highest resistance (0.0504 kPa^1/2/L min⁻¹) and the flowrate that can be comfortably achieved is 40 L/min (3). To minimize the impaction loss downstream of a DPI when it is connected in-line in a respiratory circuit, many novel DPIs have been developed that use a low peak flowrate (<40 L/min). In this section, we will briefly report these DPIs because they have the potential to improve the powder delivery to patients on respiratory support. However, it is important to note that the main concern with employing a non-commercial inhaler is the off-label drug use (OLDU) application. Capsules that are originally approved for a particular DPI are now utilized with a different inhaler. Although OLDU may be clinically appropriate, its use involves safety, legal and ethical issues (57,58). This option should be adopted only when there is a strong evidence supporting the OLDU of a product. Furthermore, most of these inhalers are limited to capsule-based formulations and therefore unsuitable for blister- or reservoir-based products.

A customized DPI which requires low flowrates (15 to 27 L/min), actuated by an adult ventilation bag, has exhibited efficient powder deagglomeration for nose-to-lung delivery (Figure 8) (55). Air entered the DPI through an orifice and emptied the powder from a capsule. Emitted aerosols experienced further deagglomeration when passing through a 3D arrangement of rod array before leaving the DPI. The DPI was incorporated into a NHF system (Figure 4) (55) and a facemask to introduce aerosols to the left nostrils during noninvasive positive pressure ventilation (NPPV) from a mechanical ventilator (10). An in vitro experiment combined with a well-developed and validated CFD model showed lung doses as high as 75% and 89% with this DPI.

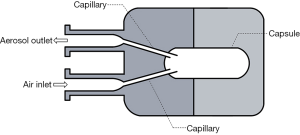

Figure 8 A novel DPI that can be fitted directly into a respiratory circuit (55).

It is important to know the resistance of a DPI before incorporating the device in the inspiratory line of the respiratory circuit. A high resistance inhaler will increase the workload of the respiratory circuit compared to the one with lower resistance. The higher the inhaler resistance, the harder the ventilator needs to work to maintain the same inspiratory flowrate. Feng et al. reported a drop in inspiratory air flowrate from a mechanical ventilator by 20 L/min when an Osmohaler^TM, a low resistance device (0.0216 kPa^1/2/L min⁻¹), was inserted in-line (46). The novel DPI depicted in Figure 5 has a higher resistance (0.0514 kPa^1/2/L min⁻¹) than Osmohaler^TM. The inspiratory airflow from the mechanical ventilator would likely be reduced more than 20 L/min. Therefore, it is important for patient safety to confirm that a respiratory system can overcome the inhaler resistance. For high resistance inhalers, it is better to have a separate source of dispersion air (i.e., an active inhaler) to reduce the workload of the respiratory system. The DPI can then be incorporated into the respiratory circuit through a T- or Y-connector on the ventilator’s inspiratory arm that is commonly used with pressurized metered dose inhaler or nebulizer in mechanical ventilators.

The novel DPI shown in Figure 9 has a separate source of dispersion air supplied by a syringe. This device was demonstrated to efficiently deagglomerate 10 mg of albuterol sulphate-mannitol-L-leucine-poloxamer 188 powder formulation (85% lung dose) by using only 10 mL of air per actuation at 3 L/min to target late preterm infants (7). As the DPI only requires a small volume of air at a relatively low flowrate to sufficiently aerosolize the formulation from a capsule, impaction loss in the tubing is expected to be minimal. This was confirmed by the emitted dose as high as 95%. By synchronizing syringe actuation with the inspiratory cycle, the generated aerosols can be entrained by the inspiratory air and delivered to the patients.

Figure 9 A novel DPI that can be fitted directly into a respiratory circuit (7).

The concept of an active inhaler where powder generation is initiated by an internal energy source can avoid adding unnecessary workload into the circuit and the dependency of aerosolization to the inlet airflow. A piezoelectric polymer was connected to a signal generator to vibrate a powder bed to generate the aerosols (59). While the Spiros^® device uses battery-operated rotating blades, and the Exubera^® uses compressed air through a well-designed flow channel, other active devices utilize ultrasound inducing technique for deaggregation (60). An active DPI with internal pressure pulses introduced 14 mL of air, with each pulse continuously drawing recombinant surfactant protein-C spray dried powder from a container and aerosolize it into a spacer (Figure 10) (45). Continuous powder generation is possible with this DPI. Powder concentration can be adjusted by varying the frequency of the pulses and auxiliary air flowrate. Incorporating active DPIs into a mechanical ventilator will be attractive for clinical use. To date, there is no active DPI approved for human use partly due to their complexity and cost.

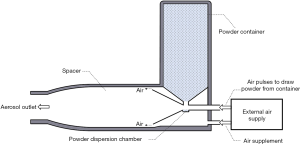

Figure 10 Active DPI with a built-in compressed air source to introduce air pulses required to disperse powder (45).

These active DPIs will be suitable for patients with limited inspiratory capacity or those with compromised lung functions, such as infants, neonatal and COPD patients. Neonates with lung diseases have volumetric breathing rate less than 1 L/min, tidal volumes of 5.15±1.35 mL/kg and high breathing rates of 55.4±14.2 per minute (61). The small lung volume and short breathing period pose a great challenge for efficient aerosol delivery as low inspiratory volumes needs to be employed. However, the low volume may not sufficiently disperse the powders from most commercial DPIs and carry the aerosols through the respiratory circuit to reach the patients.

To ensure that powder aerosols can reach the airways, a tidal volume of the respiratory support equipment must be larger than the dead volume between the DPI and the distal end of the tracheal tube (Figure 2B). Feng et al. set a large tidal volume of 950 mL in the mechanical ventilator to successfully carry the aerosols to the distal end of the endotracheal tube. It was acknowledged that 950 mL volume can cause volutrauma (62) so this volume was strictly used during dry powder administration only. This system will not be suitable for patients with limited lung capacity. Therefore, there is an urgent need to have regulatory approved active DPIs which can achieve excellent aerosolization with small air volume because they would be suitable for these patients.

Tracheal tubes

Tracheal tubes, which refer to endotracheal and tracheostomy tubes, of varying diameters are commonly used to support respiratory therapy for patients who cannot breathe on their own. Tubes with internal diameters of 5.0 to 9.5 mm, and 3 to 4 mm are available for adults and infants, respectively. Tracheal tubes are the main barrier for optimal aerosol delivery because they trap a significant amount of aerosols. A plot of pressure drop versus gas flowrate for endotracheal tubes with different internal diameters (63) shows that narrower tubes had much sharper increase in resistance with the airflow. This implies that an increased airflow in a narrower tracheal tube causes higher increase in turbulence that consequently leads to further deagglomeration and/or enhanced aerosol depositions in the tube. Particle size of the aerosols will also determine the impaction loss in the tube. Larger particles or agglomerates are more likely to impact, resulting in lower delivered doses. The end result is the sum of these phenomena, which is very difficult to be predicted.

When a novel DPI (Figure 5) was used to disperse 5 mg of nano-sized budesonide particles at 30 L/min, increasing the tube diameter from 5.0 to 6.5 mm increased the dose emitted from the endotracheal tube by 10% but remained constant when the tube was further increased to 8.0 mm (Figure 11) (11). The Reynolds number (turbulence indicator) for 3, 5, 6.5 and 8 mm is 14,067, 8,440, 6,492, 5,275, respectively. The calculated Reynolds numbers show a much higher turbulence level for 3 mm diameter. FPF <3.3 µm was the highest for 3.0 mm diameter, which indicates that turbulence in the tubing further deagglomerated the powder. When the inspiratory flow rate was decreased to 23 L/min, the trend observed was different (11). The smallest tube diameter (3.0 mm) still showed the highest FPF but the emitted dose was lower. This implied that the high turbulence caused both enhanced deagglomeration as well as greater powder deposition in the tubing.

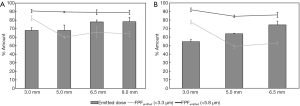

Figure 11 Effect of different internal diameter of tracheal tubes on the emitted dose of nano-sized budesonide particles dispersed by a novel DPI connected inline to a (A) mechanical ventilator at 30 L/min and (B) ventilation bag at 23 L/min.

Feng et al. showed that approximately 11% more drugs can be delivered using a short tracheostomy tube compared to a long endotracheal tube due to less deposition in the tube (Figure 12) (46). Tang et al. and Leung et al. found that the powder deposition inside the wider endotracheal tube was found to be similar to that of a narrower one, leading to a comparable delivered dose between the two tubes (6,44). It was claimed that this was due to fine particles emitted from the Osmohaler^TM that were able to follow the air stream without impaction in the tube. The FPF for the 9.0 mm endotracheal tube was significantly higher (20.4%) compared to that with the 7.0 mm tracheostomy tube. This further validates the previous claim that the fine particles were able to follow the air stream and exit the tube.

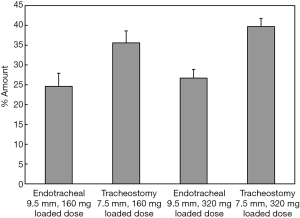

Figure 12 Effect of the internal diameter and length of tracheal tubes on the emitted dose of mannitol powder dispersed from an Osmohaler^TM connected inline to a mechanical ventilator. The inspiratory airflow was 50 L/min (46).

To reduce impaction loss in the tracheal tube, it would be better to use a tube with a larger diameter when possible to reduce the turbulence level. A suitable DPI should be selected so that optimal powder deagglomeration is achieved prior to aerosol emission from the inhaler. Smaller particles will result in minimal impaction in the tube and lead to a higher dose received by patients.

Potential factors affecting dry powder delivery during respiratory supports

Gas density

The Reynolds number used to indicate turbulent and laminar regions is proportional to gas density. Heliox, a mixture of helium and oxygen, is a low-density gas used to treat obstructive pulmonary diseases (64,65). Inhalation of heliox can decrease flow turbulence and further reduce airway resistance. Moreover, lowering the flow turbulence is also conducive to the transport of aerosols during respiratory supports since aerosol performance is dependent not only on physical properties of the particles, but also those of the carrier gas (66-68). Previous studies have demonstrated that drug delivery efficiency of both pMDI and nebulizer was improved by using heliox in various respiratory supports (69-74). The performance of jet nebulizers only deteriorates when heliox is used to power the jet nebulizer. As Bernoulli’s principle governs the aerosol generation mechanism in the jet nebulizers, lowering the gas density would reduce the pressure drop across a jet orifice, which further reduces aerosol production (74,75).

It is uncertain whether heliox is beneficial for DPIs. Turbulence is associated with the aerosol performance of powders. Using heliox to actuate DPIs may reduce the turbulence and may not provide sufficient kinetic energy to promote disaggregation (18). Previous studies showed the fine particle fraction as a function of the deagglomeration efficiency was increased with the level of turbulence by an increase of flowrate (17,76). Although the DPI dispersion may be worsened by using heliox, aerosol penetration through the ventilator circuit containing heliox may be improved. Thus, further studies are required to confirm the delivery efficiency of dry powders in the circuit of respiratory supports containing heliox.

Should lactose- or mannitol-based formulation be forbidden in mechanical ventilation to prevent bacterial growth and ventilator-associated pneumonia (VAP)?

To facilitate powder dispersion and achieve accurate metered doses, micron-sized drug particles are often blended with coarse excipient particles in DPI formulations. Lactose and mannitol are commonly used as excipients for DPI formulations as they are physiochemically stable and are compatible with many drugs. Drug particles initially attach to the excipient particles as carriers and become detached during dispersion. When delivering aerosols from a DPI during an invasive mechanical ventilation, the large excipient particles have a greater tendency to deposit in the ETT due to its small dimension contributing to strong turbulence and impaction.

The deposited excipients may serve as nutrients for pathogens adhering inside the ETT. Assaf et al. demonstrated that although no major difference in the growth rate of Streptococcus mutans was found with increasing lactose concentration from 0% to 5%, the presence of lactose can stimulate biofilm generation (77). The phenomenon may be due to a decrease in pH from lactose metabolism. Moore et al. examined the effect of mannitol concentration on the growth of various respiratory pathogens, including Pseudomonas aeruginosa, Burkholderia cenocepacia, and Stenotrophomonas maltophilia. Proliferation of all the pathogens initially increased with increasing mannitol concentration, reached maximum at 2% and 4% mannitol and then subsequently declined (78). Pathogens in the ETT can be easily aspirated and cause VAP as several mechanisms of human respiratory defense are compromised after intubation (79,80). To minimize this effect, using excipient-free powder formulation may minimize pathogens’ growth in the ETT. However, further research is needed to affirm if excipients deposits in the ventilator circuit and the ETT facilitate pathogenic growth.

Conclusions

DPIs can be used with a wide range of active pharmaceutical ingredients and possess several advantages for inhaled drug delivery. However, they have rarely been used during respiratory supports due to the perception that powder performance will be heavily deteriorated by humidified air. Although humidity does affect the powder dispersion and emission, the extent of influence depends on the exposure period and hygroscopicity of the formulation. During momentary exposure in the circuit of respiratory supports, the impact of humidity is likely to be limited. This myth of ‘DPI can’t be used on mechanical ventilators’ has been dispelled recently by a number of in vitro studies. DPIs have been adapted in-line in a respiratory circuit and successfully delivered powders through humidified air. There are two approaches to adapt DPIs in the circuit. One is to enclose a commercial DPI in a delivery chamber. Another is to use a novel DPI customized to the circuit of respiratory supports. Either of these two would likely be for off-label use of the drug or drug product if it was not originally approved for administration via a mechanical ventilator. Inspiratory flowrate, as the driving force of aerosolization, must be correctly chosen to balance between maximum deagglomeration and minimum impaction loss in the line. Due to the difficulty in achieving this balance, there is an urgent need for the new generation DPIs that can deagglomerate sufficiently at low flowrate and/or use external power source for aerosolization. For the time being, the delivery chamber is an attractive method due to its simplicity, dose flexibility and cost effectiveness. The use the chamber will further help minimize any necessary modification of the commercial DPIs to avoid regulatory issues. The lung dose that can be delivered from the commercial DPIs to patients on respiratory support may be different to those who can breathe unassisted. In vitro test is of utmost important which would ideally be followed by in vivo scintigraphy studies to confirm lung deposition.
