A narrative review of diagnosis of infective endocarditis—imaging methods and comparison

Introduction

Cardiac imaging and positive blood cultures constitute the major criteria for the diagnosis of infective endocarditis (IE) according to the Modified Duke Criteria (1). In the 21st century, IE has a prevalence of 3–10 per 100,000 people which starkly rises to 14.5 per 100,000 if aged >70 years old (2). However, blood cultures can be negative in up to 30% of confirmed IE, placing greater emphasis on the role of cardiac imaging. There is a large spectrum of imaging for IE encompassing anatomical features (multi-detector computed tomography, MDCT), anatomo-functional findings (echo-doppler), and hybrid approaches combining anatomical and metabolic features such as nuclear medicine modalities. This wide range of diagnostic tools must be adapted to the variability of the clinical presentations of IE, manifesting itself as acute or subacute alongside localization of the infectious field which may involve multiple valves on either side of the heart. IE can manifest itself either as a pathology of the native valve, prosthetic valve, or on implantable cardiac devices. It may also coexist with other comorbidities such as chronic kidney disease or cerebrovascular impairment.

The aim of this article is to compare the different imaging modalities for the diagnosis of IE.

We reviewed the literature for the current guidelines on imaging from ESC and ACC/AHA alongside relevant studies from 2009 to 2019.

We present the review in accordance with the Narrative Review reporting checklist (available at http://dx.doi.org/10.21037/atm-20-4555).

Outlook on diagnostic tools

Echocardiography

Both transthoracic echocardiography (TTE) and transoesophageal echocardiography (TEE) are the main imaging modalities for diagnosis of IE The European Society of Cardiology (ESC) classify echocardiography as 1B recommendation with echocardiographic results an important Duke criterion (2). Diagnosis based on echocardiographic images has high sensitivity and specificity to detect vegetations, a distinctive sign of IE, particularly if it measures >5 mm (Table 1) and for valve detachment (3). It is however less accurate when it comes to detecting abscesses, aneurysms, pseudoaneurysms, and fistulas. Echocardiography allows the rapid detection of vegetations (Figures 1,2), by measuring the major and minor axes of these, in addition to allowing differentiation from other intracardiac masses, informing the operator on location, mobility (fixed, mobile, oscillating) (Figure 3), echogenicity and potential complications such as the presence of leaks, fistulas, and dehiscences (2,4).

Table 1 Sensitivities and specificities of echocardiography for native and prosthetic valves
Full table

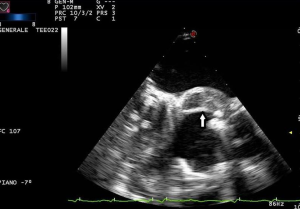

Figure 1 Large vegetation on bioprosthetic mitral valve (2D transoesophageal echocardiography).

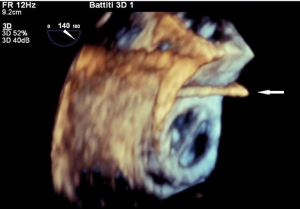

Figure 2 Large vegetation on bioprosthetic mitral valve (3D transoesophageal echocardiography).

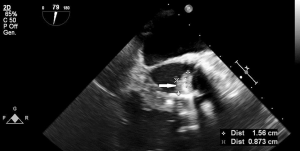

Figure 3 Large abscess on mitroaortic curtain (2D transoesophageal echocardiography).

Echocardiography, however, does have several limitations. It is heavily operator dependent and is subject to interoperator variability. In addition, TTE is dependent on having satisfactory imaging windows which are often patient dependent with some having poorly echogenic chests. It is less sensitive for smaller vegetations measuring <5 mm (4). In the elderly, bulky calcific deposits on structures may also make image interpretation difficult. In patients with prosthetic valves, acoustic shadowing by the metallic component of prosthetic valves (on Left Ventricular Outflow Tract in aortic and on Left Atrium in mitral prostheses) may also contribute to its lower sensitivity and specificity (4,5). Some of these patients may also have a submammary prosthesis, which may affect the imaging windows, thereby reducing the sensitivity and specificity of this modality. Echocardiography also is of limited value in evaluating extracardiac lesions and may sometimes lead to delays in detecting intracardiac lesions. The diagnosis of abscesses (Figure 3) can be challenging for echocardiographers with lower sensitivity and specificity (Tables 2,3).

Table 2 Sensitivity and specificity of echocardiography in detecting abscesses
Full table

Table 3 Differentiating vegetations from other masses
Full table

Multidetector computed tomography

MDCT is able to examine cardiac structures and coronary arteries due to technological innovations enabling images at 0.5 mm slices.

Both TTE and TEE have a lower sensitivity in detecting abscesses in the presence of prosthetic valve(s) and electrophysiological devices (Table 2,3) (3,6).

In 115 patients evaluated using Duke’s criteria for IE, TEE had a sensitivity of detecting abscesses of 48%, whereas 64% missed detecting abscesses that were located near bulky calcific deposits on the posterior mitral valve leaflet (5). MDCT has increased spatial resolution and unaffected by acoustic shadowing. MDCT can evaluate coronary artery anatomy (in the setting of ischemic disease or congenital defects). The enhanced spatial resolution permits the evaluation of perivalvular lesions (abscesses, fistulas, pseudoaneurysms, and extension into the cardiac skeleton) (Figure 4). MDCT can also detect primary or IE related pneumonic diseases as abscesses or necrotic deposits. It facilitates effective imaging of the tricuspid annulus and leaflets (Table 4) (7).

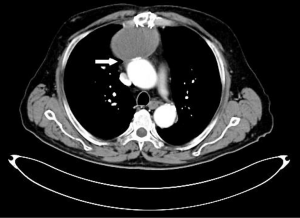

Figure 4 Huge periaortic pseudoaneurysm.

Table 4 Sensitivity and Specificity of MDCT for detecting IE changes
Full table

As the tricuspid valve is anteriorly located with a 45° rotation, imaging it is often challenging using TEE with mid-oesophageal and transgastric views (8).

TTE imaging is often inadequate because the tricuspid leaflet is thinner than the mitral and while its annulus is saddle-shaped (with the anteroseptal and posterolateral axes on the top of the saddle (Table 5) (9).

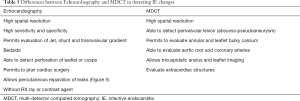

Table 5 Differences between Echocardiography and MDCT in detecting IE changes
Full table

Magnetic nuclear resonance (MRI)

There are anecdotal cases of early diagnosis of IE using MRI rather than echocardiography. Cerebral MRI is the most sensitive technique to detect cerebral emboli (10). It should be done in the presence of neurological symptoms whereas its use is controversial in asymptomatic patients. However, it is often performed in asymptomatic patients who are due to undergo cardiac surgery.

Nuclear medicine

PET-CT can identify areas of increased glucose metabolism corresponding to active inflammation which can be mapped by conventional CT to provide anatomical landmarks (2,11). PET-CT utilizes white blood cells (WBC) of the suspected patient, tagged in vitro with Technetium-99, and then reinjected into the same patient. Tagged WBC migrates to the infected site. The relative radioactivity is recorded by a Gamma chamber (SPECT) and then by a hybrid Gamma Chamber (SPECT-CT) (12). It is necessary to wait for 24 hours and we have high specificity and less sensitivity. Again with WBC tagged ‘in vivo’ with F18–fluorodeoxyglucose (FDG) we wait for 1.5–2 hours and we have high sensitivity and less specificity. The biggest advantages offered by this modality include the ability to detect early infective disease processes from inconclusive imaging from other modalities (3D Echocardiography/MDCT). It enables the evaluation of extracardiac structures such as cutaneous pouches (13) or ventricular assist device (VAD) drivelines (14). In addition, it is able to detect sources of emboli that were possibly missed.

Despite the benefits of PET imaging, there are several pitfalls to be mindful of. These include the high false-positive rate if performed early post-implantation of a prosthetic valve (15). Also, due to its dependence on FDG uptake, it may have a false negative in several instances such as low inflammatory activity, microorganisms with slow growth or biofilm, or prolonged antibiotic therapy (15,16).

Specific pathoanatomic lesions

Trigone abscesses

One such complication of PVE is an abscess of the aortic root with periprosthetic leak with via the non-coronary sinus which may perforate the fibrous trigone causing a fistula in the left or right atrium. This lesion may directly affect the mitral annulus by detaching it through the central fibrous body to the septal tricuspid valve leaflet (17). These abscesses are often detected with RT3D Echocardiography with MDCT providing additional information.

Right-sided infective endocarditis (RISIE)

Compared to left-sided IE (LISIE), RISIE usually presents with larger vegetations possibly due to a delay in diagnosis (18,19). There has also been a shift in the epidemiology of the disease with more Staphylococcus aureus infections probably due to the increased proportion of active Intravenous Drug Users (IVDU) and implantable cardiac devices who present (19). In one study, the median vegetation size in RISIE is 2.2 (1.8–2.9) cm compared to 1.5 (1.0–2.0) cm in LISIE (20). Complications of RISIE are usually related to pulmonary embolic events, whereas abscesses, perforation, and fistulas are more prevalent in LISIE (19).

TTE is the first-line diagnostic tool with TEE required only in a minority of cases (when results of TTE is inconclusive in presence of prosthetic valve or intracardiac device) due to the anterior position of the tricuspid valve (21).

In a study of suspected right-sided endocarditis, TTE performed as well as TEE in the detection of vegetations (22). RT3D TEE also has a role in patients with tricuspid valve IE as it allows enhanced visualization of the tricuspid valve apparatus, vegetations, and surrounding structures compared to 2D TEE (23). In patients with a tricuspid ring or tricuspid valve prosthesis and/or electrophysiological devices, RT3D echocardiography can detect vegetations and their exact origins, permitting real-time therapeutic interventions or device extraction (Figure 5).

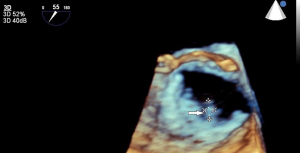

Figure 5 Percutaneous closure of mitral prosthetic leak (3D transoesophageal echocardiography).

Cardiac implantable electronic device (CIED)

The presence of electrophysiological leads is associated with IE in <2% of patients (24) although the rate of infections after primary device implantation was reported to be 4.82/1,000 device days in a large Danish study (25). TTE has poor sensitivity and specificity compared to both TEE and RT 3D. The challenge with such modalities however is in discerning and differentiating the other structures and masses amidst artefact (Table 1). Nuclear medicine scans such as 18-FDG PET do provide a viable and useful alternative (26). Sarrazin et al. noted that positive PET/CT results correlated well with clinical findings, microbiologic data, and echocardiographic evidence of device infection (27). In their study, patients with negative PET/CT were managed conservatively with antimicrobial therapy alone, without device extraction (27). For pockets of infections, FDG activity analysis notably yielded a very high diagnostic accuracy.

Discussion

In some instances, multimodality imaging may be required to facilitate early diagnosis of IE to afford timely therapy to patients either by antibiotic or cardiac surgery. The primary indications for early cardiac surgery are heart failure, uncontrolled infection and prevention of embolization (2). Early surgery is indicated during initial hospitalization in AHA-ACC Guidelines (28) whereas the European guidelines have set a more rigorous target of emergent surgery (within 24 hours) (2).

Echocardiography is the primary imaging modality in the instance of heart failure as it allows evaluation of right and left ventricle function and quantitative evaluation of valvular function (28). Vegetations measuring >15 mm by echocardiography should be highlighted due to their risk of imminent embolization (29). Anteriorly located structures such as the tricuspid valve may be best evaluated using TTE.

Posteriorly located structures however, are best imaged using TEE. RT3D echocardiography may be useful in detecting dynamic valve function and evaluating paravalvular leaks or honing in on the nature of the vegetations. For systemic uncontrolled infections, MDCT is more sensitive at detecting sequalae of disease such as abscess formation, pseudoaneurysm and fistulas and alongside extension to the cardiac fibrous skeleton due to the better spatial resolution (2). In addition, the metabolic activity of septic emboli is best evaluated using nuclear medicine imaging modalities. It helps with detection of potential infective sites even before direct imaging of anatomic lesions are possible which may expediate the diagnosis of IE. Cerebral MRI on the other hand is a useful tool to evaluate previous cerebral embolization. Previous embolization in presence of vegetations measuring >10 mm is also gurean indication for surgery.

The specific advantages and pitfalls of diagnostic methods are summarized in Table 6. The following is a stepwise guide to escalation of imaging.

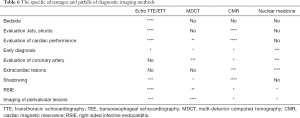

Table 6 The specific advantages and pitfalls of diagnostic imaging methods
Full table

• All patients with IE should receive a TTE and TEE to detect valvular lesions and perivalvular complications.
• MDCT should be used to evaluate the extension of perivalvular lesions when echocardiography images are suboptimal or inconclusive.
• Cerebral MRI should be used to evaluate neurologically symptomatic patients.
• Nuclear medicine should be considered should there be diagnostic uncertainty or in the presence of CIED or PVE.

Conclusions

Diagnostic imaging of IE often requires a multimodal imaging approach with the choice of the various imaging techniques depending on the specific type of IE and location of the disease, the severity of the clinical status, appropriateness of contrast imaging and the modalities available. It requires input from a specialist heart team to ensure timely diagnosis and care are afforded. The role of alternative imaging techniques such as nuclear medicine in determining timing of cardiac surgery should be evaluated further by randomised trials.
