Wogonin reverses the drug resistance of chronic myelogenous leukemia cells to imatinib through CXCL12-CXCR4/7 axis in bone marrow microenvironment

Introduction

Chronic myeloid leukemia (CML) is driven by the t(9;22)(q34.1; q11.2) chromosomal translocation, resulting in the expression of BCR/ABL oncoprotein (a constitutively active tyrosine kinase) expression. Currently, chronic-phase CML patients are treated with imatinib-mesylate (IM), a tyrosine kinase inhibitor (TKI) targeting the BCR/ABL (1-3). However, in the course of treatment, about 30% of patients will develop IM resistance (4).

The bone marrow microenvironment (BME) has proven to play a vital role in cell differentiation, migration, proliferation, survival, and drug resistance of leukemia cells. BME could protect leukemia cells from TKIs-induced apoptosis (5,6). CXCL12 (SDF-1α, stromal derived factors-1α) is a chemokine mainly secreted by the BME. It supports the proliferation and survival of various malignancies, such as CML, acute myeloid leukemia (AML), multiple myeloma and lymphoma (7-11). CXCR4 and CXCR7, two seven-transmembrane G-protein-coupled chemokine receptors, are capable of mediating homing, proliferation, invasion and metastasis of tumor cells and regulating the resistance induced by soluble factors (12).

TGF-β is a multifunctional growth factor that regulates various cellular activities in a cell-dependent manner (13). In the present study, TGF-β is expressed in human bone marrow stromal cells (hBMSCs), and connected with its functional receptors, including TGF-β receptor type I (TGF-βRI) and TGF-β receptor type (TGF-βRII) (14). TGF-βRI is activated to induce phosphorylation of Smad family proteins to initiate downstream signaling pathways in the cell (15). Dissociates from the receptor when Smads is phosphorylated and forms an oligomeric complex with Smad4 in the cytoplasm. Then, the R-Smad/Smad4 complex enters the nucleus and interacts with DNA-binding transcription factors (16,17). It can regulate the inhibitors of DNA binding/differentiation (Ids) in a cell-type-specific manner and play critical roles in animal development and cancer (18,19).

Wogonin is a naturally monoflavonoid compound extracted from the traditional Chinese medicine Scutellaria baicalensis. It is reported to have biological functions with antibacterial, antiviral, antioxidant, anticancer, and neuroprotective activities (20,21). Previous work demonstrates that Wogonin reverses drug resistance of human CML cells in BME (22).

It was found in our previous research that Wogonin could reverse IM resistance in CML cells by inhibiting the Stat3/NF-κB/Nrf2 pathway and Stat5/NF-κB pathway (22,23). Here we evaluated whether Wogonin could regulate the expression of CXCR4/7 in CML cells to enhance the sensitivity of CML cells to IM in the co-cultured condition.

We present the following article in accordance with the ARRIVE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-1166).

Methods

Reagents and antibodies

Wogonin (99% purity; Langze Pharmaceutical Co., Ltd., Nanjing, China) was dissolved in dimethyl sulfoxide (DMSO) as a stock solution (100 mM), stored at −20 °C, and diluted to each of the designated concentrations in the buffer solution before each experiment. The final concentration of DMSO did not exceed 0.1%. The culture medium was RPMI-1640 and DMEM/F12 (1:1) (Gibco, Invitrogen Corporation, Carlsbad, CA, USA). DAPI (Invitrogen, USA) was used to detected apoptosis cells. The final concentration of DMSO did not exceed 0.1% throughout the study. Primary antibodies against GAPDH (1:10,000), CXCR7 and CXCR4 (1:1,000) were products from Bioworld (OH, USA). Primary antibodies against caspase 3 (1:1,000), caspase 9 (1:1,000), ERK (1:500), p-ERK (1:500), Akt (1:1,000), p-Akt (1:1,000), Smad4 (1:1,000) MEK (1:1,000) and p-MEK (1:1,000) were obtained from Cell Signaling Technology (Danvers, MA, USA). Primary antibody against Actin (1:10,000) was obtained from Santa Cruz Biotechnology (Santa Cruz, CA, USA). HRP goat anti-rabbit lgG and anti-mouse lgG (1:20,000) was purchased from ABclonal (ABclonal, China). IM was purchased from Melonepharma (Dalian, China). Id2 and Id3 small interfering RNA (siRNA) was purchased from Santa Cruz Biotechnology, Inc (Santa Cruz, CA, USA). LY 320082 was purchased from Selleck (Selleck Chemicals, USA).

BMSCs isolation and culture

BMSCs were isolated from the iliac crest bone marrow aspirates of healthy donors after informed consent was obtained. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Nanjing Drum Tower Hospital’s institutional review board. Bone marrow mononuclear cells were isolated by Percoll (Solarbio, USA), Dulbecco’s modified Eagle’s medium (DMEM) (Euroclone, USA) with 1,000 mg/mL glucose and L-glutamine, centrifuged and plated at a density of 1,000 cells/cm². BMSCs were cultured in L-DMEM/F12 (GIBCO, USA) with 15% fetal bovine serum (GIBCO, USA) at 37 °C with 5% CO₂. Four days later, non-adherent cells were removed carefully, and the culture medium was refreshed. When primary cultures became almost confluent, the culture was treated with 0.5 mL of 0.25% trypsin containing 0.02% mmol/L ethylenediamine tetraacetic acid (GIBCO, USA) for 4 min at room temperature (25 °C). A purified population of BMSCs was obtained 1 week after the initiation of culture.

Cell line and culture conditions

Human CML cell line K562 and KU812 were purchased from Cell Bank of Shanghai Institute of Biochemistry & Cell Biology at September 2017. All cell lines were authenticated based on STR fingerprinting and last checked in August 2014. Cells were cultured in RPMI-1640 medium supplemented with 10% heat-inactivated fetal bovine serum (GIBCO, USA), in a humidified environment with 5% CO₂ at 37 °C.

Flow cytometric analysis of apoptosis

Apoptosis was evaluated using an annexin V-FITC/propidium iodide (PI) Apoptosis Detection Kit (KeyGEN BioTECH, Nanjing, China) according to the manufacturer’s instruction. Cellular fluorescence was measured by flow cytometric analysis using a FACS Calibur flow cytometer (Becton Dickinson Biosciences, Franklin Lakes, USA), according to the descriptions in our previous research. Cells in the early stage of apoptosis were annexin V positive and PI negative, whereas cells in the late stage of apoptosis were both annexin V and PI positive.

Western blot analysis

Cells were collected and lysed in lysis buffer [50 mM Tris-HCl, pH 7.6, 150 mM NaCl, 1 mM EDTA, 1% (m/v) NP-40, 0.2 mM phenylmethanesulfonyl fluoride (PMSF), 0.1 mM NaF, and 1.0 mM dithiothreitol]. The lysates were centrifuged at 4 °C for 30 min at 12,000 ×g. The supernatant was used to determine the protein concentration by bicinchoninic acid (BCA) assay kit (Pierce, Rockford, USA) with a Varioskan multimode microplate spectrophotometer (Thermo Waltham, MA, USA). Protein samples were loaded on 10% SDS-PAGE gel and transferred to nitrocellulose membranes (BioTrace NT, PallCor, USA). The membranes were then blocked with 1% BSA in PBS for 1 h, followed by incubating with primary antibodies at 4 °C overnight. After three washes with PBST, the membrane was incubated with HRP goat anti-rabbit IgG or anti-mouse IgG conjugated second antibody for 1 h at room temperature. Detection was performed with an Amersham Imager 600 RGB (GE, USA).

Immunofluorescence confocal microscopy

Treated CML cells were harvested and seeded onto glass coverslips specially prepared for immunofluorescence. After washing twice with cold PBS for 5 min, cells were fixed with 4% paraformaldehyde (PFA) for 25 min, and permeabilized with PBS containing 0.2% Triton X-100 for 25 min. Then, the cells were blocked with 3% BSA in PBS for 1 h and incubated with anti-Smad4 antibody (1:50) at 4 °C overnight. After washing thrice with PBS for 5 min, the cells were stained with FITC-conjugated anti-rabbit IgG antibody (1:200) at 37 °C for 1 h. After counterstaining with DAPI (Invitrogen, USA) for 20 min, the images were captured with an Olympus FV1000 confocal microscope.

Immunohistochemistry

Marrow samples were removed from both physiological saline and Wogonin and IM combination treated or alone. The expression of CXCR7 and CXCR4 were assessed by immunohistochemical method using a rabbit-anti-human monoclonal antibody and an Ultra-Sensitive™ SP kit (kit 9710 MAIXIN, Fuzhou, China). Tissue sections (4-µm thick) were placed onto treated slides (Vectabond, Burlingame, California, USA). Sections were fixed in a 60 °C incubator, deparaffinized and rehydrated through graded alcohols (100%, 95%, 85%, and 75%). Tissue sections were boiled in citrate buffer at high temperature for antigen retrieval and treated with 3% hydrogen peroxide to block endogenous peroxidase activity. The slides were incubated with a protein-blocking agent (kit 9710 MAIXIN, Fuzhou, China) prior to the application of the primary antibody, and then incubated with the primary antibody at 4 °C overnight. The tissues were then incubated with the secondary biotinylated anti-species antibody and labeled using a modification of the avidin-biotin complex immunoperoxidase staining according to the UltraSensitive™ SP kit manual. Counterstaining was done with Harris hematoxylin. Images were captured using a camera attached to computer.

siRNA transient transfection

The transient transfection assay was carried out in 6-well plates using PepMute™ siRNA Transfection Reagent (SignaGen^® Laboratories, USA) according to the manufacturer’s instruction. First, PepMute™ transfection buffer was diluted before use, and then 3.3 µL siRNA in 1 mL RPMI 1640 medium was added gently and incubated for 15 min at room temperature. The complexes were added to each well and mixed gently by rocking the plates back and forth. The plates were then incubated at 37 °C in a CO₂ incubator. After 48 h, cells were collected for further experiments. The Id2 and Id3 siRNA product was purchased from Santa Cruz Biotechnology, Inc. (Santa Cruz, CA, USA).

Animal experiment

The animal study was carried out according to the regulations of China Food and Drug Administration (CFDA) on Animal Care. This study was reviewed and approved by Animal Care Use Committee of Jiangsu Province (Animal authorization reference number: SYXK2012-0035). Male NOD/SCID mice (35–40 days old, weighing 18–22 g) were supplied by the Model Animal Research Center of Nanjing University. The mice were raised in air-conditioned rooms under controlled lighting (12 h lighting/d) and were fed with standard laboratory food and water. K562 cells were cultured for 60 h with or without hBMSCs. Subsequently, K562 and co-cultured cells (5×10⁶ cell/mL) were injected into each mouse via tail vein. The NOD/SCID mice with similar weight were randomly divided into six groups: negative control (normal mice), control (transplanted with K562 cells), co-culture group (transplanted with K562 and hBMSCs), IM monotreatment (transplanted with K562 cells or co-transplanted) and combination group (co-treated with IM and Wogonin in co-transplanted) (n=5). Four weeks later, the mice were treated with Wogonin (200 mg/kg), and IM (200 mg/kg) (Sigma Aldrich, US) alone or in combination. After treatment for 30 days, marrow contents of femurs were obtained. These cells were labelled with anti FITC-CD45 (eBioscience, California, USA) antibody and analyzed by flow cytometry.

Statistical analysis

The data were expressed as the mean ± standard deviation (SD) from at least three independent experiments. Significant differences between groups were determined by one-way analysis of variance followed by post hoc Tukey’s test by GraphPad prism 7. *P<0.05, **P<0.01 and ***P<0.001 indicated significant differences compared with control group.

Results

Wogonin could enhance the sensitivity of CML cells to IM in the BME

In order to simulate BME in vitro, we established a co-culture model by co-cultivating CML cells with hBMSCs (24). Our previous research has shown that human BME could protect CML cells from IM-induced apoptosis (25). Firstly, MTT assay and annexin V/PI double-staining assay were used to evaluate the toxicity of Wogonin on K562 and KU812 cells under co-culture conditions, and appropriate concentration of Wogonin in our research were obtained based on the results. The concentrations of 10 and 20 µM showed neither cytotoxicity (Figure 1A) nor apoptosis rate (Figure 1B), so the concentration of 20 µM was used in further tests. Apoptosis rate of K562 and KU812 cells treated with Wogonin and IM was increased compared with that in the cells treated with IM alone (Figure 1C). The expression of Ki67 in combination group was less than that in IM alone under co-culture condition (Figure 1D). Western blot results showed that the level of cleaved-caspase 3 and cleaved-caspase 9 were augmented in combination group (Figure 1E,F). The above results indicated that Wogonin was able to reverse the resistance of CML cells to IM in co-culture condition.

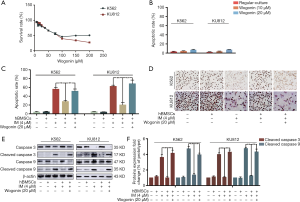

Figure 1 Wogonin reversed the effect of protection of hBMSCs on CML cells. (A) Growth survival of Wogonin treatment for 48 h on CML cells was assessed by MTT assay. (B) Apoptosis rate of K562 and KU812 cells after treatment by Wogonin (10 and 20 µM). K562 and KU812 cells were cultured with or without IM and Wogonin in normal group or co-culture group for 48 h. Cell proliferation was determined by annexin V/PI double-staining assay and Ki67 cell proliferation detection. (C) Percentage of apoptosis in K562 and KU812 cells after treatment. (D) Ki67 cell proliferation detection (original magnification, ×10). (E) The expression of cleaved-caspase 3 and 9 was determined using Western blot analysis. (F) Analysis of proteins expression. **, P<0.01. hBMSCs, human bone marrow stromal cells; CML, chronic myeloid leukemia.

Wogonin could reverse the activation of CXCL12-CXCR4/7 axis in CML cells with BME

According to our previous research, the protective effect of BME on CML cells may be attributed to the activation of CXCR4 and CXCR7 receptors whose downstream effectors can promote the survival of CML cells (26,27). In order to further explore the mechanism of action of Wogonin, Western blots assay was used to detect the activation of CXCR4/Akt and CXCR7/MEK/ERK signal pathways. Figure 2A,B,C showed that the combination group under co-culture condition, the regulation of the downstream proteins of CXCR4 and CXCR7 were reduced significantly. Meanwhile, our RT-PCR analysis also showed significantly decrease in CXCR4 and CXCR7 mRNA levels in combination group under co-culture condition (Figure 2D).

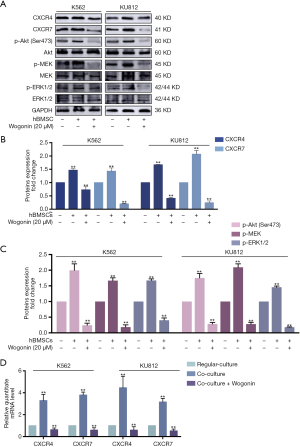

Figure 2 Bone marrow microenvironment activates CXCR4 and CXCR7 in CML cells and Wogonin can reverse it. K562 and KU812 cells were cultured with or without hBMSCs for 48 h treatment with Wogonin. (A) The expression of downstream protein of CXCR4 and CXCR7 was analyzed by western blot analysis. (B) Analysis of CXCR4 and CXCR7 proteins expression. (C) Analysis of p-Akt, p-MEK and p-ERK1/2 proteins expression. (D) CXCR4 and CXCR7 mRNA expression was detected by RT-PCR assay. **, P<0.01. hBMSCs, human bone marrow stromal cells; CML, chronic myeloid leukemia.

The expression of CXCR4 and CXCR7 was regulated by TGF-β in CML cells cultured in human BME

Chu et al. reported that TGF-β could induce up-regulation of CXCR4 expression in human basal cell carcinoma (BCC) cells (28). In order to further explore the specific mechanism of the up-regulation of CXCR4 and CXCR7 in co-culture condition, we first examined the concentration of TGF-β at different time points (0, 12, 24, 36 and 48 h) in CML cells co-cultured with or without BMSCs (Figure 3A). When co-cultured with BMSCs, the secretion of TGF-β by CML cells was increased in a time-dependent manner, while the concentration of TGF-β was low in culture medium of CML cells or BMSCs respectively. We also examine the changes in CXCR4 and CXCR7 expression in different dose of TGF-β (5, 10 ng/mL) and time point (48 h), respectively to make a comparison with regular-culture (Figure 3B). We found that the mRNA level of CXCR4 and CXCR7 elevated sharply after TGF-β (10 ng/mL) exposure within 48 h. Western blot assay was detected in response to the levels of CXCR4 and CXCR7 generation (Figure 3C,D). Either CXCR4 or CXCR7 expression in TGF-β-treated CML cells was two folds more than that of untreated cells. We may conclude that TGF-β could enhance the CXCR4 and CXCR7 expression in CML cells.

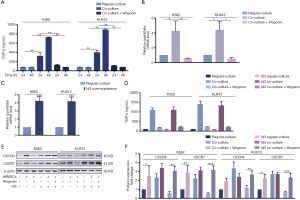

Figure 3 The secretion of TGF-β could regulate CXCR4 and CXCR7. (A) Detection of TGF-β secretion by ELISA assay in CML cells regular culture and co-cultured with hBMSCs. (B) Effect on the mRNA expression of CXCR4 and CXCR7 were investigated by RT-PCR in TGF-β-treated CML cells. (C,D) Western blot analysis of CXCR4 and CXCR7 in CML cells treated with 10 ng TGF-β or 20 µM Wogonin. (E,F) Western blot analysis of Smad4 in CML cells in nuclear and cytoplasm, respectively. (G) Immunofluorescence detection of the distribution of Smad4 in CML cells treated with 10 µM LY 320082, inhibitor of TGF-βRI (original magnification, ×40). (H,I) Western blot analysis of CXCR4 and CXCR7 in CML cells regular culture or co-cultured with hBMSCs or 10 ng TGF-β-treated. (J) CXCR4 and CXCR7 mRNA expression in CML cells regular culture and co-cultured with hBMSCs or 10 ng TGF-β-treated was detected by RT-PCR assay. *, P<0.05; **, P<0.01. hBMSCs, human bone marrow stromal cells; CML, chronic myeloid leukemia; TGF-βRI, TGF-β receptor type I.

And then, we explored the activation state of TGF-β downstream signals. With 48 h treatment of TGF-β on CML cells, the amount of Smad4 was notably escalated in nucleus, as shown in Figure 3E,F. LY 320082, the inhibitor of TGF-βRI, has the opposite effect. Immunofluorescence staining with antibody to Smad4 showed its localization in tumor cell nucleus (Figure 3G). The results above showed that Smad4 was activated either by employing TGF-β or co-cultured with hBMSCs. As shown in Figure 3H,I,J, the BME up-regulated the mRNA and protein expression of CXCR4 and CXCR7 by activating TGF-βRI. In addition, LY 320082 could suppress this effect. Taken together, we believed that TGF-β could regulate the expression of CXCR4 and CXCR7.

Id3 activation played an exceptional part in the TGF-β-mediated CXCR4 and CXCR7 generation in CML cells

Although TGF-β could trigger response in several cells via activation of the Smads cascade, there were insufficient research on the regulation of CXCR4/7 by Smad4 signaling. Reports elaborated the regulation of CXCR4/7 by Ids, the downstream effector of TGF-β (29). Therefore, we intend to explore whether TGF-β could modulate CXCR4 and CXCR7 via Id family in CML cells. Compared with regular culture, co-culture could enhance the secretion of TGF-β, which subsequently elevated the level of Id2 and Id3 by RT-PCR analysis. In consistent with that, exogenous TGF-β could also increase Id2 and Id3 expression (Figure 4A). To investigate the effect of Id2/3 on the expression of CXCR4/7, we utilized siRNA to knock down Id2 and Id 3 respectively (Figure 4B). Interestingly, Id2 knock-down did not influence on the expression of CXCR4/7 while Id3 knock-down decreased the level of CXCR4/7. In the presence or absence of TGF-β, Id2 knock-down did not affect the effect of TGF-β to CXCR4/7 in CML cells. However, TGF-β fail to elevate the level of CXCR4/7 after Id3 was knocked down in CML cells (Figure 4C,D).

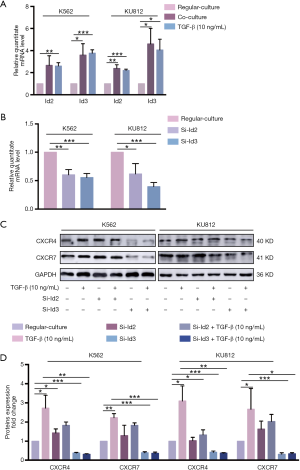

Figure 4 The Id3 gene could regulate CXCR4 and CXCR7. (A) Id2 and Id3 genes in CML cells were investigated by RT-PCR in 10 ng TGF-β-treated or co-cultured with hBMSCs CML cells. (B) RT-PCR assay detection after CML cells being treated with Id2 siRNA or Id3 siRNA in CML cells. (C,D) Western blot analysis of CXCR4 and CXCR7 in CML cells treated with Id2 siRNA or Id3 siRNA with or without 10 ng TGF-β. *, P<0.05; **, P<0.01; ***, P<0.0001. hBMSCs, human bone marrow stromal cells; CML, chronic myeloid leukemia.

The inhibitory effect of Wogonin on CXCR4 and CXCR7 was mediated via the TGF-β/Id3 signal

According to our previous research, the effect of BME on CML cells is mainly due to the activation of CXCR4 and CXCR7 receptors (25,30). As demonstrated above, we have already clarified that the survival mechanism of CML cells in co-culture system was due to the activation of CXCR4/7 by TGF-β/Id3 signal. Since Wogonin could enhance the sensitivity of CML cells to IM in the bone marrow environment, we want to ask whether the effect of Wogonin on IM-resistant CML cells could also be attributed to TGF-β/Id3 mediated CXCR4/7 activation. After treating the cells with Wogonin in the co-culture system for 48 h, the secretion of TGF-β by ELISA analysis was decreased and nuclear Smad4 of CML cells reduced simultaneously (Figure 3E,F and Figure 5A). Results of RT-PCR showed that the increase of Id3 mRNA in the co-culture system was significantly inhibited by Wogonin (Figure 5B). Western blot also showed that CXCR4/7 were down-regulated after Wogonin treatment (Figure 3C,D). Moreover, Id3 overexpression could elevate CXCR4/7 protein level but not influence the secretion of TGF-β (Figure 5C,D). Overexpression of Id3 could also eliminate the activating effect of Wogonin on CXCR4/7 in CML cells (Figure 5E,F). Taken together, Wogonin could decrease the expression of CXCR4/7 via down-regulating TGF-β/Id3 signal in CML cells.

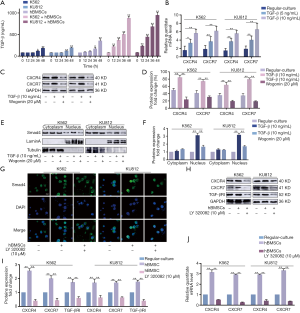

Figure 5 The TGF-β/Id3/CXCR4 and CXCR7 contributed to the reversal effects of Wogonin on IM-resistant CML cells. CML cells treated with Wogonin in co-culture model. (A) ELISA assay detection of TGF-β in supernatant. (B) Id3 gene in CML cells after co-culture with hBMSCs with or without 10 ng TGF-β-treated was investigated by RT-PCR assay. (C) Id3 gene in CML cells after Id3 over-expression. (D) ELISA assay detection of TGF-β in supernatant after Id3 over-expression with or without hBMSCs or 20 µM Wogonin. (E,F) Western blot analysis of CXCR4 and CXCR7 in CML cells after Id3 over-expression treated with or without hBMSCs or 20 µM Wogonin. *, P<0.05; **, P<0.01; ***, P<0.0001. hBMSCs, human bone marrow stromal cells; CML, chronic myeloid leukemia.

Wogonin inhibited the protective effect of BME on CML cells by down-regulating the expression of CXCR4 and CXCR7 in vivo

CML mice model was utilized to assess the effect of combination treatment of IM and Wogonin. Figures 6A showed that the weight of mice remained stable in combination treatment group compared with IM alone. As shown in Figure 6B, the combination group had a great advantage over others in terms of survival. Nine weeks after transplantation, significant splenomegaly was observed in the spleens of the mice in negative control group. Compared with the IM treatment group, the combination treatment group could significantly ameliorate the phenomenon of splenomegaly. (Figure 6C,D). As shown in Figure 6E,F, the expression of CD45 in mice bone marrow cells of combined group was significantly lower than that of IM alone. Figure 6G showed that the increased expression of CXCR4 and CXCR7 in co-culture group in thigh bones may be responsible for IM resistance. Therefore, we concluded that combination of Wogonin and IM can significantly inhibit tumor growth via decreasing the expression of CXCR4 and CXCR7 in vivo.

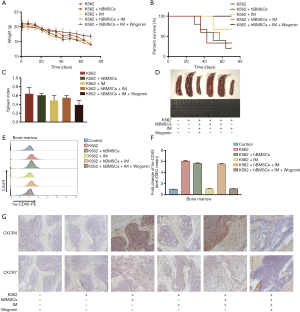

Figure 6 The reversal effect and mechanisms of Wogonin in vivo. Tumor xenografts inoculated with K562 cells or combinations with hBMSCs were treated with IM (200 mg/kg) or combination with Wogonin (60 mg/kg) every other day orally for 4 weeks. (A) The analysis of body weight after indicated. (B) Survival curves of mice after different treatment. (C) The weight of spleens of treatment groups. (D) Images of representative spleens. (E,F) The changes of CD45⁺ population after different treatment was detected by flow cytometry, cells were separated from mice bone marrow. (G) Representative IHC staining of murine BM, for human CXCR4 and CXCR7 antigen after different treatment (original magnification, ×60). IM, imatinib; hBMSCs, human bone marrow stromal cells; BM, bone marrow.

Discussion

The BME not only supports normal and hematopoietic cells, but also serves as a refuge for tumor cells, protecting them from the effects of chemotherapeutic agents. The BMSCs and the secretion of various factors in BME could promote the proliferation, survival and differentiation of hematopoietic cells (31). Soluble factors, such as stromal cell derived factor-1 (or CXCL12), interleukin-6 (IL-6), TGF-β could participate in a variety of physiological activities of tumor cells to regulate the tumor cell’s sensitivity to chemotherapy drugs.

Based on our previous researches, this study focused on the mechanism by which Wogonin increases the sensitivity of CML cells to IM in the BME. In this article, we co-cultured CML cells with BMSCs in vitro to establish BME model and determined that the sensitivity of CML cells to IM in co-culture group was significantly reduced, which was caused by the secretion of TGF-β and up-regulation of the CXCR4 and CXCR7 expression. In addition, BMSCs can modulate the state of CXCR4 and CXCR7 axis via TGF-β secretion, switching them from resting state to active state. It has been found that the high expression of CXCR4 and CXCR7 is highly correlated with the metastasis and progression of leukemia in many clinical studies. The activation of CXCR4 in leukemia cells has been shown to promote cell proliferation, metastasis and other activities through downstream pathways of CXCR4 such as PI3K/AKT/FOXO3A, ERK/MAPK, NF-κB, and STAT3 (32,33). Recent research showed that activation of CXCR7 could significantly increase cell proliferation and inhibits apoptosis induced by cytotoxic drugs (34-38).

On the other hand, higher level of TGF-β is found in bone marrow samples from patients with leukemia, such as multiple myeloma and B-cell lymphocytic leukemia (39,40). TGF-β is one of the important soluble factors in the BME. In the present study we used the BMSCs, a cell line which could secrete TGF-β, to investigate whether CXCR4 and CXCR7 expression could be regulated by TGF-β. We show here that TGF-β up-regulated the expression of CXCR4 and CXCR7 in CML cells as detected in the BME or exogenous TGF-β. Moreover, LY 320082, the inhibitor of TGF-β, can significantly reduce the expression of CXCR4 and CXCR7 in the BME.

Ids, a small family of helix-loop-helix factors, regulate a myriad of cellular functions including cell proliferation, survival, invasion and metastasis. Studies have shown that Id4 gene is silenced by hypermethylation in leukemia cells (41-43). Our results demonstrated that the expression of Id4 in CML cells with co-culture group were very low (data not shown). We believe that Ids, as a downstream effector of TGF-β, may be involved in the regulation of CXCR4/7 by TGF-β. We hypothesize that the responsible mechanism was due to elevated Id3 expression. In our model, the expression of CXCR4 and CXCR7 are upregulated by Id3 expression. Since the regulation of CXCR4 and CXCR7 expression by other factors could not be ruled out, we need to further probe the mechanism of CXCR4 and CXCR7 expression in CML cells in the future.

Wogonin shows effective anticancer activities and low-toxicities both in vivo and in vitro. In this study, Wogonin could destroy the protective effect of BME on CML cells and increase the rate of IM-induced apoptosis. The results of animal experiments showed that the combination of Wogonin and IM could significantly reduce the number of CML cells in vivo. Immunohistochemical staining of the thigh bones of mice in each group revealed that CXCR4 and CXCR7 were lower expressed in the combined administration group compared with IM alone group under co-culture, suggesting that Wogonin might play a role in reversing drug resistance by inhibiting the expression of CXCR4 and CXCR7. The results of Wogonin in vivo were consistent with those in vitro. Still, as a multi-target compound, Wogonin must have other mechanisms to reverse drug resistance.

In summary, our research demonstrated that Wogonin could significantly enhance the sensitivity of CML cells to IM in the co-culture model. The mechanisms of Wogonin on improving the sensitivity of CML cells to IM might be related to inhibiting the secretion of TGF-β in the BME and disrupting the activation of the CXCL12-CXCR4/7 axis. Therefore, Wogonin could be a novel and potent agent to eliminate leukemia resistance in the future.
