Therapeutic strategies in Wilson disease: pathophysiology and mode of action

Introduction

Wilson disease is a rare (1:30,000 inhabitants) inherited copper overload disease of the liver due to impaired biliary copper excretion. It affects female as well as male individuals and manifests mostly in late childhood or adolescence (1). It is an autosomal recessive disorder due to mutation of the ATP7B gene located on the long arm of chromosome13 at position 14.3 (2).

Although the disease can be treated, the mechanism of action for therapy is not completely understood. Therefore, we describe here what is known about Wilson disease and put a view on treatment mechanism in perspective. The key question is whether chelators or zinc indeed remove copper from the organism or turn toxic copper into harmless deposits.

Methods

The literature was searched via PubMed according to the listed key words. We considered German and English original publications (basic science and clinical) and reviews of the last 30 years.

Physiology

The gene product is the ATPase which carries cytoplasmatic copper to the trans-Golgi-network (TGN) for incorporation into apoceruloplasmin with 8 copper binding sites before it is released as ceruloplasmin at the basolateral side of hepatocytes to the systemic circulation (2). As copper containing oxidase it is responsible for transfer of Fe²⁺ to Fe³⁺ which is incorporated into transferrin for iron delivery to the system utilizing transferrin receptors (3). When more copper is transported to the TGN it is released by vesicular transport to the canalicular plasma membrane for release into bile from where excess copper is excreted in stool. Intestinal-released copper is hardly be reabsorbed due to binding to bile acids, i.e., taurochenodeoxycholate (4,5). Absorption from diet is carrier-mediated, transporting Cu⁺ via the copper transporter (Ctr1) at the apical site to cytosol followed by intracellular binding to metallothionein and release at the basolateral side of mucosal cells via ATP7A (Menkes ATPase) (6). Since only Cu⁺ is transportable, a conversion of Cu²⁺ to Cu⁺ has to occur for cellular entry. After release from mucosal cells copper is transported bound to albumin via portal blood to the liver from where it is extracted by Ctr1. Within hepatocytes the free cytotoxic Cu⁺ is bound after uptake to the Antioxidant protein 1 (Atox1) from where it is handled to ATP7B for translocation to TGN (1). During phases of copper overload, excess Cu⁺ is transiently bound and stored in a complex with metallothionein (1) (Figure 1).

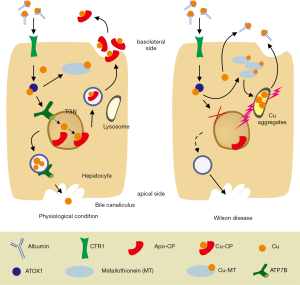

Figure 1 Physiology and pathophysiology of copper transport and metabolism. Under physiological conditions (left panel), copper uptake in hepatocytes is initiated by the high affinity Ctr1 from the apical side. In the cytosol, copper binds to the chaperon ATOX1 that handles copper to ATP7B as transporter into the trans-Golgi network (TGN). There it is incorporated into apoceruloplasmin and released as copper loaded ceruloplasmin via vesicular export at the basolateral plasma membrane into the blood stream. As alternative pathway, the non-ceruloplasmin copper is secreted by exocytosis and via ATP7B at the canalicular membrane to bile. Non-transported copper is intermittently stored in cytosol within metallothionein. In Wilson disease (right panel), functional ATP7B is missing resulting in backing-up of copper in cytosol. When the metallothionein binding capacity is exceeded, the copper overspill is covered in lysosomes which eventually burst under the burden of generated free radicals. It induces cell injury and release of free copper to blood.

Pathophysiology

In Wilson disease almost 800 different mutations of the ATP7B gene are known (7-9), which result in functional impairment of copper transport to the TGN reaching from absent ATP7B in TGN (mutation H1069Q in exon 14) to failure of Atox1 binding to this transporter, impaired transmembrane translocation or release at the luminal side of TGN (Figure 2). The remaining, non-transportable cytoplasmatic copper piles up and is bound to metallothionein, the synthesis of which is induced by copper (10). When the copper binding capacity of metallothionein comes to its limit, excess copper is also deposited within lysosomes where due to the acid environment amorphous copper complexes accumulate, potentially inducing free radical injury (11,12). These complexes are detectable histologically by Rhodamine staining (13). The toxic Cu¹⁺ damages the lysosomal membrane, causes Cu¹⁺ overflow to cytoplasm and thus, cellular damage concomitant with release to the circulation. The diminished copper transport through ATP7B to TGN results also in lack of biliary excretion and consequently hepatic copper overload (1). In addition insufficient apoceruloplasmin loading with copper results in its degradation. The resulting very low ceruloplasmin plasma concentration calls in for albumin as substitute to bind in addition to the copper absorbed from the intestine also released copper from damaged hepatocytes (Figure 1). However, the copper-binding capacity of albumin is limited. It seems that copper is only weakly bound and can dissociate for uptake in other organs (14). Therefore, copper can be released via kidneys to urine. This, non-ceruloplasmin bound (albumin-associated), free copper is thought also to be capable to pass to brain causing among other cerebral manifestation mostly motoric impairment. It could be hypothesized that copper penetrates at the site of plexus coroidei through fenestrated endothelium into brain and accumulates within the nearby basal ganglia. Other explanations for basal ganglia destruction claim that it is due to structural/functional consequences caused by the mutated ATP7B because no neuronal copper deposition was noted in respective animal studies (15,16). Mechanistically, the consequent inhibition of ceruloplasmin biosynthesis due to mutated ATP7B protein (in liver as well as in brain) disturbs cellular iron release with excess intracellular iron deposition, especially in the basal ganglia (17-19). Accordingly, it needs further evaluation whether the mutated ATP7B or copper/iron accumulation are responsible for neurological manifestation. Copper and iron overload are potentially reversible by liver transplantation due to concomitant ceruloplasmin normalization. However, mutated ATP7B remains and could explain persistent neurological symptoms.

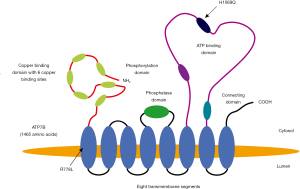

Figure 2 The conformation of the ATP7B protein and marking of 2 prominent mutations. In humans the mature copper-transporting ATP7B protein consists of 1,465 amino acid encompassing a copper binding domain with six copper binding sites, a phosphatase domain, a phosphorylation domain, an ATP-binding domain, and a short stretch connecting the ATP binding domain to the eight transmembrane segments (2,8). The positions of the two most common mutations R778L (located in the first transmembrane region affecting transport of copper through the membrane) and H1069Q (located in the ATP binding site reducing ATP-mediated phosphorylation) are depicted. However, it is also discussed that mutations induce protein misfolding resulting in endoplasmic-reticulum (ER)-associated degradation (9).

Copper accumulation in the cornea appears as golden-brown rings around the edge of the eye lenses are called Kayser-Fleischer rings. They do not impair vision (1,20). Copper accumulation in kidneys and heart are rarely observed causing tubulopathy and cardiomyopathy, respectively. Continuous hepatic injury eventually leads to cirrhosis and portal hypertension. The enlargement of the spleen causes accompanying thrombocytopenia and sometimes leucopenia and anemia as consequence of hypersplenism. In addition latent or overt hemolysis with unconjugated hyperbilirubinemia can occur (20). This Coombs-negative hemolysis is considered as a consequence of Cu⁺-mediated erythrocyte injury (1). A prominent hemolysis occurs frequently on the occasion of fulminant Wilson disease with acute hepatic failure due to copper-induced apoptosis (21). At this occasion, a concomitant massive release of copper to the circulation occurs.

All of this leads to a plethora of symptoms (20) (Figure 3). Systematic analyses of large patient-cohorts did not define specific genotypes which are responsible for different manifestations, e.g., mainly hepatic, neurologic, mixed manifestations, fulminant or asymptomatic courses (22-25). Moreover, of the different proteins involved in copper metabolism, only ATP7B mutations were shown to be responsible for manifestation of human Wilson disease (22,23). Even aceruloplasminemia is different to the clinical presentation in Wilson disease. It reveals severe iron deficiency and neurodegenerative features but normal biliary copper excretion (24).

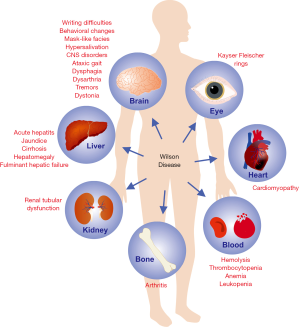

Figure 3 Plethora of organ manifestations and symptoms in Wilson disease. In Wilson disease the symptoms are highly variable and can affect liver, brain, kidney, eyes, heart, bone, blood system, and many other organs or tissues.

However, modulating epigenetic factors, are believed to be responsible for the time and type of clinical manifestation. One hypothetical option could be the metallothionein gene family, the expression of which may modulate intracellular free copper availability (26).

Diagnosis

Based on the pathophysiology, diagnostic criteria for Wilson disease are: low ceruloplasmin, low serum copper, elevated free (albumin-bound) copper [as calculated by the formula: free copper = serum copper (µg/dL) minus ceruloplasmin (mg/dL) × 3.15], and elevated urinary copper excretion (Table 1) (27,28). Gold standard is the quantitative determination of liver copper (27). Positive histological Rhodamine stain identifies lysosomal copper aggregates (13). Genetic analysis can be helpful to detect homozygous or compound heterozygous disease causing mutations of the ATP7B gene (23). A great number of mutations have been reported that hamper the proper function of the ATP7B. Actually more than 800 pathogenic variants in the ATP7B gene have been identified, with single-nucleotide missense and nonsense mutations being the most common, followed by small deletions, splice site mutations and small insertion (29). Kayser-Fleischer rings are detectable in only 50% of the patients, but mostly (~80%) in neurological cases (Table 1). According to the most relevant diagnostic features a Wilson disease-specific score has been developed (Table 2) (22). It is of further relevance whether and to what level transaminases are elevated as indicator of liver injury.

Table 1 Diagnosis of Wilson disease
Full table

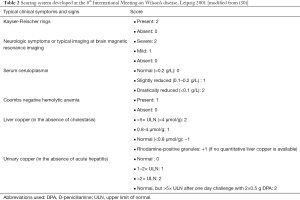

Table 2 Scoring system developed at the 8^th International Meeting on Wilson’s disease, Leipzig 2001 [modified from (30)]
Full table

Signs of cirrhosis reflect advanced chronic liver disease even in young patients. A neurological work-up is required to determine the extent of central nervous system (CNS) manifestations. Finally it is important to evaluate whether the patient has other disorders, particularly those affecting the liver. For differential diagnosis copper overload due to cholestasis, e.g., primary sclerosing cholangitis (PSC) or primary biliary cholangitis (PBC) has to be considered beside other very rare disorders (31). The aceruloplasminemia is not associated with Wilson disease because there is an unimpaired biliary release of copper (32). Heterozygous carrier of ATP7B mutations show only a slight low ceruloplasmin and serum copper but a normal urinary copper excretion (32,33). They do not develop clinical symptoms, in particular liver damage and neurological symptoms. Most likely heterozygous carriers do not have elevation of free copper, because phenotypic expression of the pathophysiology is mild, i.e., only marginal ceruloplasmin suppression. In cases with only discrete low ceruloplasmin (<0.2 g/L), the calculation of non-ceruloplasmin bound copper is not reliable. The reason is that most laboratories determine ceruloplasmin by an immunonephelometric method which measures both ceruloplasmin and the biologic inactive apoceruloplasmin. The enzymatic method (copper oxidase) is more accurate (34). It is our experience that the calculation of free copper is only valid at ceruloplasmin concentrations below 0.1 g/L. Unfortunately, the direct measurement of the free copper fraction is not available yet for routine laboratory testing although it would be most desirable for diagnosis and therapy monitoring (35).

Prognosis

The prognosis of untreated Wilson disease patients is poor with a median life expectancy of 40 years (36).

Today with all of the available therapeutic regimens, a normal life expectancy of patients with Wilson disease is achievable (Figure 4A) (20). In addition clinical, neurological, and hematological symptoms improve during treatment to a significant extent (Figure 4B,C,D) (20). Exceptions are those indicating impaired liver function due to cirrhosis and complications of portal hypertension (37). Most challenging are neurologic disorders, which are only partial reversed and in rare cases may even deteriorate which may be due to inefficient access of present therapies to brain copper and iron or due to the mutated neuronal ATP7B.

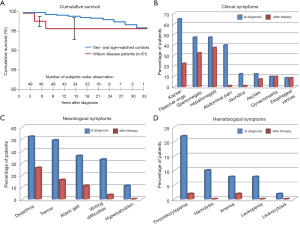

Figure 4 Therapeutic efficacy in therapy of Wilson disease. (A) The life expectancy of Wilson disease patients is normal if therapy is started in a timely manner. Shown is the cumulative survival in 51 patients with Wilson disease compared with that of an age- and sex-matched control population. The survival time was only slightly reduced during the early period of observation when liver transplantation was not available for fulminant hepatic failure. Otherwise the survival rates were not different after 15 years of observation. Improvement of (B) clinical, (C) neurological, and (D) hematological symptoms before after long-term treatment with the de-coppering drug D-penicillamine. Data depicted were taken from (20).

Therapy

Diet

A therapy with a low copper diet is inefficient because it is very difficult to achieve a negative copper balance since almost every food contains traces of copper to be absorbed via Ctr1. However, it is recommended to avoid food rich in copper to support medical therapy, like cacao, dark chocolate, nuts, raisins, shellfish, oysters, inner organs like liver and kidneys, dietary supplements such as spirulina, and shitake mushrooms (38).

Drug therapy of Wilson disease

It is a general shortcoming that for none of the therapies applied in Wilson disease randomized controlled trials (RCT) were performed. Most patients are treated with copper chelators to remove copper from albumin (27). D-penicillamine was the first copper chelator on the market. It binds extracellular copper and excretes it via kidneys to urine. Due to interference with pyridoxin action, it has to be given in combination with 25–50 mg vitamin B6. D-penicillamine is powerful to improve the disease (20). Within 1–2 years the patients become normal in regard to free copper (calculable at ceruloplasmin <0.1 g/L) and normal urinary copper excretion determined after 2 days of chelator cessation and urinary collection at 3^rd days without chelator (Table 1) (39). At that time transaminases should also be normalized.

The dosage starts slowly with 300 mg/d and is increased weekly by 300 mg up to 1,500 mg/d as required. After reaching remission with normal free copper and urinary copper excretion, therapy has to be maintained lifelong at lowest possible doses (mostly 600–900 mg/d) (27). In some cases (14%,) an initial deterioration of neurological symptoms is observed, but the pathophysiology remains unclear (40). One hypothesis claims that a sudden release of copper from hepatic stores is responsible. Unfortunately, this neurologic deterioration is difficult to reverse (40). There is a number of other adverse events occurring in the initial phase of treatment and on long term therapy (Table 3). Initial allergic reaction can be copied by cessation of D-penicillamine or a concomitant therapy with steroids. For long-term treatment the adverse reactions and their severity have to be weighed against the efficacy of therapy. Often induction of autoimmune disorders of different degrees is noted with elevation of antinuclear antibodies (ANA) (27). In these cases therapy has to switch to trientine or zinc.

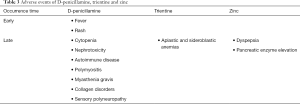

Table 3 Adverse events of D-penicillamine, trientine and zinc
Full table

Trientine 2HCl is the chelator only for patients intolerant to D-penicillamine (27). After slowly escalating doses it can be increased to 1,800 mg trientine/d as required, while for maintenance therapy 600–1,000 mg trientine/d are mostly applied. Trientine 2HCl does not require the addition of vitamin B6. It is as effective as D-penicillamine and has less adverse events (40). Still neurologic deterioration can occur and anemia has been reported (41-43). Since 2018, also trientine 4HCl is available on the market (44). It can also only be prescribed for patients intolerant to D-penicillamine.

Zinc is less dangerous in regard to adverse events (45). Only abdominal discomfort was recorded which in severe cases leads to its discontinuation. On the market are zinc salts or better tolerable zinc-amino acid bound preparations.

The efficacy is established in particular for long term maintenance therapy (46). As initial therapy it may slow down the disease activity. For control of liver damage, it was reported to be inferior to chelators (27,45-47). The recommended dose for adults is 3×50 mg daily and for children and adolescents 3×25 mg daily (48).

Only in rare cases zinc is combined with chelators, both in reduced doses. It has to be provided separate from food and chelators to avoid in gut intraluminal binding and, thus, absorption. This requires a disciplinary drug intake schedule for the patient. Exact evaluation of this recommended intake scheme is not available and only based on theoretical consideration.

For determination of the therapeutic efficacy of zinc, again free copper, urinary copper excretion (without disruption of the therapy) and transaminase normalization are valuable tools. In addition, urinary zinc can be determined to prove the compliance of the patient.

In initial clinical trials, bis-choline-tetrathiomolybdate (TTM) is currently evaluated (49). It acts like a copper chelator, operating within the cells by binding copper associated to proteins in stable complexes which are excreted via bile (50,51). It also seems to be taken-up into neurons for recovery from copper induced cell damage by binding of excess protein bound copper. In blood it binds albumin-bound copper (50). The consequent disposal remains open. The clinical results in regard to neurological improvement were impressive (49). However, in a substantial portion of patients an elevation of transaminases was observed (49,50). This was also the case in earlier studies using the TTM ammonium salt where in addition aplastic syndromes were reported (51). It may be due to its intracellular availability. The new bis-choline-TTM is more stable than the TTM ammonium salt and shows better bioavailability. Further trials with the new bis-choline-TTM have to awaited and evaluated.

Other therapeutic strategies

In fulminant hepatic failure, liver transplantation is the first choice of therapy. The success rate of the operation in Wilson disease is rather high compared to other causes of acute hepatic failure (52). Still a mortality rate of 10–20% within the first year after transplantation is too high to recommend this procedure for the general Wilson disease population, particularly because good drug therapy options are available which are associated with an unimpaired prognosis compared to the normal age adapted population (Figure 4A) (20). Challenging is the observation that with transplantation the liver disease is cured and does not require further copper controlling therapy (30). The question arises whether neurologic symptoms also disappear due to normalization of ceruloplasmin in blood, while the genetic defect in brain persists. Indeed the observations of neurologic improvement after liver transplantation are ambiguous (53).

Sophisticated gene therapy approaches for replacement of the mutated ATP7B were successful in animal models of Wilson disease (54-60). This is another promising approach which should be explored in human Wilson disease.

As therapeutic goal remains the tackling of persistent neurologic symptoms which are not always improved by present therapies (Figure 4C). The reason may be an insufficient targeting of chelators across the blood-brain-barrier towards copper loaded neurons. There are now attempts underway to generate blood-brain barrier formulations which may gain access to the brain (61).

General consideration regarding therapeutic goals

The goal of therapy could be the removal of excessive copper. Whether this is realistic, remains open. The liver copper content increases during manifestation of the disease and in most cases does not change thereafter, even under therapy (62,63).

Anectodical experience of liver copper determination during therapy demonstrated no significant decrease of the copper load although there are no robust data available. However, the difference of urinary release (estimated mean of 250 µg/d under long term chelator therapy) and copper absorption (estimated mean of 100 µg/d) does not account for significant copper depletion. Moreover, it has to be considered that excretion under chelator therapy decreases with time of treatment. Absorption depends on copper, zinc and fiber content in diet and the therapy dependent metallothionein induction.

A conservative estimate of the liver copper content assumes in Wilson disease 250 µg/g dry weight corresponding to 1,050 µg copper/g wet weight (64) and a median liver weight of 1.5 kg according to 1.575 g copper (normal 0.29 g) in the liver. If a netto loss of 150 µg copper per day would be achievable, e.g., by chelator therapy, it would last 23.5 years to deplete copper from liver to normal values. According to our experience urinary copper excretion is normalized within about 2 years of chelator therapy, when determined after a drug holiday for 2 days. Thus, the persistent enhanced urinary copper excretion under chelator therapy may not originate from the liver but most likely from absorbed dietary copper which is loosely bound to albumin (free copper) and chelated e.g., by D-penicillamine for urinary excretion. Thus, it is unlikely that copper can be depleted from the liver.

However, there is almost normalization of free copper in serum concomitant with cessation of liver damage (significant improvement or even normalization of transaminases). Therefore it is concluded that the reduction of free copper in serum is the better therapeutic goal which is realistic to be achieved. To maintain a normal free copper, the chelator therapy should be maintained at best with the lowest chelator dose necessary, but it should never be discontinued. In case the therapy is broken up it was shown to lead to elevated free copper causing eventually fulminant Wilson disease with acute liver failure within a median of 1–2 years (27).

Enhanced free copper excretion in urine is the one obvious mode of action of chelator therapy. Moreover, the reported induction of metallothionein is the other mode of action of chelators to keep copper in an innocent bound state in the liver (65,66). This can also be achieved efficiently by oral zinc substitution mainly operating in the liver as well as in the gut. In the intestine metallothionein bound copper is lost by physiologic desquamation of mucosal cells every 3–5 days (67), which results in loss of copper from the organism supporting the depletion of copper depositions similar as a copper free or reduced diet. This therapy is considered less effective compared to the chelator-induced loss in urine, at least at the beginning of treatment.

However, depletion of copper from the organism may only be of minor significance and may not be achievable due to pathophysiology and the above mentioned considerations. For use of the most harmless maintenance therapy, zinc would be preferred to chelator or new upcoming drugs with potential more adverse events. However, zinc is known to cause dyspepsia. Therefore, it should be taken in the least, but effective dose of 3-times 50 mg.

It could even be considered whether consumption of food rich in zinc may be of therapeutic use. This is provocative because food rich in zinc is also declared as avoidable in Wilson diseases (38,66,68). Consequently, only acceptable are those with not as much copper: meat (except liver and kidney), vegetables, dairy, eggs, whole grains and potatoes (66,68). Food with high content of phytates present in vegetables (i.e., vegan diet) inhibit absorption of zinc and other minerals. Zinc sources from animal food are best bioavailable: meat, dairy and eggs (68).

Discussion

We proposed in this review that the goal of therapy is the removal of toxic copper, because it causes free radical injury in the liver leading finally to cirrhosis. The occurrence of excessive free copper is due to lack of transport of cytoplasmatic copper to the TGN for incorporation into apoceruloplasmin as well as biliary excretion. The reason behind this is the mutated ATP7B. The consequent backlog of cytoplasmatic copper induces metallothionein which binds toxic copper within a harmless complex. With time, the liver is packed with copper. Indeed the maximal liver copper content is observed in this accumulation phase, where liver damage may not be present (normal transaminases). Thereafter, any overspill of copper will end in lysosomes which with time burst due to overload and free radical injury. This causes cell damage and release of copper to the circulation where it is loosely bound to albumin. This “free” copper is easily dissociable for urinary excretion and for deposition in other organs, e.g., the brain.

This proposed mechanism of therapeutic action to remove the free copper does not necessarily require a depletion of hepatic copper, which anyway would last a couple of decades. There is certainly a reduction of the copper burden possible, but for prevention of liver damage may not be required. It can at present only be achieved by therapy with the chelators D-penicillamine and trientine as well as with zinc. Remarkably, both strategies induce metallothionein as the key protein for protection against Cu⁺. It was reported that tetra-thiomolybdate as intracellular chelator removes copper from metallothionein (“stripping” effect). This could indicate that this metallothionein remains open for copper binding. To remove free copper as therapeutic aim is yet not commonly accepted. The shortcoming of this hypothesis is the lack of experimental evidence. It would be desirable to determine over the course of treatment the actual free copper concentration and correlate it to transaminases.

In case there is no irreversible liver damage, i.e., cirrhosis, one would predict a normalization of both parameters (i.e., free copper and transaminases) at the same time. The determination of the liver copper content would most likely remain identical. However, to perform liver biopsies only for this scientific purpose is not ethical. The retrospective analysis of copper content values obtained for different indications in Wilson disease patients could be helpful.

The final therapeutic goal would be gene therapy. However, in this field no real progress is visible at present. The liver transplantation was considered as a gene therapy, but only for the liver. It is possible that the establishment of a normal copper metabolism with normal ceruloplasmin prohibits damage through free copper. However, the experiences of neurologic improvement after transplantation are not unequivocal (53). There are positive and negative outcomes reported. Improvement might be due to iron and copper removal, whereas unchanged neurological presentation could be due to already irreversible brain damage or the interesting observation that the mutated ATP7B per se leads to neuronal destruction (15,16).

Summary

It is a big achievement of the presently available drugs to allow patients with Wilson disease a normal life expectancy, although neurologic symptoms may persist. The improvement of liver function tests is likely due to removal of the toxic free copper. The direct determination of this copper fraction in serum would be a desirable tool to control the efficacy of the therapy (35). At present free copper concentration can only be calculated, whereas the normalization of urinary copper excretion is easily determined and most reliable. The depletion of liver copper is desirable but may not be realistic. As therapeutic tool, the chelators D-penicillamine and trientine as well as oral zinc preparations are available. Unfortunately, none of the available therapies have been examined in RCT’s. Nevertheless, one of these therapies is mandatory for Wilson disease patients. Indeed the therapy has to be maintained lifelong with down titration to the lowest effective dose. Adverse events are not frequent and most of the patients tolerate them very well. Still a challenge is the therapeutic tackling of persistent neurologic symptoms.
