Metformin and oxyphotodynamic therapy as a novel treatment approach for triple-negative breast cancer
Introduction
For decades, light has been used in the treatment of several diseases. The isolation of porphyrins and their localization in tumors, along with the discovery of their phototoxicity on tumor tissue, led to the development of modern photodetection (PD) and photodynamic therapy (PDT) (1). PDT is a therapeutic technique that combines a photosensitizing agent with a light source to generate reactive oxygen species (ROS), which selectively destroy the pathological tissue (2). When the photosensitizers are illuminated, oxygen levels in tissue decrease rapidly and significantly (3). Reduction of tissue oxygen limits the generation of ROS, thus reducing the therapeutic efficacy of PDT (4). Various light sources and nanoparticles can induce tissue reoxidation, but these procedures can be inefficient (5). A large number of studies have focused on third generation photosensitizers, such as hemoglobin and ferric oxide (6-10), which can improve the efficacy of PDT by alleviating hypoxia of the tumor cell microenvironment. Oxyphotodynamic therapy (OPDT) is a high-end novel medical treatment developed in recent years that utilizes light emitting diodes as the light source. Lasers are regarded as an ideal light source due to their single wavelength and high energy level. Using a synchronous light emitting diode and an external oxygen production source, OPDT can overcome the problem of tissue hypoxia, which has traditionally faced PDT. OPDT, like traditional PDT, produces ROS when photosensitizers are exposed to a light source, particularly singlet oxygen free radicals. ROS produced from OPDT affects cellular components, including proteins and DNA, leading to necrosis or apoptosis (11).
The second generation photosensitizer 5-aminolevulinic acid (ALA) is a precursor of endogenous protoporphyrin IX (PpIX), a photosensitizer. PpIX is produced in the mitochondria and is catalyzed by heme synthase in the presence of ALA (12). When the irradiation of the light source matches the absorption spectrum of the photosensitizer, the two ALA molecules are catalyzed by ALA dehydratase to form porphobilinogen and tetrapyridine porphyrin III, a common precursor of all tetrapyrrole substances. This in turn forms protoporphyrin in the mitochondria and binds to iron ions to form ferrous hemoglobin (13).
The main anticancer target of heme is a transcription factor called bach1 (14). Bach1 targets mitochondrial metabolism by inhibiting the transcription of mitochondrial electron transport chain genes (the key source of cellular energy). Metformin (MET) is one of the most widely used oral hypoglycemic drugs globally. In addition to lowering blood sugar, MET also acts on the mitochondria (15). MET inhibits the expression of DNA damage repair factors, which accelerates the apoptosis of cancer cells (16). It can also activate adenosine monophosphate-activated protein kinase (AMPK) to promote the decomposition of lipids, inhibit the synthesis of related proteins, and limit the energy supply of cancer cells, which consequently inhibits cancer cell proliferation and growth (17). Activated AMPK also regulates the expression of downstream factors, leading to cancer cell cycle arrest, apoptosis, and autophagy, ultimately accelerating cancer cell death (18). Furthermore, activated AMPK also inhibits angiogenesis-related factors and angiogenesis in tumor tissues, thereby blocking the nutritional supply of cancer cells (19). Recent studies revealed that heme sensitizes triple-negative breast cancer (TNBC) tumors to MET by inhibiting bach1 expression (14). Therefore, the combination of heme and MET may be an important therapeutic treatment approach for TNBC.
TNBC is more prone to recurrence and metastasis compared to other breast cancer subtypes and has fewer treatment options; chemotherapy, therefore, is the main treatment approach (20). PDT is an important and effective method for treating breast cancer recurrence and metastasis (21). However, due to a low amount of PpIX entering mitochondria, TNBC MDA-MB-231 cells are not as sensitive to PDT. Hence, in this study, external oxygen production was added to alleviate hypoxia in cells and increase the efficacy of PDT. This was also combined with MET and ALA to achieve greater therapeutic efficacy for TNBC. We present the following article in accordance with the MDAR reporting checklist (available at http://dx.doi.org/10.21037/atm-20-5704).
Methods
Reagents and instruments
ALA was purchased from Sigma-Aldrich (St. Louis, MO, USA). MET was purchased from Beyotime Biotechnology (Haimen, Jiangsu, China). The MTT kit was purchased from Solarbio Science & Technology (Haidian district, Beijing, China). The OPDT instrument was obtained from Pure Oxygen and Photodynamic Therapy Composite Treating OxyPDT (II) System (Race MBE Co. Ltd., Guangzhou, Guangdong province, China). MitoTracker Green FM was obtained from GeneBank (Guangzhou, Guangdong, China).
Cell culture
The MDA-MB-231 cell line was obtained from the Transformational Medical Center of the Second Affiliated Hospital of Sun Yat-sen University. Cells were cultured in Dulbecco’s Modified Eagle’s Medium (DMEM) supplemented with 10% fetal bovine serum (Hyclone, South Logan, UT, USA), 100 U/mL penicillin (Squirrel Biotechnology, Guangzhou, Guangdong, China) and 100 µg/mL streptomycin (Sigma-Aldrich, St. Louis, MO, USA) and kept at 37 °C (5% CO2).
OPDT
For OPDT, cells were seeded in 96-well plates (10,000 cells/well) and grown overnight in complete medium. After incubation with various concentrations of ALA and/or MET (0, 0.5, 1, 2, 4, 8, 16, 24, and 32 mM) at 37 °C for 4 hours, the cells were irradiated with a 630 nm laser light. The light source used was a diode laser with a 633 nm wavelength emission of red light. After irradiation, the cells were incubated with fresh complete medium for 72 hours until further analysis.
Cell viability assay
An MTT (3(4,5-dimethyl-thiazoyl-2-yl)2,5 diphenyl-tetrazolium bromide) assay was used to measure the activity of mitochondrial dehydrogenases, which reduces the water soluble tetrazolium salt to a purple insoluble formazan product. The culture medium was removed and replaced with serum-free DMEM (100 µL/well) containing 0.4 mg/mL MTT. The cells were incubated with MTT for 4 hours, then lysed with DMSO after removing the medium. The amount of formazan product was analyzed spectrophotometrically at an absorbance of 490 nm.
Fluorescence staining
MitoTracker Green (MTG) staining solution was prepared and diluted to 1:200. After incubation with various concentrations of ALA and/or MET at 37 °C for 4 hours, cells were irradiated, then incubated for another 4 hours. The culture medium was then discarded, and the cells were washed twice with PBS, and stained (1:200) with MTG for 15 minutes. After washing twice with PBS, the cells were permeabilized with triton-100 for 10 minutes, then fixed with glycerol and sealed.
Computerized simulation by CompuSyn
Synergism or antagonism is to know both the “potency” and the “shape” of the dose-effect curve for each drug. Therefore, it is necessary to calculate the does-effect parameters of each drug alone [m1, (Dm)1, m2 and (Dm)2] as well as in combination [m1,2, (Dm)1,2], and thereby determine the Cmbinatioon Index (CI) value. The above parameters can be easily and automatically determined from the median-effect equation by CompuSyn software (Available for free download from www.combosyn.com). The OPDT mediated by ALA and MET was quantitatively determined for synergism [combination index (CI <1), antagonism (CI >1) and additive effect (CI =1)] in vitro. The theoretical algorithm and the CompuSyn software simulation have been used to illustrate step-by-step for the combination of two anti-cancer agents.
Statistical analysis
All experiments were repeated at least three times with six parallel wells. The resulting values were expressed as the relative number of cells per well when compared to the control groups. The results were averaged for experiments performed under similar conditions and were expressed as mean ± SD.
Results
OPDT and PDT effects on MDA-MB-231 cell viability at different radiation energies

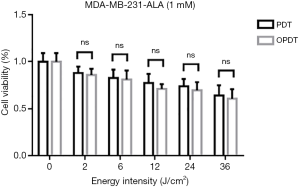

To investigate the effects of OPDT and PDT using different light radiation energy intensities, MDA-MB-231 cells were incubated with 1 mM ALA for 4 hours. Cells were exposed to different energy intensities of the OPDT and PDT light sources. Cell survival was analyzed using an MTT assay 72 hours after irradiation. The results showed that with increasing irradiation intensity (0, 2, 6, 12, 24, and 36 J/cm2), the cell survival rates gradually decreased (Figure 1). OPDT resulted in slightly lower cell viability than PDT. T-test analysis of the cell survival rate under different energy intensities showed no significant differences between each group, with their respective P values of 0, 0.82, 0.77, 0.55, 0.47, and 0.22.
OPDT and PDT effects on MDA-MB-231 cell viability in combination with different concentrations of ALA
MDA-MB-231 cells were incubated with different concentrations of ALA for 4 hours, then treated with OPDT or PDT (12 J/cm2). Cell survival was analyzed using an MTT assay 72 hours after irradiation. The results showed that with the increasing concentrations of ALA, cell survival gradually decreased (Figure 2). OPDT resulted in slightly lower cell viability than PDT; however, no statistical differences existed between each group, with respective P values of 0, 0.99, 0.81, 0.16, and 0.81.
Effects of ALA-mediated OPDT and PDT on MDA-MB-231 cell viability

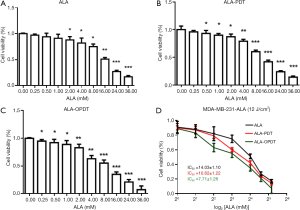

MDA-MB-231 cells were seeded in 96-well plates at a density of 7500 cells/well in 150 µL DMEM medium. After reaching 70% confluence, the cells were incubated with different concentrations of ALA (0, 0.25, 0.5, 1, 2, 4, 8, 16, 24, and 32 mM) for 72 hours. The cells were divided into three groups: Group 1 (ALA), Group 2 (ALA-PDT), and Group 3 (ALA-OPDT), as shown in Figure 3A,B,C. The IC50 value of each group was 14.03±1.10, 10.62±1.22, and 7.71±1.26 mM, respectively (Figure 3D).
Effects of MET-mediated OPDT and PDT on MDA-MB-231 cell viability

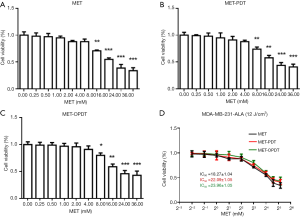

MDA-MB-231 cells were seeded in 96-well plates at a density of 7,500 cells/well in 150 µL DMEM medium. After reaching 70% confluence, the cells were incubated with different concentrations of MET (0, 0.25, 0.5, 1, 2, 4, 8, 16, 24, and 32 mM) for 72 hours. The cells were divided into three groups: Groups 1 (MET), Group 2 (MET-PDT), and Group 3 (MET-OPDT) (Figure 4A,B,C). The IC50 value of each group was 18.27±1.04, 22.09±1.05, and 23.96±1.05 mM, respectively (Figure 4D).
Cell survival rate analysis of ALA and MET combined with OPDT and PDT

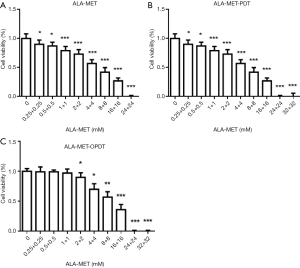

MDA-MB-231 cells were seeded in 96-well plates at a density of 7,500 cells/well in 150 µL DMEM medium. After reaching 70% confluence, the cells were incubated with different concentrations of both ALA and MET (0, 0.25, 0.5, 1, 2, 4, 8, 16, 24, and 32 mM) for 72 hours. The cells were then divided into 3 groups: Group 1 (ALA-MET), Group 2 (ALA-MET-PDT), and Group 3 (ALA-MET-OPDT). The concentration ratio of ALA and MET was 1:1. Concentrations of 24 and 32 mM resulted in cell death (Figure 5A,B,C).
Drug concentration design and computerized simulation by CompuSyn

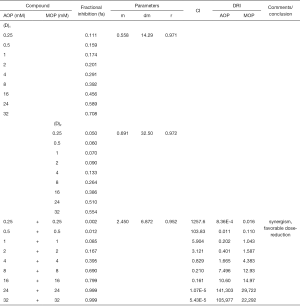

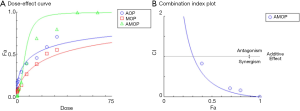

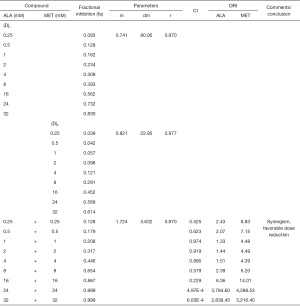

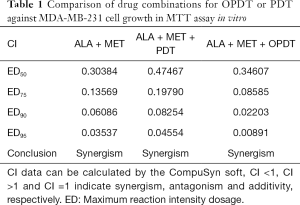

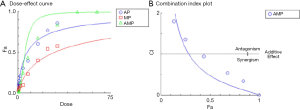

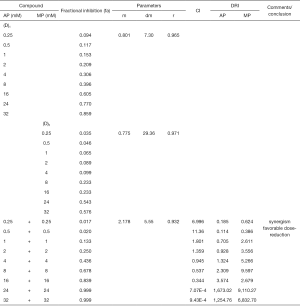

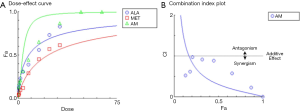

To determine the synergism or antagonism of the drug combination of ALA and MET in OPDT/PDT, the median-effect equation using CompuSyn software was utilized. Dose-effect parameters of each drug alone [m1, (Dm)1, m2 and (Dm)2] as well as in combination [m1,2, (Dm)1,2] were calculated to determine the CI value (22-24). The ratio of the combination of the two drugs depends on the ratio of IC50 values. In this study, the IC50 values of ALA and MET were 14.03±1.10 and 18.27±1.04 mM, respectively. Therefore, combination therapy was carried out at a ratio of 1:1. Concomitantly, the combined effect of the two drugs was compared after OPDT and PDT. Under different conditions (control, PDT, and OPDT), the effect of ALA combined with MET was significantly different. In the absence of light, ALA and MET played a synergistic role (Table 1 and Figures S1 and 6), with CI <1. In the OPDT and PDT groups, ALA and MET played a synergistic role (Table 1 and Figures S2,S3 and 7,8).
Full table
OPDT and PDT induced mitochondrial phototoxicity
To determine the effect of ALA-PDT and ALA-OPDT with or without MET, MDA-MB-231 cells were stained with MTG (1:200) for 4 hours following PDT or OPDT. The fluorescence of PpIX and MTG was obtained by different excitation wavelengths under a confocal microscope. Faint fluorescence of PpIX was observed in the ALA (2 mM) group (Figure 9A,B,C), and ALA-MET (2 mM) group (Figure 9D,E,F), with no significant increases. However, when OPDT or PDT (200 J/cm2 fluence) were combined with ALA and MET, the fluorescence intensity of PpIX was significantly enhanced, and OPDT had the greatest effect (Figure 9G,H,I,J,K,L).
Discussion
PDT is a novel method for treating breast cancer (21). In PDT, photosensitizers can degrade intracellular oxygen more rapidly under laser irradiation, keeping cells in a hypoxic state (25). However, OPDT may alleviate the above problems. In this study, pure oxygen was transported through a specially designed gas, light, and electricity irradiator using novel oxygen production technology. The three factors do not interfere with each other, and oxygen and the irradiation light source synergistically act in the target area. The problem of tumor hypoxia can be overcome by using OPDT equipment and optimized photosensitizing drug concentrations, thereby improving breast cancer treatment.

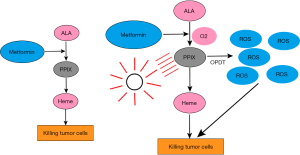

As shown in Figure 10, ALA generates PpIX through a series of reactions. Excitation of PpIX generates a large number of singlet oxygen and free radicals. In the absence of light, PpIX and ferrous ions form heme, catalyzed by iron chelating enzymes. Heme is decomposed into NO, iron and biliverdin through HO-1 catalysis. Heme interacts with MET to exert a synergistic effect and regulate the apoptosis and proliferation of cancer cells (14). As an upstream product of heme, ALA combined with MET to induce the synergistic effects demonstrated in the present study. According to the CompuSyn software (26,27), the ratio of combination of ALA and MET was calculated to be the ratio of the IC50 values of the two drugs, and the concentration remained as diluted as possible. The inhibitory rate of the ALA group gradually increased with increasing doses. When the concentration reached 2 mM, the inhibitory rate of the ALA group was significantly higher than that of the control group, indicating that ALA alone had an anti-tumor effect. The IC50 values of the two drug groups also confirmed that for OPDT, the oxygen supply improves the hypoxic state of the cells, increasing the production of oxygen free radicals or singlet oxygen, thereby decreasing cancer cell viability. Under confocal laser microscopy, the fluorescence intensity of PpIX under OPDT was significantly stronger than that of traditional PDT.
MET is a classical hypoglycemic drug. In addition to its hypoglycemic mechanism of action, it also has anti-tumor effects via the AMPK signaling pathway (17). However, the anticancer potential of MET in its conventional therapeutic dosage is extremely small. Previous studies have confirmed that the concentration of MET that has the greatest anti-cancer potential in preclinical models is within the range of mM (28), which is higher than that of serum MET with conventional anti-diabetic dosage. Therefore, for PDT-resistant tumors, combination therapy with MET should be used for maximal therapeutic efficacy.
The results of this study showed no significant difference in the cell survival rate between laser irradiation and non-laser irradiation. Even in the PDT and OPDT groups, laser irradiation stimulates the release of certain cytokines, causing reparative effects on the damaged cells. Oxygen supply promotes the energy metabolism of mitochondria (15). When exogenous ALA enters the cells, heme synthesis increases, and the synergistic effect of ALA and MET significantly increases. PDT and PpIX induce the generation of a large amount of singlet oxygen and reactive oxygen species, causing the cells to enter a hypoxic state. During ALA-OPDT treatment, continuous external oxygen production effectively alleviates the hypoxic state in cells. However, for both ALA-PDT or ALA-OPDT, exogenous ALA enters the mitochondria. Under laser irradiation, more PpIX decomposes into reactive oxygen species, induces apoptosis and necrosis, reduces heme synthesis, and reduces the synergistic effect of ALA and MET. MET also protects cells from hydrogen peroxide damage through the AMPK/C/EBP B/MIR-1A-3P/GRP94 signaling pathway, and inhibits the production of reactive oxygen species, reducing the killing effect of PDT/OPDT on cancer cells (29,30). Therefore, the fluorescence expression of the ALA-MET-PDT and ALA-MET-OPDT group was significantly stronger than that of the combination group. As shown in Figure 5A,B, the combination of ALA-MET-PDT and ALA-MET-OPDT showed a synergistic effect. The CompuSyn software was used to calculate the CI, which was <1. A low dose of reactive oxygen species can activate the Wnt signaling transduction pathway and promote cell proliferation and differentiation. This was evident in MDA-MB-231 cells, which were not sensitive to ALA-PDT.
In summary, this study introduces OPDT as a novel anti-tumor therapy for TBNC. It has a similar mode of action to PDT, but additionally, it solves the problem of tumor hypoxia by generating external oxygen. The mechanism of the therapeutic effect of OPDT is summarized as follows: (I) ROS are produced, especially singlet oxygen, which can directly kill the tumor cells (induce apoptosis or necrosis); (II) OPDT directly activates the body’s anti-tumor immune response; and (III) OPDT damages the vascular system surrounding the tumor, leading to ischemic tumor shrinkage. This study also demonstrated that the combined use of ALA and MET had a synergistic anti-tumor effect in TNBC cells when combined with OPDT. Further studies that elucidate the underlying cellular and molecular mechanisms of OPDT in treating tumors are warranted.
