Prognostic value of tumor infiltrating lymphocytes combined with PD-L1 expression for patients with solitary colorectal cancer liver metastasis

Introduction

Colorectal cancer (CRC) is one of the leading causes of cancer-related death, with an estimate of 0.81 million mortality globally (1). Liver metastasis is the main reason for treatment failure, occurring in nearly 50% of CRC patients along the course of their disease (1-3). Surgery is the major potentially curative therapy for patients with CRC liver metastasis (CRCLM), but nearly 70% experience recurrence even after R0 resection (4,5). The Clinical Risk Score, proposed by Fong et al., is a widely used scoring system for patients with CRCLM (6). Patients with a higher score are more likely to develop new lesions after hepatectomy, and thus are recommended for postoperative chemotherapy (7). Predictors of recurrence are helpful for patient selection and decision-making on postoperative treatment.

The tumor immune microenvironment (TIME) has been suggested to play an important role in the fight against cancer cells (8). A higher density of tumor-infiltrating T cells (TILs) has been shown to provide better prognosis and higher sensitivity to chemotherapy for CRC patients (9,10). Although not all types of TILs are prognostic, CD8+ TILs, cytotoxic lymphocytes that can directly kill cancer cells, have been found to correlate with improved survival across a variety of cancers, including localized and metastatic CRC (11). However, the TIME has both pro- and anti-tumor components in its environment, which means the density of CD8+ TILs alone does not stand for the whole immune landscape.

One of the most notable antagonistic markers is the programmed cell death-ligand 1 (PD-L1). PD-L1 is a protein expressed by a variety of cells in the tumor matrix, and when binding to its receptor the programmed cell death 1 (PD-1) on activated CD8+ TILs, it can down-regulate T cell activity, leading to immune exhaustion (12,13). Overexpression of stromal PD-L1 has been suggested to be an adverse prognostic factor in many cancers including breast cancer, gastric cancer, and lung cancer, but it has not been validated in CRCLM (14-16). Question arises, therefore, as to whether the combination of CD8+ TIL and PD-L1 expression in the CRCLM is prognostic for patients with CRCLM.

However, determining the prognostic value of this combination in CRCLM remains challenging because there are many other factors affecting the outcome of hepatectomy, including the number of liver metastases and whether the surgery achieves R0 resection (6). Here, we sought to evaluate the prognostic value of the combination of CD8+ TIL and PD-L1 expression in the hepatic TIME, with a specific subset of patients with solitary CRCLM (SCLM) who had undergone R0 resection, and who had no history of preoperative chemotherapy. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-2762a).

Methods

Patient selection

Patients undergoing R0 hepatectomy in Sun Yat-sen University Cancer Center from Jan 2000 to Dec 2016 were reviewed. Primary tumors, if present, were also R0 resected concurrently. Patients with extrahepatic metastases or with a history of systemic chemotherapy within 3 months before liver surgery were excluded. Data on clinicopathological characteristics were extracted from hospital records, including age, sex, preoperative serum carcinoembryonic antigen (CEA), primary tumor location, and the size of liver metastasis. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the institutional review board of Sun Yat-sen University Cancer Center (approval number: GZR2017-006), and all patients gave written informed consent.

All of the patients were evaluated for the resectability of liver metastases by a multidisciplinary team. R0 resection was defined by negative pathological margins. Intra-operative ultrasound was routinely used to delimit the tumor and to exclude the possibility of covert metastasis. After surgery, adjuvant chemotherapy with oxaliplatin-based regimens was routinely recommended. Follow-up with abdominal computed tomography scan was recommended every 3–6 months within 2 years, and every 6–12 months thereafter.

Immunofluorescent and Immunohistochemical staining

We used tyramide signal amplification (TSA) multiplexing technique for the quantification of CD8+ T cells. The protocol has been previously described (17). In brief, paraffin-embedded tissues of the resected liver tumors were sliced into 4-µm-thick sections and immunostained with primary antibodies against CD3 and CD8. Nuclei were counterstained with DAPI. The filter cubes used for multispectral imaging were DAPE (440–680 nm), CD3 (520 nm), and CD8 (690 nm). Cells positive for CD3 and CD8 in the tumor were considered CD8+ T lymphocytes, and were quantified as total cell number X positivity using at least five representative fields at 200X magnification of the tumor areas.

PD-L1 expression was assessed by immunohistochemical staining of these slides using anti-PD-L1 rabbit monoclonal antibody (1:300 dilution, GB11339; Servicebio, Wuhan, China), and was scored by a semiquantitative method, according to the percentage and intensity of positively stained cells (18). The percentage of positively stained cells was scored as: 0, <5%; 1, 5–24%; 2, 25–49%; 3, 50–74%; 4, 75–100%, and the intensity staining was scored as: 0, negative; 1, weak; 2, moderate; 3, strong. The IHC score of PD-L1 expression was the product of two scores.

Patient classifications

The CD8+ TIL density and PD-L1 expression was each divided into either high or low, according to their respective median value. Since a high CD8+ TIL density indicates strong immune infiltration and low PD-L1 expression suggests less immune exhaustion, we combined the two factors (referred to as CD8-PDL1) and divided the patients into three subgroups: ‘Strong’ for those with high CD8+ TIL and low PD-L1, ‘Weak’ for those with low CD8+ TIL and high PD-L1, and ‘Mild’ for the rest (High CD8+ TIL and High PD-L1 or Low CD8+ TIL and Low PD-L1). We then compared their differences in recurrence-free survival (RFS), overall survival (OS), and the performance in predicting recurrence after hepatectomy.

Statistics

RFS was defined as time from hepatectomy to recurrence or death from any cause, whichever occurred first, and OS was defined as time from hepatectomy to death from any cause. Associations between categorical variables were assessed by Chi-square test, Fisher’s exact test, or Wilcoxon rank-sum test, as appropriate. Kaplan-Meier methods were used to estimate RFS and OS probability, and log-ranks test was used to compare the difference between subgroups. The performance of prediction for RFS was compared using area under the curve (AUC) from receiver operating characteristic (ROC) and time-dependent ROC. All P values were two-sided, and P<0.05 was considered statistically significant. All analyses were performed in R (version 3.5.3). Analysis was performed based on available data.

Results

Baseline characteristics

Baseline clinicopathological features are listed in Table 1. In total, 94 patients with SCLM that underwent R0 resection were included. Of them, 39 (41.5%) were female, and the median age was 58 years. Metachronous metastasis was observed in 40 (42.6%) patients. The median size of metastases was 2.0 cm in diameter, and 24 (25.5%) had metastases >3 cm. Postoperative chemotherapy was delivered to 61 (64.9%) patients.

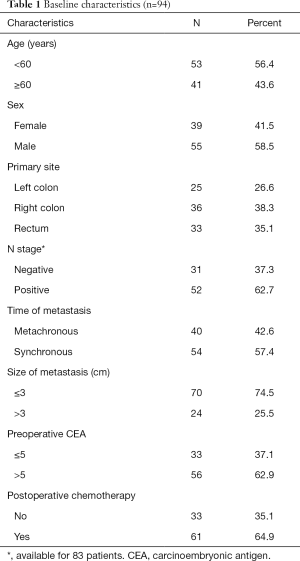

Table 1 Baseline characteristics (n=94)
Full table

Clinicopathological features among CD8, PD-L1, and CD8-PD-L1 subgroups

Figure 1 shows the low and high density of CD8+ TIL (Figure1A,B) and PD-L1 expression (Figure1C,D). A low and high CD8+ TIL was observed in 51 (54.3%) and 43 (45.7%) patients, respectively. The low and high PD-L1 subgroups each accounted for 50% of the cases. When CD8+TIL and PD-L1+ cells were combined, the Strong, Mild, and Weak subgroups of CD8-PDL1 were observed in 24 (25.5%), 42 (44.7%) and 28 (29.8%) patients, respectively.

Figure 1 Immunostaining of CD8+ TIL (A, low, 20×; B, high, 20×) and PD-L1 expression (C, low, 40×; D, high, 40×). TIL, tumor infiltrating lymphocytes.

Table 2 shows the comparisons of clinicopathological features between the CD8+ TIL and PD-L1 subgroups. High PD-L1 expression was more common among the patients with synchronous metastases (68.1% vs. 31.9%, P=0.037). Similar trend was observed for high CD8+ TIL (74.4% vs. 25.6%, P=0.002). There were no differences in terms of sex, primary site, lymph nodes involvement, preoperative serum CEA level, and the size of metastasis. For the three subgroups of CD8-PDL1, all of the above factors were well balanced.

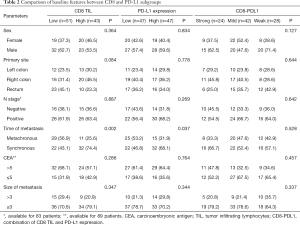

Table 2 Comparison of baseline features between CD8 and PD-L1 subgroups
Full table

Comparisons of survival and predictive performance

After a median follow up of 36.4 (1.6–143.3) months, recurrence and death occurred in 38 and 25 patients, respectively. The median RFS was 72.3 months, and the median OS was not reached (Table 3). Of the 38 recurrences, 22 (57.8%) were confined in the liver; the other 16 (42.2%) involved extrahepatic sites.

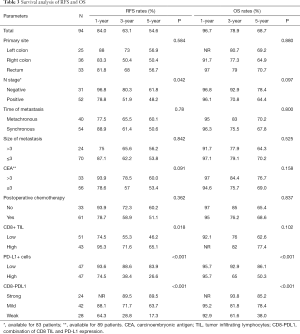

Table 3 Survival analysis of RFS and OS
Full table

In the subgroup analysis (Figure 2), patients with a high CD8+ TIL had significantly longer RFS than patients with a low CD8+ TIL (median: not reached vs. 55.8 months, 3-year RFS 71.6% vs. 55.3%, P=0.018). In contrast, patients with low PD-L1 expression had longer RFS than patients with high PD-L1 expression (median: not reached vs. 24.9 months, 3-year RFS 88.6% vs. 38.4%, P<0.001). Patients with low PD-L1 expression had significant longer OS than patients with high PD-L1 expression, with the 3-year OS of 92.9% vs. 65% (P<0.001).

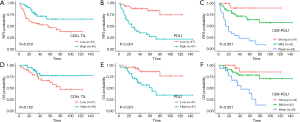

Figure 2 RFS and OS for patients with different CD8+ TIL (A and D), PD-L1 expression (B and E), and CD8-PDL1 (C and F). RFS, recurrence-free survival; OS, overall survival; TIL, tumor infiltrating lymphocytes; CD8-PDL1, combination of CD8+ TIL and PD-L1 expression.

For the CD8-PDL1, median RFS and OS were not reached for the Strong and Mild subgroups, and were 13.6 and 43.2 months respectively for the Weak group (P<0.001). The 3-year RFS rate in the Strong group was significantly higher than that in the Mild and Weak groups (89.5% vs. 71.7% and 28.8%, P<0.001), as was the 3-year rate of OS (93.8% vs. 81.8% and 61.6%, P<0.001) (Figure 2). The preoperative CEA level and postoperative chemotherapy history were not associated with RFS and OS.

In the ROC analysis (Figure 3A), the CD8-PDL1 displayed larger AUC than the CD8 and PD-L1 alone [0.79 (0.711–0.879) vs. 0.64 (0.543–0.739) and 0.77 (0.679–0.851)], suggesting greater ability to predict recurrence after R0 resection for CRCLM. In the time-dependent ROC analysis, the CD8-PDL1 showed good predictive performance at multiple time points (12, 24, 36, 48, 60, and 72 months), and the AUC stabilized after 60 months (Figure 3B).

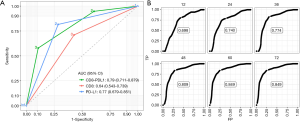

Figure 3 Prediction performance of CD8, PD-L1, and CD8-PDL1. (A) ROC of CD8+ TIL, PD-L1 expression and CD8-PDL1 for predicting RFS. (B) Time-dependent ROC for CD8-PDL1 for predicting RFS at 12, 24, 36, 48, 60, and 72 months after hepatectomy. ROC, receiver operating curve; TIL, tumor infiltrating lymphocytes; CD8-PDL1, combination of CD8+ TIL and PD-L1 expression.

Discussion

The role of TIME in carcinogenesis is complex because there are both pro- and anti-tumor immunological components in the same environment (19). In this study, we confirmed that the density of CD8+ TIL was a favorable prognostic factor of RFS and OS for patients with SCLM undergoing R0 resection. Moreover, when it was combined with PD-L1 expression, the factor CD8-PDL1 was able to discriminate patients with different outcomes, and its predictive accuracy for RFS was superior to that of CD8+ TIL alone.

Although recurrence is common among patients with CRCLM undergoing liver resection, those with solitary metastasis have longer survival. Fong et al. found that patients with solitary CRCLM had a 5-year OS rate of 44% after liver surgery, significantly higher than that of patients with ≥2 CRCLM (6). In our study, all patients had solitary CRCLM, and the 5-year OS rate were 68.7%, higher than previously reported. The major reason for this may be that the sizes of the liver metastases in this study were relatively small, with a median diameter of 2.0 cm and only one fourth being ≥3 cm. According to previous studies, patients with CRCLM <3 cm have longer survival than those with CRCLM ≥3 cm (20).

The density of CD8+ TIL, in both primary and metastatic lesions, have been proven to be a prognostic factor of survival in a variety of cancers (11). In CRC, Pagès et al. found that a higher density of CD8+ TIL in primary CRC was associated with fewer signs of early metastatic invasion and better survival, and Mlecnik et al. found that the predicting performance of TIL was better than that of MMR status and TNM stage (21-23). Consistent with those reports, our results showed that patients with a higher CD8+ TIL had a better outcome, with 3-year RFS rate being 71.6% vs. 55.3%. Moreover, since TIL varies between liver metastases and can be affected by chemotherapy, by incorporating only patients with solitary metastasis and with no history of neoadjuvant chemotherapy, our study provided unequivocal high-quality evidence supporting the favorable role of TIL in CRCLM (24,25).

However, the density of TIL is not the only factor that determines the immune activity in the TIME; there are other factors affecting the function of immune cells, among which PD-L1 expression is the most known one. The interaction between PD-1 and PD-L1 puts a brake on the activated CD8+ T cells, inhibiting their release of cytotoxic cytokines such as Granzyme B and Interferon-γ (12). In human hepatocellular carcinoma, Gao et al. demonstrated that overexpression of PD-L1 was significantly associated with tumor aggressiveness and a high recurrence rate after resection (26). In gastric cancer, Thompson et al. found that, tumors with an increased CD8+ TIL were usually accompanied by overexpression of PD-L1, and that PD-L1 expression counteracted the immunological effect of TIL, leading to worse survival in patients with a higher density of TIL (14). Other studies have found that tumor-associated macrophages and several cytokines are linked to immune cell exhaustion in the tumor microenvironment (27,28). Together, these findings suggest that the immune environment as a whole, rather than the aggregation of T cells alone, is responsible for the anti-cancer effect of the immune system.

In this study, when classified into two groups according to PD-L1 expression, patients with a higher PD-L1 had significantly worse RFS and OS than those with a lower PD-L1, supporting the immunosuppressive role of PD-L1 in the setting of CRCLM. Moreover, when CD8+ TIL and PD-L1 expression were combined, CD8-PDL1 was able to divide patients into three groups with different outcomes: those with the strong immune reaction (high CD8+ TIL and low PD-L1) had the longest survival, while those with the mild immune reaction (high CD8+ TIL and high PD-L1 or low CD8+ TIL and low PD-L1) had shorter survival—but it was still longer than those with the weak immune reaction (low CD8+ TIL and high PD-L1). In addition, with regard to the predicting accuracies for recurrence, the model of CD8-PDL1 had significantly larger AUCs than the CD8 model. In time-dependent ROC analysis, CD8-PDL1 also showed high accuracy for predicting recurrence. Therefore, CD8-PDL1 can be used as a prognostic marker for patients with SCLM undergoing hepatectomy, thus providing guidance for their postoperative treatment.

Our study has some limitations. First, it is a single-center study and its sample size is relatively small, therefore the results it yielded should be validated in large-scale cohorts. Second, apart from CD8+ TIL and PD-L1 expression, there are many other factors that can influence immune reaction, including the infiltration of macrophages, neutrophils and other cells (11). These were not taken into account in the study. Last, the outcome of metastatic CRC is also affected by the genotype of some genes such as KRAS and BRAF (29). These two genes were tested in less than one fifth of the patients and thus were not analyzed.

Conclusions

The density of CD8+ TIL and PD-L1 expression were predictors of RFS for patients with solitary CRCLM undergoing R0 liver resection. The TIME, as measured by PD-L1 expression and CD8+ TIL density, was able to further discriminate these patients with different outcomes, providing reliable guidance for postoperative treatments.
