Application of oblique nerve coaptation in autologous nerve transplantation

Introduction

Peripheral nerve injury often leads to significant functional impairment and poses a tremendous burden on individuals and society. Despite modern diagnostic procedures and advanced microsurgical techniques, The repairing of peripheral nerve damage has long been a difficult challenge clinically, and currently the most common clinical treatment is autologous nerve transplantation. Clinically, conventional epineurial sutures are performed by coaptating nerve stump endings that were transected perpendicularly to the longitudinal axis of the nerve trunk. However, since the nerve trunk is long and cylindrical, its perpendicular section is round, making it difficult to align the two ends correctly during epineurial suture repair. Thus, the procedure is prone to misaligned sutures, erroneous axonal growth, and unsatisfactory repair.

During conventional autologous nerve transplantation, the nerve endings are transected at a right angle to the longitudinal axis before coaptation. In 1999, Kayikçioğlu et al. proposed a new method for coaptation of nerve endings (1). When the nerve endings are coapted at 90°, the area of the coaptation interface is π*(r1) *(r1); with coaptation at 30°, the area of the interface is π*(r1) *(r2), where r2=2r1. Therefore, the area of the coaptation interface of a coaptation at 30° is twice that of a coaptation at 90°, and the expanded interface allows more space for axon growth. Yan et al. performed similar experiments and compared nerve regeneration after the sciatic nerves of rats were severed at various angles before coaptation. Their results showed that compared with transverse nerve coaptation, oblique nerve coaptation at acute angles resulted in significantly better restoration of nerve function and more regenerated nerve fibers (2). However, because there are two coaptation sites, the effectiveness of nerve regeneration has not been satisfactory.

In this paper, we studied autogenous nerve transplantation of oblique suture, while Kayikçioğlu et al. studied in situ oblique suture after peripheral nerve injury, and our study got similar results (1). The purpose of this study was to verify whether oblique nerve coaptation at acute angles can achieve similar effects in nerve transplantation and to provide a theoretical foundation for further clinical applications. We present the following article in accordance with the ARRIVE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-6526).

Methods

Experimental animals and surgical methods

Sixty-four healthy adult male Sprague-Dawley rats weighing 250–300 g (8-week-old) were provided by the Experimental Animal Center at Shanghai Sixth People’s Hospital. They were kept under the standard conditions(25±2 °C, humidity: 55%±5%, 12:12 h light/dark), and had free access to the standard laboratory diet and water. The rats was randomized into groups A, B, C, and D with 16 in each group. The right side of each rat was the experimental side, while the left side was the normal control side. Experiments were performed under a project license (2019[15]) granted by institutional ethics committee of Xiangshan First People’s Hospital, in compliance with institutional guidelines for the care and use of animals. After anesthesia via intraperitoneal injection of ketamine, a longitudinal incision was made at the dorsal lateral side of the right thigh of the rat, and the sciatic nerve was exposed through the opening between muscles. A polyethylene board with an angle of 30°, 45°, 60°, or 90° was made to guide nerve transection. A nerve trunk segment approximately 10 mm in length was transected in the midsection of the sciatic nerve at an angle guided by the board, followed by in situ coaptation: 30° for group A (Figure 1A), 45° for group B (Figure 1B), 60° for group C (Figure 1C), and 90° for group D (Figure 1D). The rats were examined 12 weeks after surgery.

Figure 1 Oblique nerve coaptation of rat sciatic nerves. (A) Coaptation at 30°. (B) Coaptation at 45°. (C) Coaptation at 60°. (D) Coaptation at 90°.

Examination of experimental samples

Measurement of sciatic function index (SFI)

A container was custom made to record the footprints of the rats and lined at the bottom with a piece of white paper with the same dimensions. The rat was led to walk into the container after its hind feet were dipped in carbon ink. Four to five clear prints of each hind foot were recorded. The length of the footprint, the toe spread, and the intermediate toe spread were measured for feet on the experimental side (E) and the normal control side (N). The SFI was calculated with the aforementioned parameters and the following formula:

SFI = −38.3(EPL − NPL)/NPL + 109.5(ETS − NTS)/NTS + l3.3(EIT − NIT)/NIT − 8.8[1]

where EPL is the experimental-side print length; NPL is the normal-side print length; ETS is the experimental-side toe spread; NTS is the normal-side toe spread; EIT is the experimental-side intermediate toe spread; and NIT is the normal-side intermediate toe spread. The SFI value for a normal rat is 0, and that for a rat with a completely severed sciatic nerve is −100 (Figure 2).

Figure 2 Measurement of the rat sciatic function index.

Measurement of the wet weight of the triceps surae

The bilateral triceps surae muscles were completely removed 12 weeks after surgery. Blood was removed by gentle blotting of the surface, and the wet weight of the muscles was measured on a scale. The muscle recovery rate was obtained by comparing the muscles from the two sides (experimental, normal).

Electrophysiological examinations of nerves

Electrophysiological examination was performed 12 weeks after surgery with an SDR-4 oscilloscope. The stimulus was a 0.01-to-0.02-ms square electric pulse with an intensity of 2–5 V. Bipolar-coated electrodes were applied as stimulating electrodes on the proximal and distal sides of the coapted segment, and a needle electrode was inserted into the center of the midsection of gastrocnemius muscle of the rat to record the nerve conduction velocity (NCV) of the sciatic nerve and amplitude (AMP) of the compound action potential.

Histological examinations

A rat nerve specimen 2 mm distal to the distal coaptation site of the transplantation was collected, fixed in 4% glutaraldehyde for at least 24 hours, and postfixed with 1% osmium acid. Oriented embedding was performed using epoxy resin, and ultrathin sections were stained with uranyl acetate and lead citrate. Axon regeneration and myelin sheath formation were examined under a transmission electron microscope.

Statistical analysis

SPSS 10.0 was used to perform one-way analysis of variance (ANOVA) and the Student-Newman-Keuls test for pairwise comparisons of the means of various samples (α=0.05).

Results

SFI evaluation

Rats in group A showed the lowest SFI values 12 weeks after surgery, followed by group B. The differences between groups A or B and C or D were significant (P<0.05), while there was no significant difference between groups A and B or between groups C and D (P>0.05) (Figure 3).

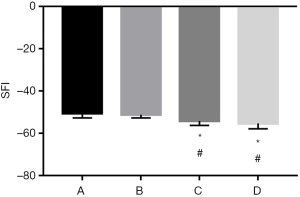

Figure 3 SFI values of rats 12 weeks after surgery in each group (n=1, $\overline{x}\pm s$). *, P<0.05 vs. group A; ^#, P<0.05 vs. group B. SFI, Sciatic function index.

Measurement of the recovery of the wet weight of the triceps surae

The recovery rates of the wet weight of the triceps surae of rats in group A and B were significantly higher than those in group C and D 12 weeks after surgery (P<0.05). Although the difference between group C and D was nonsignificant (P>0.05), and group C did show better recovery than group D (Figure 4).

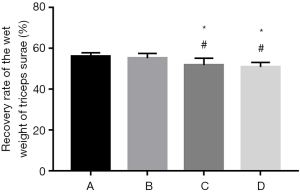

Figure 4 The recovery rate of the wet weight of triceps surae 12 weeks after surgery in each group (n=16, %, $\overline{x}\pm s$). *, P<0.05 vs. group A; ^#, P<0.05 vs. group B.

Electrophysiological examinations

Action potentials were recorded distal to the distal coaptation site of rats in every group 12 weeks after surgery. The NCV and AMP of the compound action potentials in rats in groups A and B were higher than those in groups C and D. The action potentials of groups A and B were similar in shape, though group B had insignificantly lower amplitude and NCV (P>0.05) (Figure 5).

Figure 5 Electrophysiological measurements of each group 12 weeks after surgery (n=16, $\overline{x}\pm s$). (A) The NCV of the sciatic nerve. (B) The AMP of the compound action potential. *, P<0.05 vs. group A; ^#, P<0.05 vs. group B. NCV, nerve conduction velocity; AMP, amplitude.

Histological examinations

Transmission electron microscopy revealed high densities of regenerated axons that were evenly distributed in nerve specimens from groups A and B, and myelin sheaths formed by Schwann cells were observable surrounding the axons. There was no significant difference between groups A and B in the number of nerves or the diameter of the axons (P>0.05). Specimens from group D had fewer regenerated nerve fibers, and the fibers were unevenly distributed. The axons were thin and irregular, with thin myelin sheaths. Specimens from group C showed more regenerated nerve fibers than those from group D, but the difference was not significant (P>0.05) (Figures 6,7).

Figure 6 The regeneration of nerve fibers observed under a transmission electron microscope (×2,000). (A) 30°-coaptation group; (B) 45°-coaptation group; (C) 60°-coaptation group; (D) 90°-coaptation group.

Figure 7 Image analysis of midsections of regenerated nerve fibers 12 weeks after surgery (n=16, $\overline{x}\pm s$). (A) The nerve fiber count. (B) The axon diameter. *, P<0.05 vs. group A; ^#, P<0.05 vs. group B.

Discussion

Better nerve regeneration is achieved when more nerve fibers pass through the nerve coaptation site. Kayikçioğlu et al. and Yan et al. (1,2) suggested that the number of regenerated nerve fibers is closely correlated with the area of the coaptation interface. When the nerve endings are coapted at 90°, the area of the coaptation interface is πr12; with coaptation at 30°, the area of the interface is πr1r2, where r2=2r1. Therefore, the area of the coaptation interface of a coaptation at 30° is twice that of a coaptation at 90°, and the expanded interface allows more space for axon growth. Galtrey et al. (3) reported that the extent of functional recovery after nerve damage was correlated with the direction of axon regeneration and the number of axon sprouts. The larger interface allows for the end distal to the degeneration site to exert greater inducing effects, leading to more axonal sprouting following injury and better recovery of nerve functions. The results from the current study also indicated that the SFI value, wet weight of the triceps surae, and neural electrophysiological performance were all superior in groups subjected to coaptation at 30° or 45° compared with the group that underwent coaptation at 90°. On the distal side of the distal coaptation site of the autologous transplantation, groups with coaptation at 30° and 45° also exhibited more regenerated fibers and greater axon diameters than the group with coaptation at 90°. There was no significant difference in these parameters between the groups with coaptation at 60° and 90°. Therefore, we consider the area of coaptation interface to be an important deciding factor in nerve regeneration, even when the regenerated nerve fibers have passed two coaptation sites. Many researchers (4-6) studying end-to-side nerve coaptation also found that the regenerated nerves after oblique nerve coaptation are better in functional and histological tests than those after transverse coaptation.

Second, neuroma is a common complication following nerve coaptation and may affect the function of the repaired nerve (7). The presence of too many neuromas around the repaired nerve may reduce axonal sprouting and cause axon misdirection, hampering the recovery of nerve function (8). After coaptation at an acute angle, the axons can regenerate at different levels perpendicular to the axon axis, reducing mutual damage between axon sprouts and the formation of neuromas. Yan et al. (9) pointed out that the neuromas formed after transverse coaptation were all on the same level, while those formed after oblique nerve coaptation were on different levels and were fewer in number, leading to more axon sprouts.

Third, Bryan et al. (10) found significantly more Schwann cells around the nerve after oblique nerve coaptation than transverse coaptation, which may be due to the larger contact surface of the damaged nerve in oblique nerve coaptation. Schwann cells provide nutrients and other essential substances for nerve regeneration and are thus very important for axon growth. Schwann cells also provide the proper matrix for axon regeneration and serve as the main source of various neurotrophins, playing key roles in nerve regeneration (11).

Fourth, during oblique nerve coaptation, the longer uncut fibers on the proximal end may serve as the scaffold for shorter fibers to grow toward the distal end.

Fifth, oblique nerve coaptation can markedly reduce scar formation at the coaptation site. Yan et al. (5) suggested that the scars form a circular constriction around the nerve surface after transverse coaptation, increasing the pressure inside the nerve and limiting axon regeneration.

We conclude that oblique nerve coaptation not only can be used in direct nerve coaptation but can also produce superior results in autologous nerve transplantation. Therefore, it may warrant wider clinical application, but further investigation is needed to address the results.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-6526

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-6526

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-6526). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All animal experimental protocols were reviewed and approved by the ethics committee of Xiangshan First People’s Hospital (2019[15]). Experiments were performed in compliance with institutional guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
