Selective cement augmentation of cranial and caudal pedicle screws provides comparable stability to augmentation on all segments in the osteoporotic spine: a finite element analysis

Introduction

Posterior instrumentation with pedicle screws is a standard protocol associated with decompression and fusion for degenerative lumbosacral disease to achieve instant stability, assist interbody fusion, and maintain sagittal alignment (1,2). However, the application of pedicle screws in the osteoporotic spine is challenging, with a high risk of screw loosening, back-out, and secondary pseudarthrosis (3-5). To address fixation failure, cement-augmented pedicle screw instrumentation (CAPSI) has been one of the developed techniques. CAPSI has been proven to strengthen the mechanical force on the screw-bone interface so as to reduce the implant failure rate in both in vivo and in vitro studies (6,7). It showed satisfactory outcomes in the osteoporotic spine where every pedicle trajectory was augmented with calcium phosphate cement or polymethylmethacrylate (PMMA) (8,9). However, cement leakage (CL) ranging from 11.6–82.4% has become the main concern when applying CAPSI (9-11), due to severe complications, such as nerve injury, vascular damage, pulmonary embolism, cardiac embolism, and anaphylactic shock (7-9,12).

As is acknowledged, the increasing augmented trajectories and volumes of cement used per trajectory contribute to the rising frequency of CL (9). Therefore, balancing the risk of CL and purchasing power requires us to determine the optimal strategy of augmentation. Since the greater chance of loosening and pull-out of screws lies in the cranial and caudal vertebrae, particularly in S1 due to the growing stress (13-15), it was hypothesized that selective augmentation of the upper and lower end vertebrae instead of every level could bring about the maximum benefit in reducing the failure of instrumentation and the risk of cement protrusion. This study was conducted to compare the biomechanical stability of selective augmentation of only cranial and caudal pedicle trajectories to that of traditional methods by analysis of the finite models of the lumbosacral segments.

Methods

This study was reviewed and approved by the Ethics Committee of The First Affiliated Hospital of Guangzhou University of Chinese Medicine {NO. ZYYECK[2019]094}. All methods in this study were carried out in accordance with the provisions of the Declaration of Helsinki (as revised in 2013). The informed consent was obtained from the volunteer and this consent was written.

A total of 7 finite-element models (FEMs) of the lumbar spine were created in this study. FEMs included: (I) the intact lumbosacral spine (L3-S1), (II) Model A1: double segmental fusion (L4-S1) with augmentation at every each pedicle trajectory, (III) Model A2: multi-segment fusion (L3-S1) with augmentation at every each pedicle trajectory, (IV) Model B1: double segmental fusion (L4-S1) with selective augmentation at cranial and caudal pedicle trajectories, (V) Model B2: multi-segment fusion (L3-S1) with selective augmentation at cranial and caudal pedicle trajectories, (VI) Model C1: double segmental fusion (L4-S1) without PMMA augmentation, and (VII) Model C2: multi-segment fusion (L3-L1) without PMMA augmentation.

Construction of the intact lumbosacral model

In the present study, a healthy adult female volunteer without any history of lumbar diseases was selected and the data of her CT scans (AQUIRRON 64, Toshiba, Japan) with the thickness of 0.625 mm per slice was provided by the Department of Radiology at The First Affiliated Hospital of Guangzhou University of Chinese Medicine. The tomography images were stored in Digital Imaging and Communications in the Medicine (DICOM) format.

The collected raw data in DICOM format were imported into Mimics research 19.0 (Materialize, Leuven, Belgium) for three-dimensional reconstruction. Subsequently, the 3D model generated by Mimics was imported into Geomagic Studio 2013 (3D Systems Corporation, South Carolina, USA). The spikes and the features were deleted, smoothing was performed with a polygon mesh, and the triangles were made uniform in size. Then, a patch was generated by the following tools: Construct Patches, Grid and Fit Surfaces. The smoothed model was imported into SolidWorks 2017CAD (SolidWorks Corporation, Concord, MA, USA). The cancellous bone, cortical bone, annulus fibrosus, nucleus pulposus, endplate, and articular cartilage parts were created in the Parts Interface window. The nucleus pulposus constituted approximately 44% of the disc volume (16), the thickness of the cortical bone was approximately 0.5 mm (16), and the cartilaginous endplates were modeled to be approximately 1 mm thick (17). The initial gap between the articulating surfaces was based on computed tomography images and was approximately 0.3-0.6 mm. The parts were integrated into an intact lumbar model. Finally, the intact lumbosacral model was imported into ANSYS Workbench 17.0 (ANSYS, Ltd., Canonsburg, Pennsylvania, USA) for setting material properties, defining major ligaments, and generating mesh (Figure 1).

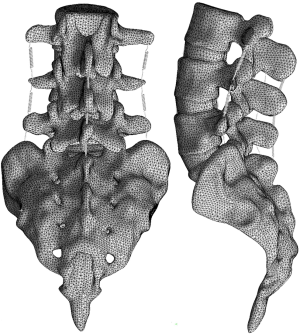

Figure 1 Intact lumbar finite-element model with no instrumentation.

The model of the pedicle screw and bone cement

To simulate the characteristics of the material object accurately, the model of the solid pedicle screw and fenestrated pedicle screw were constructed based on Micro-CT scanner images (Skyscan 1172, Bruker micro-CT, Belgium) with a slice thickness of 15um, Similarly, the realistic three-dimensional model of screws were reconstructed by using the Mimics research 19.0, Geomagic Studio 2013, and SolidWorks 2017CAD. Then, a postoperative data of CT scans from a patient who received posterior instrumentation with PMMA-augmented fenestrated pedicle screws was randomly selected for constructing the cement model with the same software. The length and outer diameter of the pedicle screws (DePuy Synthes, California, USA) were 50 and 6.0 mm, respectively. The fenestrated screws were used in augmented vertebrae and the solid screws were used in non-augmented vertebrae. The volume of bone cement was approximately 1.73 cm³ per trajectory and distributed in a lump pattern. The model of screws and bone cement were shown in Figure 2.

Figure 2 To simulate the characteristics of the material object accurately, the model of solid and fenestrated pedicle screws were constructed based on micro-CT scanner images (the solid screws were used in the non-augmented vertebrae and the fenestrated screws were used in the augmented vertebrae). The model of bone cement was developed from the CT scans of a postoperative patient with CAPSI. (A) Physical solid pedicle screw (left) and fenestrated pedicle screw (right), (B) a model of a solid pedicle screw (up) and a fenestrated pedicle screw (down), (C) a model of the cement-augmented fenestrated pedicle screw. CT, computed tomography; CAPSI, cement-augmented pedicle screw instrumentation.

Construction of instrument models in different augmentation fashions

Based on the physical rod, crosslink, and cage, the model of rod, crosslink, and cage were constructed in the Parts Interface window of SolidWorks 2017CAD. The outer diameter of the rod was 5.5 mm. The length and height of the cage were 24 and 12 mm. Subsequently, unilateral transforaminal lumbar interbody fusion (TLIF) was performed in right to remove the facet joint, articular cartilage, annulus fibrosus, endplate, and nucleus pulposus. The cage, screws, cement, rod, and crosslink were assembled into the lumbosacral spine model to construct six surgical models (Figure 3). The cage was designed to locate in the right close to the para-central line of the intervertebral space based on the images of CT scans. To decrease variation caused by the locations of cage, screw, bone cement, and crosslink, all these parts were set in the same location among different models.

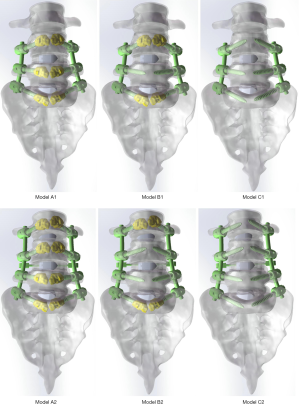

Figure 3 Geometric instrument models following double- and multi-level transforaminal lumbar interbody fusion and pedicle screw fixation (to maintain consistency, the same location of cages, screws, rods, and bone cement were used in the different models). Model A1/A2: PMMA on all segments; Model B1/B2: PMMA on the cranial and caudal vertebrae selectively; Model C1/C2: without augmentation. PMMA, polymethylmethacrylate.

Material properties, boundary and loading conditions

The mesh model generated in SolidWorks 2017CAD was imported into ANSYS Workbench 17.0 for finite element analysis. Previous studies were referenced to set the material properties of osteoporotic cortical bone, osteoporotic cancellous bone, articular cartilage, endplates, annulus fibrosus, nucleus pulposus, cages, bone cement, and internal fixation (18,19) (Table 1). The ligaments were simulated using spring elements that only stressed by pulling force. Spring stiffness were assumed from a previous validation experiment [spring stiffness = (modulus of elasticity × cross-section)/average length] (20). The contact type between the models was defined in the connection, where the contact type of facet joint was “frictional” and the frictional coefficient was 0.1 (19); the remaining contact types were set to the “bonded” mode. To enhance the accuracy of calculation, the type and size of mesh in the models are controlled: the mesh type is set as tetrahedron mesh, the size of articular cartilage mesh is 0.5mm, and the remaining objects are 2.0 mm. Finally, the boundary and loading conditions of the seven models were set: with all degrees of freedom of the sacrum was constrained throughout the whole analysis, a 150-N vertical axial preload were imposed on the superior surface of L3 and a pure moment of 10 N/m were applied on the L3 superior surface along the radial direction to simulate 6 different physiological motions: flexion, extension, left lateral bending, right lateral bending, left rotation, and right rotation. The range of motion (ROM), the peak Von Mises stress of cage, and the stress of fixation under different loading conditions were compared to investigate the biomechanical stability of various instruments.

Table 1 Material properties used in the finite-element model
Full table

Results

Validation of the intact lumbosacral spine model

The finite element (FE) solution was composed using a model with 630,212 nodes and 393,835 elements. We compared our ROM data of the intact lumbosacral spine model to previous cadaveric and FE studies with similar loads (21-23). The results indicated that the level of spinal kinematics of the current model was in accordance with the reported data (Figure 4). The overall ROMs of flexion, extension, bending, and rotation were 21.3°, 12.35°, 13.99°, and 6.11°, respectively.

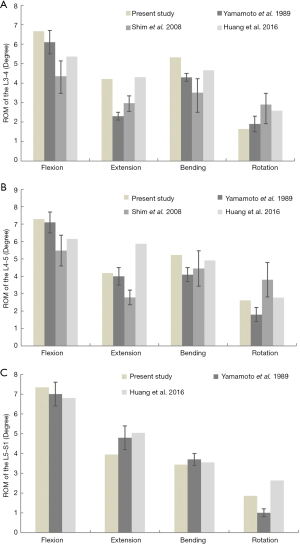

Figure 4 Comparison of the ROM between the intact model and previously published studies at L3-4 (A), L4-5 (B), and L5-S1(C) levels (ROM of L5-S1 were not provided in Shim’s study). ROM, range of motion.

Range of motion

Under the combined loading of 150 N and 10 N/m, the predicted data of all ROMs of the surgical models decreased when compared to the intact model. The ROMs of Model B and Model A were similar in each direction, while that of model C was significantly larger. The differences in the ROMs between Model A and Model B were less than 0.1° (Figure 5). When compared with the ROM in Model A1, the flexion moment in Model B1 and Model C1 increased by 4.14% and 18.62%, respectively. In extension, increased by 3.28% and 9.84%, respectively. In the left bending, increased by 2.4% and 8.8%, respectively. In right bending, increased by 1.41% and 6.38%, respectively. In left rotation, increased by 4.55% and 22.72%, respectively. In right rotation, increased by 7.25% and 15.94%, respectively. Compared with Model A2, the ROM in Model B2 increased by 2.68%, 1.71%, 1.97%, 2.55%, 5.10%, and 9.52% during flexion, extension, left bending, right bending, left rotation, and right rotation, respectively. While the ROM in Model C2 significantly increased by 12.08%, 14.86%, 20.39%, 15.29%, 37.76%, and 23.81% during flexion, extension, left bending, right bending, left rotation, and right rotation, respectively.

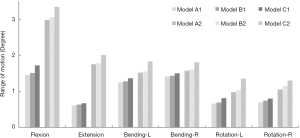

Figure 5 Comparison of the range of motion at fixation segments in Models A, B, and C for different loading motions.

The stress of the Cage

Upon comparison with Models A1 and A2, the peak von Mises stress of the cage was found to be slightly higher in Model B1 (increased by 6.92–15.99%) and B2 (increased by 2.05–14.47%) at the cage-endplate interface under all loading conditions (Figure 6). In contrast, the peak von Mises stress of Models C1 and C2 were observed to increase by 19.43–47.24% and 22.78–38.92% for all motions, respectively. The largest cage stress in Models A, B, and C was found in flexion: the maximum stress of the cage reached 55.13, 58.95, and 65.84 MPa in Models A1, B1, and C1; and 57.33, 65.02, and 79.68 MPa in the Models A2, B2, and C2, respectively.

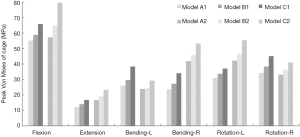

Figure 6 Stress exerted on the cage in Models A, B, and C.

Internal fixation stress

A similar change in the internal fixation stress was observed. Upon comparison with Model A, a significantly smaller change in the instrument stress was present in Model B. In Models B1 and B2, the maximum von Mises stress of the instrument increased by 10.61–16.50% and 9.75–21.64% compared to Models A1 and A2, whereas the changes in Models C1 and C2 increased by 40.79–54.66% and 39.78–57.07% compared with Models A1 and A2 under different moments (Figure 7). In all the surgical models, the maximum von Mises stress of internal fixation was significantly lower than the yield strength of the titanium alloy screw/rod (897–1,034 MPa) (24). Compared with screws in the middle level, the stress on the cranial and caudal pedicle screws was larger in most loading conditions (Table 2). The stress distribution on the pedicle screw showed that the stress was concentrated in the screw head, the cranial and caudal screws, and rods (Figure 8).

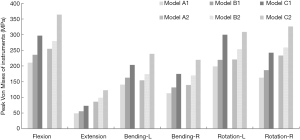

Figure 7 Screw stress at the fixation segments in Model A, B, and C.

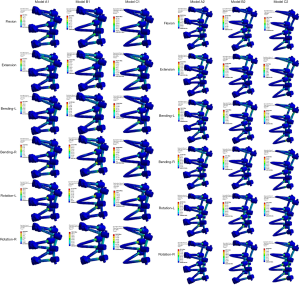

Figure 8 Stress distribution on the pedicle screw shows that the stress is mainly distributed at the screw head, the cranial and caudal screws, and rods. (A) Double segmental fusion model, (B) multi-segment fusion model.

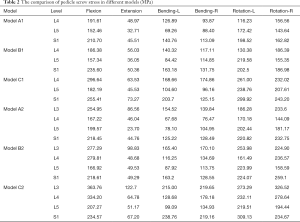

Table 2 The comparison of pedicle screw stress in different models (MPa)
Full table

Discussion

With a rapid increase in the aging population, the demand for spinal surgeries has grown markedly in elderly patients. Epidemiological studies showed that the average age of patients treated by surgery significantly increased from 54.6 years in 2004 to 63.7 years in 2015 in Asia (25,26). Spinal fusion with posterior pedicle screw fixation is one of the most common strategies for lumbar degenerative diseases (26,27); however, it is challenged with the increasing incidence of early implant failure or cutout (28). To strengthen the purchase, CAPSI is one of the procedures developed; it has received growing attention due to its rigid bone fixation and handy surgical procedure (29,30). However, the major disadvantage of CAPSI is related to cement leakage, which probably leads to radicular compression symptoms, cement embolism, infection, and anaphylactic shock (7-9,12). Additionally, a larger number of cement-augmented segments may also increase the cost of surgery. Therefore, these deficiencies limit the popularization of CAPSI in medical centers around the world.

To reduce the cement leakage, the protocol has been optimized by minimizing the cement volume per trajectory and the number of augmented screws (31,32), using high-viscosity bone cement and low application pressure (8,33), by placing the tip of the fenestrated screw close to the lateral side of the vertebral body (9), and maintaining a positive end-expiratory pressure (PEEP) during cement injection (34). In addition, Erdem (31) reported a novel strategy for CAPSI recently wherein the most proximal trajectories were selectively cement-augmented, which was proven in thirty-one patients with degenerative spinal pathologies to possess compatible fixation strength as non-selectively augmenting does, moreover, with less cement leakage. However, this retrospective study has several limitations, such as the diversity of enrolled cases including various types of diseases, different lumbar instrumented segments, and multiple methods of fixation. In addition, there is a lack of a standard algorithm in the selection of the strategic vertebrae: the number of cemented pedicle screws to be placed proximally was only determined by the surgeon’s experience. Therefore, in the present study, we used FEM analysis to control the consistency of the vertebral body, screws, and bone cement in different models.

Previous studies have reported that the most common site of screw loosening was identified at the cranial or caudal vertebra in lumbosacral degenerative diseases with short-segment posterior internal fixation (≤3 levels) (15). Our previous research also showed that there was 20–24% of S1 screw loosening in the osteoporotic spine with a degenerative disease (15). Uehara et al. (13) analyzed 120 patients with adolescent idiopathic scoliosis (AIS) undergoing pedicle screw fixation. The results showed loosening rates of 9.6% at the cranial vertebra, 5.4% at the caudal vertebra, and only 2.6% at other levels. Wu (35) and Li et al. (14) also found that instrument failure (broken screw or rod) usually occurs at the lowest segment in cases of multilevel pedicle screw fixation. Therefore, selectively augmenting the upper and lower vertebrae is a potential way to optimize the strategy.

Finite element analysis is a complementary technique for cadaveric tests to characterize the complex biomechanical mechanism of the spine. In the present study, we used the finite-element method to compare the biomechanical properties of pedicle screws augmented by PMMA in every pedicle trajectory (Model A) with those that did selectively in cranial and caudal ones (Model B) or without PMMA augmentation (Model C). The results showed that although the stress of the cage and pedicle screws were found to be slightly high in Model B, differences in the ROM between Models A and B were not significant at less than 0.1° under all loading conditions. In contrast, the peak von Mises stress on the cage-endplate interface and the instrument of Model C increased significantly. The result indicated that selectively cement augmenting the pedicle screws both cranially and caudally could provide comparable postoperative stability and not obviously increase the risk of cage subsidence (Figure 9). The largest stress on the pedicle screw in Model B was found when the loading flexion and rotation forces were 279.81 MPa and 259.1 MPa, respectively. It was probably affected more by the complete resection of one side of the facet joints. Moreover, the stress on the pedicle screws was intensively distributed on the cranial and caudal pedicle screws, which probably resulted from their endurance of greater mechanical forces and contributed to maintaining the stability of the surgical segments without augmenting other vertebrae as well as explaining the nature of screw loosening mainly occurring at the upper and lower vertebrae.

Figure 9 Selective augmentation of the upper and lower vertebrae is a potential way to balance the amount of cement and the stability of the surgical segment.

Although this study is based on the physical models of the lumbar spine, pedicle screws, and bone cement, there are still some limitations. First, the variation in the shape, location, and dosage of bone cement may affect the purchase strength of CAPSI; additionally, only one situation was used to construct the models. Second, this study did not analyze the range of mild to severe osteoporotic models, which may lead to selective bias. Moreover, the suitability of selective augmentation for long segmental fixation remains unclear. Further investigations both in vitro and in vivo should be conducted in the future to reach a more precise conclusion.

Conclusions

Selectively cement augmenting pedicle screws both cranially and caudally is capable to provide comparable stability as non-selectively for lumbosacral degenerative diseases with less risk of cement leakage. Although with slightly increasing stress on cages and screws, it could be a potential optimal procedure to minimize associated complications of CAPSI.

Acknowledgments

Funding: This study is supported by the project of Traditional Chinese Medicine Bureau of Guangdong Provincial (20203004). The funders had no role in study design, data collection or analysis, decision to publish, or preparation of the manuscript.

Footnote

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-2246

Peer Review File: Available at http://dx.doi.org/10.21037/atm-20-2246

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-2246). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All methods in this study were carried out in accordance with the provisions of the Declaration of Helsinki (as revised in 2013). This study was reviewed and approved by the Ethics Committee of The First Affiliated Hospital of Guangzhou University of Chinese Medicine {NO. ZYYECK[2019]094}. The informed consent was obtained from the volunteer and this consent was written.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
