Three-dimensional color map: a novel tool to locate the surgical transepicondylar axis

Introduction

Rotational alignment of the distal femur is an important reference axis for successful total knee arthroplasty (TKA), but its location has long been a challenge, and anatomical references are often used to locate the rotational alignments. Anatomical references are based on the acquisition of anatomical landmarks, such as the transepicondylar line (TEA) (1-3), the posterior condylar line (PCL) (4-6), and the Whiteside's line (WL) (7-10). The intraoperative localization, function, and reliability of these landmarks for determining femoral component rotation have been extensively studied (1,4,7,11-16). The surgical transepicondylar axis (sTEA) has been recognized as the most reliable anatomical reference to determine the correct rotation of the femoral component, and it is not affected by bone geometry, such as condylar osteophyte or bone defects (17-23).

The sTEA is a line joining the center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle. Locating the sulcus of the medial epicondyle is particularly difficult, mainly due to concealment by the soft tissues of the medial collateral ligament that attach over the medial sulcus and medial epicondyle (1,24,25). Previous studies have reported high deviation of location, low intraobserver and interobserver reliability and reproducibility, and low recognition rates of the location of the sTEA by using computed tomography (CT) or magnetic resonance imaging (MRI) (24-27), and no golden standard method is available. Therefore, a reliable method to accurately identify and digitize the sTEA is desperately needed for research and clinical application.

A three-dimensional (3D) color map is a kind of graphical representation of the distance differences between 2 superimposed 3D images. Although many software programs that are compatible with 3D imaging data also have the capability of generating 3D color maps, 3D color maps are rarely used in the orthopedic field, as some surgeons may be unaware of how to generate such maps and how to interpret them. This study first introduced the 3D color map method to enhance the accuracy of the sTEA location and aimed to validate the repeatability and recognition rate of this novel approach. We hypothesized that the 3D color map method could accurately locate the sTEA, with a higher repeatability and recognition rate than the previous two-dimensional (2D) CT slices method. We present the following article in accordance with the Materials Design Analysis Reporting (MDAR) checklist (28) (available at http://dx.doi.org/10.21037/atm-20-1887).

Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) (29). Ethical approval of this study was obtained from the Ethics Committee of The First Affiliated Hospital of Chongqing Medical University (NO.: 2016-94), and informed consent for this specific project was waived because the research was performed on radiographic data. The following experiment was conducted following the approved study protocol.

Materials and population

This study included 26 adult femur specimens (15 left femurs, 11 right femurs) and 80 adult patients (31 males, 49 females, with 41 left femurs, 39 right femurs), which were scanned with a Siemens Somatom Definition AS 128-slice CT scanner. The CT scans (slice thickness, 0.625 mm) were saved as digital imaging and communications in medicine (DICOM) files. The average age of the 80 patients was 38.4 years (range from 23 to 65 years), and none of the patients presented with a history of distal femoral fractures or surgery. Specifically, femur specimens were also CT scanned and used for further verification (Figure 1).

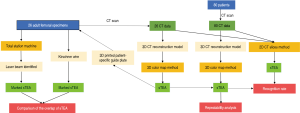

Figure 1 Flow chart of the study procedure. sTEA, surgical transepicondylar axis.

sTEA localization with the 3D color map

3D models of the distal femurs were reconstructed with Mimics 15.0 (Materialise HQ, Leuven, Belgium) and imported into Geomagic Studio 2013 (Geomagic^®, Morrisville, North Carolina). The distal femur of each subject was placed in a standard position (the medial and lateral condyles of the distal femur were superimposed) for the following procedures: (I) Create a plane: The Best Fit application was used to select the medial and lateral femoral epicondyles of each femur, and the plane command was used to identify the area and assign a name to each plane for further analysis, alignment, and trimming. (II) 3D color map: A 3D color-coded mapping was generated based on the distance differences between the plane and the underlying polygonal mesh. Next, the center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle were accurately located based on the colors at the positive or negative end of the scale. The sTEA, which is the connection between the two points, was identified and digitized by using the 3D color map method (Figure 2).

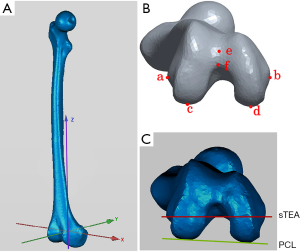

Figure 2 sTEA localization with the 3D color map method (application of Best Fit), in a standard position (the medial and lateral condyles of the distal femur were superimposed). (A) The 3D color map was used to locate the center of the sulcus of the medial epicondyle. (B) Localization of the most prominent point of the lateral epicondyle using the 3D color map. (C) Localization of the sTEA, a line between the center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle.

sTEA verification

sTEA identified by a total station machine

Total stations are mainly used by land surveyors and civil engineers, either to record features as in topographic surveying or to set out features, which is a high-precision equipment through a combination of electromagnetic distance measuring instruments and electronic theodolites. A total station machine (accuracy of ±0.2 mm, Topcon ES-602G, Beijing, China) was applied to locate the anatomical landmarks of the medial and lateral epicondyles on the femoral specimens and to locate the sTEA on specimens. According to the measurement principle, the telescope eyepiece of the total station machine and the medial or lateral femoral condyle was placed in the same horizontal plane (Figure 3). The horizontal distance between the total station machine and the medial or lateral femoral epicondyle was repeatedly measured to determine the center of the sulcus of the medial epicondyle or the most prominent point of the lateral epicondyle. The center of the sulcus of the medial epicondyle was the furthest point from the total station machine, while the most prominent point of the lateral epicondyle was the nearest point to the total station machine, which were identified by a laser beam and marked for further comparison.

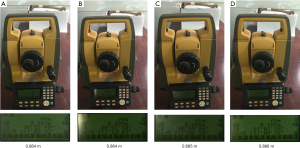

Figure 3 Verification with the total station machine. The horizontal distance between the center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle of each specimen were measured repeatedly. The center of the sulcus of the medial epicondyle was furthest from the total station machine, while the most prominent point of the lateral epicondyle was nearest to the total station machine.

Verification with the patient-specific guide plate

To evaluate the consistency between the points located by the 3D color map and the anatomical landmarks of the medial and lateral epicondyles on the femoral specimens, the location of sTEA and the geometry of the distal femur were used to design and construct a patient-specific guide plate with guide holes (diameter: 2.0 mm) via 3D printing (Figure 4). Then, Kirschner wires (“K-wires”, diameter: 1.5 mm) were passed through the guide holes to locate the sTEA axes found by the 3D color map on the femoral specimens. The consistency of the points located by the 3D color map and the patient-specific guide plate was compared to the anatomical landmarks identified by the total station machine.

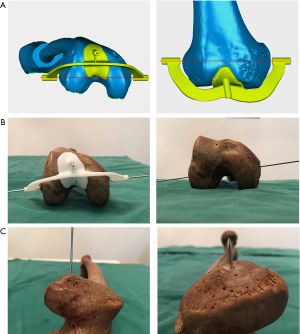

Figure 4 Verification with the patient-specific guide plate. (A) Patient-specific guide plate models with guide holes (diameter: 2.0 mm) were constructed for each femoral specimen via 3D printing based on the surgical transepicondylar axis (sTEA) localization results. (B) Kirschner wire (diameter: 1.5 mm) was passed through the guide hole in each femoral specimen. (C) Comparison of the consistency of the points on medial epicondyle and lateral epicondyle of each specimen identified by using the Kirschner wire and total station machine.

sTEA recognition rate of the 3D color map

A previous study reported that the sulcus of the medial epicondyle, which could be used to identify the medial end of the sTEA, might become filled in as osteoarthritis progresses; thus, the sulcus may not be identified in some cases. Therefore, the recognition rate, which was defined as the proportion of located sTEA of all cases, was used to compare the 3D color map method with the 2D CT slices method. The 106 CT scans (including 26 femur specimens and 80 patients) of the femur were collected to construct 3D bone models. Each specimen was used to recognize and locate the sTEA by using the 3D color map method, and the recognition rate was calculated accordingly.

Repeatability analysis of the 3D color map

The posterior condylar angle (PCA) was chosen as the repeatability parameter. The PCA was defined as the angle between the PCL and the sTEA. Before repetitive measurements, we established a 3D coordinate system to ensure that all the measurements were carried out in the same spatial location. The coordinate system was defined previously (Figure 5) (30). Measurements were made three times by two orthopedic surgeons and a radiologist at an interval of two weeks to assess the interobserver and intraobserver reliability of the 3D color map method. The CT scan data of the 80 patients were used for the repeatability analysis. The observers were not aware of any previous measurements at the time.

Figure 5 The posterior condylar angle (PCA)—the angle between the posterior condylar line (PCL) and the surgical transepicondylar axis (sTEA) was determined. (A) Three-dimensional coordinate system for measurement: The center of the hip was taken as a sphere fitted to the femoral head. The center of the knee was identified as the mid-point of the sTEA. The Z-axis of the knee (distal-proximal) was defined as the extension of the femoral mechanical axis that connected the center of the knee and the center of the femoral head. The plane perpendicular to the Z-axis at the center of the knee was defined as the X–Y plane. The X-axis (medial-lateral) was defined as the extension of the sTEA, which was projected onto the X–Y plane perpendicular to the Z-axis. The Y-axis (anterior-posterior) was defined as the line normal to the coronal plane (X–Z plane) at the center of the knee. (B) Important anatomical landmarks identified by the 3D color map method. (a: The most prominent point of the lateral epicondyle; b: The center of the sulcus of the medial epicondyle; c: The lowest point of the lateral femoral condyle; d: The lowest point of the medial femoral condyle; e: The top of the femoral notch; f: The deepest point of the trochlear groove). (C) PCA was the angle between PCL and sTEA lines.

Statistical analysis

All of the data were analyzed using SPSS version 18.0 (SPSS Inc, Chicago, Illinois, USA). The associations among the various measurements were evaluated using Pearson's correlation coefficient. A P value <0.05 was considered statistically significant. The intraobserver and interobserver reliabilities were determined based on the intraclass correlation coefficients (ICCs) of each measurement (26). ICC values greater than 0.90 indicate excellent reliability, while ICC values between 0.75 and 0.9 indicate good reliability, values between 0.5 and 0.75 indicate moderate reliability, and values less than 0.5 are indicative of poor reliability.

Results

sTEA localization and verification

The center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle in the 26 femur specimens were all accurately located via the 3D color map approach (Figure 2). Based on the horizontal distance, the center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle were identified and marked on all femoral specimens by using a total station machine (Figure 3). The patient-specific guide plates and K-wires successfully marked the center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle on the femoral specimens (Figure 4), which were all overlaid with the points marked by the total station machine.

sTEA recognition rate of the 3D color map

The 3D color map method showed a higher recognition rate of 96.23% (102 of 106 cases) than the 2D CT slices method 68.87% (73 of 106 cases). The ages of the patients for which the method failed were 28, 30, 35, and 56 years old, respectively.

For instance, in some cases, the center of the sulcus of the medial epicondyle was unable to be accurately located via 2D CT slices (Figure 6A) but could be precisely located with a 3D color map (Figure 6B). Notably, in one particular case, the center of the sulcus of the medial epicondyle could be located in eight consecutive thin-slice CT images (Figure 7A), when the eight CT slices were automatically converted into a 3D-CT reconstruction model, which merged into a sulcus approximately 5 mm in length (Figure 7B). However, the exact center of the sulcus was able to be precisely located by the 3D color map (Figure 7C). Similarly, the most prominent point on the lateral epicondyle of the femur appeared in eight consecutive thin-slice CT images (Figure 7D), which merged into a ridge in the 3D-CT reconstruction model (Figure 7E), but the exact most prominent point could be precisely located using the 3D color map (Figure 7F). In this case, the maximum angle of the error of the two endpoints was 7.52° when the sTEA was set at 7.8 cm in length (Figure 7G).

Figure 6 The center of the sulcus of the medial epicondyle was unable to be accurately located via the 2D CT slices method, but could be located via 3D color map method. (A) In this case, the center of the sulcus of the medial epicondyle was unable to be accurately located in these consecutive slices via the 2D CT slices method. (B) The center of the sulcus of the could be precisely located via the 3D color map method. (Low values are dark blue, values in the center of the map are green, and high values are dark red).

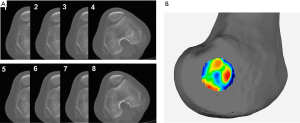

Figure 7 Comparison between the 3D color map method and 2D CT slices method. (A) The center of the sulcus of the medial epicondyle was able to be located in eight consecutive thin-slice CT images. (B) All of the points were automatically converted into the 3D reconstruction model, which merge into a sulcus approximately 5 mm in length. (C) The 3D color map method could locate the center of the sulcus of the medial epicondyle. (D) The most prominent point of the lateral epicondyle appears in eight consecutive thin-slice CT images. (E) All of the points were automatically converted into the 3D reconstruction model, which merged into a ridge approximately 5 mm in length. (F) The 3D color map method could locate the most prominent point of the lateral epicondyle. (G) The maximum angle of the error of the two endpoints was 7.52° when the length of the sTEA was 7.8 cm in length (Low values are dark blue, values in the center of the map are green, and high values are dark red).

In most cases, the center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle were located in different 2D CT slices, but the sTEA was a line in 3D space (Figure 8). Thus, the actual sTEA was often not reflected in one 2D thin-slice CT image.

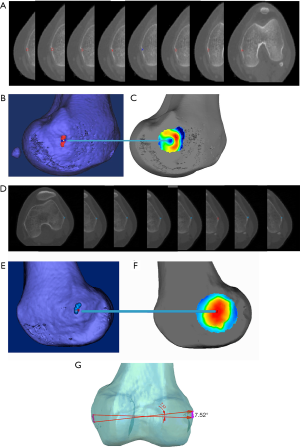

Figure 8 The sTEA located by the 3D color map method. (A) The sTEA was located in one CT slice via the 2D CT slices method. (B) The sTEA located by the 3D color map method was an axis in the 3D space.

Repeatability analysis of the 3D color map

The repeatability of the 3D color map method was evaluated by measuring PCA (Figure 5B,C). The ICC values for intraobserver and interobserver reliability for different measurements on PCA were 0.993 and 0.985, respectively (P<0.001). Meanwhile, the correlation coefficient was 0.986 for two intraobserver observations, and the correlation coefficient was 0.973 for two interobserver observations (Table 1 and Table 2). The results indicate excellent repeatability of the 3D color map method.

Table 1 Intraobserver reliability on different measurements [WithinR1 (3 measures)]
Full table

Table 2 Interobserver reliability for different observers [R1(mean)-R2]
Full table

Discussion

Main findings

To the best of our knowledge, this is the first study that introduced the 3D color map method into the orthopedic field to locate the center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle, and to accurately and objectively locate the sTEA. The reliability and recognition rate of the proposed method were higher than those of the 2D CT slices method.

Implications for clinical practice

Although TKA is associated with greater than 90% survival for more than ten years after implantation (31-33), up to 15–30% of patients remain “unsatisfied” after TKA (34-37). The accuracy of the rotational alignment of the femoral component is considered to be one of the most influential factors of short-term functional outcome and long-term implant survival (38,39). Although sTEA has been well established as the most reliable reference for the rotational axis of the distal femur, it is difficult to accurately locate sTEA during surgery, mainly due to the medial epicondyle is covered by extensive soft tissue. Jerosch et al. suggested a high perioperative variance of sTEA for rotational alignment of the femoral component (24), which could induce inaccurate prosthesis implantation and various postoperative complications. Although PCL and WL have been created to determine the rotational alignment of the femoral component (40-42), individual differences in bone morphology, such as bone deformity or defects of the femoral condyle, and other factors including gender, race, height, and even weight, can affect the relationships between these parameters and sTEA (26,43-47). Therefore, these parameters are inaccurate and unreliable, which may result in adverse outcomes in patients after TKA.

The 2D CT slices method has been traditionally used to locate the sTEA, but proved to be inaccurate with a low recognition rate. Yoshino et al. included 48 participants but only detected the medial sulcus in 33 knees and suggested that the degree of osteoarthritis significantly affected the identification of the medial sulcus (25). Our study also revealed that the 2D CT slices method yielded a low recognition rate of sTEA, and the center of the sulcus of the medial epicondyle was only recognized in 73 of 106 patients (68.87%). In contrast, the 3D color map method showed a high recognition rate, only 4 of 106 cases failed, which was not due to apparent osteoarthritis but due to abnormal morphology of the medial epicondyle. Therefore, the 3D color map method could be used to precisely and objectively locate the sTEA in most cases, but may also fail in some cases with abnormal femur morphology.

Our findings demonstrated that the 2D CT slices method is inaccurate for sTEA localization, mainly due to the following reasons: (I) The center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle could be found in consecutive thin-slice CT images, which merged into a sulcus in the medial epicondyle or a ridge in the lateral epicondyle in the 3D-CT reconstruction model. Even if these marked points were automatically traced in the 3D reconstruction model, it would be highly challenging to locate the correct point objectively. (II) The center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle were often not located in the same slice from the CT scans. (III) Recognition of the center of the sulcus of the medial epicondyle and the most prominent point of the lateral epicondyle was often based on the surgeon’s experience and subjective evaluations. Based on the inaccurate location of anatomical landmarks of the distal femur, other crucial parameters, including the PCA, the Whiteside-epicondylar angle (W-EP angle), and the condylar twist angle (CTA), would be unreliable. In comparison, the 3D color map method is an objective method, with high repeatability and reliability.

Call for future studies

This study indicated that the 3D color map method could be used to precisely and objectively locate the center of the sulcus of the medial epicondyle, the most prominent point of the lateral epicondyle, and the sTEA. These recognized points can be transferred from the 3D-CT model to femoral specimens with a 3D-printed patient-specific guide plate, which holds great promise for clinical applications, especially for improving the design of patient-specific instrumentation (PSI) in TKA in the future (48). Therefore, this study established a novel method for future research regarding the rotation axis of the distal femur. In addition, the 3D color map method could be used to digitize and explore the morphological features of the distal femur and to locate other important anatomical landmarks, especially the PCA, W-EP angle, and CTA. The color map method can also be applied in other 3D geometric morphometric analyses.

Limitations

This study had some limitations. First and foremost, there is no golden standard method for locating the sTEA; and we were unable to compare the accuracy of the 3D color map method with the 2D CT slices method, mainly due to different models. Second, the Kellgren-Lawrence (KL) classification of the included patients was not available; therefore, it remains uncertain whether the sTEA can be accurately located in patients with severe knee osteoarthritis by using the 3D color map method, even though the degenerative processes of osteoarthritis only involves damage to the articular surface and is associated with marginal osteophytes. Next, CT scans are associated with high levels of radiation exposure. Finally, the proposed method has not yet been applied in clinical applications and requires further validation.

Conclusions

The findings of this study suggest that the 3D color map method could be used to precisely locate the sTEA, with high repeatability and recognition rate. The proposed approach could be used to locate the sTEA and other important anatomical landmarks. However, the proposed method requires further validation in clinical applications.
