A narrative review of gallbladder adenomyomatosis: what we need to know

Introduction

Abdominal ultrasound (US) is a commonly ordered investigation in surgical practice. Not uncommonly there is incidental finding of gallbladder (GB) wall thickening containing cysts on US, a condition called gallbladder adenomyomatosis (GA). Though GA is increasingly encountered, most clinicians know little about the disease and its proper management.

The key questions are: is GA alone an indication for surgery? Is GA a premalignant lesion? How should GA be followed up and with what type of imaging? Is long term follow-up necessary for GA?

To answer these questions, an extended non-systemic literature search of PubMed articles in English with the search item of GA was performed. Original articles, reviews and cases reports on GA up to April 2020 were included. A narrative synthesis of extracted data was performed and presented using basic thematic analysis. We present the following article in accordance with the Narrative Review reporting checklist (available at: http://dx.doi.org/10.21037/atm-20-4897).

Overview

GA is a pathological condition characterized by excessive epithelial proliferation associated with hypertrophy of muscularis propria, resulting in GB wall thickening (1-3). The excessive epithelial proliferation leads to outpouchings of mucosa into or beyond the muscle layer forming intramural diverticula (cysts on US), recognized as Rokitansky-Aschoff sinuses (RAS) which was first described by Rokitansky in 1842 and then by Aschoff in 1905 (Figures 1-3) (4,5). RAS may contain calculi or cholesterol crystals. The serosa is never involved by GA (6).

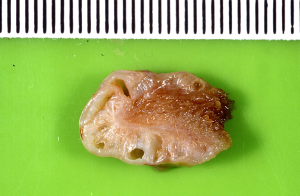

Figure 1 Trimmed gross specimen of fundal type gallbladder adenomyomatosis reveals thickened gallbladder wall with multiple intramuscular cystic spaces.

Figure 2 The corresponding histology shows cystically dilated glands invaginating into the thickened muscular wall forming the Rokitansky-Aschoff sinuses (RAS). Hematoxylin and eosin; magnification 20×.

Figure 3 The cystically dilated glands consist of the same benign epithelial lining as normal biliary mucosa. RAS, Rokitansky-Aschoff sinuses. Hematoxylin and eosin; magnification 100×.

Different names have been used for GA which included hyperplasic adenomyosis, adenomyoma, adenofibromyoma, cystic cholecystitis, proliferative glandular cholecystitis, intramural diverticulosis, hamartoma and diverticular disease of GB, until 1960 Jutras used the term GA to define this condition which was a degenerative and proliferative disease (7).

Depending on the degree of GB wall involvement, GA is classified into three types: fundal, segmental or diffuse (Figure 4). In fundal GA, there is focal thickening involving the GB fundus while the rest of GB appears physiologically thin and GB shape is maintained. In segmental GA, there is circumferential overgrowth of the GB wall that leads to formation of compartments within GB, resembling an “hourglass” appearance. In diffuse GA, there is disseminated thickening and irregularity of the mucosa and muscularis, resulting in cyst-like appearance of GB (6,8). Sometimes, a segmental type GA with its segment near the gallbladder neck can be confused with the diffuse type. A further complex type may also be included when there is a coexistence of a segmental and fundal type GA. A previous study showed that the segmental type is the commonest while in one recent study, the fundal type is the commonest GA (9,10).

Figure 4 Schematic drawing of different types of gallbladder adenomyomatosis: (A) fundal; (B) segmental; (C) diffuse.

Epidemiology

GA is typically diagnosed beyond the age of 50–60, with similar sex distribution or female predominance (2,11). It was found in 2% to 8% of all cholecystectomies in recent series and in 1–5% in autopsy (10,12,13).

Pathogenesis

The pathogenesis of GA is unknown. It is unlikely to be a congenital malformation as fewer than 10 cases have been reported in children in first year of life (14-16). GA is widely accepted to be a degenerative disease (17). Increased intra-luminal pressure secondary to neurogenic dysfunction may play a role (1,18). Anomalous pancreaticobiliary ductal union which causes chronic reflux of pancreatic fluid into GB may explain the occurrence of GA (19,20). Coexisting gallstone (GS) occur in more than 50% of patients with GA and in up to 90% of segmental GA but no causative relationship has been proved (9,12). In latter case, GS are located predominantly in fundal compartment in around 80% of cases, which is likely secondary to biliary stasis (9).

Diagnosis

Majority of GA cases are incidentally discovered by imaging or by pathology of resected GB. Patients with GA are usually asymptomatic. The most common symptom is nonspecific abdominal pain localised at the right upper quadrant and epigastrium. The pain is similar to that of gallstone and is typically intermittent and self-limiting (21). Nausea, vomiting, fatty food intolerance can also occur. However, symptoms can also be attributed to the commonly coexisting GS. GA presented as acalculous cholecystitis has been reported (22). Laboratory tests in patients with GA are usually normal.

US

GB wall thickening (>3 mm) represents a hallmark of GA, being always present but is poorly specific (6,23). The outer GB layer must appear sharp and a clear cleavage plane with liver must be present (6). Small anechoic cystic spaces (1–10 mm) representing clear bile-filled RAS within GB wall are pathognomonic for GA. When RAS are filled with cholesterol crystals, intramural echogenic foci are noted (6). These cholesterol crystals, in contrast to the clear bile within the RAS, act as highly reflective surfaces and generate posterior reverberation artefacts on grey-scale US—the so-called “comet-tail” artefacts. It is characterized by a bright hyperechoic focus at the GB wall with an inverted triangular acoustic enhancement posteriorly, which exhibit a gradual decrease in strength and thickness (Figure 5) (23). Comet-tail artefact is a reverberation artefact on grey scale US which occurs when two closely packed echogenic interface are struck by US beam. This is a typical finding of GA as the aggregates within the RAS act as the echogenic interface, but the phenomenon is not limited to GA. Other examples with aggregate serving as reflective interface within small cystic lesions producing this artefact include milk of calcium cyst in the kidneys and biliary hamartoma in the liver. Resembling the “comet-tail” artefact on grey scale US, another artefact known as the “twinkling” artefact which appears as a rapid alternation of blue and red Doppler signals immediately deep to the highly reflective cholesterol crystal is seen on color Doppler US (24). Limitation of US lies on its operator dependence and imaging artefact due to presence of gas or stones and inadequate GB visualization in obese patients.

Figure 5 The ultrasound appearance of different types of gallbladder adenomyomatosis. (A) Grey scale ultrasound image showing a diffuse-type gallbladder adenomyomatosis with diffuse wall thickening containing multiple small cysts (curved arrows) representing RAS and comet-tail artefacts (arrows) representing cholesterol aggregates. Note the small polypoid lesion (arrow head) representing focal mural hypertrophy associating with adenomyomatosis. (B) Grey scale ultrasound imaging showing a segmental type of gallbladder adenomyomatosis with focal annular wall thickening at the mid body, giving rise an hourglass appearance of the gallbladder. Note the small RAS (arrows) and comet tail artefacts (curved arrow). (C) Grey scale ultrasound imaging showing a fundal type of gallbladder adenomyomatosis with localized involvement at the gallbladder fundal wall and multiple comet-tail artefacts (arrows).

High resolution US (2.5–7 MHz) and contrast US using micro-bubble contrast material have been reported to increase the diagnostic accuracy for differentiation of GA and gallbladder cancer (GC) (6,25). Endoscopic US (EUS) is credited with better images of GB than usual US. EUS has been reported to identify GA that are missed by transabdominal US (26,27). Nevertheless, EUS may misdiagnose GC as GA due to microcysts that can also be seen in mucin producing GC (28,29).

Computed tomography (CT)

A confident diagnosis of GA in thickened GB wall is possible only if large (at least 3mm) RAS are present. A diagnostic sign of GA on CT is the “rosary sign”, which occurs from combination of an unenhanced proliferative muscularis layer surrounding enhanced proliferative mucosal epithelium with intramural diverticula (Figure 6) (30). Another sign called “cotton ball sign” may also present. This is seen as fuzzy grey enhancing dots in a thickened GB wall or a dotted outer border of the inner enhancing layer of GB wall on contrast CT and is more sensitive when the RAS are small (31).

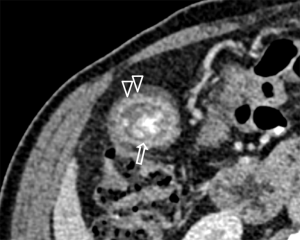

Figure 6 Computed tomography image shows the “rosary sign”. The hyper-enhanced inner lining (arrow) represents the proliferative mucosa. Note the multiple mucosa-lined cystic outpouching (arrowheads) invaginating into the hypertrophied muscularis propria representing the RAS. Hyperdense gallstones are present. RAS, Rokitansky-Aschoff sinuses.

Magnetic resonance imaging (MRI)

In GA, GB wall thickening can be clearly depicted both on T1- and T2-weighted images. RAS typically appears markedly hyperintense on T2-weighted images, hypointense on T1-weighted images and show no contrast enhancement. A distinguished sign of GA on T2-wighted image is the “pearl-necklace sign”, which is the presence of multiple high intensity cavities seen in GB wall (Figure 7) (6,30). This sign is more prominent on magnetic resonance cholangiopancreatography (MRCP) (6,32).

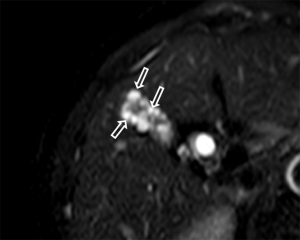

Figure 7 Magnetic resonance imaging shows multiple hyperintense, fluid-filled intramural diverticula (arrows) in the gallbladder fundus representing the “pearl-necklace sign”.

Positron emission tomography (PET)

GA typically shows no 18-fluorodeoxyglucose (¹⁸FDG) uptake (SUV <2.5) or lower uptake compared with liver while GC is usually hypermetabolic. However, acute inflammatory reaction surrounds RAS may generate an increased ¹⁸FDG uptake and give rise to false positive result. PET is not performed for diagnosis of GA, but may help to exclude GC when there is no significant tracer uptake at the lesion (33).

Choice of imaging

US should be the imaging modality of choice in initial evaluation for GA. MRI represents the ideal tool for further evaluation in case of inconclusive finding on US. CT can be used as a diagnostic adjunct to evaluate GB wall thickening and to differentiate GA and GC. The accuracy to differentiate GA from early GC for US, MRI and CT were 91–95%, 93% and 40–75% respectively (6). EUS, being invasive and costly, should be used selectively. For PET, there is no evidence for its routine use. For differential diagnosis of GA, an MRI or contrast CT is necessary, whilst for follow-up for GA, US is usually sufficient.

Association with GC

GA has all along been considered as a benign condition. However, cases of coexisting GC and GA have been reported in the literature (34-36). GC arose both from just above fundal GA and the distal part of segmental GA (37). Ootani et al. reported that GC developed in 6.4% (12/188) of patients with segmental GA, whereas no clear association was found between fundal and diffuse type GA with GC (12). The tumor in patients with both segmental GA and GC only occurs in the fundic mucosa rather than the neck mucosa. It was postulated that the segmental GA led to bile congestion and intra-luminal hypertension in the distal GB leading to chronic inflammation which was regarded as a cancer causing factor. Nabatame et al. also found that 6.6% (22/334) of patients with segmental GA had GC (38). An association between dysplastic adenoma and diffuse GA has also been described (39). Other authors suggested GA could not be regarded as precancerous lesion based on available evidence, but stones and cholecystitis secondary to GA might lead to dysplastic change and cancer (40).

Management

There is no universally accepted guideline for the management of GA at present. The questions are how reliable is the diagnosis of GA on imaging and how high is the chance of malignant change for a genuine GA.

GA only accounts for 25% of cases of GB wall thickening (>3 mm), important differential diagnosis of GC needs to be excluded (8). US being frequently the initial imaging has its own limitations. When characteristic imaging findings are not present, it may be challenging to distinguish GA from GC. MRI is the preferred next imaging of choice if US is inconclusive. The radiological diagnosis of GA must be beyond any doubt, otherwise cholecystectomy with intra-operative frozen section should be offered to exclude GC. Extended surgery should be planned in advance if GC is confirmed intra-operatively.

For symptomatic GA with or without concomitant cholecystolithiasis, cholecystectomy is indicated as all reported cases were effectively and durably relieved by cholecystectomy (2).

In view of increased risk of GC, cholecystectomy may be considered for segmental type of GA even without symptom (12,38) and for diffuse type as it carries the problem of difficult visualization of coexisting malignancy (39). For fundal type GA, whatever its size and concomitant gallstone, surgery is not indicated as no series reported an increase risk of GC in cases of exclusively fundal GA (8). Other authors recommended fundal GA to be dealt with in the same way as for GB polypoid lesions, i.e., for cholecystectomy if lesion ≥10 mm (17). However, it is arguable to equivalent GA to polypoid lesion of GB as the latter consisted of a very heterogenous group of histologically different diseases (41). Finally, the presence of concomitant anomalous biliopancreatic junction (ABPJ) with GA also presents an indication for cholecystectomy as ABPJ is a known risk factor for GC (42,43). A proposed algorithm for the management of GA is shown on Figure 8.

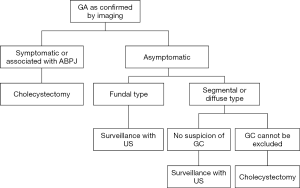

Figure 8 A proposed algorithm for the management of gallbladder adenomyomatosis. GA, gallbladder adenomyomatosis; GC, gallbladder cancer; US, ultrasound; ABPJ, anomalous biliopancreatic junction.

Whether there is need for regular follow-up US for asymptomatic fundal GA and how frequent US should be done is unknown. A 3–6 monthly US follow-up has been suggested by some authors, but how long should this surveillance be carried on is again unknown (17,44). Patient compliance for need of long-term surveillance is a problem. Resources implication also becomes a problem as GA is increasingly detected on US examination. Finally, GA may also increase in size over time and this change by itself cannot be considered an index of malignancy (45).

Conclusions

GA is increasingly encountered in clinical practice. A background knowledge of the disease and its management cannot be over-emphasized. Appropriate selection of patients for further investigation and surgery is crucial to avoid overlooked malignant disease and to treat potential malignant type GA whilst unnecessary surgery can be avoided in most benign types GA. Updated evidence shows that in general fundal and diffuse type GA are not premalignant whilst segmental type carries risk of GC. But for any type of GA, presence of symptom or associated ABPJ is an indication for cholecystectomy. Surgery should also be considered whenever GC cannot be excluded. US is the choice of imaging for follow up of GA with an interval of 3–6 months but how long should this surveillance be carried on remains to be answered.
