Rapid, accurate, multifunctional and self-assisted vision assessment and screening with interactive desktop autostereoscopy
Introduction
Vision impairment, notably due to myopia and related eye diseases, is a serious health issue that decreases individuals’ quality of life and even affects economic and educational opportunities in the modern age of planar displays (1-5). A large number of people of various ages, especially school and university students, have visual deficiencies of differing severities, and the declining trend in visual function appears to be accelerating rapidly with the increased use of flat screens and mobile phones (2). Due to the high incidence of myopia and uncorrected presbyopia (3,4), a fast, convenient, accurate, sensitive, and easily accessible vision assessment and screening technology is needed to determine whether additional steps are necessary in ocular examinations, which are important for preserving visual function and are recommended by the WHO (e.g., the Consultation on Development of Standards for Characterization of Vision Loss and Visual Functioning in 2003) (6).
While a paper eye chart with various optotypes may serve as a simple and effective vision screening method (7), there are obvious drawbacks of this method. First, the functionality of the chart is very simple. Second, the method for collecting assessment data is ineffective and requires supervision during an examination. Third, there is a limited number of test images; consequently, the evaluations of colour blindness, stereo vision, and binocular balance, motivated children are likely to memorize the expected responses - especially during school or kindergarten screenings, when children can communicate with their classmates – which can lead to inaccurate test results. Furthermore, one eye needs to be covered while the other is assessed, which might have an artificial effect on actual visual acuity. Currently, some visual acuity measurement methods and software have been developed, such as the Smartphone-Based Visual Acuity Measurement (8,9), the Electronic Visual Acuity Tester (10), and the AAPOS Vision Screening App (11); however, these focus mainly on visual acuity screening alone. Other visual functions, e.g., stereo vision and binocular balance, cannot be assessed with a simple paper eye chart, and special equipment must be used (12,13); for example, the Bagolini striated lens (14) can be used to examine binocular balance.
Along with the development of 3D technology, new visual function tests have been developed; these include the TNO stereo test (15), which requires individuals to wear red-green glasses to view left- and right-eye images separately, and the PASS Test 3, the Titmus stereo test (16), the Randot Stereotests, and the Random Dot E Stereotest, which require individuals to wear a pair of polarizing glasses to view images with the each eye separately. The major drawback of these instruments is that they require the use of additional glasses. Therefore, autostereoscopy has attracted a great deal of research and industrial attention in recent years, which has resulted in technologies such as autostereoscopic smartphones based on parallax barrier technology (17) and the Lang Stereotest, which is based on the column-interleaved technique (18).
Notably, the crosstalk and resolution parameters of the display are very important parameters in both visual acuity and visual function tests. Resolution is closely related to the accuracy of a vision test. Due to the limitations of the barrier and lenticular technologies used in traditional autostereoscopic displays, the resolution required for the tests is twice that of the physical pixels in the liquid crystal display (LCD), which means that at least 2 pixels constitute the smallest unit for this type of test. The low resolution can be partially compensated for with 2K and 4K panels, such as an autostereoscopic smartphone equipped with a 2K screen (17). Minimizing crosstalk in an autostereoscopic display is also important to ensure that the left and right eyes can be screened effectively and independently. Certain values of this parameter can not only improve the accuracy of the monocular vision test but also greatly affect the comfort of the testing process. Large crosstalk values might cause severe visual fatigue in some subjects, including some children, causing them to lose interest in autostereoscopy assessments. Therefore, autostereoscopic smartphone is used to evaluate stereoacuity only and cannot reliably measure visual acuity. Furthermore, instruments based on traditional naked-eye 3D technology are prone to inverse apparent phenomena during vision screening; in other words, the display itself can directionally transmit images to the left and right eyes but may not always transmit the images to the appropriate eyes. To address this issue, traditional screening techniques require subjects to close one eye before testing to ensure that the correct picture is viewed by the appropriate eye (17), resulting in complex tests that need to be supervised by a professional.
Our laboratory has also begun to develop and evaluate a screening system based on directional backlight autostereoscopy technology. The display can control the amount of crosstalk to be less than 3% (19-22), which can enable rapid screening assessments for both monocular and binocular vision. Second, the instrument can preserve the resolution of the LCD panel (1920*1080) (19), which means that a single pixel is the smallest unit of this test, and the minimum measurable stereo acuity can reach 57 seconds of arc at 1 m, which meets the clinical standard for stereo tests (a threshold value of 60”). With the use of eye-tracking technology in our system, the inverse apparent phenomenon in vision screening can be eliminated, ensuring simplicity and avoiding the need for assistance during the screening process. Furthermore, with mobile units, leap motion, or gesture recognition (23,24), large amounts of data from eye examinations can be rapidly recorded, stored, and retraced using desktops and cloud storage systems.
Can desktop autostereoscopy serve as a tool for vision assessments and screening? Regarding its use in assessments, it offers some apparent advantages, such as not requiring glasses or assistance and being rapid, accurate, and multifunctional. In the present study, the parametric requirement for the desktop autostereoscopic device is discussed, and high-quality directional backlight autostereoscopy is used to conduct the test. The interaction between the examiner and the desktop is described and demonstrated. The assessment’s accuracy, repeatability and inter-visit variability values are presented. With this rapid screening process, visual acuity, colour vision deficiency, stereo vision and binocular balance can all be assessed within a few minutes by an examiner. A large amount of the assessment data obtained during vision screening are shown to be valuable for quickly assessing the vision health of a large number of individuals. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-3555).
Methods
Subjects
A total of 157 healthy subjects (78 females and 79 males) aged 5–68 (32.8±11.7) years old were enrolled in this observational, cross-sectional study to compare the clinical repeatability, accuracy, inter-visit variability, likeability and efficiency of the autostereoscopy method and traditional method for determining visual acuity, colour vision, stereo vision, and binocular vision. The study was conducted at the Zhongshan Ophthalmic Center and performed as per the tenets of the Declaration of Helsinki (as revised in 2013). The study protocol was approved by the Zhongshan Ophthalmic Ethical Committee (IRB-ZOC-SYSU) and was also registered at clinicaltrials.gov (PRS, ID NCT03899623). Informed written consent was obtained from all the patients after the nature and aim of the study were explained in detail. The study included healthy individuals older than 18 years of age with a best-corrected visual acuity (BCVA) of <1.0 logarithm of minimum angle of resolution (logMAR) and no ongoing or prior history of ocular or systemic disease.
Autostereoscopy for vision screening
The autostereoscopic device is equipped with a 24-inch LCD panel, which has a full high-density resolution of 1920*1080 pixels. The display density of the screen is 92 PPI. As the LCD signals are sampled at 120 Hz with a time-sequential control synchronized with the backlight, 60 Hz images or videos viewed by each eye also have 1920*1080 pixels. Hence, the minimum pixel size is 0.027 cm, which has a minimum angle of approximately 0.94’ at 1 m.

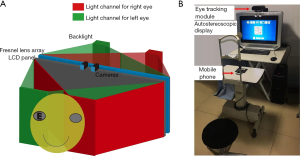

The autostereoscopic device is equipped with intelligent eye-tracking cameras to direct the eye chart to the designated eye (Figure 1A). The amount of crosstalk between the left and right channels can be as small as 3%.
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/16/articles/56123/public/56123-PB7-9120-R1.png/w300)
The device is equipped with a mobile phone or a leap motion device to detect gestures (Figure 1B), which is used to record the subject’s test results on the desktop and collect the subject’s responses to the vision test items. The autostereoscopic and mobile devices can be connected with either Bluetooth or wireless connections, such as 4G or 5G. The collected data can be received by a desktop system equipped for autostereoscopy. For the convenience of the subject, an app with a user-friendly interface is used to provide instructions on how to use the autostereoscopic device.
For convenient rapid screening, all vision data are obtained with the subject in a particular position away from the autostereoscopic LCD. In this experimental setup, the subject is required to sit in front of the autostereoscopy LCD, which is positioned 1 metre away from the subject (Figure 1B). Eye-tracking technology helps detect the subject’s retina for accurate assessments.
Visual acuity
For the accurate measurement of visual acuity, the viewing distance should be accurately specified. In practice, a subject might move from the ideal location, even unintentionally, so the viewing distance must be measured, and the subject must be informed to remain at that distance. For actual measurements, head support will help fix the subject’s location. The letter “E” and white blank pictures were displayed on the screen (Figure 2), which could be seen by only a single eye.
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/16/articles/56123/public/56123-PB8-7970-R1.png/w300)
The eye chart used in this study was a tumbling E chart. The letter E, ordered from large to small sizes and rotated by various degrees, appeared randomly on the screen. After viewing the letter, the subject indicated the direction in which the E was rotated using a wireless mobile unit with “up”, “down”, “left” and “right” as the inputs, and the inputs were compared with the correct direction. The assessment of visual acuity was terminated when 3 incorrect readings were detected. The results were recorded as logMAR BCVA.
Colour vision

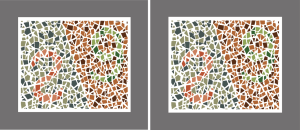

The test for colour vision was fairly simple and straightforward. It followed the same procedure as that for the visual acuity assessment. The pattern for colour vision testing adopted in this study is shown in W Figure 3. The results were recorded as normal, anerythropsia, deuteranopia, or protanopia anerythrochloropsia.
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/16/articles/56123/public/56123-PB9-9629-R1.png/w300)
Stereo vision

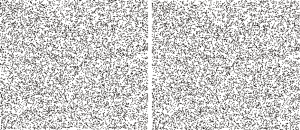

Stereo vision, or stereopsis, is the coordinated effect of both eyes; therefore, slightly different videos or pictures are received by the left and right eyes to produce 3D perception. In our initial setup, we used a stationary picture of a 3D object against a flat background (Figure 4). As stereo vision was measured with the image of an object popping out of a similar background, the random dot stereo acuity was quantitatively measured using objects. The objects were a triangle, a circle, and a diamond, and the subjects were asked to indicate which object was hidden the image of random dots. The degree to which the objects popped out of the screen was used to measure stereo acuity. For this paper, the minimum measurable stereo acuity was 57’’. The result was recorded as the stereoacuity.
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/16/articles/56123/public/56123-PB10-9777-R1.png/w300)
Binocular balance

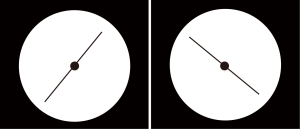

Binocular balance reflects whether each eye plays an equal role in viewing an object. Binocular balance can be measured with a Bagolini striated lens. In this study, the Bagolini striated lens test was well simulated by two pictures, one of which presented a 45-degree diagonal line, while the other presented a 135-degree diagonal line (Figure 5). These two pictures were displayed through the left and right channels. Binocular balance was assessed according to how many lines the subject could see and the degree of the line. The result was recorded as binocular balance or binocular suppression.
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/16/articles/56123/public/56123-PB11-4321-R1.png/w300)
Test procedures
Standardized protocols for data collection, including the training of study personnel, were performed to minimize interobserver variability when multiple individuals were gathering and entering data. The repeatability of the autostereoscopy test was assessed after an interval of 24 hours by a single examiner with recruited participants. Next, the autostereoscopy test and the Early Treatment Diabetic Retinopathy Study (EDTRS) English chart placed at a distance of 5 m were used to compare the differences in logarithm of the minimum angle of resolution (logMAR) visual acuity. Then, in the interrater reliability test, two testers measured the visual acuity of one subject, and the intraclass correlation (ICC) value was calculated. Moreover, likeability and visual fatigue were assessed with a simple 5-point grading questionnaire and compared between the EDTRS chart and the autostereoscopy test. Finally, work efficiency was evaluated by calculating the testing time. For the assessment of monocular visual acuity, one channel of the autostereoscopy display was programmed with the appropriate chart or video. For the assessment of binocular vision, the same pictures or videos were sent to both eyes to assess colour vision, while slightly different pictures or videos were sent to both eyes to assess stereo vision and binocular balance.
Statistical analysis
Statistical analysis was performed using SPSS software, version 22 (IBM, Inc., Armonk, NY). Visual acuity scores were analysed in logMAR. The stereo vision result was recorded as stereoacuity, which had three levels of 63’’, 100’’, and 200’’. Colour vision was recorded as normal, anerythropsia, deuteranopia, or protanopia anerythrochloropsia. Binocular balance was recorded as binocular balance or monocular suppression. Stereo acuity was analysed as an ordinal categorical variable, while colour vision and binocular vision were analysed as unordered categorical variables. The rank-sum test was used to determine the difference in accuracy between the autostereoscopy test and the traditional methods. Limits-of-agreement plots (Bland-Altman plots) were used to assess the difference in measurements between two sessions conducted on different days. A paired t-test was used to test the differences in likeability, visual fatigue score and testing time between the autostereoscopy test and the traditional methods. Cases with missing data were deleted. P values less than 0.05 were considered significant.
Results

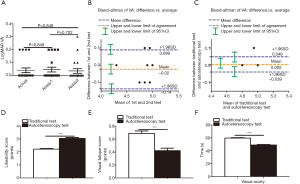

A total of 157 healthy subjects (78 females and 79 males) aged 5–68 (32.8±11.7) years old were enrolled. For the repeatability test, the visual acuity measured with autostereoscopy was 0.045±0.018 and 0.035±0.018 (P=0.702) in the first and second tests, respectively (Figure 6A), and the 95% limits of agreement spanned from −0.14 to 0.09 for logMAR visual acuity, which was not significantly different from 0 (Figure 6B). The colour vision, stereo vision, and binocular vision results were qualitative and were the same for the autostereoscopy test and the traditional methods.
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/16/articles/56123/public/56123-PB12-9219-R1.png/w300)
The mean logMAR visual acuities measured with the EDTRS chart and the autostereoscopy test were 0.04±0.02 and 0.05±0.02, respectively, which were not significantly different (P=0.849), and the 95% limits of agreement spanned from −0.039 to 0.049 for logMAR visual acuity, which was not significantly different from 0 (Figure 6C). The correlation between these two kinds of tests was statistically significant (Spearman correlation coefficient =0.829, P<0.001). The median (25%, 75%) stereo vision measured with the random dot 3S stereo acuity test and the autostereoscopy test were 63” (63”, 63”) and 63” (63”, 63”), respectively, which were not significantly different (P=0.411). The stereo test had three levels of 63”, 100”, and 200”. The proportions were 95.8%, 2.5%, and 1.7% for the random dot 3S stereo acuity test and 92.4%, 3.7%, and 3.8% for the autostereoscopy test, respectively, and the coincidence rate was 93.83%. The correlation between the two kinds of tests was statistically significant (Spearman correlation coefficient =0.829, P<0.001).
Regarding likeability, the EDTRS chart and autostereoscopy test had scores of 2.21±0.53 and 3.04±0.07, respectively (P<0.001), while the scores for colour vision, stereo vision, and binocular vision with the traditional test and the autostereoscopy test were 2.02±0.59 and 3.36±0.93, respectively (P<0.001), indicating that the autostereoscopy test was more popular (Figure 6D).
For the visual fatigue evaluation, the mean visual fatigue scores were 0.69±0.04 and 0.42±0.04 (P<0.001) for the EDTRS chart and autostereoscopy test, with scores of 3.95±0.30 and 1.51±0.50 (P<0.001) for colour vision, stereo vision, and binocular vision, respectively, indicating that the latter test did not induce considerable visual fatigue (Figure 6E).
Regarding work efficiency, the testing times were 59.65±0.66 and 48.92±0.86 s (P<0.001) for the EDTRS chart and autostereoscopy test, respectively. For colour vision, stereo vision, and binocular vision, the testing times were 378.49±144.48 and 251.36±97.74 s (P<0.001) for the traditional test and the autostereoscopy test, respectively (Figure 6F).
The autostereoscopy test was conclusively shown to be a valid, efficient and repeatable tool for the measurement of colour vision, stereo vision, and binocular vision, and the process was found to be subjectively well liked and comfortable.
Discussion
There are a variety of standard ophthalmic examinations that can be performed in the clinic; however, most of them are paper tests, and the methods for collecting the assessment data are ineffective (17,25). The functionality of these examinations is very simple; however, functions such as stereo vision and binocular balance cannot be assessed with a simple paper eye chart, and special equipment must be used to assess different visual functions. For the stereo vision test, polarizing glasses and red-green glasses can be used to assess one eye at a time on the monocular test without additional occluding plates, and the use of glasses might have an artificial effect on actual visual acuity. Autostereoscopic displays send separate images to the left and right eyes so that viewers can perceive 3D effects without wearing assistive glasses.
The conventional autostereoscopic display consists of either a lenticular lens array (26) or a barrier array (27) to deliver different images to each eye. These two methods have two common drawbacks: reduced resolution and a large amount of crosstalk (28,29). The display resolution is directly related to visual acuity. It should be noted that the actual resolution should be determined by the examined eye rather than by screen resolution, which depends on technical aspects of the autostereoscopic display used in the test. On the other hand, minimizing the crosstalk between the left and right channels of an autostereoscopic device is very important to guarantee that vision screening can be effectively and independently conducted for the left and right eyes (7). Furthermore, large amounts of crosstalk might cause severe visual fatigue in some subjects, and it is likely that some subjects, including some children, might reject the use of autostereoscopy for assessments. The autostereoscopic device used in this experiment adopted directional backlight technology, which can control the amount of crosstalk to less than 3%. Moreover, with the interactive connection of the autostereoscopic device with a mobile unit or gesture recognition software, massive amounts of data from eye examinations can be rapidly recorded, stored and retraced from desktop and cloud storage systems.
Usually, monocular vision screening assessments are performed by sending a programmed standard eye chart into the right channel, which is received by the designated eye. To reduce the artefacts arising from crosstalk, a programmed white blank picture is sent to the other eye so that possible crosstalk will be immersed by the large background and will not be visible to the wrong eye. This method has been shown to be effective in eliminating residual optotypes, even though the other eye is not covered at any time during the assessment. On the other hand, for the assessment of binocular visual function, such as stereo vision and binocular balance, two different pictures or videos are sent to both eyes to produce a sense of depth related to 3D perception.
Notably, the eye-tracking technique is very important; although subjects are required to sit without moving, their retinas might still move around, which would affect the test results. To eliminate the assessment uncertainties caused by the subject’s movement, an eye-tracking technique was applied. With this technique, two front cameras were used to determine the exact location of the retina, and the test pictures or videos were sent to the subject’s eyes to detect any possible movement, hence enhancing the accuracy of the examination. Furthermore, the eye-tracking technique can be used to instantaneously detect a subject’s movement using state-of-the-art eye-tracking technique with motion prediction to produce a flicker-free viewing experience (30,31).
In the current study, the repeatability, accuracy, and inter-visit variability were good, and there was a good correlation between the autostereoscopy assessment and the traditional test, which suggests that the autostereoscopy assessment can accurately assess visual acuity. Moreover, the mean difference between the autostereoscopy assessment and the traditional test was not statistically significant. Although visual acuity screening is often limited by issues of recognition and resolution acuity, this study found that the autostereoscopy assessment could be performed in individuals as young as 5 years old. Despite its inherent limitation as a subjective screening device that requires feedback from the examinee, the autostereoscopy assessment has advantages over other vision screening modalities. One advantage is that it does not require individuals to cover one eye, so the assessment is sanitary, fast, efficient and convenient, and the testing time was faster than that of the traditional test. Another advantage is that it uses interactive software that increases interest, which is beneficial for its clinical application and popularization; thus, it was more popular among the subjects than the traditional test. The interactive software is fast, convenient and sanitary, and it has the potential to assess a subject’s colour vision, stereo vision and binocular balance within a few minutes. Moreover, it should be noted that future assessments can be conducted with a desktop computer with a high-resolution PPI screen, resulting in even higher accuracy for various applications.
Conclusions
Autostereoscopy assessment was shown to be reproducible, accurate, subjectively well-liked and comfortable and fast, and it is expected to be used widely in clinics.
Acknowledgments
Funding: This work was supported by the Key Area Research and Development Program of Guangdong Province (No. 2019B010152001) and the National Science Foundation of China (No. 11534017, No. 61991452).
Footnote
Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-3555.
Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-3555. The authors confirm that the data supporting the findings of this study were made available from a third-party network disk immediately upon publication.
Peer Review File: Available at http://dx.doi.org/10.21037/atm-20-3555
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-3555). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work and for ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional review board of Zhongshan Ophthalmic Centre of Sun Yat-sen University (IRB-ZOC-SYSU). All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s). Written informed consent was obtained from the patients for the publication of this study and any accompanying images. A copy of the written consent form is available for review by the editor-in-chief of this journal.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
