A novel prognostic nomogram for patients with surgically resected perihilar cholangiocarcinoma: a SEER-based study

Introduction

Cholangiocarcinoma (CCA) is a hepatobiliary carcinoma with features of cholangiocyte differentiation, and is the most common malignancy of biliary origin (1-3). Clinically, CCA can be divided into intrahepatic cholangiocarcinoma (iCCA), perihilar cholangiocarcinoma (pCCA), and distal cholangiocarcinoma (dCCA) subtypes, according to tumor location (4,5). These three subtypes of CCA differ not only in their anatomical locations, but also in their pathology, epidemiology, and treatment options (3,6). The largest subtype of CCA is pCCA, accounting for more than 50% of the incidence of CCA (7). For pCCA that is detected early, thorough surgical resection is the most effective method to improve patient survival (6,8), along with lymph node (LN) dissection (6). Therefore, establishing a link between the degree of LN dissection and the overall survival (OS) of patients with pCCA is particularly important for accurately predicting prognosis.

Currently, the most commonly used LN staging system is the N stage system proposed by the American Joint Committee on Cancer (AJCC) (9,10). In the 7^th edition of the AJCC staging system, the definition of LN staging was based on the location of the LNs to be dissected, where LN metastasis around the tumor was classified as N1, and further LN metastasis was classified as N2 (9). The 8^th edition of the AJCC LN staging system is based on the number of positive lymph nodes (PLNs) (10). Although the AJCC has proposed this new LN staging system, its clinical effectiveness remains to be determined. The degree of actual LN dissection during surgery may affect the number of PLNs detected (11,12). To address the impact of the number of LN dissections on the detection of PLNs, experts have proposed new methods for improving the staging system of LN metastasis. For example, lymph node ratio (LNR) is considered to be a prognostic LN staging criterion for many types of tumor, including colorectal cancer and thyroid cancer (13-15). Log odds of positive lymph nodes (LODDS) was first shown to be associated with the prognosis of stage III colon cancer in 2008, has subsequently proven to be a good predictor of patient prognosis in a variety of tumors, and therefore, is considered to be an effective LN staging system (15-17).

A nomogram is an emerging tool that uses independent prognostic factors acquired from multivariate regression analysis to predict the OS of different cancer types (11,18-20). In the present study, univariate cox regression analysis showed that four different N staging systems (AJCC 7^th and 8^th edition N stages, LODDS, and LNR) were independent prognostic factors for pCCA. We then evaluated whether LODDS was the most effective system for LN staging by using three different models: Harrell’s index of concordance (C-index), the Akaike information criterion (AIC), and the area under the receiver operating characteristic (ROC) curve (AUC). Based on LODDS and other independent prognostic factors, we established a novel nomogram for predicting OS in patients with surgically resected pCCA. We present the study in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-3130).

Methods

Patient selection

We collected the clinical data of patients with pCCA between 2004 to 2016 from the SEER database (http://seer.cancer.gov/). This database covers approximately 28% of the US population and 97% of tumor categories. The exclusion criteria for patient data were as follows: patients without a pathological diagnosis; patients who did not undergo surgery or patients without surgery information; patients with uncertain LN resection or missing information concerning regional node examination; patients with unclear data about sex, race, pathological grade or tumor size; patients without specific tumor-node-metastasis (TNM staging). Because information related to the AJCC 7^th edition N staging system could not be obtained from 2004 to 2009, we used the collaborative staging (CS) LN system [2004–2015] from the SEER database to transfer the N stage into the 7^th N stage, and then excluded patients without specific TNM staging. Our data selection method is shown below in Figure 1. The selected patients were randomly divided into a validation cohort and a modeling cohort by a ratio of approximately 1 to 3, similar to previous studies (18,21). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) (22). This project received an ethical exemption from the Ethics Committee of Zhongshan Hospital Affiliated to Fudan University. The SEER database is an open access database, and all patient information has been de-identified, so informed consent was waived.

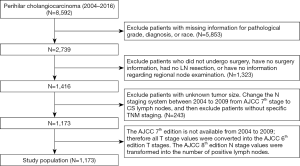

Figure 1 Flow diagram of the study selection process. AJCC, American Joint Committee on Cancer; CS, collaborative staging; TNM, tumor-node-metastasis.

Several variables were examined, including sex, race, age of diagnosis, tumor size, AJCC TNM stage, histology, pathological grade, radiation, and chemotherapy. The AJCC TNM staging system was used to identify the stage of pCCA. Although the AJCC T stage did not change from the 7^th to the 8^th edition, it differed from the 6^th edition AJCC T stage, and could therefore only be transferred from the 7^th edition to the 6^th edition. Because a portion of the data were collected prior to 2010, we used the AJCC 6^th edition T staging system instead of the 7^th edition to establish our prognostic model. M stage has remained unchanged since the AJCC 6^th edition, hence we used the 8^th edition. The AJCC 8^th edition N stage values were transformed into the number of PLNs: 0 for N0, 1–3 for N1, and 4 or more for N2. The variables CS tumor size and tumor size (2016+) were used to extract tumor size. The best cutoff for tumor size was calculated using X-tile software, and tumor size was grouped as <1.7, 1.7–3.3, and ≥3.4 cm (Figure S1A,B,C) (23).

LODDS and LNR systems

LODDS was calculated by using the following formula: log[(0.05 + amount of PLNs)/(0.05 + amount of negative LNs)]. LODDS in our cohort ranged from –3.11 to 2.45. Meanwhile, LNR was calculated by using the following formula: amount of PLNs/amount of resected LNs. We used the X-tile software to derive the best cutoff for LNR and LODDS (Figure S1D,E,F,G,H,I) (24). LODDS was divided into LODDS1 (–3.11 to –1.32), LODDS2 (–1.32 to –0.39), and LODDS3 (–0.39 to 2.45). LNR was divided into LNR1 (0–0.06), LNR2 (0.06–0.27), and LNR3 (0.27–1).

Statistical analysis

Statistical analyses were carried out using R software version 3.6.1 (The R Foundation for Statistical Computing, Vienna, Austria) and SPSS 20.0 (SPSS Inc., Chicago, IL, USA). Pearson’s Chi-squared test was used to compare clinical characteristics. The univariate and multivariate analyses were conducted using Cox proportional hazards regression model, and hazard ratio (HR) and 95% confidence interval (CI) were obtained. Statistically significant variables (P<0.05) from the univariate analysis were brought into the multivariate analysis. The C-index, AIC, and AUC values were used to compare the prognostic ability of the AJCC 7^th and 8^th edition N stages, LODDS, and LNR for pCCA. The Kaplan-Meier method was used to estimate OS according to the four N stages, and survival curves were analyzed using the log-rank test. P values were calculated using two-tailed tests, and a P value <0.05 was considered statistically significant.

The rms package within R was used to formulate the nomogram according to LODDS and other independent prognostic factors from the multivariate analysis. Consistent with previous studies, C-index, ROC curves, and calibration curves were used to evaluate the nomogram (18).

Result

Clinicopathological characteristics of patients

In total, 1,173 eligible patients with surgically resected pCCA from 2004 to 2016 were included in the study as the initial cohort. From the initial cohort, patients were then separated into a modeling cohort and an internal verification cohort, with 881 and 292 patients respectively. The clinical and pathological characteristics of patients are listed in Table 1. No significant differences were found between the two cohorts in regards to clinical characteristics and treatment methods. Patients over 65 years old were considered elderly, with 716 patients older than 65 years old (61.0%) and 457 patients younger than 65 years old (39.0%). Overall, 717 (61.1%) patients were male, and the most common race was white (896, 76.4%). The most common tumor grade was moderately differentiated (617, 52.6%), followed by poorly differentiated (380, 32.4%). According to the AJCC TNM cancer staging system, the majority of patients were classified as T3 (510, 43.5%) and M0 (1,130, 96.3%). For tumor size, 643 (54.8%) patients had a tumor size smaller than 1.7 cm, and 270 (23.0%) patients and 260 (22.2%) patients had a tumor size of 1.7–2.3 and ≥3.3 cm, respectively.

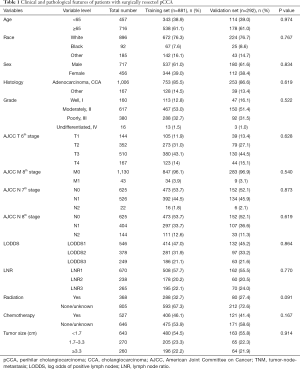

Table 1 Clinical and pathological features of patients with surgically resected pCCA
Full table

Comparing different N stages in the prognosis of pCCA patients after surgical resection

In total, the median follow-up time was 19 (range: 0–155) months and the median OS was 23 months (95% CI: 20.98–25.02). In the training set, the univariate analysis showed that age, grade, histology, tumor size, T stage, M stage, radiation, chemotherapy, AJCC 7^th and 8^th edition N stage, LODDS, and LNR were significantly correlated with OS (P<0.05) (Table 2). Among the 1,173 patients, 548 (46.7%) patients had LN metastasis. According to the 7^th and 8^th edition AJCC N staging system, 526 (44.8%) patients and 404 (34.4%) patients were N1, respectively, while 22 (1.9%) patients and 144 (12.3%) patients were N2, respectively; LNR and LODDS accounted for 546 (46.5%), 378 (32.2%), 249 (21.2%), 670 (57.1%), 238 (20.3%), and 265 (22.6%) patients from level 1 to 3, respectively. Through Kaplan-Meier survival analysis, we concluded that the four different LN metastasis stages were statistically significant for OS in their respective strata (Figure 2). The C-indexes for the AJCC 7^th and 8^th edition N stages, and LODDS and LNR were 0.598, 0.599, 0.616, and 0.608, respectively. The AIC values of the four N stages were 7394, 7381, 7375, and 7381, respectively. The AUC values of the ROC curve of the four N stages for 3-year OS were 0.661, 0.674, 0.691, and 0.671, respectively. The AUC values of the ROC curve of the four N stages for 5-year OS were 0.651, 0.660, 0.675, and 0.655, respectively (Table 3). LODDS was found to be the optimal staging system in all three evaluation modes, and was therefore considered to be the best LN staging system for evaluating prognosis in pCCA patients.

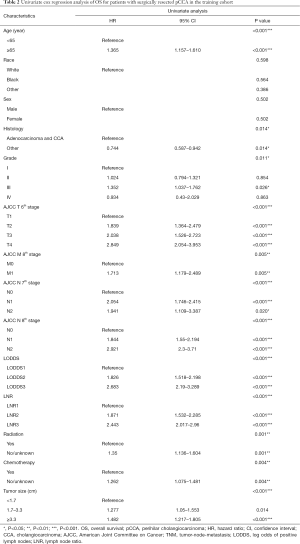

Table 2 Univariate cox regression analysis of OS for patients with surgically resected pCCA in the training cohort
Full table

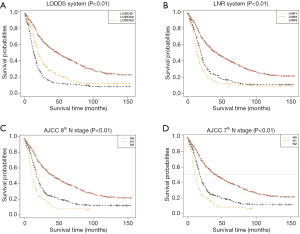

Figure 2 Kaplan-Meier curves stratified by four different N staging systems. (A) LODDS system, (B) LNR system, (C) AJCC 8^th N stage, (D) AJCC 7^th N stage. LODDS, log odds of positive lymph nodes; LNR, lymph node ratio; AJCC, American Joint Committee on Cancer; OS, overall survival.

Table 3 Comparison of the prognostic efficacy of four LN staging systems
Full table

Constructing prognostic nomograms for OS

The prognostic nomogram was constructed using LODDS and other independent survival predictors obtained from the results of the multivariate analysis (Table 4, Figure 3). The training cohort was used to construct the nomogram which describes the 1-, 3-, and 5-year OS rates. The C-index for OS prediction was 0.665 (95% CI: 0.628–0.687). The ROC curves for the nomogram-predicted OS at 1, 3, and 5 years are depicted in Figure 4. AUC values in the training cohort were 0.724, 0.719, and 0.710, respectively.

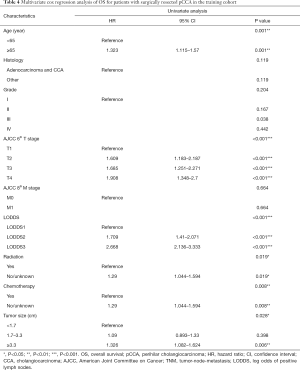

Table 4 Multivariate cox regression analysis of OS for patients with surgically resected pCCA in the training cohort
Full table

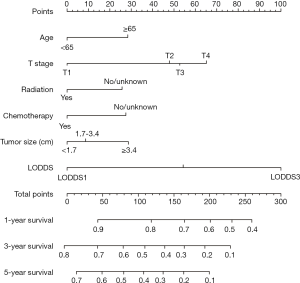

Figure 3 Nomogram for predicting the OS of patients with surgically resected pCCA. OS, overall survival; pCCA, perihilar cholangiocarcinoma; LODDS, log odds of positive lymph nodes.

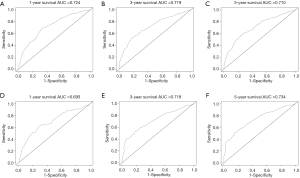

Figure 4 AUC values and ROC curves of the nomogram for the predicted 1-, 3-, and 5-year OS rates for the training cohort (A,B,C) and the internal validation cohort (D,E,F). The X-axis represents the nomogram-predicted OS probability. AUC, area under the curve; ROC, receiver operating characteristic; OS, overall survival.

The results of internal verification showed that the C-index of the nomogram-predicted survival for surgically resected pCCA was 0.650 (95% CI: 0.607–0.693). The calibration curves showed that the above prediction model can accurately predict the 1-, 3-, and 5-year survival probability of pCCA in both the training cohort and internal validation cohort (Figure 5). In the validation cohort, the AUC values of the ROC curve for 1-, 3-, and 5-year OS were 0.693, 0.718, and 0.734, respectively.

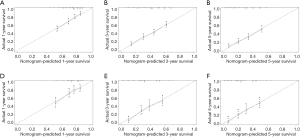

Figure 5 Calibration graphs of the nomogram for the predicted 1-, 3-, and 5-year OS rates for the training cohort (A,B,C) and the internal validation cohort (D,E,F). The X-axis represents the nomogram-predicted OS probability. The Y-axis represents the actually observed OS probability. Diagonal lines represent the ideal nomogram reference. Striped dots represent the nomogram-predicted probability with the 95% CI. OS, overall survival; CI, confidence interval.

Discussion

PCCA accounts for the majority of CCA cases, and surgical resection is the most effective method for improving the OS of patients (7,24). Along with the depth of invasion, tumor size, and pathological stage, LN metastasis is considered to be a critical factor affecting the prognosis of cancer patients, including pCCA patients (7,14,24,25). Accurate methods for linking LN dissection and patient prognosis have remained elusive. The LN staging system provided by the AJCC 7^th edition N stage has been widely used to evaluate LN metastasis and the prognosis of patients (9). In the 7^th edition, it is divided into three stages between N0 and N2 according to the presence and location of LN metastasis: N0 is for no LN metastasis; N1 is for regional LN metastases (including in the common bile duct, cystic duct, hepatic artery, and portal vein); and N2 is for metastasis around the abdominal aorta, the vena cava, superior mesenteric artery, and abdominal LNs (9).

With the advance of clinical research, several studies have emerged suggesting that considering the location of metastasis often ignores the impact of the number of LN metastases (NLNM) on the degree of LN metastasis (26). The AJCC 8^th edition LN staging system confirmed this view (10). The 8^th edition LN staging system is based on the NLNM: N0, non-PLNs; N1, 1 to 3 LNs; N2, 4 or more LNs (10). However, the efficacy of evaluations using the AJCC 8^th edition LN staging system remains to be verified. In addition to the AJCC 8^th edition staging system, there are two other unique evaluation systems used clinically: LNR and LODDS. LNR is calculated as follows: amount of PLNs/amount of resected LNs (14,15). Meanwhile, LODDS is defined as the log of the ratio between the number of positive nodes and the number of negative nodes (11). Different from the AJCC 8^th edition staging system, LNR and LODDS also consider the effect of the total amount of LNs removed during surgery on the amount of PLNs, standardized and converted to NMLN. LNR has its limitations, as all surgically resected LNs are considered positive. For example, whether there is 1 PLN or more than 10 PLNs, the LNR value is always 1. Many studies have also questioned the application of LNR when all resections are positive, which makes it difficult to describe the LN metastasis in this situation (11,12). These limitations contributed to the creation of the LODDS evaluation system. In evaluating LN metastasis, LODDS uses a base number and negative LNs as the denominator, and thus there is a 10-fold difference between 1 positive and 10 PLNs before log changes are made. This means that the LODDS system can be used in situations that cannot be determined by the LNR method. As we can see, different LN staging systems have advantages and disadvantages, and some controversy remains over which LN staging system is the most effective (12,15,26,27).

In the present study, we developed a novel method to evaluate the efficacy of four LN staging systems that predict the OS of patients with surgically resected pCCA: the AJCC 7^th and 8^th edition N staging, LODDS, and LNR. The cutoff values for LODDS and LNR were obtained by automatic fitting using X-tile software (23). This software, developed by Yale University, can provide accurate cutoffs for index stratification, and has been applied in the index stratification for evaluation systems of different diseases (18,28,29). First, through using Kaplan-Meier survival analysis and univariate cox regression analysis, we demonstrated that all four LN staging systems were correlated with OS in patients with surgically resected pCCA (P<0.05). After calculating C-indexes, AIC values and AUC values, we found LODDS to have the best prognostic evaluation results of the different evaluation systems. This is consistent with the results of previous studies (11,27). For example, Xiao et al. (11) used SEER data from 1,321 patients with surgically resected gallbladder cancer to determine that LODDS had better OS predictive accuracy than other LN staging systems, like LNR. Furthermore, using data from 118 patients with pCCA, Conci et al. (27) demonstrated that LODDS was the most effective staging system compared to other LN staging systems. Along with other independent prognostic factors, we then established a nomogram based on LODDS for the prediction of prognosis in patients with surgically resected pCCA. We then used the C-index, calibration curves, and ROC curves of an internal verification cohort to confirm that our nomogram could accurately evaluate the prognosis of patients with pCCA. Therefore, to the best of our knowledge, our study is the first population-based, SEER-based study that compares different LN staging systems for patients with surgically resected pCCA.

We acknowledge several limitations in this study. Firstly, this study used retrospective data from the SEER database, which might have lead to selection bias. Secondly, although we used a large sample of data from the SEER database for comparison and modeling, we utilized an internal verification cohort to develop the nomogram. Validation using other external data should be performed to provide further evidence of predictive accuracy. Thirdly, we were unable to obtain data concerning the AJCC 7^th edition T stage from the SEER database between 2004 to 2009. Evaluation of the infiltration depth in our nomogram was based on the AJCC 6^th edition, which might have reduced the model’s predictive accuracy. In future studies, further verification of the effectiveness of LODDS in clinical prognostic evaluations is needed through prospective studies, along with use of more detailed pathological information.

In conclusion, for patients with surgically resected pCCA, LODDS was determined to be the most effective LN staging system. Our nomogram, based on LODDS, is an accurate and convenient method for the assessment of prognosis in patients with pCCA.

Acknowledgments

We would like to express our gratitude to the SEER program for providing free access to the database.

Funding: This study was supported by grants from the Research Project of Zhongshan Hospital, Fudan University (2016ZSFZ43).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-3130

Conflicts of Interest: Both authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-3130). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This project received an ethical exemption from the Ethics Committee of Zhongshan Hospital Affiliated to Fudan University. The SEER database is an open access database, and all patient information has been de-identified, so informed consent was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
