Risk factors for cage retropulsion after transforaminal lumbar interbody fusion in older patients

Introduction

Transforaminal lumbar interbody fusion (TLIF) was first developed by Harms and Rolinger in the early 1980s as a modification of posterior lumbar interbody fusion (1). TLIF has since been widely used to treat degenerative lumbar diseases. When achieving intervertebral fusion by a cage with auto-cancellous bone or allo-bone, it also provides anterior column support, restores the disc height, and decompresses the nerve root through reconstruction of the neuroforaminal height (2-4).

Despite the benefits of TLIF, however, a couple of complications have been reported in relation to the cage used in the procedure; one such complication is cage retropulsion (CR) (5). Several elements have been reported to be possible risk factors for CR, such as bilateral facetectomy, multi-level fixation, fusion involves S1, an undersized cage, and a cage malpositioning. The incidence of CR is reported to be about 1% (0.8–1.3%), which is low and should be attributed to posterior fixation (6-9). Because strong fixation contributes to cage fusion with vertebrae. Therefore, any factors that compromise the strength of cage fixation, such as screw loosening caused by osteoporosis, could-at least theoretically-result in CR. However, as bone mineral density (BMD) tests are not a conventional preoperative examination for patients undergoing TLIF, especially in elderly patients, a conclusion on whether osteoporosis and CR are related has not been reached.

Hence, the present study aimed to investigate the incidence of CR in older patients undergoing TLIF, and to explore the risk factors for CR following TLIF in elderly patients.

We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-7416).

Methods

Patient enrollment

This retrospective study was approved by the Institutional Review Board of Beijing Jishuitan Hospital (202007-24). All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). Individual consent for this retrospective analysis was waived.

Between January 2015 and December 2017, 1,880 patients who underwent TLIF for lumbar degenerative disorders were enrolled and their clinical outcomes were analyzed. The inclusion criteria were: (I) patients aged ≥60 years; and (II) a diagnosis of: spinal canal or foraminal stenosis, degenerative spondylolisthesis, isthmic spondylolisthesis, recurrent disc herniation or stenosis after previous surgery, or degenerative disc disease. The exclusion criteria were: (I) patients with spinal scoliosis; (II) patients who underwent oblique interbody fusion or a minimally invasive TLIF procedure; (III) patients who suffered from deep surgical site infection postoperatively. All patients underwent preoperative quantitative computed tomography (QCT) for the measurement of BMD. The criterion used to diagnose osteoporosis was a QCT value of <80 mg/cm³, which is equivalent to a dual-energy X-ray absorptiometry (DXA) T-score of −2.5 for the diagnosis of osteoporosis (10).

Surgical technique and equipment

The consistent TLIF procedures were performed by our experienced surgeons. A midline incision was made to expose the posterior elements and lateral aspects of the facets on both sides. Following bilateral pedicle screw fixation, ipsilateral laminotomy and facetectomy were performed to expose the intervertebral disc. Lateral recess and nerve root canal decompression were also carried out. The single cage was routinely inserted on the side with major symptoms. If the symptoms were equal on both sides, bilateral facetectomy and cage insertion were deemed necessary. After meticulous discectomy and thorough endplate preparation, the autologous bone graft from resected bone was milled and packed into the disc space, then, the fusion cage packed with milled bone was inserted into the disc space. To increase the local stability, appropriate compression was applied through the pedicle screws and rods. Finally, a C-arm was employed to confirm that all implants were positioned correctly. The cages used in this study were CONTACTTM Fusion Cage (titanium, Depuy Synthes, Raynham, MA, USA), Concorde (carbon fiber, Depuy Orthopaedics Inc., Warsaw, IN, USA), and Capstone (PEEK, Medtronic Sofamor Danek, Memphis, TN, USA).

Radiological assessment

CR was defined as the movement of the posterior margin of the cage into the spinal canal behind the posterior margin of the vertebral body (5). Screw loosening was defined as pull-out of a pedicle screw on lateral radiography or a radiolucent area around the screws detected by computer tomography (CT) at the follow-up. According to the definition from a previous study (5), a pear-shaped disc was defined as a disc with a convex surface in the posterior halves of the superior and inferior endplates with a concave surface in the anterior halves. An endplate injury was defined as the cage breaching into the cortical endplate on the X-ray immediately after surgery (9). Information regarding the type and height of the cages were documented from patients’ medical records. The disc height was defined as the distance between the midpoints of the superior and inferior endplates from the preoperative sagittal image reconstruction of CT scan. An X-ray was conducted within 1 week after surgery, and at 3, 6, 12, and 24 months after surgery, respectively. If the X-ray showed suspicious screw loosening, a CT scan was performed.

Statistical analysis

Statistical analyses were performed with SPSS 22.0 (IBM Corp., Armonk, NY, USA). The Shapiro-Wilk test was used to assess the normality of age and cage-disc height data. Data with normal distribution were described as the mean ± standard deviation, while non-normally distributed data were described as the median (inter-quartile range, IQR). Differences in age and cage-disc height were compared between two groups using the independent samples t-test and Mann-Whitney U test, respectively. Categorical variables were described as numbers and percentages, and were compared between groups using Pearson’s Chi-squared or Fisher’s exact test. For the multivariate analysis, binary logistic regression was conducted using variables with statistical significance in the univariate analysis as independent variables. A P value <0.05 was considered to be statistically significant.

Results

Of the 1,880 older patients who underwent open TLIF, 218 patients were excluded due to unavailable medical records, incomplete data, or loss to follow-up. Finally, 1,662 patients (692 males and 970 females) were included in this study. These patients had an average follow-up of 26.1±8.8 months (range, 12–43 months). After surgery, CR occurred in 29 patients (11 males and 18 females), with a postoperative incidence of 1.74%. The mean time of CR occurrence was 3.1±2.1 months after surgery (range, 4 days–8 months). Of the 29 patients who developed CR, 12 had spinal stenosis, 7 had degenerative spondylolisthesis, 5 suffered degenerative disc disease, 3 suffered a surgical history, and 2 encountered isthmic spondylolisthesis. Twenty of these patients underwent single-segment spinal fusion, and the remaining 9 received fusion at 2 levels or more. There were no significant differences in age, sex, diagnosis, or fusion level between the CR and non-CR groups (P>0.05). The patients’ characteristics are summarized in Table 1.

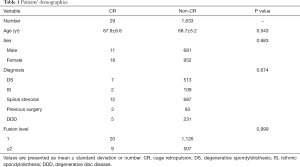

Table 1 Patients’ demographics
Full table

Clinical and radiological outcomes

Among the 29 older patients with CR, 21 patients reported lower back pain and/or sciatica (72.4%), and 8 patients were asymptomatic (27.6%). Of the 21 patients with symptoms, 7 showed a good response to conservative treatments, while the other 14 patients had to undergo revision surgery due to intractable pain and/or radiculopathy. Osteoporosis was diagnosed in 72.4% patients (21/29), while screw loosening and endplate injury were observed in 16 and 15 patients, respectively. Significant differences were found in the distribution of screw loosening (χ²=43.709, P<0.001), endplate injury (χ²=25.628, P<0.001), and cage type (χ²=6.929, P=0.031) between the CR group and the non-CR group. However, no significant difference was observed in the incidences of osteoporosis, pear-shaped disc, cage-disc height, cage number, or fusion level between the two groups (all P>0.05) (Table 2).

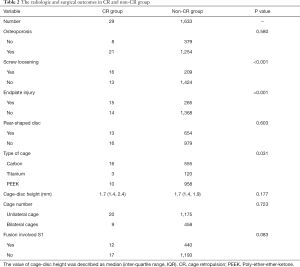

Table 2 The radiologic and surgical outcomes in CR and non-CR group
Full table

Multivariate analysis of potential risk factors for CR

The potential risk factors for CR after TLIF were analyzed in the 29 patients in the CR group. The univariate analysis showed that screw loosening, endplate injury, and cage type were associated with CR. However, in multivariate analysis, only screw loosening [odds ratio (OR): 7.315; 95% confidence interval (CI): 3.412–15.684; P<0.001] and endplate injury (OR: 4.947; 95% CI: 2.312–10.584; P<0.001) were found to be significantly associated with CR occurrence (Table 3, Figures 1,2).

Table 3 Multivariate analysis on the cage retropulsion
Full table

Figure 1 A 71-year-old female was diagnosed with degenerative spondylolisthesis and underwent L4/5 transforaminal lumbar interbody fusion (TLIF). (A,B,C) Pre-operative radiological examination; (D) lateral radiograph 4 days postoperatively; (E) cage retropulsion (CR) at L4/5 and screw loosening 3 months after surgery; (F) computed tomography images showed the posterior edges of both cages were behind the posterior edge of the vertebral body; (G) lateral radiograph 7 days after revision surgery. More pedicle screws were inserted using the cement-augmentation technique, and the retropulsed cages were not revised, as the patient’s chief complaint was lower back pain rather than radiculopathy; (H,I,J) lateral radiographs obtained at 1, 2, and 3 years after revision surgery, respectively. The position of cages was maintained and no screw pull-out occurred.

Figure 2 A 73-year-old female underwent L4/5 transforaminal lumbar interbody fusion (TLIF) before admission. The patient was diagnosed with degenerative disc disease at L5/S1 and underwent in situ TLIF and L4–S1 bilateral posterior instrumentation. She reported sudden severe tingling along the left lower extremity on the 4th day postoperatively. Computed tomography (CT) did not show hematoma, but cage (13 mm × 27 mm) retropulsion and endplate injury were detected. The revision surgery included repositioning by punching the cage into the disc space and effective compression to the disc was achieved through forcefully compressing the pedicle screws along the rods again. However, the patient’s radiculopathy recurred and CT revealed screw loosening and cage retropulsion (CR) recurrence after 3 months. During the second revision, the retropulsed cage had to be removed, and the loosened left S1 screw was revised. At last, the definite bone resorption was verified from the CT 1 year postoperatively. (A,B) Preoperative radiological examination; (C,D) CT showed CR and that part of cage had breached into the cortical endplate; (E) lateral radiograph taken 4 days after the first revision. The cage was punched into the L5/S1 disc; (F,G,H) CR recurrence and loosening of the left S1 pedicle screw were revealed by CT at 3 months after the revision; (I) lateral radiograph taken 3 days after the second revision. The cage had to be removed and the loosened left S1 pedicle screw was revised; (J) CT image acquired 1 year after the first revision showing the clear bone resorption of the L5 lower endplate.

Discussion

In the present study, the incidence of CR in older patients with TLIF was 1.74%, which is consistent with that reported previously (5,6,9,11). The multivariate analysis verified that screw loosening and endplate injury were significantly associated with CR.

CR is considered to be an early onset complication after surgery (5,7,12). Kimura et al. (5) reported 9 cases of CR among 1,070 patients with posterior fixation, all of whom developed CR within 2 months postoperatively. In the present study, the majority of the CR cases occurred around 3 months after surgery. Therefore, we suggested that patients were followed up at 3 months after the operation. Lee et al. (6) reported that insufficient posterior fixation led to residual inter-segmental instability, which could result in posterior screw loosening and CR. We found that segmental instability due to the failure of earlier screw fixation resulted in CR. Previous studies have also reported inappropriate posterior screw fixation to be a major risk factor for CR (13,14), and this theory is similarly applicable to CR patients who undergo posterior lumbar interbody fusion (15). Other reported risk factors for CR include total facetectomy, inappropriate posterior screw fixation, posterior hardware removal, unilateral pedicle screw fixation, fusion level involved L5/S1, multilevel fusion surgery, cage type and disc space, and osteoporosis (5,13,16). The discrepancy between the findings of previous studies and those of the current investigation may have resulted from other authors paying more attention to the effect of surgical procedures and fixation patterns on the occurrence of CR. However, the influence of the surgeon’s manipulation has largely been ignored, for example, screw loosening resulting from impertinent screw placement in osteoporotic vertebrae and endplate injury during inadvertent discectomy.

The current study failed to uncover a significant association between osteoporosis and CR, which may be due to many of the included osteoporotic patients receiving anti-osteoporosis treatment after admission, and the resulting improvement in BMD might have affected the incidence of CR. Wittenberg concluded that the risk of early loosening of pedicle screws was increased with a BMD of ≤90 mg/mL but decreased with a BMD of ≥120 mg/mL (17). Soshi et al. pointed out there were positive correlations between the screw pull-out force and BMD: when bone cement was used in an osteoporotic vertebral body, a two-fold stronger pull-out force was developed (18). Mo et al. compared cement-augmented pedicle screws with traditional pedicle screws for the treatment of osteoporotic lumbar degenerative disorders, and found that the former showed better fusion and had a lower screw-loosening rate, especially in patients with multi-level fusion (19).

Another contributing factor to segmental stability for cage fusion is the stability of the interface between the cage and vertebral endplate; however, this has been seldomly studied. Studies have highlighted the importance of keeping the bone endplate intact to prevent the cage subsidence or posterior migration (12,19-22). Park pointed out that there was not enough strength to support cage stabilization if endplate injury occurred during TLIF (9). We summarized two indicators of potential endplate injury: (I) the sudden loss of tension when the narrow disc space is distracted, indicating the push-through of the distractor into the endplate defect; (II) cortical or cancellous bone chips detected from the contents following endplate curetting. Rather than continue on the same side, the optimal alternative is to shift to the contralateral side for cage insertion. There are another two approaches for preventing this issue. One is to avoid using the distractor to open the disc space. The other is to adjust the endplate preparation. The anterior two-thirds of the endplate can be prepared with the curette gently, the posterior third of the cartilaginous endplate should be polished gently. Therefore, great attention should be paid on the preparation for the endplate, especially its posterior third portion.

Revision surgery is sometimes inevitable for CR following lumbar fusion (23,24). Technical modification for revision surgery should be advocated to prevent postoperative adverse events. Park recommended the following techniques to prevent cage migration (9): (I) the surgeon should check if the patient has abnormal BMD or pear-shaped disc before performing TLIF; (II) the cage should be inserted into the anterior portion of the intervertebral space and decrease endplate injury; (III) the use of double cages is preferable. Also, we have several clinical suggestions on technical modifications for preventing CR: (I) BMD evaluations should be routinely conducted for TLIF in older patients, and the pedicle screw designed for cement injection should be used in surgery; (II) a distractor should not be used to open disc space, as it may increase endplate injury; and (III) when endplate injury occurs on one side of the intervertebral space, the cage should be placed on the contralateral side. Generally, we suggested patients to perform follow-up at 1, 3, 6, 12 months after surgery. If mild CR was verified by imaging and patient was asymptomatic, we advocated wait-and-see strategy. If severe CR was found due to instrumental malposition like screw loosening, and the patient had corresponding symptoms, we would perform a revision surgery for the patient. Besides, in combination with the status of intervertebral fusion is important. If already fused and nerve compression by cage had occurred, resection of the posterior part of cage or removing the cage was need. If intervertebral fusion had not developed over 6 months and CR was occurrent, it depended on nerve compression. If had nerve compression, we performed revision surgery immediately, the cage would be removed and replaced with a bigger one through the original incision or another lateral approach. If CR was mild and had not nerve compression, we took wait-and-see strategy as well.

This study has some limitations. First, as mentioned above, the osteoporotic patients in our study had received anti-osteoporotic treatments before surgery, which was a confounding factor for determining if a correlation existed between osteoporosis and CR in older patients undergoing TLIF. Second, this retrospective study did not include a control group and different pedicle screws were used in the operations, both of which decreased the accuracy of the data. Third, it was difficult to analyze all the risk factors for CR; therefore, some potential risk factors associated with CR may have been omitted. Hence, more potential risk factors should be included and analyzed for CR in older patients with TLIF.

Conclusions

In this study, the incidence of CR in older patients who underwent TLIF was 1.74%. Screw loosening and endplate injury were found to be independently associated with CR. Intraoperatively, bilateral fixation with screws and rods are advocated to avoid screw loosening. Spine surgeons should improve technical manipulation to decrease endplate injury.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-7416

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-7416

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-7416). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This retrospective study was approved by the Institutional Review Board of Beijing Jishuitan Hospital (202007-24). All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). Individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
