Mechanisms underlying pro-arrhythmic abnormalities arising from Pitx2-induced electrical remodelling: an in silico intersubject variability study

Introduction

Genome-wide association studies have identified genetic variants associated with atrial fibrillation (AF) populations, with the strongest hits clustering on chromosome 4q25, close to the gene for the homeodomain transcription factor 2 (Pitx2) (1). Both under- and overexpression of Pitx2 mRNA have been found to be associated with AF (2,3). In addition, the study of Syeda et al. (4) has demonstrated a Pitx2 mRNA gradient in AF patients requiring AF ablation. Hypertensive rats also have shown an age-dependent decrease of left atrial Pitx2 expressions and the age-dependency of spontaneous atrial tachyarrhythmias, indicating an association between left atrial Pitx2 down-regulation and increased atrial arrhythmogenicity (5). Therefore, mRNA expression levels of Pitx2 might provide information on variability in AF risk.

Linking mRNA changes of membrane effector genes regulated by Pitx2 to action potential (AP) alterations might favor the understanding of mechanisms of AF promotion due to atrial cellular electrophysiological remodelling arising from the variability of Pitx2 (6). Experimental studies have shown that Pitx2 regulated several ion channels (including sodium channel gene Scn5a, calcium channel gene Cacna1c, and potassium channel genes Kcnq1 and Kcnj2) and calcium handling genes (including Ryr2 and Atp2a2) in mutant Pitx2 models (3,4,7,8). Although AP duration (APD) shortening (9), depolarized resting membrane potential (RMP) (4) and triggered activity (8,10) were observed, the ionic and cellular mechanisms may be different because mRNA expression levels might vary with circadian rhythm (11,12), gender differences (13-15) and spatial location within the heart (16).

Both experimental and theoretical studies of the mechanisms underlying Pitx2-induced AF often ignored intersubject variability in atrial electrophysiology properties (2-4,7-10,17-21). Recently, experimentally reported variability was incorporated into mathematical models of biological systems to develop a population of models for investigating cellular electrophysiology (22,23). This approach aimed to provide a new framework to link molecular mechanisms to cellular-level outputs by revealing unique subsets of model parameters linked to known phenotypes of human atrial myocytes (23-28). Simulation studies using populations of models allow exploring potential causes and implications of the cell level variability exhibited in experimental recordings (23,29).

Thus, the equations proposed in the recent human atrial cellular kinetics model (TPA) (20) were considered as the model structure to generate over 30,000 candidate models, all sharing the same equations as in the original TPA model, but with different parameter values for the ionic properties associated with Pitx2 regulation, randomly selected within a wide range. The TPA model population was then calibrated using a set of cellular biomarkers extracted from experimental AP recordings [from sinus rhythm (SR) and AF patients] (23) to capture key AP properties. The experimentally calibrated human atrial AP models in the AF population were divided into triggered and untriggered AP groups which then divided into shortened and unshortened AP groups. Differences between triggered and untriggered AP models were used to quantify the contribution of specific ionic currents to determining intersubject variability in cellular human atrial AP morphology. The shortened and unshortened AP models were then used to identify the ionic mechanisms determining intersubject variability in human atrial APD. Here, we specifically showed that the calibrated cell model population quantitatively predicts triggered activity and AP shortening caused by Pitx2-induced electrical remodelling. The tools may be applied for in silico screening and prediction of drug effects in Pitx2-induced AF patients.

We present the following article in accordance with the MDAR reporting checklist (available at http://dx.doi.org/10.21037/atm-20-5660).

Methods

Mathematical models of the human atrial cell and Pitx2-induced remodelling

The TPA model developed by our group was chosen as a base to construct the computational AP model populations as it is able to reproduce human AP morphology, APD rate dependence and triggered activity, i.e., early afterdepolarizations (EADs), delayed afterdepolarizations (DADs) and spontaneous depolarizations (20). This biophysically-detailed model of human atrial cellular electrophysiology also has been used to investigate mechanisms underlying Pitx2-induced AF (17-20,30,31) and here we provide a brief description. It includes representation of the 13 transmembrane ionic currents and two main intracellular calcium flows, including fast sodium current (I_Na), transient outward potassium current (I_to), rapid delayed rectifier potassium current (I_Kr), slow delayed rectifier potassium current (I_Ks), ultrarapid delayed rectifier potassium current (I_Kur), inward rectifier potassium current (I_K1), L-type calcium current (I_CaL), background sodium current (I_Nab), background calcium current (I_Cab), plateau potassium current (I_pK), plateau calcium current (I_pCa), sodium-potassium pump current (I_NaK), sodium-calcium exchange current (I_NCX), the calcium flow (J_up) through the sarcoplasmic reticulum calcium ATPase (SERCA) and calcium release flow (J_rel). mRNA expression data (3,4,7,8,10) are used to determine directions of changes in ionic conductances in SR versus Pitx2-induced AF cardiomyocytes, as summarized in Table 1. Pitx2-induced electrical remodelling included an increase in I_Na, I_Ks, J_rel and J_up, and a reduction in I_K1 and I_CaL (Figure 1A).

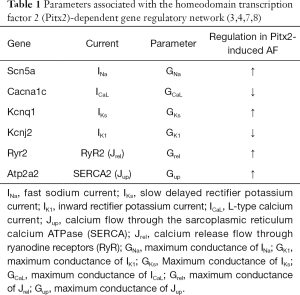

Table 1 Parameters associated with the homeodomain transcription factor 2 (Pitx2)-dependent gene regulatory network (3,4,7,8)
Full table

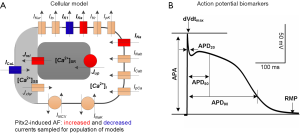

Figure 1 Parameters related to Pitx2-induced electrical remodelling and biomarkers of the action potential. (A) Modifications to the Bai model for simulating atrial fibrillation due to Pitx2-induced electrical remodelling are depicted in red and blue circles (18,20); (B) action potential biomarkers: action potential amplitude (APA), maximum upstroke velocity (dVdt_max), resting membrane potential (RMP), and action potential duration at 20% (APD₂₀), 50% (APD₅₀) and 90% (APD₉₀).

Experimental data and biomarkers

For our experimental dataset, AP recordings from n=254 right atrial appendages of N=214 SR patients and from n=215 right atrial appendages of N=149 AF patients, were published in the previous study (23). In the previous experimental study, right atrial appendages were obtained when patients were undergoing cardiac surgery for coronary artery bypass grafting or mitral/aortic valve replacement. Antiarrhythmic drugs were discontinued before the study. Human myocytes were isolated enzymatically from atrial appendages as previously described (32) and APs were recorded with standard intracellular microelectrodes in atrial trabeculae (33,34). Bath solution contained (in mM): NaCl 127, KCl 4.5, MgCl₂ 1.5, CaCl₂ 1.8, glucose 10, NaHCO₃ 22, NaH₂PO₄ 0.42, equilibrated with O₂-CO₂ [95:5] at 36.5±0.58 °C, pH 7.4. Preparations were regularly stimulated at 1 Hz for at least 1 h before data acquisition (33,34). The following parameters were quantified to characterize intersubject variability in human atrial AP: action potential amplitude (APA), maximum upstroke velocity (dVdt_max), RMP, and APD at 20% (APD₂₀), 50% (APD₅₀) and 90% (APD₉₀) (Figure 1B). Minimum, maximum and mean ± standard deviation values for these biomarkers are presented in Table 2. More information (including ethics approval, informed consent and basic information of participants) regarding the experimental conditions under which the data were collected is available in the study of Sánchez et al. (23).

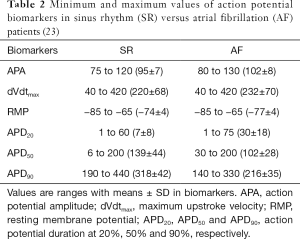

Table 2 Minimum and maximum values of action potential biomarkers in sinus rhythm (SR) versus atrial fibrillation (AF) patients (23)
Full table

Construction of populations of models of human atrial electrophysiology

To capture intersubject variability, populations of sampled models of human atrial electrophysiology for both SR and AF were generated based on the original TPA model. All models in each population shared the same equations but parameters of ionic current conductances in determining the human atrial AP were varied with respect to their original values. These parameters were sampled over a range from −100% to +200% of their original values with the Latin hypercube sampling (LHS) methodology (22) to create 30,000 candidate models that were sufficient for convergence of the sensitivity coefficients for both SR and AF model populations (22). Following the ASME V&V40 Standard proposed by the Subcommittee of the American Society of Mechanical Engineers (ASME) on Verification and Validation (V&V) in Computational Modeling of Medical Devices (35) for developing a structured approach for establishing the credibility of computational models for a specific use, we used the candidate models to simulate human atrial AP by considering stimulation frequency (1 Hz) under the experimental conditions (23) and calculate AP biomarkers of each candidate model. The candidate models generated in the previous step were selected to constitute SR and AF populations whose simulated electrophysiological properties are in range with the same properties in experimental data on AP biomarkers (including APA, dVdt_max, RMP, APD₂₀, APD₅₀ and APD₉₀) in Table 2. This step yields the experimentally-calibrated population of models. The impact of intersubject variability in the 6 Pitx2-induced remodelled targets (2-5,7-10,21) was evaluated using these models in the AF population. These models firstly were divided into triggered and untriggered AP groups to identify the main ion channel conductances involved in the genesis of triggered activity. Triggered patterns were identified when a positive derivative of the membrane potential (36) or a deflection of the membrane potential larger than 1 mV during the diastolic phase (37) was observed. Then, the models in the untriggered AP group were divided into shortened and unshortened AP groups to examine the contribution of each remodelled target to the APD shortening (Figure 2). Shortened patterns were identified when APD₉₀ of the untriggered AP model in the AF population is smaller than that of the AP model in the SR population. In detail, shortened AP patterns were identified when their APD₉₀ is within the range (140–330 ms) of AF data but not within the range (190–440 ms) of SR (Table 2).

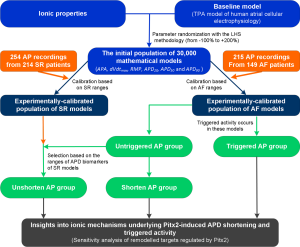

Figure 2 Flow chart illustrating the process behind investigating the proarrhythmic effects of Pitx2-induced electrical remodelling. TPA model: a recent human atrial cellular kinetics model developed by our group (20); AP, action potential; APD, AP duration; SR, Sinus rhythm; AF, atrial fibrillation; Pitx2, the homeodomain transcription factor 2.

Stimulation protocols

The stimulation protocol mimics the one used by Sánchez et al. (23) to obtain AP measurements in SR and AF cardiomyocytes. Cell mathematical models were initially preconditioned by pacing at a basic cycle length of 1,000 ms until the steady-state was reached. A stimulus with an amplitude of −80 µA/cm² and a duration of 0.5 ms is applied at each pace.

Statistical analysis, software, numerical methods and code availability

To quantify the relative importance of ionic conductances in determining changes in the biomarkers, partial correlation coefficients (PCCs) were used on the SR and AF populations to evaluate the role of each ionic current on properties of the whole AP (22). Partial correlation is a method to find correlations between two variables, after accounting for the linear effects of one or more additional variables (38). PCC between x and y, given the set of N additional variables z_i, is then defined as the correlation coefficient between the residuals rx=x−x^and ry=y−y^ (22). x^ and y^ are the respective sample means or the following linear regression models:

x^=c0+∑i=1Nciziandy^=b0+∑i=1Nbizi^[1]

PPC(x,y,zi)=Cov(rx,ry)Var(rx)Var(ry)^[2]

where Cov(r_x,r_y) represents the covariance between r_x and r_y, while Var(r_x) and Var(r_y) are respectively the variance of r_x and variance of r_y.

To evaluate Pitx2-induced remodelled targets influencing arrhythmia proclivity, listic regression was applied to study the mechanisms responsible for the development of tggered activity and AP shortening (39). Statistical significance in differences on ionic conductance distributions between populations was evaluated by using the Mann-Whitney U test. A probability <0.05 was considered statistically significant.

Previous studies have shown that changes in Pitx2 levels lead to electrical remodelling linked to arrhythmogenesis (2) and that Pitx2 regulates membrane effector genes associated with the electrical remodelling in a dose-dependent manner (3,7,8). Therefore, we assumed that changes in the Pitx2 level are translated to the extent of electrical remodelling (including G_Na, G_Ks, G_K1, G_CaL, G_rel and G_up) (3,7,8). The correlation of the Pitx2 levels with the different AF models developed based on Pitx2-induced electrical remodelling was built by evaluating the contribution of remodelled targets (including G_Na, G_Ks, G_K1, G_CaL, G_rel and G_up) to the changes in APs (including unshortened AP, shortened AP and triggered AP). The extent of electrical remodelling was quantified with weights of remodelled targets for classification of different AF subgroups (unshortened, shortened and triggered groups). Here, we used the AF models (as output) and the corresponding remodelled parameters (as input) to train the artificial neural network (40) to determine the weights of remodelled parameters. Based on the correlation of the Pitx2 levels with remodelled parameters observed in previous studies (3,4,7,8,41) and the correlation of remodelled parameters with changes in APs, the correlation of the Pitx2 levels with different AF models was built.

All simulations and data analyses were performed on a computing cluster with Intel(R) Xeon(R) CPU E5-2690 v4 @ 2.60GHz 32 CPUs 28 CPUs (56 threads) + 128GB. The mathematical model (available from the repository CellML http://models.cellml.org/workspace/520) was implemented in MATLAB 2018a (The MathWorks, Natick, MA, USA) using the stiff ordinary differential equation solver ode15s and analysis of biomarkers was also performed using MATLAB. Our user project containing newly created datasets and the simulation codes used in this study is available to download from the GitHub website (https://github.com/aspirerabbit).

Results

The main hallmarks of the human Pitx2-induced AF electrophysiological phenotype

As a result of the experimentally driven calibration, the human atrial SR and AF populations respectively consist of 2,885 and 4,781 models, qualitatively and quantitatively in agreement with the experimental recordings, accounting for biological variability. Figure 3A shows representative AP traces obtained in simulations using the restricted range of variability obtained with the experimentally calibrated SR and AF populations (Table 2). This AF population reproduced the AF electrophysiological phenotypes, as shown by the AF biomarkers comparison in Figure 3B. In agreement with the experiments (4,8,9) and simulations (17-20,30,31), AF models are characterized by shortened AP (APD₅₀ and APD₉₀), depolarized RMP, increased upstroke velocity (dVdt_max), slightly increased APA and triggered activity. Within the AF population, approximately 19% of the models exhibit repolarization abnormalities, AP biomarkers of these models are not considered for the biomarkers comparison presented above, and are analyzed in detail below.

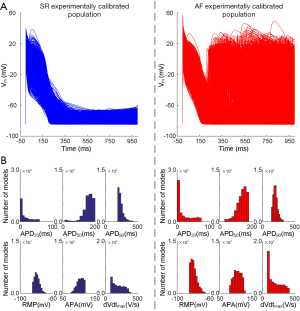

Figure 3 The experimentally calibrated populations of human atrial cell models for sinus rhythm (SR) and atrial fibrillation (AF). (A) Representative traces of action potential (AP) models; (B) distributions of AP biomarkers (including APA, dVdt_max, RMP, APD₂₀, APD₅₀ and APD₉₀).

To investigate ionic properties of human atrial cells contribute to changes in AP biomarkers, PPCs were used to quantify correlations between the parameter values associated with Pitx2-induced remodelling and AP biomarkers of each model in the populations, as shown in Figure 4A,B. Ionic mechanisms underlying changes in AP biomarkers are similar in the SR population versus the AF population. APD₅₀, RMP and dVdt_max are correlated and are primarily determined by I_CaL, I_K1 and I_Na. Compared with the SR population, the AP properties in the Pitx2-induced AF population are primarily favored by upregulated I_Ks and J_up, and downregulated I_K1 (P<0.001) (Figure 4C).

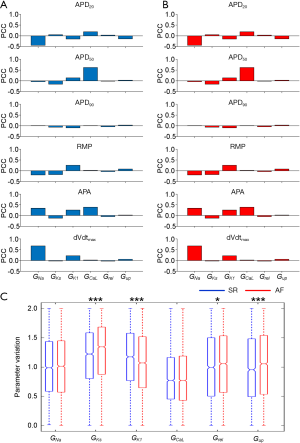

Figure 4 Partial correlation coefficients (PCCs) between action potential biomarkers and current conductance parameters. (A) PPCs between action potential biomarkers (including APA, dVdt_max, RMP, APD₂₀, APD₅₀ and APD₉₀) and current conductance parameters (including G_Na, G_Ks, G_K1, G_CaL, G_Jrel and G_up) for sinus rhythm (SR). (B) PPCs between action potential biomarkers and current conductance parameter for atrial fibrillation (AF). (C) Ranges of the variability of ionic conductances in the human atrial AP model populations. Median values and ranges of the variability of ionic conductances G_Na, G_Ks, G_K1, G_CaL, G_Jrel and G_up in the experimentally calibrated populations of human atrial AP models, sampled within a ±100% range of their original values in the TPA human atrial AP models in SR (blue) and AF (red). Each boxplot represents the range covered by the ionic conductances: the edges of the box are the 1^st and 3^rd quartiles, the whiskers extend to the most extreme datapoints, the estimated median physiological value is the central horizontal line and the notch around the median is the 5% significance level (Mann-Whitney U test: *, P<0.05; ***, P<0.001).

Role of Pitx2-induced remodelled currents on triggered activity mechanisms

Models in the AF population (including 4,781 models) were divided into triggered and untriggered AP groups. Representative in silico AP traces from triggered (925 models) and untriggered (3,856 models) AP subgroups are presented in Figure 5A,B. In order to identify the main ion channel conductivities involved in the genesis of triggered activity, the 6 modified conductances associated with Pitx2-induced electrical remodelling were compared between the groups of models exhibited triggered versus untriggered APs. Regression coefficients were used to quantify correlations between the parameter values associated with Pitx2-induced remodelling and the genesis of triggered APs, as shown in Figure 5C. The inducibility of triggered APs is negatively correlated with potassium conductances (including I_K1 and I_Ks) and is positively correlated with calcium conductances (including I_CaL and J_up), respectively. Although these five parameters (I_Na, I_K1, I_Ks, I_CaL and J_up) present significant differences between groups (P<0.001) (Figure 5D), only directions of changes in I_Na, I_K1 and J_up are consistent with the Pitx2-dependent regulation of these currents, as summarized in Table 1.

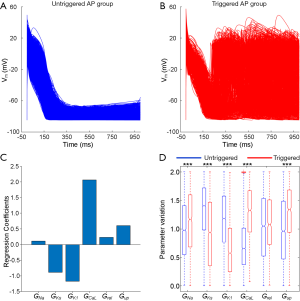

Figure 5 Triggered action potentials in atrial fibrillation and underlying ionic parameters. (A,B) Representative traces of action potential (AP) models in the untriggered versus triggered groups. (C) Coefficients of the multinomial logistic regression model describing the probability of the development of triggered activity in the models of our population. (D) Statistical analysis on the values of the perturbations to parameters modulated by Pitx2 in the two sub-groups of AP models with or without triggered activity. Each boxplot represents the range covered by the ionic conductances: the edges of the box are the 1^st and 3^rd quartiles, the whiskers extend to the most extreme datapoints, the estimated median physiological value is the central horizontal line and the notch around the median is the 5% significance level (Mann-Whitney U test: ***, P<0.001).

To further explore the two main Pitx2-induced remodeled cellular components (I_K1 and J_up) that contribute to triggered activity, additional simulations were performed artificially impeding downregulated I_K1 and (or) upregulated J_up. Under the basal condition (Black lines), when including either I_K1 down-regulation, J_up up-regulation, or a combination of both, the depolarized RMP increases much faster during the resting phase, and spontaneous depolarizations are observed, respectively (Figure 6A,B,C,D). When RMP was reduced by increasing I_K1 (Red lines), spontaneous depolarizations in the scenario including I_K1 down-regulation are suppressed (Figure 6B), whereas a DAD is induced in the scenario including J_up up-regulation (Figure 6C). Therefore, the genesis of spontaneous depolarizations is primarily favored by low I_K1, and secondarily by high J_up. High J_up also contributes to the development of DADs.

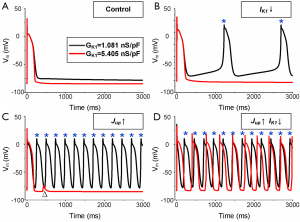

Figure 6 Role of I_K1 and SERCA (J_up) in the genesis of triggered activity. (A) Simulations are shown both with normal G_K1 (black) and under reduced G_K1 conditions (red). (B) APs when I_K1 is down-regulated. (C) APs when J_up is up-regulated. (D) APs when J_up is up-regulated and I_K1 is down-regulated. Asterisks indicate spontaneous depolarizations and the triangle denotes a DAD. *, spontaneous depolarizations.

Role of Pitx2-induced remodelled currents on AP shortening mechanisms

By considering the physiological range of AP biomarkers of the SR population, the shortened AP models were selected from 3,856 untriggered AP models in the AF population. Representative AP traces from unshortened (2,444 models) and shortened (1,412 models) AP groups show the main differences between the two populations (Figure 7A,B). Regression coefficients were used to quantify correlations between the parameter values associated with Pitx2-induced remodelling and AP shortening, as shown in Figure 7C. AP shortening is negatively correlated with I_CaL and positively correlated with I_Ks, respectively. I_Na, I_CaL, I_Ks and J_rel present significant differences between groups (P<0.001) (Figure 7D), but directions of changes in I_CaL, I_Ks and J_rel are consistent with the Pitx2-dependent regulation of these currents, as summarized in Table 1.

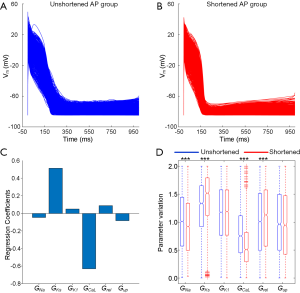

Figure 7 Action potential shortening in atrial fibrillation and underlying ionic parameters. (A,B) Representative traces of action potential (AP) models in the shortened versus unshortened groups. (C) Coefficients of the multinomial logistic regression model describing the probability of AP shortening in the models of our population. (D) Statistical analysis on the values of the perturbations to parameters modulated by Pitx2 in these two sub-groups of AP models. Each boxplot represents the range covered by the ionic conductances: the edges of the box are the 1^st and 3^rd quartiles, the whiskers extend to the most extreme datapoints, the estimated median physiological value is the central horizontal line and the notch around the median is the 5% significance level (Mann-Whitney U test: ***, P<0.001).

The correlation of Pitx2-induced remodelling with different AF models

By using the artificial neural network, we got the weights of six remodelled parameters for classifying AF models (including shortened and triggered AP two categories) (Figure 8). For the shortened AP category, weights of G_Ks and G_K1 are negative and weights of G_Na, G_CaL and G_up are positive, indicating the incidence of shortened AP is positively correlated with G_Ks and G_K1 and is negatively correlated with G_Na, G_CaL and G_up. In contrast, for the triggered AP category, weights of G_Ks and G_K1 are positive and weights of G_Na, G_CaL and G_up are negative. In addition, weights of G_rel for shortened AP and triggered AP categories are positive. In detail, the values of weights of different remodelled targets can be found in Table 3.

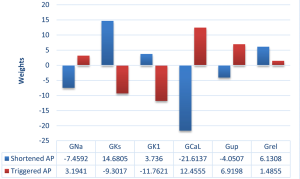

Figure 8 Weights of remodelled parameters (including G_Na, G_Ks, G_K1, G_CaL, G_Jrel and G_up) for classifying shortened and triggered AP three categories in AF models.

Table 3 Weights of remodelled parameters (including G_Na, G_Ks, G_K1, G_CaL, G_Jrel and G_up) for classifying unshortened, shortened and triggered AP three categories in AF models
Full table

Discussion

Major findings

In the present study, we have built populations of human atrial cell models to investigate the potential of mRNA expression levels regulated by the Pitx2-dependent network to predict Pitx2-induced electrical remodelling in AP, as measured experimentally (4,8,9). Our population-based approach takes into consideration variability arising from the uncertainty associated with the extent to which mRNA expression affects functional channel conductance at the cell membrane. This is in contrast to the traditional approach of considering unique values of ionic conductances in atrial AP models of SR and Pitx2-induced AF human atrial cardiomyocytes (4,17-20,30,31). Our main findings are:

• We have built populations of human atrial cell models that reproduce and predict the variability in human atrial AP properties exhibited in a set of AP measurements from over 363 SR and AF patients. RMP, dVdt_max and APD₅₀ are correlated in both SR and AF cardiomyocytes, and are primarily determined by I_K1, I_Na and I_CaL, respectively.
• The Pitx2-dependent mRNA data associated with I_Na, I_K1, I_Ks, I_CaL, RyR (J_rel) and SERCA (J_up) predict AP shortening and triggered APs in AF versus SR cardiomyocytes, as reported in experimental studies (4,8,9).
• The inducibility of triggered activity is positively correlated with I_Na, I_CaL and SERCA (J_up), and negatively correlated with I_K1 and I_Ks. Triggered activity due to Pitx2-induced electrical remodelling is primarily favored by high SERCA (J_up) and low I_K1 in AF myocytes.
• AP shortening is positively correlated with I_Ks and I_K1, and negatively correlated with I_Na, I_CaL and SERCA. AP shortening arising from Pitx2-induced electrical remodelling is primarily favored by high I_Ks and low I_CaL in AF myocytes.

AF population of models

Mathematical models have been used to evaluate hypotheses of AF perpetuation mechanisms since the late 1950s. During the last decades, as a result of the increase in computing power together with more extended research in cardiac ionic currents by patch-clamp experiments, more sophisticated electrophysiological models have been used to evaluate the proarrhythmic effects of Pitx2-induced remodelling on both AP and rotors dynamics (4,17-20,30,31). However, most of these in silico studies have made use of a single set of parameters fitted to an average of many experiments. Although this approach has allowed the reproduction and better understanding of AF mechanisms, it hides the variability between patients observed in clinical practice. This variability may explain many different phenotypes reported in the literature (23-29). Our Simulations of AF populations of models accounted for the variability observed across subjects. Furthermore, this is the first study in which a population of models has been used to determine the ionic currents linked to arrhythmia perpetuation observed in mutant Pitx2 models. In the present study, the TPA model was used as the basal model to investigate the mechanisms underlying Pitx2-induced AF. It had been validated and fully assessed by comparing with existing human atrial models [including Lugo et al. model (42), Maleckar et al. model (43), Nygren et al. model (44), Koivumäki et al. model (45), Courtemanche et al. model (46), Grandi et al. model (47), CRN_TP model (18,20) and Voigt et al. model (48)]. This model was chosen as it is able to reproduce human AP morphology, APD rate dependence and triggered activity, i.e., early afterdepolarizations (EADs), delayed afterdepolarizations (DADs) and spontaneous depolarizations. It also was used to investigate the pro-arrhythmic effects of Pitx2-induced remodelling and it can reproduce phenomenons (including triggered activity and AP shortening) observed in the experiments. In our previous study, simulations based on similar models, such as the CRN_TP model and Grandi et al. model (47), had been conducted to explain model dependence of results by reproducing Pitx2-induced AP shortening and triggered activity (18). Simulations with an alternative human atrial cell model should not alter the main findings of this study, although the inclusion of the intersubject variability approximates in silico experiments to more realistic clinical scenarios.

AP biomarkers from experimental recordings allowed us to select ionic current combinations that result in APs covering the observed experimental range. As in previous studies (23,29), variability in ionic parameters reproduces AP variability in agreement with the biomarkers obtained from the recorded preparations. In order to account for Pixt2-induced triggered activity, we included restrictions in our population reproducing the observed phenomenon. To the best of our knowledge, this is the first time that AP morphology and APD relative to basal AP has been used to select the most physiologically relevant AF models from a wider population, therefore allowing a more realistic response of the models such as AP shortening and triggered activity observed during Pitx2-induced AF.

Ionic mechanisms underlying Pitx2-induced AF

Research studies on AF have demonstrated that AP shortening contributes to Pitx2-induced AF. An experimental study demonstrated AF increases Pitx2 expression in isolated human atrial myocytes and suggested Pitx2 could contribute to the I_Ks increase and I_CaL reduction observed in humans (3). Our modelling study further indicated the Pitx2-induced changes in I_Ks and I_CaL led to APD shortening, facilitating sustained re-entry in 3D anatomical atrial geometry (17). However, studies on Pitx2-induced remodelling have not investigated the relative importance of each current in APD shortening. Our simulations in the AF population of models show AP shortening is primarily determined by I_CaL and secondarily by I_Ks. Furthermore, APD shortening is positively correlated with I_Ks and negatively correlated with I_CaL. This is consistent with findings from previous studies that upregulation of I_Ks (49) and downregulation of I_CaL (50) due to Pitx2-induced remodelling critically contribute to the abbreviation of APD (3).

In addition to APD shortening (9), triggered activity (including DADs and spontaneous depolarizations) has been linked to Pitx2-induced remodelling (51). Experimental studies have demonstrated that Pitx2 was expressed in the left atrium and pulmonary veins (51), and reducing Pitx2 expression led to atrial remodelling linked to arrhythmogenesis (2). Some studies demonstrated that triggered activity is associated with the down-regulation of I_K1 due to impaired Pitx2, resulting in a significantly depolarized resting membrane potential and thereby spontaneous depolarizations (2,4). However, some studies indicated that multiple calcium-handling genes were regulated by Pitx2 (3,8) and suggested that calcium handling abnormalities arising from Pitx2 insufficiency may contribute to triggered activity (18). Our simulations in the AF population of models show DADs can be induced by increased SR calcium load due to enhanced SERCA function. This is consistent with findings from these studies (10,31) that the gain of SERCA function arising from the Pitx2 mutation contributed to calcium-mediated cellular triggered activity in AF. In addition to DADs, spontaneous depolarizations were obtained in the AF population of models. Our results showed that the inducibility of spontaneous depolarizations was positively and negatively correlated with J_up and I_K1, respectively. Although the pro-arrhythmic effect of downregulation of I_K1 has been observed in simulations (20,52) and PV myocytes (53), the role of enhanced SERCA function due to Pitx2 insufficiency in the development of spontaneous depolarizations was not fully explored. Our results demonstrated that spontaneous depolarizations are primarily favored by low I_K1, and secondarily by high J_up. These findings support this notion that spontaneous oscillations of membrane potential were indeed achieved upon a large increase in the SERCA pump activity (54). In addition, these observations for Pitx2-induced remodeling, which includes upregulated J_up and downregulated I_K1 (2,4,7,8,10), are qualitatively similar to those observed here for the Pitx2 insufficiency. Therefore, the findings of the present study add to the growing weight to evidence implicating Pitx2-induced changes in J_up and I_K1 in facilitating the triggered activity.

The correlation of Pitx2 levels with different AF models

Previous studies have shown that changes in Pitx2 levels lead to electrical remodelling linked to arrhythmogenesis (2) and that Pitx2 regulates membrane effector genes associated with the electrical remodelling in a dose-dependent manner (3,7,8). Therefore, based on the correlation of the Pitx2 levels with remodelled parameters observed in previous studies (3,4,7,8,41) and the correlation of remodelled parameters with changes in APs in the present study, the correlation of the Pitx2 levels with different AF models can be built. In the previous studies, Pitx2 deficiency is associated with the increase in G_Na, G_up (8) and G_CaL (41) and the reduction in G_K1 (4). Interestingly, our simulated results indicated that the incidence of triggered AP was negatively correlated with G_Ks and G_K1 and was positively correlated with G_Na, G_CaL and G_up. Therefore, the downregulation of Pitx2 may increase the incidence of triggered AP. In addition, the study of Pérez-Hernández et al. (3) showed that Pitx2 overexpression is associated with upregulated G_Ks and downregulated G_CaL. And our simulated results showed that the incidence of shortened AP was positively correlated with G_Ks and G_K1 and was negatively correlated with G_Na, G_CaL and G_up. Therefore, the upregulation of Pitx2 may favor to AP shortening. Thus, the Pitx2 level may be positively correlated with the occurrence of AP shortening, but negatively correlated with the incidence of triggered AP.

Pitx2 and AF-relevance to previous studies

Gain-of-function/loss-of-function of Pitx2 has been found to be associated with AF in humans (2-4,9,10,19,21). A number of previous studies have shown expression levels of Pitx2 are reduced in the left atrium in humans (2,4,55) and transgenic mice (2,8,9), or with loss-of-function mutations (56,57). However, Pitx2 expression has been found to be increased in the left atrium (58) and in right atrial myocytes (3), from AF patients, or with the gain-of-function mutation p.Met207Val (59). The present study is consistent with this notion, indicating clearly a marked function impact of gain-of-function/loss-of-function of PITX2 on atrial cell electrophysiology that would promote susceptibility to AF. In previous simulated studies, we have shown that a shorten APD₉₀ arising from the Pitx2 overexpression (17) or the gain-of-function mutation p.Met207Val (19) increased atrial susceptibility to arrhythmias, and that abnormalities in intracellular calcium handling due to the Pitx2 downregulation (18,20) or the loss-of-function mutation rs13143308T (31) increased the inducibility of triggered activity which can be suppressed by drugs such as dantrolene and flecainide. Our data are consistent with this. They indicate that Pitx2-induced electrical remodelling not only contributes to the APD₉₀ shortening in spatial vulnerability to arrhythmia, but also increases the susceptibility of the human atrial cell to the genesis of triggered activity. Therefore, our study substantiates a causative link between Pitx2-induced electrical remodelling and AF.

Accumulating evidence places particular emphasis on atrial arrhythmogenicity due to intersubject variability in Pitx2 levels (9), in producing the electrical remodelling in a dose-dependent manner (3,7). The present study is both consistent with and extends this notion, indicating a relationship between the PITX2 alteration and arrhythmia onset. The general incidence of AF increases with age. The previous study of Scridon et al. have shown that PITX2 expressions showed a progressive, age-dependent change and were negatively correlated with both age and heart weight in hypertensive rats (5). It indicated a possible temporal relationship between the PITX2 alteration and arrhythmia onset, suggesting PITX2 alteration is an age-dependent process that starts before the occurrence of arrhythmias. And Lozano-Velasco et al. identified a complex regulatory network orchestrated by PITX2, demonstrating a dose-dependent relation between PITX2 expression and the expression of AF susceptibility genes (7). Importantly, human right atrial myocytes from AF patients have shown PITX2 expression increases and this increase correlates with the I_Ks increase and I_CaL decrease that characterizes AF-induced electrical remodeling, demonstrating the substrate for arrhythmogenesis in these AF patients is dependent upon electrical remodeling modulated by the PITX2 expression in a dose-dependent manner (3). Our data are consistent with this. They indicated that the incidence of shortened AP was correlated with the extent of electrical remodelling due to Pitx2 upregulation and the incidence of triggered activity was correlated with the extent of electrical remodelling due to Pitx2 downregulation. Therefore, the correlation of the Pitx2 levels with arrhythmia onset with different mechanisms was built.

Study limitations

Several limitations special to the present study are summarized. Fristly, the populations of human atrial models developed in the present study are based on a large number of experimental recordings obtained from the right atrial appendage. Cardiomyocytes from other atrial locations may exhibit spatial heterogeneities in AP properties reported in humans (60-62). These heterogeneities were not directly addressed in the present study, but our population approach does offer robustness against variability resulting from this. Furthermore, the inter-cellular coupling may affect APs as compared to isolated cells. The effects of tissue coupling could be investigated in further studies, aiming at translating the conclusions obtained from cellular to tissue model populations. Secondly, because of the lack of relevant experimental data, the potential impact of Pitx2 was evaluated under the following assumption: The Pitx2-induced functional changes in the proteins would be proportional to their mRNAs changes. Our study inherits many of the difficulties in extrapolating from mRNA expression data to functional membrane ion channels. In addition, we examined the effects of variability in a subset of conductances associated with Pitx2 in the present study. However, it is possible that other electrophysiological properties, such as ionic concentrations and additional ionic currents, may play a role in AP variability. These additional important factors could be the focus of future investigations. Although these potential limitations are important in the present study, they may not influence our conclusions drawn from simulated results on the mechanisms by which Pitx2-induced remodelling can increase the risk of AF.

Conclusions

Experimentally calibrated populations of models are presented as a useful tool for understanding the ionic mechanisms underlying Pitx2-induced AF. This study showed that the populations of models reproduce the variability in human atrial AP properties measured in samples obtained from patients and main ionic mechanisms modulating intersubject variability in the different phases of the AP are very similar in SR and AF populations. The AF population of models predicts AP shortening and triggered activity in Pitx2-induced remodelling conditions observed in experiments. By using this computational framework, our results suggest that the incidence of shortened AP was positively correlated with I_Ks and I_K1 and was negatively correlated with I_Na, I_CaL and SERCA, whereas the incidence of triggered AP was negatively correlated with I_Ks and I_K1 and was positively correlated with I_Na, I_CaL and SERCA. Based on the correlation of Pitx2-induced remodelling with different AF models and the correlation of Pitx2 levels with the electrical remodelling in previous studies, we can conclude that the Pitx2 level may be positively correlated with the occurrence of AP shortening, but negatively correlated with the incidence of triggered AP. Therefore, the outcomes of this study may lead to more targeted patient-specific treatment for Pitx2-induced AF in the near future.

Acknowledgments

We would like to thank Andy Lo and Jichao Zhao for their help in polishing the language of our paper.

Funding: This work was supported by the National Natural Science Foundation of China (No. 61901192) and the National Key Research and Development Project (No. 2019YFC0120100 and 2019YFC0121907).

Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-5660

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-5660

Peer Review File: Available at http://dx.doi.org/10.21037/atm-20-5660

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-5660). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
