A rare case of an unexpected difficult airway management in a diffuse idiopathic skeletal hyperostosis patient and post-operative airway evaluation with 3D printing technique

Introduction

Diffuse idiopathic skeletal hyperostosis (DISH) is a degenerative condition that commonly leads to anterior cervical osteophytes. A small percentage of patients develop dysphagia, cough, dyspnea, and dysphonia. The reported prevalence of DISH in literature is quite variable ranging from 2.9% to 28% (1,2). As most elderly patients with significant degenerative changes involving the disk and the osteophytes tend to be asymptomatic in most cases, some authors consider the abnormalities as radiographic findings rather than a disease. Non-operative management is the mainstay of the treatment. In cases of failed non-operative modalities, surgical resection of the osteophytes has been suggested to be the last resort. Clinically significant airway compression is rare. However, in some cases, the seemingly insignificant osteophytes could become a threat to airway management during intubation. We present the following case in accordance with the CARE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-5992).

Case presentation

An 82-year-old man weighing 73 kg, who suffered from progressive dysphagia for 3 years and worsened during the last 1 year, was diagnosed with “DISH, cervical disc herniation, anterior longitudinal ligament ossification, and cervical spinal canal stenosis”. He was scheduled for elective anterior cervical discectomy and fusion operation. His past surgical history included the posterior lumbar interbody fusion for lumbar canal stenosis and the left nephrectomy for renal mass 12 and 4 years ago, respectively. Examination and investigations were otherwise unremarkable.

Previous anesthetic records did not reveal difficult airway, and the patient has a clear medical history of otorhinolaryngology for the past few years. The patient showed no symptoms of dyspnea, stridor and OSAS. Modified Mallampati test was graded as class III. Other airway evaluation parameters were determined to be in the normal range. X-radiographs of cervical vertebra in extension and flexion position revealed the presence of new bone formation at cervical spine level C3–7 (Figure 1). No significant narrowing of trachea lumen was noticed in radiological findings.

Figure 1 Cervical X-ray of the patient with diffuse idiopathic skeletal hyperostosis disease in extension (A) and flexion (B) position.

The patient’s SpO₂ was 96% breathing room air. Following sufficient facemask preoxygenation, the patient was sedated intravenously. Considering the adequacy of facemask ventilation, the muscle relaxant was given. At the initial attempt with video laryngoscopy, the unexpected presence of a large bulge protruding from the posterior pharyngeal wall was revealed. The epiglottis and the vocal cords could not be identified. The bulge was rigid and non-pulsatile. It partially obstructed the airway and prevented endotracheal intubation. Attempts to reposition the video laryngoscopy failed and other efforts including direct laryngoscope with thin blade and the use of optical stylet or laryngeal mask airway (LMAD) were to no avail. Non-emergent airway was immediately recognized and a reinforced endotracheal tube with sealing cuff (7.5 mm I.D.) lubricated with benoxinate gel was successfully intubated from nostril under fiberoptic bronchoscope (FOB) guidance. Video laryngoscopy inspection revealed the tracheal tube passing through the narrowing gap between the left pharyngeal wall and the large osteophytes (Figure 2).

Figure 2 Video laryngoscopy inspection revealed the tracheal tube passing through the narrowing gap between the left pharyngeal wall and the large osteophytes. Triangle, tracheal tube; arrow, large protruding osteophytes.

The surgery was performed with dissection of C4–7 osteophytes and fusion of C5–6 and C6–7, leaving C3–4 osteophytes unremoved as surgeons believed that it was not the culprit of the dysphagia. The tracheal tube was extubated 40 hours postoperatively in fear of tracheal edema. The patient was discharged from intensive care unit and hospital uneventfully after 2 and 5 days, respectively. Considering the rarity of the difficult airway condition related with DISH disease, we retrospectively made a 3D printed model to help revealing the airway structure.

All procedures performed in studies involving human participant was in accordance with the ethical standards of the institutional and national research committee and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Discussion

DISH is a systemic skeletal disease characterized by ligamentous ossification of the anterolateral spine and the extraspinal ligaments. There is no classification system for the severity of DISH. The extent of the disease process and the degree of ossification can vary significantly, and there is no direct correlation between the size of the osteophytes and the severity of dysphagia (3). For patients with DISH disease requiring surgical operation, the number of reported incidences of difficult tracheal intubation was scarce compared with the number of operated cases.

The unanticipated difficulties in tracheal intubation is frequently encountered even with comprehensive airway evaluation. It is currently recognized that bedside tests to predict difficult intubation with direct laryngoscopy have limited sensitivity and specificity, especially in the general population of patients with unknown pathology of the airway structure (4). Preoperative reviewing of the radiological images of DISH patients is important. The severity of the airway compromise is dependent upon the vertebrae levels involved and the amount and orientation of the bone deposited. The protruding osteophytes anteriorly could impinge upon the posterior wall of pharynx, and cause narrowing at the corresponding laryngopharynx and trachea (5). Lateral radiological imaging could help identifying “bony” structure and could be used as an indicator for preoperative airway assessment. However, the eccentric growth of the osteophytes, the overall trachea structure, and their relationship, cannot be fully reflected by the lateral view of X-ray.

It is a pity that we did not predict this case as difficult airway based on preoperative 2D radiological imagines, past surgical history, and bedside airway evaluation. 3D radiological image reconstruction was made after surgery using computerized tomography imaging. It could help understanding the location, the severity of the osteophytes and the airway compromise in overall perspective, 3D printing has been well integrated in all fields of medical practice and literature reports. Printed models have been widely applied in analyzing complex cases, simulating procedures and implanting grafts (6,7). To our knowledge, this is the first time that the relationship of the osteophytes and the airway structure of the DISH patient was clearly revealed with 3D printing technique.

3D printing model is a cost-effective graspable entity. This technique enables the production of an anatomically matched and patient-specific model with high fidelity and complexity. By rotating, disassembling and assembling the model, we could accurately analyze the size and the range of the osteophyte bulge and its close relationship with the trachea. While the drawback of the current 3D printing technique is that there lacks suitable material to restore the authentic texture of the complex tissues (ligaments and joints). It cannot simulate the cervical range of motion during extension and flexion of cervical spine, either. This requires the evaluation with 2D images of X-ray. Progress in this field will, without doubt, may provide more valuable information for preoperative airway evaluation, and help anesthesiologists choose the best intubation method and suitable kits in advance. In the current case, the eccentric growth of the cervical osteophytes (corresponding to C3–4 prevertebral osteophytes) occupy large portion of the middle and right laryngopharynx space, and caused difficult intubation (Figure 3).

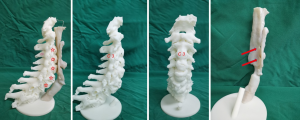

Figure 3 3D printing model revealing the relationship between the giant cervical osteophytes and airway compromise. C3, the 3rd cervical vertebra. Pentagram, large osteophytes could be clearly revealed in C3–7 that caused difficult intubation; arrow, indented airway caused by protruding osteophytes from C3 to C7.

For DISH patients, we proposed for the first time that different intubation strategies and tools should be carefully considered according to the location and severity of the osteophytes. For C2–3 and C3–4 osteophytes, the osseous protrusion could cause reduced oropharyngeal space, impaired epiglottic motility, the distortion of the laryngeal cartilages and the pharyngeal structure, and may interfere with laryngeal function, as was demonstrated by the current case (8). Therefore, for prominent osteophytes at proximal level of C2–4, it is recommended to intubate with FOB assistance (9). The osteophytes at the proximal level may diminish the laryngeal space, which is a potential threat to intubation. LMA may not be a good choice as the osteophytes at the supraglottic level inhibit its right positioning. It is reported that osteophytes in C4–5 resulted in laryngeal spasms and breathing cessation when bending the patient’s head. Therefore, the “head-in-line” position should be maintained to prevent laryngeal spasms attack (10). Careful preoperative bedside assessment of the patient’s head bending backward and radiological images are important for estimating the severity of the difficult airway. Awake intubation under FOB guidance should be adopted for osteophytes located above epiglottis. Osteophytes at the distal level may cause obstruction below the vocal cords. Preoperative airway evaluation should be emphasized on the degree of tracheal stenosis and selection of suitable tube size. LMA is recommended as a safe guarantee for sufficient ventilation. In this situation, FOB-assisted intubation could be performed with the aid of intubating laryngeal mask airway (ILMA).

To our knowledge, this is the first DISH model with 3D printing technique that could help recognizing the interrelationship between the bony structure and trachea. It is a pity that we could only retrospectively make an airway 3D model and assess the airway compromise. For future DISH patients with suspected difficult airway, especially those with large, eccentric, and protruding osteophytes that cause clinical symptoms such as severe dysphagia or syncope, careful preoperative evaluation with 3D printing method should be emphasized. By providing graspable entities that are patient-specific and with high fidelity, 3D printing technique could help anesthesiologists to fully appreciate the anatomical structure of the trachea and to avoid life-threatening conditions during difficult intubation.
