Co-existence of myopia and amblyopia in a guinea pig model with monocular form deprivation

Introduction

Form deprivation myopia is a type of ametropia in humans, with identifiable causes such as congenital cataract, ptosis, and corneal opacity. In order to investigate the mechanisms of myopia in humans, form deprivation myopia has been induced in many animals (1-5). Animal experimental studies have established the importance of visual feedback in eye and refractive state development, and have demonstrated that form deprivation myopia is a graded phenomenon; increases in the degree of image degradation have been positively correlated with the severity of the induced axial myopia, the uncoordinated ocular growth has been found to be due to reduced retinal image contrast, and the absence of visual feedback has been reported to be related to the effective refractive state of the eye (6-8). Many experiments regarding normal visual development in these animals have shown that the age of onset of form deprivation myopia in these animals coincided with the period of visual development, and that larger refractive errors were present in younger animals after a longer duration of form deprivation (9-13). For example, monocular form deprivation in monkeys at the age of 2 weeks and led to the development of myopia of −13.5 diopters (D) after 18 months; monocular form deprivation at the age of 1 year led to the development of only −4.5 D myopia after 26 months. Eye development in the guinea pigs was basically completed by 3 weeks, and considerable myopia of approximately −3.4, −5.8, and −5.7 D was present after 6, 11, and 16 days of form deprivation, respectively, at the age of 5 days. Similarly, any abnormal visual experience (e.g., monocular form deprivation, strabismus, or anisometropia) imposed during the period of visual development could result in abnormalities of the visual system (e.g., amblyopia); however, as this was initiated at progressively older ages, the resulting abnormality was smaller or even without visual impairment at all (14). For example, in rhesus monkeys, monocular form deprivation initiated during early life produced a severe degree of amblyopia, and the effect on spatial vision decreased systematically as the age of onset was delayed (15,16). Table 1 summarizes the onset time, duration, final induced diopter, and course of time from birth for emmetropization in each animal model of form deprivation myopia, as well as the relationship between the deprivation onset time and the amblyopia severity in rhesus monkeys.

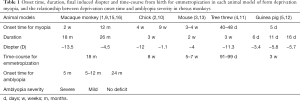

Table 1 Onset time, duration, final induced diopter and time-course from birth for emmetropization in each animal model of form deprivation myopia, and the relationship between deprivation onset time and amblyopia severity in rhesus monkeys
Full table

Monocular form deprivation during the period of visual development could not only result in myopia, but also amblyopia. However, the effects of brief, moderate, and long-term form deprivation periods on the visual acuity of guinea pigs have not been investigated, and little attention has been paid to whether myopia and amblyopia occur simultaneously or successively. Therefore, in this study, we established a monocular form deprivation model in guinea pigs with our own procedures, and then recorded refraction, axial length, and the amplitude of sweep visual evoked potentials (sweep VEPs) at different intervals in the deprived eyes, contralateral eyes, and normal control eyes. We found that sweep VEPs could be easily recorded in guinea pigs, as in rats (17) and mice (18). We also found that the amplitude of sweep VEPs in the deprived eye decreased initially, while the axial length of the deprived eye increased with longer duration of form deprivation. We present the following article in accordance with the ARRIVE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-5433).

Methods

Experimental animals

Twenty pigmented guinea pigs (male, 120–150 g, 2 weeks old) were obtained from the Beijing Huafukang Laboratory Animal Ltd. (Beijing, China) and randomly assigned to two groups: the monocularly form-deprived group (n=10), and the normal control group (n=10). Groups of five guinea pigs were raised together in a plastic cage (15×26×32 cm) under a 12-h light-dark cycle with light provided by white LEDs (spectrum: broad-band, illuminance: 500 lux, color temperature: 4,500 K, frequency: 50–60 Hz), and room temperature was maintained at 24 °C, food (guinea pig feed and fresh vegetables) and water supplemented with Vitamin C was available ad libitum. In the monocularly form-deprived group, face-masks used for monocular form deprivation were modified by latex balloons, which covered the right eye of guinea pig, leaving the left eye, nose, mouth and ears exposed (Figure 1), as shown in an earlier report (19). Light transmission through the latex balloon was 20% (measured by TES 1330A Digital Lux Meter, Taiwan). All animals underwent sweep VEPs and biometric measurement (refraction and axial length) prior to the experiment and at 1, 4, and 8 weeks after form deprivation induction. Sweep VEPs were done with correction of the induced myopic refractive error. In the normal control group, the right eyes of all animals underwent sweep VEPs and biometric measurement (see details below) at each of intervals matching those of the form-deprived group. Experiments were performed under a project license (no. NKYY-DWLL-2020-099) granted by the Animal Ethical and Welfare Committees of Nankai Hospital, in compliance with the Guide for the Care and Use of Laboratory Animals of Nankai Hospital.

Figure 1 A pigmented guinea pig (2 weeks old) was well fitted with a face-mask that only covered the right eye, leaving the left eye, nose, mouth and ears exposed.

A pigmented guinea pig (2 weeks old) was well fitted with a face-mask that only covered the right eye, leaving the left eye, nose, mouth and ears exposed.

Sweep VEPs

Visual stimulation

Guinea pigs were anesthetized by inhaling 2% isoflurane, and mounted in a stereotaxic apparatus that restrained the snout in a fixed position (i.e., the snout was directed to the left of the screen when the right eye was stimulated). Rectal temperature was maintained at about 37.5 °C by a water circulating warming block. When the right eye was stimulated, the face-mask was removed, and a corrective lens was employed to compensate for the induced myopia of the stimulated eye. The active needle electrode was placed in the left subcutaneous area of the binaural junction and pierced 1–1.5 cm forward. We put the reference electrode in the snout and the ground electrode in the hind paw, and the left eye (not stimulated) was occluded with a dark patch. Reti-Port System (Roland Consult, Germany) was connected with electrodes to record sweep VEPs. The sweep VEP stimulus, a horizontally oriented sine wave grating, consisted of 11 spatial frequencies (0.05, 0.065, 0.084, 0.11, 0.18, 0.23, 0.30, 0.39, 0.50, 0.65, and 0.80 cycles per degree). The stimuli were presented using a 21-inch CRT monitor. The stimulus contrast was 80% and the temporal reversal rate (grating wave) was 3 Hz (about 6 reversals/s). The mean luminance of the screen was 100 cd/m². The stimulus screen was viewed monocularly at 20 cm (100° wide × 82° high). Each spatial frequency was presented for 11 s, and there was 1 s of adaptation before data collection. The entire sweep took 132 s (12 s × 11 spatial frequencies) (Figure 2).

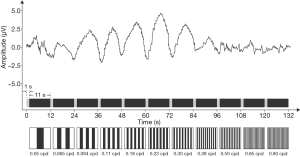

Figure 2 A diagram regarding the course of time and the 11 stimuli trace. Each spatial frequency was presented for 11 s, and there was 1 s of adaptation before data collection. The stimulus contrast was 80% and the temporal reversal rate (grating wave) was 3 Hz (about 6 reversals/s).

Acuity extrapolation

Figure 3 displays an example of acuity extrapolation. The stimulus spatial frequency in cycle per degree (cpd) is plotted on the horizontal axis, and the sweep VEPs magnitude in microvolt (µv) is plotted on the vertical axis. The data were determined to be noise if the signal-to-noise ratio (SNR, open/filled circles) was less than 2. As seen in Figure 3A, the SNR did not exceed 2 for the 0.39, 0.50, 0.65, or 0.80 cpd data. Acuity was determined by fitting a line between the high spatial frequency data that were above noise (0.3 cpd) and the first spatial frequency that entered the noise (0.39 cpd) (solid arrows). The linear fit was extrapolated to the X-axis (zero amplitude) for visual acuity (dashed arrows). If there were no data points between the peak spatial and the noise level, the highest spatial frequency that was above noise was taken as visual acuity, as previously described (18,20).

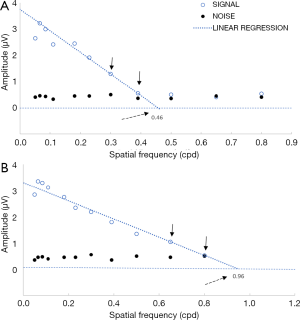

Figure 3 An example of the acuity extrapolation technique with the sweep VEPs. The stimulus spatial frequency in cycle per degree (cpd) is plotted on the horizontal axis, and the sweep VEPs magnitude in microvolt (µv) is plotted on the vertical axis. The data were determined to be noise if the signal-to-noise ratio (SNR, open/filled circles) was less than 2. (A) Form-deprived eyes. The SNR did not exceed 2 for the 0.39, 0.50, 0.65, or 0.80 cpd data. Acuity was determined by fitting a line between the high spatial frequency data that were above noise (0.3 cpd) and the first spatial frequency that entered the noise (0.39 cpd) (solid arrows). The linear fit was extrapolated to the X-axis (zero amplitude) for visual acuity (0.46 cpd, dashed arrow). (B) Normal control eyes. The SNR did not exceed 2 for the 0.80 cpd. Acuity was determined by fitting a line between the high spatial frequency data that were above noise (0.65 cpd) and the first spatial frequency that entered the noise (0.8 cpd) (solid arrows). The linear fit was extrapolated to the X-axis (zero amplitude) for visual acuity (0.96 cpd, dashed arrow). See text for details.

Refraction

Refraction of the eye was measured using a streak retinoscope and trial lenses in a dark room. One drop of 1% tropicamide phenylephrine (Santen, Japan) was administered to both eyes every 5 min, three times, to achieve complete cycloplegia. The experimenter was blinded to the treatment administered. The mean value of the vertical and horizontal meridians was taken as the refraction (21).

Axial length

Axial length was measured by A-scan ultrasonography (MEDA2003s, Tianjin). The ultrasound frequency of the probe emission was 10 MHz. The conducting velocity of the anterior chamber and the vitreous chamber was 1,540 m/s, which has been previously used for measurements in guinea pigs (19). Topical anesthesia was achieved by oxybuprocaine hydrochloride (Santen, Japan), prior to the measurement. The tip of the probe had a red light that guided the probe to touch the center of the corneal surface perpendicularly during the measurement. A reliable measurement was confirmed when clear traces of various components of the eye, with consistent waves, were detected. The axial length was the distance from the cornea to the vitreous-retina interface (Figure 4).

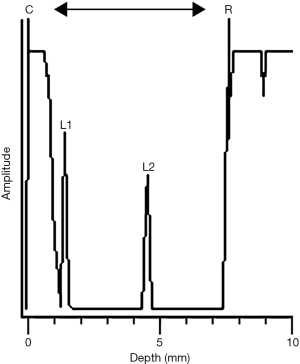

Figure 4 An example of ultrasound traces. Solid vertical lines from left to right represent front of the cornea (C), front of the lens (L1), back of the lens (L2) and the vitreous-retina interface (R). The double-headed arrow between C and R represents axial length.

Statistical analysis

Statistical analysis was performed using SPSS software (Version 23.0; IBM SPSS, Inc., Chicago, IL, USA). Data are presented as continuous variables and were evaluated for normality using the Shapiro-Wilk test. The results are expressed as mean ± standard deviation (SD). All parameters among eyes and time-points were analyzed by two-way repeated measurement ANOVA followed by Bonferroni post hoc test. The differences were defined as significant at P<0.05 and highly significant at P<0.01.

Results

Comparison of refraction, axial length, and acuity between different eyes

The results obtained from measuring refraction, axial length, and visual acuity in the form-deprived eyes and the contralateral eyes of the monocularly form-deprived group, and those in the right eyes of the normal control group are presented in Table 2. The overall analysis showed that results of the comparison between groups, the comparison of times, and the interaction between groups and times were significant. Upon increasing the deprivation period, significant refractive errors were recorded in the form-deprived eyes compared with those in the contralateral and normal control eyes (Figure 5A); the axial lengths of the form-deprived eyes increased significantly compared with those in contralateral and normal control eyes after 4 weeks of form deprivation, and 8 weeks of form deprivation (Figure 5B). The changes observed in refraction and axial lengths indicate that the form deprivation myopia was established successfully during 4 weeks of form deprivation. Compared with contralateral eyes and normal control eyes, the acuity of form-deprived eyes was basically unchanged, while that of the contralateral eyes and normal control eyes improved; there was a highly significant difference in the acuity of vision via the eyes from 1 to 8 weeks of form deprivation (Figure 5C). The results of the evaluation of acuity indicate that form deprivation amblyopia was possibly established during 1 week of form deprivation.

Table 2 Analysis of the interaction effects between time and treatment on refraction, axial length, and visual acuity
Full table

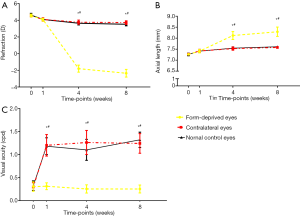

Figure 5 Refraction, axial length and acuity changes in form-deprived eyes, contralateral eyes and normal control eyes at different time points. (A) Refraction at four time points; (B) axial length at four time points; (C) acuity at four time points. *, P<0.01 form-deprived eyes compared with contralateral eyes after the same duration of form deprivation; ^#, P<0.01 form-deprived eyes compared with normal control eyes after the same duration of form deprivation. The error bar represents mean ± standard deviation.

Comparison of refraction, axial length, and acuity between different time-points in form-deprived eyes, contralateral eyes, and normal control eyes

The overall decrease in refraction was highly significant from 0 to 8 weeks of form deprivation in form-deprived eyes (P<0.01 between any two time-points, post hoc test); the decrease in refraction of contralateral eyes and normal control eyes was significant from 0 to 4 weeks (P<0.01 between any two time-points, post hoc test), while there was no significant difference from 4 to 8 weeks (P>0.05, post hoc test) (Tables 2,3). From week 0 to 1, the diopter of both deprived eyes and open eyes decreased significantly, indicating that the guinea pig eyes had been in visual development stage. Although the refraction of all eyes decreased from 1 to 4 weeks, the decrease observed in form-deprived eyes was more obvious (Figure 5A).

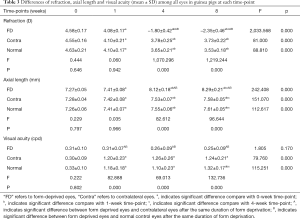

Table 3 Differences of refraction, axial length and visual acuity (mean ± SD) among all eyes in guinea pigs at each time-point
Full table

Axial length of all eyes increased rapidly from 0 to 8 weeks (P<0.01 between any two time-points, post hoc test) (Tables 2,3); however, the increase observed in form-deprived eyes was steep from 1 to 4 weeks (Figure 5B).

The visual acuity at 2 weeks of age (0 weeks of form deprivation) was 0.31±0.10 cpd in the form-deprived eyes; thereafter, it remained constant (P>0.05 between any two time-points from 0 to 8 weeks, post hoc test) and was 0.25±0.09 cpd by 10 weeks of age (8 weeks of form deprivation); the acuity of the contralateral eyes increased rapidly during the first week (P<0.01, 0 vs. 1 week, post hoc test), and was 1.24±0.21 cpd by 10 weeks of age (time-point: 8 weeks). The acuity of normal control eyes also increased rapidly during the first week (P<0.01, 0 vs. 1 week, post hoc test). Moreover, the acuity after 8 weeks of initiating the experiment was significantly different from that measured at other time points (P<0.01, 8 vs. 0 weeks; P<0.05, 8 vs. 1 weeks; P<0.01, 8 vs. 4 weeks; post hoc test) (Tables 2,3, Figure 5C).

Discussion

Monkeys, chicks, mice, tree shrews, and guinea pigs are the most widely used animal models of myopia (7); monkeys (15,16) and mice (22,23) have also been used in form deprivation amblyopia studies. Of the animal models used to study form deprivation myopia and amblyopia, the monkey—a non-human primate—might be an ideal animal model for both myopia and amblyopia, as the retina of monkeys has a central cone-rich region and rod-rich periphery, which enables better vision. However, their availability is limited, their cost is high, and the duration of model induction is long. Mice constitute the most widely used animal model in biomedical research, with the availability of many useful transgenic strains and complete genome data. As they are mammals, their eyeball structure is basically similar to that in humans; however, the eye size of mice is very small, and a previous study showed that a calculated axial eye elongation of only 5.4–6.5 µm was sufficient to make the schematic eye more myopic by 1 D (24). Therefore, it is difficult to accurately detect the small changes in eye size and refraction after myopia induction in mice (13). Guinea pigs are also mammals, and have become an increasingly popular animal model for studying myopia (5,19,25). Many studies reporting the normal development of refractive state, ocular dimensions, intraocular pressure and ciliary muscle (12,26,27), and the visual acuity, appear to be available (28). Although there are reports of the development of significant myopia following monocular form deprivation in many animal models, and the development of form deprivation amblyopia in monkey and mouse models, the influence of form deprivation on the acuity of eyes, and the development of form deprivation amblyopia as a result of monocular form deprivation in guinea pigs have not been investigated. The possible co-existence of amblyopia and myopia in form-deprived guinea pigs also remains unexplored. The present study was the first to use sweep VEPs to test the visual acuity of guinea pigs, and to verify the co-existence of myopia and amblyopia after monocular form deprivation in guinea pigs.

As our results showed, refraction decreased, and axial length increased in form-deprived eyes, and both were highly different from those observed in contralateral eyes and normal control eyes after 4 weeks of form deprivation. Further, acuity of form-deprived eyes remained the same as that at 2 weeks of age (0-week time-point), while that of contralateral eyes and normal control eyes improved with age. In the form-deprived eyes, the development of acuity was affected, while there was no effect on refraction and axial length after 1 week of form deprivation. The refraction and axial length changed after a longer duration of form deprivation. These results showed that visual abnormality possibly preceded ocular elongation or refraction decline; form deprivation amblyopia was developed during 1 week of form deprivation, while form deprivation myopia was established between 1 and 4 weeks of form deprivation. Eventually, amblyopia and myopia coexisted after 4 to 8 weeks of monocular form deprivation. These results were consistent with the observations of the study in which diffuser-reared infants virtually exhibited amblyopia in the treated eyes (29). In C57BL/6 mice, during the critical period, monocular form deprivation for even 4 days could induce a maximal loss of responsiveness of cortical neurons in the deprived eye (22). Even in adult mice, over 5 days of monocular deprivation could lead to an enhancement of the optokinetic response selectively through the non-deprived eye (30,31). However, induction of myopia required a longer deprivation time of 2 weeks or more (3,32). Therefore, we supposed that there might be an association between form deprivation myopia and amblyopia. However, the cause and effect relationship between anisometropic myopia and amblyopia is highly controversial; for example, anisometropia is usually considered to be a leading cause of amblyopia in humans, yet, there is a lack of studies that have performed longitudinal tracking of at-risk infants (33,34). Studies using non-human primate models showed that anisometropia could precede amblyopia (35) or amblyopia could precede anisometropia (36), but these results were obtained from lens-reared monkey. Our research, on the other hand, is focused on form-deprived animals. Previous studies on form-deprived animals, such as monkeys (37,38), chickens (39-41), tree shrews (42), and guinea pigs (43) demonstrated recovery from form deprivation myopia, even with very brief periods of unrestricted vision that were sufficient to block, or recover from, induced myopia. Similarly, the amblyopic effects of form deprivation in infant monkeys were substantially reduced by daily periods of unrestricted vision (44). A possible explanation for this recovery could be that the interruption of form deprivation failed to produce form deprivation amblyopia because the form-deprived eyes had periodically received a relatively clear image, followed by recovery from induced myopia. In addition, as described in the introduction, myopia and amblyopia induced by form deprivation mostly developed during the period of visual development. Further, monocular form deprivation caused amblyopia that resulted from ocular dominance imbalance in the visual cortex and residual suppressive binocular interactions (45,46). A previous study in Macaca.arctoides monkey have indeed shown that myopia induced by form deprivation is affected by optic nerve section (47).

Based on the results and discussion above, we speculate that early brief monocular form deprivation, setting up competition between the eyes’ inputs to the cortex, leads to a dramatic shift in the ocular dominance distribution of primary visual cortex units in favor of the non-deprived eye, and residual suppressive binocular interactions, resulting in amblyopia of the deprived eye (14). After the retina receives the blurred visual stimulation input of long-term duration of form deprivation, its morphological structure and contents, including a variety of bioactive substances, are changed, leading to sclera remodeling, ocular elongation, and eventually, the development of myopia.

In this study, we did not measure the length of the anterior segment, crystalline lenses, and vitreous chamber of the eyes separately because, as shown in numerous studies of visual deprivation in animal models, there was no significant change in the anterior segment and crystalline lenses; vitreous chamber depth was significantly correlated with the total axial length of the eye. The reasons for selecting sweep VEPs to evaluate the acuity in guinea pigs are as follows. Firstly, flash stimulation is not the best stimulus for the visual cortex. Graphic stimulation provides relatively stable results, and is ideal. Secondly, rodent eyes have a short axial length, relatively thick crystalline lens, and lack fovea, but the cell density region in the retina is high. Consequently, the imaging of external objects in the retina is very small, and they are unable to achieve an effective fixation. Therefore, the moving speed of stimulation must be relatively high to bring about a change in the retinal image. Fast moving graphic stimulation can stimulate the maximum amplitude and the shortest latency of VEPs. Finally, the acuity obtained by sweep VEPs extrapolation is more intuitive, and easier to understand and deal with statistically (17,18).

There are some limitations to our study. First, electrode placement might have affected the visual recording and so implanted electrode or virtual-reality optokinetic system might provide stronger reliability for repeated measurement of visual acuity (31). Second, the refraction and the axial lengths were slightly different from those reported in previous studies (12,19), probably due to the influence of small eye artifacts and different A-scan ultrasonography. Third, the underlying mechanism of the visual pathway was unclear, and a future study is needed to determine the role of the retina and visual cortex. Fourth, we only used three time points to investigate changes with form deprivation. It is unclear whether the sweep VEPs changes of the deprived eyes occurred in a shorter deprivation time than 1 week, and it is also difficult to know if the myopia development occurred at 1.5 or 2 weeks after form deprivation. A further study is needed to determine the measurement changes at shorter intervals.

Conclusions

From our results alone, we cannot simply determine whether form deprivation myopia and form deprivation amblyopia occurred simultaneously or successively in guinea pigs, even though it seems likely that amblyopia occurred earlier than myopia. However, our study provides evidence that form deprivation myopia and form deprivation amblyopia could coexist in guinea pigs after a long duration of monocular form deprivation, which was induced during an early period of visual development. The axial growth, emmetropization rate, and key aspects of retinal development in guinea pigs are similar to those in humans, and there is a significant binocular interaction in the guinea pig brain (48-50). The guinea pig has potential to become an important mammalian model for studies of amblyopia. Amblyopia associated with myopic anisometropia is still difficult to treat successfully (51-54); thus, understanding the relationship of amblyopia and myopia could provide useful insight into failures of treatment.

Acknowledgments

Funding: This work was supported by the National Natural Science Foundation of China (No. 81170828; 81670837); the Tianjin Science & Technology Foundation (No. 15JCZDJC35300); and the Tianjin Health and Family Planning Communication Foundation (No. 14KG133).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-5433

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-5433

Peer Review File: Available at http://dx.doi.org/10.21037/atm-20-5433

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-5433). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Experiments were performed under a project license (no. NKYY-DWLL-2020-099) granted by the Animal Ethical and Welfare Committees of Nankai Hospital, in compliance with the Guide for the Care and Use of Laboratory Animals of Nankai Hospital.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
