A narrative review of machine learning as promising revolution in clinical practice of scoliosis

Introduction

The past few decades have seen a massive increase in the use of artificial intelligence (AI). Machine learning (ML) is an advanced branch of AI that allows computer algorithms to learn patterns by studying data directly without being explicitly programmed. ML is similar to the human neural network that can learn, make decisions, communicate, and adapt to changing circumstances (1). Generally, ML is categorized into three primary methods: supervised, unsupervised, and reinforcement learning (2). Also, ML lends itself well to image processing due to its extremely high classification performance, and there have been a few studies regarding its applications to medical imaging (3). By implementing such methods, it is possible to revolutionize predictive analytics for previously undiscoverable patterns by leveraging existing big data, and it might have widespread implications for medical research.

Compared to other industries, healthcare is relatively slow in adopting AI (4). The incredible complexity of healthcare delivery is strangely what makes it a very fertile ground for the application of AI (5). However, technology is constantly changing throughout clinical practice, including how doctors interact with patients, diseases and their implements, the approach of information delivery, how the resultant interpretation is used to aid physicians, and postoperative evaluation and rehabilitation (6). The first attempts to introduce AI in spine surgery dated back to the advert of general-purpose computers during the Second World War and became available for nonmilitary use in the 1950s, which have been providing new insights into previous untapped and rapidly growing sources of data for reasoning and deciding. Nowadays, ML is entering the realm of medicine at an increasing pace and increasingly being used to investigate spine-related issues, especially in radiological imaging. For example, Jamaludin et al. (7,8) ever proposed a ML based system (Oxford SpineNet software system) for automatically analyzing spinal T2 MRI scans acquired from a DICOM (Digital Imaging and Communications in Medicine) file to evaluate Pffirrmann grades, modic changes, and spinal stenosis, and found that the system can be beneficial in aiding clinical diagnoses in terms of objectivity of gradings and the speed of analysis. In addition, ML is also applied in the outcome prediction of treatments (9). Arvind et al. (10) included 20,879 patients following anterior cervical discectomy and fusion and found that ANN have the greatest sensitivity in predicting mortality and postoperative complications. Similarly, Kim et al. (11) also reported the superiority of ML in identifying risk factors of developing complications following posterior lumbar spine fusion. Other applications of ML in spine surgery included diagnosis and assessment of spinal disease progression, decision-making in the treatment of spine degenerative diseases, and preoperative planning and intraoperative assistance (12).

Scoliosis, as a major composition of complex three-dimensional spine deformity, mainly covers the pediatric, adult and the elderly populations, and its diagnosis and treatment remain difficult. For decades, surgeons in this field relied on the established literature, extensive training, and clinical judgment to counsel patients regarding the risks and benefits of surgery; often, the most accurate information was based on their overall personal clinical experience and lacked patient-specific characteristics. With recent efforts and interdisciplinary cooperation, ML has been widely applied to investigate issues related to scoliosis (2,13). In this realm of enhanced technology and digital innovation, we are witnesses to this revolution and transformation. Surgeons in this field have been quickly adapting and refining these new technologies and integrated them into their clinical practice. The current trends in scoliosis are about digitization, ML, and smart robotics (14). ML models can meaningfully augment a surgeon’s ability in clinical practice related to scoliosis. As a result, there has been more considerable interest in the literature and academic forums about the utilization of ML in various branches in this field.

In this article, we did a wide search in the PubMed and Embase databases, and the searching strategy applied was as follows: Machine Learning [All Fields] AND ("Scoliosis" [MeSH Terms] OR “Spine Deformity” [All Fields]). Based on the cited references, we enlarged the search range and adopted the useful publications. By means of this narrative literature review, we aim to raise awareness of the current achievements and potential applications of ML in the field of scoliosis. It is vitally important to have the ability to establish an accurate clinical practice procedure, including screening, diagnosis and classification, surgical decision making, intraoperative manipulation, complication prediction, prognosis prediction and rehabilitation (Figure 1), in selecting the most appropriate management strategy for disorders in this field, as shown in Table 1. Therefore, this paper firstly presents ML and its recent advances, which might have a dramatical impact on clinical practice procedures in treating scoliosis. We present the following article in accordance with the Narrative Review reporting checklist (available at http://dx.doi.org/10.21037/atm-20-5495).

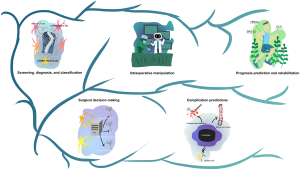

Figure 1 The demonstration of the application of ML in the clinical practice of scoliosis.

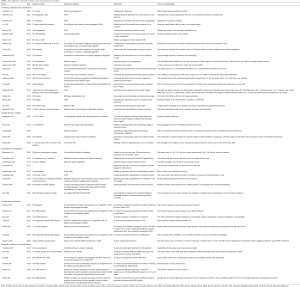

Table 1 The application of machine learning in the clinical practice of scoliosis
Full table

Screening, diagnosis, and classification

Currently, imaging identification has become a tremendous field of ML. Given the characteristics of a regular sequence of the normal spine and the irregularity of scoliosis, ML has superiority in identifying this disorder. To efficiently screen and diagnose a patient with scoliosis, ML has been transformative.

Screening may detect scoliosis earlier than it would be clinically detected. With early detection, most cases can be controlled with the lower costs and better efficacy. In addition, accurate diagnosis with ML can help surgeons avoid misjudgment. Early in 2000, Jaremko et al. (15) was the first to use neural networks to correlate spine and rib deformities in scoliosis. The investigators compared artificial neural networks (ANNs) and linear regression to predict rib rotation, with the results that ANNs averaged 60% correct predictions compared to 34% for linear regression analysis. These data lend credence to using ANNs in future work on the prediction of scoliotic spinal deformities from the torso surface. Regarding neuromuscular scoliosis, Bertoncelli et al. (24) applied a predictive model based on a logistic regression (LR) algorithm to predict the probability of scoliosis onset. The predictive accuracy, sensitivity, and specificity of the model were approximately 74% in full accordance with recent studies applying ML models in clinical fields.

A noninvasive method was gradually developed to assess scoliosis. Jaremko et al. (16) adopted ANNs to quantify torso surface asymmetry, and this method estimated the maximal Cobb angle within 6° in 63% of the test data set and was able to distinguish a Cobb angle greater than 30° with a sensitivity of 100% and specificity of 75%. However, it is worth mentioning that this research had a small data set with only 65 scan-radiograph pairs, which is not very persuasive. An increasing number of harmless screening methods have been developed, and a support vector machine (SVM) classifier has been used to assess the severity of idiopathic scoliosis based on surface topographic images of human backs by Ramirez et al. (17). The results of testing on the dataset showed that the system can achieve 69–85% accuracy in testing. Yang et al. (30) used unclothed back images with a combination algorithm of Faster-RCNN and Resnet to screen adolescent idiopathic scoliosis (AIS), and this research included images from 3,240 patients. Watanabe et al. (31) created a scoliosis screening system that estimated spinal alignment, the Cobb angle, and vertebral rotation from moiré images based on a convolutional neural network (CNN) to estimate the positions of 12 thoracic and 5 lumbar vertebrae, 17 spinous processes, and the vertebral rotation angle of each vertebra. Using self-contained ultrasound as another detection method for scoliosis, Greer et al. (27) estimated the Cobb angle relative to a vertebrae using a neural network analysis, which was based on a convolutional network and a second fully connected network.

It is important to develop an automatic procedure since measuring the Cobb angle can be time consuming and unreliable. Duong et al. (19) adopted SVM to quantify curve severity with 100 posteroanterior radiographs, and the results were statistically similar (P<0.05) in 93% of cases to the manually identified curve. Wu et al. (28) proposed a novel multi-view correlation network (MVC-Net) architecture that provided a fully automated end-to-end framework for spinal curvature estimation in multi-view (both anteroposterior (AP) and lateral (LAT)) X-rays. The results indicated that the MVC-Net’s capability of estimating Cobb angles from multi-view X-rays was robust and accurate. Wang et al. (32) also proposed a multi-view extrapolation net (MVE-Net) that provided accurate automated scoliosis estimation from both AP and LAT X-rays. CNN is another suitable ML algorithm for Cobb angle measurement. Galbusera et al. (29) extracted the location of 78 landmarks from three-dimensional reconstructions of 493 spines of patients suffering from various disorders and trained a fully CNN featuring an additional differentiable spatial to numerical transform (DSNT) layer to predict the location of each landmark. This model automatically determined the shape of the spine in biplanar radiographs and calculated the value of anatomical and posture parameters across a wide range of clinical conditions with robust performance. Horng et al. (33) ever created a CNN system that included three main parts: isolation of the spine, vertebra segmentation, and Cobb angle measurement. Pan et al. (34) proposed two Mask R-CNN models to automatically measure the Cobb angle and diagnose scoliosis on chest X-ray. Jamaludin et al. (35) automated the identification of spinal curvature from total body dual-energy X-ray absorptiometry (DXA) scans using ML techniques, and the final automated model had a sensitivity of 86.5%, specificity of 96.9%, and an area under the curve (AUC) of 0.80 (95% CI: 0.74–0.87). To dynamically monitor spinal curve progression in AIS, García-Cano et al. (25) proposed a novel approach based on a statistical generative model using random forest regression to predict the shape variation in the spinal curve from the first visit. The estimated shape differed from the real curvature by Cobb angles of 1.83°, 5.18°, and 4.79° in the proximal thoracic, main thoracic, and thoracolumbar/lumbar sections, respectively.

The primary goal of surgical management of scoliosis is to achieve solid fusion with a well-balanced spine. Insufficient understanding of curve morphology and subsequent improper selection of fusion levels may result in suboptimal outcomes (63). Classification has provided guidance in the treatment of spine deformities. However, though AIS and adult degenerative scoliosis (ADS) are the most common spinal deformities, there can be of great variety in their classification. In this context, identification of AIS classification has been an important topic in the orthopedic community, while ADS classification can be more complex and irregular. Lin et al. (18) implemented a multilayer feed-forward, back-propagation (MLFF/BP) ANN to test the King classification of scoliosis spinal deformity. The identification rate was 83% for two hidden layers and 75% for one hidden layer. Other noninvasive classification methods are also being explored. Adankon et al. (20) divided the 3D image of the surface of the trunk into patches and local geometric descriptors characterizing the back surface of 165 patients with different scoliosis curve types and built a multiclass classifier with least-squares support vector machines (LS-SVM). The overall accuracy of the system was 95%. For the correct classification rates per class, the results showed 96%, 84% and 97% for the thoracic, double major and lumbar/thoracolumbar curve types, respectively. To solve the problem of low interobserver and intraobserver reliability in AIS classification, García-Cano et al. (26) presented two new techniques to describe the spine, namely, leave-one out and fan leave-one-out for characterizing spine curve types, and provided assistance to clinicians in the form of information to classify borderline curvature types. Moreover, a fuzzy logic rule-based classifier was also implemented to classify the spine patterns using the King-Moe classification approach by Birtane et al. (22). As spine deformities are three-dimensional deformities, an increasing number of researchers have paid attention to its 3D classification. Thong et al. (23) adopted an unsupervised clustering method based on stacked autoencoders to simplify the complex nature of 3D spine models. It is noteworthy that any classification has its advantages and disadvantages, and therefore, it is hard to evaluate which is better. The world is moving into digital archiving, retrieval, and communication of high-resolution images. Menon et al. (21) proposed a newly developed content-based image retrieval (CBIR) software to retrieve images of similar cases of AIS from a database to help plan treatment without adhering to a classification scheme. Although this software did not elaborate a thorough algorithm and the sample size was quite small, this concept is extremely promising for future scoliosis classification.

Surgical decision making

Classification can truly aid in decision making and instrumentation region selection for surgeons. For example, the Lenke classification (64) provides guidelines for arthrodesis for 6 types and 42 subtypes of AIS patients using expert opinion/consensus and available scientific evidence for clinical decision making; the Scoliosis Research Society (SRS)-Schwab classification (65) and Lenke-Silva classification (66) provide surgical instructions from the perspective of morphology and management for ADS patients. To make this procedure more evidence-based, ML has potential.

Regarding AIS, Mezghani et al. (36) used a database of 1,776 surgically treated AIS cases and investigated a topologically ordered, self-organizing Kohonen network trained using Cobb angle measurements to determine the relationship between the Lenke classification and fusion region selection. The results showed that the recommended fusion region by ML model agreed with the Lenke classification with 88% overall agreement. Surgery planning could benefit from such map associations by comparing treatment outcomes from similar patients receiving different treatments. Phan et al. (37) used neural networks and Kohonen self-organizing maps (SOM) to classify AIS and conducted a retrospective analysis of AIS curve regions selected for fusion. An AIS SOM with high accuracy was successfully generated. Lenke classification principles were followed in 46% of the cases but in 82% of the nodes on the SOM. The SOM highlighted the tendency of surgeons to follow Lenke classification principles for similar curves on the SOM. To identify the range of optimal versus suboptimal rates of spontaneous lumbar Cobb correction (SLCC) and the factors predicting such outcomes in a cohort of Lenke 1 AIS patients, Pasha (40) adopted a decision tree to analyze 71 consecutive AIS patients with a fusion level to L1 and concluded that preoperative lumbar apical vertebrae translation, early postoperative T4–T12 thoracic kyphosis and thoracic apical vertebrae rotation can predict the optimal range of SLCC%.

As for adult spinal deformities, the principles regarding surgery can be different from AIS and other types of deformities. Health-related quality of life (HRQoL) can be tightly correlated with sagittal alignment. Ames et al. (39) included 570 ADS patients and adopted AI-based hierarchical clustering as a step toward a classification. The results showed that this model identified data patterns that may augment preoperative decision making through the construction of a 2-year risk–benefit grid. Additionally, pattern identification may facilitate treatment optimization by educating surgeons on which treatment patterns yield optimal improvement with the lowest risk. Lafage et al. (38) adopted ML and other types of advanced algorithms to improve surgical outcomes and alignment predictions for surgical planning and prediction of postoperative alignment. These tools, which were able to integrate several parameters and learn from experience, can change the traditional way of selecting treatment and counseling patients. However, the complete algorithm and sample quantity were not mentioned in the article.

Intraoperative manipulation

To better enhance the surgeon’s intraoperative performance, a variety of applications combined with AI were put into routine use. Correct segmentation and vertebral reconstruction are crucial steps in the assessment and management of abnormalities, especially because vertebral rotation is difficult to simulate in spine deformities. Early in 2005, Benameur et al. (41) proposed a hierarchical statistical modeling approach for the unsupervised 3-D biplanar reconstruction of the scoliotic spine. Then, Mirzaalian et al. (42) applied a top-down fully automatic 3D vertebra segmentation algorithm using global shape-related and local appearance-related prior information, in which the latter was handled by a ML-based component. The results indicated a symmetric point-to-mesh surface error of 1.37±0.37 mm, which matched the current state-of-the-art methods. In 2018, Zareie et al. (47) compared a multilayer perceptron neural network (MLPNN) and a newly developed adaptive pulse coupled neural network (APCNN) in the automatic segmentation of vertebrae in 3D CT images and concluded that the performance of the presented APCNN-based algorithm was dominant.

Pedicle location and recognition play important roles in screw implantation for spine deformities. Huo et al. (49) proposed a method based on 400 individual vertebral models to automatically recognize the vertebral pedicle in individual vertebral models and draw pedicle contours. The procedure included three steps: first, the individual vertebral models were preprocessed to obtain their point clouds; then, a modified Point-Net model was used to segment the pedicle areas from the individual vertebral point clouds; afterwards, the segmentation results were used to automatically fit the cross-sections of pedicles and finally generate the pedicle contours as surgical references. For most scoliosis cases, vertebrae often have axial rotation, and this point should be taken into great consideration when inserting pedicle screws. Ebrahimi et al. (48) included a total of 149 healthy and AIS subjects and developed an automated pedicle detector based on image analysis, ML and fast manual identification of a few landmarks to calculate vertebrae axial rotation values in frontal radiographs with minimal user intervention and robust quasi-automated pedicle localization. Minimally invasive surgery is another promising strategy for spine deformities; therefore, accurate percutaneous spinal needle insertion procedures are necessary. Hetherington et al. (45) developed a real-time system based on deep CNN to classify transverse images of the lower spine, and this method might contribute to the development of a minimally invasive treatment for ADS. To satisfy the goal of verification, screw insertion was performed intraoperatively. Esfandiari et al. (46) found that the CNN framework was capable of segmenting screw shafts with 93% and 83% accuracy when tested on synthetic X-rays and on clinically realistic X-rays, respectively. To achieve the goal of multiobjective optimization design of spinal pedicle screws in the treatment of deformity corrections, Amaritsakul et al. (43) found that the hybrid of ANN and genetic algorithm (GA) was ideal with simultaneous high bending and pullout performances. Moreover, automatic matching of surgeries to predict the surgeons’ next actions can be helpful for spine deformity surgeons. For this purpose, Forestier et al. (44) proposed an efficient algorithm to find the optimal partial alignment and a prediction system using maximum a posteriori probability estimation and filtering in lumbar disc herniation removal and anterior cervical discectomy. The results showed that this method outperformed the state-of-the-art methods by predicting the next task that the surgeon will perform with 95% accuracy. We believe this kind of mode can be extended to orthopedic surgeries for spine deformities in the near future.

Complication predictions

The definition of complication in this review was defined as adverse events that can significantly affect the patients’ quality of life and frequently required clinical intervention during the perioperative period. The goal of surgical treatment for patients with scoliosis is undoubtedly to improve their HRQoL, and thus related complications should be carefully taken into consideration, especially in adult spinal deformity (ASD) patients. Any unexpected complication may cause miserable results, and it is of great importance to predict these problems before performing surgery. Normally, few complications are found in the AIS population, and nearly all the references regarding scoliosis and ML are about ADS. Pellisé et al. (54) aimed to assess the incidence of adverse events after ASD surgery and to develop and validate a prognostic tool for the time-to-event risk of major complications (MCs), hospital readmission (RA), and unplanned reoperation (RO). They created a random survival forest algorithm, and the results showed that surgical invasiveness, age, magnitude of deformity, and frailty were the strongest predictors of MCs. Individual cumulative risk estimates at 2 years ranged from 3.9% to 74.1% for MCs, from 3.17% to 44.2% for RAs, and from 2.67% to 51.9% for ROs. Scheer et al. (51) performed similar studies with ASD patients, and they constructed an ensemble of decision trees utilizing the C5.0 algorithm with 5 different bootstrapped models. With a sample of 557 ADS patients, the overall model accuracy was 87.6% correct, with an AUC of the receiver operating characteristic (AUROC) curve of 0.89 indicating a very good model fit. They reported that twenty variables were determined to be the top predictors. Kim et al. (52) created models using the American Society of Anesthesiologists classification (ASA class) as a benchmark for prediction of cardiac complications, wound complications, venous thromboembolism (VTE), and mortality in ASD patients. The results showed that the ANN outperformed LR in predicting cardiac complications, wound complications, and mortality (P<0.05). To analyze MC 2 years after corrective spine surgery for ASD, Yagi et al. (53) constructed decision-making tree models using spinal alignment, demographic data, and surgical invasiveness. The test samples showed that their predictive model was 92% accurate with an AUROC curve of 0.963 and 84% accuracy in the external validation. As patients with spine deformities often experience long and deep wounds, postoperative surgical site infection is a common complication. Hopkins et al. (56) trained a deep neural network classification model using 35 unique input variables in a retrospective cohort of 4,046 posterior spinal fusions. The overall rate of infection was 1.5%. The mean AUC, representing the accuracy of the model, across all 300 iterations was 0.775 (95% CI: 0.767–0.782) with a median AUC of 0.787. Although this research did not focus on scoliosis, the application of ML can be examined in future studies.

Regarding radiographic complications, especially proximal junctional kyphosis (PJK) and proximal junctional failure (PJF) in ASD patients, there were only two studies reported to date. Scheer et al. (50) constructed an ensemble of decision trees using the C5.0 algorithm with 5 different bootstrapped models in a cohort of 510 ASD patients, and the overall model accuracy was 86.3%, with an AUC of 0.89 indicating a good model fit. Their study listed the 7 strongest (importance ≥0.95) predictors: age, lowermost instrumented vertebra (LIV), preoperative sagittal vertical axis (SVA), uppermost instrumented vertebra (UIV) implant type, UIV, preoperative pelvic tilt (PT), and preoperative pelvic incidence and lumbar lordosis (PI-LL). In 2018, Yagi et al. (55) fine-tuned the predictive model for PJF with the construction of decision-making trees using the C5.0 algorithm with 10 different bootstrapped models and assessed performance with 145 surgically treated ASD patients. Their predictive model was 100% accurate in the testing samples with an AUC of 1.0, indicating excellent fit. The best predictors were (strongest to weakest): PT, bone mineral density (BMD), LIV level (pelvis), UIV level (lower thoracic), pedicle subtraction osteotomy (PSO), global alignment, body mass index (BMI), PI-LL, and age.

Prognosis prediction and rehabilitation

All surgeons crave for a better clinical efficacy for their patients; however, the prognosis across differing circumstances can be quite different. Therefore, prognosis prediction is necessary, and currently, different ML approaches are being explored according to their specific characteristics. Regarding functional indices, Scheer et al. (60) constructed decision trees using the C5.0 algorithm with five different bootstrapped models according to baseline demographic, radiographic, HRQoL, and surgical factors to predict patients meeting the Oswestry Disability Index (ODI) minimal clinically important difference (MCID) at the two-year postoperative follow-up. The overall model accuracy was 86.0%, with an AUC of 0.94, and the top 11 predictors for achieving the MCID were listed. Ames et al. (61) compared eight predictive algorithms using 75 variables of demographics, baseline patient-reported outcomes (PROs), and modifiable surgical parameters at four time horizons: preoperative or postoperative baseline to 1 year and preoperative or postoperative baseline to 2 years. They concluded that patients with worse preoperative baseline PROs tended to achieve clinically relevant improvements. This team also developed six different prediction algorithms for all the individual questions on the SRS-22R after ASD surgery directed toward individualized medicine, and the AUROC ranged from 56.5% to 86.9%, reflecting successful fits for most questions (62). Oh et al. (59) aimed to create a validated MCID model that had the potential to assist in patient selection, thereby improving outcomes. An ensemble of 5 different bootstrapped decision trees was constructed using the C5.0 algorithm with 85.5% accuracy and 0.96 AUC.

Regarding rehabilitation, Chalmers et al. (57) compared human experts’ and a fuzzy model’s predictions of outcomes of scoliosis bracing treatment. The model was constructed using conditional fuzzy C-means clustering to discover patterns in retrospective patient data and was capable of providing meaningful brace treatment recommendations. A wavelet neural network was adopted to predict complete ground reaction forces and moments during gait with insole plantar pressure information by Sim et al. (58), and the results might help improve the gait of AIS patients. In addition, a robotic spine exoskeleton (67) capable of controlling the position/orientation of specific cross-sections of the human torso while simultaneously measuring the forces/moments exerted on the body opened the possibility for the design of spine braces incorporating patient-specific torso stiffness characteristics and the potential for new interventions using the dynamic modulation of 3-D forces for scoliosis treatment. Additionally, robotic rehabilitation of the upper extremity after neurological injury (68) and trunk robot rehabilitation training with active stepping after trunk motor cortex injury (69) might be promising assistant rehabilitation methods in the near future.

Current limitations and future directions

The implementation of ML technologies for scoliosis, especially regarding tools with a direct clinical impact, is undoubtedly contributing to a paradigm shift. However, with the advent of new techniques, the current limitations and ethical problems should be reasonably considered. A systematic review in neurosurgical literature concluded that in spite of great potential of ML models in augmenting the decision-making capacity of clinicians in neurosurgical applications, significant hurdles remain associated with creating, validating, and deploying ML models in the clinical setting (1). Perhaps the most barrier regarding ML adoption is the lack of robust frameworks used to assess the performance and development of the related algorithms. Furthermore, the mechanisms driving the algorithms is sometimes complicated and even unpractical. In fact, there is an absence of clear gold criteria for ML models in addressing clinical problems. Regarding aspects of disease screening, diagnosis and classification, ML still shows the phenomena of misdiagnosis and missed diagnosis, and its accuracy is not 100% effective. Although there are many types and theories as support, many details remain to be optimized for more thorough and further simulation and planning. In addition, although ML is much more improved than simple mathematical statistics, the basic principle appears as a black box to an external user, and its predictions largely appear to be determined by an obscure logic that cannot be understood or interpreted by a human observer (70,71). Secondly, it is relatively difficult to collect high-volume patients’ date for a single-center institution due to privacy considerations or across institutions. The deployment of such powerful technologies in the area of scoliosis is still in its infancy, and scoliosis is a relatively narrow branch of the spine field; the available number of samples is not as sufficient as other subjects. Thirdly, another important preconception regarding the role of ML models in clinical spine realm is that the status of clinicians could be shaken, a so-called term ‘human-vs-machine’ (72). In clinical practice, although ML could give high analysis accuracy in clinical guidance, the clinicians still must pay attention to the implications of this analysis (73). Researchers apply a variety of algorithms to develop applications, and the annotation and collection of the original data should be rigorous. Before extension to other surgeons, the application should require more comprehensive testing and verification with respect to other technologies. When applied in the real world, the surgeons’ role in the final decision should still be emphasized (74). Last but not least, ethical problems should never be neglected with ML in the scoliosis field. Data privacy and security remain a problem due to the massive amount of clinical and imaging data required, thus issues about data collection, transmission and storage, as well as informed consent are involved (2). Data anonymization is commonly advocated; nevertheless, patients retain rights to their anonymized data, which are subjected to strict regulations about storage, transmission and use, especially when data are used in a for-profit environment (75).

Consequently, conducting a high-quality study may be restricted. Also, the ability to evaluate the study design such as power analysis can be limited. Therefore, it is imperative to reach a consensus regarding the optimal method standardization of ML in clinical practice, and a high-quality study taking human-and -machine approach may reveal how the clinicians can benefit from ML models. The following suggestion recommendations should be considered by clinicians when ML is applied in scoliosis. Firstly, a multidisciplinary team containing spine clinicians, engineers, statistical experts, and data scientists should be created to evaluate the ML tools, which could compensate to the knowledge limitations for any single team. Secondly, there was considerable heterogeneity in the modeling methods used, including the inclusion criteria, input and output variables used, and so on. The comparison of different neural network algorithms could assist in selecting the best model with the best performance. Additionally, the advantages and disadvantages of different algorithms for each spinal disorder should also be considered (76). Therefore, future study should focus on the validation of ML models on heterogeneous test sets prior to deployment and the regulation of ML performance after deployment in clinical practice. Thirdly, concept shifting from human vs. machine to human-and-machine may be essential to over these barriers. Take an example, there were four studies concluded that ML combining with clinical decision making is superior to ML models or clinical decision making alone (72,76-78). Using the experience of clinicians as a pre-requirement, the application of ML in spine deformity, such as scoliosis, will be more promising in increasing the accessibility of clinical data.

Conclusions

Currently, ML in practice is still an art of weak AI. Although we presented its application in different clinical practice stages, there is still a lack of a complete cycle of the clinical procedure that can help surgeons make decisions from diagnosis to prognosis. The related applications of ML on etiology (79), gait analysis (58) and electronic medical records analysis (80) should also be continued. We believe that the implementation of sophisticated ML for scoliosis promises a revolution in how surgeons perform throughout all aspects of the clinical practice related to scoliosis (14). More effective and reliable predictive models for new ways of collecting, accessing, sharing, storing, analyzing and presenting the data need further exploration.
