Incision and flap design during total auricular reconstruction using a 2-stage strategy
Introduction
Many surgeons have made progress in the field of ear reconstruction. Brent and Nagata. demonstrated excellent results and with numerous modifications of Tanzer’s technique (1-8). Nagata’s 2-stage reconstruction is widely applied to auricular reconstruction, and the principles described by Nagata are considered the baseline for new ideas (9).
Tissue expansion provides additional soft tissue to cover the cartilage framework (9). Numerous ear reconstruction surgeons reported cases of ear reconstruction with tissue expansion (10-17). Neumann was the first one who introduced tissue expander for ear reconstruction (10). Park (12) developed a two-flap method with tissue expander, and Pan, Jiang, Zhang et al. modified this method (13,14,18). Xing et al. further put forward a single flap method to avoid free skin graft (19). Kludt et al. presented the use of tissue expansion technique and Medpor framework to reconstruct ear (17). Tissue expansion is currently one of the most popular techniques for ear reconstruction. In a previously published study, our center presented the process and performance of a novel 2-stage strategy, which combined tissue expansion and Nagata’s technique, for total ear reconstruction (20). In the present study, we will discuss this strategy further, in particular, the incision and flap design. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-8015).
Methods
During 2018-2019, 21 microtia patients (15 males and 6 females) underwent ear reconstructions using this new strategy at our center. The patients were aged 7 to 48 years. No patient had undergone previous operations or had trauma related in periauricular region. All 21 patients were unilateral microtia; 13 cases were right-side microtia and 8 were left. According to Nagata’s definition, 17 cases were lobule type and 4 were concha-type microtia (5-7).
This study’s procedures were approved by the Institutional Ethics Committee of Clinical Research (Plastic Surgery Hospital of CAMS&PUMC). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Because of the retrospective nature of the research, the requirement for informed consent was waived.
Statistical analysis
Version 26.0 of the SPSS statistical software package (IBM, New York) was used to perform all statistical analyses. P<0.05 was considered statistically significant.
Surgical procedure
Stage 1: tissue expander insertion

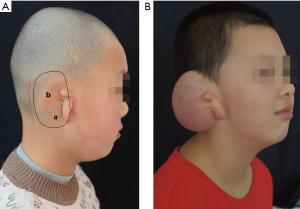

During expander implantation, a 4-cm incision within the postauricular scalp was made parallel to the temporal hairline. A dual-plan dissection is usually performed with a bounder between the upper and middle third regions; the upper third plane was above the postauricular fascia and the lower third subfascially. An 80 mL kidney-shaped expander was inserted to the pocket with the larger pole superiorly. Inflation began in the 7th day postoperatively lasted for about 1.5 to 2 months, and the total expansion volume was 110–140 mL. Laser hair removal was used twice for unhairing (Figure 1).
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/16/articles/60404/public/60404-PB6-6866-R1.png/w300)
Stage 2: total auricular reconstruction
Design of skin incision

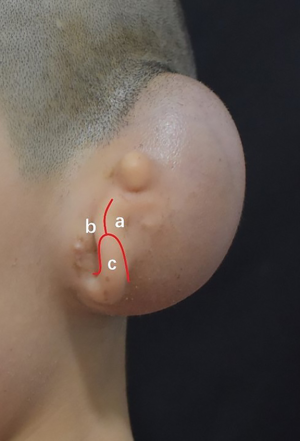

A Y-shaped lobule incision was made to separate the remnant ear into 3 skin flaps as follows: (I) the posterior skin flap, which would cover the inter-tragus and posterior side of the tragus; (II) the anterior skin flap, which would cover the anterior side of the tragus; and (III) the lobule flap, which forming lobule and covering the inferior part of the framework. The remnant ear cartilage was completely removed, and great care was taken to preserve the integrity of the subdermal vascular plexus (Figure 2).
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/16/articles/60404/public/60404-PB7-5151-R1.png/w300)
Framework fabrication
Before reconstruction, an X-ray film template was fashioned using the contralateral ear as a model. To harvest costal cartilages, a 2–5 cm oblique incision was made just above the costal margin of the contralateral side. The auricular framework was fabricated according to and Zhang’s method with certain improvement (3,4,15,21). The seventh and part of sixth costal cartilages were harvested for the base Frame, and the eighth cartilage for the helix. The scapha and fossa triangularis were obtained by sculpting the base frame. The antihelix was constructed from the remnant cartilage piece during scapha sculpting. The tragus was constructed by residual pieces from the seventh cartilage. To deepen the conchal cavity and ear’s projection, a stable crescent-shaped pad, which usually constitutes
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/16/articles/60404/public/60404-PB8-2171-R1.png/w300)
Expanded flap dissection
Through the Y-shaped lobule incision, we inserted the capsule and removed the expander. The expander capsule and thickened skin flap along the edge of the expander were carefully removed. An expanded skin flap with a posterior pedicle was developed. The central zone of the flap enlarged from mastoid skin was considerably thin, and the total area was large enough to drape the cartilage framework and form a postauricular sulcus. After through hemostasis, the framework was inserted into the pocket of the expanded flap and place in an appropriate position (Figure 4A,B,C).
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/16/articles/60404/public/60404-PB9-5785-R1.png/w300)
Lobule transposition and tragus formation
To reconstruct the infrastructure of the ear, the lobule flap should rotate posteriorly and inferiorly. According to the position of the contralateral earlobe, the location of the lobule was predicted and marked. To avoid the slender contour at the joint of the reconstructed ear and the lobule, the distal extremity of the lobule should cover the tail of the helix for at least 2 mm. Notably, for lobule transposition, we did not perform a full-thickness cut on the flap. We only resected the epidermal layer to preserve a subcutaneous pedicle. The blood supply of the conchae and antihelix skin was augmented by this pedicle. Finally, the tragus was covered by the posterior skin flap and the anterior skin flap of the remnant ear. After skin closure, the anatomical details of the framework were immediately evident with suction (Figure 4D,E).
Results
Follow-up was conducted from 3 months to 1.5 years after reconstruction. The reconstructed ears were evaluated by the patients (or the parents) and the surgeon.

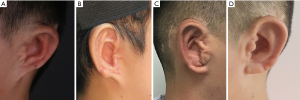

Nineteen patients were satisfied with the reconstructed ears, which had good shape, as well as appropriate color, texture, size, and location (Figure 5). The cranio-auricular sulcus was also similar to the opposite ears. Four patients requested further modification (Table 1).

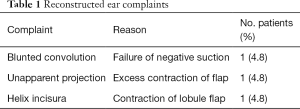

![Click on image to zoom Table 1](http://cdn.amegroups.cn/journals/amepc/files/journals/16/articles/60404/public/60404-PB11-9785-R1.png/w300)
Full table
Few complications occurred during our procedure, including 1 case of lobule blood crisis and 1 case of conchae skin blood crisis; the flaps survived after release tension and hydropathic compress. No other complications, such as exposure of the tissue expander, hematoma, skin necrosis, cartilage exposure, and infection, occurred.
Discussion
A sufficient skin envelope is the most important factor for a successful auricular reconstruction (10,12,13). In most cases, a W- or V-shaped posterior lobule incision on the remnant ear is an effective way to increase the skin surface area for framework coverage (5-7). However, in cases of tiny remnant ear or anotia, skin that was damaged by previous operation or trauma, poor skin mobility, low position of the hairline, or severe hemifacial microsomia, a tissue expansion procedure was necessary to provide additional hair-free skin to cover the framework (20-22).
Tissue expansion was first applied in auricular reconstruction by Neumann in 1957 (10). Although controversy around tissue expansion exists, a number of surgeons have successfully employed tissue expansion in the reconstruction of congenital microtia and traumatic auricular defects. In China, ear reconstruction surgeons reported thousands of microtia patients were reconstructed by skin expansion techniques (13,14,19-21,23-26). Usually, the expanded flap is not large enough to drape the entire framework, so skin grafts and postauricular facial flap elevation are consequently inevitable. Xing et al. and Li et al. described their novel strategies to avoid skin grafts; however, a surgical procedure with
In previous study, a novel 2-stage strategy was presented, which combined tissue expansion and Nagata’s technique. First, we inserted an 80 mL kidney-shaped expander into the mastoid region. In tissue expansion, the involvement of the surrounding scalp is usually difficult to avoid. As the scalp is thick and has hair, this can affect the final result. In our cases, we dissected subcutaneously in the scalp region and subfascially in the mastoid skin region. An expander with larger upper poles helps expand the scalp. As a result, the expanded scalp is equally thin as the mastoid skin.
We didn’t select the initial incision of tissue expander implantation to remove the expander, which was described by a number of researchers who practice tissue expansion (25-28). During the second stage, a Y-shaped lobule incision on remanent ear was made to reach the expander and remove the capsule beside it. Through this incision, we also separated the lobule into 3 skin flaps: the posterior skin flap, the anterior skin flap, and the lobule flap.
In reconstructing the auricular framework, we added a crescent-shaped pad beneath the base frame to enhance projection and form a favorable cranio-auricular sulcus based on other researchers’ experiences. A stable pad was essential to resist retraction of the flap and form a deep cavum concha. After we inserted the framework into the pocket of the expanded flap, a deep cranio-auricular sulcus was immediately evident.
During skin pocket preparation, Nagata emphasized that the subcutaneous pedicle effectively augments the flap’s blood supply to avoid central necrosis (5). One of the advantages of tissue expansion is that the pocket prepared already in last stage and tissue expander can effectively improve the blood supply of expanded flap during a 1.5–2-month long expansion. In addition, in our strategy, the flap pocket was large enough to drape the entire frame, and lobule transposition was performed simultaneously. As the core concept of our strategy, a full-thickness incision on the expanded flap for lobule transposition was not made. We resected the epidermal layer, so that a subcutaneous pedicle was preserved to ensure the blood supply of the concha and antihelix skin.
In the present study, we developed a novel 2-stage strategy, which combined tissue expansion with Nagata’ technique, on total ear reconstruction. The key points of our technique are as follows:
- We inserted an 80 ml kidney-shaped expander, with a larger upper pole in the scalp region. We dissected subcutaneously in the scalp area and subfascially in the lower third region. Laser hair removal was also applied to avoid hairy skin at the superior helix.
- A Y-shaped lobule incision was made to remove the expander and the capsule beside it. Through this incision, we also removed the remnant cartilage and separated the remnant ear into the posterior skin flap, anterior skin flap, and the lobule flap.
- A full-thickness incision on the flap for lobule transposition was not made. We only resected the epidermal layer; therefore, a subcutaneous pedicle was preserved to avoid central necrosis.
- We made a 2–5 cm incision to harvest the cartilages. We added a crescent-shaped pad beneath the base frame to enhance projection and form a cranio-auricular sulcus.
- The flap was large enough to drape the whole frame; skin grafts and facial flap elevation were completely avoided. This reduces the need for 3-stage surgery for lobule transposition and tragus fabrication.
