Development and validation of an autophagy-related prognostic signature in esophageal cancer

Introduction

Esophageal cancer (ESCA) ranks as the sixth most common cause of cancer deaths globally (1). Despite the improved diagnostic and treatment procedures, including endoscopic resection, targeted therapy, and immunotherapy, the overall survival (OS) of ESCA patients is still poor. The 5-year survival rate for patients with advanced ESCA is less than 20% (2). Improving early diagnosis and identifying new prognostic markers and therapeutic targets are important in improving the prognosis of patients with ESCA.

Autophagy, known as type II programmed cell death, plays an important role in maintaining cell homeostasis. Abnormal autophagic levels are involved in the carcinogenesis of various organs, including ESCA (3,4). Previous studies indicated that autophagy played a dual role in cancer development, depending on stage and type of cancers (5). Studying the relationship between autophagy and tumorigenesis may facilitate the discovery of new targets for prognosis and treatment.

Various prognostic models based on gene expression data, such as long non-coding RNA (lncRNA) and microRNA (miRNA) expression, have been developed for different cancers (6,7); however, prognostic models based on autophagy-related genes (ARGs) in ESCA have not been reported. In the present study, we examined the associations between expression profiles of ARGs and clinical outcomes in ESCA patients using the database of The Cancer Genome Atlas (TCGA). We developed an ARG prognostic signature that was proved to be an independent predictor of OS in ESCA patients. Our findings provide an effective multi-dimensional biomarker strategy that predicts the prognosis of ESCA patients. We present the following article in accordance with the TRIPOD reporting checklist (available at http://dx.doi.org/10.21037/atm-20-4541).

Methods

The study conformed to the provisions of the Declaration of Helsinki (as revised in 2013).

Data extraction from the TCGA database

The transcriptome data and clinical information for ESCA patients were obtained from TCGA (https://portal.gdc.cancer.gov/). RNA-sequencing (RNA-Seq) was performed using HTSeq-FPKM (version: July 19, 2019), which is a simple expression level normalization method. A total of 158 primary ESCA patients with gene expression data and clinical follow-up information were included in the current study. The ARGs were acquired from The Human Autophagy Database (HADb, http://www.autophagy.lu/index.html).

Differentially expressed ARGs and functional pathways analysis

The “Limma” package in R software was employed to identify the differentially expressed ARGs between tumor samples and non-tumor samples from patients with ESCA. The cut-offs were |logFold change (FC)| >0.5 and P value <0.05. The “org.Hs.eg.db” package was utilized to extract the Entrez ID of each ARG. The “clusterProfiler”, “enrichplot” and “ggplot2” packages were applied for Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEEG) analyses as well as for visualization of the enrichment terms.

Construction and validation of an ARG-related prognostic signature

The ESCA patients in the entire TCGA dataset were randomly separated into a training dataset and a testing dataset by the “caret” package of R. The clinical information related to the TCGA-ESCA cohort was downloaded, and the OS was defined as the time from diagnosis to death or the last follow-up date. ARGs that were significantly associated with OS were selected using a univariate Cox regression analysis. To identify ARGs that independently predicted OS in the training dataset, a multivariate Cox regression analysis was performed on the ARGs selected in the univariate regression analysis. A prognostic signature was developed based on these ARGs. A risk score was established based on the prognostic ARGs signature using a linear combination of the gene expression levels weighted by the regression coefficients derived from the Cox regression analysis. This model was utilized to estimate the survival of each patient in the training dataset and testing dataset. The patients in each dataset were assigned to a high-risk or a low-risk group using the median risk score as a cutoff. The predictive potential of the ARGs signature was evaluated via area under the curve (AUC) value of the receiver operating characteristic (ROC) curve at 1-year using the “survivalROC” package.

PPI network construction and module screening

The differentially expressed ARGs were submitted to the STRING database (Search Tool for the Retrieval of Interacting Genes/Proteins, http://www.string-db.org/, version 11.0) to identify protein-protein interaction (PPI) information. The Cytoscape 3.7.2 software was applied to further construct and visualize the PPI network. Important modules and genes were selected in the PPI network by applying the Molecular Complex Detection (MCODE) plug-in with node counts higher than 10.

Statistical analysis

A Cox regression analysis was conducted using the “survival” package. The “Limma” package was utilized to conduct the normalization and differential expression analyses. Wilcoxon rank-sum test, a non-parametric statistical hypothesis test, was used for comparing two groups. All statistical analyses were implemented using the R software (version 3.6.3). A P value <0.05 was considered to be significant.

Results

Differentially expressed ARGs in ESCA

The ESCA RNA-seq data download from the TCGA database included 159 tumor samples and 10 non-tumor samples from the patients. Among these patients, a total of 158 primary ESCA patients with gene expression data and clinical follow-up information were included in the current study. We analyzed the expression of 232 ARGs in ESCA tumor samples and non-tumor tissues using the Wilcoxon signed rank test in R. Using the criteria of |log2 FC| >0.5 and P<0.05, 69 ARGs were extracted, including 9 down-regulated genes and 60 up-regulated genes. The expression patterns of these differentially expressed ARGs were visualized using the “limma” package of R (Figure 1A,B). A box plot was generated to display the expression patterns of the 69 ARGs in ESCA and non-tumor tissues (Figure 2).

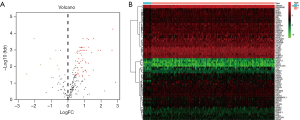

Figure 1 Differentially expressed ARGs in ESCA tumor and non-tumor samples. (A) The volcano map of 69 ARGs. The red dots indicate genes with high expression and the green dots represent genes with low expression. (B) Hierarchical clustering distribution of differentially expressed ARGs in normal and tumor samples. ARGs, autophagy-related genes; ESCA, esophageal cancer; N, normal samples; T, tumor samples; FC, fold change.

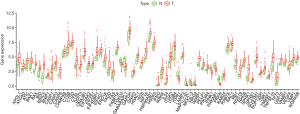

Figure 2 The expression patterns of 69 ARGs in ESCA tumor samples and paired non-tumor samples. Each red dot represents a distinct tumor sample and greens dots represent a non-tumor sample. A red bar above a gene name represents a significantly higher expression and a green bar represents a significantly lower expression. ARGs, autophagy-related genes; ESCA, esophageal cancer; N, normal samples; T, tumor samples.

Functional enrichment analysis of the differentially expressed ARGs

The GO annotations for the differentially expressed ARGs were determined. The most enriched GO terms for biological processes were autophagy, process utilizing autophagic mechanism, and neuron death. The cellular component analysis showed enrichment of vacuolar membrane, endosome membrane, and autophagosome in the differentially expressed ARGs. In the molecular function analysis, ubiquitin-like protein ligase binding, ubiquitin protein ligase binding, and cytokine receptor binding (Figure 3A,B) were enriched in the differentially expressed ARGs. The results of the KEGG pathway analysis showed enrichment of the apoptosis, autophagy-animal, and Kaposi sarcoma-associated herpes virus infection pathways (Figure 3C,D). More importantly, the functional analysis showed that the enriched genes were up-regulated in the most significant KEGG pathways (e.g., apoptosis and autophagy-animal).

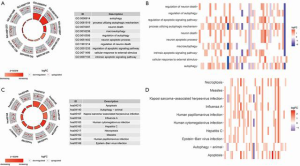

Figure 3 Functional analysis of the differentially expressed ARGs. GO (A) and KEEG (C) outer circles show a scatter plot for each term of the logFC for the assigned genes. Red circles display up-regulation, and blue ones down-regulation; (B,D) GO (B) and KEEG (D) heatmap of the relationship between ARGs and pathways. The color of each block depends on the logFC values. ARGs, autophagy-related genes; GO, gene ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes; FC, fold change.

PPIs among differentially expressed ARGs

To understand the interaction among the differentially expressed ARGs, a PPI network was constructed using STRING (Figure 4A). The PPI network was composed of three modules, including 670 nodes and 335 edges. For the ease of description, we named these modules as CASP3, VEGFA, and SQSTM1 modules. In the CASP3 module (Figure 4B), 26 edges involving 11 nodes were formed, of which the most remarkable nodes were CASP3, GAPDH, CASP8, EIF4G1, HSPA5, and DDIT3. In the VEGFA module (Figure 4C), apoptosis and necroptosis-related genes were assigned to the center of the module, including CASP1, FAS, FADD, and TNFSF10. The SQSTM1 module had the most nodes associated with autophagy and ubiquitin-like proteins (Figure 4D).

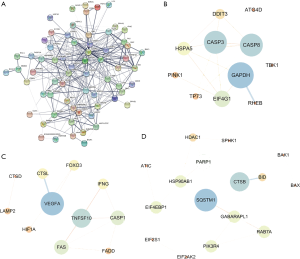

Figure 4 The three PPI networks and CASP3, VEGFA, and SQSTM1 modules. (A) PPI network; (B) CASP3 module; (C) VEGFA module; (D) SQSTM1 module. The color of a node in the PPI network indicates the logFC value of the Z score of gene expression and the size of the node represents the number of interacting proteins with the designated protein. PPI, protein-protein interaction; FC, fold change.

Construction of ARG prognostic signature and prediction in the training dataset

The entire group (N=158) with complete survival information and RNA-seq expression profiles was randomly separated into the training dataset (N=80, Table S1) and testing dataset (N=78, Table S2). The summary information of ESCA patients is shown in Table 1. The detailed characteristics and population demographics of the tissue samples is shown in Table S3. Seven ARGs, including DDIT3 (DNA damage-inducible transcript 3), HSP90AB1 (heat shock protein 90 alpha family class B member 1), FKBP1A (FKBP prolyl isomerase 1A), DNAJB1 (DnaJ heat shock protein family (Hsp40) member B1), BNIP1 (BCL2 interacting protein 1), VAMP7 (vesicle-associated membrane protein 7) and TBK1 (TANK binding kinase 1) were significantly associated with OS (P<0.05). These genes were selected as prognostic candidate genes using a univariate Cox regression analysis. Based on the multivariate Cox regression analysis, four genes including DNAJB1, BNIP1, VAMP7 and TBK1, were selected to construct the OS prediction model. Finally, a prognostic risk score based on the prognostic signature was established as follows: (0.61184 × expression value of DNAJB1) + (1.59675 × expression value of BNIP1) + (0.90984 × expression value of VAMP7) + (0.96329 × expression value of TBK1). Here, 0.61184, 1.59675, 0.90984 and 0.96329 are regression coefficients for the respective genes derived from the Cox regression analysis. Using the median value of the risk score as the cutoff, we divided the ESCA cases into high- and low-risk groups. Kaplan-Meier curves indicate that the high-risk group had a lower survival probability, compared to the low-risk group in the training dataset [hazards ratio (HR) =1.508, 95% confidence interval (CI): 1.201–1.894, P=1.346e−05; Figure 5A]. The ROC curve for the ARGs signature model is shown in Figure 5B, and the AUC for 1-year survival was 0.746. Figure 5C,D,E show the distribution of patient risk scores, survival time, and the expression of risk genes in the training dataset.

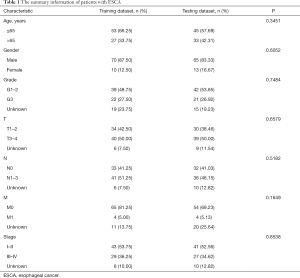

Table 1 The summary information of patients with ESCA
Full table

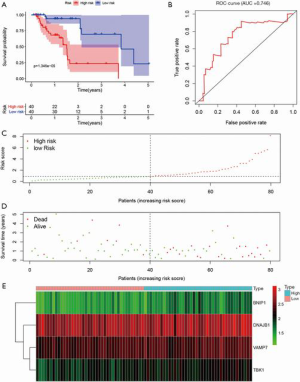

Figure 5 The ARGs prognostic signature for ESCA patients in the training dataset. (A) Kaplan-Meier curves plot show that patients in the high-risk group had significantly worse OS compared with those in the low-risk group; (B) ROC curve for the OS-related prognostic signature; (C) the number of patients in different risk groups; (D) scatterplots of ESCA patients with different survival status; (E) expression of risk genes in ESCA patients with different risks (low, pink; high, blue). ARGs, autophagy-related genes; ESCA, esophageal cancer; ROC, receiver operating characteristic; OS, overall survival. AUC, area under the curve.

Construction of a nomogram based on the four ARGs

To develop a quantitative method for the prediction of ESCA prognosis, we used the prognostic signature derived from the four ARGs to construct a nomogram. Based on the multivariate Cox analysis results, we drew a horizontal line to determine the points for each autophagy prognosis gene and calculated the total score of each patient by adding the points for all variables. The points were normalized to a 0 to 100 distribution. By calculating the total score, we could estimate the 1-, 2-, and 3-year survival of each ESCA patient (Figure 6A). Additionally, we evaluated the relationship between different clinical characteristics and the prognosis of ESCA by performing a Cox regression analysis. We found that tumor stage, distant metastasis, lymph node involvement, and risk score were associated with OS of ESCA patients (P<0.01; Figure 6B). Importantly, as shown in Figure 6C, risk score remained as an independent risk predictor.

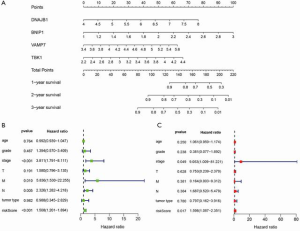

Figure 6 The nomogram and Cox regression analysis for the relationship between different clinical characteristics and the prognosis of ESCA. (A) The nomogram for predicting OS developed in training dataset; (B) univariate Cox regression analysis results; (C) multivariate Cox regression analysis results. ESCA, esophageal cancer; OS, overall survival.

Validation of the ARG prognostic signature

To examine the robustness of the four-ARGs signature, the prognostic value of the ARGs signature was validated in the testing dataset. Based on the expression value of the four prognostic ARGs, the prognostic risk score was calculated for patients in the testing dataset. Each patient was marked as a high- or low-risk based on the median risk score obtained from the training dataset. The Kaplan-Meier survival curves for the high- and low-risk groups in the testing dataset were significantly different (P=6.876e−03; Figure 7A). The AUC for the ROC curve of the OS-related predictive signatures in the testing dataset was 0.691 (Figure 7B). The distribution of risk scores, survival status, and expression for the four prognostic ARGs in the testing dataset are shown in Figure 7C,D,E, respectively.

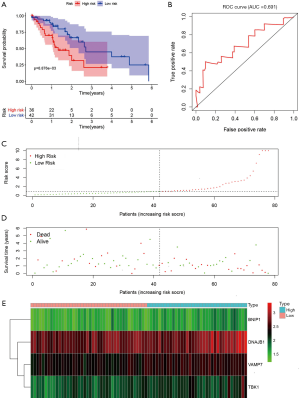

Figure 7 Validation of the predictive 4 ARGs prognostic signature in the testing dataset. (A) Kaplan-Meier curves results; (B) the AUC of ROC curves for predicting 1-year survival; (C) the number of patients in different risk groups; (D) scatterplots of ESCA patients with different survival status; (E) expression of risk genes in ESCA patients with different risks (low, pink; high, blue). ARGs, autophagy-related genes; AUC, area under the curve; ROC, receiver operating characteristic; ESCA, esophageal cancer.

Independence of the prognostic value of the ARGs signature derived from other clinical variables

We evaluated the independence of the prognostic value of the ARGs signature based on other clinical variables. Univariate and multivariate Cox regression analyses were performed using age, grade, stage (T, N, M), tumor type (adenocarcinoma, squamous cell carcinoma), and the prognostic risk score model as covariables. Multivariate Cox analysis revealed that the four-ARG signature was significantly associated with OS in each dataset (training: Figure 6B,C; testing: Figure 8A,B). Thus, the ARGs signature is a potential prognostic marker for ESCA. The AUCs of the ROC curves were 0.709 (risk score), 0.594 (age), 0.583 (grade), 0.655 (stage), 0.611 (T), 0.676 (lymph node status), and 0.509 (distant metastasis) (Figure 9).

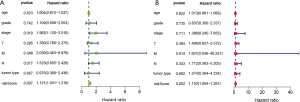

Figure 8 Cox regression analysis of the relationship between different clinical characteristics and the prognosis of ESCA. (A) Univariate Cox regression analysis results in the testing dataset; (B) multivariate Cox regression analysis results in the testing dataset. ESCA, esophageal cancer.

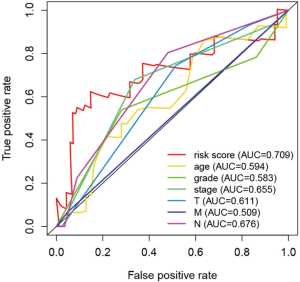

Figure 9 Comparison of risk score and clinical features in predicting the accuracy of patient survival prognosis. AUC, area under the curve.

Discussion

ESCA is a fatal malignant tumor, causing approximately 500,000 deaths worldwide in 2018 (8), and the incidence is still growing. Unfortunately, there are no effective molecular biomarkers for monitoring ESCA prognosis. In recent years, the focus of ESCA research has turned to tumor autophagy (9). However, most of the current research on autophagy in ESCA only focuses on a single gene involved in autophagy (10,11). A comprehensive analysis of ARGs has not been conducted to explore the clinical significance of autophagy in ESCA. In the present study, we analyzed the RNA-seq expression profiles and corresponding clinical information of ESCA patients downloaded from TCGA. To obtain the genes essential for ESCA from the perspective of autophagy, we first screened 69 ARGs that were differentially expressed between ESCA tumor and non-tumor tissues. A functional analysis showed that the genes enriched in the most significant KEGG pathway (e.g., apoptosis and autophagy-animal) were upregulated. Based on these results, we speculated that autophagy is activated during the initiation of ESCA. In addition, analysis of the PPI network for ESCA indicated that the main nodules were related to autophagy, apoptosis, and ubiquitin-like protein process. Subsequently, patients were randomly divided into a training dataset and a testing dataset. Univariate Cox regression and multivariate Cox regression analyses were performed in the training dataset. An autophagy-related prognostic signature was constructed based on the four key ARGs. This prognostic signature was then validated in the testing dataset. Kaplan-Meier curves showed the high-risk group had worse OS compared to the low-risk group in the two datasets. Univariate Cox regression and multivariate Cox regression analyses suggested that the four-ARG signature was as an independent risk predictor for patient survival, independent of other clinical factors.

These four ARGs play roles in the progression of various tumors. DNAJB1 is associated with a variety of cellular processes, including the proteasome pathway (12), endoplasmic reticulum stress (13), and viral infection (14). Lately, more attention has been paid to the functions of DNAJB1 in the progression of cancer. DNAJB1 inhibits mitogen-inducible gene 6 (MIG6) stabilization and increases lung cancer cell proliferation (15). On the other hand, DNAJB1 acts as an autophagy-related protein involved in the development of tumors. DNAJB1 also targets programmed cell death 5 (PDCD5) to suppress p53-mediated apoptosis and enhance the proliferation of cancer cells (16). The up-regulation of DNAJB1 correlates with poor prognosis for cholangiocarcinoma patients (17). Bnip1, a member of the BH3-only protein family, influences apoptosis, proliferation, invasion, and migration in cervical cancer cells through the regulation of mammalian target of rapamycin (mTOR) expression (18). Although TBK1 was thought to only play a role in the immune response (19), a recent study showed that TKB1 promotes the oncogenic phenotype in cancer and regulates autophagy (20). As for VAMP7, it was shown to be involved in multiple vesicular transport events, including autophagy (21). However, little is known about the functional mechanism of VAMP7 in ESCA.

Some prognostic signatures have been derived from ARGs in several tumor types, including glioblastoma (22), hepatocellular carcinoma (23), and lung cancer (24). Our results indicated that an autophagy-related prognostic signature based on the four ARGs can be employed for the prognostic prediction of survival in ESCA patients. This prognostic tool may be the basis for establishing personalized treatment procedures, based on patient risk, for improved therapy of ESCA. We explored and validated the prognostic value of ARGs in ESCA. However, our research has several limitations. (I) Due to the relatively small number of ESCA tumor and non-tumor samples in the TCGA database, the present study inevitably has the problem of period. (II) Although we have verified the model in the testing dataset, further investigations in vitro, in vivo, and in independent ESCA cohorts are needed to confirm the accuracy of the model. (III) Furthermore, other potential prognostic variables associated with OS in ESCA, such as lymphovascular invasion (LVI) and neutrophil-to-lymphocyte ratio (NLR) need to be explored. (IV) Finally, the functional mechanisms of the four ARGs should be further investigated in ESCA.

Conclusions

In summary, we constructed and verified a novel ARG prognostic signature that could improve the individualized outcome prediction for patients with ESCA. For those ESCA patients with high risk scores, a more comprehensive neoadjuvant/adjuvant therapy or closer follow-up are indicated for an improved prognosis.

Acknowledgments

The results of this study are based on the data from TCGA (https://www.cancer.gov/tcga). We thank all the authors who provided the data for this study. Meanwhile, we would aslo like to thank Prof Qingyi Wei from Duke Cancer Institute for his scientific editing.

Funding: This study was supported by Shanghai Municipal Commission of Health and Family Planning Outstanding Academic Leaders Training Program (2017BR055).

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-4541

Peer Review File: Available at http://dx.doi.org/10.21037/atm-20-4541

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-4541). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study conformed to the provisions of the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
