STING-associated vasculopathy with onset in infancy: a familial case series report and literature review

Introduction

Stimulator of interferon genes (STING), which is encoded by the gene transmembrane protein 173 (STING1), is a key intermediary in activating the type I interferon (IFN) response (1). Pathogenic heterozygous gain-of-function (GOF) variants in STING1 result in constitutive activation of STING and the clinical syndrome known as STING-associated vasculopathy with onset in infancy (SAVI) (2). SAVI is characterized by early-onset systemic inflammation, cutaneous vasculopathy, and interstitial lung disease (ILD). The severity of ILD and the presence of repeated lung infections determine the prognosis of the disease (3).

Therapeutic management of SAVI is challenging. It has been reported that systemic corticosteroids are partially effective in some cases; however, most patients respond poorly to disease-modifying therapies, such as corticosteroids, immunosuppressants and biologic agents (1). In addition, the prognosis of SAVI is generally poor, especially in patients with severe lung involvement with high mortality in the first two decades of life. In light of the encouraging results obtained with the use of Janus kinase (JAK) inhibitors in some SAVI cases (4,5), this treatment is presumed to be the most promising therapy for patients with different STING1 variants. Here, we present the first familial SAVI case series with the R281Q variant with severe pulmonary involvement, in which treatment with the JAK1/2 inhibitor ruxolitinib showed poor response. We present the following cases in accordance with the CARE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-6198).

Case presentation

All procedures performed in studies involving human participants were in accordance with the ethical standards of our institutional ethics committee and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Case 1

A 37-year-old male presented with progressively exertional dyspnea. He had an 18-year history of abnormal imaging on chest radiograph. Four months prior, he was admitted to the local hospital due to severe cough, expectoration, dyspnea (NYHA III), nausea and vomiting. He was diagnosed as ILD accompanied by pneumonia and received antibiotics (penicillin and levofloxacin, 2 weeks) and systemic corticosteroids (methylprednisolone 40 mg, 4 weeks) without symptom improvement. Clubbing fingers and nail dystrophy were evident (Figure 1A,B). No rashes, livedo reticularis or telangiectasias were observed.

Figure 1 Clinical manifestations and chest image of case 1. (A) Clubbing fingers of case 1. (B) Nail dystrophy of toes in case 1. (C-E) Chest high-resolution computed tomography scan of case 1. The presence of cystic airspaces in upper lobes, and bilateral reticular and ground-glass opacities in the lower lobes in case 1.

Laboratory tests found an elevated C-reactive protein (CRP) level (5.53 mg/dL, reference range: <0.8 mg/dL). The autoimmune workup was positive for antinuclear antibody, anti-dsDNA antibody, anti-cyclic citrullinated peptide (CCP) antibody, anti-Jo-1 antibody and IgG antibody to phospholipids (49; reference range, <20). Immunological testing revealed elevated levels of IgA (494 mg/dL) and positive for rheumatoid factor (RF). Increased CD8+ T lymphocytes counts and normal CD4+ T lymphocytes counts were identified. High-resolution CT (HRCT) scanning of the chest exhibited bilateral ground-glass and reticular opacities as well as cystic changes (Figure 1C,D,E). The arterial blood gases analysis (breathing room air) revealed hypoxemia [partial pressure of oxygen (pO₂) 65 mmHg] and partial pressure of carbon dioxide (pCO₂) of 33.9 mmHg. Pulmonary function tests showed a severe restrictive pattern [total lung capacity (TLC); 47.5% of predicted] with a decreased diffusing capacity for carbon monoxide (DLCO) (22.4% of predicted). The echocardiogram demonstrated signs of right ventricle pressure overload and estimated significantly elevated systolic pulmonary pressure (84 mmHg).

Case 2

Both sons of our index case suffered from recurrent dyspnea, cough and wheezing associated with exertion after two years of age. Case 2, a 13-year-old son, displayed retarded growth with a height and weight below the 3rd percentiles for age (131.5 cm and 31.5 kg, respectively). He exhibited finger clubbing and suffered from recurrent migratory polyarthritis involving the interphalangeal, wrist, knee and ankle joints with impaired motion of the wrists (Figure 2A). Elevated antinuclear antibody titer (1:1,280) were detected. Pulmonary function tests exhibited a restrictive pattern with TLC 61.5% and DLCO 48.8% predicted. HRCT revealed diffuse ground-glass opacities (Figure 2B,C,D). After the treatment of ruxolitinib (JAK1/2 inhibitor), HRCT of the chest was shown in Figure 2E,F,G.

Figure 2 Clinical manifestations and chest image of case 2. (A) Clubbing fingers of case 2. (B-G) Chest high-resolution computed tomography scan of case 2. Diffused ground-glass opacities and focal lung hyperinflation in case 2.

Case 3

The six-year-old son (case 3) also had failure to thrive with a height of 114 cm (between the 3rd and 10th percentiles) and weight of 16.25 kg (below the 3rd percentile). He did not have skin lesions or symptoms of arthritis. Clubbing fingers were observed (Figure 3A). The antinuclear antibody titer was 1:320. Diffused ground-glass and fine reticular opacities were demonstrated on HRCT of the chest (Figure 3B,C,D). He did not receive any treatment. After one year of follow-up, HRCT of the chest did not show obvious difference (Figure 3E,F,G).

Figure 3 Clinical manifestations and chest image of case 3. (A) Clubbing fingers of case 3. (B-G) Chest high-resolution computed tomography scan of case 3. Diffused ground-glass and fine reticular opacities in case 3.

Genetic analysis of the three cases by Sanger sequencing demonstrated a heterozygous STING1 (NM_198282) variant c.841G>A, p.Arg 281 Gln, p.R281Q, which has previously been described to cause an autosomal dominant form of SAVI (6). Genetic testing of the parents of case 1 revealed that the pathogenic variant had occurred de novo. All 3 cases were heterozygous carriers of this variant (Figure 4A,B). IFN proteins and the levels of circulating inflammatory cytokines, which were detected via ELISA (Human IFN 9-Plex ELISA Kit, PBL Assay Science, USA), were significantly increased in these cases compared to controls (Figure 5). The control group consisted of 8 healthy adult men with an average age of 42 years. The three cases received the diagnose of SAVI.

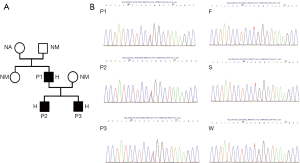

Figure 4 The genetic analysis of the three cases. (A) Family pedigrees of the 3 cases with the R281Q pathogenic variant in STING1. Solid symbols indicate affected relatives, open symbols indicate unaffected relatives, squares represent male persons, and circle represent female persons. H denotes heterozygous mutated gene, NA denotes not available, NM denotes nonmutated gene. (B) Whole-exome sequencing (WES) filtering was performed on patients and his relatives. P denotes the case; F demotes the father of case 1; S denotes the sister of case 1; W denotes the wife of case 1.

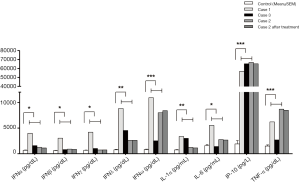

Figure 5 The activation of IFN proteins and inflammatory cytokines. The circulating IFN proteins and released inflammatory cytokines were measured via ELISA. Compared with controls (n=10), serum levels of IFN proteins (IFNα, IFNβ, IFNγ, IFNλ1/2 and IFNω) and inflammatory cytokines (IL-1α, IL-6, IP-10 and TNF-α) were significantly increased. After ruxolitinib treatment, no obvious reductions in IFN proteins (IFNα, IFNβ, IFNγ, IFNλ1/2 and IFNω) and inflammatory cytokines (IL-1α, IL-6, IP-10 and TNF-α) were observed in case 2. The data were analyzed by the unpaired t test. The symbols (*), (**) and (***) indicate statistically significant changes at P<0.05, P<0.01, and P<0.001, respectively.

Due to low platelet levels (<100×10⁹/L), case 1 and case 2 underwent treatment with ruxolitinib (JAK1/2 inhibitor) at doses of 5 mg (0.20 mg/kg/d) and 2.5 mg (0.16 mg/kg/d), respectively, twice per day. Increased dosing of ruxolitinib was poorly tolerated due to unusual bleeding or bruising. Case 3 did not take ruxolitinib. Case 1 died four months later due to progressive ILD and heart failure. After one year of therapy, polyarthritis and arthralgia in case 2 were not ameliorated. The interstitial abnormalities on HRCT scan revealed no improvement for case 2 (Figure 2E,F,G). The antinuclear antibody titer remained high in case 2 and case 3 (1:320 and 1:160, respectively). IFN proteins as well as circulating inflammatory cytokines did not improve (Figure 5).

Literature review

Among all the English literature on the PubMed database from 1980 to November 2020, only 56 cases of SAVI have been reported to date (Table 1), including these three newly identified cases (Table 2). Among the published case reports, the age at presentation ranged from 1 day to 65 years. There were 30 (54%) males, 22 (39%) females, and 4 patients without sex information. The prominent clinical manifestations included ILD (39 cases, 70%), developmental retardation (28 cases, 50%), and skin lesions (43 cases, 78%). In addition, 5 cases (9%) had pulmonary hypertension, 4 cases exhibited hypothyroidism (8%), and 9 cases (18%) were asymptomatic in the respiratory system. All nine reported fatalities from SAVI were due to pulmonary complications.

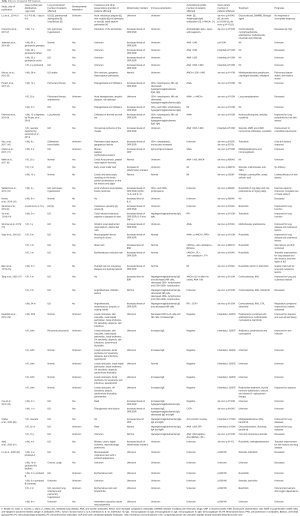

Table 1 Review of reported SAVI patients
Full table

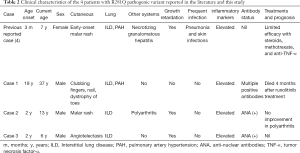

Table 2 Clinical characteristics of the 4 patients with R281Q pathogenic variant reported in the literature and this study
Full table

Either inherited or de novo, 12 types of activating STING1 pathogenic variants were identified in SAVI patients. The most common mutation was p.V155M (19 cases, 35%). Only one case was found to have double mutations (p. S102P and p.F279L) (3). In addition to our three patients, there was another reported case with a heterozygous R281Q mutation with both ILD and evident skin lesions (6). Lin et al. recently reported 6 SAVI patients from 4 unrelated families with the recessive homozygous STING1 variant p.R281W (22). The severity and natural courses of the disease seem to be independent of the mutation type. For instance, a 25-year-old SAVI patient with R284G pathogenic variant had no lung involvement (6).However, another 9-month-old patient with the same location of pathogenic variant died shortly due to respiratory failure (13).

Information on treatment was available in 37 cases. Corticosteroids were used in 25 cases, and only 11 cases had limited evidence of improvement. Immunosuppressive agents were combined with corticosteroids in 16 cases without a significant additional effect. Recently, JAK inhibitors have been gradually brought to the forefront (2).Among the 20 patients receiving JAK inhibitors, the skin lesions and/or pulmonary impairment were variously improved in 10 cases. Additionally, 1 case received lung transplantation (3), and 1 case was prescribed salicylic acid. However, both exhibited poor responses (6).

Discussion

STING is a key player in the upstream regulation of the type I IFN response. Activated STING serves as an adaptor to induce the production and secretion of type I interferons (IFNs). Binding of IFNs to their receptors activates Janus kinases (JAKs) to upregulate the transcription of interferon-stimulated genes. Specifically, JAK1 was involved in IFN beta and IFN alpha signaling. Therefore, the release of interferon leads to a positive feedback loop that further upregulates STING and the transcription of other proinflammatory cytokines. In patients with SAVI, constitutively activated STING leads to increased transcription of the type 1 interferon gene IFNB1, which encodes interferon-β. Binding of interferon-β to its receptor activates JAKs, including JAK1 and tyrosine kinase 2 (TYK2), which subsequently results in receptor phosphorylation. This process allows the binding of the DNA-binding proteins signal transducers and activators of transcription 1 (STAT1) and 2 (STAT2) to the receptor, whereupon they become phosphorylated (P). Phosphorylation allows them to dimerize, and the dimer translocates to the nucleus, where it upregulates transcription of interferon-response genes, including interferon regulatory factor 7–dependent transcription of type 1 interferon genes. The synthesis and release of interferons and their binding to interferon receptors further upregulate STING and the transcription of other proinflammatory cytokine genes in a positive feedback loop. In our three cases, p.R281Q pathogenic variant in STING1 activated IFN protein upregulation, which may further stimulate the release of inflammatory cytokines, such as IL-6, IL-1α, IP-10 and TNF-α. In addition, JAKs itself can directly act on downstream inflammatory effectors of STING.

The observed GOF of the STING autoactivating and disease-causing mutations was recently “explained” by 2 structural models (22). One model is that the binding of cGAMP to the STING dimer leads to a 180° rotation of the ligand-binding domain and further releases inhibitors, such as p. N154S and p.V155M. Another model refers to mutations in the polymer interface (R281 and R284 mutant) directly resulting in inability of inhibitor binding, which causes STING autoactivation. In addition, as the p.Arg281 and p.Arg284 lie on the surface of the protein outside of the STING dimerization domain (6), these two mutations induce a conformational change in STING, plausibly enabling ER-Golgi trafficking and TBK1/IRF3 phosphorylation in the absence of cGAMP binding. It has been reported that a JAK inhibitor (tofacitinib) failed to inhibit dsDNA-triggered, STING-dependent IRF3 phosphorylation in reconstituted cells expressing R284S in vitro (13). Volpi et al. reported worsening of interstitial disease after transient amelioration in a patient with c.842G>A p. Arg281Gln mutation (2). For the two patients receiving JAK inhibitors in Lin et al.’s report (22), one patient exhibited clinical improvement with continued oxygen dependence, and the other patient died of respiratory failure disease despite steroid therapy and short-term treatment with the JAK inhibitor tofacitinib. The above studies may provide some explanations for the observed unsatisfactory response of JAK inhibitors for patients with 281 or 284 mutants; however, there is no robust evidence to support the linkage between the treatment response and mutation type since too few patients have been reported in the literature. It has been reported recently that the stimulation of AMPK activity releases ULK1-mediated phosphorylation of STING, which inhibits STING’s ability to phosphorylate IRF3. Therefore, ULK1 regulators may be an alternative therapeutic option for STING-induced inflammatory diseases (13), which should be further studied.

In our case report, the two patients seemed to exhibit poor response to JAK inhibitors ruxolitinib and IFN proteins, and the circulating inflammatory cytokines did not decrease with treatment in case 2. One possible explanation is that the low dose of ruxolitinib may not be sufficient to modulate the expression of the IFN signature, and it cannot be excluded that the non-responsiveness to ruxolitinib might be attributed to a dosing problem. It should also be noted that the measurement of IFN protein with ELISAs may not be sensitive or reliable enough to detect the changes in these biomarkers. In addition, disease severity may also play a role, and the reported variable clinical response to JAK inhibitor therapy may be related to different disease statuses. The limited effects of ruxolitinib, especially in case 1, may be due to advanced ILD/heart failure beyond any therapeutic measures, and an earlier introduction of ruxolitinib may still improve or limit the evolution of SAVI. Further investigation should focus on the early intervention effect of JAK inhibitors in patients with SAVI.

In conclusion, some crucial issues of SAVI require further exploration. Although it has been hypothesized that STING gain-of-function pathogenic variants cause disease through type I interferon signaling, the extent to which type I IFNs and IFN-induced genes promote disease manifestations or simply provide a surrogate signature of nucleic acid sensor activation remains controversial. Moreover, the therapeutic effect of JAK inhibitors on different phenotypes and disease statuses of SAVI warrants further investigation.

Acknowledgments

Funding: National Science Foundation for Young Scientists of China: (Grant No. 81700001).

Footnote

Reporting Checklist: The authors have completed the CARE reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-6198

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-6198). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in studies involving human participants were in accordance with the ethical standards of our institutional ethics committee and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
