Apurinic/apyrimidinic endonuclease 1/reduction-oxidation effector factor-1 (APE1) regulates the expression of NLR family pyrin domain containing 3 (NLRP3) inflammasome through modulating transcription factor NF-κB and promoting the secretion of inflammatory mediators in macrophages

Introduction

Inflammatory mediators are important components of the innate immune system, and play an important role in the occurrence, development, and metastasis of tumors; immune surveillance; and sensitivity of tumors to chemoradiotherapy (1,2). Tumor-associated macrophages (TAMs) are the main inflammatory-mediated secretory cells in tumor stroma, which mainly secrete interleukin (IL)-1β, IL-18, matrix metalloprotein, and vascular endothelial growth factor (3). In some cases, TAMs even can constitute 50–80% of the solid tumor cell population (4). TAMs can promote tumor growth, invasion, metastasis, angiogenesis, matrix degradation, remodeling, and inhibit the acquired immunity (5). Therefore, TAMs play critical roles in the inflammatory-mediated occurrence and progression of tumors.

It has been found that NLR family pyrin domain containing 1 (NLRP1) and 3 (NLRP3) are widely expressed in tissues and cells of the whole body, and a high expression in the monocyte macrophage system (6). When tumor cells undergo changes in microenvironment, such as hypoxia and radiotherapy/chemotherapy, oxidative stress usually occurs in the TAMs, with the production of endogenous reactive oxygen species (ROS) (7,8). The produced ROS in TAMs could promote the binding of NLRP1/NLRP3 proteins with apoptosis-associated speck-like protein containing a card (ASC) and/or caspase-1 to form a high molecular weight protein complex inflammasome (9,10). Subsequently, caspase-1 is activated and involved in the activation and secretion of IL-1β and IL-18. However, the redox mechanism of NLRP1 and NLRP3 in TAMs is still unclear.

Apurinic/apyrimidinic endonuclease 1/reduction-oxidation effector factor-1 (APE1) is a unique bi-functional oxidative stress response protein that can activate activating protein-1 (AP-1), nuclear factor-κB (NF-κB), and other transcription factors through redox to regulate cell proliferation, differentiation, and inflammatory response (11-13). A bioinformatics analysis also showed that both NLRP1 and NLRP3 gene promoters contain potential AP-1 and NF-κB binding sites (14). Therefore, we speculate that APE1 may regulate the expression of NLRP1 and NLRP3 in TAMs by activating transcription factors.

The aim of the present study was to elucidate the effect of APE1 on the secretion of inflammatory mediators by TAMs, which is dependent on the APE1-mediated NLRP1 and NLRP3 regulatory mechanism. The study provides theoretical and experimental bases for the design of TAM-targeted therapy, with APE1 as the target molecule.

We present the following article in accordance with the MDAR reporting checklist (available at http://dx.doi.org/10.21037/atm-20-7752).

Methods

Cell culture and macrophages polarization

The human myeloid leukemia mononuclear cell line, THP-1, was purchased from American Type Cell Culture Cell Bank (Category No. TIB-202, Manassas, VA, USA). THP-1 cells were cultured with the RPMI-1640 medium (Gibco, Grand Island, NY, USA) containing 100 µg/mL streptomycin (Beyotime Biotechnology, Shanghai, China) and 100 U/mL penicillin (Beyotime Biotechnology, China), and supplemented with 10% fetal bovine serum (Gibco, USA) at 37 °C with 5% CO₂. M2 macrophage polarization was carried out, as described in a previous study (15), with modifications. Briefly, the THP-1 cells were adjusted to a density of 1×10⁶ cells/mL medium and treated with 200 ng/mL phorbol-12-Myristate-13-Acetate (PMA) for 6 h. THP-1 cells were polarized into M2 subset macrophages by incubating with IL-4 (20 ng/mL) and IL-13 (20 ng/mL) for 18 h. M2 subset macrophages were sorted and by flow cytometry with the CD206 biomarker.

Enzyme-linked immunosorbent assay (ELISA) measurement for cytokines

The supernatants of culture medium were collected from polarized M2-type THP-1 cells (M2 macrophages) by centrifuging for 15 min at 450 ×g. In the present study, cytokines, including tumor necrosis factor-α (TNF-α), IL1β, IL-18, IL-10, and IL-33, were analyzed with a human TNF-α ELISA kit (Category No. PT518), human IL-1β ELISA kit (Category No. PI305), human IL-18 ELISA kit (Category No. PI558), a human IL-10 ELISA kit (Category No. PI528), and human IL-33 ELISA kit (Category No. PI631), according to the manufacturer’s instructions (Beyotime Biotechnology, China).

Real-time polymerase chain reaction (RT-PCR) for determining inflammatory mediators

Total RNAs were extracted from the M2-type THP-1 cells with the RNeasy Mini RNA Extraction Kit (Category No. 74104; Qiagen, Hilden, Germany), according to the manufacturer’s instructions. RNAs were then synthesized to first-strand complementary DNA with QuantiTect Reverse Transcription Kit (Category No. 205311; Qiagen, Germany), according to the manufacturer’s instructions. The RT-PCR assay was conducted using the SYBR Green PCR kit (Category No. DRR820A; TaKaRa, Dalian, China) in Applied Biosystems 7500 Fast Real-time PCR system (Foster City, CA, USA). The specific primers for the amplified TNF-α, NLRP1, NLRP3, caspase-1, ASC, and β-actin are listed in Table 1. The transcriptions of targeted genes were normalized to β-actin, and the relative values were calculated with the previously described 2^–ΔΔCt (Livak) method (16).

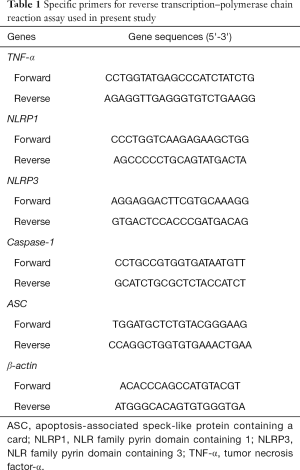

Table 1 Specific primers for reverse transcription–polymerase chain reaction assay used in present study
Full table

Plasmid construction and lentivirus packaging

The lentiviral vector PDS019-pL-shRNA-F (NovoBio Scientific, Shanghai, China) was applied to synthesize APE1 shRNA-containing plasmid (PDS019_pL_shRNA_GFP-hAPE1), as described in a previously published study (17). We used 3 pairs of primers based on the APE1 gene sequence (NM_080649.2), and synthesized 3 lentiviral plasmids, including VL1275-PDS019_pL_shRNA_GFP-hAPE1-446, VL1276-PDS019_pL_shRNA_GFP-hAPE1-609, and VL1277-PDS019_pL_shRNA_GFP-hAPE1-839 (APE1^shRNA) (Figure 1A). By examining interference efficiency, we found that APE1^shRNA demonstrated the highest interference efficiency (81.82%) (Figure 1B), as seen in the following experiments. Briefly, 1 day before the transfection of APE1^shRNA, 293T cells (Shanghai Institute of Cells, Chinese Academy of Science, Shanghai, China) were seeded onto a 10-cm dish (Corning-Costar, Corning, NY, USA). The APE1^shRNA plasmid and packing plasmids were transfected into 293T cells, according to the manufacturer’s instructions. Appropriately 72 h post-transfection, the supernatants of 293T cells were harvested by centrifuging at 2,000 ×g for 5 min at 4 °C. Cell supernatants were purified with a 0.5-µm syringe filter, and products were re-centrifuged at 20,000 ×g at 4 °C for 1 h. The APE1^shRNA were packaged into lentiviral.

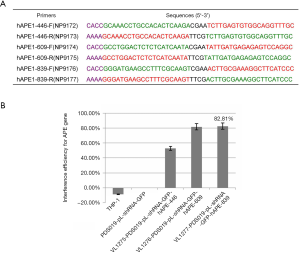

Figure 1 Primers for plasmid construction and evaluation for interference efficiency. (A) Three pairs of primers. (B) Examination for the interference efficiency of 3 interference plasmids.

Activation of inflammasomes

In the present study, the M2-type THP-1 cells were seeded at a density of 1×10⁶ cells/mL medium and cultured on 6-well plates. M2-type THP-1 cells were transfected with lentiviral vector APE1^shRNA for 24 h and then incubated with lipopolysaccharide (LPS) (100 ng/mL)/APE1 inhibitor (E3330, 20 µM) for another 24 h. About 2 h post-priming, a total of 5 mM ATP was used to incubate the THP-1 cells for 45 min, and the conditioned medium of each well was collected for the following analyses.

Electrophoretic mobility shift assay (EMSA) for AP-1 and NF-κB DNA binding and western blot

Extraction of the nuclear proteins in M2-type THP-1 cells were prepared using NE-PER Nuclear and Cytoplasmic Extraction Reagents, as per the manufacturer’s instructions (Category No. 78833, Thermo Scientific Pierce, Rockford, IL, USA) and previously published studies (18,19). Briefly, AP-1 and NF-κB DNA binding in M2-type THP-1 cells was evaluated using EMSA with associated probes. The biotin-labeled AP-1 probes were synthesized and are follows: wild AP-1 probe-sense: 5'-CATTTGGAAAATCCAGCTATG-3', anti-sense: 5'-CATAGCTGGATTTTCCAAATG-3'; cold AP-1 probe-sense: 5'-CATTTGGAAAATCCAGCTATG-3', anti-sense: 5'-CATAGCTGGATTTTCCAAATG-3'; and mutant AP-1 probe-sense: 5'-CATTTTCAAAATAGAGCTATG-3', anti-sense: 5'-CATAGCTCTATTTTGAAAATG-3'. Specificity for the AP-1 and NF-κB binding was examined using the competition assay. To evaluate the subunit composition for the DNA-binding molecules, a specific antibody, anti-human NF-κB p105/p50 antibody (Category No. ab32360, RRID:AB_776748, Abcam Biotechnology, Cambridge, MA, USA) was employed for the super shift assay. The above samples were loaded on non-denaturating 6% polyacrylamide gels and let free probe running till reaching the end of gel. The AP-1 and NF-κB bands were examined using the LightShift Chemiluminescent EMSA Kit, (Category No. 20148; Thermo Fisher Scientific, USA), while the bands were quantified using densitometry with Quantity-One 1-D software (version: 4.6.9; Bio-Rad, Hercules, CA, USA). For western blot, Commercial antibodies were purchased from indicated vendors: anti-NLRP1 antibody (Category No. ab16091, RRID:AB_302253, Abcam Biotechnology, Cambridge, MA, USA); anti-NLRP3 antibody (Category No. ab214185, RRID:AB_2819003, Abcam Biotechnology, Cambridge, MA, USA); anti-pro caspase-1 + p10 antibody (Category No. ab179515, RRID:AB_2884954, Abcam Biotechnology, Cambridge, MA, USA); GAPDH (Category No. 2118, RRID:AB_561053, Cell Signaling Technology, Danvers, MA, USA); anti-APE1 antibody (Category No. ab194, RRID:AB_302694, Abcam Biotechnology, Cambridge, MA, USA); anti-NF-κB p65 antibody (Category No. ab16502, RRID:AB_443394, Abcam Biotechnology, Cambridge, MA, USA); anti-c-Jun antibody (Category No. ab32137, RRID:AB_731608,Abcam Biotechnology, Cambridge, MA, USA)

Dual-luciferase reporter assay

The 3' untranslated region (UTR) of the APE1 gene was cloned into firefly luciferase reporter vector to generate the recombinant vector of PDS160_pL6.3-CMV-EGFP-T2A-Rluc, which was assigned as the wide-type vector. APE1^shRNA was assigned as the mutant-type vector, and used for dual-luciferase reporter assay. The 293T cells were cultured for 24 h on 24-well plates and co-transfected using the PDS160_pL6.3-CMV-EGFP-T2A-Rluc (or APE1^shRNA) vector and VL1471_PDS074_pL-TO-IRES-Luc- NLRP3 (or PDS019 vector as control) mimics. Transfections were conducted with the Lipofectamine 2000 reagent (Invitrogen, Carlsbad, CA, USA). At 48 h post-transfection, the dual-luciferase reporter assay system (Promega, Madison, MI, USA) and the Turner Designs TD-20/20 Luminometer (Promega, USA) were used to verify luciferase activity normalizing to the Renilla.

Statistical analysis

In the present study, each experimental condition was independently repeated three times, data derived from experiments or tests were defined as mean ± standard deviation and analyzed with SPSS software version 20.0 (SPSS, Chicago, IL, USA). Data were analyzed with the Bonferroni post-hoc validated analysis of variance test to compare differences between groups. P<0.05 was considered statistically significant.

Results

APE1 induces LPS-induced pro-inflammatory cytokine production

LPS treatment for THP-1 cells induced significantly increased levels of pro-inflammatory cytokines, including TNF-α (Figure 2A), IL1-β (Figure 2B), IL-18 (Figure 2C), IL-10 (Figure 2D), and IL-33 (Figure 2E), compared with those of THP-1 cells without LPS treatments (all P<0.05). We employed 2 reagents (APE1 inhibitor E3330 and APE1^shRNA) for blocking APE1 expression in the THP-1 cells. The results verified that both E3330 (at dosage of 2 and 10 µM) and APE1^shRNA induced the LPS-triggered production of pro-inflammatory cytokine TNF-α (Figure 2A), IL-1β (Figure 2B), and IL-18 (Figure 2C) (all P<0.05). However, there were no significant effects of E3330 and APE1^shRNA treatment on the production of IL-10 (Figure 2D) and IL-33 (Figure 2E) (all P>0.05).

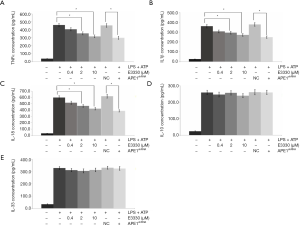

Figure 2 Apurinic/apyrimidinic endonuclease 1/reduction-oxidation effector factor-1 triggered lipopolysaccharide-induced pro-inflammatory cytokine production in THP-1 cells. Pro-inflammatory cytokine production was detected using enzyme-linked immunosorbent assay (ELISA). (A) Production and statistical analysis of tumor necrosis factor-α, interleukin (IL)-1β (B), IL-18 (C), IL-10 (D), and IL-33 (E). *P<0.05 represents significant differences between the two groups.

APE1 promotes LPS-induced NLRP3 inflammasome activation by modulating gene transcription of NLRP3-associated molecules

According to the RT-PCR findings, the transcriptions of inflammatory factors, including TNF-α, NLRP1, and NLRP3, were obviously increased compared with those of THP-1 cells without LPS treatments (all P<0.05) (Figure 3A). TNF-α gene transcriptions were remarkably suppressed in both THP-1 cells undergoing E3330 and APE1^shRNA treatment compared with those in THP-1 cells without treatments (P<0.05) (Figure 3A). Meanwhile, both E3330 and APE1^shRNA treatments also significantly inhibited NLRP3 gene transcriptions in THP-1 cells compared with those in THP-1 cells without the above treatments (P<0.05) (Figure 3A). However, there were no obvious effects of E3330 or APE1^shRNA treatment on the gene transcription of the NLRP1 molecule in THP-1 cells (Figure 3A).

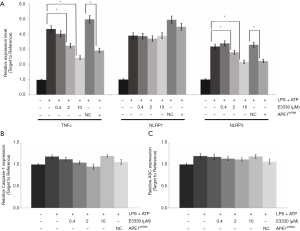

Figure 3 Effects of apurinic/apyrimidinic endonuclease 1/reduction-oxidation effector factor-1 (APE1) on the gene transcriptions of NLR family pyrin domain containing 3 (NLRP3)-associated molecules. APE1 inhibitor (E3330) and plasmid silencing APE1 gene (APE1^shRNA) were used to treat THP-1 cells. Gene transcriptions of NLRP3-associated molecules, including tumor necrosis factor-α (TNF-α), NLR family pyrin domain containing 1 (NLRP1), NLRP3, caspase-1, and apoptosis-associated speck-like protein containing a card (ASC) were determined using reverse transcription-polymerase chain reaction assay. (A) Statistical analysis of the gene transcriptions of TNF-α, NLRP1, and NLRP3. (B) Statistical analysis of the gene transcriptions of caspase-1. (C) Statistical analysis of the gene transcriptions of ASC. *P<0.05 represents significant differences between the two groups.

Moreover, the NLRP3-associated molecules, caspase-1 and ASC, were also determined in LPS-treated THP-1 cells. The results showed that both E3330 (in a dose-dependent manner) and APE1^shRNA could decreased caspase-1 (Figure 3B) and ASC (Figure 3C) gene transcription compared with those in LPS-treated THP-1 cells.

APE1 enhances LPS-induced NLRP3 inflammasome activation by regulating NLRP3 and caspase-1 protein expression

In the present study, the protein expressions of NLRP1, NLRP3, and caspase-1 were also detected using western blot assay (Figure 4A). The findings indicated that both E3330 (in a dose-dependent manner) and APE1^shRNA could remarkably increase the NLRP3 protein expression (Figure 4B) and caspase-1 protein expression (Figure 4C) compared with those in the LPS-treated THP-1 cells (P<0.05). However, no obvious effects of E3330 and APE1^shRNA on NLRP1 protein expression were observed in the LPS-treated THP-1 cells (P>0.05) (Figure 4B).

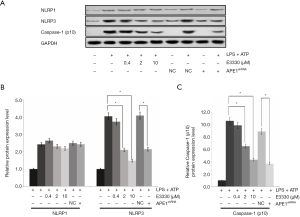

Figure 4 Promoted effects of apurinic/apyrimidinic endonuclease 1/reduction-oxidation effector factor-1 on lipopolysaccharide (LPS)-induced NLR family pyrin domain containing 3 (NLRP3) inflammasome in LPS-treated THP-1 cells. Protein expressions of NLRP3 and caspase-1 were examined with western blot assay (A). (A) Statistical analysis of NLR family pyrin domain containing 1 and NLRP3 protein expression in THP-1 cells. (C) Statistical analysis of caspase-1 protein expression in THP-1 cells. *P<0.05 represents significant differences between the two groups.

APE1 improves NLRP3 activity by modulating the interaction between NLRP3 and NF-κB

To verify whether NLRP3 activation was mediated by the activation of NF-κB, the effects of anti-NF-κB antibody on NLRP3 activation were determined using the EMSA method. The EMSA results showed that NLRP3 could interact with NF-κB (Figure 5A). The chromatin immunoprecipitation (ChIP) findings showed that APE1 improved NLRP3 activity by triggering the interaction between NLRP3 and the NF-κB molecule (Figure 5B). Moreover, the dual-luciferase reporter assay also indicated that both E3330- and APE1^shRNA-treated THP-1 cells demonstrated an interaction between APE1 and the NLRP3 molecule (Figure 5C). Therefore, on the basis of the results, we found that APE1 could improve NLRP3 activity by its redox regulation of NF-κB.

Figure 5 Determination for the effects of apurinic/apyrimidinic endonuclease 1/reduction-oxidation effector factor-1 on the interaction between NLR family pyrin domain containing 3 (NLRP3) and nuclear factor-κB (NF-κB) in lipopolysaccharide-treated THP-1 cells. (A) Interaction between NLRP3 and NF-κB, as determined by electrophoretic mobility shift assay. (B) Interaction between NLRP3 and NF-κB, as determined by chromatin immunoprecipitation. (C) Interaction between NLRP3 and NF-κB, as determined with dual-luciferase reporter assay. *P<0.05 represents significant differences between the two groups.

APE1 upregulates NLRP3 activity through its redox modulation of NF-κB

APE1-associated transcriptional factors, including p65 and NF-κB, were administrated to the THP-1 cells, and expressions of NLRP3, p65, and c-Jun were determined using western blot assay (Figure 6A). The statistical analysis results showed that AP-1 inhibitor treatment decreased NLRP3 expression in a dose-dependent manner; however, without significant changes (P>0.05) (Figure 6B). The administration of the NF-κB inhibitor significantly reduced NLRP3 expression compared with that in LPS-treated THP-1 cells (P<0.05) in a dose-dependent manner (Figure 6B).

Figure 6 Apurinic/apyrimidinic endonuclease 1/reduction-oxidation effector factor-1 regulated NLR family pyrin domain containing 3 (NLRP3) activity by modulating the nuclear factor-κB molecule. (A) Western blot assay for the expression of NLRP3, p65, and c-Jun in the lipopolysaccharide-treated THP-1 cells. (B) Statistical analysis of NLRP3 expression. *P<0.05 represents significant differences between the two groups.

APE1 promotes LPS-induced NLRP3 inflammasome activation through an NF-κB-dependent pathway

To confirm APE1-triggered NLRP3 inflammasome activation, NLRP3 gene transcription was examined in THP-1 cells undergoing APE1 treatment and/or NF-κB siRNA interference treatment using RT-PCR assay. The results indicated that APE1 treatment could obviously increase NLRP3 gene transcription in LPS-treated THP-1 cells compared with that in cells without APE1 administration (Figure 7A). However, the increased effect of APE1 treatment on NLRP3 gene transcription was obviously blocked by the additional treatment of NF-κB siRNA interference (Figure 7A). The RT-PCR results also showed that NF-κB siRNA interference treatment significantly inhibited APE1 administration and triggered a stronger effect on NLRP3 gene transcription (P<0.05) (Figure 7B). Moreover, we also found that APE1 promoted LPS-induced NLRP3 inflammasome activation by increasing the secretion of NF-κB-mediated inflammatory factors IL-1β and IL-18 (Figure 7C).

Figure 7 Apurinic/apyrimidinic endonuclease 1/reduction-oxidation effector factor-1 (APE1) promoted the lipopolysaccharide (LPS)-induced NLR family pyrin domain containing 3 (NLRP3) inflammasome activation by triggering the nuclear factor-κB-dependent signaling pathway. (A) Western blot assay for APE1 and NLRP3 expression in LPS-treated THP-1 cells. (B) Statistical analysis of NLRP3 expression. (C) Determination of section of inflammatory factors interleukin (IL)-1β and IL-18 using enzyme-linked immunosorbent assay. *P<0.05 represents significant differences between the two groups.

Discussion

In the tumor microenvironment, TAMs communicating with tumors commonly affect the development and progression of cancers (20,21). Therefore, the polarization of macrophages is critical for therapeutic effects of reagents in cancer treatment. In the present study, THP-1 cells were polarized into the M2 subset macrophages, which were then incubated with APE1 siRNA interference or APE1 inhibitor. The DNA repair system is crucial for genomic stabilization and genomic integrity; however, the high levels of DNA repair might cause drug resistance or radiation resistance in cancer cells (22). Therefore, reduction in DNA repair capability can indirectly decrease the therapeutic effects of anti-tumor drugs. According to previous reports, DNA repair-associated molecules are effective targets for cancer treatment (23,24). Of these molecules, APE1 is considered to be a key target because of its role in the DNA-base excision repair process, and could exert oxidation-reduction modifying activity on a series of transcriptional factors (25,26). APE1 can also activate AP-1, NF-κB, and other transcription factors through redox, therefore regulating cell proliferation and differentiation, as well as inflammatory response. Therefore, we would like to evaluate the effects of APE1 on the inflammasome in THP-1 cells and explore the associated mechanisms.

In the present study, we first treated the THP-1 cells with LPS to generate the inflammatory status, and then incubated cells with APE-1 inhibitor (E3330) and/or APE-1^shRNA (27). According to the ELISA results, both E3330 and APE1^shRNA remarkably induced the LPS-triggered production of pro-inflammatory cytokines TNF-α, IL-1β, and IL-18. However, there were no significant effects of E3330 and APE1^shRNA treatment on the production of IL-10 and IL-33. These findings suggest that APE1 induced LPS-induced pro-inflammatory cytokine production. However, Sawakami et al. reported that APE-1 silencing causes an obvious increase in the expression of TNF-α and IL-1β in L-02 cells, which is contrast to our results (28). The difference in results could be a result of the different applied cell lines, which need further clarification in future studies.

Based on the APE-1 induced production of pro-inflammatory cytokine and potential binding site with the NLRP3 gene, we speculated that APE-1 might also be involved in the activation of NLRP3 inflammasome (29). Both E3330 and APE1^shRNA treatments also significantly inhibited the TNF-α gene and NLRP3 gene transcriptions in THP-1 cells compared with those in THP-1 cells without the above treatments; however, without effects on NLRP1 gene transcription. Moreover, the NLRP3 inflammasome-associated molecules, caspase-1 and ASC (30), were also determined in LPS-treated THP-1 cells. The results showed that both E3330 and APE1^shRNA could decreased caspase-1 and ASC gene transcription. These results suggest that APE1 could promote LPS-induced NLRP3 inflammasome activation by modulating the gene transcription of NLRP3-associated molecules.

A bioinformatics analysis showed that the NLRP3 gene promoter contains potential AP-1 and NF-κB binding sites (14), therefore, the effect of APE1 on NLRP3 inflammasome activation might be mediated by the binding of NLRP3 with transcription factors. The EMSA findings, ChIP results, and dual-luciferase reporter assay found that APE-1 could improve NLRP3 activity by triggering the interaction between NLRP3 and the NF-κB molecule. Therefore, APE1 could improve NLRP3 activity by its redox regulation of NF-κB. Moreover, we also found that APE1 upregulated NLRP3 activity through its redox modulation of NF-κB, which also confirmed the interaction of NLRP3 and NF-κB.

To evaluate whether the NF-κB signaling pathway participates in APE1-triggered NLRP3 inflammasome activation (31), NLRP3 gene transcription was examined in THP-1 cells undergoing APE1 treatment and/or NF-κB siRNA interference treatment. APE1 treatment obviously increased NLRP3 gene transcription in LPS-treated THP-1 cells; however, this increased effect was obviously blocked by the additional treatment of NF-κB siRNA interference. Moreover, APE1 could also promote LPS-induced NLRP3 inflammasome activation by increasing the section of NF-κB-mediated inflammatory factors IL-1β and IL-18. These results suggest that APE1 promotes LPS-induced NLRP3 inflammasome activation through an NF-κB-dependent pathway.

Conclusions

The present study showed that APE1, as an important oxidative stress effector molecule, regulates NLRP3 expression through its redox modification, therefore further promoting the secretion of inflammatory mediators IL-1β and IL-18 via THP-1 cells (Figure 8). The study confirmed that APE1 may regulate the expression of NLRP3 by modulating transcription factor NF-κB. We explored the regulatory mechanism of NLRP3 transcription and secretion of inflammatory mediators in TAMs from a new perspective, and provided theoretical and experimental bases for the design of TAM-targeted therapy, with APE1 as the target molecule.

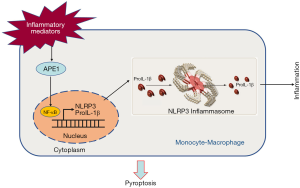

Figure 8 Diagrammatic sketch for the mechanism of apurinic/apyrimidinic endonuclease 1/reduction-oxidation effector factor-1 (APE1) regulating NLR family pyrin domain containing 3 (NLRP3) to promote the secretion of inflammatory mediators by tumor-associated macrophages. Inflammatory mediators stimulate the APE1 molecule, which trigger the interaction between NLRP3 and the nuclear factor-κB molecule in the cytoplasm of cells. Inflammatory factors, such as pro-inflammatory interleukin-1β, were produced, and NLRP3 inflammasome was generated in the macrophages.

Acknowledgments

Funding: The present study was supported by the Youth Program of National Natural Science Foundation of China (Grant No. 81802740), Chongqing Basic Research and Frontier Exploration Project (Chongqing Natural Science Foundation, Grant No. cstc2018jcyjAX0741), Key Technology Project for Prevention and Control of Major Diseases in Chongqing (Grant No. 2019ZX00), and Chongqing Scientific Research Institute Performance Incentive Guidance Project (Grant No. cstc2017jxjl130016).

Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at http://dx.doi.org/10.21037/atm-20-7752

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-20-7752

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-7752). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Because the study does not include animals or patients, the ethics committee approval was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
