Pluripotent stem cell therapy for retinal diseases

Introduction

Retinal diseases are among the leading causes of blindness worldwide after uncorrected refractive error and cataracts. Age-related macular degeneration (AMD) is the most common cause of irreversible vision impairment in developed countries (1). Inherited retinal diseases, although less prevalent, result in debilitating vision loss in younger patients (2).

In recent years, significant progress has been made in the development of gene and cell-based therapeutics for inherited and acquired retinal diseases. Gene therapy is being developed as treatment for inherited retinal diseases with known genetic mutations and relatively intact retinal cells, as demonstrated by the first FDA (Food and Drug Administration)-approved gene therapy treatment, voretigene neparvovec-ryzl (Luxturna, Spark Therapeutics) for Leber congenital amaurosis (LCA). This gene therapy targets retinal degeneration due to biallelic mutations in the RPE65 gene (3). However, there is a lack of treatment options for retinal diseases wherein significant loss of cells has already occurred. Examples of unmet needs include treatment for retinal pigment epithelium (RPE) and/or photoreceptor loss in advanced nonexudative AMD, retinitis pigmentosa (RP), and macular dystrophy including Stargardt disease (STGD1). Currently, there are no approved treatments to repair the visual circuit in these conditions and replace the damaged or degenerated retinal cells.

Pluripotent stem cell (PSC) transplantation is a potential therapeutic avenue to reverse the degenerative loss of RPE and photoreceptor cells. The main goal of this review is to summarize and discuss recent and current clinical trials of PSC transplantation in the retina for eyes with vision loss from retinal disease. To provide background and context, this review will also discuss retinal cellular anatomy as relevant to degeneration and regeneration, review PSC differentiation and validation for therapeutic application in the retina, and describe the main disease targets for PSC-based retinal therapy. Several challenges of translating PSC technology to the clinic, and future research directions, will be discussed.

We present the following article in accordance with the Narrative Review reporting checklist (available at https://dx.doi.org/10.21037/atm-20-4747). We performed a literature search in PubMed focusing on induced pluripotent stem cell (iPSC) and embryonic stem cell (ESC) research involving the retina, specifically photoreceptor and RPE cells. Published results of clinical trials, as well as relevant studies on the development, validation, and safety profiles of PSCs, were included in this review. Evolving technologies including genetic engineering and retinal organoids, and their applications to PSC transplantation, were also queried. Relevant clinical trials were identified on ClinicalTrials.gov. Studies that were active, recruiting, or had completed recruitment at the time of writing this review were included. Studies of unknown status were excluded.

Retinal disease targets for PSC therapy

AMD

AMD is the leading cause of blindness in people aged over 55 years in developed countries (4). Clinically, patients typically present with late-onset progressive loss of central vision. There are two forms of AMD. Nonexudative or dry AMD is the more common form. It is characterized by accumulation of subretinal deposits called drusen during the early stages of the disease when significant vision loss has not occurred (5). Progression of dry AMD is characterized by dysfunction and chronic progressive degeneration of RPE cells, which are crucial for the function and survival of the overlying photoreceptor cells. This loss of RPE cells leads to geographic atrophy where focal loss of overlying photoreceptors occur (6). This is associated with significant vision loss if the retina providing central vision becomes affected. When geographic atrophy involves the central vision, the eye has advanced non-exudative AMD and vision loss that is not reversible. Advanced nonexudative AMD is the specific stage of AMD that is the treatment target of RPE and/or photoreceptor cell regeneration using PSCs.

Genetic and environmental risk factors are implicated in dry AMD pathogenesis and its progression from the early to the advanced stage (7,8). Several clinical trials aiming to halt dry AMD progression are currently on-going (NCT03846193, NCT03144999, NCT04358471). Among the strategies under investigation is the reduction of excessive activation of complement by C3 inhibition, a shared component of all three complement activation pathways. No product has yet been approved for clinical use.

Once significant cellular loss has occurred, pharmacological strategies such as complement inhibition will not be effective in restoring vision because the lost cells cannot regenerate. PSC-based therapy may provide an avenue for treatment at this stage. Given the localized loss of RPE and photoreceptors in AMD, this retinal disease is a particularly attractive for stem cell-based therapies. Only a small focal area of cells in the macula needs to regenerate for visual restoration or improvement to occur.

Exudative or wet AMD, another form of advanced AMD, accounts for 10–15% of AMD cases (9). In exudative AMD, abnormal choroidal or subretinal neovascularization leads to vascular exudation and hemorrhage that compromise the function and viability of photoreceptor and RPE cells. The process is relatively acute. Although exudative AMD is associated with greater visual morbidity, the advent of intravitreal anti-vascular endothelial growth factor (VEGF) therapy has significantly improved functional outcomes for patients with exudative AMD (10,11). In general, if vascular exudation and hemorrhage is effectively halted using anti-VEGF therapy, then retinal cellular damage can be minimized.

STGD1

STGD1 is the most common cause of macular degeneration in children and young adults, with a prevalence of 1 in 8,000 to 1 in 10,000 people (12). STGD1 is an autosomal recessive disease caused by a mutation in the ATP-binding cassette subfamily A member 4 (ABCA4) gene (13). The ABCA4 protein is a transporter localized to rod and cone outer segment discs where it facilitates the transport of retinoids from the photoreceptors to the RPE cells (14). Mutations in ABCA4 results in the accumulation of toxic material within the RPE layer and decreased kinetics of the retinoid cycle (15). Subsequent degeneration of the RPE leads to the dysfunction and degeneration of the overlying photoreceptor layer (12). Similar to AMD, patients with STGD1 present with progressive central vision loss (16), albeit at a much younger age of onset. The hallmark clinical features of STGD1 are yellow pisiform flecks at the level of the RPE in the macula (17).

Gene therapy is being explored as therapy for STGD1. One issue that makes this disease challenging to address through gene therapy is the relatively large size of the ABCA4 gene that exceeds the carrying capacity of conventional adeno-associated virus (AAV) vectors (12). The AAV carrying capacity is considered to be limited to 4.7 kB. However, this size limitation appears not to be absolute. AAV serotype-dependent packaging of much larger cargo (up to approximately 8.9 kB of genome) has been shown to be effective for gene delivery in mouse models (18). Dual AAV vectors have been studied as a way to produce large gene reconstitution by trans-splicing and/ or homologous recombination (19). Lentiviral vectors, with a substantially larger carrying capacity than AAV, have also been used to deliver the ABCA4 gene therapeutically (20,21). Additional gene delivery techniques, including helper dependent adenoviral particles and nonviral DNA particles, may also support the delivery of large DNA material (22,23). Since gene therapy is not likely to replace the photoreceptors and RPE cells lost in advanced stages of this condition, this condition is also a target for PSC therapy.

RP

RP consists of a group of inherited retinal disorders with a prevalence of approximately 1 in 4,000 people worldwide (24). Patients typically present early in life, often in the first or second decade, with progressive loss of peripheral vision and night vision. Over time, RP progresses to central vision loss and blindness (2). The hallmark clinical findings for RP include peripheral bone spicules, optic disc pallor and attenuated retinal vessels (25). The condition is inherited but the transmission can be autosomal dominant, autosomal recessive, or X-linked recessive. To date, mutations in more than 80 different genes involved in phototransduction cascade, ciliary transport, and ciliary structure have been implicated in non-syndromic RP (25,26). These mutations result in the dysfunction and loss of photoreceptor cells, and dysfunction and intraretinal migration of RPE cells (25).

Significant progress has been made in gene supplementation for autosomal recessive and X-linked RP, and in RNA therapeutics and genome editing for autosomal dominant RP (27-29). Although gene therapy is an attractive therapeutic option, it is only effective in preserving or improving vision in patients without significant photoreceptor loss in the macula, and in the subset of cases in which the pathogenic mutation has been identified. As such, there is great interest in the use of PSC-derived photoreceptors in replacing the lost photoreceptors in RP in an effort to limit or reverse vision loss associated with RP (30).

In developing autologous PSC transplantation strategies for RP and other retinal disease targets, it is important to consider the presence of causative genetic mutations in the donor cells. Ex vivo gene therapy to correct the genetic defect in autologous donor cells prior to transplantation is a potential solution. This concept has been studied recently in a mouse model of RHO-related RP, wherein ex vivo minicircle DNA vector-based gene correction of allogeneic photoreceptor precursor cells prior to transplantation was shown to have similar long-term therapeutic efficiency as compared to AAV-based ex vivo correction (31,32).

Anatomy and cellular composition of the retina

The retina is a complex circuit of photoreceptors, neurons, and supporting cells, with the main function of encoding visual stimuli into neuronal signals. The retinal circuity consists of approximately 55 cell subtypes in five classes of neurons: photoreceptors, bipolar cells, retinal ganglion cells, horizontal cells, and amacrine cells (33). Briefly, light is projected through the cornea and lens onto the outer retina where it stimulates the rod and cone photoreceptor cells. These photoreceptors convert light into electrical signals that are transmitted to bipolar cells and subsequently ganglion cells through synapses (34). Additional retinal neurons, specifically amacrine and horizontal cells, modulate these signals. The different combinations of spatial and temporal signal patterns transmitted to groups of ganglion cells encode highly complex information such as motion and contrast (35). Ultimately, these signals provide the building blocks of visual information, which is further processed in the visual cortex (36).

Rod and cone photoreceptor cells are responsible for scotopic and photopic vision, respectively (37). Rods comprise 95% of all photoreceptors and are the predominant cell type in the peripheral retina, which is affected early in RP (38). The macula, which includes the fovea, contains the highest density of cone photoreceptors. AMD and STGD1 mainly affect the macula, although peripheral involvement can also be noted in both conditions (5). Both types of photoreceptors have outer segments containing opsins bound to retinaldehyde, which initiate the phototransduction cascade in response to photic stimuli. Due to their high metabolic demands, photoreceptors are particularly susceptible to stressors, including reactive oxygen species, and require close interactions with neighboring RPE cells for homeostatic maintenance (37).

RPE cells, normally organized as a monolayer of polarized cells located adjacent to the photoreceptor layer, are essential for supporting the nutritional, structural, and metabolic needs of photoreceptor cells (39). The RPE provides oxygen and glucose to the photoreceptors while transferring carbon dioxide and metabolic by-products from the photoreceptors to the choroid, and recycling photoreceptor outer segments (39). In addition, the RPE plays a role in maintaining the health of the underlying Bruch’s membrane and choroid through the secretion of angiogenic factors, cytokines and extracellular membrane proteins (40). RPE dysfunction and degeneration has been shown to precede photoreceptor damage in many retinal degenerative disorders, including AMD (41). Furthermore, unlike photoreceptors, synaptic integration of the RPE is not required for its functions. As such, the RPE is an attractive target for stem cell-based therapy.

The retina provides an excellent model system for the study of neuronal regeneration and cell replacement strategies. As described above, the retina consists of a well-defined synaptic network, as well as a non-synaptic layer, the RPE (33,39). RPE degeneration has been shown to be an integral component of the pathophysiology of several retinal diseases and is therefore an important and accessible therapeutic target (39). The sub-retinal space was also previously shown to support immune deviation by suppressing delayed-type hypersensitivity following delivery of histoincompatible cells or protein antigens (42). Imaging modalities, including optical coherence tomography (OCT), fluorescein angiography (FA), and fundus autofluorescence (FAF), combined with clinical assessments such as visual acuity, contrast sensitivity, microperimetry, and electrophysiology, enable clinicians to monitor therapeutic and adverse effects of retinal stem cell transplantation over time (43). Furthermore, single-cell imaging through evolving adaptive optics technology will likely allow clinicians to monitor transplanted cells (44) with high spatial resolution.

PSCs

PSCs have the potential to divide indefinitely and differentiate into any cell type. Human embryonic stem cells (hESCs) are derived from blastocysts and were the first PSCs used to produce RPE and photoreceptor cells (45). Another type of PSC, human iPSCs, are derived by transdifferentiation from somatic cells. This is achieved by introducing a specific set of pluripotency transcription factors: the Yamanaka factors (Oct3/4, Sox2, c-Myc and Klf4) or the Thompson factors (Oct4, Sox2, Nanog, and Lin28) (46,47).

If applied autologously, donor iPSCs will express the same histocompatibility antigens as the host, thus mitigating post-transplantation rejection (48). However, autologous iPSCs also carry the same genetic risk factors for the retinal disease being targeted by iPSC-based treatment (49). Gene editing technologies, including clustered regulatory interspaced short palindromic repeats (CRISPR) and CRISPR-associated protein-9 nuclease (Cas9), transcription activator-like effector nucleases (TALENs), and zinc-finger nucleases (ZFNs), provide tools for correcting the genome of autologous PSCs prior to transplantation (50,51). Furthermore, genome editing strategies targeting HLA genes may lead to the production of immunocompatible iPSC lines from healthy donors (52) for allogeneic therapy.

Stem cell technology was initially used to study disease mechanisms and test putative drugs (53). In recent years, the focus has shifted towards the regenerative treatment potential of PSCs through direct replacement of lost or damaged cells (54). Several studies using autologous RPE and choroid translocation have provided proof-of-concept data for transplantation-based therapies. These interventional case series and prospective studies describe structural and functional improvement in some patients with AMD, but also report adverse events including proliferative vitreoretinopathy (PVR) which can significantly impair vision (55-58). These studies also point to the need for careful patient selection, including those with adequate fixation stability, to optimize surgical benefits (57).

This review will focus specifically on PSC-derived RPE and photoreceptor cells, and their therapeutic application in degenerative retinal diseases (Figure 1). However, it is important to note that non-pluripotent stem cells, are also being studied. Bone marrow- or umbilical cord-derived mesenchymal stem cells function indirectly through the release of paracrine factors and exosomes (59). Fetal neural stem cells, which are derived from neuroectodermal cells, and lineage-committed retinal progenitor cells can differentiate into neural cells, including photoreceptors. For more information on mesenchymal stem cells and neural stem cells, the reader is referred to an insightful review by Canto-Soler and colleagues (60).

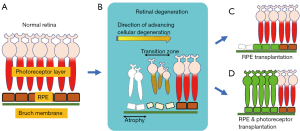

Figure 1 Photoreceptor and retinal pigment epithelium (RPE) replacement. (A) Normal retinal anatomy is characterized by a layer of photoreceptor cells positioned adjacent to the RPE layer that is supported by Bruch’s membrane. For simplicity, only one layer of photoreceptor cell nuclei is depicted. (B) In degenerative retinal diseases, the loss of photoreceptor and RPE cells occurs within areas of retinal atrophy. Atrophic areas typically expand in size over time. Transition zones occur at the boundaries between atrophic and non-atrophic areas, wherein photoreceptor cells exist that are only partially damaged. The partially damaged photoreceptors, with intact cell bodies, are thought to be amenable to functional repair provided that the RPE layer is replenished. Replenishment of the RPE layer is required to re-establish structural, metabolic, and nutritional support that photoreceptors normally require for survival and optimal function. (C) Transplantation of stem cell-derived RPE cells (green) into the transition zone could lead to functional reactivation of overlying photoreceptor cells. (D) Regeneration of photoreceptor cells within areas of atrophy will likely require transplantation of both photoreceptor and RPE cells (green), as RPE cells are critical for the long-term survival and function of photoreceptor cells.

The pre-transplantation stages of PSC preparation require differentiation into photoreceptor or RPE cells and subsequent validation of the target cell type structure and function. This is important not only for efficacy but also for safety concerns regarding these PSC-derived cells, particularly in terms of reducing the risk of teratoma formation from inadvertent transplantation of undifferentiated cells (61). Further work is needed to standardize these steps to improve the efficacy and safety of PSC-derived transplanted cells while optimizing their ability to integrate within the host retina. The safety of iPSC-derived transplants will be discussed later in this review.

RPE

The spontaneous differentiation of hESCs into RPE cells was first described in 2004 (45). Since then, several directed differentiation techniques have been used to produce hESC-derived RPE cells. These protocols have relied on several supplements including nicotinamide, activin A, transforming growth factor β (TGFβ), the nodal signaling inhibitor Lefty-A, and the Wnt signaling inhibitors casein kinase I inhibitor (CKI)-7 and dickkopf-related protein-1 (Dkk-1). Xeno-products have also been used to promote ESC differentiation to the neuro-ectoderm lineage and to committed RPE progenitors, which subsequently undergo maturation (43,62). More recent protocols have successfully used xeno-free conditions to derive RPE cells from both hESCs and iPSCs—an approach that avoids the risks and immunogenicity of animal pathogens (62-64). Furthermore, small molecules such as chemotin (an inhibitor of hypoxia-inducible factors), fibroblast growth factor antagonist (Y-27632), and nodal signaling inhibitor (SB431542), in conjunction with additional differentiation factors, have been used to differentiate human PSCs into RPE (65-67).

Interestingly, PSC-derived RPE cells have been shown to exert immunomodulatory effects in the subretinal space: they inhibit T cell activation, increase T cell apoptosis, and enhance secretion of certain anti-inflammatory cytokines (68,69). These effects are important to understand in the context of using PSC-derived RPE cells for therapeutic transplantation, as the expression of class I major histocompatibility complex (MHC) and β2-microglobulin are known to increase during the RPE differentiation process (70). The use of ‘superdonor’ iPS cell lines, those with HLA profiles that are a partial match to a portion of the population, may enable the development of several ‘superdonor’ therapeutic RPE cell lines for scalable therapy, thus providing an acceptable balance between immunogenic risk of allogeneic therapy and the cost concerns of autologous therapy (71,72).

Validation of RPE differentiation relies on in vitro assays demonstrating morphology, marker expression, monolayer integrity, polarization, and lastly, phagocytic activity similar to native RPE cells. The expression of RPE signature genes (genes for melanogenesis, channel proteins, tight junction proteins, visual cycle, phagocytic activity, and transporter activity, among others) in conjunction with the polarized expression of proteins, channels, and transporters are crucial RPE-specific requirements for validation (49).

Photoreceptor cells

The earliest transplantation studies into adult human retinas, which relied on fetal neural stem cells and retinal progenitor cells to replace photoreceptors, demonstrated the feasibility of stem cell transplantation within the retina but resulted in limited short-term improvements in visual acuity (73). The advent of hESC- and iPSC-derived photoreceptors have provided new therapeutic options for the treatment of retinal diseases with photoreceptor loss (43). Similar to RPE cells, stepwise differentiation protocols that recapitulate the normal differentiation of hESCs to retinal progenitor cells and subsequently to photoreceptors have been developed to produce mature hESC- and iPSC-derived rod and cone photoreceptors. These protocols require various factors such as Dkk-1 (Wnt inhibitor), Noggin (BMP inhibitor), Lefty (Nodal inhibitor), insulin-like growth factor-1 (IGF-1), retinoic acid, and taurine, among others, to generate mature photoreceptors. Several factors overlap with RPE differentiation protocols due to their shared lineage (74-76). Moreover, rod and cone photoreceptors share overlapping differentiation sequences. Taurine and retinoic acid promote differentiation into rod-restricted progenitors (77). Similar to RPE cells, xeno-free differentiation protocols for photoreceptors have also been developed (66). Furthermore, small molecule-based differentiation protocols, using Wnt inhibitor (IWR1), TGFβ inhibitor (SB431542), and BMP inhibitor (LDN193189), in addition to human recombinant protein IGF-1, have also been established for photoreceptor differentiation (78).

Validation of photoreceptor differentiation relies on in vitro assays demonstrating appropriate morphology and marker expression (76). However, photoreceptor cells have the added requirements of demonstrating synaptic integration within the retinal circuitry, interactions with the underlying RPE to maintain the photoreceptor outer segments, and functional responses to light stimuli. These features have been demonstrated successfully in several pre-clinical studies using animal models (43,75,79). Retinal organoids also provide an avenue to assess photoreceptor morphology and synaptic integration in an environment more akin to human retina (80).

Despite advances in photoreceptor differentiation protocols, several limitations to the use of hESC- and iPSC-derived photoreceptors remain. The yield for photoreceptor differentiation protocols is approximately 25–35% compared to 60–97% for RPE differentiation protocols (65,78). Microarray analysis of hESC-derived photoreceptors compared to native photoreceptors also indicate the presence of RPE contaminants, possibly due to shared developmental pathways (81). Moreover, transplantation of mature photoreceptors, which require longer culture periods, may be more successful than immature retinal cell transplants (82). The effect of host responses on graft survival and function is also an important consideration. Interestingly, intercellular exchange of materials has been demonstrated between host and donor photoreceptors (83,84). Although the molecular determinants of this intercellular materials exchange are not well-understood, it may provide additional therapeutic avenues in the future to protect surviving host photoreceptors from continued decline.

Cell delivery

The earliest pre-clinical and clinical studies used single-cell suspensions to deliver either photoreceptors or RPE cells. However, given the polarity and monolayer organization of RPE cells, RPE cell suspension delivery may result in the loss of cell polarity and affect cellular function. Moreover, there is a theoretical risk of epithelial-to-mesenchymal transition and abnormal RPE function and migration. These concerns have generated interest in the delivery of an RPE monolayer into the subretinal space. RPE cells can independently form sheets without a scaffold (70). These hESC-RPE cells in monolayers appear to survive longer and integrate more successfully with the overlying photoreceptors (63,85).

Scaffolds enable monolayer formation and therefore promote the correct polarity of, and tight junction formation between, RPE cells. Several types of extrinsic scaffolds have been studied, including polyethylene terephthalate (PET), parylene, collagen, poly lactic-co-glycolic acid (PLGA), and amniotic membranes, among others (86). In a pre-clinical study, hESC-derived RPE cells cultured on a parylene membrane and transplanted into rat eyes were shown to maintain polarization-dependent function, as evidenced by phagocytosis of photoreceptor outer segments. In this study, transplanted RPE cells were associated with improved photoreceptor survival (87). However, a meta-analysis of pre-clinical studies, which included several studies with RPE sheets, did not reveal a greater improvement in photoreceptor function as measured by electroretinography for transplanted RPE sheets compared to cell suspensions (88).

Single-cell suspensions can be delivered to the subretinal space either trans-vitreally (ab interno) or trans-sclerally (ab externo). The ab interno approach involves a vitrectomy, followed by a small retinotomy through which the cell suspension is injected into the subretinal space. The retinotomy can be made to be small and self-sealing. The ab externo approach typically involves a scleral cutdown and delivery of cells through the suprachoroidal space. To deliver RPE monolayers on a scaffold, a vitrectomy with a wider retinotomy is typically required due to the size of the delivered construct and the requirement to avoid its bending or curling. This larger retinotomy needs to be sealed with a laser and a tamponade agent must be injected to minimize the risk of a retinal detachment. As a result, this approach may be associated with greater risk of tissue damage and the need for additional surgeries based on the tamponade agent selected (43). Customized devices have been developed to deliver RPE-scaffold patches to ensure structural integrity and appropriate apical-basal orientation (89).

Retinal organoids

Organoids are “mini-organs”, generated from embryonicor induced PSCs. Organoids have been developed for several organs, including the liver, lung, and pancreas (90).In pioneering work, Eiraku and colleagues developed approaches to differentiate mouse ESCs into a 3D structure resembling a developing retina (91). Importantly, their follow-up work showed that human stem cells could be differentiated into human retinal organoids, providing a powerful system to study human developmental biology and a platform to develop organoid-based methods for transplantation and therapies (92). Additional studies showed that retinal organoids could be cultured into relatively advanced maturity stages in vitro (93-96).

A key focus in recent years has been the development of light-responsive, cone-rich retinal organoids that more closely recapitulate the cone-rich cellular composition of the human macula. These studies have provided insights into scalable methods to produce cells that could potentially be applied as therapy for macular degeneration, and thus have established human retinal organoids as a system to generate retinal tissue with distinct cone photoreceptor proportions through genetic and pharmacological manipulations (80,97,98).

Advances in transplantation of retinal organoids in mouse models suggest a huge potential for this system in future clinical therapies. In proof-of-principle transplantation studies in mice, PSC-derived retinal sheets including the retinal outer nuclear layer, which contains the photoreceptor cells, were implanted in the subretinal space of mouse models of retinal degeneration. The transplanted cells developed into mature photoreceptors associated closely with host RPE cells and synaptic maturation occurred (99). Since the RPE layer is frequently damaged in retinal disease targets including AMD, STGD1, and RP, further research on optimal methods to co-transplant photoreceptors together with the RPE layer is needed to achieve efficient regeneration of the damaged cells.

Clinical trials

RPE transplantation

In 2012, the first prospective clinical trial investigating ESC-derived RPE cells for the treatment of dry AMD (NCT01344993) and STGD1 (NCT01345006) was published reporting feasibility in two patients followed for four months (100). A larger Phase I/II study of 18 patients was published in 2015 (101). In this study, the participants with AMD were 55 years or older and those with STGD1 were 18 years or older. The study included only those patients with advanced disease and with BCVA of 20/400 or worse (in the worse vision cohort) and 20/100 or worse (in the better vision cohort). The area of geographic atrophy was 250 µm² or greater. Although there was no change in vision in the first four months following sub-retinal transplantation, there was also no evidence of hyperproliferation, tumorigenicity, or rejection. These ESC-derived RPE cells had similar safety profiles on medium- and long-term follow-up (101). Adverse events included cataract formation (4 of 19 eyes), endophthalmitis (1 eye), transient vitreous inflammation (1 eye), focal native RPE defects (1 eye), and mild epiretinal membrane (1 eye). Adverse events judged as being likely related to systemic immunosuppression included headache, gastrointestinal symptoms, fatigue, urinary tract infection, and shortness of breath (101). Three patients required cessation of one or more of the systemic immunosuppressive agents due to adverse events.

Interestingly, almost half of the patients showed improved long-term visual acuity and vision-related quality-of-life measures. However, one patient showed a worse visual outcome following transplantation and one patient developed endophthalmitis (101). It is important to note that only patients with advanced disease were included in this study, which likely contributed to the limited visual recovery.

In a more recent phase I/II clinical trial (NCT01469832), hESC-RPE cell suspensions were delivered in the sub-retinal space in 12 patients with STGD1. Patients were 18 years or older with BCVA of 20/400 or worse (102). There was no significant change in visual acuity in the subjects of this study. Focal areas of retinal thinning with reduced light sensitivity were noted, suggesting caution for stem cell-based therapy in patients who do not have advanced disease and are at risk of losing residual retinal tissue (102).

The safety and feasibility of hESC-RPE cells in treating AMD (NCT01674829) and STGD1 (NCT01625559) was also studied in four Asian patients. Patients with advanced dry AMD were 55 years or older with BCVA of 20/400 or worse and area of geographic atrophy of 250 µm² or greater. Patients with advanced STGD1 were 20 years or older with BCVA of 20/320 or worse. In both patient groups, visual acuity remained stable or improved in all patients. No evidence of tumorigenicity was noted (103). Similar safety results were observed in a more recent clinical trial of subretinal implantation of hESC-RPE cells and CNV membrane removal in three patients with wet AMD aged 60 years or older and with BCVA of 20/400 or worse (NCT02749734) (104).

In a phase I/II trial, Kashani et al. delivered hESC-RPE on a parylene substrate in patients with dry AMD (NCT02590692). Inclusion criteria for this trial were age 55 to 85 years, advanced geographic atrophy involving at least 1.25 mm² (greater than prior dry AMD clinical trials), and BCVA of 20/200 or worse in the first half of the study. Analysis of the first five subjects showed improved fixation. In one patient, significant improvement in vision was noted. OCT findings suggested a functioning overlying layer of photoreceptors, although definitive conclusions cannot be drawn without histological confirmation (89).

Phase I clinical trials have also investigated the safety and feasibility of RPE patch transplantation in the treatment of exudative AMD. In a study by da Cruz et al. (NCT01691261), a hESC-RPE monolayer grown on a PET scaffold was delivered in the sub-retinal space in patients with wet AMD aged 60 years or older. Preliminary data on the first two patients showed evidence of appropriate patch location and cell survival in the two patients. Furthermore, BCVA measured using the Early Treatment Diabetic Retinopathy Study (ETDRS) letter chart improved from 10 to 39 and 8 to 29 letters in the two patients during the one-year follow-up period (105). Complications included PVR-associated tractional retinal detachment under silicone oil in one patient (105).

iPSC-RPE cells grown as a monolayer were delivered in the subretinal space following neovascular membrane removal in a 77-year-old patient with neovascular AMD and BCVA worse than 20/200. At one year following transplantation, visual acuity remained unchanged and there was evidence of RPE survival without tumorigenicity. The second patient enrolled in this study did not undergo transplantation due to genetic mutations that were found in the iPSC-derived RPE cells in culture, emphasizing the importance of careful evaluation of genetic profiles prior to implantation (106). Specifically, the investigators found three copy number alterations (deletions), thought to affect the expression of deleted and flanking DNA sequences. The iPSC-derived RPE cells passed in vivo tumorigenicity testing. Nevertheless, these iPSCs were not transplanted due to concerns regarding the genetic integrity of these cells and also the patient’s moderate response to anti-VEGF injections (106).

Overall, the phase I/II studies to date suggest short-term safety and support the feasibility of subretinal hESC-RPE and iPSC-RPE transplantation for the treatment of advanced AMD and STGD1. At the time of writing this manuscript, there were no phase III clinical trials using hESC- or iPSC-derived RPE cells registered on Clinicaltrials.gov.

Photoreceptor transplantation

Most clinical trials to date addressing photoreceptor layer regeneration have focused on the transplantation of lineage-committed fetal retinal cells, and are reviewed in depth by Grob et al. (107). There are no published phase I/II clinical trials on PSC-derived photoreceptor transplantation for any disease indication at present. In pre-clinical studies, both immature and mature photoreceptors have been shown to integrate into the mouse retina with varying efficiency (108,109). In a mouse model of RP with areas of complete photoreceptor loss, photoreceptor transplantation resulted in improved visual function (109). These studies provide proof-of-principle to support the development of photoreceptor transplantation for patients with photoreceptor degeneration.

There is a relative lack of understanding on methods to promote synaptogenesis between transplanted photoreceptors and recipient bipolar cells. Several studies have explored the potential for synaptogenesis after photoreceptor transplantation, including strategies to increase the efficiency of donor photoreceptor neurite outgrowth by degrading extracellular matrix using chondroitinase ABC and modulating environmental light exposure (110,111). Recent work in preclinical xenotransplantation indicated that interspecies differences in essential triad ribbon synapse proteins may inhibit efficient synaptogenesis (112). Further research on the cues that govern photoreceptor neurite outgrowth and regenerative synaptogenesis with recipient bipolar cells will hopefully yield information on methods to promote efficient synaptic integration of PSC-derived photoreceptor cells.

Interestingly, retinal progenitor cell survival in vitro is increased when co-cultured with hESC-RPE cells. This is thought to be in part due to the high levels of pigment epithelium-derived factor (PEDF) secreted by mature, polarized hESC-RPE cells (113). Sequential or simultaneous delivery of PSC-derived RPE cells and photoreceptor cells may become a therapeutic option in the future (Figure 1D), although preclinical data on this specific combinatorial approach are not yet available. Moreover, current work on optimizing retinal organoids, that include photoreceptor and RPE cells, may enable simultaneous delivery of integrated and/or developmentally matched photoreceptor and RPE layers.

Current trials

Currently active clinical trials are phase I/II studies investigating PSC-derived RPE cell implantation in patients with geographic atrophy in non-neovascular AMD (NCT04339764, NCT02590692, NCT02286089, NCT03178149, and NCT02749734), neovascular AMD (NCT02749734), STGD1 (NCT02749734), and RP (NCT03944239 and NCT03963154) (Table 1). These studies include different delivery strategies, including single cell suspension delivery (NCT02286089, NCT03178149, NCT02749734, and NCT03944239), RPE monolayer delivery (NCT03963154), and RPE-plus-scaffold delivery (NCT04339764 and NCT02590692). As described in Clinicaltrials.gov, most of the trials involve RPE cells derived from hESCs. However, iPSC-derived RPE cells are being used in one clinical trial for geographic atrophy AMD (NCT04339764). Primary outcomes in these studies include visual acuity and adverse events. Additional testing included microperimetry, electroretinography (ERG), OCT, FA, and FAF to monitor the survival and function of the recipient photoreceptors. Several studies have also included adaptive optics, which enables single-cell imaging.

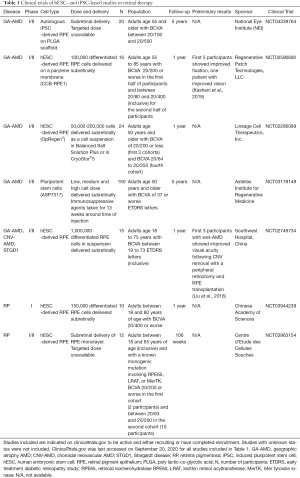

Table 1 Clinical trials of hESC- and iPSC-based studies in retinal therapy
Full table

Data on bone marrow stem cell- and retinal progenitor cell transplantation for RP have been published (30). Several other trials using neural progenitor cells or bone marrow-derived stem cells are currently ongoing for various retinal diseases. Neural precursor cell (NPC)-derived astrocytes (NCT04284293), which support neurons, and NPC-derived RPE (NCT03073733 and NCT02320812) are currently being investigated for the treatment of RP. Clinical trials using bone marrow-derived cells and other mesenchymal stem cells are currently on-going for a variety of retinal diseases including AMD and STGD1 (NCT01518127), RP (NCT02280135), central retinal vein occlusion (TRUST study), ischemic retinopathy (NCT01518842), macular holes (NCT03437759), and others (NCT03011541).

Safety and ethical considerations

Pay-for-service and regulatory oversight

Detailed pre-clinical studies and strong regulatory oversight are crucial to minimize the risks of adverse events such as severe vision loss. Patients have developed severe bilateral vision loss following bilateral autologous adipose tissue-derived stem cell transplantation in pay-for-service clinical studies that lacked regulatory oversight. In those cases, the cell product was marketed as “stem cells” but had not actually been characterized in depth in preclinical studies. Furthermore, these patients only had mild to moderate vision loss prior to the procedures (114). In contrast, the clinical trials described in this review typically included patients with severe vision loss, and the PSC-derived cells were administered unilaterally in the worse-seeing eye. This approach minimizes risk to the contralateral eye. The ethical challenges of patient selection have been described by Niemansburg et al., and ultimately require an individualized risk-benefit assessment for each patient (115).

Safety profile of PSC-derived cells

Pre-clinical validation of hESC- and iPSC-derived photoreceptors and RPE cells involves the assessment of cell purity, genomic stability, and tumorigenicity. The absence of pluripotency, early development, and non-epithelial gene expression, as well as the absence of cell proliferation markers must be confirmed prior to transplantation. Methodologies used to assess genomic stability and tumorigenicity include G-band karyotyping, whole genome/exome sequencing, genotyping array genomic, RNA-sequencing, DNA methylation analysis, and single-cell gene expression analysis (63). Immunofluorescence staining has been used to assess migration to other regions of the eye and other organs (63). Advances in techniques, including single-cell transcriptomics, will continue to improve the accuracy of validation of these cells (116). To date, there has not been any evidence of teratoma formation in the recipient eyes, nor of proliferation and migration of the transplanted hESC- and iPSC-derived retinal and RPE cells into other organs (117).

Surgical risks

Adverse effects related to the surgical techniques of sub-retinal delivery of PSC-derived cells have been reported, representing a key challenge for the safe and effective translation of retinal cell therapy. Patients can develop PVR and epiretinal membranes, which may worsen visual acuity (43). Other complications resulting in severe vision loss have included retinal detachment, endophthalmitis, and suprachoroidal hemorrhage (117). Less severe complications associated with vitrectomies have included choroidal detachment, vitreous hemorrhage, macular edema, glaucoma, and retinal tears, among others (118). Systemic immunosuppression carries risks that may be particularly concerning in elderly AMD patients. It is essential to consider these adverse events in the individualized risks and benefits assessment for each patient.

Conclusions

PSC-derived RPE and photoreceptor cell transplantation provide promising treatment options for retinal diseases such as AMD, STGD1, and RP, among others. Phase I/II clinical trials have demonstrated the safety and feasibility of the subretinal implantation of PSC-derived cells in a small number of patients. Further work on standardized pre-implantation validation and safety assessment of PSC-derived cells, and optimization of surgical delivery, will facilitate progress towards phase III clinical trials.

Acknowledgments

Funding: RJJ: NIH R01 EY025598 and R01 EY030872. MSS: Foundation Fighting Blindness Career Development Award CD-RM-0918-0749-JHU, The Hartwell Foundation, and The Joseph Albert Hekimian Fund.

Footnote

Provenance and Peer Review: This article was commissioned by the Guest Editor (Susanna S. Park) for the series “Novel Tools and Therapies for Ocular Regeneration” published in Annals of Translational Medicine. The article has undergone external peer review.

Reporting Checklist: The authors have completed the Narrative Review reporting checklist. Available at https://dx.doi.org/10.21037/atm-20-4747

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/atm-20-4747). The series “Novel Tools and Therapies for Ocular Regeneration” was commissioned by the editorial office without any funding or sponsorship. Dr. MSS has a patent on Retinal cell delivery technology. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
