Identification of novel prognostic genes of triple-negative breast cancer using meta-analysis and weighted gene co-expressed network analysis
Introduction
Triple-negative breast cancer (TNBC) is a subtype of breast cancers that lacks expression of estrogen receptor (ER), progesterone receptor (PR), and human epidermal growth factor receptor type 2 (HER2) (1). Although TNBC only accounts for about 15–20% of all breast cancers, it is more aggressive than other subtypes of breast cancers (2). Moreover, TNBC patients have high rates of metastasis and recurrence, especially within the first 5 years after diagnosis (1,2). All these unfavorable factors collectively lead to poor prognosis of TNBC patients. Unfortunately, due to lack of expression of hormone receptors (ER and PR) and HER2, conventional hormone therapy (e.g., tamoxifen) and anti-HER2 antibody therapy (e.g., trastuzumab) are ineffective for TNBC. Surgery combined with chemotherapy and radiotherapy is still the most commonly used clinical therapeutic strategy for TNBC (3). Hence, it is urgent to identify biomarkers of TNBC, which would be beneficial for TNBC early detection, prediction of prognosis, and development of TNBC targeted drugs.
With the prevalence of microarray technologies, efforts were devoted to identifying the TNBC-sensitive and specific signatures (4,5). Although microarray-based studies are informative, some studies reported that the results of single microarray analyses were not reproducible or not robust (6,7). Meta-analysis is a statistical technique that includes multiple studies to yield a more precise and reliable evaluation of differentially expressed genes (DEGs) (8). The weighted gene co-expressed network analysis (WGCNA) has been proven as an effective method to group genes that have similar expression patterns into a model related to the desired traits (9). These two bioinformatics methods have been commonly applied to identify interested gene sets.
In this study, an integrated analysis was applied to 5 independent datasets of TNBC and non-TNBC samples, which identified 361 dysregulated genes. The protein and protein interaction (PPI) network was subsequently employed to seek the hub genes. WGCNA was used to seek highly correlated genes among modules that correlated to TNBC, which may share important biological regulatory roles. A panoramic view of molecular mechanisms related to TNBC was obtained through using a series of functional annotations including Gene Ontology (GO) analysis and Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis. Finally, identification of potential prognostic molecules was achieved based on patients’ clinical survival data and candidate genes in both analyses. Our study not only provides promising therapeutic and prognostic targets of TNBC, but also promotes understanding of the molecular mechanisms of TNBC. We present the following article in accordance with the MDAR reporting checklist (available at http://dx.doi.org/10.21037/atm-20-5989).
Methods
Identification of DEGs and hub genes in PPI network
Gene expression profile datasets that met the inclusion criteria were retrieved from the Gene Expression Omnibus (GEO; http://www.ncbi.nlm.nih.gov/geo/) database. The inclusion criteria included: (I) mRNA expression profiling by array of homo sapiens; (II) tissue samples from TNBC and other kinds of breast cancer; (III) number of samples >15. Five microarray datasets containing 63 TNBC samples and 169 non-TNBC samples were collected (Table 1), including GSE27447, GSE36295, GSE61724, GSE43358, and GSE75678. The raw data (CEL files) of the first four datasets were downloaded followed by background correction, normalization, and median polish summarization with the Robust Multichip Average algorithm analysis (10). The normalized data (txt files) of the dataset GSE75678 was also downloaded. The probe IDs were converted to official gene symbols according to the annotation files. The probes without mapped genes were discarded while the average expression value of the multiple probes mapped to the identical gene was obtained.
Full table
After merging 5 datasets and filtering non-expressed and non-informative genes, quality control (QC) was carried out to determine whether a study should be included or excluded by using the MetaQC package (11), which provided six QC measurements: (I) internal homogeneity of co-expression structure among studies (IQC); (II) external consistency of co-expression structure correlating with a pathway database (EQC); (III) accuracy of DEG detection (AQCg) or pathway identification (AQCp); (IV) consistency of differential expression ranking of genes (CQCg) or pathways (CQCp). The MetaDE.ES method was adopted to identify DEGs (12). Firstly, the heterogeneity test which was used to determine gene expression differentiation among various datasets indicated no heterogeneity with the thresholds: Q P value (Qpval) >0.05 and τ2=0. Secondly, genes with a false discovery rate (FDR) <0.01 were considered as DEGs between TNBC and non-TNBC.
The gene interactions of humans in the Human Protein Reference Database (www.hprd.org/, HPRD Release 9) and Biological General Repository for Interaction Datasets (thebiogrid.org/, BioGRID Version 3.5.165) were downloaded (13,14). The interactions of identified DEGs based on these two databases were subjected to Cytoscape 3.6.1 for visualization (15). In the PPI network, “nodes” represented proteins, and “edges” represented the interactions between two proteins. “Degree” described the quantitative relationship of edges between different nodes. That is, a gene with more degrees implies more important roles in biological processes.
WGCNA analysis of hub genes
Firstly, Gene expression data of all breast cancer samples were downloaded from The Cancer Genome Atlas (TCGA; https://cancergenome.nih.gov/). TCGA level 3 expression data of breast cancer and corresponding trait information including 1,090 samples (https://cdn.amegroups.cn/static/public/10.21037atm-20-5989-1.docx) were used as input. Outlier samples were removed, and missing values were filtered. A matrix of similarity was constructed according to Pearson’s correlation coefficient among all genes. The soft threshold parameter which satisfied the scale-free co-expression network relationship was set to 4. Secondly, the topological overlap matrix was transformed from the adjacency matrix, and the corresponding dissimilarity was calculating to identity hierarchical clustering genes through the dynamics cut tree algorithms. Different modules eigenvectors (MEs) were achieved to merge modules with high similarity at the height cut of 0.75. The relevance between modules and clinical traits (TNBC and other molecular subtypes of breast cancers) was shown with heatmap to figure out modules most closely associated with TNBC. Gene significance (GS) was defined to measure the correlation between the gene and the trait, and another term named module membership (MM) was used to quantify the correlation of the MEs and the gene expression profile. Hub genes in the key modules were defined by high MM and GS, i.e., genes in the key modules with MM >0.8 and GS >0.2 were selected for further analysis. WGCNA was implemented by the WGCNA package in R (16).
Functional analysis of gene sets
To investigate the biological roles of gene sets obtained from meta-analysis and WGCNA in TNBC, KEGG pathway enrichment, and GO enrichment analysis which represented 3 categories including Biological Process (BP), Molecular Function (MF), and Cellular Component (CC) were performed. GO analysis and pathway analysis of DEGs were based on online website DAVID (https://david.ncifcrf.gov/) and KOBAS 3.0 (http://kobas.cbi.pku.edu.cn/), respectively. Additionally, functional analysis of key modules was performed by using the clusterProfiler package in R (17).
Survival analysis
To screen prognostic signatures, the critical genes obtained from meta-analysis and WGCNA were selected for survival analysis, which was performed based on TCGA gene expression and clinical information. Kaplan-Meier survival curves were plotted by the “survival” package in R to show the relationship between overall survival (OS) and gene expression level. The log-rank test was used to generate P values. Genes with a threshold of P<0.05 were considered to have a significant difference during patients’ survival time.
Statistical analysis
All analyses were performed using R (version 3.6), online website DAVID and KOBAS 3.0. The DEGs were identified by combining effect sizes in the meta-analysis. The functional analysis was conducted using the hypergeometric test. The survival analysis was performed by the log-rank test. P<0.05 was considered as statistically significant in all analyses except for the meta-analysis, which adopted FDR <0.01.
Results
Quality assessment and DEGs screening
The results of QC are listed in Table 2. All datasets were included for further analysis as all datasets satisfied the selection criteria, i.e., datasets with good performance in at least 5 QC measures. Using the metaDE.ES method, 361 DEGs between TNBC and non-TNBC samples were identified with the screening criteria: Qpval >0.05, τ2=0, and FDR <0.01, including 146 up-regulated genes and 215 down-regulated genes (https://cdn.amegroups.cn/static/public/10.21037atm-20-5989-2.docx).
Full table
Hub genes in PPI network

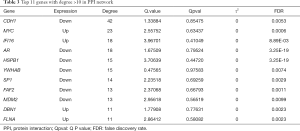

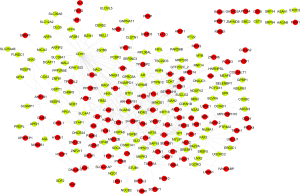

After mapping 361 DEGs into the PPI database, the PPI network comprised of 222 nodes and 375 edges was constructed (Figure 1). According to network analysis, 11 genes with degree >10 were listed in Table 3.
Full table
TNBC-associated modules and hub genes in WGCNA

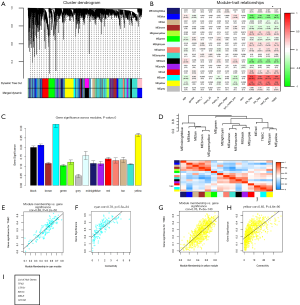

As shown in Figure 2A, 16 modules were identified by average linkage hierarchical clustering based on expression values of 19,641 genes. Genes in the grey module were excluded as it contained genes that were not able to be clustered into other modules. At the height cut of 0.75, the blue module and pink module were grouped into the blue module. The black module and magenta module were grouped into the black module. As a result, 14 modules were achieved eventually. Next, we correlated genes and modules with clinical features. Based on the correlation between ME and clinical traits shown in the heatmap (Figure 2B), we found cyan module (r=0.64, P=1e-121) and yellow module (r=0.56, P=7e-85) were significantly positively associated with TNBC. Apart from this, the correlation between ME and ER-, PR-, HER2--breast cancers roughly showed a consistent tendency with TNBC. Comparing GS in each module, the results showed that cyan and yellow modules had the strongest correlation with TNBC (Figure 2C). The cluster analysis and heatmap shown in Figure 2D further strengthened the evidence that these two modules were highly related to TNBC. For each gene in these two modules, GS, MM, and intramodule connectivity (KME) were calculated to draw scatterplots, respectively. It was obvious that GS was highly positively connected with MM in the cyan module (Figure 2E), while genes with high GS had relative lower KME in the cyan module (Figure 2F). GS was also highly positively correlated to MM in the yellow module (Figure 2G), but genes with high GS had higher KME in the yellow module (Figure 2H). Hub genes in the yellow modules were TPX2, CTPS1, KIF2C, MELK, and CDCA8 (Figure 2I), while no hub genes with GS >0.2 and MM >0.8 were found in the cyan module.
Functional analysis of interesting gene sets

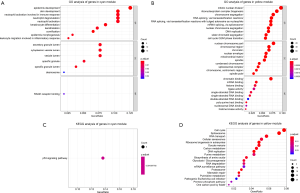

KEGG pathway enrichment and GO enrichment were performed for DEGs and genes in TNBC-associated modules (Figure 3, https://cdn.amegroups.cn/static/public/10.21037atm-20-5989-3.docx, https://cdn.amegroups.cn/static/public/10.21037atm-20-5989-4.docx). The top BP enrichment GO terms of DEGs were negative regulation of apoptotic process, establishment of protein localization, and protein transport. The top 3 enriched pathways of DEGs were PI3K-Akt signaling pathway, metabolic pathways, and protein processing in endoplasmic reticulum (Table 4).
Full table
For the cyan module, epidermis development, specific granule lumen, and RAGE receptor binding were most significantly enriched in BP, CC, and MF, respectively (https://cdn.amegroups.cn/static/public/10.21037atm-20-5989-5.docx, Figure 3A). Only the p53 signaling pathway was enriched in the cyan module (Figure 3C, Table S1). For the yellow module, mitotic nuclear division, chromosomal region, and chromatin binding were most significantly enriched in BP, CC, and MF, respectively (https://cdn.amegroups.cn/static/public/10.21037atm-20-5989-7.docx, Figure 3B). Cell cycle, DNA replication, and spliceosome were the top 3 most significantly enriched pathways in the yellow module (https://cdn.amegroups.cn/static/public/10.21037atm-20-5989-8.docx, Figure 3D).

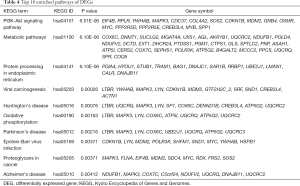

Comparing the pathways in DEGs and yellow module, cell cycle, oocyte meiosis, spliceosome, and pathogenic Escherichia coli infection were identified as enriched pathways in both processes.
Prognosis-related genes revealed by survival analysis
According to survival analyses of hub genes in the PPI network and yellow module, we noticed that three key molecules (HSPB1, TPX2, and IFI16) can predict TNBC patients’ survival time (Figure 4). High expression of HSPB1 was associated with worse OS in TNBC patients (Figure 4A), while low expressions of TPX2 (Figure 4B) and IFI16 (Figure 4C) lead to worse OS in TNBC patients.
Discussion
Application of two different bioinformatics methods including meta-analysis and WGCNA ensured successful identification of novel therapeutic and prognostic biomarkers for TNBC. PPI network analysis showed 11 DEGs with top degrees (CDH1, SP1, MYC, FAF2, IFI16, MDM2, AR, DBN1, HSPB1, FLNA, and YWHAB) may play central roles in TNBC. Meanwhile, hub genes (TPX2, CTPS1, KIF2C, MELK, and CDCA8) in the yellow module of WGCNA may also be crucial for TNBC.
Among these genes, CDH1, MYC, AR, and MELK have been reported highly related to TNBC. CDH1, as a tumor suppressor gene, encodes E-cadherin protein, which is considered as a promising TNBC marker (18). CDH1-promoter demethylation could induce de novo E-cadherin expression, suppressing invasion, and metastasis of epithelial tumors (19). Disproportionately increased expression of oncogenic transcription factor MYC was observed in TNBC compared with ER, PR, and HER2 receptor-positive breast cancer (20). Many studies indicated that MYC contributed to cell proliferation and malignant transformation by promoting the expression of cell cycle related genes (21,22). MYC overexpression combining with inactivity of tumor suppressor pathway related to p53 may lead to aberrant tumor growth in TNBC (21). AR, a member of the steroid hormone receptor family, is expressed in the majority of breast carcinoma. The research revealed that tumorigenesis and proliferative change in breast cancer cell lines would occur due to AR dysregulation (23). MELK is a mitotically regulated kinase that could mediate cell survival under metabolic stress. Studies have shown that MELK was overexpressed in basal-like breast cancer and TNBC, which makes MELK a vital target of TNBC (24,25).
In this study, we identified three key genes (HSPB1, TPX2, and IFI16) that were related to the prognosis of TNBC, which had never been reported in previous studies. Contrary to their expression in the meta-analysis, higher expression of HSPB1 and lower expression of IFI16 predicted worse OS in TNBC. HSPB1 is a kind of small heat shock protein involved in some cell death pathways like necrosis, apoptosis, or autophagy to protect cells from lethality. Overexpression of HSPB1 was associated with increased tumorigenicity, tumor cells metastasis, and chemotherapeutic resistance (26). It was reported that high expression of HSPB1 was associated with worse overall survival of breast cancer in general (27), while the relationship between the expression level of HSPB1 and prognosis of breast cancer subtypes is unknown. Our study demonstrated that the upregulation of HSPB1 was related to the poor prognosis of TNBC. IFI16 is considered as a nuclear pathogen sensor that participates in the innate immune response by sensing foreign DNA (28,29). Our study showed low expression of TPX2 contributed to worse OS in TNBC. TPX2 is a tubule-associated protein. According to the GO analysis, TPX2 may play an essential role in mitotic nuclear division, cell cycle G2/M phase transition, and other cell cycle-related biological processes.
In order to reveal the underlying molecular mechanisms, pathway enrichment analysis was performed, and the results indicated that cell cycle, oocyte meiosis, spliceosome, and pathogenic Escherichia coli infection had a strong association with TNBC. The first 2 pathways were closely associated with cell growth and death, which were supported by the expression of genes related to proliferation like MYC, IFI16, AR, MDM2, FLNA, MELK, and CDCA8.
In conclusion, our integrated analysis of microarray combined with WGCNA provided promising therapeutic targets for TNBC. Survival analysis uncovered novel prognostic relationships of candidate genes and the overall survival of TNBC patients. Additionally, HSPB1, TPX2, and IFI16 have the potential to be used as prognostic biomarkers of TNBC. Our work identified the TNBC-related candidate genes and provided new insights into the underlying mechanisms of TNBC, which is beneficial for improving the outcome of TNBC.
Acknowledgments
Funding: This work was supported by the State Key Laboratory of Chemical Oncogenomics, Technology R & D Funds of Shenzhen, China (Grant No. GJHZ20170314164935502), and Shenzhen Bay Laboratory, Shenzhen, China.
Footnote
Reporting Checklist: The authors have completed the MDAR reporting checklist (available at http://dx.doi.org/10.21037/atm-20-5989).
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-20-5989). The authors have no conflicts of interests to declare.
Ethical Statement: The authors are for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
