Ultrasound-targeted microbubble destruction-mediated Ang1 gene transfection improves left ventricular structural and sympathetic nerve remodeling in canines with myocardial infarction

Introduction

Cardiac resynchronization therapy (CRT) is an important treatment modality following heart failure. CRT can coordinate contractions in all left ventricular (LV) segments, reducing valve reflux, increasing cardiac output per stroke, restoring cardiac electromechanical synchronization, reversing LV remodeling and improving heart failure symptoms. However, approximately 30% of patients receiving CRT have no response, and widespread CRT implementation is difficult due to its high technical requirements, cost, invasion, and radioactivity (1). Therefore, new methods are being explored to treat heart failure, improve LV synchronization and enhance heart systolic function. As a convenient, non-invasive, and radiation-free diagnosis and treatment modality, ultrasound has attracted increasing attention. Pre- and postoperative evaluation of synchrony and follow-up after CRT could be guided by echocardiography. However, as a new type of non-viral vector gene transfection, some progress has been made with research on ultrasound-targeted microbubble destruction (UTMD)-mediated exogenous gene transfection for the treatment of heart failure caused by myocardial infarction (MI), confirming that this method can promote angiogenesis, reduce myocardial fibrosis, and improve systolic function (2,3). The mechanism may be that UTMD promotes an increase in cell membrane permeability, which allows the exogenous genes or drugs to enter the cell (4-6).

Furthermore, studies have also confirmed that two-dimensional speckle-tracking echocardiography (2DSTE) technology can be used to evaluate the synchrony of cardiac motion. The LV wall can be divided into 6 parts: the anterior wall, anterior interventricular septum, posterior interventricular septum, lateral wall, inferior wall, and posterior wall. Each LV wall can be further divided into 3 segments: the basal segment, middle segment and apical segment. 2DSTE can be used to analyze the strain and strain rate of different segments for local systolic function. The standard deviation and the maximum difference of all segments’ longitudinal strain were used as indicators to assess global systolic synchronicity. The previous studies were conducted from the perspective of structural reconstruction (7-9). In addition to structural reconstruction, sympathetic nerve reconstruction also showed important changes following heart failure. There are only a few published studies on cardiac sympathetic nerve reconstruction following UTMD treatment; therefore, the present study aimed to determine whether UTMD-mediated angiopoietin 1 (Ang1) gene transfection can improve angiogenesis and potentially reverse LV structural and sympathetic nerve remodeling in canines with MI.

UTMD-mediated Ang1 transfection was used to adjust neovascularization and neural fiber density around the infarcted myocardium in dogs. First, the UTMD-mediated transfection method was designed and performed to improve LV structural and sympathetic nerve remodeling, and then 2DSTE was used to evaluate the beneficial effects on myocardial synchrony and analyze the possible mechanisms. Our study provides a new non-invasive evaluation and treatment modality option for selected CRT non-responsive or refractory heart failure patients. We present the following article in accordance with the ARRIVE reporting checklist (available at http://dx.doi.org/10.21037/atm-20-839).

Methods

Animals and the MI model

Thirty adult male dogs (15–21 kg) were provided by the Animal Centre of Wuhan University (Wuhan, China). Experiments were performed under a project license (NO.: WDRM20150706) granted by the Ethical Committee of Renmin Hospital of Wuhan University, in compliance with the Guide for the Care and Use of Laboratory Animals.

All dogs were anesthetized before being intubated via the intramuscular administration of ketamine (100 mg/kg), followed by an intravenous injection of pentobarbital sodium (30 mg/kg; additional doses of 4 mg/kg were administered when necessary). The dogs were ventilated with ambient air supplemented with oxygen using a respirator (MAO01746; Harvard Apparatus, Holliston, MA, USA), and monitored with 12-lead electrocardiography (ECG). Cardiac catheterization was performed using a Philips FD20 Cath Lab Fluoroscopy Unit (Philips, Andover, MA, USA). A 6.0-Fr sheath was inserted from the right femoral artery. The dogs were systemically anticoagulated with 1,000 IU heparin. A 6.0-Fr angiographic catheter (TERUMO Radifocus OPTITORQUE, Tokyo, Japan) was introduced to select coronary angiograms of the left coronary artery. A 0.014-inch coronary guide wire (TERUMO Runthrough NS, Tokyo, Japan) was inserted beyond the second diagonal branch of the left anterior descending coronary artery. The guide wire was removed when the 1.8-Fr. coronary microguide catheter (TERUMO Finecross MG, Tokyo, Japan) accessed to the site. Left anterior descending coronary artery occlusion was then immediately achieved via an endoluminal injection of 150–350 µm gelatin sponge particles (Alicon Pharm Sci & Tec, Hangzhou, China). Finally, metoprolol (5 mg/kg) and lignocaine (3 mg/kg) boluses were administered. The MI model was considered successful if significant ST-segment elevation was observed on ECG, and if the second coronary angiography confirmed ischemia in the embolism area (Figure 1).

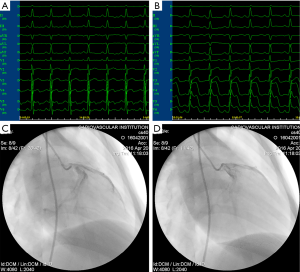

Figure 1 Process of establishing myocardial infarction model. (A) electrocardiogram before myocardial infarction (MI) modeling. (B) electrocardiogram after MI modeling; ST segment is elevated. (C) Coronary angiogram of left anterior descending coronary artery before establishing the MI model. (D) Coronary angiogram of left anterior descending coronary artery after establishing the MI model. Second coronary angiography confirmed ischemia in the embolism area.

Plasmid construction

The negative control plasmid vector sequence was CMV-MCS-SV40-neomycin, with XhoI/KpnI as the cloning sites. The cloning of Ang1 primers were as follows: 5'- TACCGGACTCAGATCTCGAGCGCCACCATGACAGTTTTCCTTTCCTTTG-3' (forward) and 5'-GATCCCGGGCCCGCGGTACCGTAAAATCTAAAGGTCGAATC ATC-3' (reverse). The plasmids were amplified in Escherichia coli and isolated with the Wizard Maxiprep DNA Purification System (Promega, Madison, WI, USA). The concentration of the Ang1 plasmid was 0.5 mg/mL.

Preparation of microbubbles

The preparation of microbubbles followed a previously described method (10). SonoVue contrast agent (Bracco, Geneva, Switzerland) lyophilized powder was reconstituted with 5 mL 0.9% sodium chloride solution. A suspension containing approximately 2.0×10⁸ microbubbles/mL was obtained after vigorous oscillation. The microbubbles were encapsulated by a phospholipid monolayer and filled with sulfur hexafluoride gas (diameter: 2.0–5.0 µm). The plasmid was then added to the microbubble suspension at 1: 1 and mixed for 2 h at 4 °C. The resulting upper layer consisted of microbubbles with attached plasmids; the bottom layer, which contained unattached plasmids, was discarded. The concentration of microbubbles with attached plasmids was approximately 1.5×10⁸/mL, the mean size was 2.4–7.0 µm, and the plasmid suspension concentration was 0.25 mg/mL.

UTMD-mediated Ang1 gene transfection

Thirty dogs were randomly divided into three groups. Random sequence software was used to generate a set of random sequence numbers from 1 to 30. Each dog was assigned a random sequence number, divided by 3, and then grouped by the remainder. Dogs with the remainder of 1 entered the MI group (n=10, containing MI dogs without UTMD treatment), dogs with the remainder of 2 entered the UTMD group (n=10, containing MI dogs subjected to UTMD-mediated negative control plasmid treatment), and dogs with the remainder of 0 entered the UTMD-Ang1 group (n=10, containing MI dogs subjected to UTMD-mediated Ang1 plasmid treatment). A total of 2 mL microbubble suspension containing plasmids was injected via the elbow vein during ultrasound irradiation at an injection rate of 0.2 mL/min. The treatments were performed 24 h after the MI model was established. Insonation was performed in the heart region using an ultrasound gene transfection instrument with a 1-cm-diameter transducer (Institute of Ultrasound Imaging of Chongqing Medical University, Chongqing, China). The ultrasound exposure involved intermittent continuous-wave irradiation for 10 s with 10-s intervals for a total of 20 min at 300 kHz and 2 W/cm².

Echocardiography and LV systolic synchrony analysis by 2DSTE

Transthoracic echocardiography was performed with a GE Vivid Q portable ultrasound machine (Vista, CA, USA) and an M4S-RS probe (frequency 2.0–3.5 MHz). Dynamic images of the parietal LV long axis and apical 4-chamber, 3-chamber, and 2-chamber sections were collected routinely in 5 consecutive cardiac cycles. The LV end-diastolic diameter (LVEDD) and LV end-systolic diameter (LVESD), interventricular septum thickness (IVS), LV posterior wall thickness (LVPW), and fractional shortening (FS) were measured in M-mode; the LV ejection fraction (LVEF) was calculated using Simpson’s biplane method.

2DSTE technology with an EchoPac clinical workstation was used for the LV systolic synchrony analysis. The boundary between the inner and outer myocardial membrane was drawn and identified according to the software. Changes in the longitudinal strain (S_mid and S_base) and strain rate (SR_mid and SR_base) of the LV segment (middle segment of the anterior and anteroseptal wall) and the adjacent segment (basal segment of the anterior and anteroseptal wall) were observed to evaluate the improvement in LV local systolic function. The standard deviation of all segments’ longitudinal strain (LS_sd) and the maximum difference of the longitudinal strain of all segments (LS_dif) were used as indicators to assess the global systolic synchronicity.

Immunohistochemistry for quantifying the microvessels and sympathetic nerve fibers

On day 30 following MI, paraffin-embedded cryosections of the infarcted myocardium were used to determine the expression levels of CD31 (BS0468R; Beijing Biosynthesis Biotechnology, Beijing, China) and α-smooth muscle actin (α-SMA; GB13036; Wuhan Goodbio Technology, Wuhan, China) and to evaluate the quantities of capillaries and arterioles by fluorescence microscopy. Tyrosine hydroxylase (TH) (AB93291; Abcam, Cambridge, UK) and growth-associated protein 43 (GAP43) (BS-0154R; BIOSS, MA, USA) were used to determine sympathetic nerve distribution and density. The 5 visual fields with the highest targeted tissue distribution were used to obtain the mean expression levels. Image-Pro Plus software was used to quantify the microvessels and nerve fibers.

Western blot analysis

The infarcted myocardial tissues were collected, and the Ang1, sarcoplasmic reticulum Ca²⁺-ATPase 2a (SERCA2a), and phospholamban (PLB) proteins were extracted and then separated via 10% sodium dodecyl sulfate-polyacrylamide gel electrophoresis according to previously described standard procedures (11). The separated proteins were transferred to polyvinylidene fluoride membranes and incubated with primary antibodies (Abcam Inc., Cambridge, MA, USA) at a 1:1,000 dilution overnight at 4 °C. The membrane was then blocked with 10% skimmed milk at room temperature for 1 h, and the appropriate secondary antibodies were used at a 1:3,000 dilution for 1 h at room temperature. The proteins were detected via chemiluminescence, quantified by densitometry using Scion Image software (Scion, Frederick, MD, USA), and then normalized glyceraldehyde-3-phosphate dehydrogenase (GAPDH) as a loading control.

Blood sampling

Venous blood samples were collected in ice-chilled tubes coated with ethylenediaminetetraacetic acid (EDTA; BD Vacutainer K2E; BD Diagnostics, NJ, USA) on the day before MI and day 1, 7, and 30 following MI. The plasma was separated by centrifugation at 3,000 rpm for 10 min at 4 °C and stored at −80 °C until assayed. Norepinephrine (NE) and N-terminal pro-B-type-natriuretic peptide (NT-proBNP) concentrations were determined with a radioimmunoassay kit from the American Laboratory Products Company (Salem, NH, USA) according to the manufacturer’s procedure.

Statistical analysis

SPSS version 19.0 (SPSS, Armonk, NY, USA) was used. All measurement data are expressed as mean ± standard deviation. ImageJ software was used to quantify the results of histochemical staining. Normality tests and homogeneity of variance tests were performed for all data. One-way analysis of variance was used if the data exhibited a normal distribution and homogeneity of variance. After a statistically significant difference was identified, the least significant difference (LSD) method was used for intergroup comparisons. The Kruskal-Wallis H test (rank sum test) was used in cases of non-normal distribution or unequal variance. P<0.05 indicated statistical significance.

Results

Survival rates of the three groups of dogs

In the MI group, 3 dogs died and 7 dogs survived after the MI model was established. In the UTMD group and the UTMD-Ang1 group, 2 dogs died, and 8 dogs survived. The survival rates showed no significant difference among the groups.

Analysis of conventional and echocardiographic parameters

There were no significant differences in body mass, heart rate, or LVPW among the three groups (P>0.05). Compared with the MI group, the UTMD-Ang1 group exhibited increased LVEDD and LVESD values and decreased IVS, LVEF, and FS values (all P<0.05, Table 1).

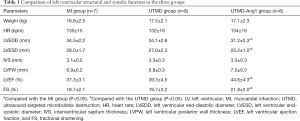

Table 1 Comparison of left ventricular structural and systolic function in the three groups
Full table

Analysis of myocardial synchrony parameters

Local systolic function indexes, S_mid and SR_mid, and overall synchrony parameters, LS_sd and LS_dif, were significantly different among the three groups (P<0.05). Contraction movement in the MI group was more asynchronous, while local contraction was enhanced and global synchronization was improved in the UTMD and UTMD-Ang1 groups (P<0.05). There were no significant differences in S_base or SR_base among the three groups (P>0.05) (Table 2 and Figure 2).

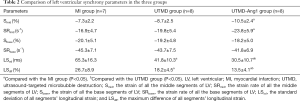

Table 2 Comparison of left ventricular synchrony parameters in the three groups
Full table

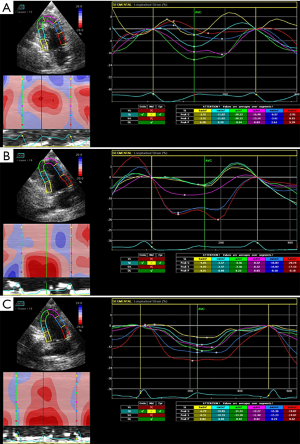

Figure 2 Two-dimensional speckle tracking echocardiography showed the left ventricular longitudinal strain curve of the apical 2-chamber section view. (A) All segments were disordered in motion in the myocardial infarction (MI) group, and the peak time was significantly different, suggesting that the myocardial motion is not in synchronization. (B) Coordination of each segment’s peak time was slightly improved in the ultrasound-targeted microbubble destruction (UTMD) group. (C) Synchronization of each segment was significantly improved and tended to be consistent following UTMD-Ang1 treatment.

Analysis of the density of neovessels around the MI area

CD31 and α-SMA immunohistochemical staining showed that the density of capillaries in the MI group was lower than that in the UTMD group, while the density in the UTMD-Ang1 group was significantly higher than that in the UTMD group (P<0.05) (Figure 3).

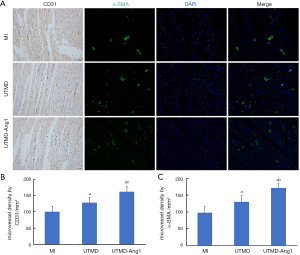

Figure 3 Analysis of the density of neovessels around the myocardial infarction (MI) area. (A) Brown indicates the vascular endothelium with CD31, and green indicates the vascular endothelium with α-smooth muscle actin (α-SMA) (×200, scale bar =50 μm). Nucleus showing 4’,6’-diamidino-2-phenylindole dihydrochloride (DAPI) staining (blue). Merge was composed by α-SMA and DAPI. (B,C) Comparison of the blood vessels density in the three groups based on CD31 and α-SMA. ^aCompared with the MI group (P<0.05). ^bCompared with the ultrasound-targeted microbubble destruction (UTMD) group (P<0.05).

Analysis of the density of peripheral nerve fibers around the MI area

Compared with the MI group, the UTMD-Ang1 group exhibited a significantly lower density of TH- and GAP43-costained sympathetic nerve fibers in the area surrounding the infarcted myocardium (P<0.05) (Figure 4).

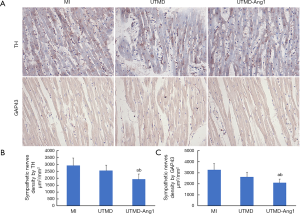

Figure 4 Analysis of the density of sympathetic nerve fibers around the myocardial infarction (MI) area. (A) Brown indicates the nerver fibers with tyrosine hydroxylase (TH) or growth-associated protein 43 (GAP43) (×200, scale bar =50 μm). (B, C) Comparison of the nerver fibers density in the three groups based on TH and GAP43. ^aCompared with the MI group (P<0.05). ^bCompared with the ultrasound-targeted microbubble destruction (UTMD) group (P<0.05).

Analysis of Ang1 and key Ca²⁺ homeostasis-related proteins by Western blot

Western blot showed that Ang1 and SERCA2a protein levels were significantly higher in the UTMD-Ang1 group than the MI and UTMD groups (P<0.05). In contrast, PLB levels were higher in the MI group and lowered in the UTMD-Ang1 group compared with the UTMD group (P<0.05) (Figure 5).

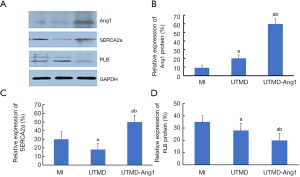

Figure 5 Analysis of proteins by Western blot. (A) protein bands of Ang1, sarcoplasmic reticulum Ca²⁺-ATPase 2a (SERCA2a), phospholamban (PLB) and glyceraldehyde-3-phosphate dehydrogenase (GAPDH) revealed by Western blot. (B-D) Comparison of proteins in the three groups. GAPDH normalized the results. ^aCompared with the myocardial infarction (MI) group (P<0.05). ^bCompared with the ultrasound-targeted microbubble destruction (UTMD) group (P<0.05).

Analysis of plasma NE and NT-proBNP levels

Plasma NE and NT-proBNP levels were increased from day 1 to 30 following MI. However, the UTMD-Ang1 group exhibited significantly reduced plasma NE and NT-proBNP levels compared with the MI and UTMD groups (P<0.05) (Figure 6).

Figure 6 Analysis of plasma norepinephrine (NE) and N-terminal pro-B-type-natriuretic peptide (NT-proBNP) levels. NE and NT-proBNP levels were detected at different times before and after myocardial infarction (MI). ^aCompared with the MI group (P<0.05). ^bCompared with the ultrasound-targeted microbubble destruction (UTMD) group (P<0.05).

Discussion

During heart failure, all LV segments and walls between the left and right ventricles are often not synchrony, leading to cardiac hemodynamic disorders. In particular, a lack of coordination in LV segments’ movement results in ineffective contractions, decreased LV stroke volume, and increased residual blood volume at the end of systole, aggravating heart failure. In 2014, the European Society of Cardiology guidelines for the diagnosis and treatment of heart failure placed strict restrictions on CRT indications for patients, but the high non-response rate for CRT persisted (12). However, new methods are being explored to treat heart failure, improve LV synchronization, and enhance heart systolic function. Some progress has been made in research on UTMD-mediated exogenous gene transfection to treat refractory heart failure by promoting the increase in cell membrane permeability, allowing the exogenous genes to enter the cell for transfection (4,6). For example, Fujii et al. found that non-invasive UTMD successfully targets stem cell growth factor and stromal cell-derived factor genes in the infarcted myocardia of mice, increases the density of blood vessels, improves myocardial perfusion, and enhances LV systolic function (13). This is mainly due to the cavitation effect of UTMD, which could promote the increase in cell membrane permeability and allow exogenous genes or drugs to enter the cell (4-6). Therefore, non-invasive UTMD is an important method to promote angiogenesis after MI.

Ang1, a growth factor peptide that plays an important role in angiogenesis, can effectively promote the proliferation, differentiation and migration of vascular endothelial cells and mediate intercellular adhesion to form new microvascular lumens (14). Rufaihah et al. used a combination of vascular endothelial growth factor and Ang1 to treat heart failure caused by acute MI in rats and found that combining these factors could significantly improve angiogenesis and LV systolic function (15). We found that UTMD could successfully mediate Ang1 gene transfection for rabbits with MI in our previous study (16). In the present study, UTMD-mediated Ang1 gene transfection was further proven to promote angiogenesis and improve systolic function effectively.

It has been proven that 2DSTE can be used to evaluate the synchronization of the heart (7-9). 2DSTE can also distinguish the degree of strain in the endocardium or epicardium after myocardial ischemia, and can also be used to evaluate synchrony in dogs (17,18). In the present study, there were statistically significant differences in the local and total strain and synchrony parameters before and after MI treatment, possibly because myocyte ischemia, hypoxia, edema, and necrosis after MI and metabolic dysfunction impaired local myocardial systolic function and extended the time to peak strain in the corresponding myocardial segment, therefore causing asynchronous contractions. After UTMD-mediated Ang1 transfection, angiogenesis was induced, and blood supply to the myocardium might have been partially restored. The contractility of the myocardial segment was correspondingly enhanced, and LV synchronization was improved.

Myocardial contractility is closely related to the roles of SERCA2a and PLB, which are key Ca²⁺ movement proteins that regulate myocardial excitation-contraction coupling. SERCA2a plays a critical role in regulating cytoplasmic Ca²⁺ concentrations. When PLB is dephosphorylated, it binds to SERCA2a to form a complex, reducing the affinity of SERCA2a for Ca²⁺ ions. When PLB is phosphorylated, the complex dissociates, and its affinity for Ca²⁺ ions increases (19). Ischemia and hypoxia in myocardial cells decrease the expression of the SERCA2a protein and the phosphorylation of PLB in heart failure patients, impairing Ca²⁺ pump function and leading to myocardial contraction dysfunction. When large numbers of angiogenic events occur, the oxygen supply to myocardial cells improves, SERCA2a protein expression and PLB phosphorylation levels increase, pump function recovers, the systolic ability is enhanced and synchronicity is improved. Similarly, Cordero-Reyes et al., who studied molecular and cellular correlates of LV systolic and diastolic function with 2DSTE, revealed that SERCA2a plays an important role in improving the systolic function of myocardial cells (20). Other studies have suggested that therapeutic ultrasound could enhance the opening of Ca²⁺ channels on the endothelial cell membrane and increase intracellular Ca²⁺ concentrations (21,22). In the present study, the combined effects of the increases in key proteins related to Ca²⁺ homeostasis and the concentrations of Ca²⁺ led to enhanced contractility of myocardial cells in the peripheral area of infarction, significantly improving LV synchronization and the LV global systolic function.

Structural remodeling is the basis of chronic heart failure after MI. To assess the degree of sympathetic nerve remodeling, sympathetic nerve growth activity and distribution after MI can be evaluated through immunohistochemical determination of the density of TH and GAP43 staining in myocardial tissue (23). TH is a rate-limiting enzyme synthesized by sympathetic cytoplasmic catecholamines that can be used as a marker to detect the distribution of mature sympathetic nerves. GAP43 is a specific protein synthesized by the cell bodies of neurons in the axons, where neurons grow outwardly during development. GAP43-positive staining density reflects the growth of nerve fibers, and GAP43 expression is low in mature neurons; therefore, it can be used as a marker of nerve damage and repair. The combination of GAP43 and TH can reflect neural development and regeneration. Local autonomic nerve damage occurs in the context of MI. A reaction involving nerve repair of nervous sheath cells and excessive axon regeneration occurs, especially surrounding the infarcted area. Increased sympathetic nerve activity following MI can promote LV remodeling, while sympathetic activity inhibition can improve cardiac function and reverse remodeling (24).

In our study, TH and GAP43 expression was upregulated in the peripheral area in the MI group, suggesting obvious nerve fiber regeneration. In contrast, the expression of TH and GAP43 in the UTMD-Ang1 group decreased, likely for two reasons. First, UTMD-Ang1 targeted therapy can promote angiogenesis, reduce excessive nerve fiber regeneration, and reverse nerve remodeling after MI by improving the microenvironment, inhibiting the expression of inflammatory factors, and enhancing the self-repair ability of nerve cells (3,25). Second, ultrasonic irradiation can directly stimulate nerve fiber cells and directly regulate central nervous system and peripheral neuron function through thermal and mechanical effects (26); therefore, it can regulate nerve fiber activity to change the physiological functions of specific regions. Also, increases in plasma NE levels and cardiac sympathetic nerve activity can induce myocardial remodeling (27), and the extent to which plasma NE concentrations are elevated correlates directly with the severity of LV dysfunction (28,29). Evidence suggests that patients with high levels of NT-proBNP are at higher risk of LV remodeling (30). In our study, UTMD-Ang1 decreased plasma NE and NT-proBNP levels. In other words, UTMD-Ang1 can be used to adjust nerve remodeling concerning the number and activity of nerve fibers.

Limitations

First, due to laboratory limitations, isolated perfusion of large animals’ hearts was not implemented, and Ca²⁺ in the sarcoplasmic reticulum of cardiomyocytes was not directly detected; the analysis of Ca²⁺ concentrations could have more directly reflected the excitation-contraction coupling activity of cardiomyocytes. Second, therapeutic ultrasound can increase intracellular Ca²⁺ concentrations, but the underlying mechanism by which ultrasound irradiation changes Ca²⁺ concentrations in the sarcoplasmic reticulum of cardiomyocytes is still not clear, and further studies are needed. Aside from structural and nervous remodeling, the effect of electromechanical coupling of myocardial contractions on synchronization has not been studied. However, electromechanical coupling plays an important role in the excitation-contraction coupling of cardiomyocytes.

Conclusions

UTMD-mediated Ang1 gene transfection can promote peripheral angiogenesis in the infarcted myocardium, reverse LV structural and nervous remodeling, and improve synchronization. These effects may be related to the expression of the key Ca²⁺ homeostasis-related proteins SERCA2a and PLB, and the nerve fiber proteins, TH and GAP43.
