A nomogram to predict the incidence of permanent stoma in elderly patients with rectal cancer

Introduction

Following rectal cancer surgery, between 1.6% and 20.5% of patients develop anastomotic leakage (AL) (1-4). Stoma was created to decrease the clinical level of AL. The choice between ileostomy and colostomy is controversial as patients who undergo ileostomy have a higher rate of stoma high flow output complications, while colostomy patients may have more stoma-related complications (1). However, ileostomy is more commonly performed clinically (5). Stoma reversal surgery is usually performed within 2–3 months after diverting stoma surgery (6). However, 6.1–27.5% (7-13) of patients fail to achieve stoma reversal, which eventually becomes a permanent stoma (PS). The continued existence of stoma may alter bowel habits, and could ultimately led to stoma-related complications including stoma hernia, stoma bleeding, stoma prolapse, dehydration, and electrolyte disorders (14,15). Numerous studies (4,8,16-18) investigating the risk factors for PS have found that comorbidities, surgical complications, and tumor recurrence were commonly associated with PS (17).

The rate of stoma closure in elderly rectal cancer patients is lower than that of younger patients, which generally occurs because the elderly population is more likely to suffer from stoma-related complications, comorbidities, poor general condition, and poor anorectal function (19). At present, there are only a few studies that focus on the reversal of diverting ileostomy for rectal cancer patients (5,20-23). Thus, in this study, we evaluated the risk factors for developing PS in elderly patients aged 70 years and older and also this is the first time to report.

A nomogram is a statistical tool used for predicting clinical outcomes (24). Due to the practicality and convenience of its application, several nomograms have been developed to predict the prognosis in various cancers (24-26). Accordingly, a nomogram would help clinicians to predict the possibility of permanent diverting stoma for rectal cancer patients. Furthermore, prior studies only focused on predictors of PS after temporary stoma (TS) for patients of all ages (4,6,8-10,17). In our study, we assessed the incidence of PS, identified independent risk factors, and constructed a predictive nomogram for elderly rectal cancer patients. The highlights of our study are that firstly, the research focus on the elderly patients, secondly, we pay attention to the situation of the un-reversal stoma after rectal cancer surgery which is related to the quality of life, and thirdly the clinician can find out the risk factors of permanent stoma and help solve clinical problems.

We present the following article in accordance with the TRIPOD reporting checklist (available at http://dx.doi.org/10.21037/atm-21-29).

Methods

Patients

We retrospectively collected the clinical data of elderly patients (≥70 years old) with histologically confirmed rectal cancer who underwent tumor resection with diverting stoma between January 2014 and December 2018 at our hospital. The patients were divided into two groups according to the reversal of the stoma: a TS group and a PS group. The classification and pathological tumor node metastasis (TNM) staging were determined according to the American Joint Committee on Cancer (AJCC) guidelines (27). The timing of stoma reversal was determined by the clinical symptoms as well as findings from computed tomography (CT), magnetic resonance imaging (MRI), colonoscopy, and maximal squeeze pressure of the anus.

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Institutional review board statement: this study was reviewed and approved by the Ethics Committee of The Sixth Affiliated Hospital, Sun Yat-sen University (No. 2020ZSLYEC-078). Individual consent for this retrospective analysis was waived.

Definition of stoma and follow-up

The TS group comprised patients who received stoma reversal within 1 year after rectal cancer surgery. A PS was defined as a diverting stoma that failed to have a reversal procedure follow-up for at least 1 year (8,12). Postoperative follow-up occurred every 3 months for 1 year. The main follow-up measures were as follows: general condition of the patient (mental condition, working condition, height, and body weight), stoma condition (stoma skin condition, stoma height, stoma-related complications), and anorectal function (daily frequency of defecation, shape of stool).

Data comparison between TS and PS groups

The following demographic data were collected and analyzed: age, sex, comorbidity, body mass index (BMI), American Society of Anesthesiologists (ASA) score, preoperative hemoglobin (Hb), preoperative albumin (ALB), neoadjuvant therapy, surgical method (laparoscopy vs. open surgery), adjuvant therapy, metastasis, distance from anal margin, AL, type of stoma, anastomosis method (stapler vs. hand-sewn), and tumor recurrence.

Statistical analysis

Measurement data were expressed as the mean ± standard deviation (SD) or median (minimum, maximum). Mann-Whitney rank sum tests or t-tests were used to compare the measurement data between the groups. IBM SPSS (version 25.0 for Windows; SPSS, Chicago, IL, USA) was used for logistic regressions to analyze the univariate and multivariate factors for PS. Variables with a P value <0.1 in the univariate analysis were selected for the multivariable model using logistic regression. The value (<1) of the factors was the risk factor in the forest plots, which were constructed using GraphPad Prism (version 7 for Windows; GraphPad Software, CA, USA).

The nomogram was validated internally through 1,000 bootstrap resampling to calculate the estimated Harrell concordance index (C-index), thus indicating the performance of the model (27). In addition, we calibrated the nomogram using a calibration plot, which is a graphical representation of the relationship between the actual observed frequency and the predicted probability. The predictive performance of the nomogram was evaluated using the area under the receiver operating characteristic (ROC) curve (AUC) value. Differences were considered statistically significant when P<0.05.

Results

Patients

As shown in Figure 1, 279 patients underwent rectal cancer surgery with diverting stoma between January 2014 and December 2018. One patient who underwent abdominoperineal resection was excluded from the study. Of the remaining patients, 220 (79.14%) underwent stoma reversal, and 20.86% of the patients with diverting stoma failed to receive reversal surgery within 1 year after primary surgery. Ileostomy and colostomy were performed for 50 (86.21%) and 8 (13.79%) patients in the PS group, respectively. The mean follow-up time was 40 months.

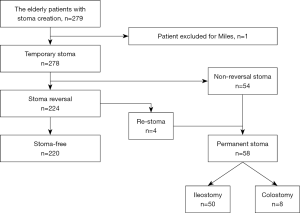

Figure 1 Flowchart detailing the selection of the patients in this study.

The differences between the TS and PS groups are presented in Table 1. The TS group had a mean age of 73.79 years, and 147 (66.82%) patients were male. The mean age in the PS group was 74.50 years, and 46 (79.31%) patients were male. The proportion of males in the PS group was significantly higher than that of the TS group (P=0.048). Laparoscopic surgery was performed in 209 (95.00%) patients in the TS group and 41 (70.69%) patients in the PS group (P<0.001). The percentage of AL was notably lower in the TS group (n=8, 3.64%) compared with the PS group (n=22, 37.93%, P<0.001). Furthermore, the preoperative ASA scores were markedly higher in the PS group (P<0.001). The rate of tumor recurrence and metastasis were also considerably higher in PS group (20.69% vs. 4.55%, P=0.004; 18.97% vs. 8.18%, P=0.031, respectively).

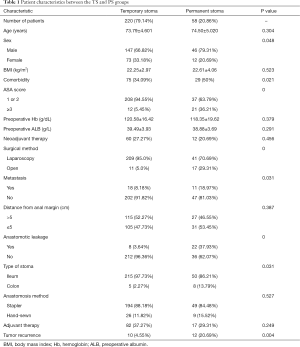

Table 1 Patient characteristics between the TS and PS groups
Full table

Univariate and multivariate logistic regression analysis

We assessed the risk factors for PS via univariate and multivariate analyses (Table 2). Univariate analysis showed that sex, comorbidity, surgical method, ASA score, AL, metastasis, and tumor recurrence were associated with PS. Multivariate analysis showed that ASA score (≥3) [hazard ratio (HR): 0.139, 95% confidence interval (CI): 0.049–0.398, P<0.001], laparotomy (HR: 0.209, 95% CI: 0.073–0.599, P=0.004), AL (HR: 0.069, 95% CI: 0.024–0.197, P<0.001), and tumor recurrence (HR: 0.139, 95% CI: 0.047–0.417, P<0.001) were independent risk factors for PS. On the basis of these results, we developed a forest plot that was consistent with the results of the multivariate analysis (Figure 2).

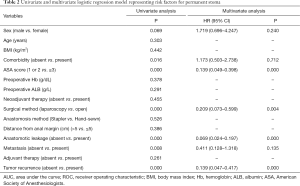

Table 2 Univariate and multivariate logistic regression model representing risk factors for permanent stoma
Full table

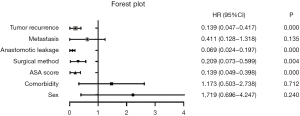

Figure 2 Forest plot.

Nomogram development

We developed a nomogram to predict the risk of PS using the four aforementioned independent factors (Figure 3). Using this nomogram, we could easily calculate the probability of PS. ROC analysis showed that the nomogram had considerable predictive potential. The AUC value of this model was 0.833 (Figure 4A), which was higher than that of any single factor (ASA score =0.654, tumor recurrence =0.589, surgical method =0.622, and AL =0.671). We plotted the sum of each variable on the total point axis and obtained an estimated PS rate by drawing a vertical line from the drawn total point axis down to the result axis. The calibration curves between the predicted and actual observations internal validation demonstrated that the model was close to the ideal state, indicating good calibration (Figure 4B). The C-index value of this model was 0.833, indicating moderate predictive ability for the risk of PS.

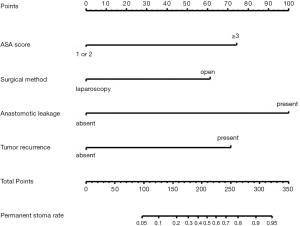

Figure 3 Nomogram for predicting permanent stoma (C-index: 0.833) after creation of a diverting stoma during rectal cancer surgery. The permanent stoma rate was estimated by adding the scores of anastomotic leakage, surgical method, ASA score, and tumor recurrence. ASA, American Society of Anesthesiologists.

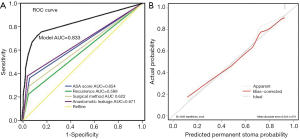

Figure 4 Using the independent factors to developed ROC curve and a calibration curve. (A) ROC curve for the nomogram; AUC was 0.833 (95% CI =0.762–0.903). (B) Nomogram calibration curve. The y‐axis represents the actual probability of PS. The x‐axis represents the predicted PS probability. The ideal line represents a perfect prediction model. The apparent line represents the performance of the nomogram, and a close fit to the ideal line represents a good prediction. AUC, area under the curve; ROC, receiver operating characteristic.

Discussion

For patients with a high risk of AL following rectal cancer surgery, clinicians will consider performing diverting ileostomy or colostomy. However, there is currently no unified standard for selecting the appropriate procedure during rectal cancer surgery. Colostomy is usually employed during emergency surgeries, advanced tumor stages, and Hartman surgeries, which have high rates of mortality and morbidity (28), and results in a high incidence of PS (22). Overall, ileostomy is more commonly performed clinically (5). The reported incidence of irreversible stoma following rectal cancer surgery is 6.1–27.5% (7-13). Elderly patients who undergo rectal cancer surgery typically have a higher incidence of AL due to poor ASA scores (29) and comorbidities (30). Moreover, only a few studies have investigated the risk factors of PS in elderly patients following rectal cancer surgery. Therefore, we assessed the incidence and risk factors of PS in elderly patients with rectal cancer. In this study, 58 (20.86%) patients had PS during the follow-up period.

Risk factors for permanent stoma

Kim et al. (17) found that the incidence of PS was 25.0% and that distance from tumor to anal margin was the only risk factor for PS in patients with rectal cancer. In our study, PS developed in 58/278 (20.86%) patients with rectal cancer, which included 54 patients in whom stoma was created during initial surgery and four patients who underwent re-stoma after stoma reversal. Postoperative AL was a common and severe complication in patients with rectal cancer, especially low and ultra-low rectal cancer, causing poor postoperative recovery, longer hospital stays, anorectal dysfunction, and even death (17). It has been reported that tumor recurrence and AL were common independent risk factors for PS (12). Zhou et al. (4) performed a meta-analysis of 10 studies with 8,568 rectal cancer patients. They found that rate of PS was 19%, and that older age (P<0.001), ASA score >2 (P<0.001), comorbidities (P<0.001), surgical complications (P<0.001), AL (P<0.001), stage IV tumor (P<0.001), and local tumor recurrence (P<0.001) were risk factors for PS. Mak et al. (18) focused on patients who underwent anterior resection for ultra-low rectal cancer and found that the 5- and 10-year cumulative incidence of PS was 24.1% and 28.0%, respectively. Patients with advanced cancer, adjuvant chemoradiotherapy, AL, and tumor recurrence were susceptible to PS. We focused on elderly patients, and found that AL, open surgery, ASA score (≥3), and tumor recurrence were independent risk factors for PS. Thus, the most common causes of PS were AL and local tumor recurrence, which was consistent with previous study.

Surgical method

Zheng et al. (2) found that laparoscopic surgery reduced the incidence of AL compared with open surgery. Our study showed that the proportion of laparoscopic surgery was higher in the TS group compared with the PS group. In fact, the incidence of comorbidities was higher in elderly patients with rectal cancer, thus making it difficult to decide between laparoscopic surgery and open surgery for these patients (31). Compared with open surgery, laparoscopy surgery has the advantages of superior intraperitoneal field of vision and better protection for the abdominal wall. Furthermore, it has been reported that laparoscopic surgery is associated with a lower probability of stoma-related postoperative complications (1). Lewis et al. (32) studied the incidence of long-term stoma from a 6-year series of laparoscopic surgery in low rectal cancer and found that the rate of PS was lower than that of open surgery, which was consistent with the results of this study. We found that open surgery was a risk factor for PS, which could be explained by the fact that patients who had open surgery may have been more complicated, had previous surgeries, or had more distant tumors. Elderly patients had a higher frequency of comorbidities, because they were more likely to present with advanced tumors and complications, such as obstruction and perforation, which requires emergency surgery. There is a substantial body of evidence demonstrating that laparoscopic rectal cancer surgery could be performed safely in elderly patients without a significant increase in morbidity or mortality.

ASA score and choice of stoma

Compared to younger patients, elderly patients typically have a poorer ASA score. Although previous studies have assessed the risk factors for PS, only a few of these studies focused on elderly patients. The ASA score is a convenient method for assessing the degree of surgical risk and performance status of patients because it summarizes multiple patient characteristics, which are related to the patient’s physical condition and age (31). Indeed, patients in our study with poor ASA scores had higher incidences of cardiovascular disease, diabetes, and other comorbidities. A recent study (33) showed that patients in a poor condition (ASA score ≥3), elderly patients, and patients with advanced rectal cancer were more likely to develop PS, which is consistent with our findings.

Compared with other age cohorts, and due to the condition and particular comorbidities of elderly patients, diverting stoma in elderly patients are more likely to become PS. Moreover, patients who undergo ileostomy commonly have high-output complications postoperatively (6). A long history of ileostomy could also cause dehydration or renal insufficiency and affect quality of life, especially in elderly patients. Thus, we recommend that clinicians consider colostomy or Hartman surgery instead of ileostomy for elderly patients who have poor ASA scores.

Nomogram

Finally, a nomogram was developed to predict the risk of PS after rectal cancer surgery with diverting stoma for elderly patients using the four above-mentioned independent factors. At present, only a few predictive models of PS for elderly patients with rectal cancer have been published. The C-index of our nomogram was 0.833 >0.7, which indicated moderate predictive ability, and was higher than the result reported by Abe et al. (C-index =0.612) (23), whose study focused on the rate of stoma-reversal and was not aimed at elderly patients. The AUC of our model (0.833) was higher than that of any single factor (ASA score: 0.654; tumor recurrence: 0.589; surgical method: 0.622; and AL: 0.671), indicating that this model was more authentic. It can be used to assist with individualized therapy in the following ways. For elderly patients with a poor ASA score (≥3), open surgery and a high incidence of AL, and tumor recurrence after surgery, the rate of PS will be more than 0.9. For patients with a high rate of PS, a permanent colostomy can be considered as an alternative to with permanent ileostomy.

This study had several limitations that should be noted. Firstly, our study did not collect data regarding the quality of life of patients with or without PS. Secondly, we did not include the data of manometric parameters, which was important for evaluating anorectal function. Thirdly, due to a lack of definitive criteria for determining stoma creation and reversal, the preferences of clinicians and will of patients strongly affected the determination of stoma reversal. Furthermore, being a retrospective study, selection bias with regards to the type of procedure may present another limitation. Lastly, this was a single-center study with a small sample size, and thus, it would be useful to evaluate the effectiveness of our nomogram with more cases.

Conclusions

We found that open surgery, ASA score, AL, and tumor recurrence were independent risk factors for predicting PS in elderly patients following rectal cancer surgery. The nomogram developed in our study had moderate predictive ability and is a practical and promising tool that may help clinicians identify factors that affect the risk of PS in elderly patients following diverting stoma during rectal cancer surgery.

Acknowledgments

The authors thank AiMi Academic Services (www.aimieditor.com) and A. Kassem for English language editing and review services.

Funding: This work was supported by the Science and Technology Program of Guangzhou (201803010074).

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at http://dx.doi.org/10.21037/atm-21-29

Data Sharing Statement: Available at http://dx.doi.org/10.21037/atm-21-29

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/atm-21-29). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013), and was approved by institutional ethics board of The Sixth Affiliated Hospital, Sun Yat-sen University (No. 2020ZSLYEC-078). Individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
